Model Whirlpool CAW10C1A1 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - SECTION
02 - SECTION
03 - SECTION
04 - SECTION

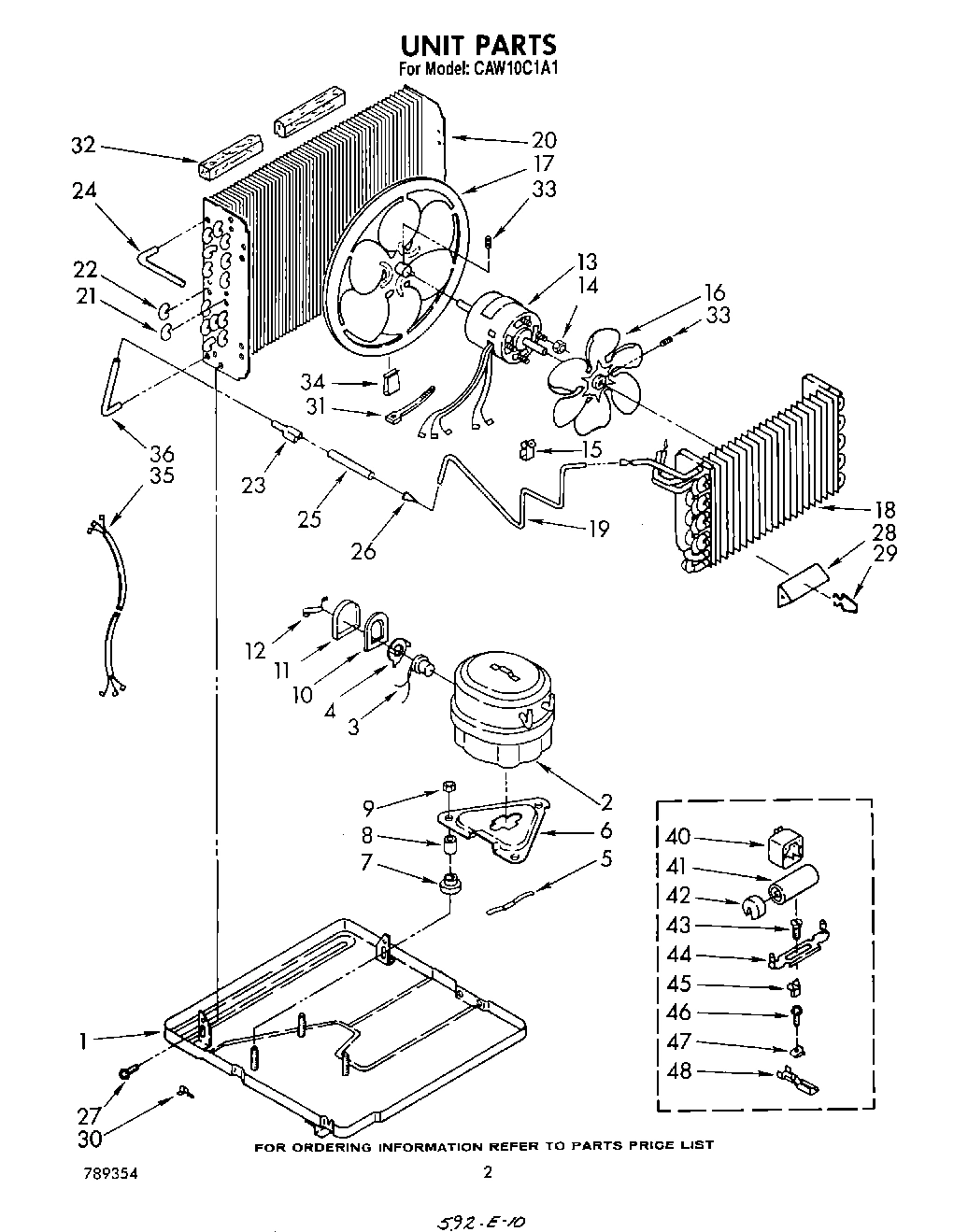

Common parts from model Whirlpool CAW10C1A1 ROOM AIR CONDITIONER
WPL LIT789354 WPL LIT789354 Contact Us For Availability
WPL LIT952616 WPL LIT952616 Contact Us For Availability
WPL LIT953076 WPL LIT953076 Contact Us For Availability
WPL LIT953083 WPL LIT953083 Contact Us For Availability
1
Clip, Cabinet Front Mounting (2) WPL 949634 Contact Us For Availability
2
Wall, Dividing (Requires Insulation Part No. WPL 951968 Contact Us For Availability
2
WPL 949594 WPL 949594 Contact Us For Availability
3
WPL 950931 WPL 950931 Contact Us For Availability
4
Bracket, Running Capacitor WPL 475844 Contact Us For Availability
4
WPL 856989 WPL 856989 Contact Us For Availability
5
Channel, Top Mounting WPL 993786 Contact Us For Availability
6
Screen, Exhaust Door WPL 856929 Contact Us For Availability
7
WPL 644209 WPL 644209 Contact Us For Availability
7
Housing, Curtain (R.S.) WPL 855572 Contact Us For Availability
7
Housing, Curtain L.S. WPL 855573 Contact Us For Availability
8
Arm, Exhaust Door WPL 856042 Contact Us For Availability
8
WPL 947160 WPL 947160 Contact Us For Availability
9
Nut, Lock (3) WPL 858121 Contact Us For Availability
9
WPL 644224 WPL 644224 Contact Us For Availability
10
WPL 647154 WPL 647154 Contact Us For Availability
10
Shroud, Evaporator (Includes Illus. 11) WPL 948219 Contact Us For Availability
10
Screw, SM No.8 x 7/16A (6) WPL 488730 Contact Us For Availability
11
WPL 647152 WPL 647152 Contact Us For Availability
11
WPL 948220 WPL 948220 Contact Us For Availability
11
WPL 641481 WPL 641481 Contact Us For Availability
12
WPL 643299 WPL 643299 Contact Us For Availability
12
WPL 487808 WPL 487808 Contact Us For Availability
12
Link, Vertical Louver WPL 641482 Contact Us For Availability
13
WPL 995303 WPL 995303 Contact Us For Availability
13
Wire, Capacitor Ground WPL 857568 Contact Us For Availability
13
Handle, Vertical Louver WPL 645887 Contact Us For Availability
14
WPL 856037 WPL 856037 Contact Us For Availability
14
WPL 641484 WPL 641484 Contact Us For Availability
15
Clamp, Cable WPL 852451 Contact Us For Availability
15
WPL 858663 WPL 858663 Contact Us For Availability
15
WPL 953002 WPL 953002 Contact Us For Availability
16
WPL 998090 WPL 998090 Contact Us For Availability
16
Spacer, Escutcheon Plate (2) WPL 470036 Contact Us For Availability
17
Blade, Fan (Condenser) WPL 997904 Contact Us For Availability
17
Extension, Dividing Wall WPL 994560 Contact Us For Availability
17
WPL 953054 WPL 953054 Contact Us For Availability
18
WPL 948367 WPL 948367 Contact Us For Availability
18
WPL 644401 WPL 644401 Contact Us For Availability
19
WPL 951001 WPL 951001 Contact Us For Availability
19
WPL 996966 WPL 996966 Contact Us For Availability
19
WPL 953019 WPL 953019 Contact Us For Availability
20
WPL 950933 WPL 950933 Contact Us For Availability
20
WPL 947468 WPL 947468 Contact Us For Availability
21
Bend, Return (7) WPL 854624 Contact Us For Availability
21
Retainer, Detent Spring WPL 858765 Contact Us For Availability
21
WPL 646963 WPL 646963 Contact Us For Availability
22
Bend, Return (16) WPL 855199 Contact Us For Availability
22
WPL 950283 WPL 950283 Contact Us For Availability
23
WPL 947364 WPL 947364 Contact Us For Availability
23
Screw, Machine 6-32 x .175 (4) WPL 488734 Contact Us For Availability
23
WPL 855246 WPL 855246 Contact Us For Availability
24
Tube, 90~ Connect WPL 858187 Contact Us For Availability
24
WPL 949431 WPL 949431 Contact Us For Availability
24
Seal, Cabinet Front WPL 852923 Contact Us For Availability
25
Tube, Outlet (Includes No. 26) WPL 484230 Contact Us For Availability
25
WPL 856094 WPL 856094 Contact Us For Availability
25
Seal, Strip (Top & Sides) WPL 645883 Contact Us For Availability
26
Strainer, Tube WPL 49599 Contact Us For Availability
26
Cable, Appliance WPL 646306 Contact Us For Availability
26
WPL 476180 WPL 476180 Contact Us For Availability
27
Screw, Thumb WPL 475581 Contact Us For Availability
28
WPL 996773 WPL 996773 Contact Us For Availability
28
WPL 856912 WPL 856912 Contact Us For Availability
28
Screw, Round Head Wood No.8 x 3/4 (1) WPL 488255 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 475577 Contact Us For Availability
29
WPL 948279 WPL 948279 Contact Us For Availability
29
Bracket, Window Lock WPL 644228 Contact Us For Availability
30
Clamp, Tube WPL 855930 Contact Us For Availability
30
WPL 469938 WPL 469938 Contact Us For Availability
30
WPL 47261 WPL 47261 Contact Us For Availability
30
WPL 47262 WPL 47262 Contact Us For Availability
30
WPL 47263 WPL 47263 Contact Us For Availability
30
WPL 485426 WPL 485426 Contact Us For Availability
30
Screw, S.M. No.8 x 3/8A WPL 488624 Contact Us For Availability
30
Insulation, Cabinet (5/8`` x 13`` x 25-11/16` WPL 649939 Contact Us For Availability
30
Seal, Meeting Rail WPL 469877 Contact Us For Availability
32
WPL 948090 WPL 948090 Contact Us For Availability
33
Setscrew, 5/16-24 x 1/4 WPL 595085 Contact Us For Availability
34
Clip, Fan Balancing WPL 876034 Contact Us For Availability
35
Harness, Wiring WPL 484136 Contact Us For Availability
36
Tube, 90~ Connect WPL 950814 Contact Us For Availability
40
xRelay WPL 484177 Contact Us For Availability
41
xCapacitor WPL 467614 Contact Us For Availability
42
xCap, Capacitor WPL 791869 Contact Us For Availability
43
xScrew, 10 x 5/8 WPL 487880 Contact Us For Availability
44
xBracket, capacitor WPL 35564 Contact Us For Availability
45
Multiplier, Terminal WPL 90654 Contact Us For Availability
48
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
48
WPL 484184 WPL 484184 Contact Us For Availability
48
No Drip Tape (For Sweating Tubes) WPL 505168 Contact Us For Availability
48
WPL 10943 WPL 10943 Contact Us For Availability
48
xClip, terminal WPL 45571 Contact Us For Availability
48
WPL 484220 WPL 484220 Contact Us For Availability
48
WPL 484310 WPL 484310 Contact Us For Availability
48
hard start kit WPL 485884 Contact Us For Availability
48
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
