Model Whirlpool CAW08E1A1 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - SECTION
02 - UNIT PARTS

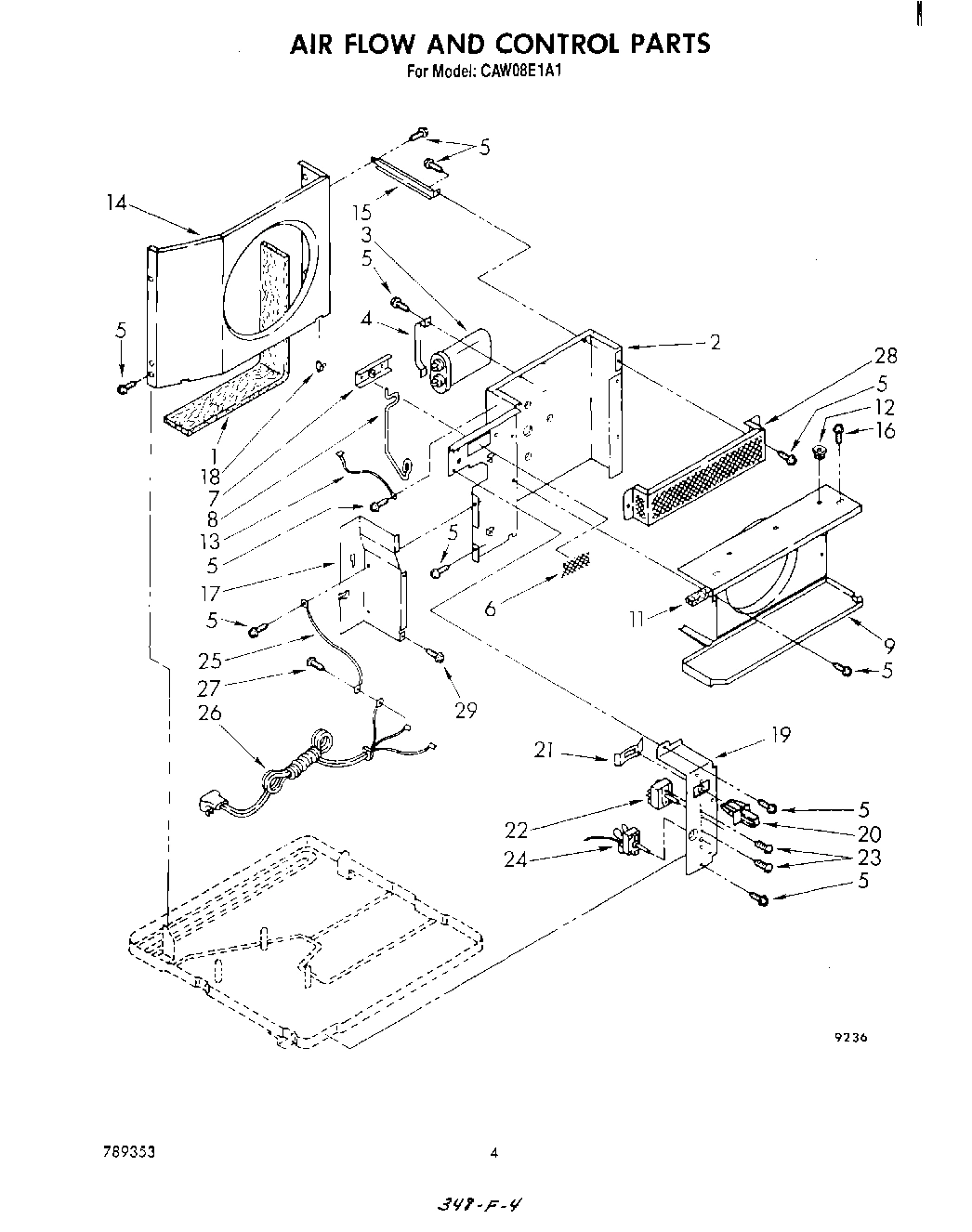

03 - SECTION

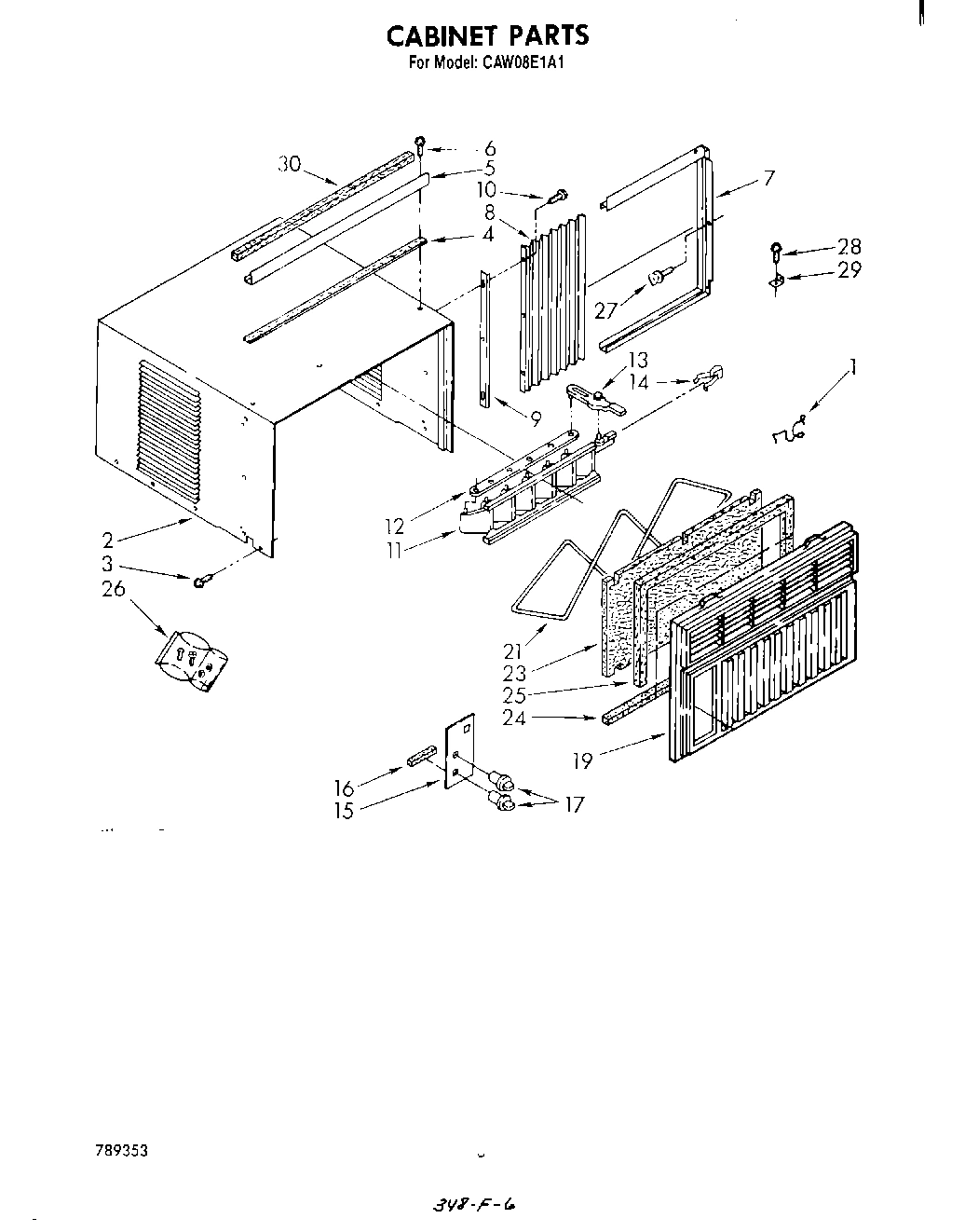

04 - SECTION
Common parts from model Whirlpool CAW08E1A1 ROOM AIR CONDITIONER
WPL LIT789353 WPL LIT789353 Contact Us For Availability
WPL LIT951619 WPL LIT951619 Contact Us For Availability
WPL LIT953076 WPL LIT953076 Contact Us For Availability
WPL LIT953082 WPL LIT953082 Contact Us For Availability
1
Clip, Cabinet Front Mounting (2) WPL 949634 Contact Us For Availability
2
Wall, Dividing (Requires Insulation Part No. WPL 951968 Contact Us For Availability
2
WPL 856686 WPL 856686 Contact Us For Availability
3
WPL 951588 WPL 951588 Contact Us For Availability
4
Bracket, Running Capacitor WPL 475844 Contact Us For Availability
4
WPL 856989 WPL 856989 Contact Us For Availability
5
Channel, Top Mounting WPL 993786 Contact Us For Availability
6
Screen, Exhaust Door WPL 856929 Contact Us For Availability
7
WPL 644206 WPL 644206 Contact Us For Availability
7
Housing, Curtain (R.S.) WPL 855572 Contact Us For Availability
7
Housing, Curtain L.S. WPL 855573 Contact Us For Availability
8
Arm, Exhaust Door WPL 856042 Contact Us For Availability
8
WPL 947160 WPL 947160 Contact Us For Availability
9
WPL 485334 WPL 485334 Contact Us For Availability
9
Shroud, Evaporator (Includes Illus. 11) WPL 948219 Contact Us For Availability
9
WPL 644224 WPL 644224 Contact Us For Availability
10
WPL 951575 WPL 951575 Contact Us For Availability
10
Screw, SM No.8 x 7/16A (6) WPL 488730 Contact Us For Availability
11
WPL 948220 WPL 948220 Contact Us For Availability
11
WPL 641481 WPL 641481 Contact Us For Availability
12
WPL 487808 WPL 487808 Contact Us For Availability
12
Link, Vertical Louver WPL 641482 Contact Us For Availability
13
WPL 951586 WPL 951586 Contact Us For Availability
13
Wire, Capacitor Ground WPL 857568 Contact Us For Availability
13
Handle, Vertical Louver WPL 645887 Contact Us For Availability
14
Tube, 90~ Connect WPL 858187 Contact Us For Availability
14
WPL 856037 WPL 856037 Contact Us For Availability
14
Spring, Dent WPL 641484 Contact Us For Availability
15
Tube, 90~ Connect WPL 950814 Contact Us For Availability
15
WPL 858663 WPL 858663 Contact Us For Availability
15
WPL 953002 WPL 953002 Contact Us For Availability
16
WPL 996773 WPL 996773 Contact Us For Availability
16
Spacer, Escutcheon Plate (2) WPL 470036 Contact Us For Availability
17
WPL 475577 WPL 475577 Contact Us For Availability
17
Extension, Dividing Wall WPL 994560 Contact Us For Availability
17
WPL 953054 WPL 953054 Contact Us For Availability
18
WPL 951570 WPL 951570 Contact Us For Availability
18
WPL 644401 WPL 644401 Contact Us For Availability
19
Clamp, Restrictor Tube WPL 855930 Contact Us For Availability
19
WPL 996966 WPL 996966 Contact Us For Availability
19
Front, Cabinet (Includes Illus. 20) WPL 953019 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 484136 Contact Us For Availability
20
WPL 953066 WPL 953066 Contact Us For Availability
21
Retainer, Dent Spring WPL 858765 Contact Us For Availability
21
WPL 646963 WPL 646963 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
22
WPL 950283 WPL 950283 Contact Us For Availability
23
Screw, Machine 6-32 x .175 (4) WPL 488734 Contact Us For Availability
23
WPL 855246 WPL 855246 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
24
WPL 949431 WPL 949431 Contact Us For Availability
24
Seal, Cabinet Front WPL 852923 Contact Us For Availability
25
WPL 856094 WPL 856094 Contact Us For Availability
25
Seal, Strip (Top & Sides) WPL 645883 Contact Us For Availability
26
Cable, Appliance WPL 647216 Contact Us For Availability
26
WPL 476180 WPL 476180 Contact Us For Availability
27
WPL 950032 WPL 950032 Contact Us For Availability
27
Screw, Thumb (2) WPL 475581 Contact Us For Availability
28
WPL 856912 WPL 856912 Contact Us For Availability
28
Screw, Round Head Wood No.8 x 3/4 (1) WPL 488255 Contact Us For Availability
29
WPL 484184 WPL 484184 Contact Us For Availability
29
WPL 469938 WPL 469938 Contact Us For Availability
29
WPL 47261 WPL 47261 Contact Us For Availability
29
WPL 47262 WPL 47262 Contact Us For Availability
29
WPL 47263 WPL 47263 Contact Us For Availability
29
WPL 485426 WPL 485426 Contact Us For Availability
29
Screw, Sm No.8 x 3/8 WPL 488624 Contact Us For Availability
29
Insulation, Cabinet (5/8`` x 13`` x 25-11/16` WPL 649939 Contact Us For Availability
29
Bracket, Window Lock WPL 644228 Contact Us For Availability
30
WPL 947533 WPL 947533 Contact Us For Availability
30
Seal, Meeting Rail WPL 469877 Contact Us For Availability
31
Clamp, Cable WPL 852451 Contact Us For Availability
32
WPL 488481 WPL 488481 Contact Us For Availability
33
WPL 950037 WPL 950037 Contact Us For Availability
34
WPL 951585 WPL 951585 Contact Us For Availability
35
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
35
No Drip Tape (For Sweating Tubes) WPL 505168 Contact Us For Availability
35
WPL 10943 WPL 10943 Contact Us For Availability
35
WPL 484310 WPL 484310 Contact Us For Availability
35
WPL 947364 WPL 947364 Contact Us For Availability
35
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
