Model Whirlpool CAW07A1A1 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - SECTION
02 - SECTION

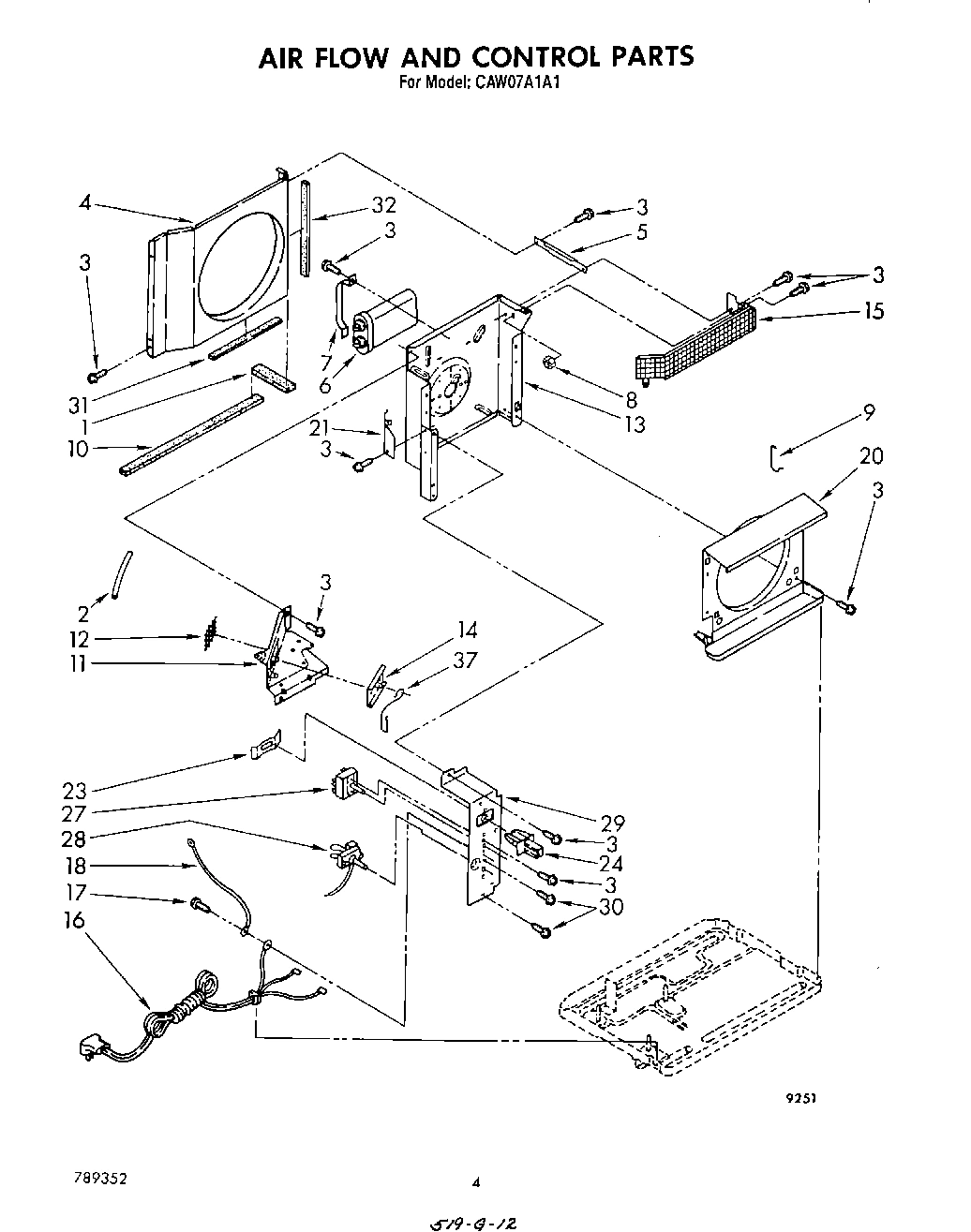

03 - SECTION

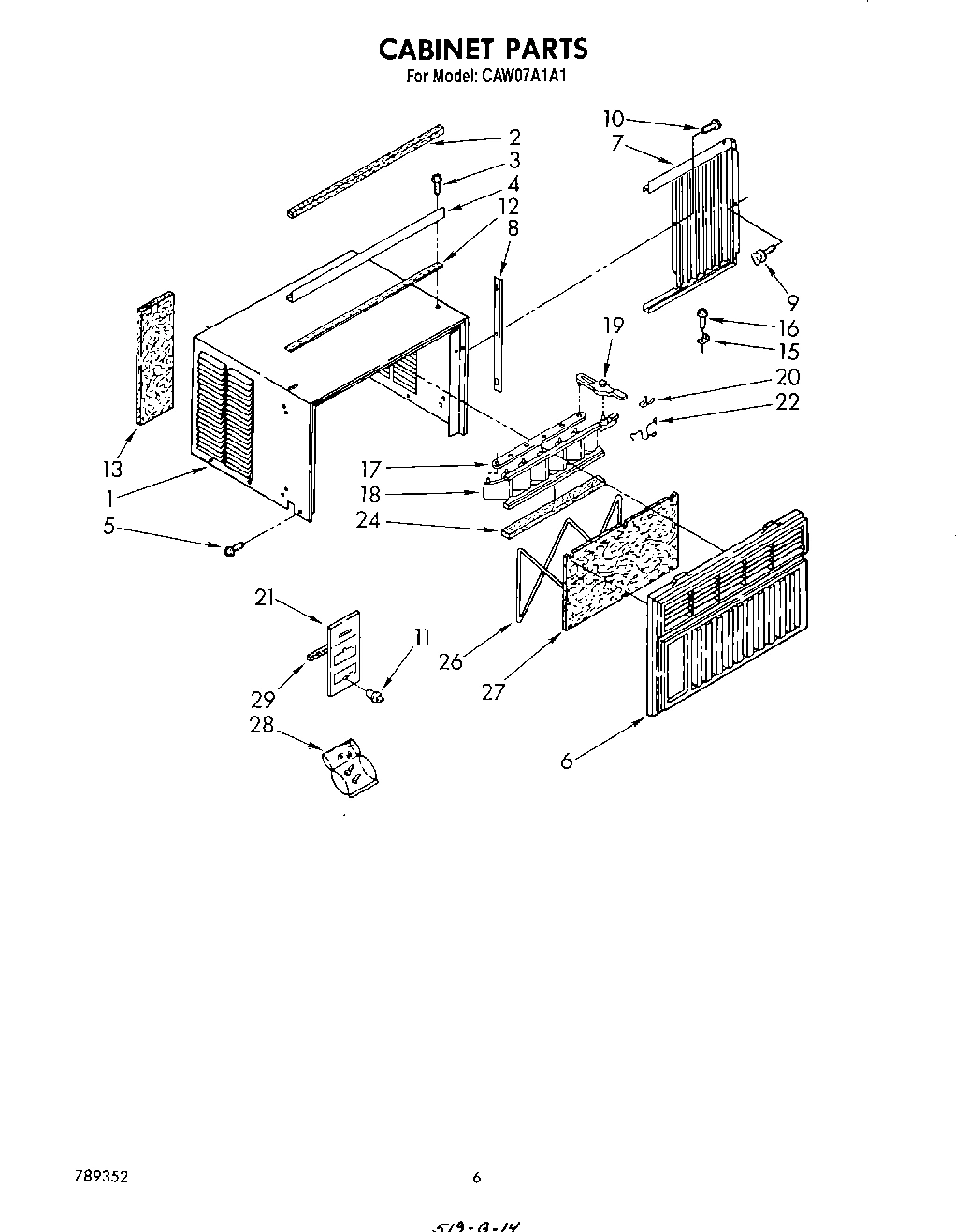

04 - SECTION
Common parts from model Whirlpool CAW07A1A1 ROOM AIR CONDITIONER
1
WPL 857903 WPL 857903 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
3
WPL 488481 WPL 488481 Contact Us For Availability
4
WPL 646297 WPL 646297 Contact Us For Availability
4
WPL 993849 WPL 993849 Contact Us For Availability
5
WPL 649879 WPL 649879 Contact Us For Availability
6
WPL 952078 WPL 952078 Contact Us For Availability
6
Front, Cabinet Assembly WPL 953020 Contact Us For Availability
7
WPL 856105 WPL 856105 Contact Us For Availability
7
WPL 646154 WPL 646154 Contact Us For Availability
7
WPL 646158 WPL 646158 Contact Us For Availability
8
WPL 486288 WPL 486288 Contact Us For Availability
8
WPL 646160 WPL 646160 Contact Us For Availability
9
WPL 485334 WPL 485334 Contact Us For Availability
9
Clip, Shroud WPL 477442 Contact Us For Availability
9
WPL 475581 WPL 475581 Contact Us For Availability
10
WPL 949678 WPL 949678 Contact Us For Availability
10
WPL 855493 WPL 855493 Contact Us For Availability
10
Screw, 8 x 7/16 (6) WPL 488730 Contact Us For Availability
11
WPL 646130 WPL 646130 Contact Us For Availability
11
WPL 953054 WPL 953054 Contact Us For Availability
12
tube, 90o WPL 950814 Contact Us For Availability
12
Screen, Exhaust Door WPL 856929 Contact Us For Availability
12
WPL 856990 WPL 856990 Contact Us For Availability
13
WPL 950840 WPL 950840 Contact Us For Availability
13
WPL 859822 WPL 859822 Contact Us For Availability
13
WPL 857777 WPL 857777 Contact Us For Availability
14
WPL 646497 WPL 646497 Contact Us For Availability
14
WPL 646134 WPL 646134 Contact Us For Availability
15
Spring, Mounting WPL 643179 Contact Us For Availability
15
WPL 996685 WPL 996685 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
16
WPL 994262 WPL 994262 Contact Us For Availability
16
WPL 646306 WPL 646306 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
17
WPL 475577 WPL 475577 Contact Us For Availability
17
WPL 645684 WPL 645684 Contact Us For Availability
18
WPL 950323 WPL 950323 Contact Us For Availability
18
WPL 856094 WPL 856094 Contact Us For Availability
18
WPL 645605 WPL 645605 Contact Us For Availability
19
Clamp, Restrictor Tube WPL 855930 Contact Us For Availability
19
WPL 645683 WPL 645683 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
20
WPL 646123 WPL 646123 Contact Us For Availability
20
Spring, Detent (1) WPL 641484 Contact Us For Availability
21
WPL 4853971 WPL 4853971 Contact Us For Availability
21
WPL 859955 WPL 859955 Contact Us For Availability
21
WPL 95300 WPL 95300 Contact Us For Availability
22
WPL 646499 WPL 646499 Contact Us For Availability
22
Clip, Front (2) WPL 949634 Contact Us For Availability
23
WPL 949990 WPL 949990 Contact Us For Availability
23
WPL 853365 WPL 853365 Contact Us For Availability
24
WPL 858121 WPL 858121 Contact Us For Availability
24
WPL 953066 WPL 953066 Contact Us For Availability
24
WPL 855238 WPL 855238 Contact Us For Availability
25
WPL 647154 WPL 647154 Contact Us For Availability
26
WPL 950834 WPL 950834 Contact Us For Availability
26
WPL 646963 WPL 646963 Contact Us For Availability
27
WPL 994171 WPL 994171 Contact Us For Availability
27
WPL 950283 WPL 950283 Contact Us For Availability
27
Filter, Air WPL 852344 Contact Us For Availability
28
WPL 647152 WPL 647152 Contact Us For Availability
28
WPL 949411 WPL 949411 Contact Us For Availability
28
WPL 476180 WPL 476180 Contact Us For Availability
29
WPL 643299 WPL 643299 Contact Us For Availability
29
WPL 993398 WPL 993398 Contact Us For Availability
30
xRelay, Starting WPL 484177 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
31
xCapacitor WPL 467614 Contact Us For Availability
31
WPL 859931 WPL 859931 Contact Us For Availability
32
xCap, Capacitor WPL 791869 Contact Us For Availability
32
WPL 857923 WPL 857923 Contact Us For Availability
33
xBracket, capacitor WPL 35564 Contact Us For Availability
34
xScrew, 10 x 5/8 (2) WPL 487880 Contact Us For Availability
37
no drip tape (sweating tubes) WPL 505168 Contact Us For Availability
37
Multiplier, Terminal WPL 90654 Contact Us For Availability
37
WPL 10943 WPL 10943 Contact Us For Availability
37
WPL 469938 WPL 469938 Contact Us For Availability
37
WPL 47261 WPL 47261 Contact Us For Availability
37
WPL 47262 WPL 47262 Contact Us For Availability
37
WPL 47263 WPL 47263 Contact Us For Availability
37
WPL 485426 WPL 485426 Contact Us For Availability
37
Insulation, Cabinet (5/8`` x 25-11/16`` x 13` WPL 649939 Contact Us For Availability
37
WPL 950255 WPL 950255 Contact Us For Availability
38
xClip, Terminal (8) WPL 45571 Contact Us For Availability
40
WPL 997887 WPL 997887 Contact Us For Availability
41
Clamp, Wiring WPL 852451 Contact Us For Availability
42
WPL 947364 WPL 947364 Contact Us For Availability
46
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
46
Cover, Winter WPL 484067 Contact Us For Availability
46
Kit, Start Assist WPL 484220 Contact Us For Availability
46
WPL 484310 WPL 484310 Contact Us For Availability
46
WPL 485884 WPL 485884 Contact Us For Availability
46
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
46
WPL 993191 WPL 993191 Contact Us For Availability
× ![]()
