Model Whirlpool CAW06D1A1 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - SECTION
02 - SECTION

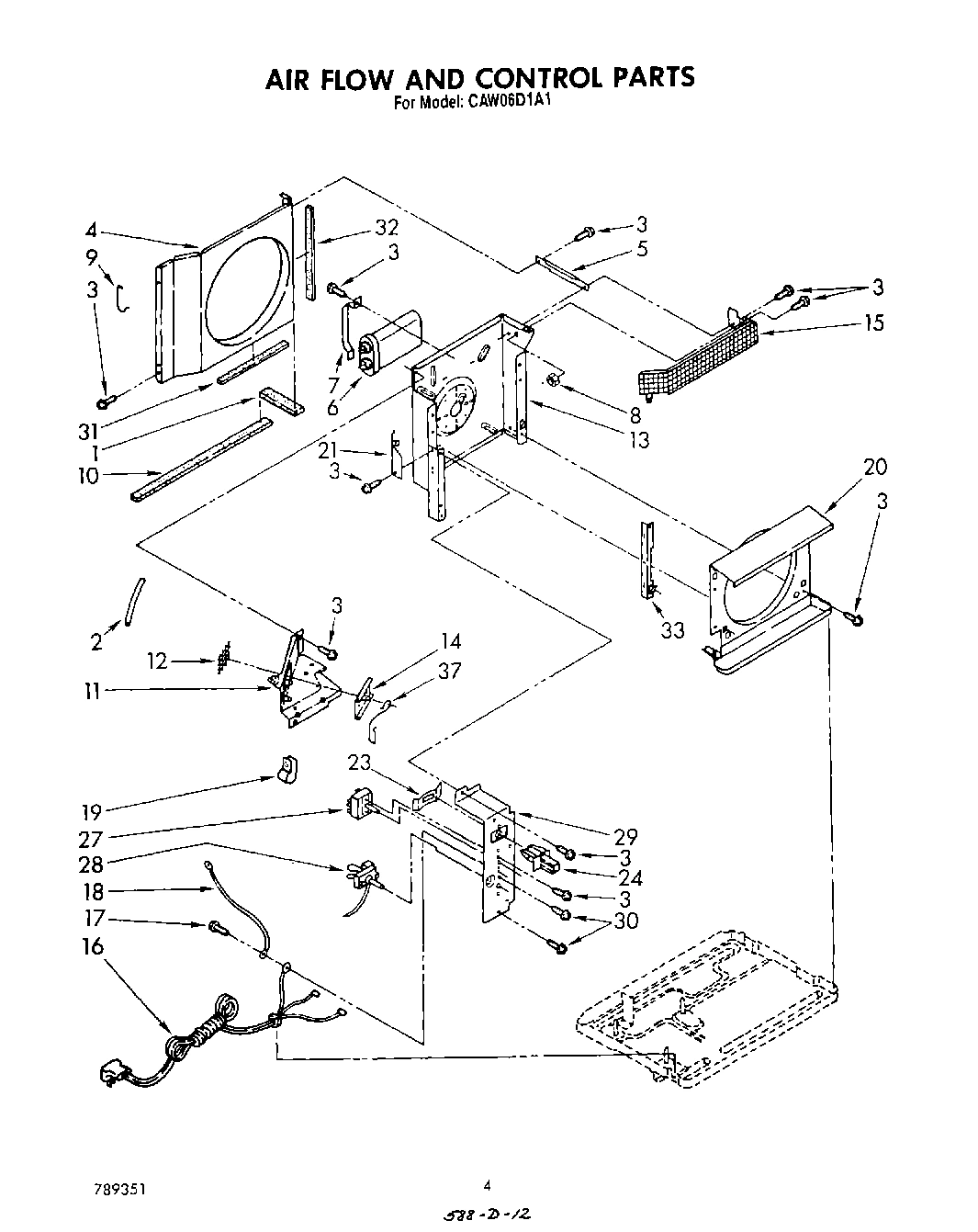

03 - SECTION

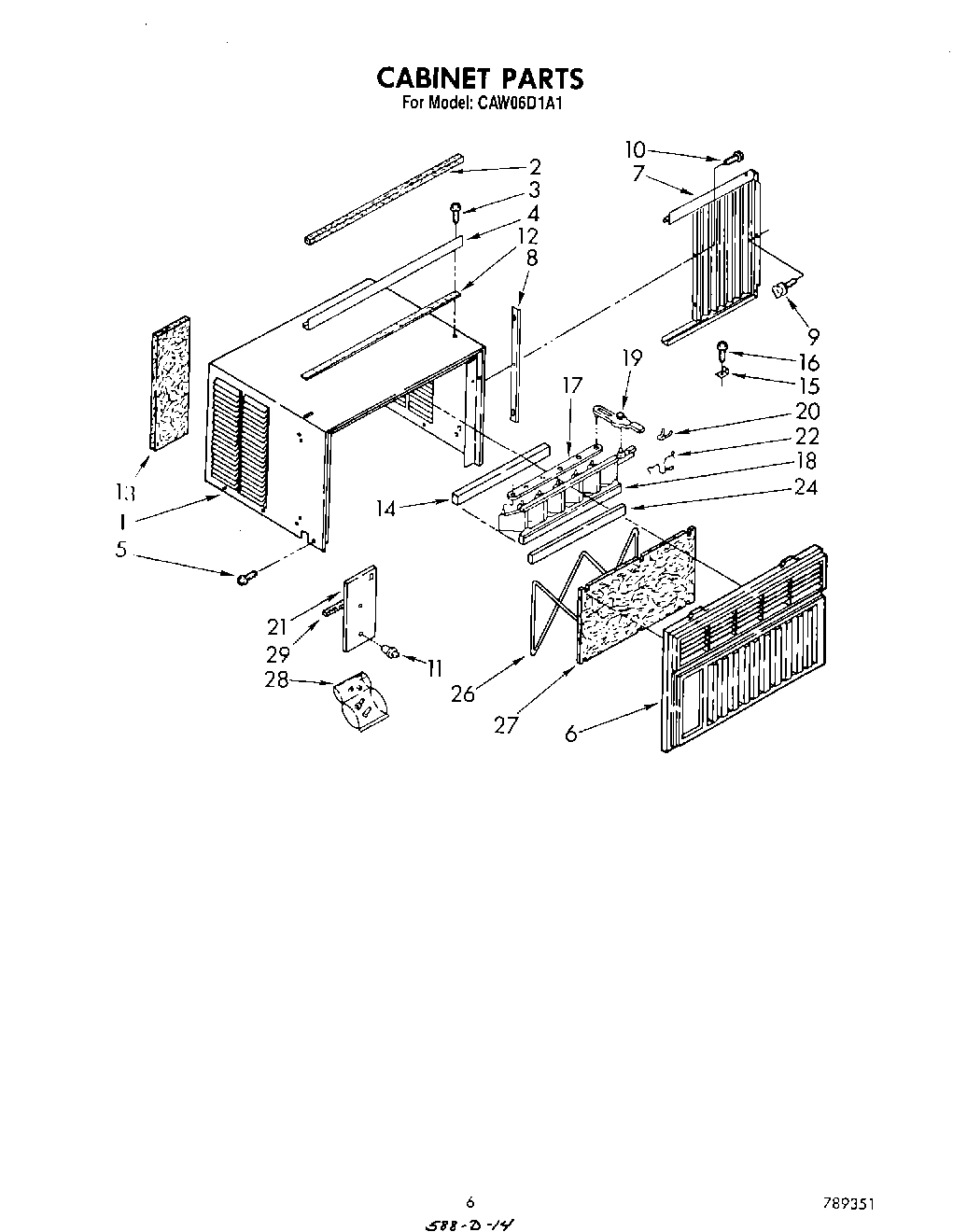

04 - SECTION
Common parts from model Whirlpool CAW06D1A1 ROOM AIR CONDITIONER
1
WPL 646870 WPL 646870 Contact Us For Availability
1
WPL 857903 WPL 857903 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
3
WPL 488481 WPL 488481 Contact Us For Availability
4
WPL 646297 WPL 646297 Contact Us For Availability
4
WPL 993849 WPL 993849 Contact Us For Availability
5
WPL 649879 WPL 649879 Contact Us For Availability
6
WPL 996525 WPL 996525 Contact Us For Availability
6
Front, Cabinet Assembly WPL 953020 Contact Us For Availability
7
WPL 856105 WPL 856105 Contact Us For Availability
7
WPL 646154 WPL 646154 Contact Us For Availability
7
WPL 646158 WPL 646158 Contact Us For Availability
8
WPL 595085 WPL 595085 Contact Us For Availability
8
WPL 486288 WPL 486288 Contact Us For Availability
8
WPL 646160 WPL 646160 Contact Us For Availability
9
WPL 485334 WPL 485334 Contact Us For Availability
9
Clip, Shroud WPL 477442 Contact Us For Availability
9
WPL 475581 WPL 475581 Contact Us For Availability
10
WPL 951781 WPL 951781 Contact Us For Availability
10
WPL 855493 WPL 855493 Contact Us For Availability
10
Screw, 8 x 7/16 (6) WPL 488730 Contact Us For Availability
11
WPL 646130 WPL 646130 Contact Us For Availability
11
WPL 947264 WPL 947264 Contact Us For Availability
12
Tube, 90~ Connect (1) WPL 950814 Contact Us For Availability
12
Screen, Exhaust Door WPL 856929 Contact Us For Availability
12
WPL 856990 WPL 856990 Contact Us For Availability
13
WPL 951782 WPL 951782 Contact Us For Availability
13
WPL 859822 WPL 859822 Contact Us For Availability
13
WPL 857777 WPL 857777 Contact Us For Availability
14
WPL 950037 WPL 950037 Contact Us For Availability
14
WPL 646134 WPL 646134 Contact Us For Availability
15
WPL 950253 WPL 950253 Contact Us For Availability
15
WPL 996685 WPL 996685 Contact Us For Availability
15
Bracket, Window Lock WPL 644228 Contact Us For Availability
16
WPL 996773 WPL 996773 Contact Us For Availability
16
WPL 647216 WPL 647216 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
17
WPL 475577 WPL 475577 Contact Us For Availability
17
Link, Louver WPL 645684 Contact Us For Availability
18
WPL 950013 WPL 950013 Contact Us For Availability
18
WPL 856094 WPL 856094 Contact Us For Availability
18
WPL 645605 WPL 645605 Contact Us For Availability
19
Clamp, Restrictor Tube WPL 855930 Contact Us For Availability
19
Clamp, Wiring (2) WPL 947072 Contact Us For Availability
19
Handle, Louver WPL 645683 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
20
WPL 996748 WPL 996748 Contact Us For Availability
20
WPL 641484 WPL 641484 Contact Us For Availability
21
WPL 876808 WPL 876808 Contact Us For Availability
21
WPL 859890 WPL 859890 Contact Us For Availability
21
WPL 953000 WPL 953000 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
22
Clip, Front (2) WPL 949634 Contact Us For Availability
23
Spring, Retainer WPL 853565 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
24
WPL 947468 WPL 947468 Contact Us For Availability
24
WPL 855238 WPL 855238 Contact Us For Availability
26
WPL 646963 WPL 646963 Contact Us For Availability
27
WPL 950032 WPL 950032 Contact Us For Availability
27
WPL 950283 WPL 950283 Contact Us For Availability
27
Filter, Air WPL 852344 Contact Us For Availability
28
WPL 949411 WPL 949411 Contact Us For Availability
28
WPL 476180 WPL 476180 Contact Us For Availability
29
WPL 993398 WPL 993398 Contact Us For Availability
30
Bend, Return Condenser (2) Evaporator (3) WPL 854624 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
31
WPL 859931 WPL 859931 Contact Us For Availability
32
WPL 857923 WPL 857923 Contact Us For Availability
33
WPL 855502 WPL 855502 Contact Us For Availability
37
WPL 469938 WPL 469938 Contact Us For Availability
37
WPL 47261 WPL 47261 Contact Us For Availability
37
WPL 47262 WPL 47262 Contact Us For Availability
37
WPL 47263 WPL 47263 Contact Us For Availability
37
Cover, Winter WPL 484067 Contact Us For Availability
37
WPL 485426 WPL 485426 Contact Us For Availability
37
Insulation, Cabinet (5/8`` x 25-11/16`` x 13` WPL 649939 Contact Us For Availability
37
Arm, Door WPL 950255 Contact Us For Availability
40
WPL 997889 WPL 997889 Contact Us For Availability
41
Clamp, Wiring WPL 852451 Contact Us For Availability
46
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
46
Tape, No Drip (Sweating Tube) WPL 505168 Contact Us For Availability
46
WPL 10943 WPL 10943 Contact Us For Availability
46
WPL 484310 WPL 484310 Contact Us For Availability
46
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
46
WPL 993191 WPL 993191 Contact Us For Availability
× ![]()
