Model Electrolux CARE4044MW0 ELECTRIC DRYER – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET/DRUM

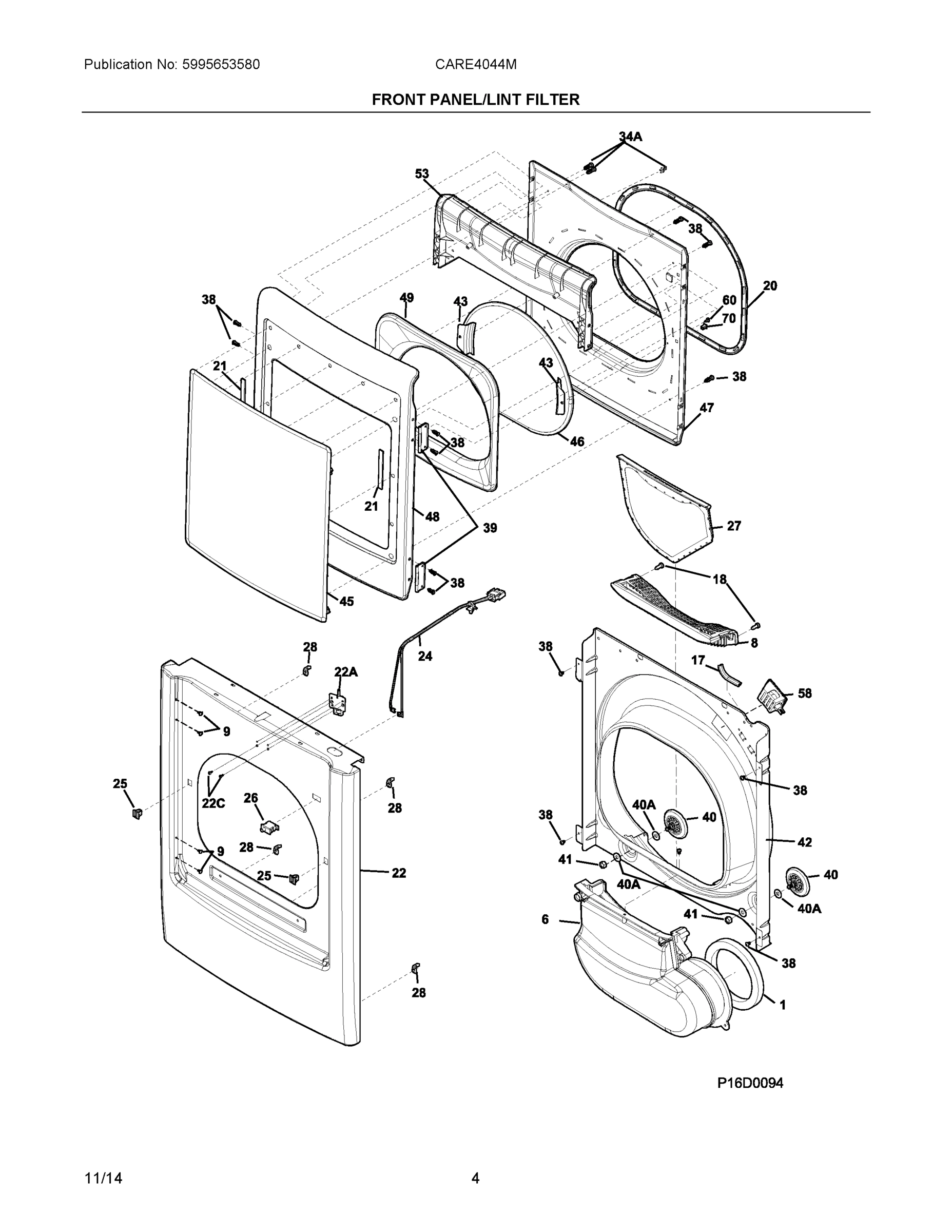

03 - FRONT PANEL/LINT FILTER

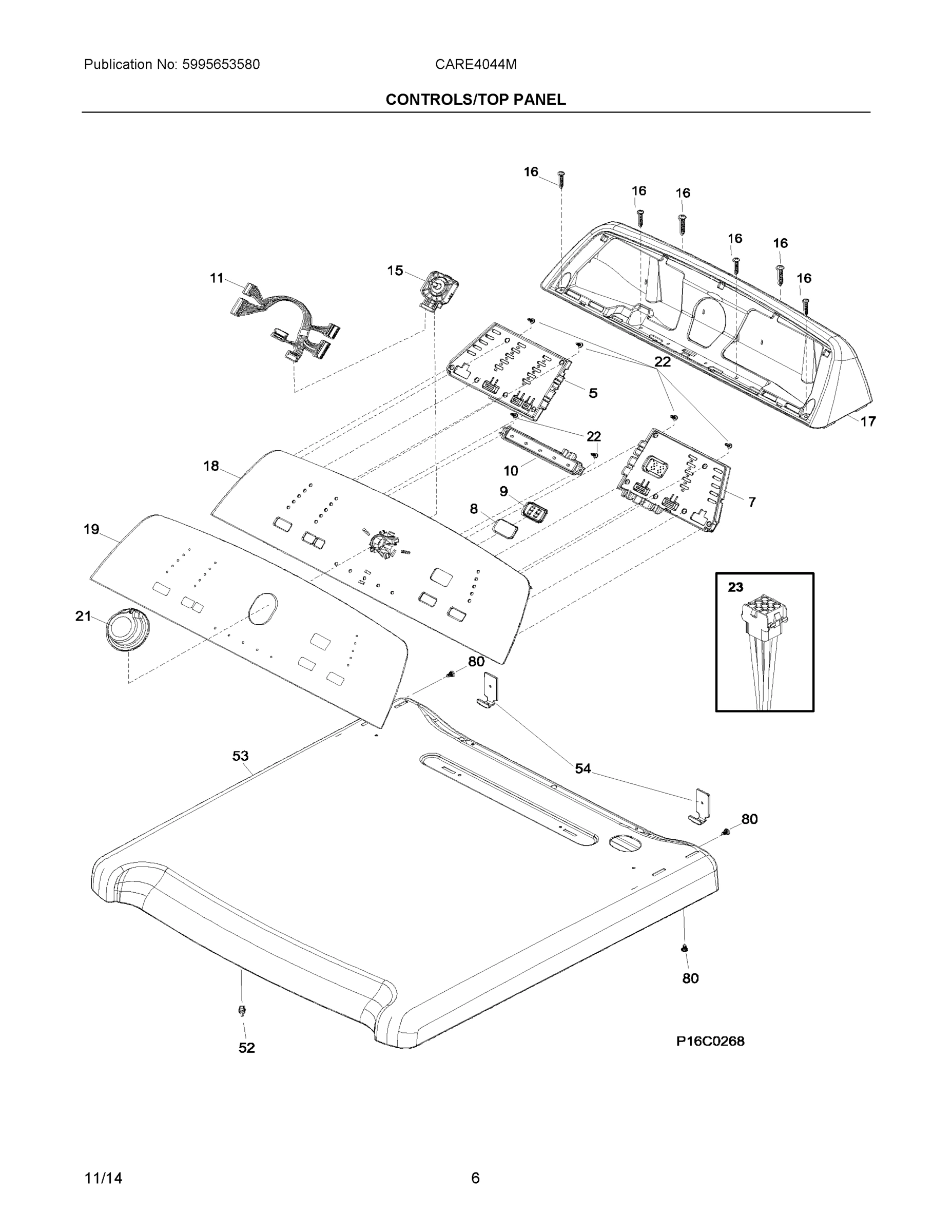

04 - CONTROLS/TOP PANEL

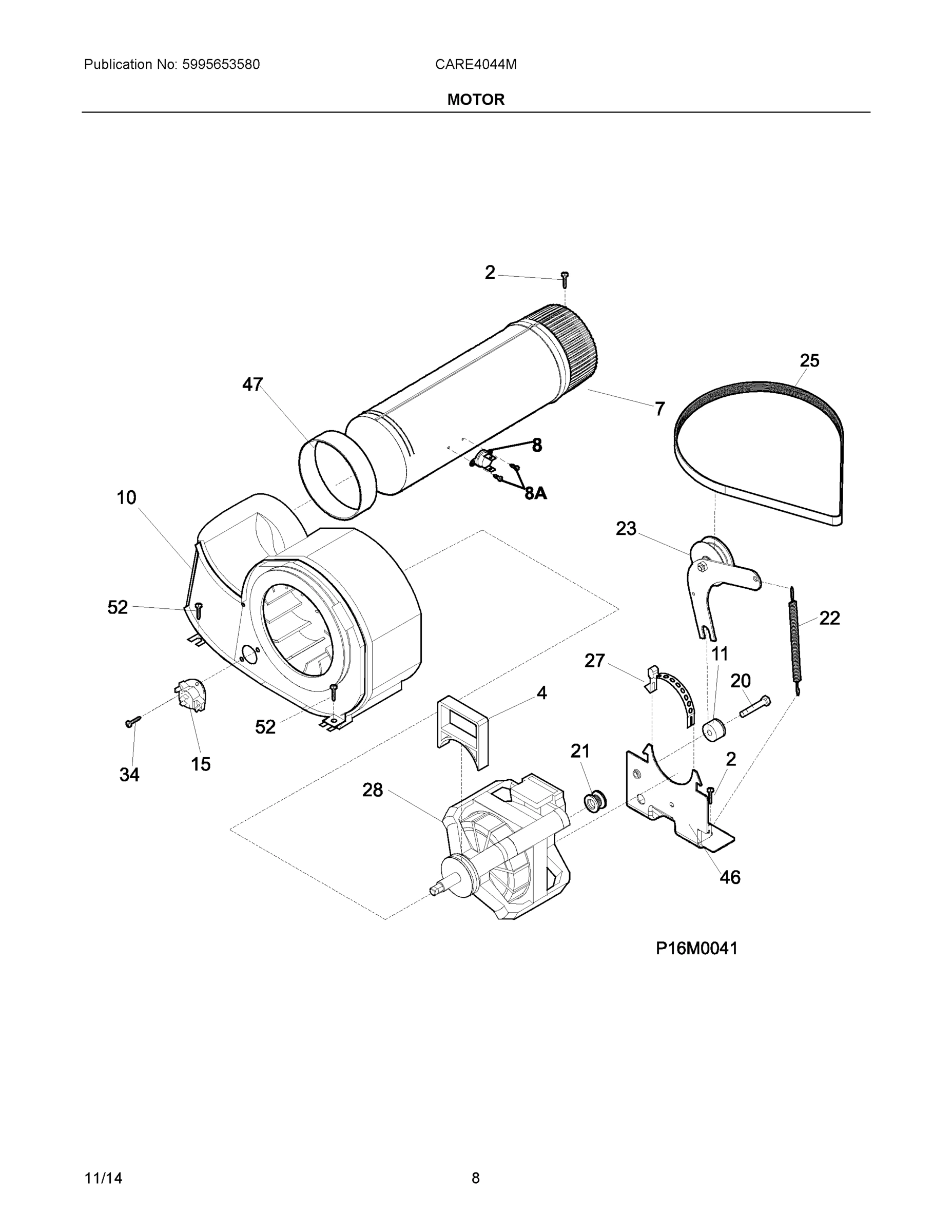

05 - MOTOR

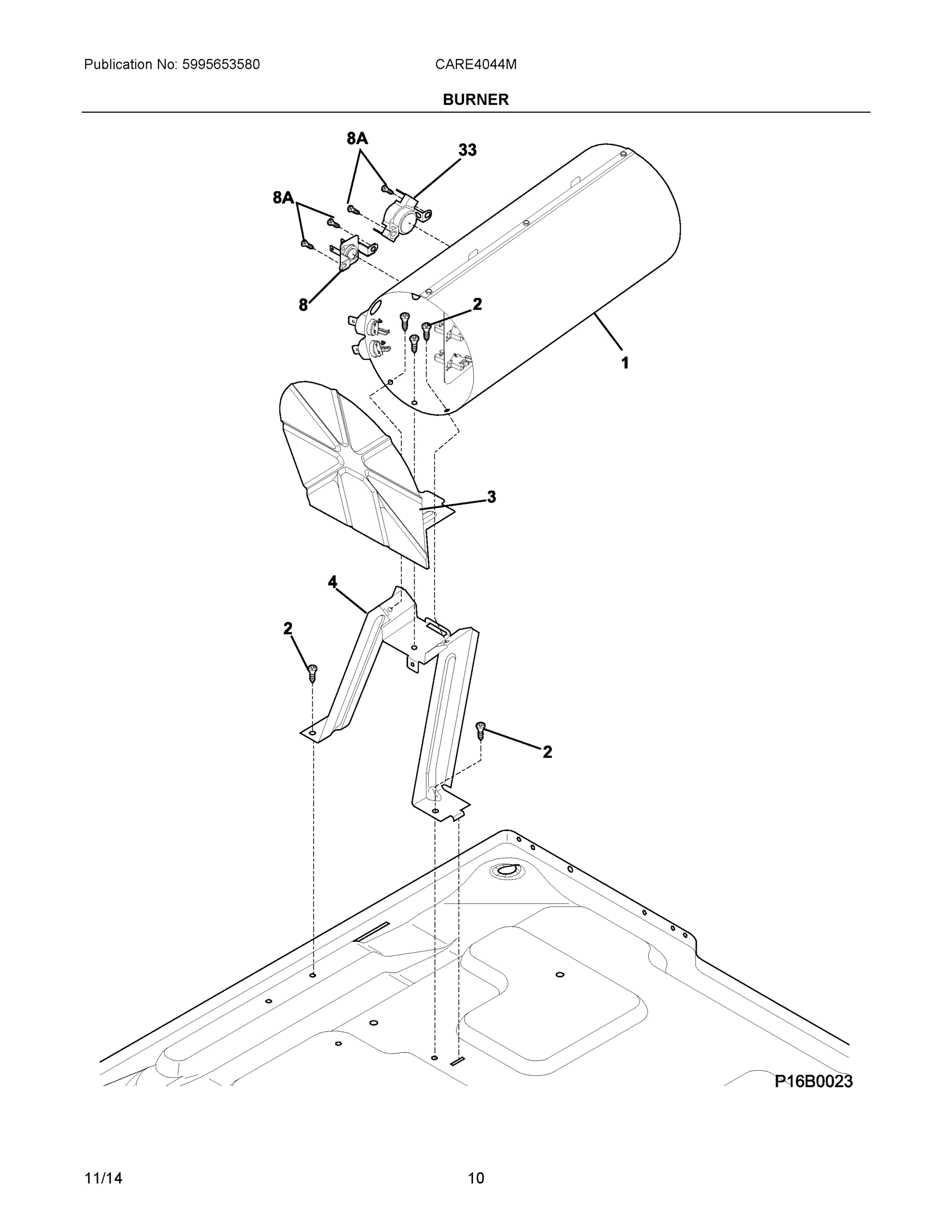

06 - BURNER

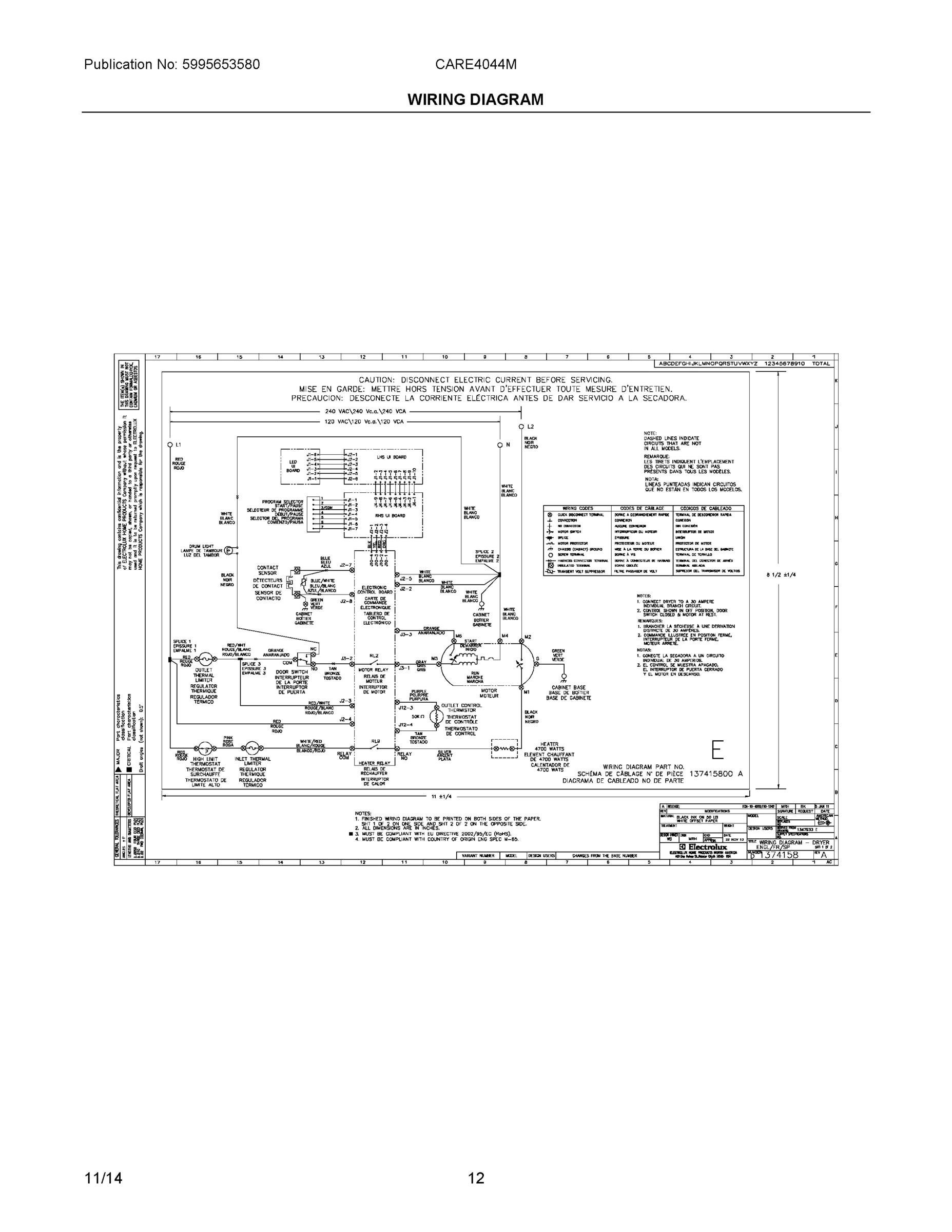

07 - WIRING DIAGRAM

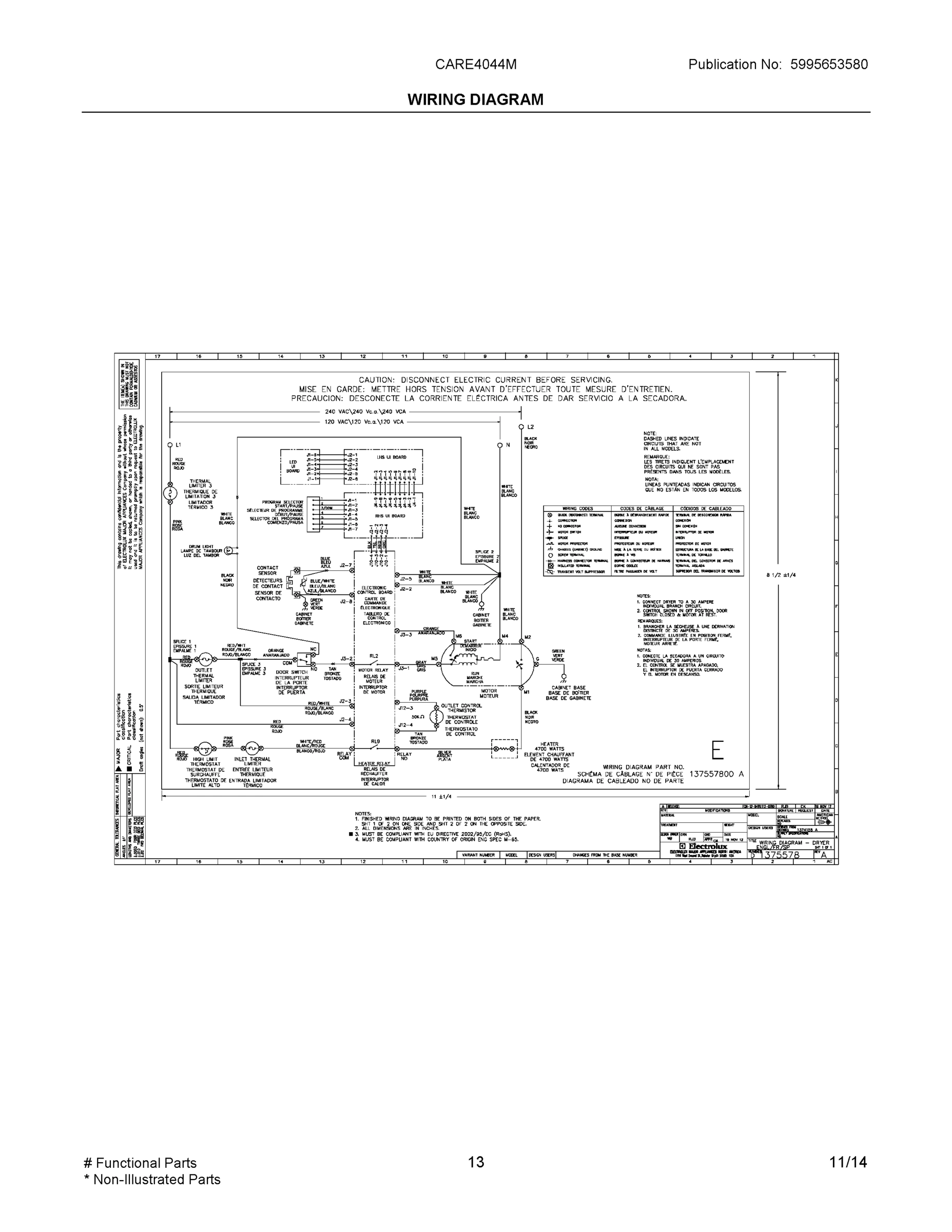

08 - WIRING DIAGRAM
Common parts from model Electrolux CARE4044MW0 ELECTRIC DRYER
1
SEAL, AIR DUCT WCI 137068200 Contact Us For Availability
2
SCREW, PAN HEAD, 8-18B X 0.31 WCI 131168200 Contact Us For Availability
4
LOCK, BLOWER HOUSING WCI 131435200 Contact Us For Availability
4
BRACKET, MOUNTING, TERMINAL BLOCK WCI 134792200 Contact Us For Availability
5
WCI 137363801 WCI 137363801 Contact Us For Availability
6
DUCT, AIR, GRAY WCI 134710705 Contact Us For Availability
7
WCI 5304496068 WCI 5304496068 Contact Us For Availability
8
LIMITER, THERMAL, HEATER WCI 137032600 Contact Us For Availability
8
WCI 134711401 WCI 134711401 Contact Us For Availability
8
COVER, LINT HOUSING WCI 134701320 Contact Us For Availability
8
COVER, TERMINAL BLOCK WCI 134694400 Contact Us For Availability
8A
SCREW, #6 PAN HEAD, #8-32 X .25, QUADREX WCI 134935200 Contact Us For Availability
9
PLUG, WHITE WCI 131633200 Contact Us For Availability
10
WCI 137363900 WCI 137363900 Contact Us For Availability
11
SPACER, IDLER WCI 131749800 Contact Us For Availability
15
THERMISTOR, CONTROL WCI 134587700 Contact Us For Availability
15
WCI 137493700 WCI 137493700 Contact Us For Availability
17
CONSOLE, SHELL J, WHITE WCI 137054110 Contact Us For Availability
17
PROTECTOR, EDGE, RIGHT TOP FRONT, 85.0+/-1.5 WCI 134792900 Contact Us For Availability
19
WCI 137518370 WCI 137518370 Contact Us For Availability
20
SEAL, FELT, DRUM WCI 134705900 Contact Us For Availability
20
GASKET, FRONT PANEL WCI 137116600 Contact Us For Availability
20
BOLT, HEX HEAD, 1/4-20T X 1.25, THREAD CUTTIN WCI 131017900 Contact Us For Availability
21
PULLEY, MOTOR WCI 134693800 Contact Us For Availability
21
DAMPENER, VIBRATION WCI 134407900 Contact Us For Availability
22
SPRING, IDLER ARM WCI 131601000 Contact Us For Availability
23
SENSOR, MOISTURE, ASSEMBLY WCI 134786100 Contact Us For Availability
24
WCI 137325800 WCI 137325800 Contact Us For Availability
25
BELT, "H", POLY V, 5 RIB WCI 134719300 Contact Us For Availability
25
DOOR CATCH, UPPER WCI 131658800 Contact Us For Availability
26
SWITCH, DOOR, RECTANGLE, WHITE, WITH DRUM LIG WCI 134813601 Contact Us For Availability
27
CLAMP, MOTOR MTG. WCI 134242400 Contact Us For Availability
27L
PANEL, LEFT SIDE, WHITE WCI 134690310 Contact Us For Availability
27R
PANEL, RIGHT SIDE, WHITE WCI 134690410 Contact Us For Availability
28
CLIP, MOUNTING, CABINET FRONT WCI 137034500 Contact Us For Availability
29
SCREW, #8 PAN HEAD, 10-10B X 0.500, CR/SQ DRI WCI 131205100 Contact Us For Availability
33
THERMOSTAT, SAFETY WCI 3204267 Contact Us For Availability
34A
SCREW, PAN HEAD, #8-18X.750 WCI 137285100 Contact Us For Availability
38
WCI 137361500 WCI 137361500 Contact Us For Availability
40A
WASHER, FLAT WCI 134716700 Contact Us For Availability
41
NUT, 3/8-16 WCI 134716800 Contact Us For Availability
42
BULKHEAD, PANEL, FRONT WCI 134696105 Contact Us For Availability
43
BRACKET, DOOR GLASS WCI 134559300 Contact Us For Availability
44
LEVELING LEG, SCREW WCI 137029700 Contact Us For Availability
45
WCI 137367600 WCI 137367600 Contact Us For Availability
46
GASKET, DOOR GLASS, INNER WCI 134580300 Contact Us For Availability
46
BRACKET, MOTOR MOUNTING WCI 134693500 Contact Us For Availability
47
SEAL, EXHAUST TUBE WCI 131633300 Contact Us For Availability
52
SCREW, 10-16AB X 0.625 WCI 131202300 Contact Us For Availability
52
PIN, PANEL LOCATOR WCI 137362600 Contact Us For Availability
58
LAMP ASSY, DRUM LIGHT, W/MTG BRACKET WCI 131843500 Contact Us For Availability
NI
WCI 5308027429 WCI 5308027429 Contact Us For Availability
NIA
WIRING HARNESS, MOISTURE SENSOR WCI 134930800 Contact Us For Availability
NIA
RETAINER, ROLLER WHEEL, ASSEMBLY WCI 134716200 Contact Us For Availability
× ![]()
