Model Whirlpool CAR10RSL1 AIR CONDITIONER – Common Parts & Diagrams
03 - CABINET PARTS
01 - UNIT PARTS

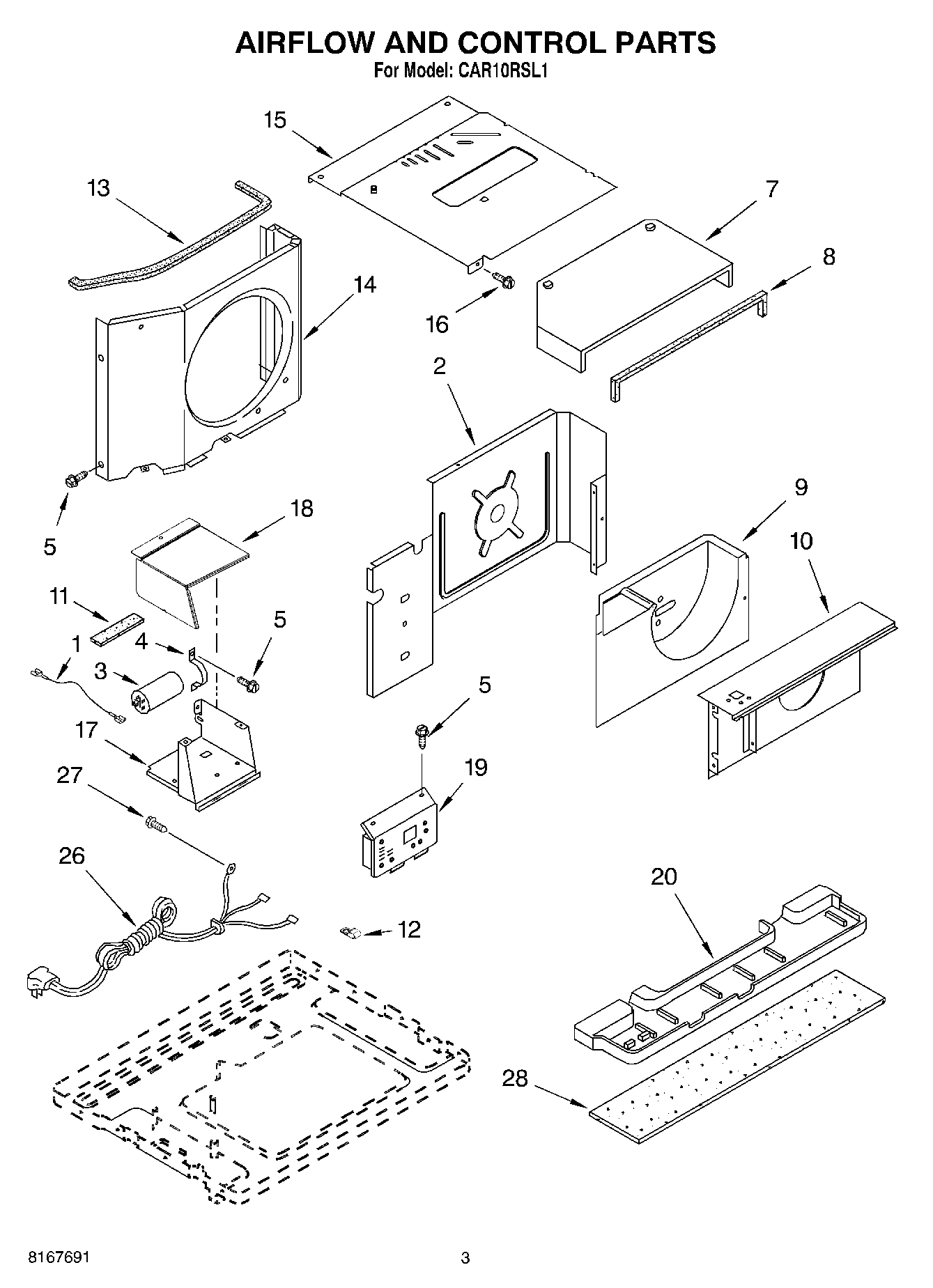

02 - AIR FLOW AND CONTROL PARTS

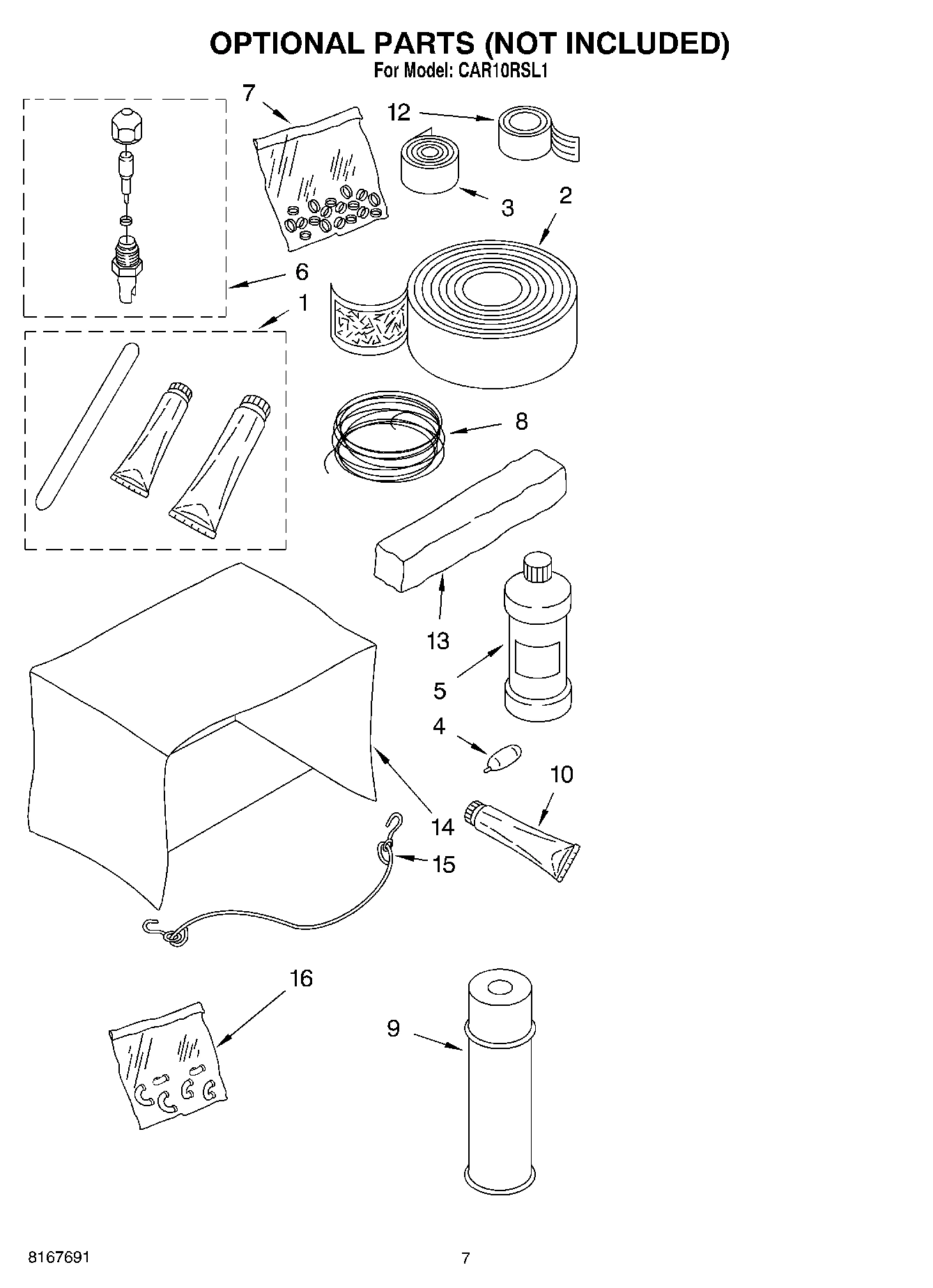

04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool CAR10RSL1 AIR CONDITIONER
1
Use & Care Guide WPL LIT1184698 Contact Us For Availability
1
LITERATURE PARTS (Wiring Diagram) WPL LIT1185264 Contact Us For Availability
1
Energy Guide WPL LIT1186173 Contact Us For Availability
1
Wire, Jumper WPL 1186569 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Compressor WPL 1185614 Contact Us For Availability
2
Wall, Dividing WPL 8031104 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Capacitor, Running WPL 1182851 Contact Us For Availability
3
OVERLOAD WPL 1186660 Contact Us For Availability
4
Handle, Base WPL 8031320 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Gasket, Nut WPL 1182120 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Grommet WPL 950212 Contact Us For Availability
7
Hood, Air Housing WPL 8031570 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Wiring Harness, Compressor WPL 1186574 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Clip, Compressor WPL 8011446 Contact Us For Availability
9
Housing, Air WPL 8031586 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Gasket, Terminal Cover WPL 1182118 Contact Us For Availability
10
Shroud, Evaporator WPL 8031109 Contact Us For Availability
11
Louver Assembly WPL 8031202 Contact Us For Availability
11
Cover, Terminal WPL 1184748 Contact Us For Availability
11
Seal, Control Box WPL 1187047 Contact Us For Availability
13
Motor, Fan WPL 1186564 Contact Us For Availability
13
Seal, Condenser Shroud WPL 8031312 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Shroud, Condenser WPL 8031110 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Cover, Unit WPL 1186766 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Wheel, Blower WPL 8031154 Contact Us For Availability
16
Screw, 8-15 x 3/8 WPL 488624 Contact Us For Availability
16
Return Bend Replacement Kit (5/16`` Tube) WPL 4388784 Contact Us For Availability
16
Return Bend Replacement Kit (3/8`` Tube) WPL 4388785 Contact Us For Availability
17
Blade, Fan WPL 1156979 Contact Us For Availability
17
Box, Control WPL 1184600 Contact Us For Availability
18
Evaporator WPL 8031236 Contact Us For Availability
18
Cover, Control Box WPL 1186666 Contact Us For Availability
19
Tube, Restrictor WPL 1186164 Contact Us For Availability
19
Control, Electronic WPL 1186192 Contact Us For Availability
20
Condenser WPL 8031226 Contact Us For Availability
20
Pan, Drain WPL 8031111 Contact Us For Availability
24
Tube, Wet Loop WPL 1187116 Contact Us For Availability
25
Tube, Charge WPL 1187114 Contact Us For Availability
26
Filter, Dryer WPL 1187115 Contact Us For Availability
26
Cable, Appliance WPL 1186917 Contact Us For Availability
27
Screw, 8-18 x 19/64 WPL 1159222 Contact Us For Availability
28
Clip Temperature WPL 1185337 Contact Us For Availability
28
Insulation, Drain Pan WPL 8031480 Contact Us For Availability
29
Seal, Anti-Rub WPL 1184625 Contact Us For Availability
30
Clamp, Tube WPL 471088 Contact Us For Availability
32
Seal, Condenser Top WPL 1181735 Contact Us For Availability
33
Tube, Suction WPL 1185668 Contact Us For Availability
34
Insulation, Suction Tube WPL 1185481 Contact Us For Availability
39
Tube, Discharge WPL 1185669 Contact Us For Availability
40
Base WPL 8031392 Contact Us For Availability
41
Tube, Flow Divider WPL 8031259 Contact Us For Availability
41
REFRIGERANT CHARGE 22.50 oz. WPL ARI144477A Contact Us For Availability
× ![]()
