Model Whirlpool CAH24WCK0 ROOM AIR CONDITIONER – Common Parts & Diagrams

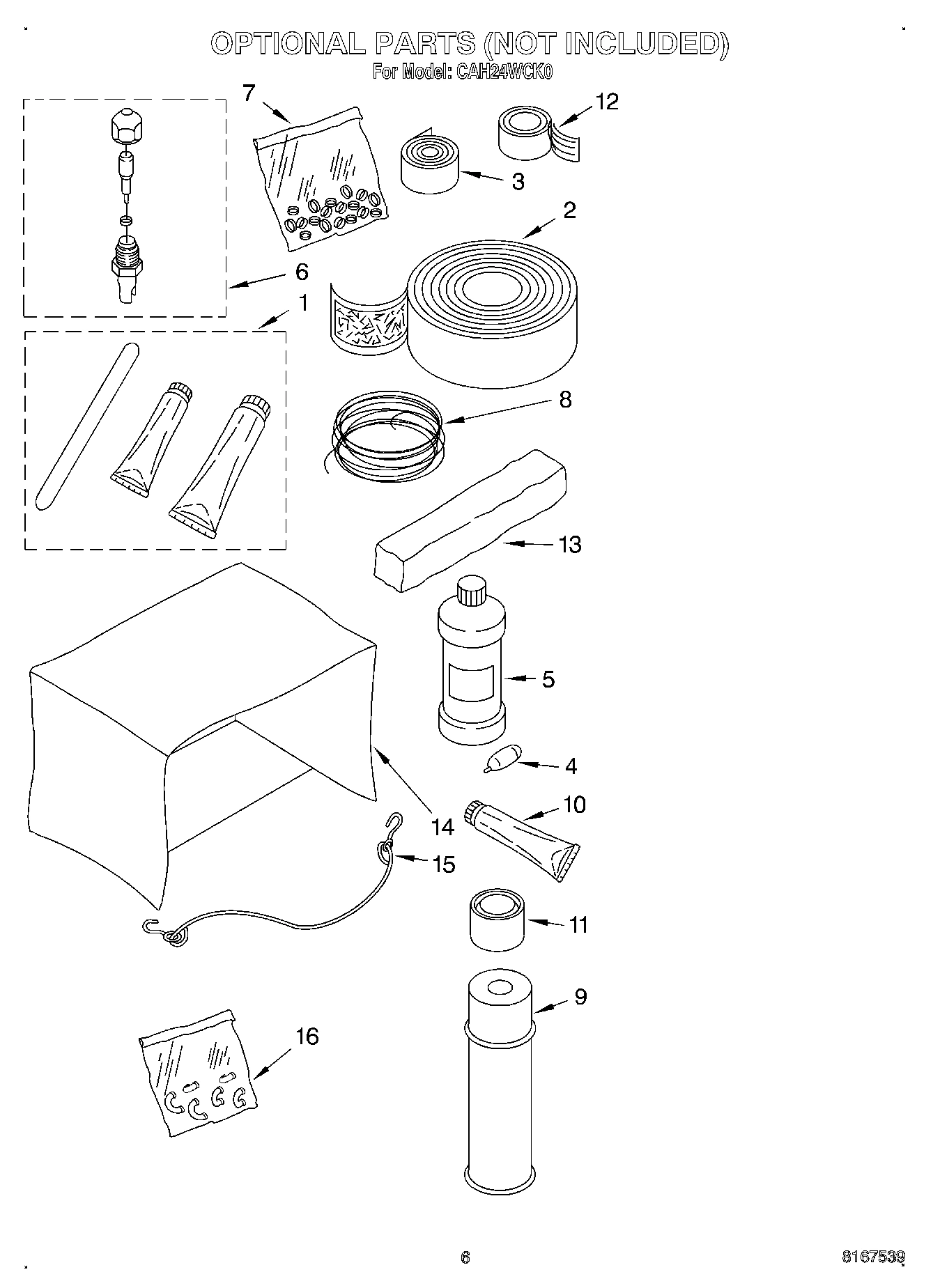

04 - OPTIONAL

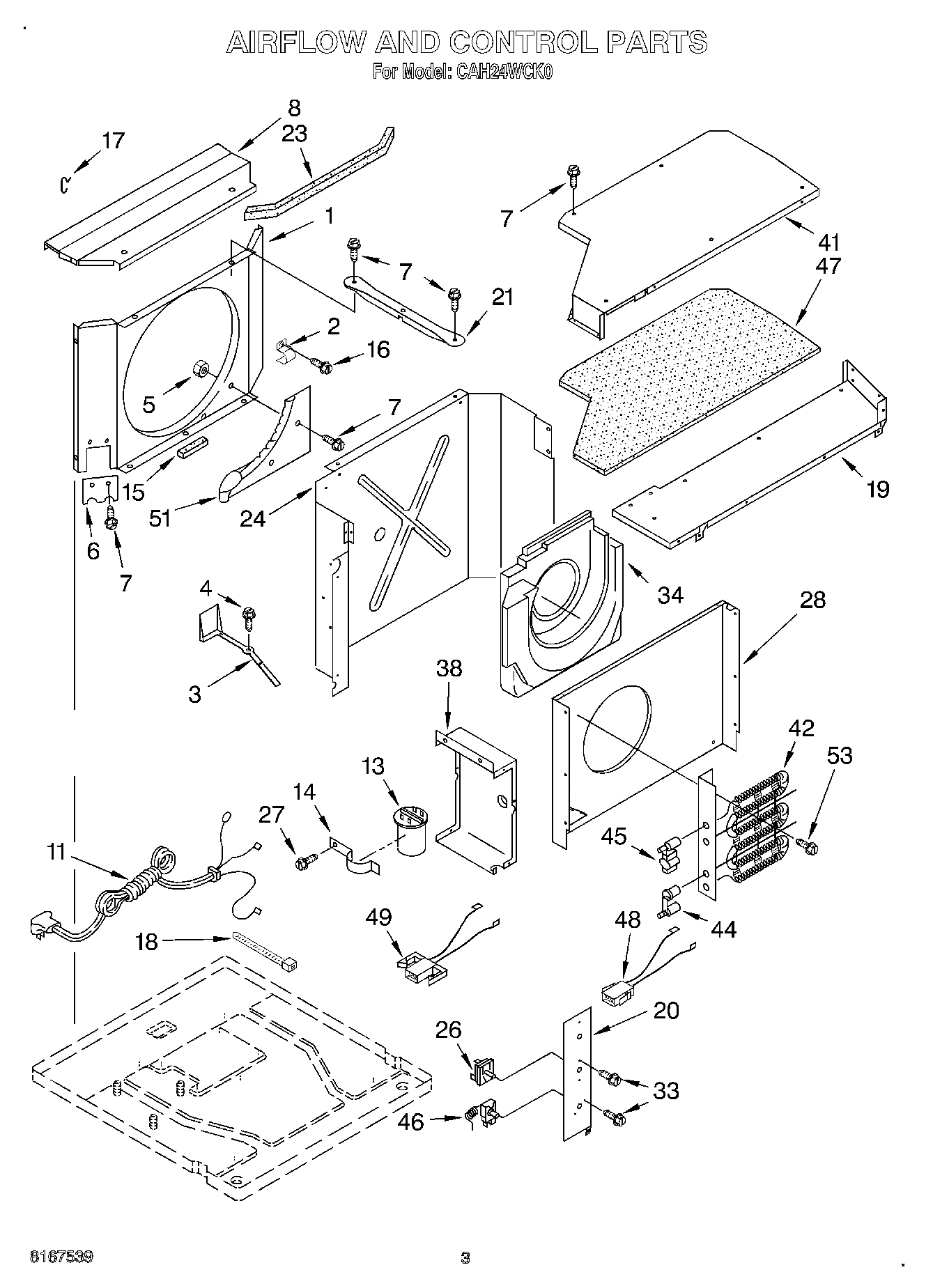

02 - AIR FLOW AND CONTROL

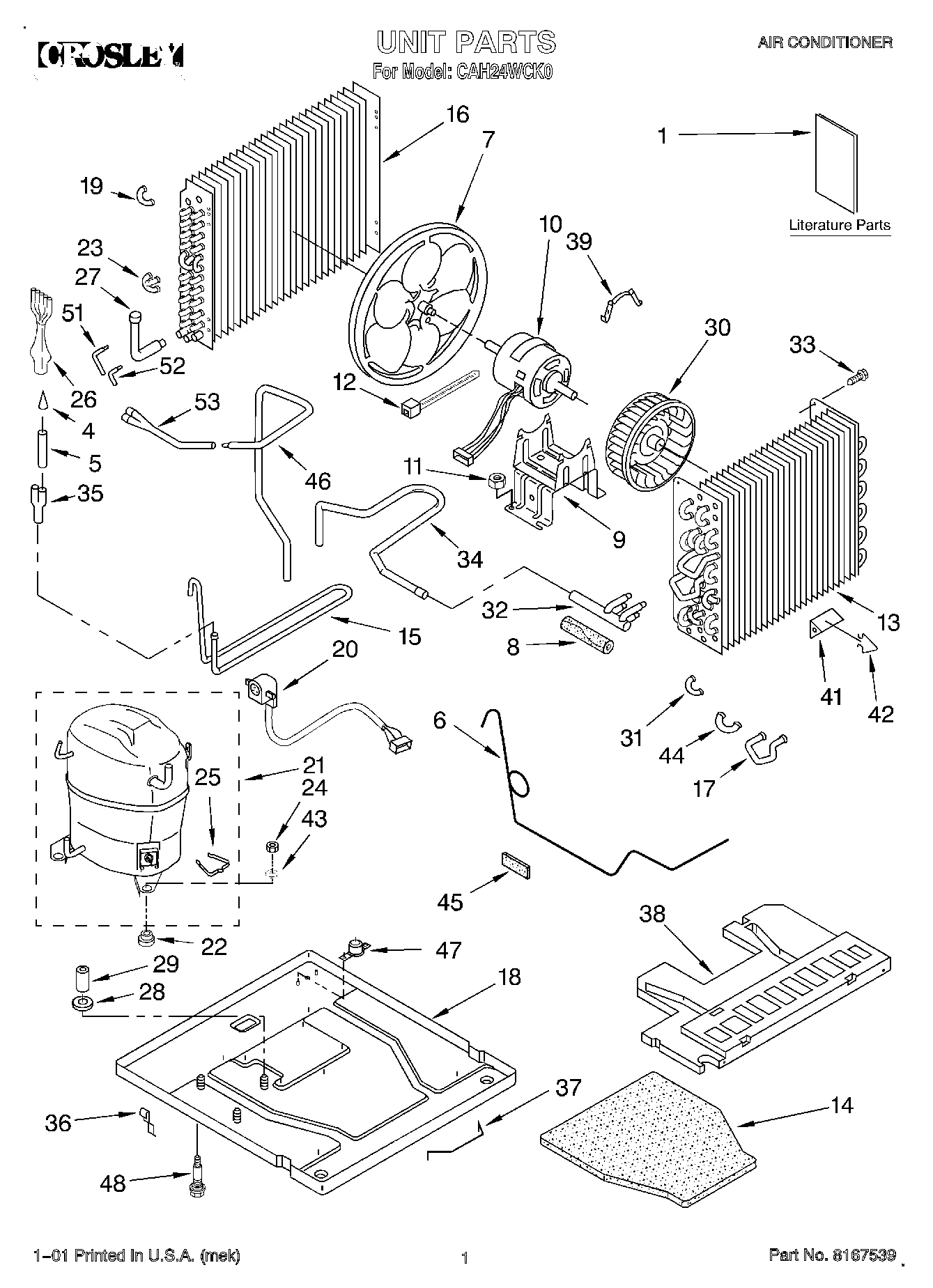

01 - UNIT, LITERATURE

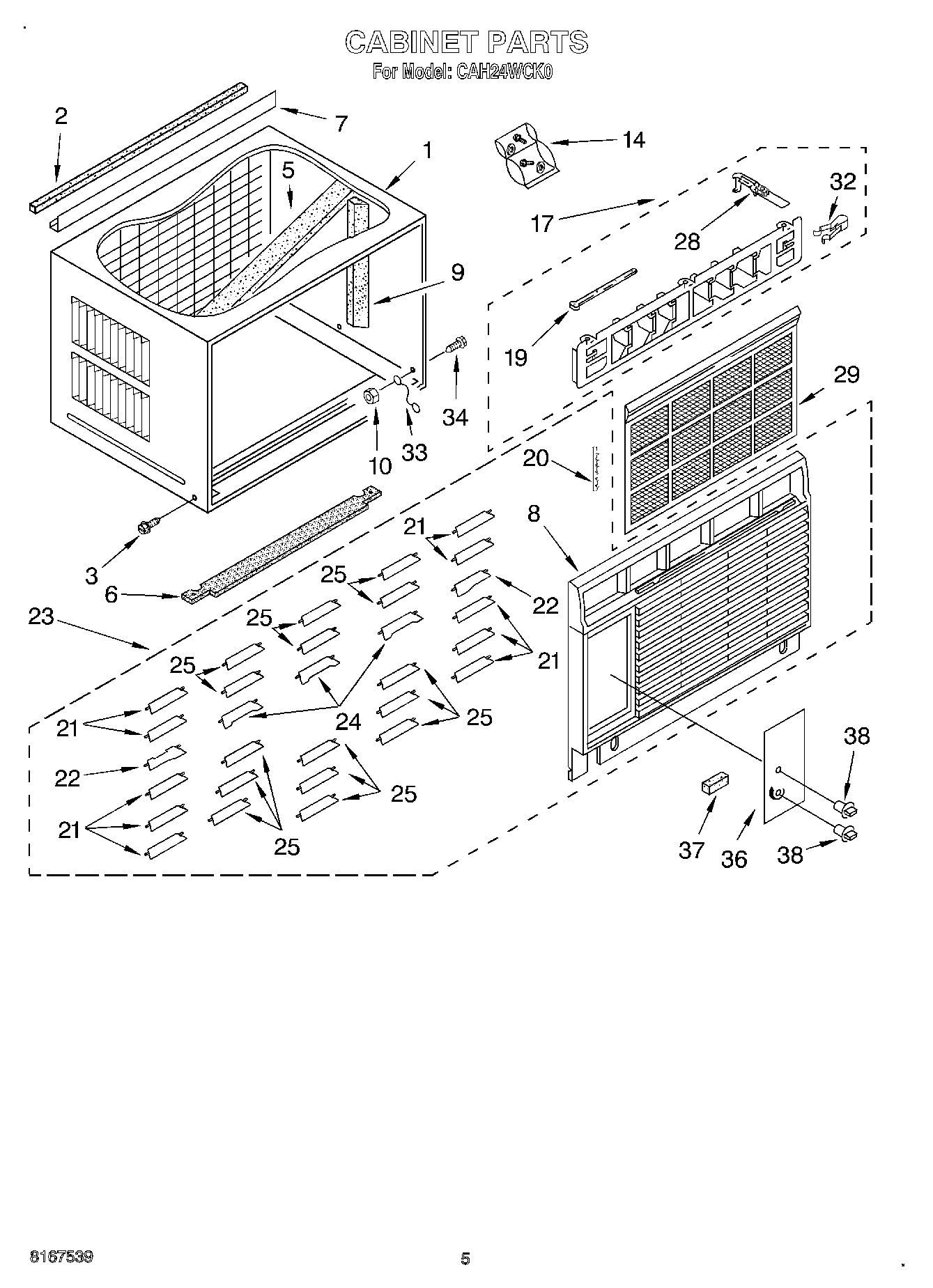

03 - CABINET

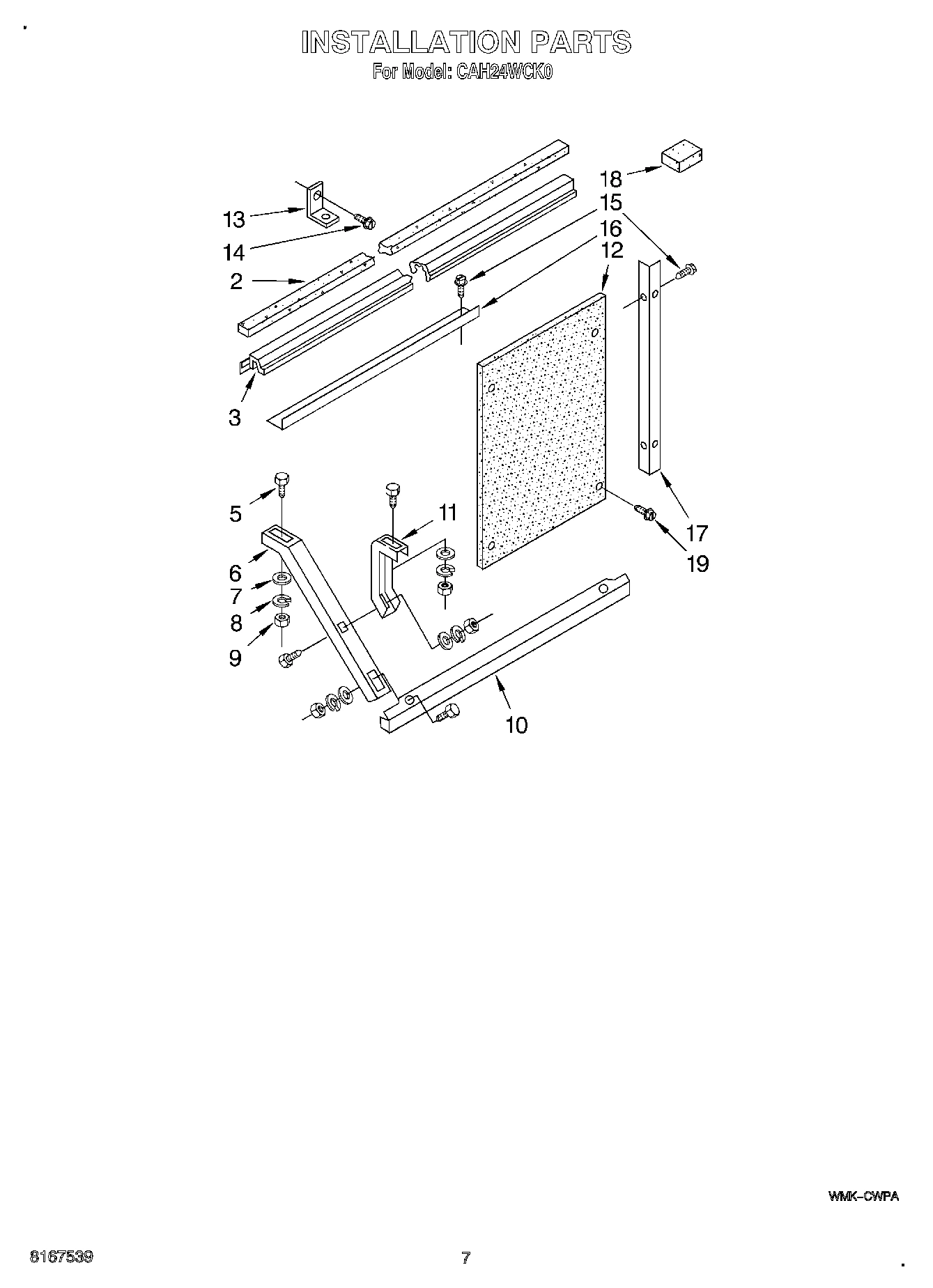

05 - INSTALLATION
Common parts from model Whirlpool CAH24WCK0 ROOM AIR CONDITIONER
Bend, Return WPL ARI144412A Contact Us For Availability
1
Shroud, Condenser WPL 1161244 Contact Us For Availability
1
Wiring Diagram WPL LIT1165720 Contact Us For Availability
1
Use & Care Guide WPL LIT1184632 Contact Us For Availability
1
Energy Guide WPL LIT1184788 Contact Us For Availability
1
Cabinet (Includes Insulation) WPL 1168478 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Clip, Wet Loop WPL 1161248 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Door, Exhaust WPL 1183344 Contact Us For Availability
3
Gasket, Sash WPL 1166388 Contact Us For Availability
4
Screw WPL 8031309 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 1163768 Contact Us For Availability
5
Insulation, Top (Cabinet) WPL 1183415 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Clip, Nylon WPL 1161249 Contact Us For Availability
6
Tube, Restrictor (4) WPL 1184610 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
6
Support, Cabinet (2) WPL 1168475 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158665 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Top, Condenser WPL 1157407 Contact Us For Availability
8
Seal, Suction Tube WPL 1160870 Contact Us For Availability
8
Front, Cabinet WPL 1168499 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
9
Insulation, Cabinet Side (2) WPL 1183414 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
10
Motor, Fan WPL 1184410 Contact Us For Availability
10
Bracket, Support WPL 1168476 Contact Us For Availability
11
Cord, Appliance WPL 1167646 Contact Us For Availability
11
Support, Retainer (2) WPL 1168474 Contact Us For Availability
12
Board, Filler WPL 1168473 Contact Us For Availability
13
Capacitor WPL 1167533 Contact Us For Availability
13
Evaporator WPL 1184607 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Bracket, Capacitor WPL 1167611 Contact Us For Availability
14
Insulation, Base (Bottom) WPL 1167085 Contact Us For Availability
14
Bag, Accessory WPL 1166387 Contact Us For Availability
14
Screw (Window Lock Bracket) WPL 487371 Contact Us For Availability
15
Screw (Side & Top Angles to Cabinet) WPL 488624 Contact Us For Availability
15
Seal, Condenstate Cup WPL 1163332 Contact Us For Availability
15
Wetloop WPL 1183416 Contact Us For Availability
16
Return Bend ReplacementKit (3/8 Inch Tube) WPL 4388785 Contact Us For Availability
16
Condenser WPL 1160100 Contact Us For Availability
16
Angle (Top) WPL 1168490 Contact Us For Availability
17
Clip, Shroud (2) WPL 1164511 Contact Us For Availability
17
Bend, Return (Evaporator - 2) WPL 1184608 Contact Us For Availability
17
Vertical, Louver WPL 1182351 Contact Us For Availability
17
Angle (2) WPL 1168472 Contact Us For Availability
18
Base WPL 1185043 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
19
Top, Evaporator Shroud WPL 1183528 Contact Us For Availability
19
Link, Verticle Louver (2) WPL 1182349 Contact Us For Availability
19
Screw (Side Angle To Filler Board) WPL 1166265 Contact Us For Availability
20
Panel, Control WPL 1182954 Contact Us For Availability
20
Harness, Wiring WPL 1183373 Contact Us For Availability
20
Link, Horizontal Louver (5) WPL 1168496 Contact Us For Availability
21
Support, Unit (2) WPL 1166169 Contact Us For Availability
21
Compressor WPL 1184606 Contact Us For Availability
21
Louver, Horizontal (10) WPL 1168493 Contact Us For Availability
22
Grommet (3) WPL 1165973 Contact Us For Availability
22
Louver, Horizontal W/ Handle (2) WPL 1168492 Contact Us For Availability
23
Seal, Shroud WPL 1158732 Contact Us For Availability
23
Return Bend 3-Way Condenser (1) WPL 1158685 Contact Us For Availability
23
Front, Complete WPL 1168498 Contact Us For Availability
24
Dividing Wall WPL 1165593 Contact Us For Availability
24
Locknut (3) WPL 1160798 Contact Us For Availability
24
Louver, Horizontal W/Handles (3) WPL 1168494 Contact Us For Availability
25
Retainer, Terminal Cover WPL 1161083 Contact Us For Availability
25
Louver, Horizontal (15) WPL 1168495 Contact Us For Availability
26
Switch Rotary WPL 1183512 Contact Us For Availability
26
Distributor WPL 1184612 Contact Us For Availability
27
Tube, Wetloop Connect WPL 1183830 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1182636 Contact Us For Availability
28
Spacer, Grommet WPL 1160654 Contact Us For Availability
28
Actuator, Louver WPL 1182348 Contact Us For Availability
29
Sleeve, Mounting WPL 1160655 Contact Us For Availability
29
Filter WPL 1168500 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1167094 Contact Us For Availability
31
Return Bend Evaporator (1) WPL 1156329 Contact Us For Availability
32
Manifold, Suction WPL 1184609 Contact Us For Availability
32
Spring, Detent WPL 1167095 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
33
Wire, Ground WPL 857022 Contact Us For Availability
34
Housing, Air WPL 1160657 Contact Us For Availability
34
Tube, Suction WPL 1166184 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
36
Plate, Escutcheon WPL 1184755 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
37
Spacer, Escuthchon WPL 470036 Contact Us For Availability
38
Control Box (R.S.) WPL 1182937 Contact Us For Availability
38
Pan, Drain WPL 1160656 Contact Us For Availability
41
Cover, Top WPL 1183529 Contact Us For Availability
41
Anticipator WPL 1166782 Contact Us For Availability
42
Element, Heating WPL 1182738 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
44
Fuse, Link WPL 4388359 Contact Us For Availability
44
Bend, Return Evaporator (4) WPL 1158407 Contact Us For Availability
45
Switch, Limit WPL 4388458 Contact Us For Availability
45
Seal, Restrictor Tube WPL 1163759 Contact Us For Availability
46
Control, Temperature WPL 1183511 Contact Us For Availability
46
Tube, Discharge WPL 1166093 Contact Us For Availability
47
Insulation, Top Cover WPL 1163758 Contact Us For Availability
47
Valve, Condensate WPL 998612 Contact Us For Availability
48
Harness, Heater WPL 1162061 Contact Us For Availability
48
Bolt, Compressor WPL 1165674 Contact Us For Availability
49
Wire Harness, Heater WPL 1183905 Contact Us For Availability
51
Cup, Condensate WPL 1160684 Contact Us For Availability
51
Tube, Feeder WPL 1161216 Contact Us For Availability
52
Tube, Feeder WPL 1161217 Contact Us For Availability
53
Tube, Discharge Top Assembly (Includes 51 & 5 WPL 1167294 Contact Us For Availability
× ![]()
