Model GE CAF16DFB Freezer – Common Parts & Diagrams
0
1
2

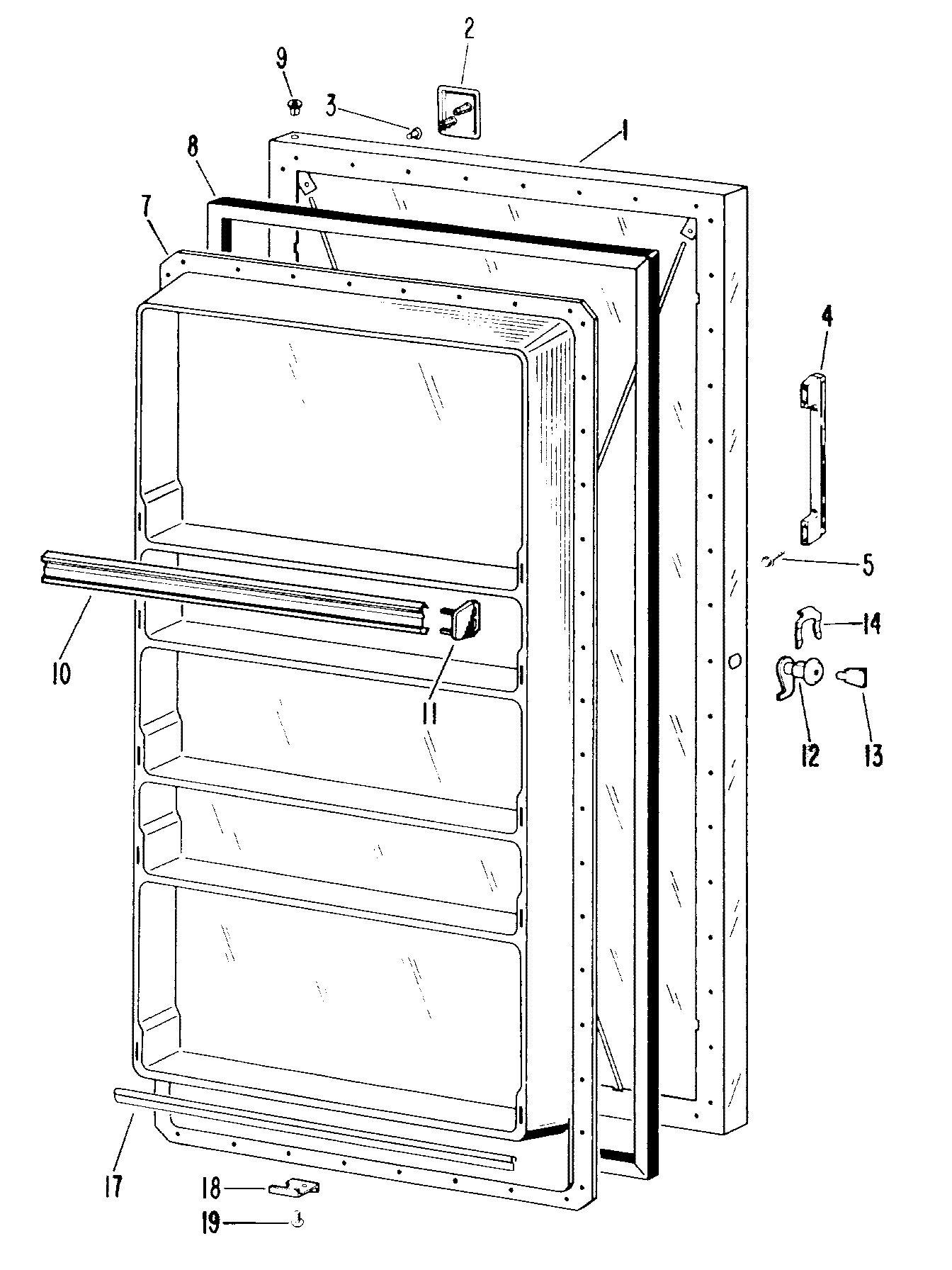

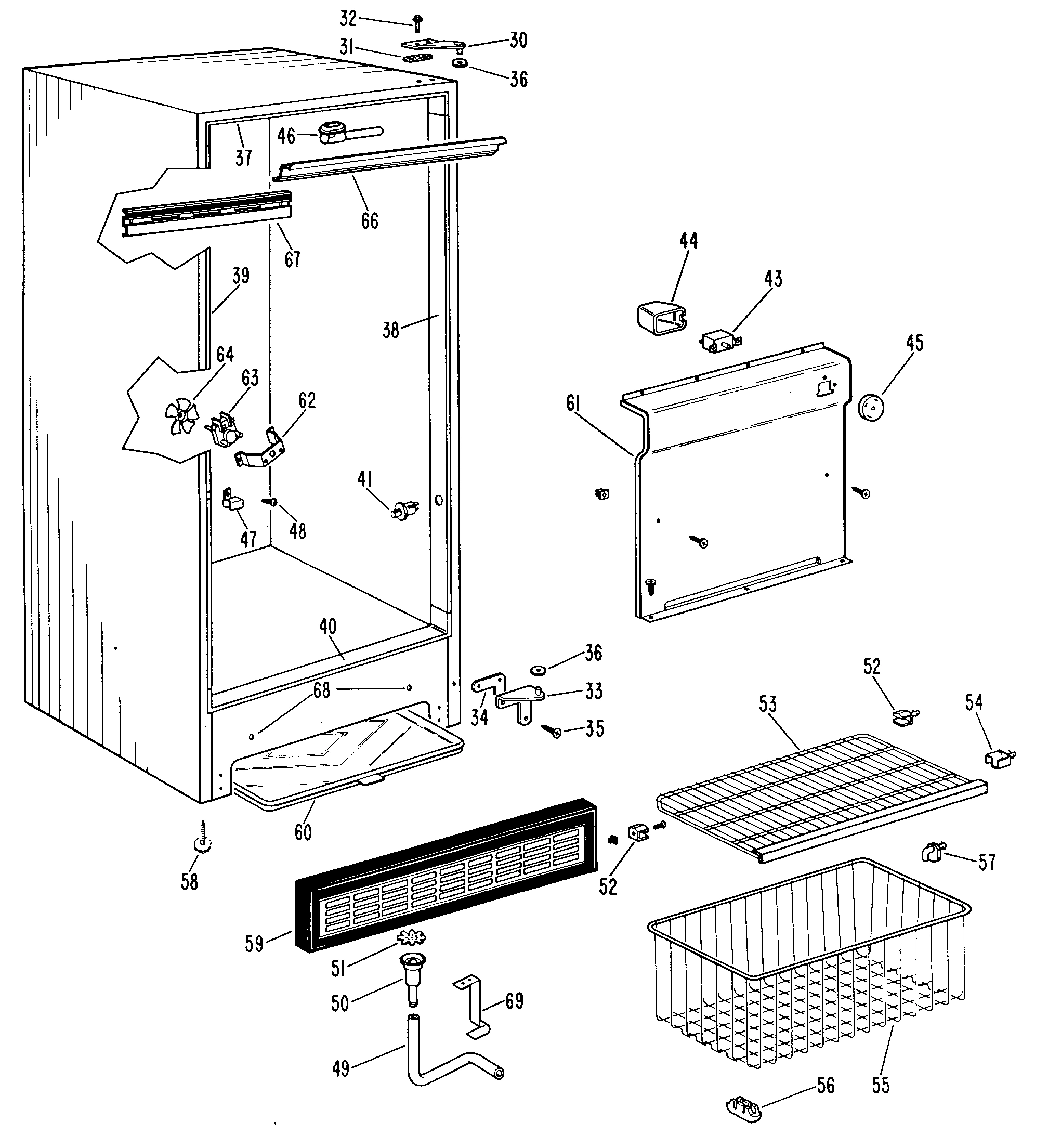

Common parts from model GE CAF16DFB Freezer
1
SCREW GEN WR01X5101 Contact Us For Availability
1
GEN WR01X5115 GEN WR01X5115 Contact Us For Availability
1
BRKT WIRE (BTM OF DR) GEN WR02X5385 Contact Us For Availability
1
GEN WR78X7499 GEN WR78X7499 Contact Us For Availability
2
GEN WR03X0408 GEN WR03X0408 Contact Us For Availability
3
GEN WR02X3757 GEN WR02X3757 Contact Us For Availability
4
GEN WR01X1530 GEN WR01X1530 Contact Us For Availability
4
GEN WR12X0514 GEN WR12X0514 Contact Us For Availability
5
GEN WZ06X0112 GEN WZ06X0112 Contact Us For Availability
7
GEN WR01X5405 GEN WR01X5405 Contact Us For Availability
7
GEN WR77X5599 GEN WR77X5599 Contact Us For Availability
9
GEN WR13X5102 GEN WR13X5102 Contact Us For Availability
10
GEN WR17X5920 GEN WR17X5920 Contact Us For Availability
11
GEN WR02X6882 GEN WR02X6882 Contact Us For Availability
11
GEN WR02X6883 GEN WR02X6883 Contact Us For Availability
12
GEN WR05X5032 GEN WR05X5032 Contact Us For Availability
13
GEN WR05X0065 GEN WR05X0065 Contact Us For Availability
14
HOOK-LOCK GEN WR05X0066 Contact Us For Availability
17
GEN WR01X5406 GEN WR01X5406 Contact Us For Availability
17
GEN WR14X5097 GEN WR14X5097 Contact Us For Availability
18
GEN WR02X5637 GEN WR02X5637 Contact Us For Availability
18
GEN WR13X5013 GEN WR13X5013 Contact Us For Availability
19
GEN WR01X5485 GEN WR01X5485 Contact Us For Availability
30
GEN WR13X5115 GEN WR13X5115 Contact Us For Availability
30
NUT STRIP HINGE GEN WR39X5003 Contact Us For Availability
31
GEN WR24X5095 GEN WR24X5095 Contact Us For Availability
32
GEN WR01X5451 GEN WR01X5451 Contact Us For Availability
33
GEN WR13X5100 GEN WR13X5100 Contact Us For Availability
33
NUTSTRIP HINGE GEN WR17X5361 Contact Us For Availability
34
SHIM HINGE GEN WR02X6354 Contact Us For Availability
35
GEN WR01X5098 GEN WR01X5098 Contact Us For Availability
36
WASHER TOP & BTM HINGE GEN WR13X5101 Contact Us For Availability
37
SPACER TOP BRACKET GEN WR01X5482 Contact Us For Availability
37
GEN WR40X5436 GEN WR40X5436 Contact Us For Availability
38
BREAKER STRIP R.SIDE GEN WR40X5438 Contact Us For Availability
39
BREAKER STRIP L.SIDE GEN WR40X5439 Contact Us For Availability
40
CLIP SIDE BREAKER GEN WR01X5340 Contact Us For Availability
40
BREAKER STRIP BOTTOM GEN WR40X5437 Contact Us For Availability
41
SWITCH LIGHT GEN WR23X0136 Contact Us For Availability
43
CLAMP CAP TUBE GEN WR01X5226 Contact Us For Availability
43
GEN WR01X5408 GEN WR01X5408 Contact Us For Availability
43
GEN WR09X5135 GEN WR09X5135 Contact Us For Availability
44
GEN WR02X6201 GEN WR02X6201 Contact Us For Availability
45
SCREW KNOB TO CONTROL GEN WR01X5483 Contact Us For Availability
45
GEN WR02X6360 GEN WR02X6360 Contact Us For Availability
46
GEN WR23X5123 GEN WR23X5123 Contact Us For Availability
47
CATCH GEN WR02X6316 Contact Us For Availability
49
GEN WR17X5367 GEN WR17X5367 Contact Us For Availability
50
SLEEVE DRAIN TUBE GEN WR02X6353 Contact Us For Availability
51
GEN WR02X6203 GEN WR02X6203 Contact Us For Availability
52
GEN WR01X5185 GEN WR01X5185 Contact Us For Availability
52
SHELF SUPPORT GROMMET GEN WR01X5255 Contact Us For Availability
52
GEN WR02X5338 GEN WR02X5338 Contact Us For Availability
52
GEN WR02X5340 GEN WR02X5340 Contact Us For Availability
53
GEN WR71X5898 GEN WR71X5898 Contact Us For Availability
53
GEN WR71X5899 GEN WR71X5899 Contact Us For Availability
54
GEN WR02X6204 GEN WR02X6204 Contact Us For Availability
54
GEN WR02X6205 GEN WR02X6205 Contact Us For Availability
55
GEN WR21X5094 GEN WR21X5094 Contact Us For Availability
57
GEN WR02X6171 GEN WR02X6171 Contact Us For Availability
58
GLIDER GEN WR02X5523 Contact Us For Availability
59
PIN GRILLE GEN WR02X6270 Contact Us For Availability
59
BUMPER GEN WR02X6271 Contact Us For Availability
59
GEN WR79X5153 GEN WR79X5153 Contact Us For Availability
60
DRAIN PAN GEN WR32X5205 Contact Us For Availability
61
SCREW COVER BOTTOM GEN WD02X5105 Contact Us For Availability
61
GEN WR02X6314 GEN WR02X6314 Contact Us For Availability
61
GEN WR14X5119 GEN WR14X5119 Contact Us For Availability
61
GEN WR17X5863 GEN WR17X5863 Contact Us For Availability
62
GROMMET LINER GEN WR01X5256 Contact Us For Availability
62
GEN WR02X5143 GEN WR02X5143 Contact Us For Availability
63
SCREW MOTOR TO BRKT GEN WR01X5189 Contact Us For Availability
63
GEN WR60X5066 GEN WR60X5066 Contact Us For Availability
64
GEN WR60X5055 GEN WR60X5055 Contact Us For Availability
66
GEN WR01X5056 GEN WR01X5056 Contact Us For Availability
66
GEN WR17X5864 GEN WR17X5864 Contact Us For Availability
67
GEN WR01X5197 GEN WR01X5197 Contact Us For Availability
67
GEN WR02X6210 GEN WR02X6210 Contact Us For Availability
67
GEN WR17X5756 GEN WR17X5756 Contact Us For Availability
68
TUBULAR SPEEDNUT CAB. GEN WR02X4817 Contact Us For Availability
69
GEN WR02X6315 GEN WR02X6315 Contact Us For Availability
104
EVAPORATOR ASM GEN WR85X5204 Contact Us For Availability
104
GEN WR86X0023 GEN WR86X0023 Contact Us For Availability
105
SUPPORT EVAP GEN WR02X6206 Contact Us For Availability
106
GEN WR02X6207 GEN WR02X6207 Contact Us For Availability
107
FREON CHARGE 9 OZ. GEN WR97X0156 Contact Us For Availability
107
HI-SIDE GEN WR87X5083 Contact Us For Availability
109
GEN WR02X6208 GEN WR02X6208 Contact Us For Availability
109
GEN WR51X5186 GEN WR51X5186 Contact Us For Availability
110
SCREW COMPRESSOR MTG GEN WR01X5060 Contact Us For Availability
111
GEN WR02X5642 GEN WR02X5642 Contact Us For Availability
112
GROM. COMPRESSOR MTG GEN WR01X5134 Contact Us For Availability
113
GEN WR07X0135 GEN WR07X0135 Contact Us For Availability
114
GEN WR08X0058 GEN WR08X0058 Contact Us For Availability
115
GEN WR02X5641 GEN WR02X5641 Contact Us For Availability
116
GEN WR13X5103 GEN WR13X5103 Contact Us For Availability
117
GEN WR01X5119 GEN WR01X5119 Contact Us For Availability
119
SCREW TIMER TO BRACKET GEN WZ05X0160 Contact Us For Availability
120
GEN 49-6317-1 GEN 49-6317-1 Contact Us For Availability
120
GEN WR02X6209 GEN WR02X6209 Contact Us For Availability
× ![]()
