Model Whirlpool CA6WMS0 AIR CONDITIONER – Common Parts & Diagrams

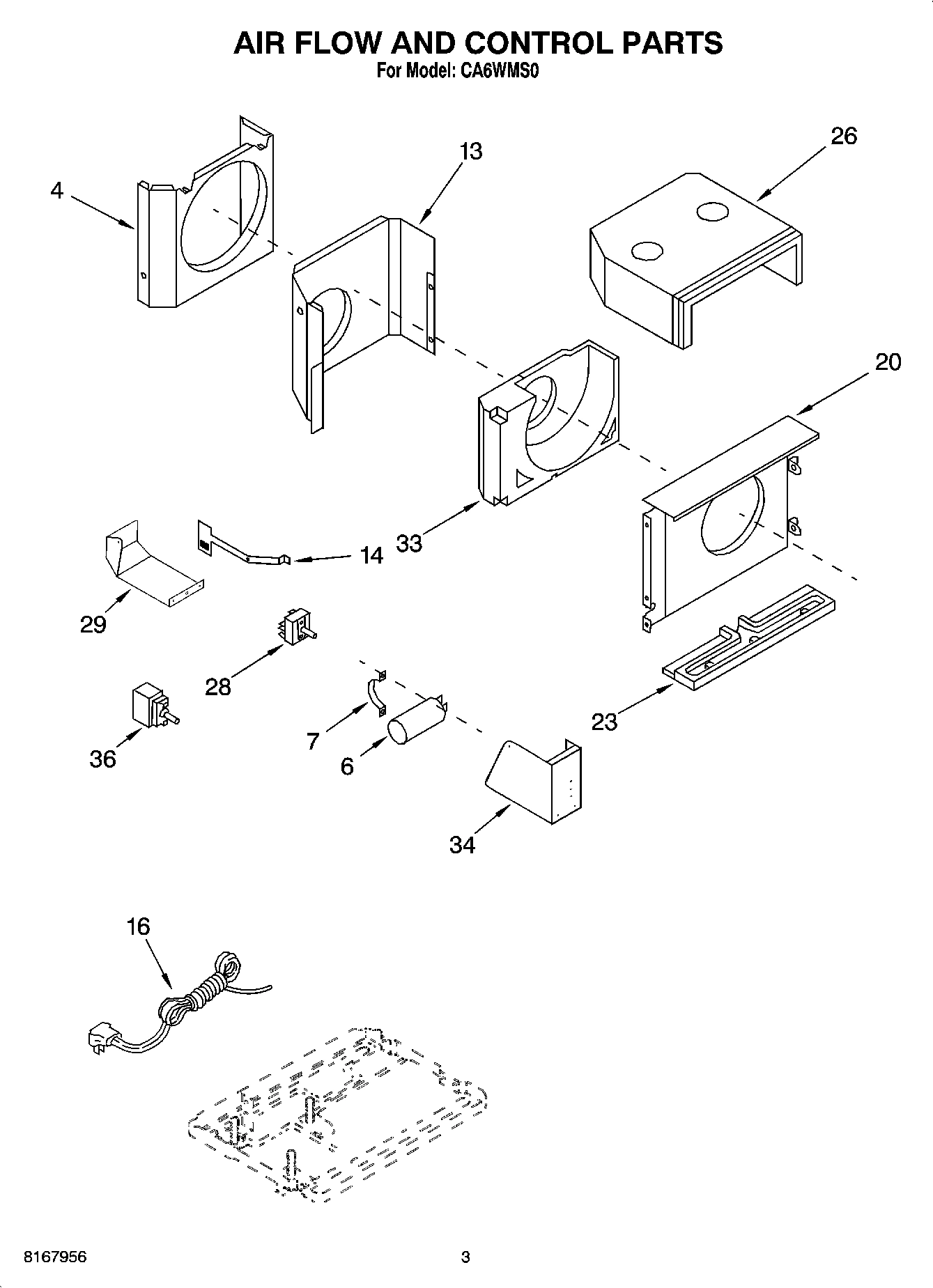

02 - AIR FLOW AND CONTROL PARTS

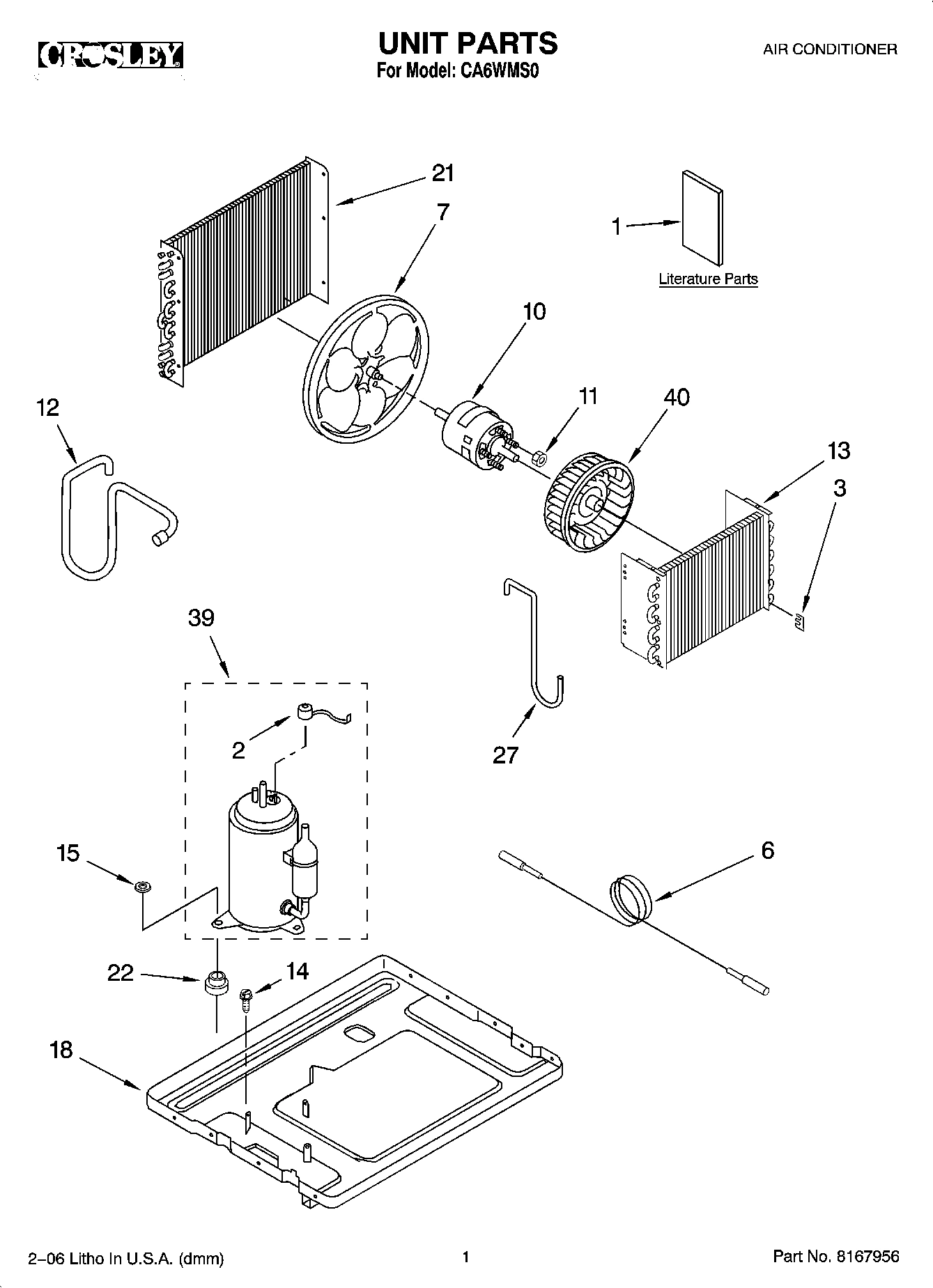

01 - UNIT PARTS
03 - CABINET PARTS
Common parts from model Whirlpool CA6WMS0 AIR CONDITIONER
1
Use & care Guide WPL 8209797 Contact Us For Availability
1
Wiring Diagram WPL 8209851 Contact Us For Availability
1
Energy Guide WPL 8209852 Contact Us For Availability
1
Cabinet WPL 8209778 Contact Us For Availability
2
Overload WPL 8209823 Contact Us For Availability
2
Nameplate, Rear WPL 8209754 Contact Us For Availability
3
Support, Tube Sensor WPL 8209771 Contact Us For Availability
3
Louver WPL 8209837 Contact Us For Availability
4
Shroud, Condenser WPL 8209779 Contact Us For Availability
4
Channel, Top WPL 8209897 Contact Us For Availability
6
Capacitor, Running WPL 8209676 Contact Us For Availability
6
Tube, Restrictor WPL 8209842 Contact Us For Availability
6
Front, Cabinet WPL 8209835 Contact Us For Availability
7
Bracket, Capacitor WPL 8209832 Contact Us For Availability
7
Blade, Fan WPL 8209657 Contact Us For Availability
8
Curtain Assembly Right & Left Side (Includes WPL 8209896 Contact Us For Availability
9
Lever, Louver WPL 8209838 Contact Us For Availability
10
Motor, Fan WPL 8209659 Contact Us For Availability
11
Nut, Hex 8-32 (4) WPL 8209660 Contact Us For Availability
11
Filter WPL 8209751 Contact Us For Availability
12
Tube, Discharge WPL 8209804 Contact Us For Availability
12
Grille, Front WPL 8209834 Contact Us For Availability
13
Wall, Dividing WPL 8209678 Contact Us For Availability
13
Evaporator WPL 8209839 Contact Us For Availability
13
Screw WPL 8209777 Contact Us For Availability
14
Door, Exhaust WPL 8209847 Contact Us For Availability
14
Front, Cabinet Assembly WPL 8209690 Contact Us For Availability
15
Nut (3) WPL 8209668 Contact Us For Availability
16
Cord, Appliance WPL 8209788 Contact Us For Availability
17
Housing, Louver WPL 8209836 Contact Us For Availability
18
Base WPL 8209840 Contact Us For Availability
18
Handle, Louver WPL 8209846 Contact Us For Availability
20
Shroud, Evaporator WPL 8209784 Contact Us For Availability
21
Condenser WPL 8209841 Contact Us For Availability
22
Grommet (3) WPL 8209829 Contact Us For Availability
23
Pan, Evaporator WPL 8209681 Contact Us For Availability
25
Escutcheon WPL 8209848 Contact Us For Availability
26
Hood, Air Housing WPL 8209748 Contact Us For Availability
27
Tube, Suction WPL 8209669 Contact Us For Availability
28
Switch, Rotary WPL 8209752 Contact Us For Availability
29
Box, Control WPL 8209684 Contact Us For Availability
29
Knob (2) WPL 8209849 Contact Us For Availability
33
Housing, Air WPL 8209686 Contact Us For Availability
34
Panel, Control WPL 8209845 Contact Us For Availability
36
Thermostat WPL 8209689 Contact Us For Availability
39
Compressor Assembly WPL 8209822 Contact Us For Availability
40
Wheel, Blower WPL 8209673 Contact Us For Availability
40
REFRIGERANT CHARGE 12.85 oz. WPL ARI21172A2 Contact Us For Availability
× ![]()
