Model Whirlpool CA6WM4 ROOM AIR CONDITIONER – Common Parts & Diagrams

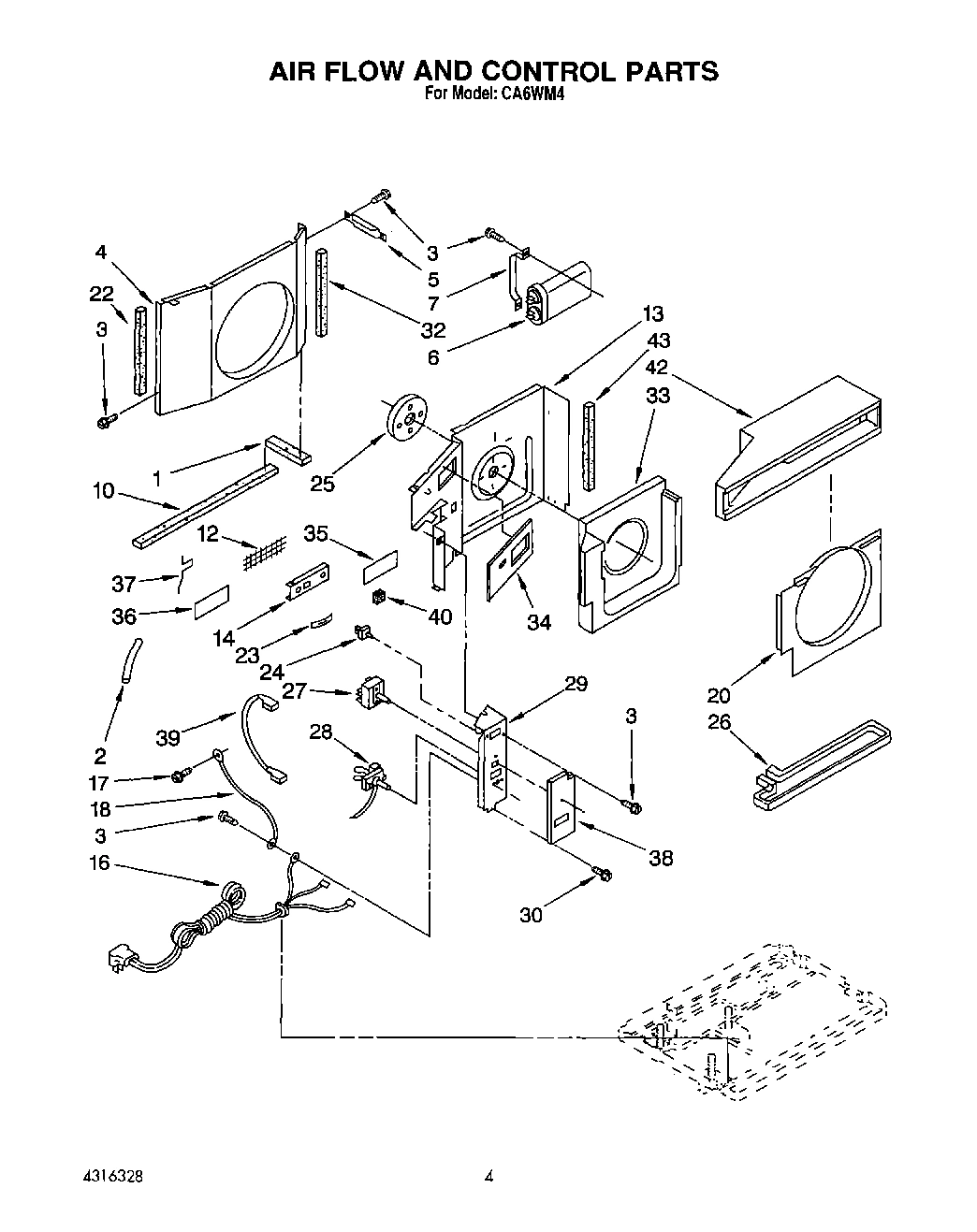

03 - AIR FLOW AND CONTROL

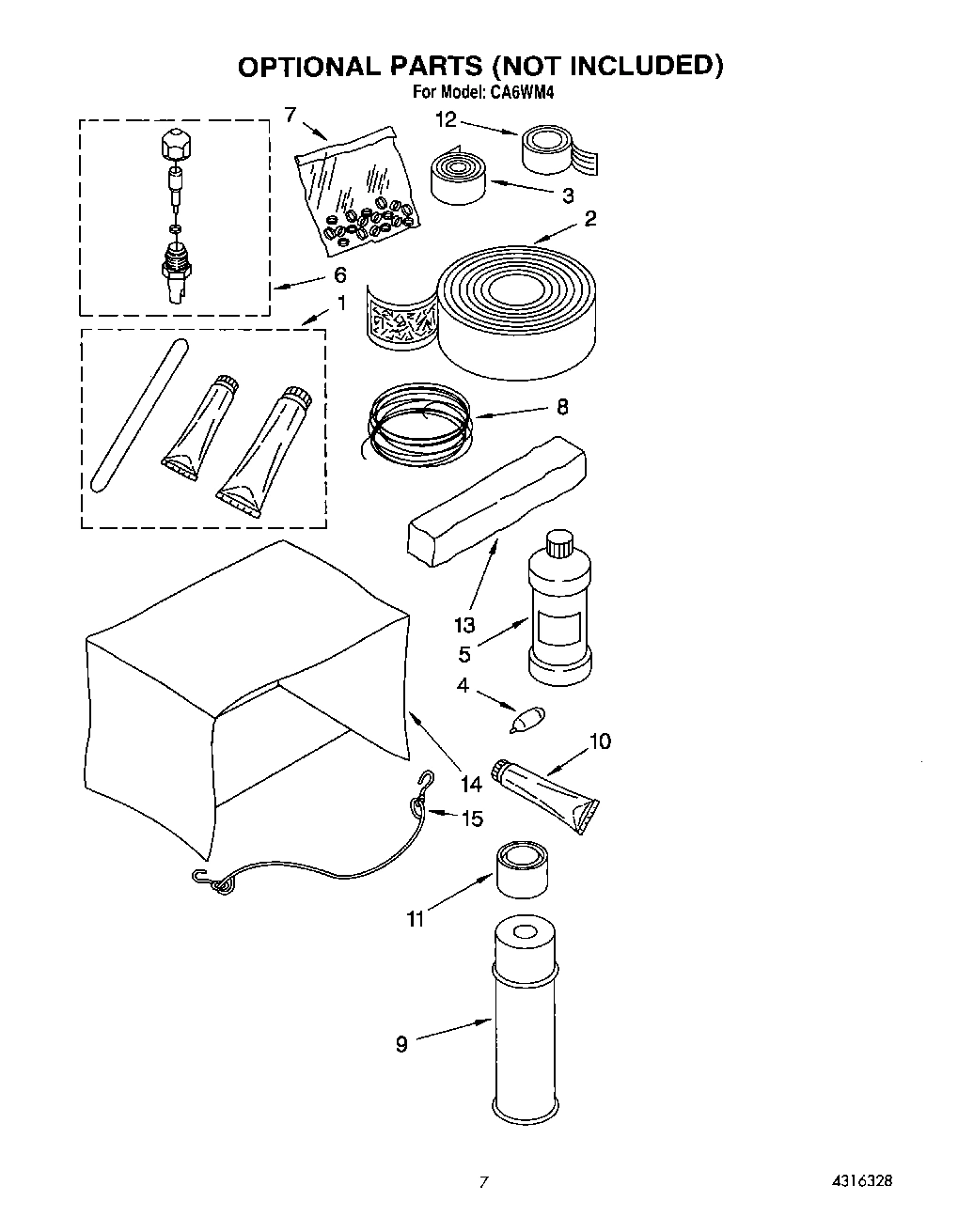

05 - OPTIONAL

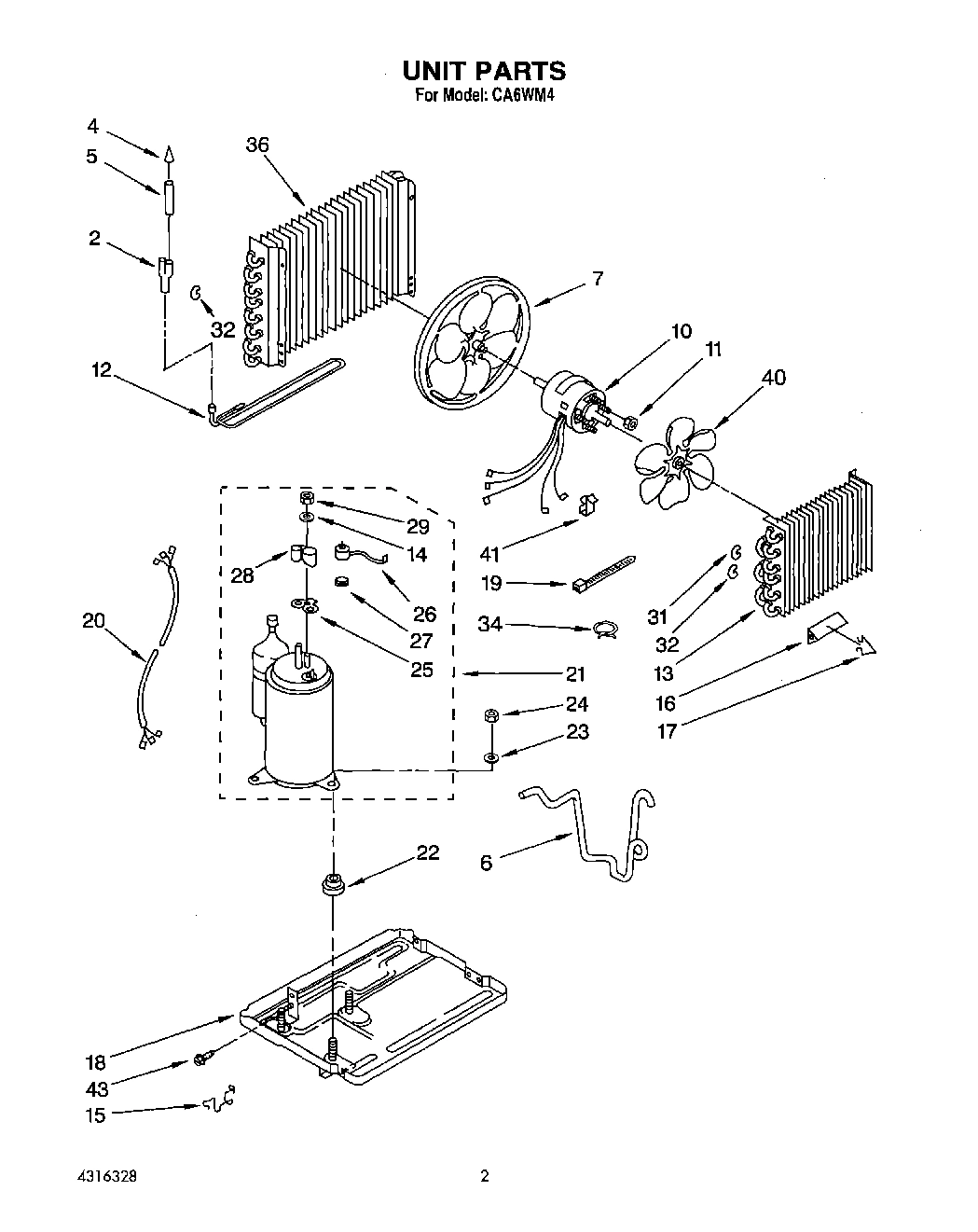

02 - UNIT, LIT/OPTIONAL

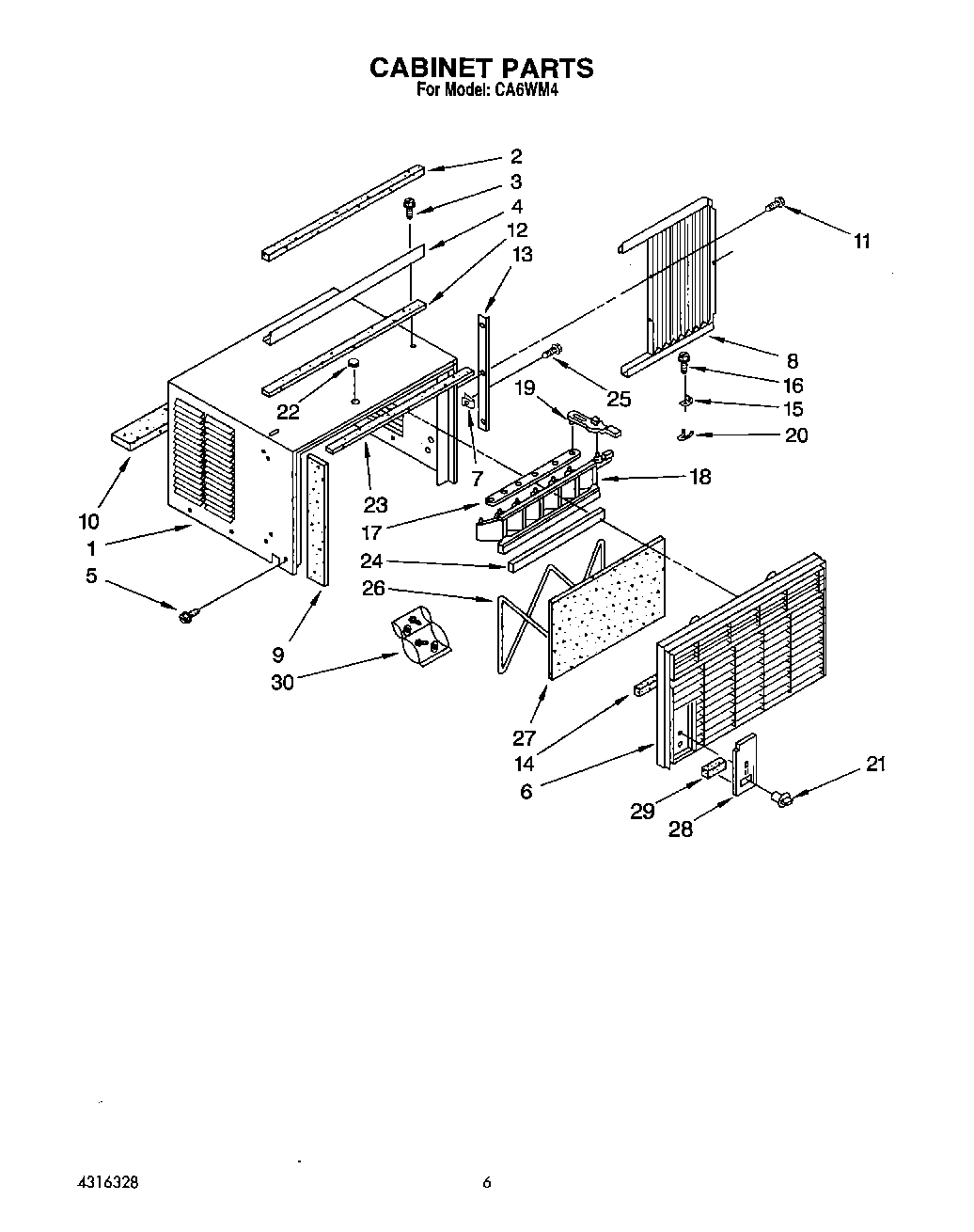

04 - CABINET
Common parts from model Whirlpool CA6WM4 ROOM AIR CONDITIONER
Tech Sheet WPL LIT1159431 Contact Us For Availability
Guide, Use And Care WPL LIT1161895 Contact Us For Availability
Installation Instructions WPL LIT1161947 Contact Us For Availability
Repair Parts List WPL LIT4316328 Contact Us For Availability
Wiring Diagram WPL LIT950222 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Cabinet WPL 1157939 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Tube, Flow Divider WPL 947364 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
4
Channel, Top WPL 993849 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 950855 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Tube, Restrictor WPL 1160988 Contact Us For Availability
6
Front, Cabinet WPL 1159799 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158524 Contact Us For Availability
7
Clip WPL 1158294 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Curtain (R.S.) WPL 646154 Contact Us For Availability
8
Curtain (L.S.) WPL 646158 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Insulation, Side WPL 950169 Contact Us For Availability
10
Motor, Fan WPL 1161867 Contact Us For Availability
10
Insulation, Top WPL 1157942 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Screw, 3/8 (2) WPL 1161561 Contact Us For Availability
12
Tube, Condenser Extension WPL 1160799 Contact Us For Availability
12
Seal, Strip WPL 856990 Contact Us For Availability
13
Evaporator WPL 1161721 Contact Us For Availability
13
Retainer, Curtain WPL 646160 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Clip, Front (2) WPL 949634 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
16
Anticipator, Temperature WPL 996773 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
17
Link, Louver (2) WPL 645684 Contact Us For Availability
18
Base WPL 1157926 Contact Us For Availability
18
Louver, Vertical WPL 1158325 Contact Us For Availability
19
Handle, Louver (2) WPL 645683 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
20
Spring, Detent (1) WPL 641484 Contact Us For Availability
21
Knob, Control WPL 1158639 Contact Us For Availability
21
Compressor WPL 4210325 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
22
Cover, Hole WPL 1157126 Contact Us For Availability
23
Spring, Retainer WPL 858765 Contact Us For Availability
23
Seal, Cabinet (Top) WPL 1159283 Contact Us For Availability
24
Actuator, Exhaust Door WPL 953066 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
24
Seal, Vertical WPL 855238 Contact Us For Availability
25
Insulation, Motor WPL 1158469 Contact Us For Availability
25
Screw No.8 x 3/8 Louver WPL 1159222 Contact Us For Availability
26
Pan, Condensate WPL 1159428 Contact Us For Availability
26
Retainer, Filter WPL 646963 Contact Us For Availability
27
Switch, Rotary WPL 950519 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
27
Filter WPL 852344 Contact Us For Availability
28
Control, Temperature WPL 950403 Contact Us For Availability
28
Escutcheon WPL 1161645 Contact Us For Availability
29
Panel, Control WPL 1158285 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
30
Bag, Accessory WPL 476180 Contact Us For Availability
31
Bend, Return Evaporator (6) WPL 708531 Contact Us For Availability
32
Seal, Condenser (R.S.) WPL 857923 Contact Us For Availability
32
Bend, Return Condenser (11) Evaporator (1) WPL 708532 Contact Us For Availability
33
Housing, Air WPL 1159346 Contact Us For Availability
34
Insulation, Door WPL 1158283 Contact Us For Availability
34
Clamp, Tube WPL 855930 Contact Us For Availability
35
Spacer, Door WPL 1159175 Contact Us For Availability
36
Seal, Door WPL 1158323 Contact Us For Availability
36
Condenser WPL 1157934 Contact Us For Availability
37
Arm, Door WPL 1157947 Contact Us For Availability
38
Insulation, Control Panel WPL 1157945 Contact Us For Availability
39
Wire, Jumper WPL 1158937 Contact Us For Availability
40
Seal, Foam WPL 1159443 Contact Us For Availability
40
Fan, Blade (Evaporator) WPL 1160094 Contact Us For Availability
41
Clamp, Wiring WPL 852451 Contact Us For Availability
42
Hood, Air Housing WPL 1159349 Contact Us For Availability
× ![]()
