Model Whirlpool CA5WM45 ROOM AIR CONDITIONER – Common Parts & Diagrams

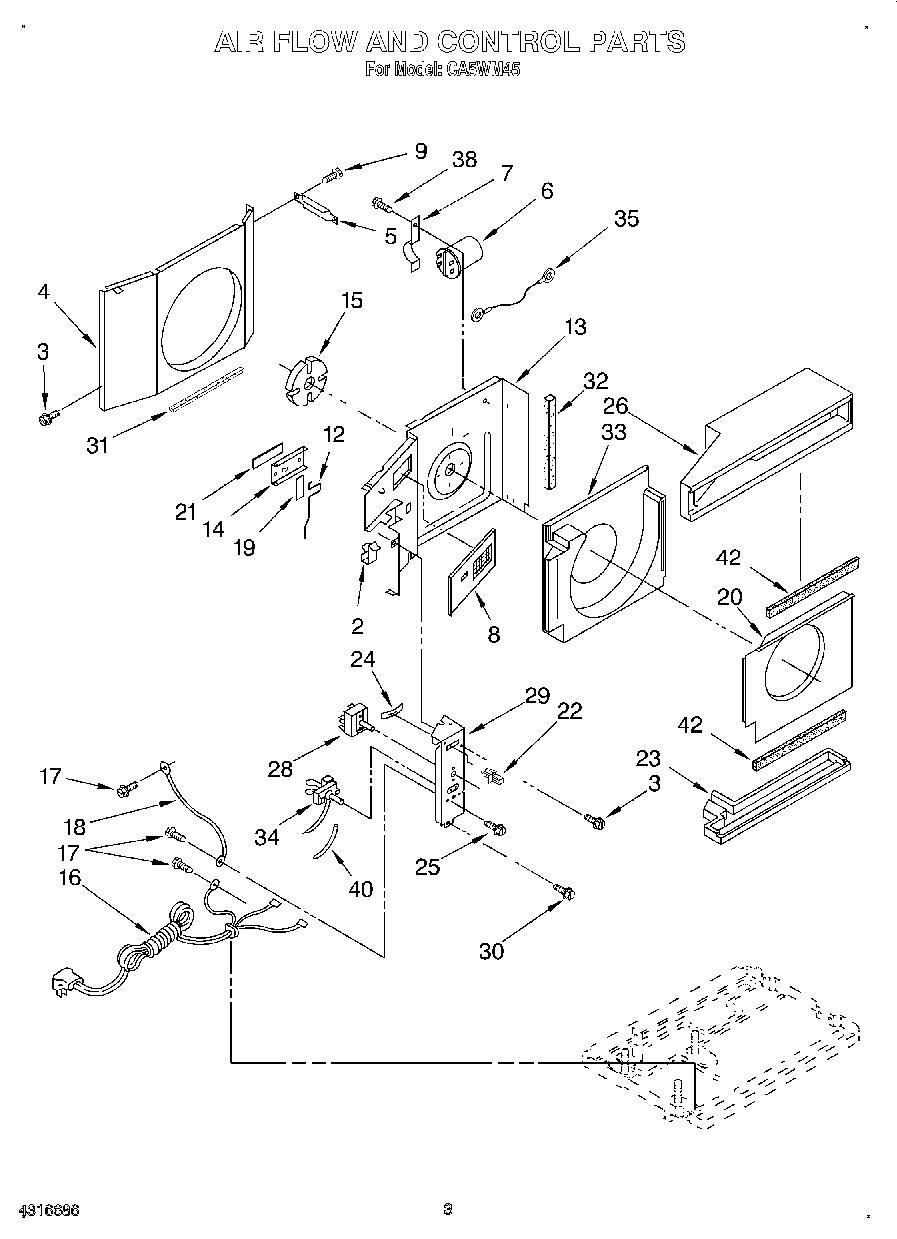

02 - AIR FLOW AND CONTROL

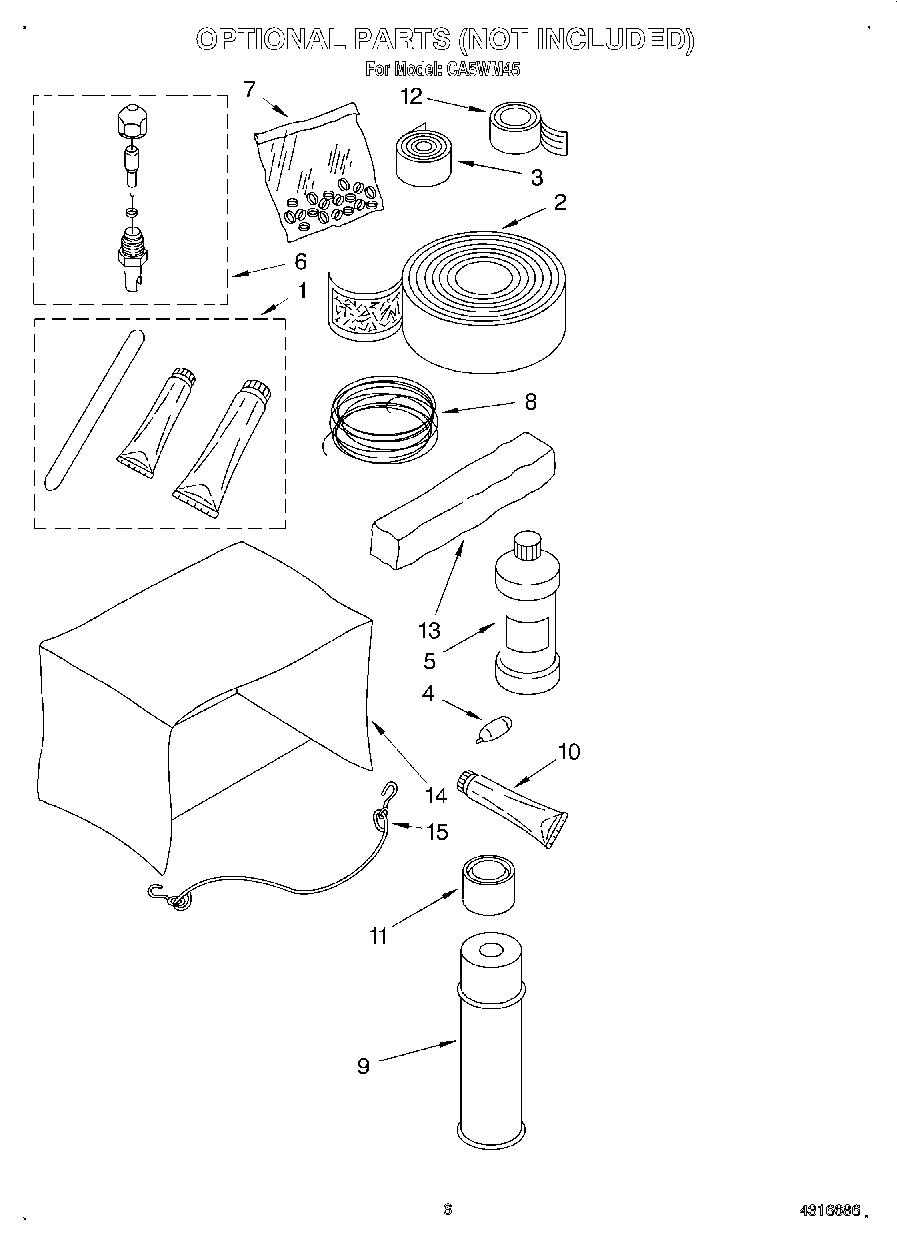

04 - OPTIONAL

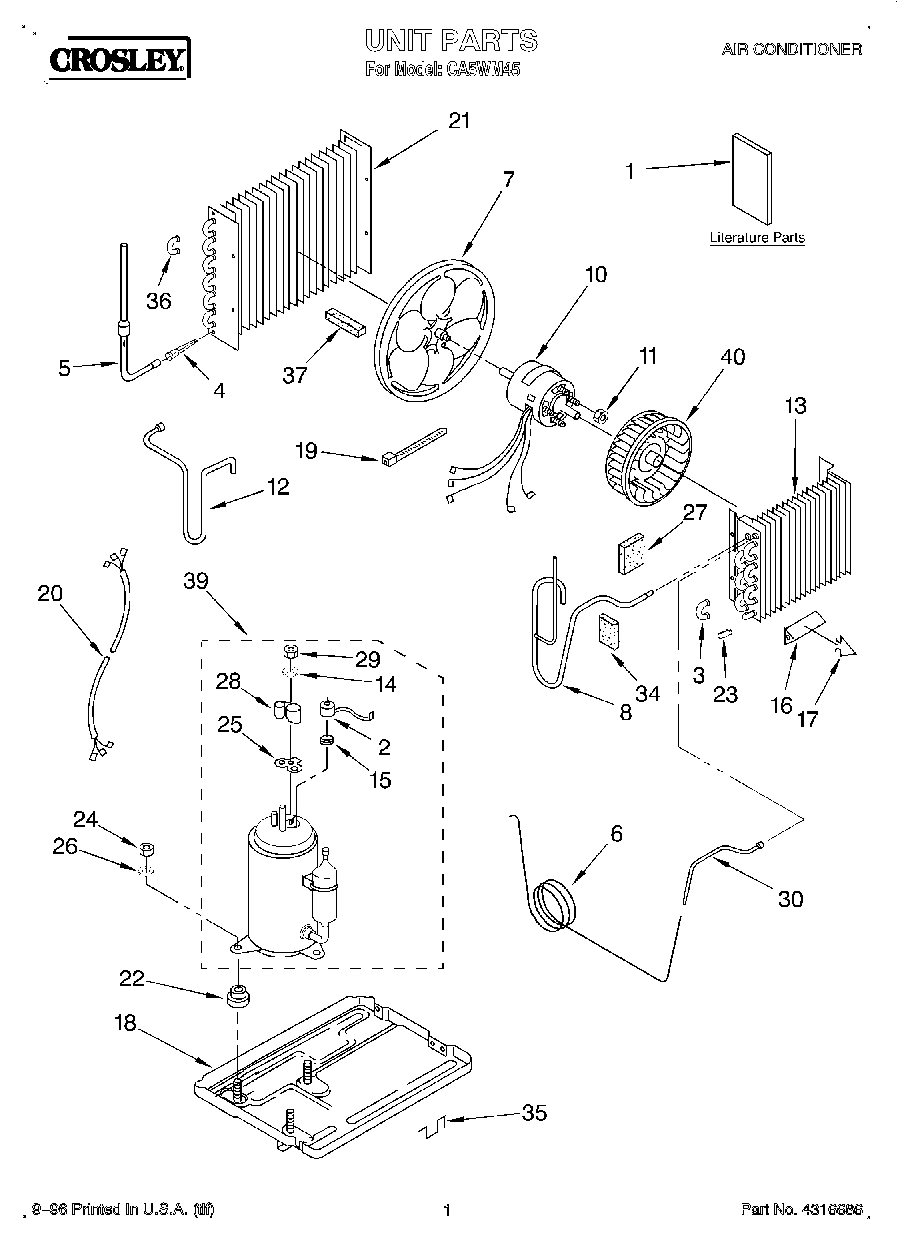

01 - UNIT, LITERATURE

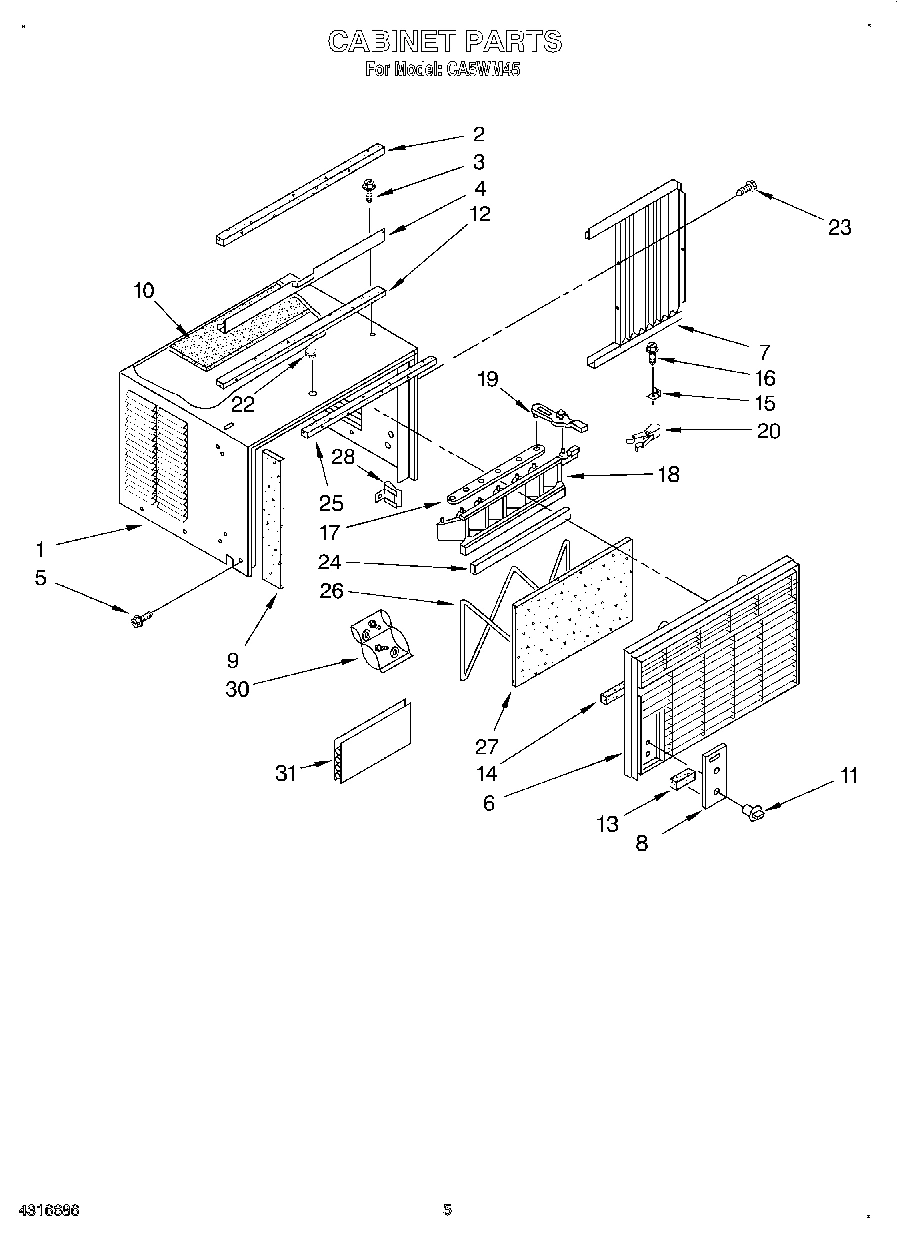

03 - CABINET

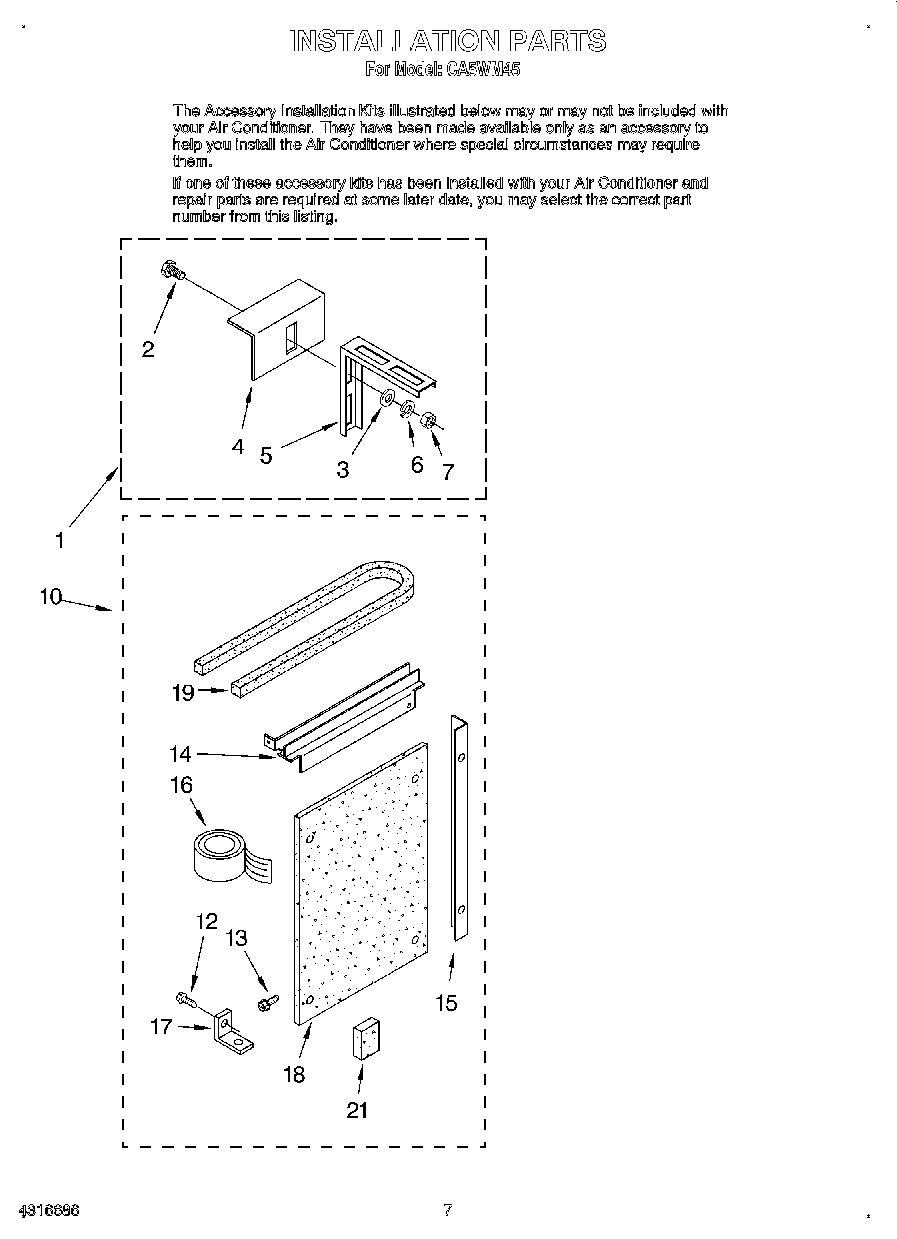

05 - INSTALLATION
Common parts from model Whirlpool CA5WM45 ROOM AIR CONDITIONER
Wiring Diagram WPL LIT1165234 Contact Us For Availability
Tech Sheet WPL LIT1168163 Contact Us For Availability
Owners Manual WPL LIT1169191 Contact Us For Availability
Instructions, Installation (Standard Window M WPL LIT1155124 Contact Us For Availability
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Cabinet WPL 1157939 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Overload (Service Comp.) WPL 1160970 Contact Us For Availability
2
Overload (Production Comp.) WPL 1161179 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return (6) WPL 855199 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Channel, Top WPL 1168393 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Tube, Outlet WPL 1168637 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Tube, Restrictor WPL 1168113 Contact Us For Availability
6
Front, Cabinet Assembly WPL 1159799 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Blade, Fan WPL 1158524 Contact Us For Availability
7
Curtain (R.S.) WPL 1162961 Contact Us For Availability
7
Curtain (L.S.) WPL 1162963 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 487541 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Tube, Suction WPL 1166117 Contact Us For Availability
8
Escutcheon WPL 1167787 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Insulation, Side WPL 1168285 Contact Us For Availability
10
Motor, Fan WPL 1166119 Contact Us For Availability
10
Insulation, Top WPL 1157942 Contact Us For Availability
10
Kit, Window Installation WPL 994818 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Knob, Control (2) WPL 1167954 Contact Us For Availability
12
Tube, Discharge WPL 1162781 Contact Us For Availability
12
Seal, Strip WPL 856990 Contact Us For Availability
12
Screw, Wood WPL 47435 Contact Us For Availability
13
Evaporator WPL 1168161 Contact Us For Availability
13
Spacer WPL 470036 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Bracket, Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 645563 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Spring, Overload WPL 950032 Contact Us For Availability
15
Angle, Side (2) WPL 646988 Contact Us For Availability
16
Anticipator WPL 996773 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
16
Seal, Strip WPL 855265 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
17
Bracket, Window Lock WPL 644228 Contact Us For Availability
17
Link, Louver WPL 645684 Contact Us For Availability
18
Base WPL 1157926 Contact Us For Availability
18
Louver, Vertical WPL 1158325 Contact Us For Availability
18
Board, Filler (2) WPL 1166430 Contact Us For Availability
19
Seal, Meeting Rail WPL 855841 Contact Us For Availability
19
Handle, Louver WPL 648626 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
20
Spring, Detent WPL 641484 Contact Us For Availability
21
Condenser WPL 1168118 Contact Us For Availability
21
Spacer, Block WPL 995274 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
22
Cover, Hole WPL 1157126 Contact Us For Availability
23
Pan, Evaporator WPL 1164671 Contact Us For Availability
23
Screw 3/8 WPL 1161561 Contact Us For Availability
24
Spring, Detent WPL 858765 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
24
Seal, Vertical Louver WPL 855238 Contact Us For Availability
25
Screw No.6 x 32 WPL 488734 Contact Us For Availability
25
Seal WPL 1159283 Contact Us For Availability
26
Hood, Air Housing WPL 1164649 Contact Us For Availability
26
Retainer, Filter WPL 646963 Contact Us For Availability
27
Sealer, Tube WPL 1164551 Contact Us For Availability
27
Filter WPL 852344 Contact Us For Availability
28
Switch, Rotary WPL 1165244 Contact Us For Availability
28
Clip, Vertical Louver WPL 1158294 Contact Us For Availability
29
Panel, Control WPL 1158285 Contact Us For Availability
30
Tube, Feeder (Restrictor) WPL 1165066 Contact Us For Availability
30
Bag, Accessory WPL 476180 Contact Us For Availability
33
Housing, Air WPL 1164648 Contact Us For Availability
34
Control, Temperature WPL 1166919 Contact Us For Availability
34
Sealer, Tube WPL 1159443 Contact Us For Availability
35
Wire, Lead WPL 1160302 Contact Us For Availability
35
Clip, Mtg (2) (Cabinet-Front) WPL 949634 Contact Us For Availability
36
Bend, Return (5) WPL 708531 Contact Us For Availability
38
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
39
Compressor (Service) WPL 1160969 Contact Us For Availability
39
Compressor (Production) WPL 1161178 Contact Us For Availability
40
Sleeve, Insulator Temp. Control WPL 475841 Contact Us For Availability
40
Wheel, Blower WPL 1164650 Contact Us For Availability
42
Seal (2) WPL 1164680 Contact Us For Availability
× ![]()
