Model Whirlpool CA5WM42 ROOM AIR CONDITIONER – Common Parts & Diagrams

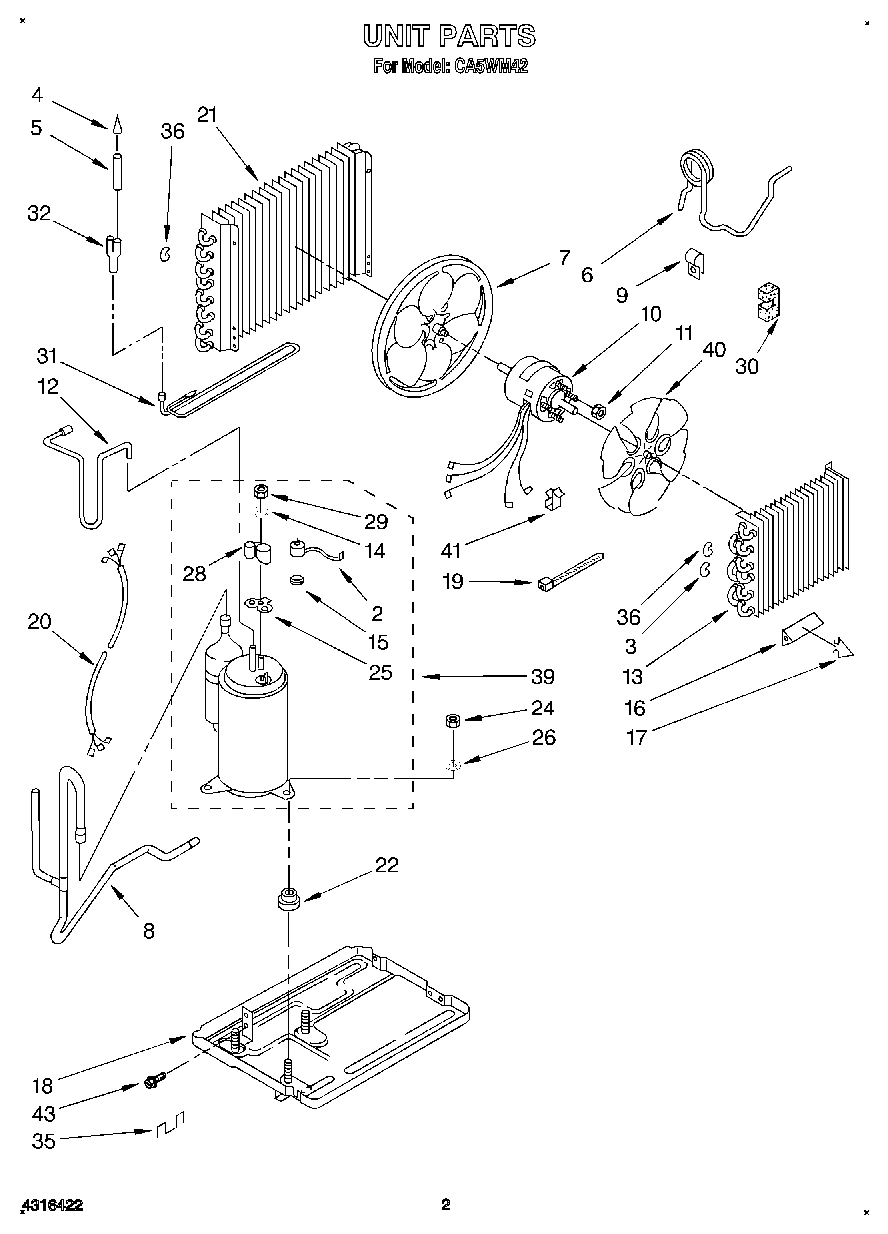

02 - UNIT, LITERATURE

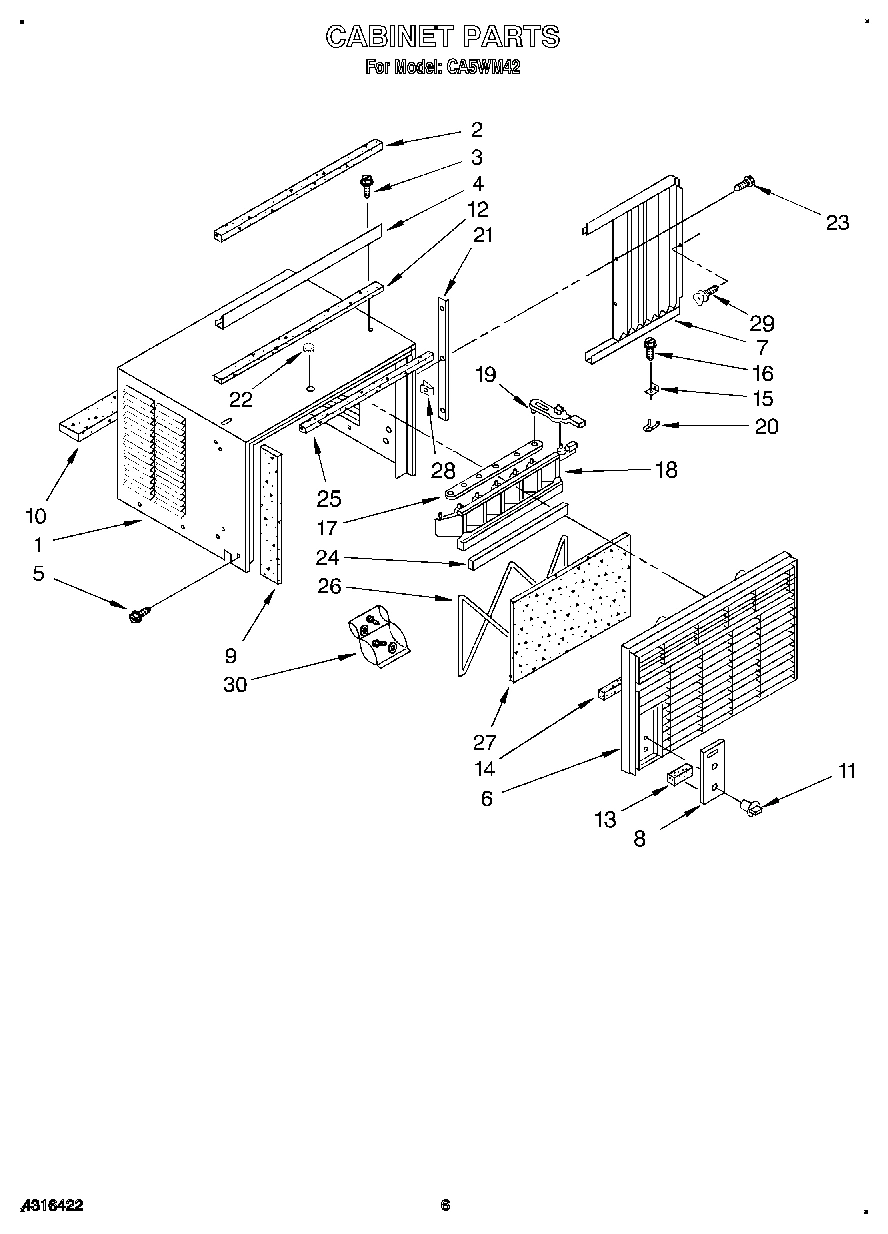

04 - CABINET

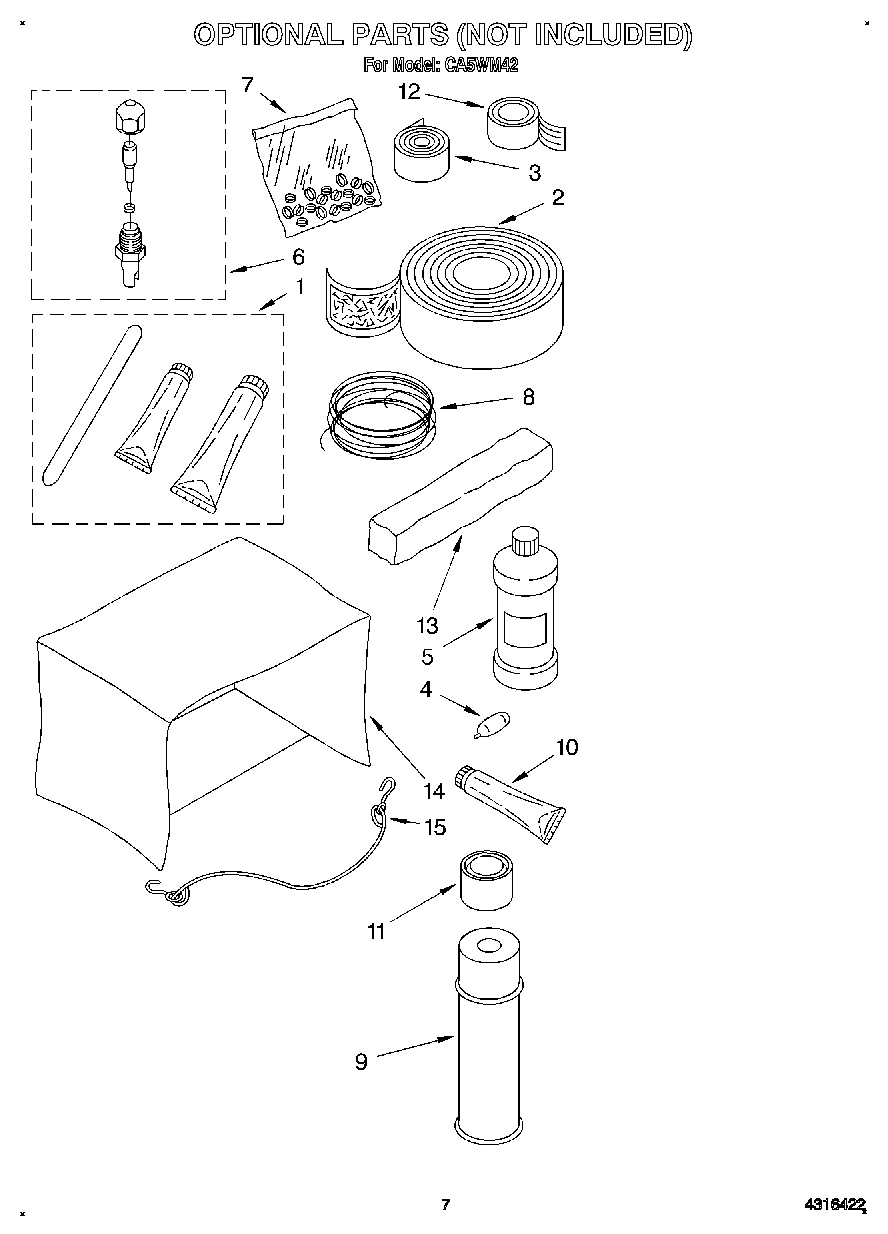

05 - OPTIONAL PARTS (NOT INCLUDED)

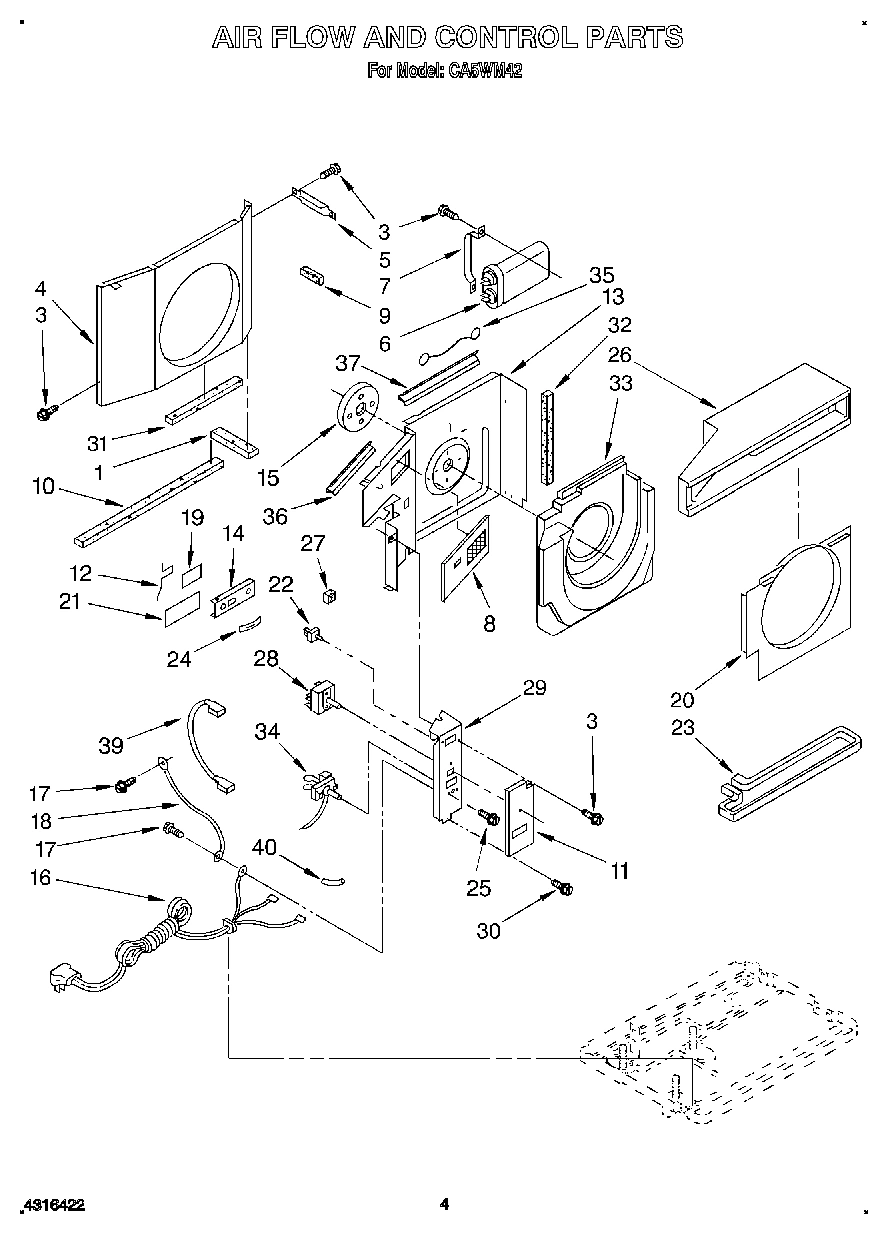

03 - AIR FLOW AND CONTROL
Common parts from model Whirlpool CA5WM42 ROOM AIR CONDITIONER
1
Cabinet WPL 1157939 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Seal, Condensate WPL 646870 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
4
Channel, Top WPL 993849 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Shroud, Condenser WPL 1157908 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Support, Unit WPL 649879 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Front, Cabinet Assembly WPL 1159799 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Capacitor, Running WPL 952086 Contact Us For Availability
7
Curtain (R.S.) WPL 1162961 Contact Us For Availability
7
Curtain (L.S.) WPL 1162963 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Bracket, Capacitor WPL 856105 Contact Us For Availability
8
Escutcheon WPL 1161645 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Screen/Insul. Assembly WPL 1162876 Contact Us For Availability
9
Insulation, Side WPL 950169 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Seal, Shroud R.S. WPL 857923 Contact Us For Availability
10
Insulation, Top WPL 1157942 Contact Us For Availability
10
Seal, Strip WPL 1158295 Contact Us For Availability
11
Knob, Control (2) WPL 1158639 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Insulation, Control Panel WPL 1157945 Contact Us For Availability
12
Seal, Strip WPL 856990 Contact Us For Availability
12
Arm, Exhaust Door WPL 1157947 Contact Us For Availability
13
Wall, Dividing WPL 1158284 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Gasket WPL 950037 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Door, Exhaust WPL 1158280 Contact Us For Availability
15
Spring, Overload WPL 950032 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Insulation, Motor WPL 1158469 Contact Us For Availability
16
Anticipator WPL 996773 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
16
Cord, Appliance WPL 647216 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
17
Link, Louver (2) WPL 645684 Contact Us For Availability
17
Screw, ST 8-32 x 3/8 WPL 1159222 Contact Us For Availability
18
Base WPL 1157926 Contact Us For Availability
18
Louver, Vertical WPL 1158325 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
19
Handle, Louver (2) WPL 645683 Contact Us For Availability
19
Spacer WPL 1159175 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
20
Spring, Detent (1) WPL 641484 Contact Us For Availability
20
Shroud, Evaporator WPL 1159348 Contact Us For Availability
21
Condenser WPL 1162776 Contact Us For Availability
21
Retainer, Curtain (2) WPL 646160 Contact Us For Availability
21
Barrier Protective WPL 1158323 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
22
Cover, Hole WPL 1157126 Contact Us For Availability
22
Actuator, Door WPL 953066 Contact Us For Availability
23
Pan, Evaporator WPL 1159428 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
24
Seal, Vertical Louver WPL 855238 Contact Us For Availability
24
Spring, Detent WPL 858765 Contact Us For Availability
25
Seal WPL 1159283 Contact Us For Availability
25
Screw No.6 x 32 WPL 488734 Contact Us For Availability
26
Retainer, Filter WPL 646963 Contact Us For Availability
26
Hood, Air Housing WPL 1159349 Contact Us For Availability
27
Filter WPL 852344 Contact Us For Availability
27
Seal, Foam WPL 1159443 Contact Us For Availability
28
Clip, Vertical Louver WPL 1158294 Contact Us For Availability
28
Switch, Rotary WPL 950519 Contact Us For Availability
29
Thumbscrew WPL 475581 Contact Us For Availability
29
Panel, Control WPL 1158285 Contact Us For Availability
30
Sealer, Foam Tube WPL 1160617 Contact Us For Availability
30
Screw, 3/8 (2) WPL 1161561 Contact Us For Availability
30
Bag, Accessory WPL 476180 Contact Us For Availability
31
Tube, Condenser Extension WPL 1163963 Contact Us For Availability
32
Tube, Flow Divider WPL 947364 Contact Us For Availability
33
Housing, Air WPL 1159346 Contact Us For Availability
34
Control, Temperature WPL 950403 Contact Us For Availability
35
Clip, Mtg (2) (Cabinet-Front) WPL 949634 Contact Us For Availability
35
Wire, Lead WPL 1160302 Contact Us For Availability
36
Bend, Return (4) WPL 708532 Contact Us For Availability
36
Guard, Edge Seal WPL 1161208 Contact Us For Availability
37
Guard, Edge Seal WPL 1161209 Contact Us For Availability
39
Compressor Assembly WPL 1163520 Contact Us For Availability
39
Wire, Jumper WPL 1158937 Contact Us For Availability
40
Blade, Fan WPL 1160094 Contact Us For Availability
40
Sleeve, Insulator Temp. Control WPL 475841 Contact Us For Availability
41
Clamp, Wiring WPL 852451 Contact Us For Availability
× ![]()
