Model Whirlpool CA5WM4 ROOM AIR CONDITIONER – Common Parts & Diagrams

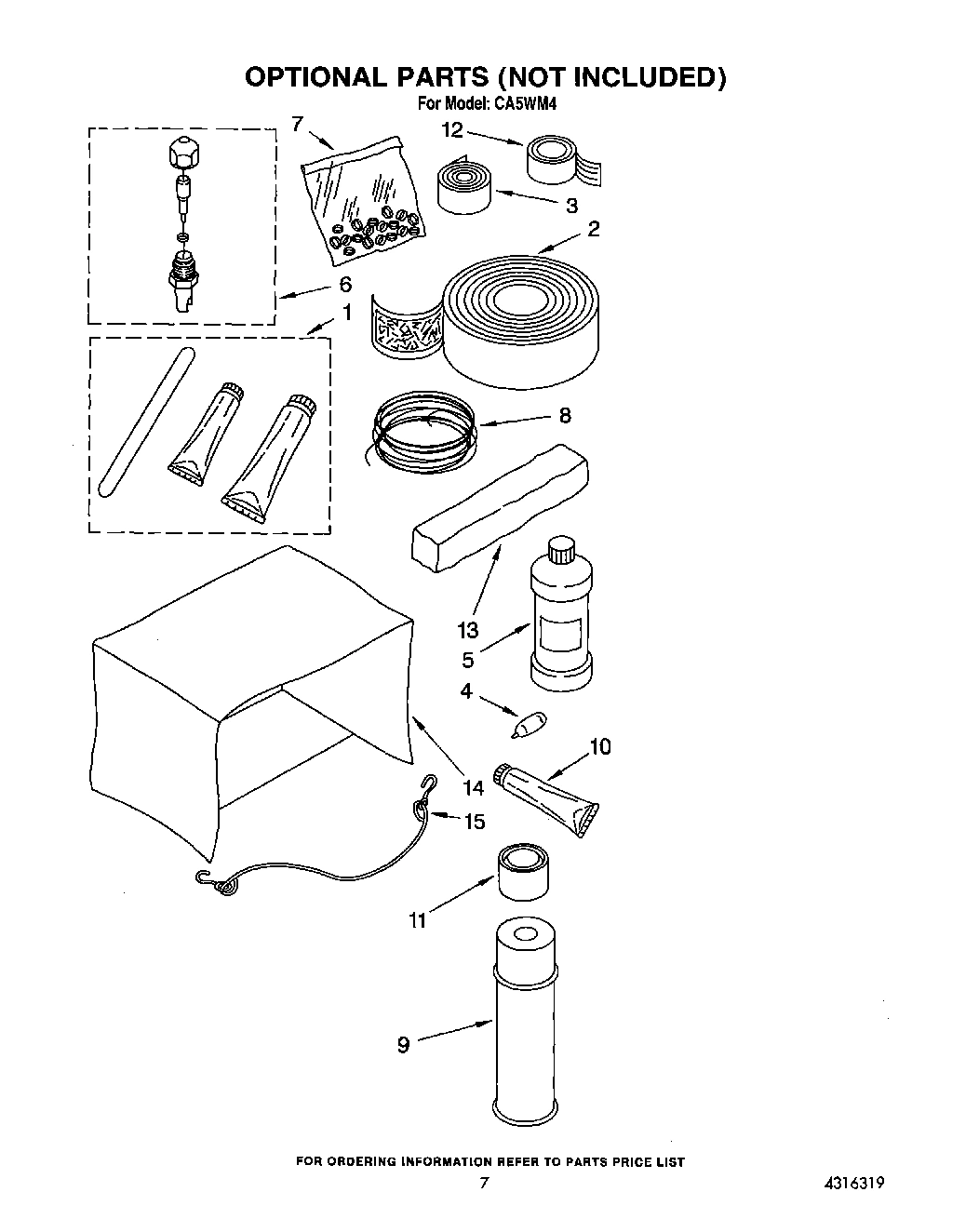

05 - OPTIONAL

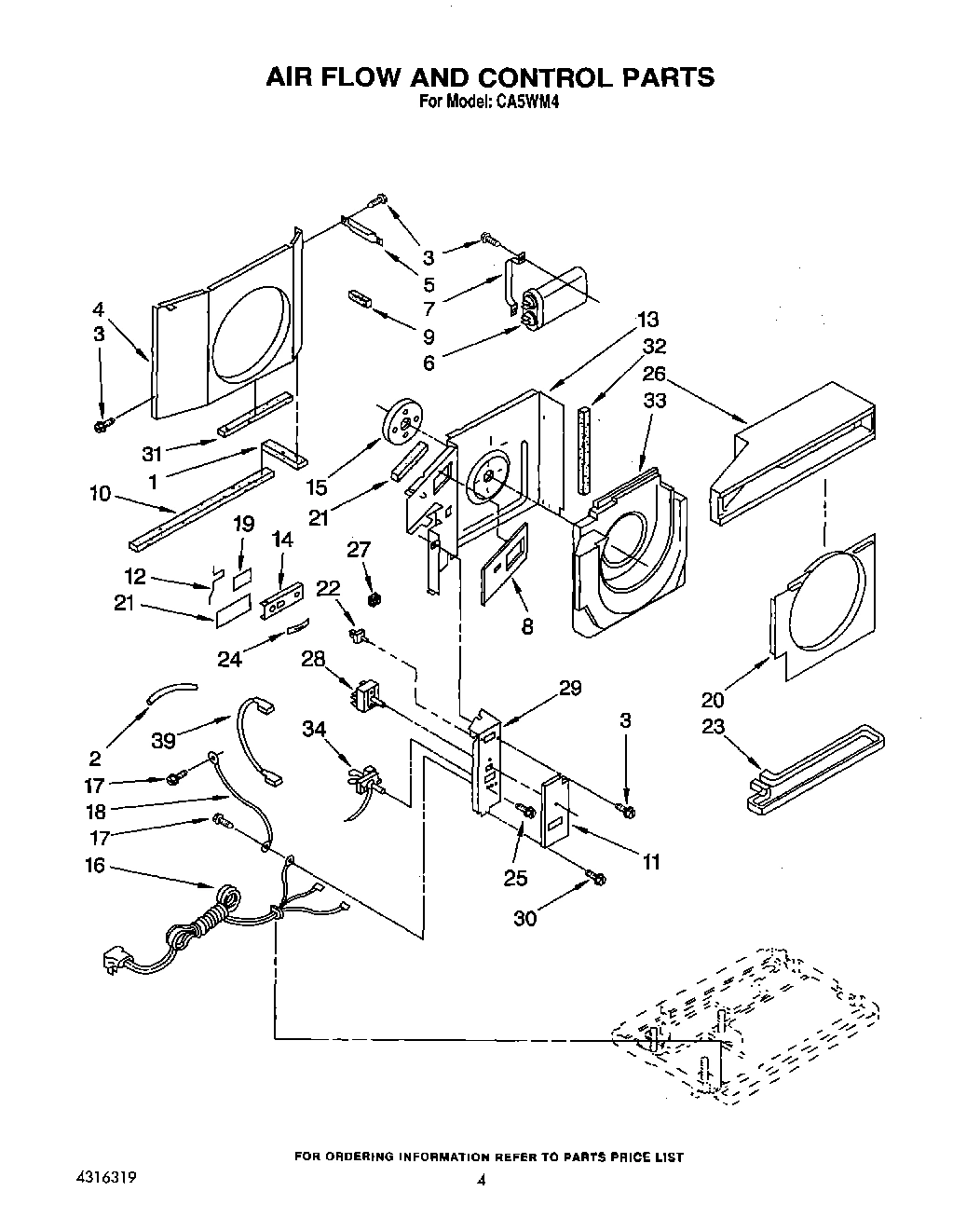

03 - AIR FLOW AND CONTROL

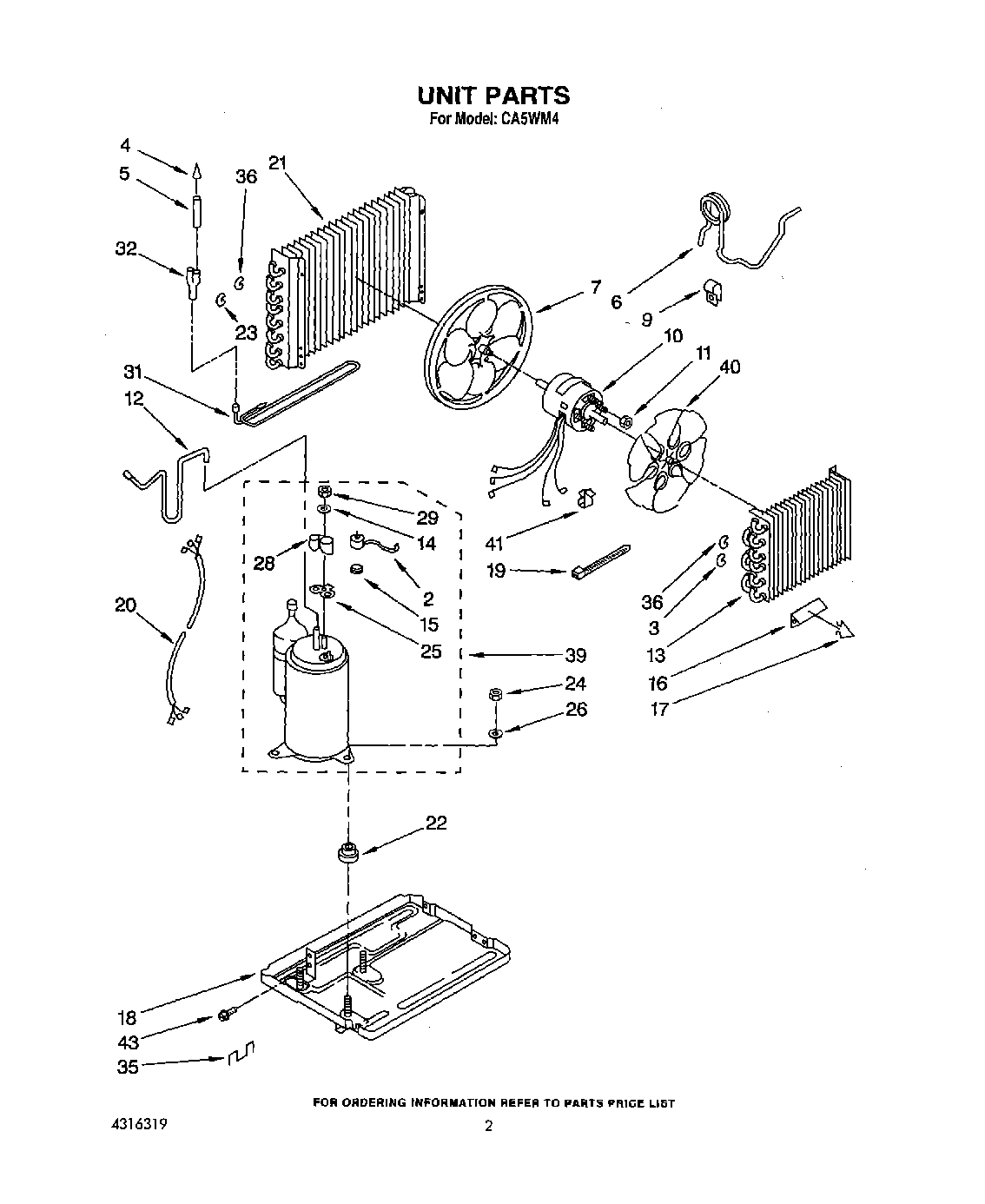

02 - UNIT, LIT/OPTIONAL

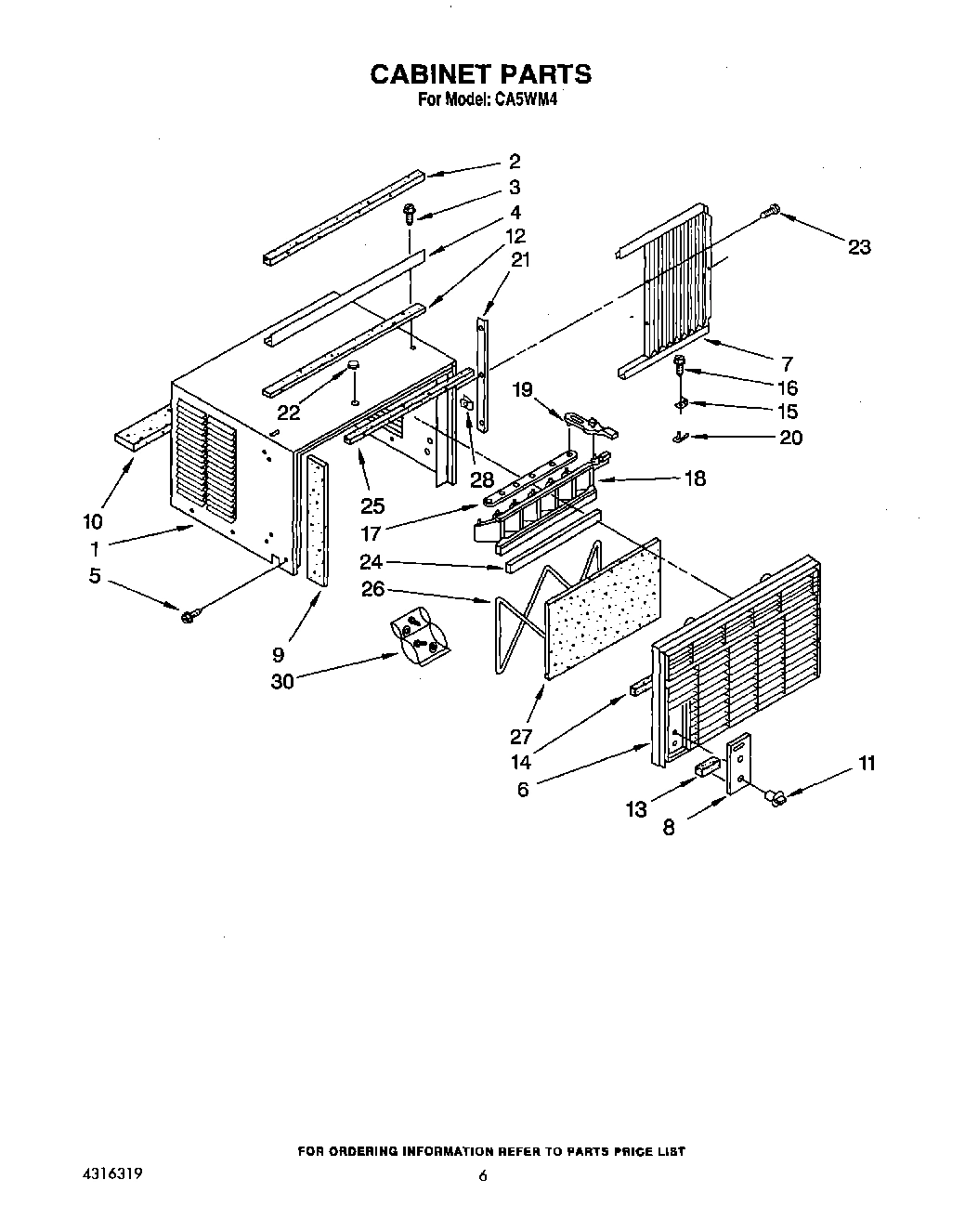

04 - CABINET
Common parts from model Whirlpool CA5WM4 ROOM AIR CONDITIONER
Tech Sheet WPL LIT1159431 Contact Us For Availability
Guide, Use And Care WPL LIT1161895 Contact Us For Availability
Instructions, Installation WPL LIT1161947 Contact Us For Availability
List, Repair Parts WPL LIT4316319 Contact Us For Availability
Wiring Diagram WPL LIT950222 Contact Us For Availability
1
Seal, Condensate WPL 646870 Contact Us For Availability
1
Cabinet WPL 1157939 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Sealer, Tube WPL 1159316 Contact Us For Availability
2
Overload WPL 1161179 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return (13) WPL 708531 Contact Us For Availability
4
Shroud, Condenser WPL 1157908 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
4
Channel, Top WPL 993849 Contact Us For Availability
5
Support, Unit WPL 649879 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 950855 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Capacitor, Running WPL 952086 Contact Us For Availability
6
Tube, Restrictor WPL 1161552 Contact Us For Availability
6
Front, Cabinet Assembly WPL 1159799 Contact Us For Availability
7
Bracket, Capacitor WPL 856105 Contact Us For Availability
7
Blade, Fan WPL 1158524 Contact Us For Availability
7
Curtain (R.S.) WPL 646154 Contact Us For Availability
7
Curtain (L.S.) WPL 646158 Contact Us For Availability
8
Insulation, Exhaust Duct WPL 1158283 Contact Us For Availability
8
Escutcheon WPL 1161645 Contact Us For Availability
9
Seal, Shroud R.S. WPL 857923 Contact Us For Availability
9
Clamp, Tube WPL 855930 Contact Us For Availability
9
Insulation, Side WPL 950169 Contact Us For Availability
10
Seal, Strip WPL 1158295 Contact Us For Availability
10
Motor, Fan WPL 1160987 Contact Us For Availability
10
Insulation, Top WPL 1157942 Contact Us For Availability
11
Knob, Control (2) WPL 1158639 Contact Us For Availability
11
Insulation, Control Panel WPL 1157945 Contact Us For Availability
12
Arm, Exhaust Door WPL 1157947 Contact Us For Availability
12
Tube, Discharge WPL 1158307 Contact Us For Availability
12
Seal, Strip WPL 856990 Contact Us For Availability
13
Wall, Dividing WPL 1158284 Contact Us For Availability
13
Evaporator WPL 1157931 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Door, Exhaust WPL 1158280 Contact Us For Availability
14
Gasket WPL 950037 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Insulation, Motor WPL 1158469 Contact Us For Availability
15
Spring, Overload WPL 950032 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
16
Cord, Appliance WPL 647216 Contact Us For Availability
16
Anticipator WPL 996773 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
17
Screw, ST 8-32 x 3/8 WPL 1159222 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
17
Link, Louver (2) WPL 645684 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
18
Base WPL 1157926 Contact Us For Availability
18
Louver, Vertical WPL 1158325 Contact Us For Availability
19
Spacer WPL 1159175 Contact Us For Availability
19
Handle, Louver (2) WPL 645683 Contact Us For Availability
20
Shroud, Evaporator WPL 1159348 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
20
Spring, Detent (1) WPL 641484 Contact Us For Availability
21
Barrier Protective WPL 1158323 Contact Us For Availability
21
Condenser WPL 1157934 Contact Us For Availability
21
Retainer, Curtain (2) WPL 646160 Contact Us For Availability
22
Actuator, Door WPL 953066 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
22
Cover, Hole WPL 1157126 Contact Us For Availability
23
Pan, Evaporator WPL 1159428 Contact Us For Availability
23
Tube, Riser (12) WPL 1157936 Contact Us For Availability
23
Screw (6) WPL 488730 Contact Us For Availability
24
Spring, Detent WPL 858765 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
24
Seal, Vertical Louver WPL 855238 Contact Us For Availability
25
Screw No.6 x 32 WPL 488734 Contact Us For Availability
25
Seal WPL 1159283 Contact Us For Availability
26
Hood, Air Housing WPL 1159349 Contact Us For Availability
26
Retainer, Filter WPL 646963 Contact Us For Availability
27
Seal, Foam WPL 1159443 Contact Us For Availability
27
Filter WPL 852344 Contact Us For Availability
28
Switch, Rotary WPL 950519 Contact Us For Availability
28
Clip, Vertical Louver WPL 1158294 Contact Us For Availability
29
Panel, Control WPL 1158285 Contact Us For Availability
30
Screw, 3/8 (2) WPL 1161561 Contact Us For Availability
30
Bag, Accessory WPL 476180 Contact Us For Availability
31
Tube, Condenser Extension WPL 1155580 Contact Us For Availability
32
Tube, Flow Divider WPL 947364 Contact Us For Availability
33
Housing, Air WPL 1159346 Contact Us For Availability
34
Control, Temperature WPL 950403 Contact Us For Availability
35
Clip, Mtg (2) (Cabinet-Front) WPL 949634 Contact Us For Availability
36
Bend, Return (4) WPL 708532 Contact Us For Availability
39
Wire, Jumper WPL 1158937 Contact Us For Availability
39
Compressor Assembly WPL 4318000 Contact Us For Availability
40
Blade, Fan WPL 1160094 Contact Us For Availability
41
Clamp, Wiring WPL 852451 Contact Us For Availability
× ![]()
