Model Whirlpool CA24WCR1 AIR CONDITIONER – Common Parts & Diagrams
01 - UNIT PARTS
04 - INSTALLATION PARTS

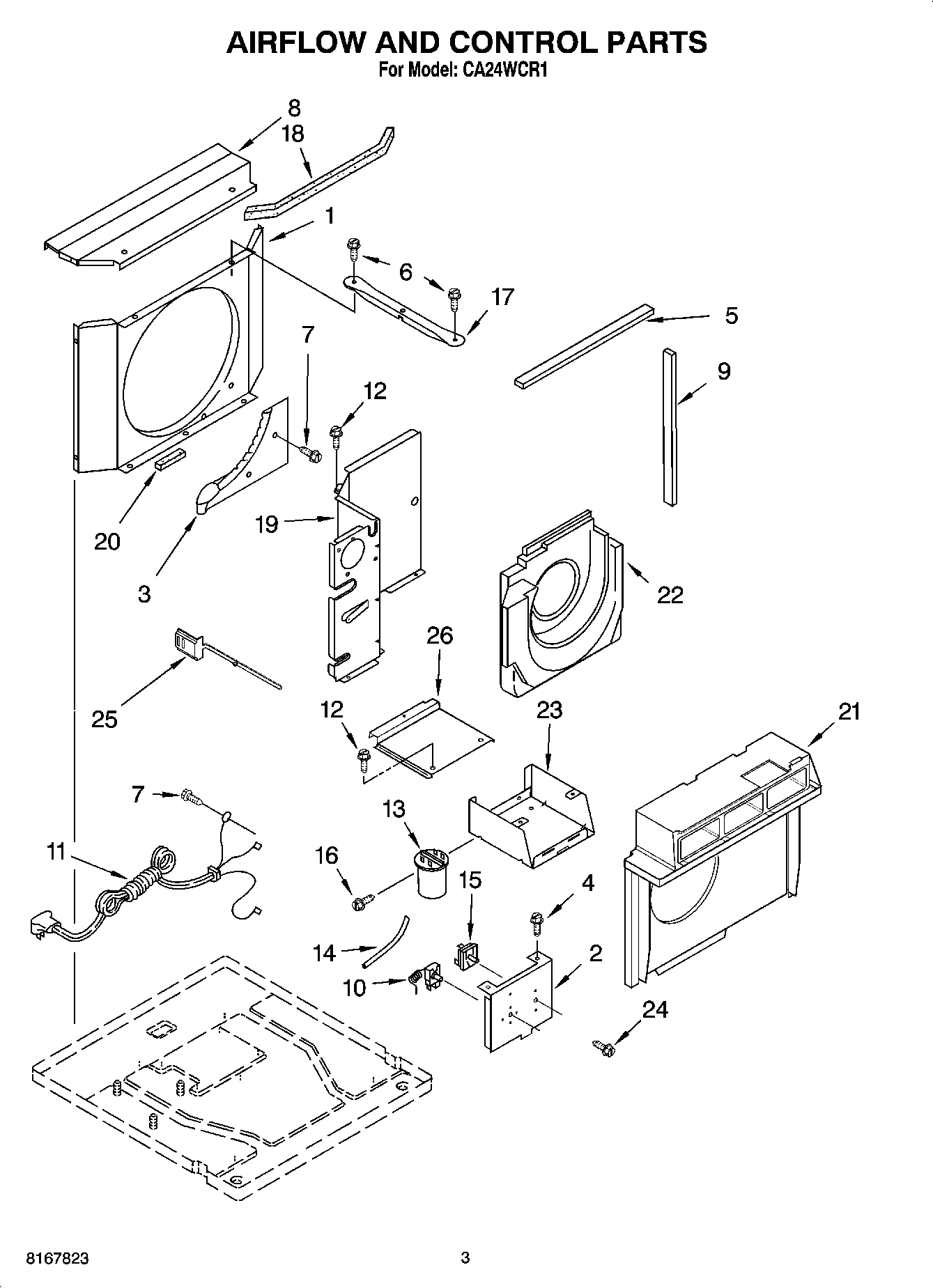

02 - AIRFLOW AND CONTROL PARTS

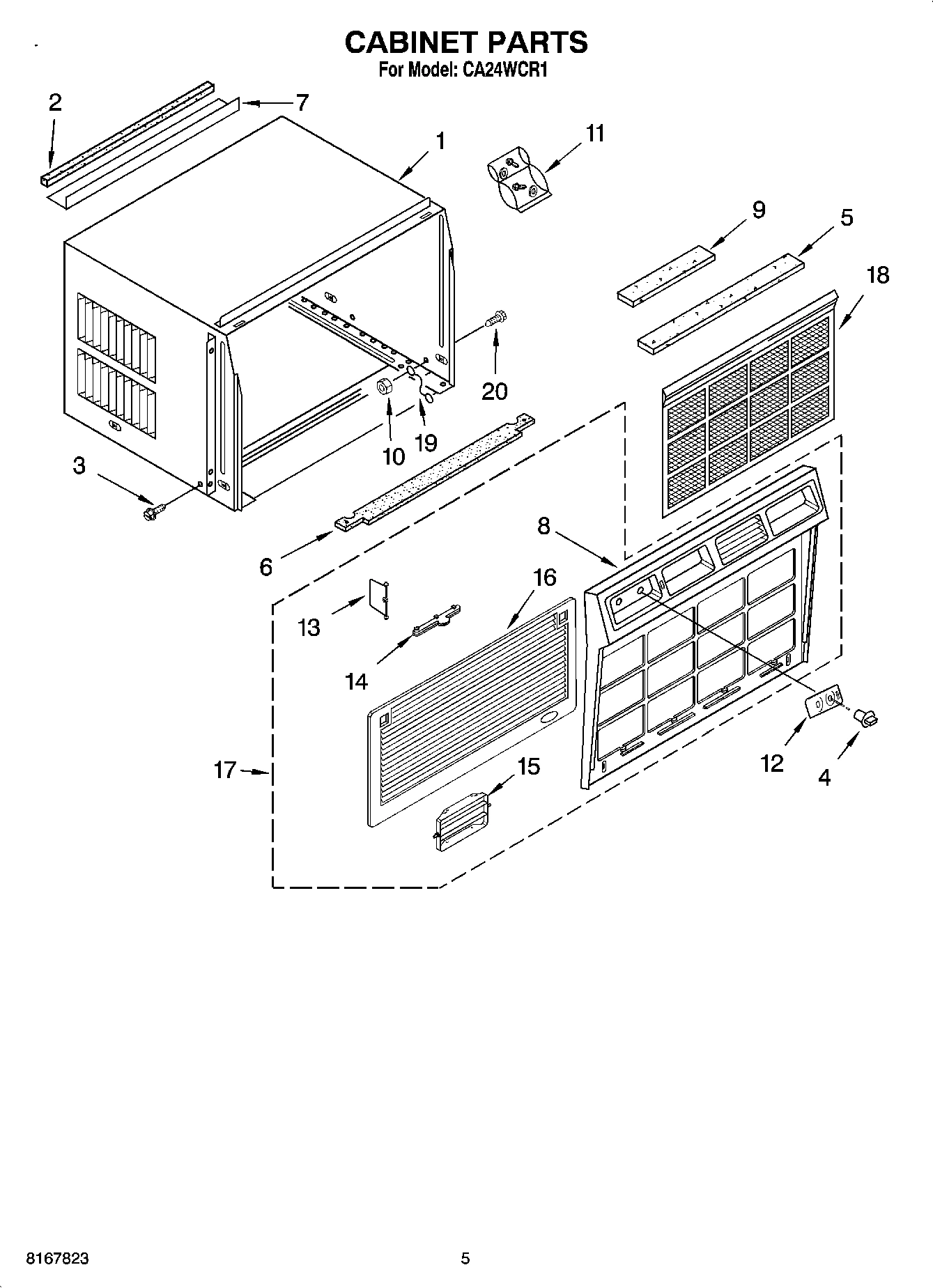

03 - CABINET PARTS

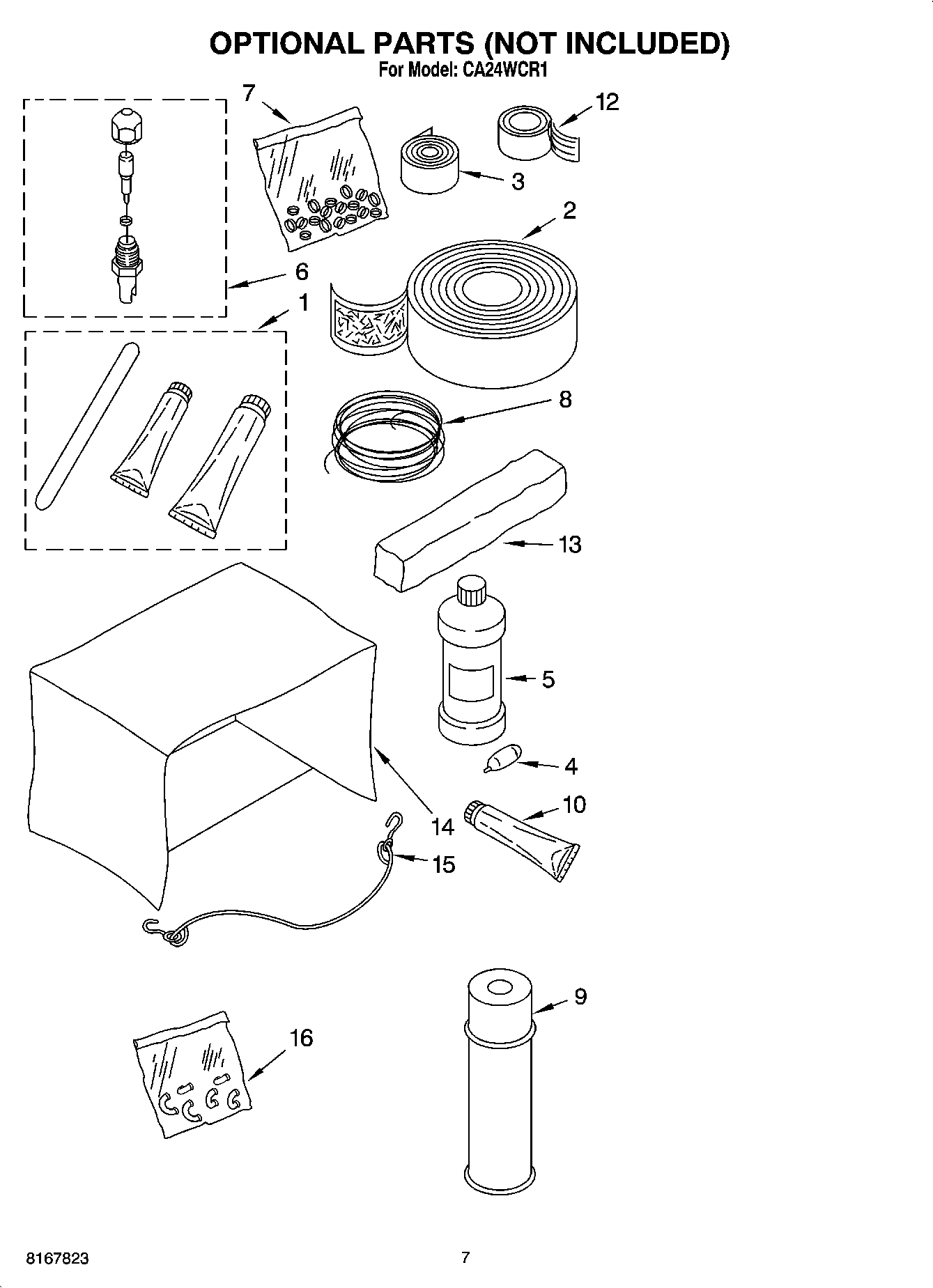

05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool CA24WCR1 AIR CONDITIONER
1
Shroud, Condenser WPL 1157403 Contact Us For Availability
1
Cabinet WPL 1185518 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
2
Panel, Control WPL 1185532 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Gasket, Sash WPL 1166388 Contact Us For Availability
3
Cup, Condensate WPL 1160684 Contact Us For Availability
4
Screw (2) WPL 1159222 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Seal (Top) WPL 1185513 Contact Us For Availability
5
Seal, Hood (Large) WPL 1187359 Contact Us For Availability
5
Oil, Turbine 8 Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Support, Cabinet (2) WPL 1185549 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Angle, Top Mounting WPL 1168490 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Top, Condenser WPL 1157407 Contact Us For Availability
8
Frame, Front WPL 1186037 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
9
Seal (Side) WPL 1185911 Contact Us For Availability
9
Seal, Hood (Small) WPL 1181735 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Thermostat WPL 1185752 Contact Us For Availability
11
Support, Retainer (2) WPL 1168474 Contact Us For Availability
11
Cord, Appliance WPL 1187849 Contact Us For Availability
11
Bag, Accessory WPL 1186155 Contact Us For Availability
12
Board, Filler WPL 1168473 Contact Us For Availability
12
Screw, 8-15 x .375 WPL 488624 Contact Us For Availability
12
Escutcheon WPL 1185779 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
Capacitor WPL 1186928 Contact Us For Availability
13
Louver, Verticle WPL 1185541 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Sleeve, Insulator WPL 1185784 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Screw (Window Lock Bracket) WPL 487371 Contact Us For Availability
14
Link, Verticle Louver (2) WPL 8011106 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Cartridge WPL 1185540 Contact Us For Availability
15
Switch, Rotary WPL 1186502 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Door, Filter WPL 1185662 Contact Us For Availability
16
Return Bend ReplacementKit (5/16 Inch Tube) WPL 4388784 Contact Us For Availability
16
Return Bend ReplacementKit (3/8 Inch Tube) WPL 4388785 Contact Us For Availability
17
Angle (2) WPL 1168472 Contact Us For Availability
17
Support, Unit (2) WPL 1166169 Contact Us For Availability
17
Front, Complete WPL 1185658 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
18
Seal, Shroud WPL 1158732 Contact Us For Availability
18
Filter WPL 1186979 Contact Us For Availability
19
Screw (Side Angle To Filler Board) WPL 1166265 Contact Us For Availability
19
Dividing Wall WPL 1185524 Contact Us For Availability
19
Wire, Ground WPL 1186627 Contact Us For Availability
20
Seal, Cup WPL 1163332 Contact Us For Availability
21
Compressor WPL 1188222 Contact Us For Availability
21
Shroud Assembly, Evaporator WPL 1187338 Contact Us For Availability
22
Grommet (3) WPL 1165973 Contact Us For Availability
22
Housing, Air WPL 1187339 Contact Us For Availability
23
Return Bend 3-Way Condenser (1) WPL 1158685 Contact Us For Availability
23
Control Box WPL 1187820 Contact Us For Availability
24
Locknut (3) Connect WPL 858121 Contact Us For Availability
24
Screw, WPL 488734 Contact Us For Availability
25
Distributor WPL 1184612 Contact Us For Availability
25
Door, Exhaust WPL 1185506 Contact Us For Availability
26
Putty, Sound Dampener WPL 1182480 Contact Us For Availability
26
Cover, Control Box WPL 1186663 Contact Us For Availability
29
Insulation, Base (Bottom) WPL 1167085 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1185543 Contact Us For Availability
32
Manifold, Suction WPL 1186028 Contact Us For Availability
34
Tube, Suction WPL 1188282 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
38
Pan, Drain WPL 1185843 Contact Us For Availability
41
Anticipator WPL 996773 Contact Us For Availability
42
Clip, Anticipator WPL 475577 Contact Us For Availability
45
Seal, Restrictor Tube WPL 1163759 Contact Us For Availability
46
Tube, Discharge WPL 1188283 Contact Us For Availability
48
Bolt, Compressor WPL 1165674 Contact Us For Availability
51
Tube, Feeder WPL 1188279 Contact Us For Availability
52
Tube, Feeder WPL 1188278 Contact Us For Availability
53
Tube, Flow Divider (Includes 51 & 52) WPL 1159832 Contact Us For Availability
53
REFRIGERANT CHARGE 42.25 oz. WPL ARI144261A Contact Us For Availability
× ![]()
