Model Whirlpool CA21WQ4 ROOM AIR CONDITIONER – Common Parts & Diagrams

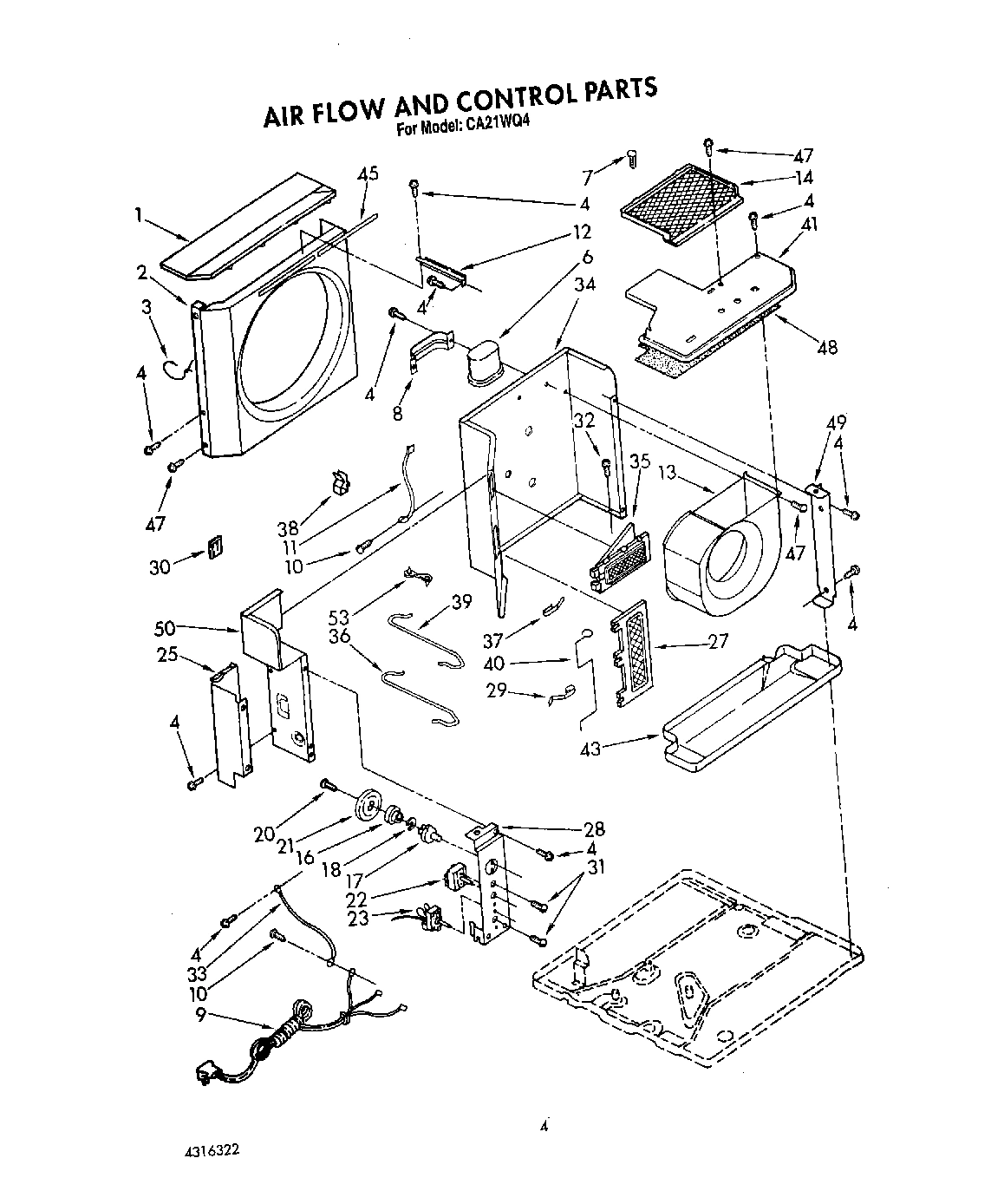

03 - AIR FLOW AND CONTROL

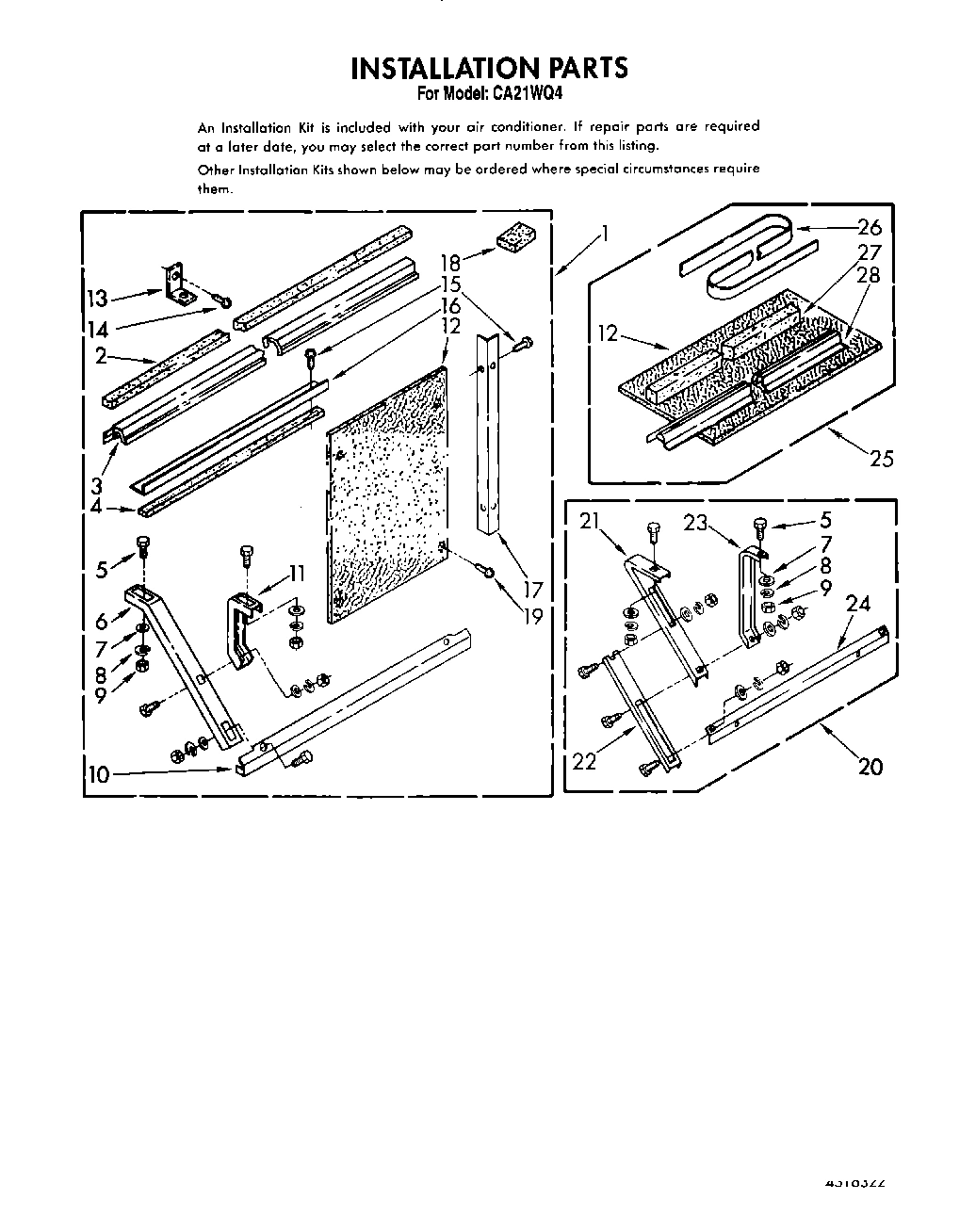

06 - INSTALLATION PARTS

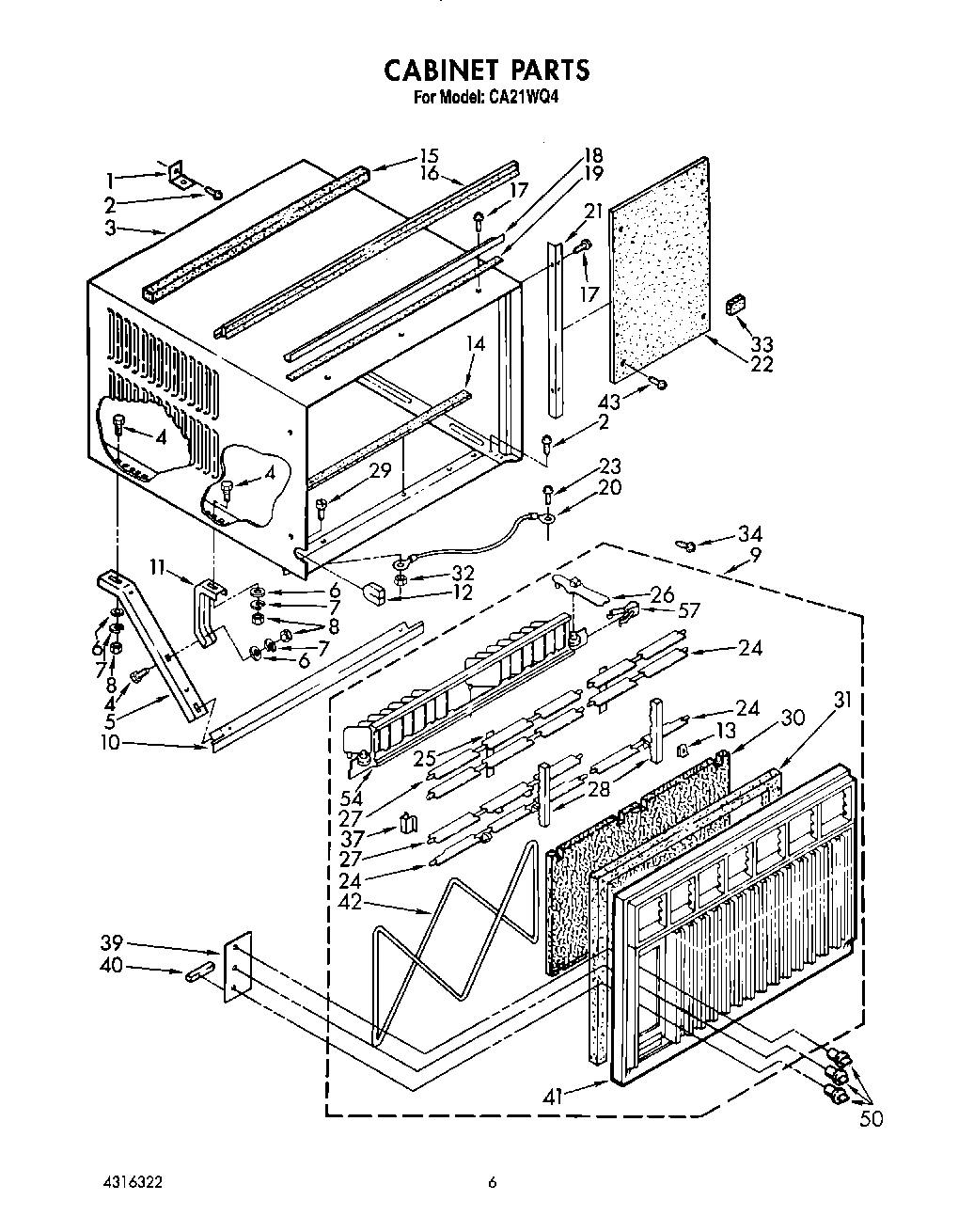

04 - CABINET

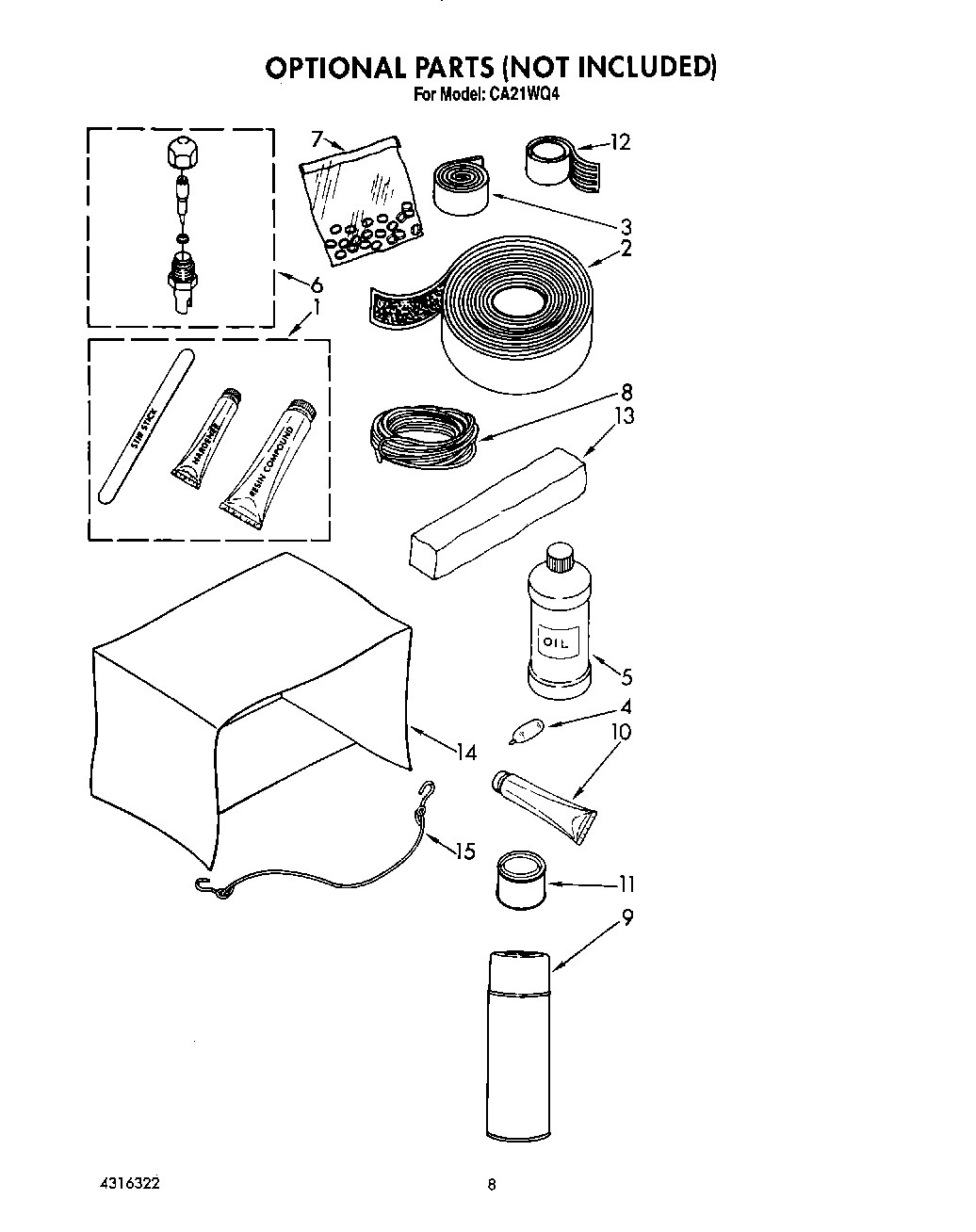

05 - OPTIONAL

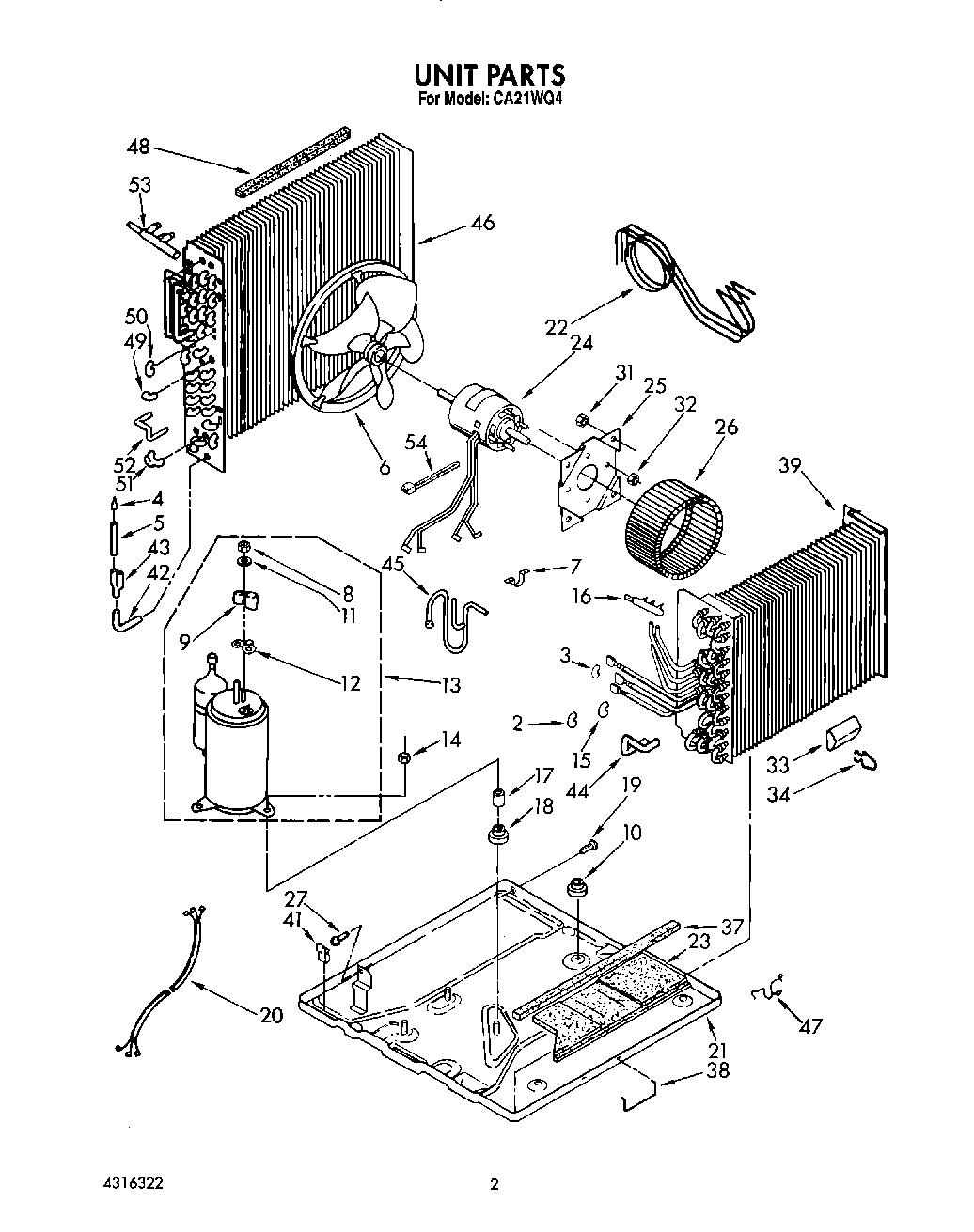

02 - UNIT, LIT/OPTIONAL
Common parts from model Whirlpool CA21WQ4 ROOM AIR CONDITIONER
Instructions, Installation (Outside Support K WPL LIT485707 Contact Us For Availability
Instructions, Installation (Standard and Wide WPL LIT998618 Contact Us For Availability
Sheet, Tech WPL LIT1156199 Contact Us For Availability
Guide, Use And Care WPL LIT1161908 Contact Us For Availability
Instructions, Installation WPL LIT1161930 Contact Us For Availability
List, Repair Parts WPL LIT4316322 Contact Us For Availability
Wiring Diagram WPL LIT950700 Contact Us For Availability
1
Kit, Standard Installation WPL 1160600 Contact Us For Availability
1
Bracket WPL 644228 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Screw, 10 x 3/4 WPL 487371 Contact Us For Availability
2
Bend, Return Evaporator (7) WPL 855199 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Insulation (3) WPL 1157053 Contact Us For Availability
3
Cabinet Also Order: WPL 1157893 Contact Us For Availability
4
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
5
Support, Cabinet (2) WPL 649945 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 1155598 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Blade, Fan WPL 1158987 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Clamp, Cable WPL 648791 Contact Us For Availability
8
Lockwasher (6) WPL 486009 No Longer Available
8
Nut, Hex (1/4) (6) WPL 486035 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Front, Cabinet (Assembly) WPL 1159942 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Bracket, Cabinet Support WPL 649947 Contact Us For Availability
10
Bushing, Base Condenser WPL 948130 Contact Us For Availability
11
Retainer, Cabinet Support (2) WPL 649946 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Gasket, Nut WPL 950037 Contact Us For Availability
12
Grommet, Wiring WPL 647849 Contact Us For Availability
13
Clip, Front (2) WPL 1157140 Contact Us For Availability
13
Compressor WPL 819492 Contact Us For Availability
14
Cover, Winter (22``x15``x3 to 18``) WPL 484184 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Seal, Bottom WPL 852220 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Locknut (3) WPL 858121 Contact Us For Availability
15
Seal, Meeting Rail WPL 469877 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Bend, Return Evaporator (2) WPL 998682 Contact Us For Availability
16
Gasket, Sash WPL 644288 Contact Us For Availability
16
Tube, Manifold Header WPL 1155510 Contact Us For Availability
17
Sleeve (3) WPL 950020 Contact Us For Availability
18
Spring, Washer WPL 647881 Contact Us For Availability
18
Angle, Top WPL 644271 Contact Us For Availability
19
Strip, Seal WPL 855265 Contact Us For Availability
20
Screw, Sems 7-18 x 5/8 WPL 489092 Contact Us For Availability
20
Kit, Outside Support WPL 485679 Contact Us For Availability
20
Ground Wire (Base To Cabinet) WPL 857022 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
21
Cam WPL 647882 Contact Us For Availability
21
Angle (2) WPL 644272 Contact Us For Availability
21
Support, Cabinet (2) WPL 644283 Contact Us For Availability
21
Base WPL 950364 Contact Us For Availability
22
Switch, Rotary WPL 950519 Contact Us For Availability
22
Board, Filler WPL 644303 Contact Us For Availability
22
Extension, Support (2) WPL 644284 Contact Us For Availability
22
Tube, Restrictor (3) (Length 44.0``) WPL 1156253 Contact Us For Availability
23
Control, Temperature WPL 1155799 Contact Us For Availability
23
Retainer, Cabinet (2) WPL 644285 Contact Us For Availability
23
Screw, 8 x 3/8 WPL 488853 Contact Us For Availability
23
Insulation, Base WPL 997236 Contact Us For Availability
24
Bracket, Support WPL 644281 Contact Us For Availability
24
Louver, Horizontal (Notched) WPL 947268 Contact Us For Availability
24
Motor, Fan WPL 952072 Contact Us For Availability
25
Cover, Control Access WPL 952208 Contact Us For Availability
25
Kit, Wide Window WPL 485856 Contact Us For Availability
25
Retainer, Louver (4) WPL 855998 Contact Us For Availability
25
Plate, Mounting WPL 998024 Contact Us For Availability
26
Strip, Seal WPL 856979 Contact Us For Availability
26
Handle, Horizontal Louver WPL 947267 Contact Us For Availability
26
Wheel, Blower WPL 1158443 Contact Us For Availability
27
Door Assembly, Fresh Air WPL 997222 Contact Us For Availability
27
Seal, Meeting Rail WPL 470800 Contact Us For Availability
27
Louver, Horizontal (4) WPL 947269 Contact Us For Availability
28
Panel, Control WPL 852217 Contact Us For Availability
28
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
28
Rack, Louver (2) WPL 649955 Contact Us For Availability
29
Spring WPL 998178 Contact Us For Availability
29
Screw, 8 x 3/8 WPL 488854 Contact Us For Availability
30
Seal, Outlet Tube WPL 1162510 Contact Us For Availability
30
Filter, Air WPL 649958 Contact Us For Availability
31
Screw, Machine 6-32 x .175 WPL 488734 Contact Us For Availability
31
Seal, Front (Top & Sides) WPL 649725 Contact Us For Availability
31
Seal, Front (Bottom) WPL 649726 Contact Us For Availability
31
Locknut WPL 858122 Contact Us For Availability
32
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
33
Wire, Ground WPL 997388 Contact Us For Availability
33
Spacer, Block (4) WPL 995274 Contact Us For Availability
33
Anticipator WPL 996773 Contact Us For Availability
34
Wall, Dividing (Requires Insulation No. 46993 WPL 953040 Contact Us For Availability
34
Screw, Front (2) WPL 1157141 Contact Us For Availability
34
Clip, Anticipator WPL 475577 Contact Us For Availability
35
Door, Exhaust WPL 997221 Contact Us For Availability
36
Wire, Control (Fresh Air) WPL 1162615 Contact Us For Availability
37
Spring, Exhaust Door WPL 859369 Contact Us For Availability
37
Clip, Horizontal Louver (4) WPL 855999 Contact Us For Availability
37
Seal WPL 1162509 Contact Us For Availability
38
Clamp, Cable (2) WPL 947072 Contact Us For Availability
38
Handle, Base WPL 647971 Contact Us For Availability
39
Wire, Control Exhaust WPL 647883 Contact Us For Availability
39
Plate, Escutcheon WPL 1162141 Contact Us For Availability
39
Evaporator WPL 1155435 Contact Us For Availability
40
Actuator, Door WPL 997223 Contact Us For Availability
40
Spacer, Escutcheon Plate (3) WPL 469175 Contact Us For Availability
41
Cover WPL 997269 Contact Us For Availability
41
Front, Cabinet WPL 1159844 Contact Us For Availability
41
Clamp, Tube (2) WPL 642684 Contact Us For Availability
42
Retainer, Filter WPL 476707 Contact Us For Availability
42
Tube, Connecting WPL 1155580 Contact Us For Availability
43
Pan, Condensate (Includes No.49) WPL 1159315 Contact Us For Availability
43
Screw, 8 x 3/8 (4) WPL 1159222 Contact Us For Availability
43
Tube, Flow Divider WPL 947364 Contact Us For Availability
44
Tube, Riser (2) WPL 1155432 Contact Us For Availability
45
seal, condenser cover (side) WPL 997266 Contact Us For Availability
45
Tube, Suction WPL 1155593 Contact Us For Availability
46
Condenser WPL 1155492 Contact Us For Availability
47
Clip, Front Mtg. (3) WPL 852272 Contact Us For Availability
48
Insulation, Evaporator Cover WPL 948234 Contact Us For Availability
48
Seal, WPL 948600 Contact Us For Availability
49
Adapter, Evaporator Header Plate WPL 1161423 Contact Us For Availability
49
Bend Return (25) WPL 708532 Contact Us For Availability
50
Extension Assembly, Divider Wall WPL 1155423 Contact Us For Availability
50
Knob, Control (3) WPL 953054 Contact Us For Availability
50
Bend Return (4) WPL 708531 Contact Us For Availability
51
Bend Return (1) WPL 1156107 Contact Us For Availability
52
Tube, Crossover WPL 1155512 Contact Us For Availability
53
Header, Manifold WPL 1155511 Contact Us For Availability
54
Vertical Louver WPL 953064 Contact Us For Availability
57
Spring, Detent (2) WPL 641484 Contact Us For Availability
× ![]()
