Model Whirlpool CA12WR42 ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - AIR FLOW AND CONTROL
03 - CABINET

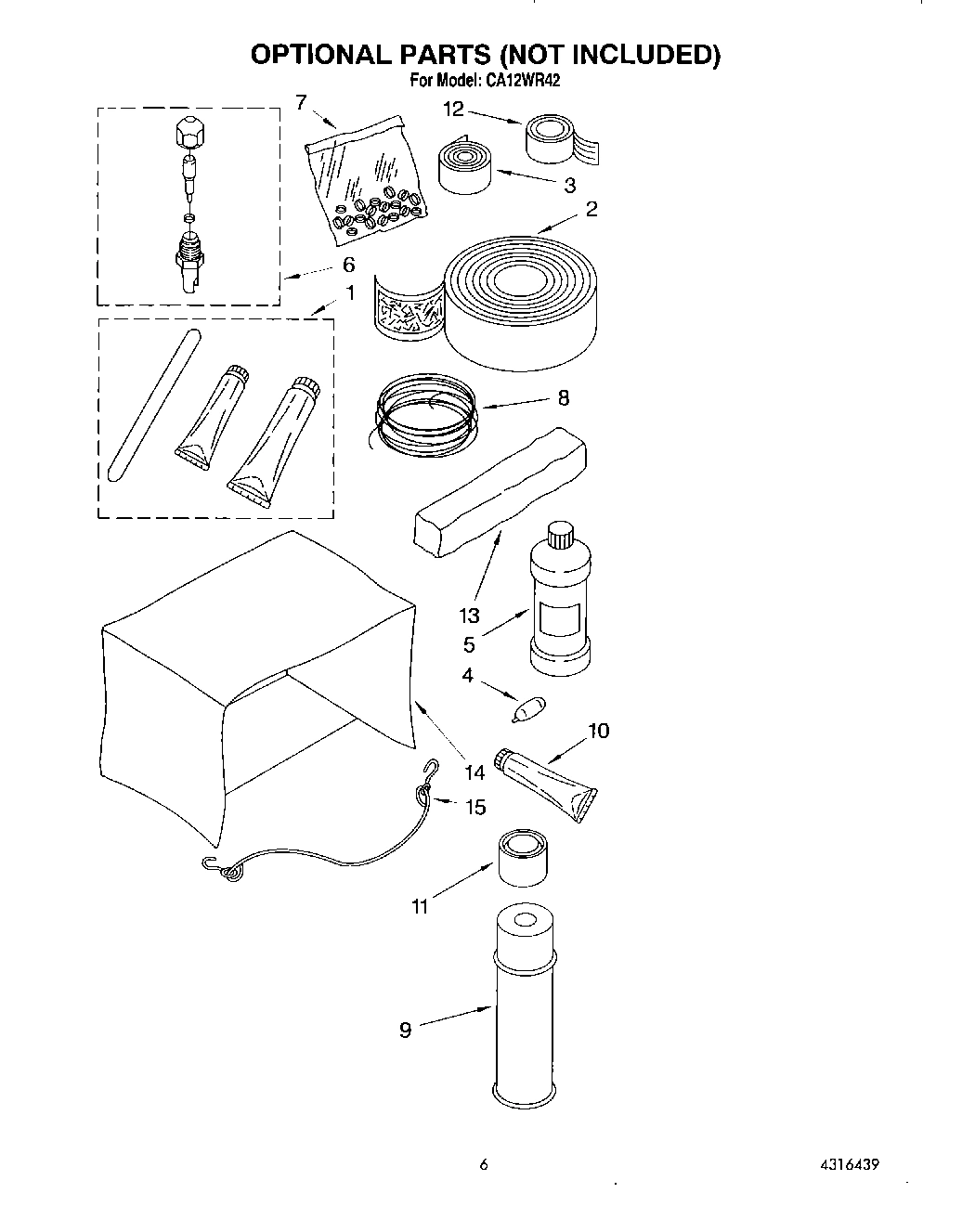

04 - OPTIONAL PARTS

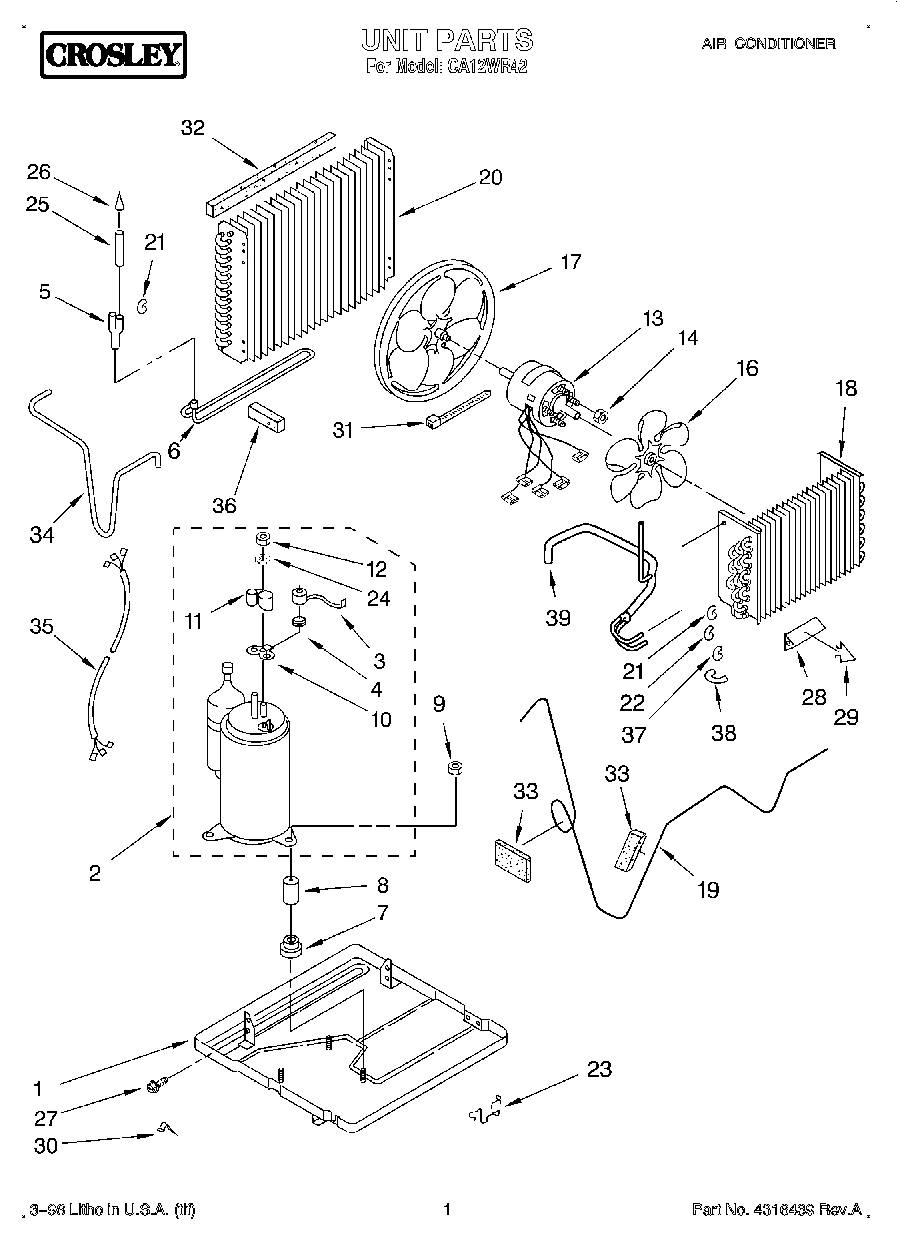

01 - UNIT, LITERATURE
Common parts from model Whirlpool CA12WR42 ROOM AIR CONDITIONER
Guide, Use/Care WPL LIT1161898 Contact Us For Availability
Instruction, Installation WPL LIT1161947 Contact Us For Availability
Wiring Diagram WPL LIT1165234 Contact Us For Availability
Sheet, Tech WPL LIT1165239 Contact Us For Availability
1
Plug, Hole WPL 1157126 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Base WPL 950019 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Cabinet WPL 1163513 Contact Us For Availability
2
Compressor WPL 1163573 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Overload WPL 1155700 Contact Us For Availability
4
Strip, Seal WPL 856989 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Spring, Overload WPL 950032 Contact Us For Availability
5
Channel, Top Mounting WPL 993786 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Tube, Flow Divider WPL 947364 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Tube, Condenser Extension WPL 1160032 Contact Us For Availability
7
Housing, Curtain (Left Side) WPL 1164154 Contact Us For Availability
7
Housing, Curtain (Right Side) WPL 1164155 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Curtain (2) WPL 947160 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Sleeve, Compressor Mounting (3) WPL 950020 Contact Us For Availability
9
Retainer, Curtain (2) WPL 644224 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Nut, Lock (3) WPL 858121 Contact Us For Availability
10
Screw WPL 1161561 Contact Us For Availability
11
Louver, Vertical WPL 1166081 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Link, Vertical Louver (2) WPL 855158 Contact Us For Availability
12
Nut WPL 950037 Contact Us For Availability
13
Clamp, Cable WPL 852451 Contact Us For Availability
13
Handle, Vertical Louver (2) WPL 1161636 Contact Us For Availability
13
Motor, Fan WPL 947852 Contact Us For Availability
14
Winter Cover (22 x 15 x 3 to 18``) WPL 484184 Contact Us For Availability
14
Winter Cover (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Winter Cover (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Shroud, Condenser WPL 856037 Contact Us For Availability
14
Spring, Detent (2) WPL 644006 Contact Us For Availability
14
Winter Cover (19 x 12 x 14``) WPL 484067 Contact Us For Availability
15
Support, Unit (2) WPL 1156536 Contact Us For Availability
15
Plate, Escutcheon WPL 1167791 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Spacer, Escutcheon Plate (2) WPL 470036 Contact Us For Availability
16
Blade, Fan (Evaporator) WPL 1160946 Contact Us For Availability
17
Extension, Dividing Wall WPL 994561 Contact Us For Availability
17
Knob, Control (2) (Black W/ Silver Indicator) WPL 1162672 Contact Us For Availability
17
Knob, Control (2) (Brown W/ White Indicator) WPL 1168377 Contact Us For Availability
17
Blade, Fan (Condenser) WPL 1161594 Contact Us For Availability
18
Clip, Retainer WPL 644401 Contact Us For Availability
18
Clip WPL 1158294 Contact Us For Availability
18
Evaporator WPL 1156743 Contact Us For Availability
19
Panel, Control WPL 996966 Contact Us For Availability
19
Frame, Front WPL 1159826 Contact Us For Availability
19
Tube, Restrictor (2) WPL 1156455 Contact Us For Availability
20
Actuator, Exhaust Door WPL 1167161 Contact Us For Availability
20
Insul. Cab. Top. WPL 1163429 Contact Us For Availability
20
Condenser WPL 1164709 Contact Us For Availability
21
Retainer, Detent Spring WPL 858765 Contact Us For Availability
21
Retainer, Filter WPL 646963 Contact Us For Availability
21
Bend, Return Condenser (13) Evaporator (2) WPL 708532 Contact Us For Availability
22
Switch, Rotary WPL 1165243 Contact Us For Availability
22
Insulation, Cab. (Right, Side) WPL 1163430 Contact Us For Availability
22
Insulation, Cab. (Left, Side) WPL 1163431 Contact Us For Availability
22
Bend, Return Evaporator (12) WPL 708531 Contact Us For Availability
23
Screw, Machine 6-32 x .175 (4) WPL 488734 Contact Us For Availability
23
Filter WPL 855246 Contact Us For Availability
23
Clip, Mtg. (2) (Base to Front) WPL 949634 Contact Us For Availability
24
Thermostat WPL 1166758 Contact Us For Availability
24
Seal, Cabinet Front WPL 852923 Contact Us For Availability
25
Wire, Ground WPL 856094 Contact Us For Availability
25
Seal, Strip (Top & Sides) WPL 645883 Contact Us For Availability
25
Tube, Outlet (Includes Illus 26) WPL 951437 Contact Us For Availability
26
Cable, Appliance WPL 1165241 Contact Us For Availability
26
Bag, Accessory WPL 476180 Contact Us For Availability
26
Strainer, Tube WPL 49599 Contact Us For Availability
27
Seal, Louver WPL 855238 Contact Us For Availability
27
Screw (Repair) No.10 x 3/8A WPL 488481 Contact Us For Availability
28
Insulation (Side, Dividing Wall) WPL 1166339 Contact Us For Availability
28
Screw, Wood No.8 x 3/4 (1) WPL 488255 Contact Us For Availability
28
Anticipator, Temperature WPL 996773 Contact Us For Availability
29
Clip, Exh. Door WPL 1162627 Contact Us For Availability
29
Bracket, Window Lock WPL 644228 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 475577 Contact Us For Availability
30
Insulation, Sleeve WPL 475841 Contact Us For Availability
30
Seal, Meeting Rail WPL 469877 Contact Us For Availability
30
Clamp, Tube WPL 642684 Contact Us For Availability
31
Insulation WPL 1158501 Contact Us For Availability
32
Front, Complete WPL 1159825 Contact Us For Availability
32
Seal, Condenser Top WPL 948090 Contact Us For Availability
33
Screw WPL 1159222 Contact Us For Availability
33
Seal, Anti-Rub WPL 1162616 Contact Us For Availability
34
Tube, Discharge WPL 1165484 Contact Us For Availability
35
Harness, Wiring WPL 484136 Contact Us For Availability
37
Bend, Return (2) WPL 1158407 Contact Us For Availability
38
Bend, Return (2) WPL 1156533 Contact Us For Availability
39
Tube, Suction WPL 1163983 Contact Us For Availability
× ![]()
