Model Whirlpool CA10WRL0 ROOM AIR CONDITIONER – Common Parts & Diagrams

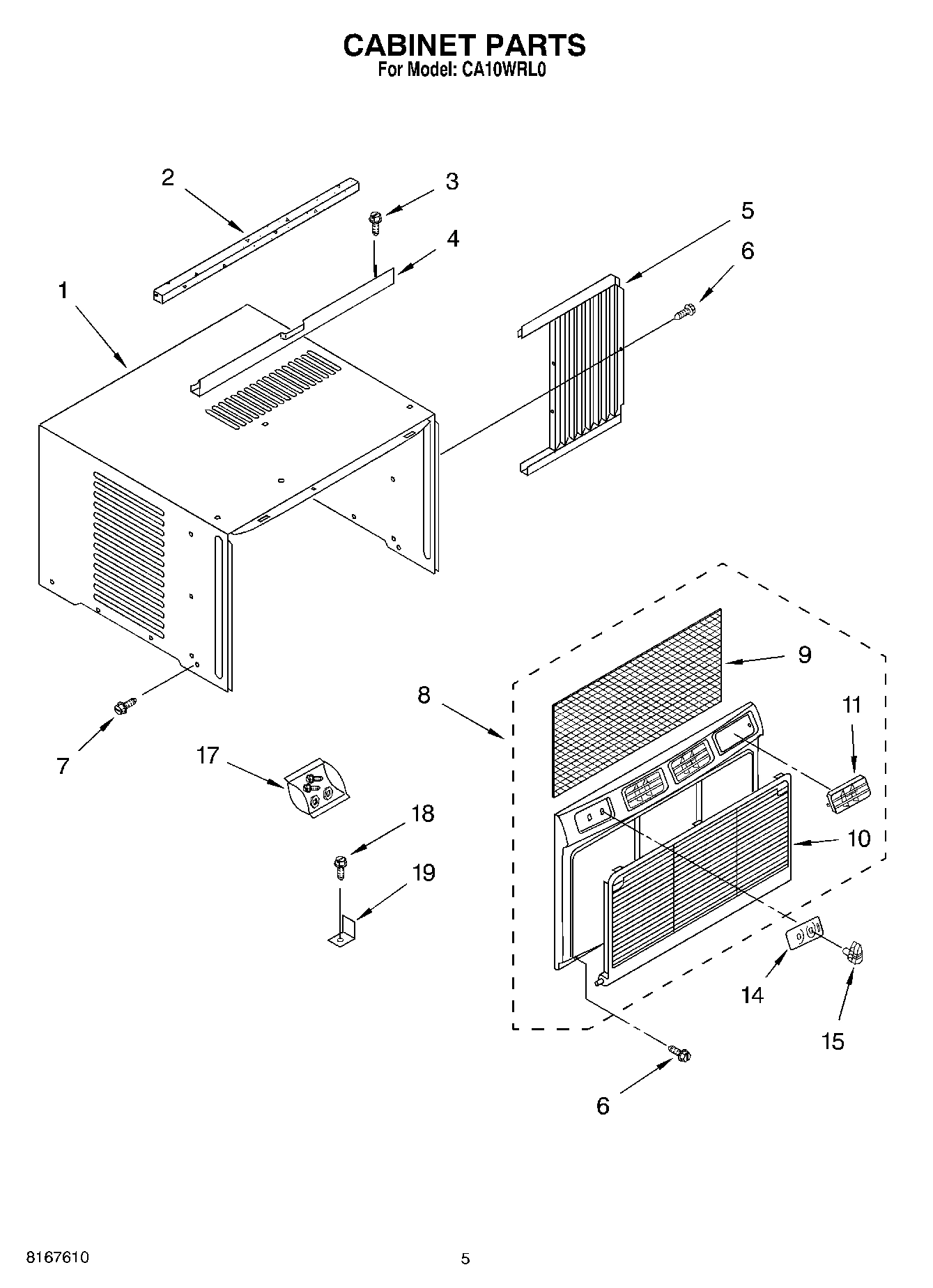

03 - CABINET

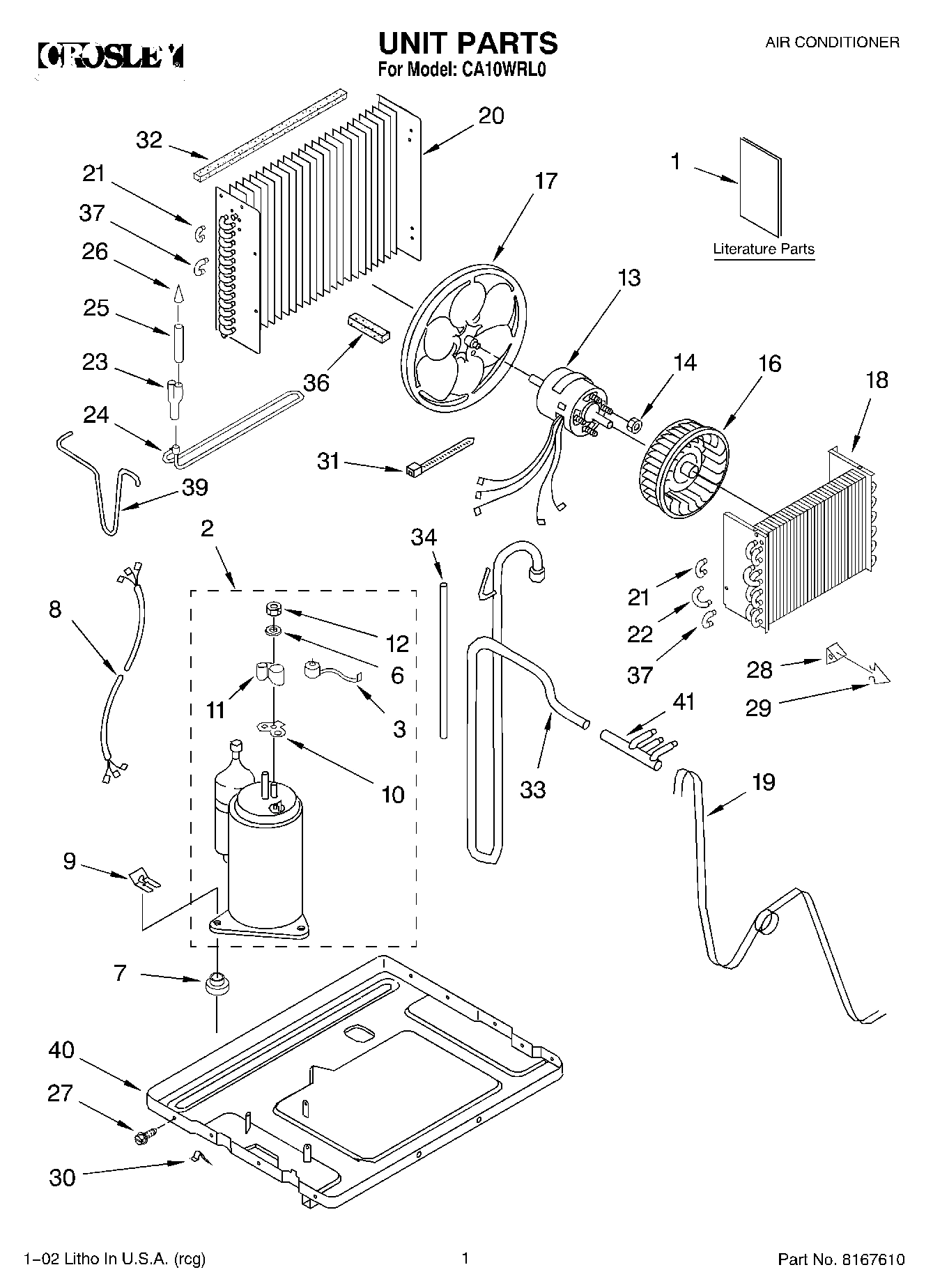

01 - UNIT, LITERATURE

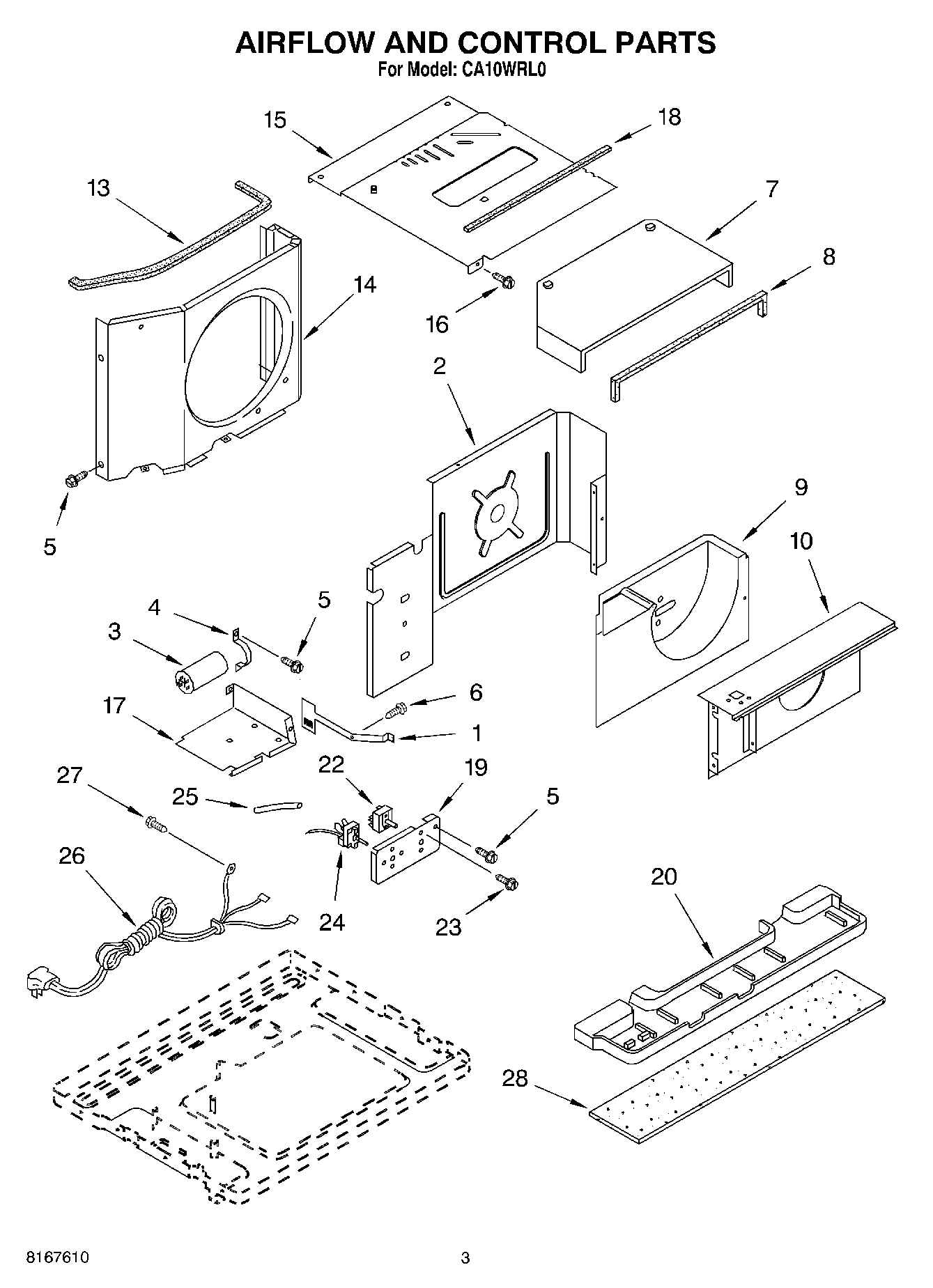

02 - AIR FLOW AND CONTROL

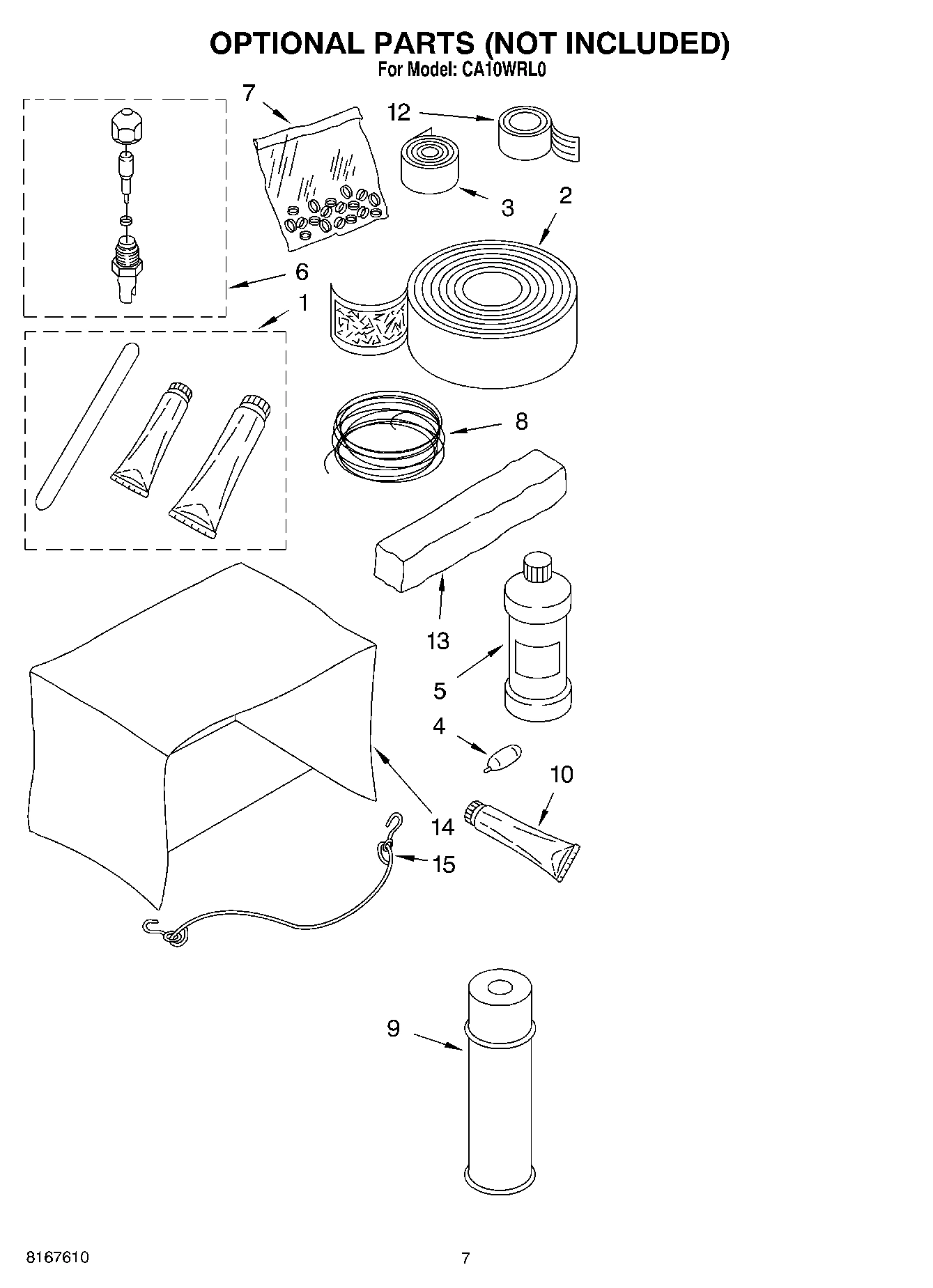

04 - OPTIONAL
Common parts from model Whirlpool CA10WRL0 ROOM AIR CONDITIONER
1
Door, Exhaust WPL 8011139 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Wall, Dividing WPL 8031104 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Capacitor, Running WPL 1166201 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Curtain ((Right Side)) WPL 8031303 Contact Us For Availability
5
Curtain ((Left Side)) WPL 8031304 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Screw, 8-18 x 7/16 WPL 8031309 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Hood, Air Housing WPL 8031570 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Clip, Compressor WPL 8011446 Contact Us For Availability
9
Housing, Air WPL 8031586 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Gasket, Terminal Cover WPL 1182118 Contact Us For Availability
10
Shroud, Evaporator WPL 8031109 Contact Us For Availability
11
Louver Assembly WPL 8031202 Contact Us For Availability
11
Cover, Terminal WPL 1184748 Contact Us For Availability
13
Motor, Fan WPL 1184411 Contact Us For Availability
13
Seal, Condenser Shroud WPL 8031312 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Shroud, Condenser WPL 8031110 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Cover, Unit WPL 8031112 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Wheel, Blower WPL 8031154 Contact Us For Availability
16
Screw, 8-15 x 3/8 WPL 488624 Contact Us For Availability
17
Blade, Fan WPL 1156979 Contact Us For Availability
17
Box, Control WPL 8031200 Contact Us For Availability
18
Evaporator WPL 8031236 Contact Us For Availability
18
Seal, Unit Top WPL 8031465 Contact Us For Availability
19
Tube, Restrictor WPL 8031267 Contact Us For Availability
19
Panel, Control WPL 8031311 Contact Us For Availability
20
Condenser WPL 8031230 Contact Us For Availability
20
Pan, Drain WPL 8031111 Contact Us For Availability
21
Bend, Return Evaporator (5) Condenser (1) WPL 8031222 Contact Us For Availability
22
Switch, Rotary WPL 8031151 Contact Us For Availability
22
Bend, Return (5) WPL 8031224 Contact Us For Availability
23
Tube, Flow Divider WPL 947364 Contact Us For Availability
23
Screw, Machine 6-32 x 11/64 (4) WPL 488734 Contact Us For Availability
24
Thermostat WPL 8031115 Contact Us For Availability
24
Tube, Wet Loop WPL 8031238 Contact Us For Availability
25
Tube, Outlet (Includes No. 26) WPL 950816 Contact Us For Availability
25
Sleeve, Insulator WPL 8011238 Contact Us For Availability
26
Strainer, Tube WPL 49599 Contact Us For Availability
26
Cable, Appliance WPL 8031114 Contact Us For Availability
27
Screw, 8-18 x 19/64 WPL 1159222 Contact Us For Availability
28
Anticipator, Temperature WPL 996773 Contact Us For Availability
28
Insulation, Drain Pan WPL 8031480 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 475577 Contact Us For Availability
30
Clamp, Tube WPL 471088 Contact Us For Availability
32
Seal, Condenser Top WPL 1181735 Contact Us For Availability
33
Tube, Suction WPL 1185668 Contact Us For Availability
34
Insulation, Suction Tube WPL 1185481 Contact Us For Availability
37
Bend, Return Condenser (15) Evaporator (5) WPL 8031223 Contact Us For Availability
39
Tube, Discharge WPL 1185669 Contact Us For Availability
40
Base WPL 8031331 Contact Us For Availability
41
Tube, Flow Divider WPL 8031259 Contact Us For Availability
× ![]()
