Model Whirlpool C9875XVB ELECTRIC WALL OVEN – Common Parts & Diagrams

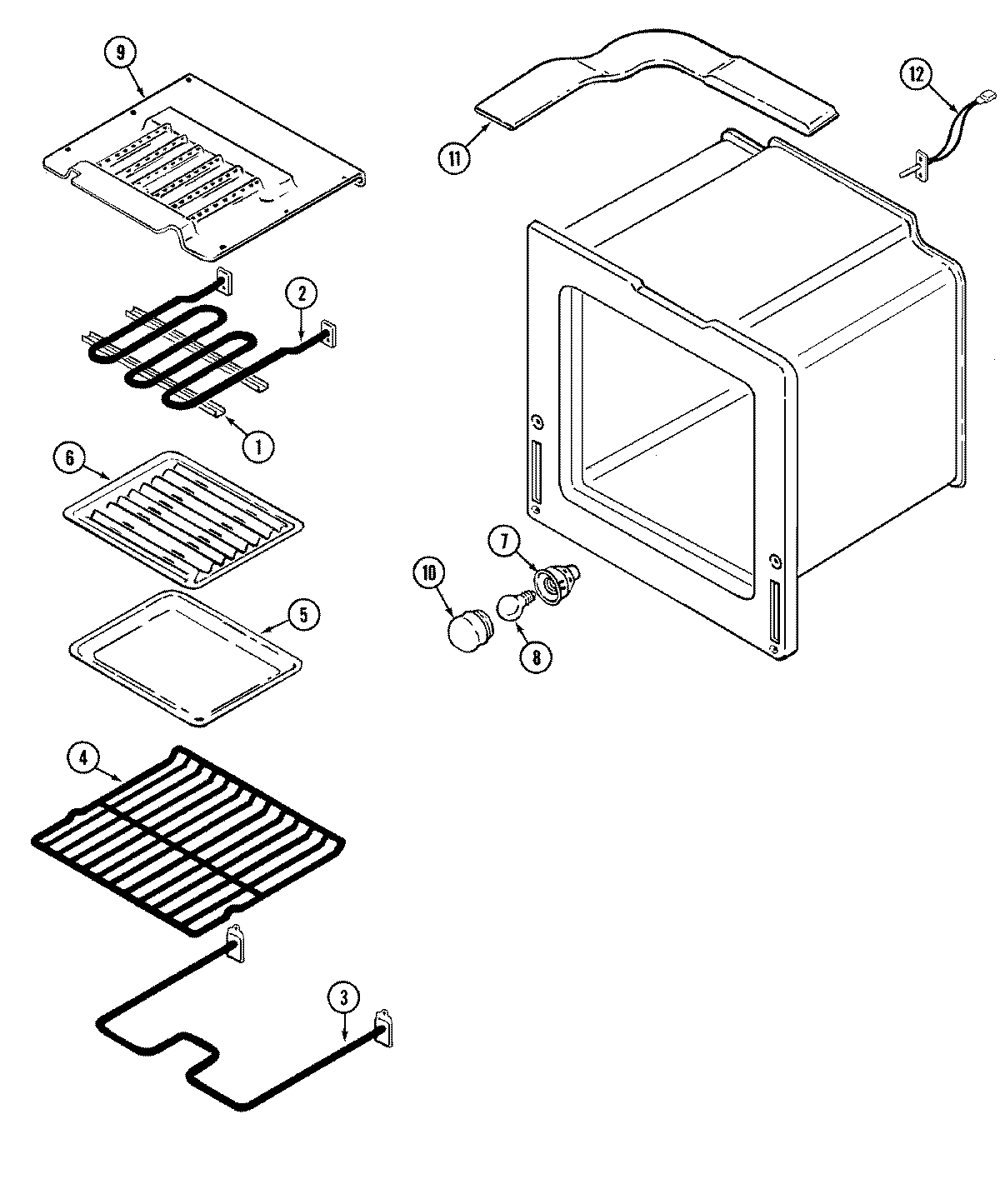

06 - OVEN

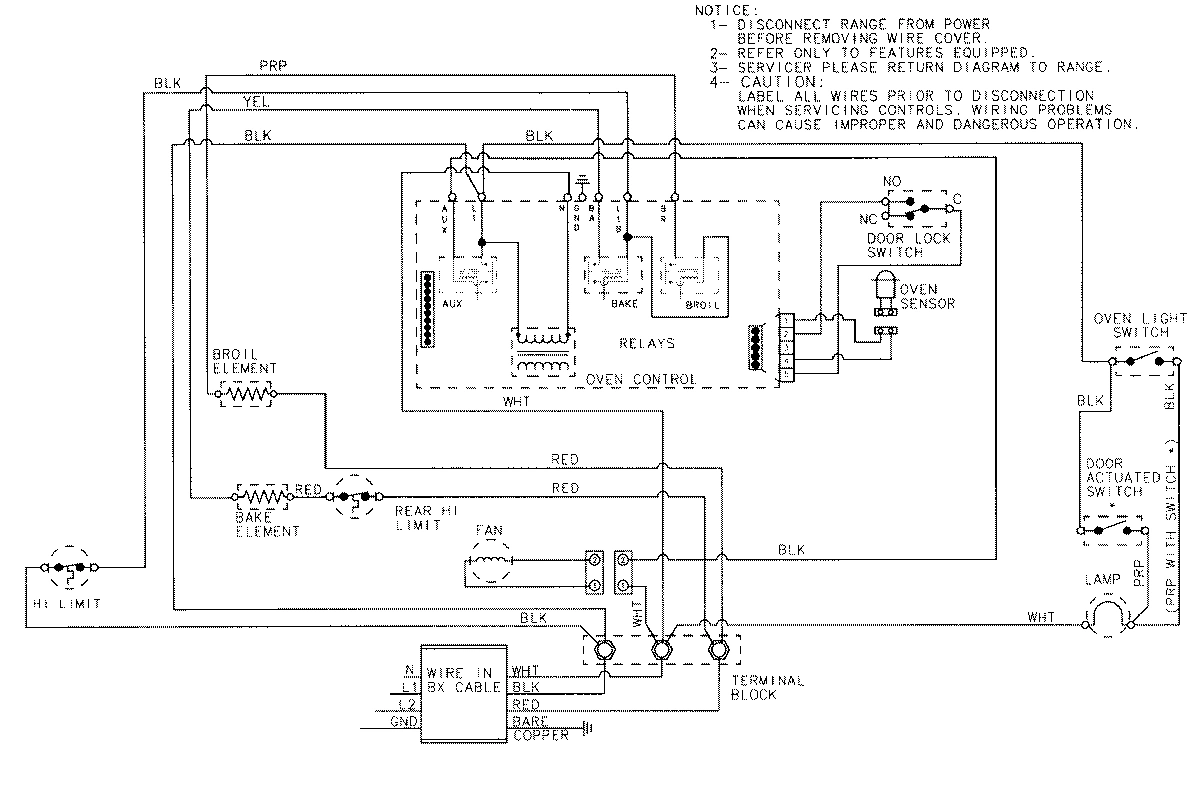

07 - WIRING INFORMATION

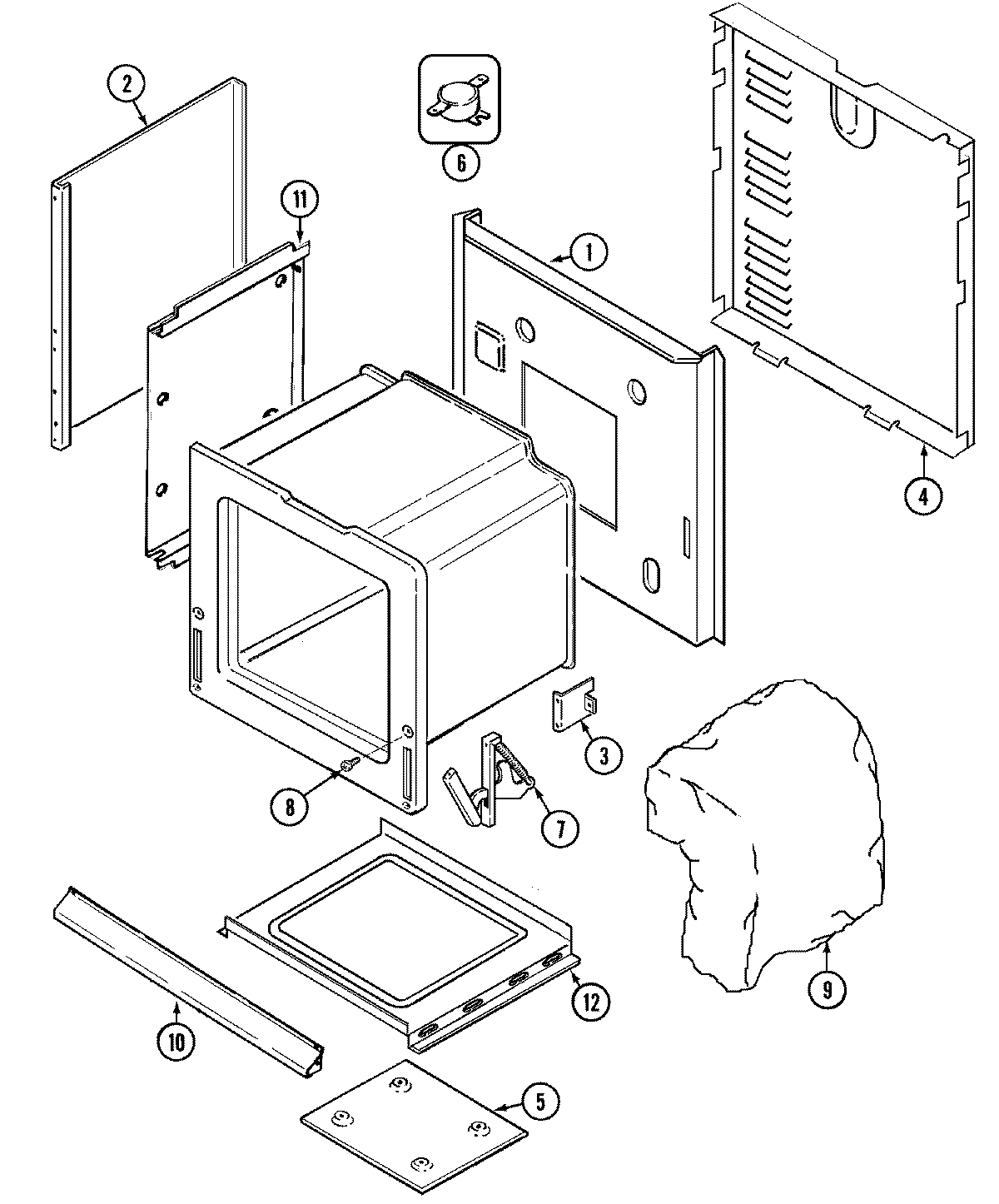

01 - BODY

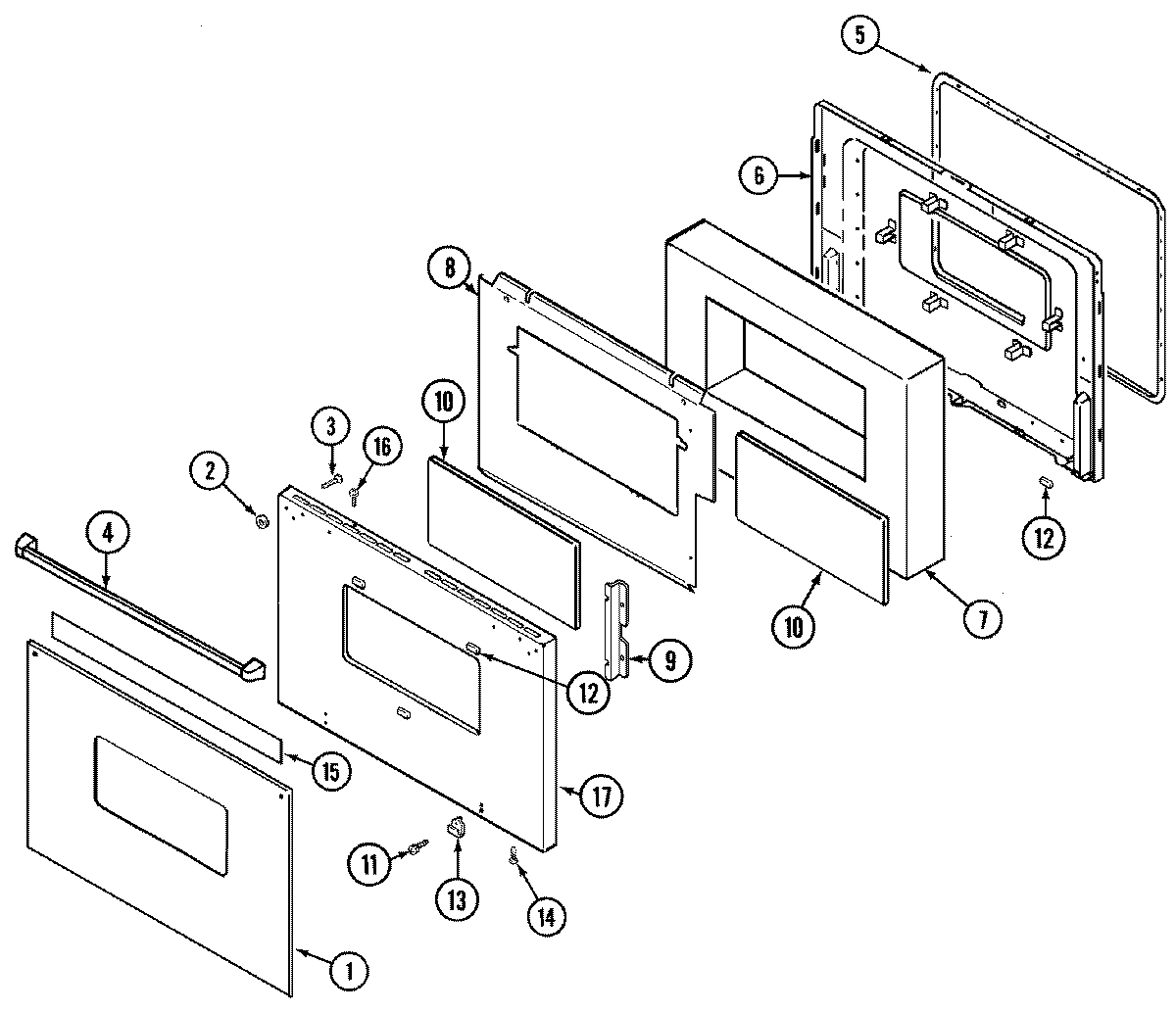

04 - DOOR (SER. PRE. 15)

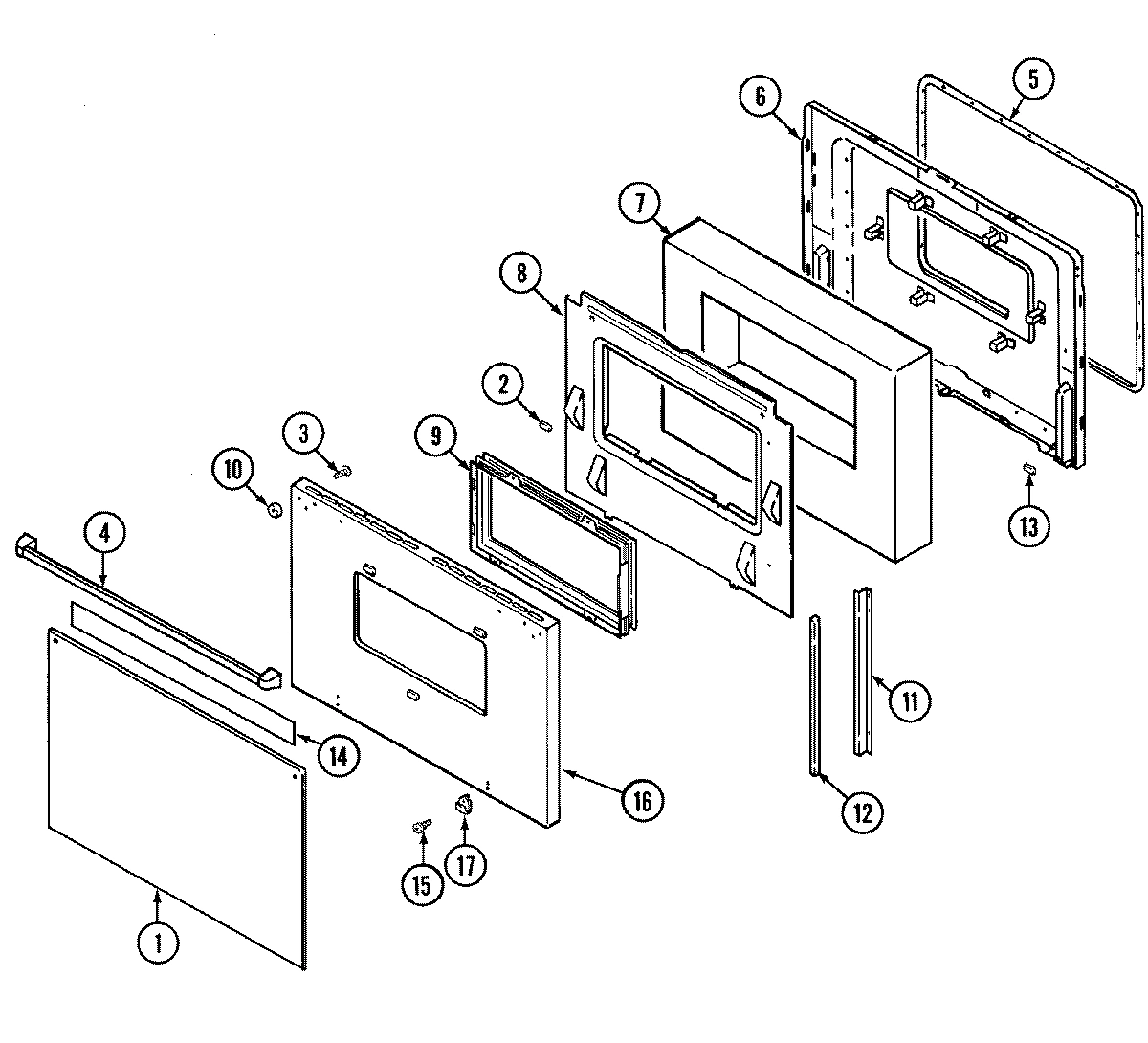

03 - DOOR

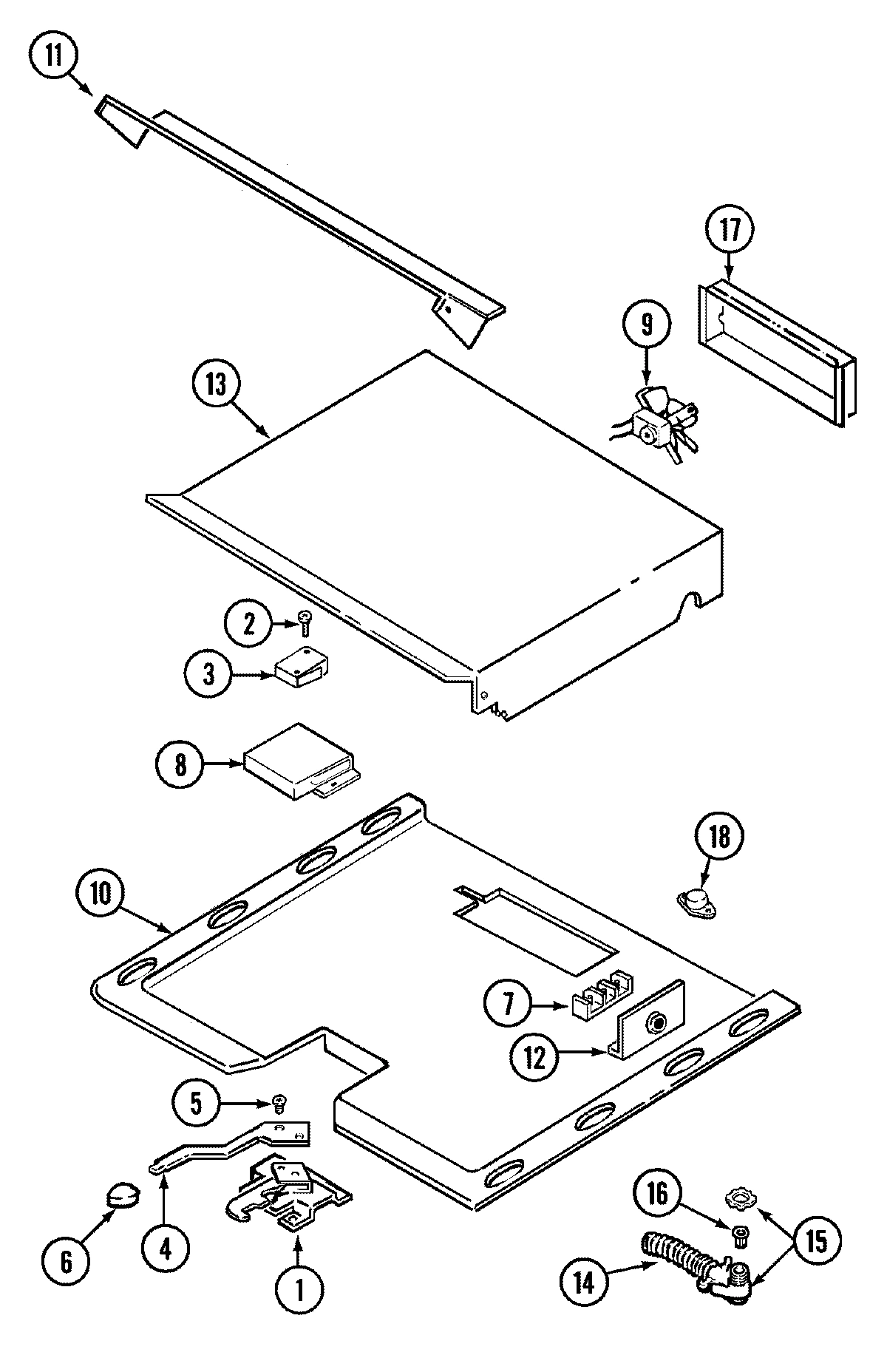

05 - INTERNAL CONTROLS

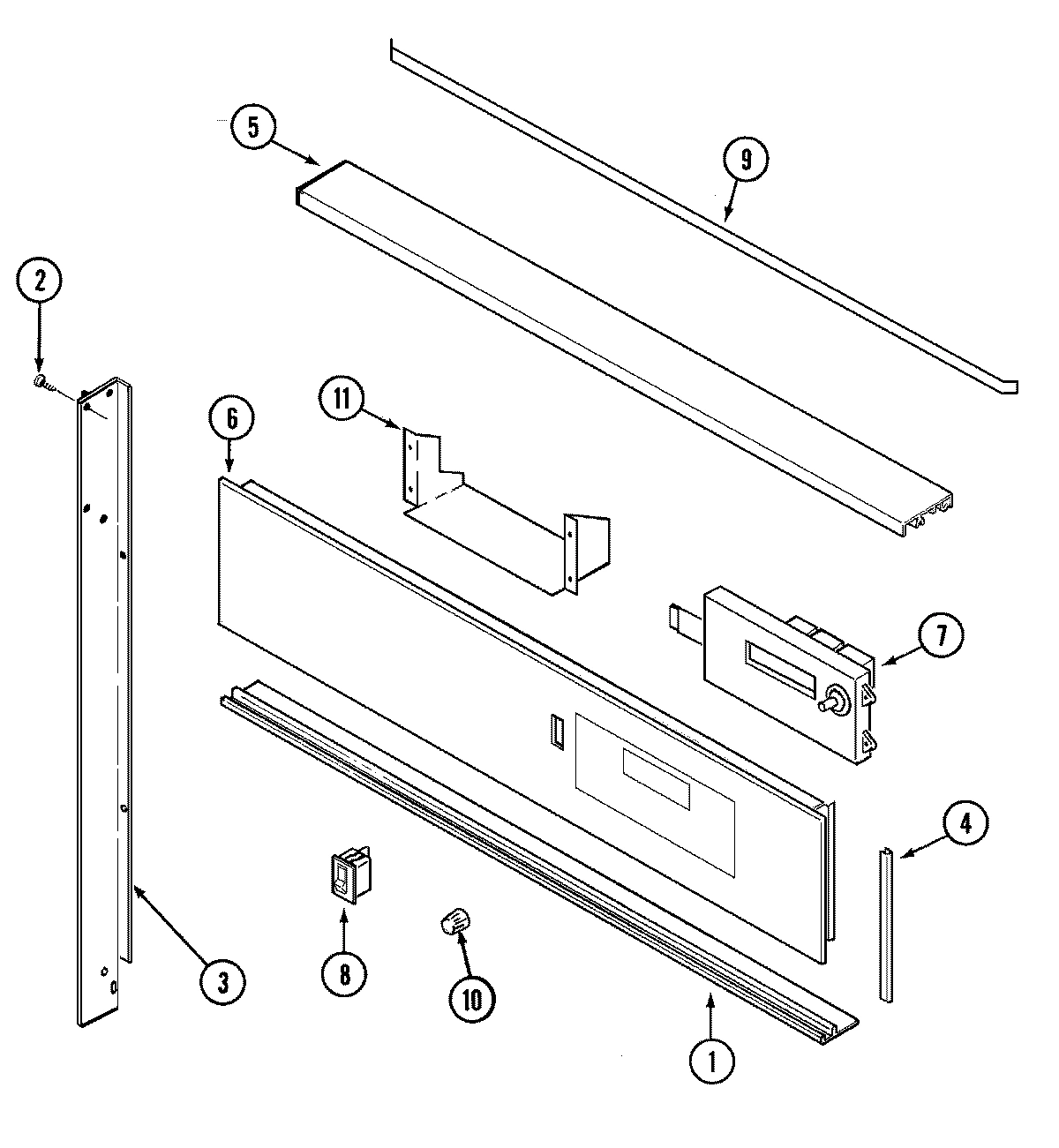

02 - CONTROL PANEL
Common parts from model Whirlpool C9875XVB ELECTRIC WALL OVEN
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P34560 Contact Us For Availability
1
BACK, MAIN WPL 4002F16951 Contact Us For Availability
1
GLASS, DOOR (BLK) WPL 7902P36760 Contact Us For Availability
1
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
1
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
1
TRIM, VENT (BLK) WPL 7756P09860 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P07960 Contact Us For Availability
2
PANEL, SIDE WPL 2618F08251 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
2
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
2
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
3
SCREW WPL 7101P29060 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P07860 Contact Us For Availability
3
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
3
SCREW WPL 7101P32660 Contact Us For Availability
3
INSULATION, FIBERBOARD WPL 7003P05160 Contact Us For Availability
3
SWITCH, DOOR (CANADA) WPL 7403P32660 Contact Us For Availability
3
EXTRUSION, SIDE (RT-BLK) WPL 74001389 Contact Us For Availability
3
EXTRUSION, SIDE (LT-BLK) WPL 74001391 Contact Us For Availability
3
TRIM, SIDE (RT-BLK) WPL 7750P09760 Contact Us For Availability
3
TRIM, SIDE (LT-BLK) WPL 7750P09860 Contact Us For Availability
4
RACK, OVEN WPL 7801P04760 Contact Us For Availability
4
COVER, REAR WPL 4005F43451 Contact Us For Availability
4
HANDLE, DOOR (BLK) WPL 7701P11060 Contact Us For Availability
4
LEVER WPL 8009P02060 Contact Us For Availability
4
TRIM, CONTROL PANEL (BLK) WPL 7720P15160 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SHIELD, HEAT WPL 3604F18951 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
5
BOLT WPL 7116P00360 Contact Us For Availability
5
TRIM, TOP (BLK) WPL 7756P10060 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
SWITCH, HI-LIMIT WPL 7403P31660 Contact Us For Availability
6
LINING, DOOR WPL 2402W20919 Contact Us For Availability
6
LINING, DOOR WPL 2402W20219 Contact Us For Availability
6
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
6
HANDLE, DOOR LATCH (BLK) WPL 7701P13260 Contact Us For Availability
6
PANEL, CONTROL (BLK) WPL 7721P04760 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
HINGE WPL 7106P05760 Contact Us For Availability
7
INSULATION, DOOR WPL 74001842 Contact Us For Availability
7
INSULATION, DOOR WPL 4804F03460 Contact Us For Availability
7
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
7
CLOCK (CANADA) WPL 7601P23160 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
8
SCREW WPL 7101P11560 Contact Us For Availability
8
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
8
COVER WPL 4005F42880 Contact Us For Availability
8
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
9
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
9
INSULATION, BACK WPL 4804F03860 Contact Us For Availability
9
RETAINER, GLASS WPL 74001844 Contact Us For Availability
9
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
9
FAN ASSY. WPL 7427P01060 Contact Us For Availability
9
TRIM, FILLER STRIP (BLK) WPL 7752P01060 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
SHIELD, LOWER VENT (BLK) WPL 3604F18170 Contact Us For Availability
10
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
10
GLASS, INNER WPL 74001841 Contact Us For Availability
10
RETAINER, TOP INSULATION WPL 3804F11751 Contact Us For Availability
10
KNOB, CLOCK (BLK) WPL 7711P48660 Contact Us For Availability
11
COVER, VENT WPL 4005F40351 Contact Us For Availability
11
TUBE, VENT WPL 7506P12560 Contact Us For Availability
11
RETAINER, INSULATION (SIDE) WPL 3804F10851 Contact Us For Availability
11
CHANNEL, AIR WPL 3818F05280 Contact Us For Availability
11
COVER, FAN HOUSING WPL 4005F43151 Contact Us For Availability
11
INSULATION, FIBERBOARD WPL 7003P05660 Contact Us For Availability
12
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
12
BOTTOM, MAIN WPL 4011F21751 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
12
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
13
CLIP, GLASS (BLK) WPL 7112P09360 Contact Us For Availability
13
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
13
HOUSING, FAN WPL 4001F09251 Contact Us For Availability
14
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
14
TUBING, CONDUIT (CANADA) WPL 7434P01060 Contact Us For Availability
15
CONNECTOR, CONDUIT WPL 7417P00560 Contact Us For Availability
16
PANEL, DOOR (BLK) WPL 2401F12370 Contact Us For Availability
16
GROMMET WPL 8008P01760 Contact Us For Availability
17
CLIP, GLASS RETAINER (BLK) WPL 3819F01070 Contact Us For Availability
17
COVER, FAN WPL 4005F26251 Contact Us For Availability
18
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
18
SWITCH, HI-LIMIT WPL 7403P31360 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001717 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
NI
HARNESS, MAIN (CANADA) WPL 5170D21060 Contact Us For Availability
NI
HARNESS, SENSOR/LOCK WPL 5170P20760 Contact Us For Availability
NI
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
NI
SCREW (BLK) WPL 74001387 Contact Us For Availability
NI
SPACER, MTG. ADAPTER (BLK) WPL 74001394 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P02460 Contact Us For Availability
NI
MANUAL, USE & CARE (FRENCH) WPL 8113P05660 Contact Us For Availability
× ![]()
