Model Electrolux C970-408233 – Common Parts & Diagrams

*
Box & wires assy
Box & wires assy WCI 5304470730 Contact Us For Availability
View on Model
*
Clamp, power cord
Clamp, power cord WCI 318341500 Contact Us For Availability
View on Model
*
Frying Pan, stainless steel
Frying Pan, stainless steel WCI 318343701 Contact Us For Availability
View on Model
*
Cleaner, cooktop
Cleaner, cooktop WCI 318163600 Contact Us For Availability
View on Model
*
Cleaner, stainless steel
Cleaner, stainless steel WCI 318163602 Contact Us For Availability
View on Model
1

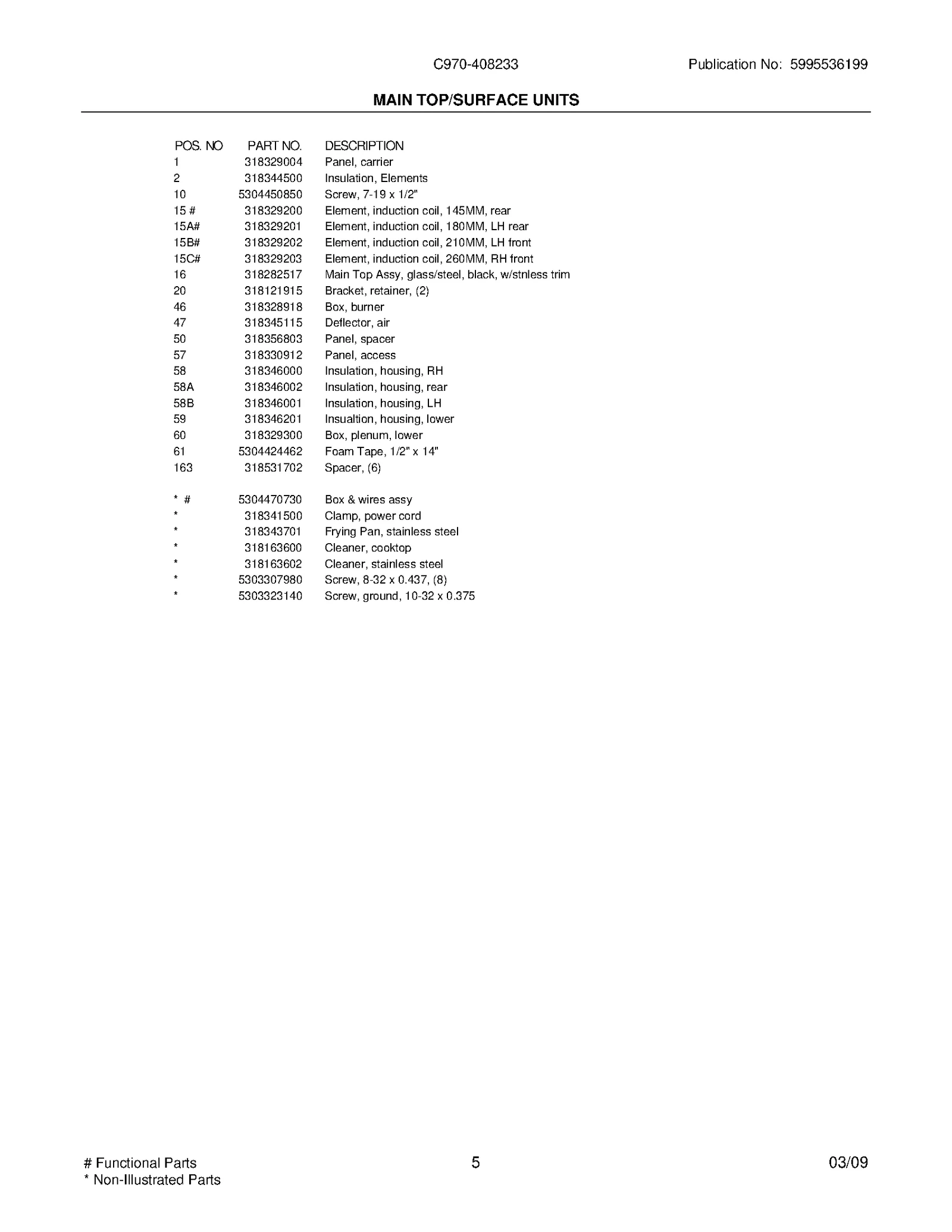

Panel, carrier
Panel, carrier WCI 318329004 Contact Us For Availability
View on Model
2
Insulation, Elements
Insulation, Elements WCI 318344500 Contact Us For Availability
View on Model
5

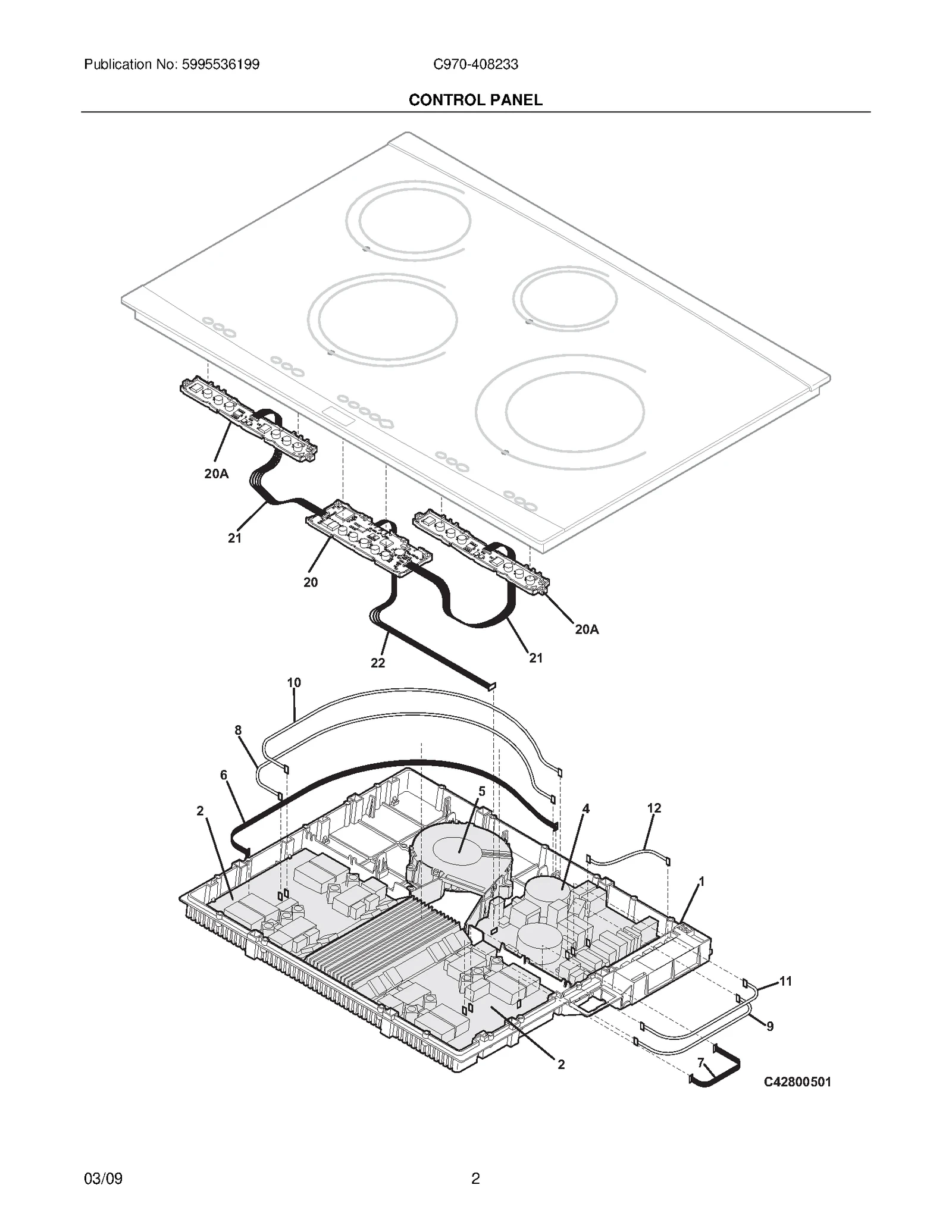

Cooling Fan Assembly, large
Cooling Fan Assembly, large WCI 318346900 Contact Us For Availability
View on Model
6
Communication Cable, generator, 18", to filte
Communication Cable, generator, 18", to filte WCI 318348001 Contact Us For Availability
View on Model
7
Communication Cable, generator, 6", to filter
Communication Cable, generator, 6", to filter WCI 318348000 Contact Us For Availability
View on Model
8
Power Cable Set, filter, 18", black, to gener
Power Cable Set, filter, 18", black, to gener WCI 318052581 Contact Us For Availability
View on Model
9
Power Cable Set, generator, 6", blue, to filt
Power Cable Set, generator, 6", blue, to filt WCI 318052580 Contact Us For Availability
View on Model
10
Power Cable Set, filter, 18", blue, to genera
Power Cable Set, filter, 18", blue, to genera WCI 318052582 Contact Us For Availability
View on Model
10
Screw, 7-19 x 1/2"
Screw, 7-19 x 1/2" WCI 5304450850 Contact Us For Availability
View on Model
11
Power Cable Set, generator, 6", black, to fil
Power Cable Set, generator, 6", black, to fil WCI 318052579 Contact Us For Availability
View on Model
12
Groung Wire, X54/6
Groung Wire, X54/6 WCI 318052596 Contact Us For Availability
View on Model
15

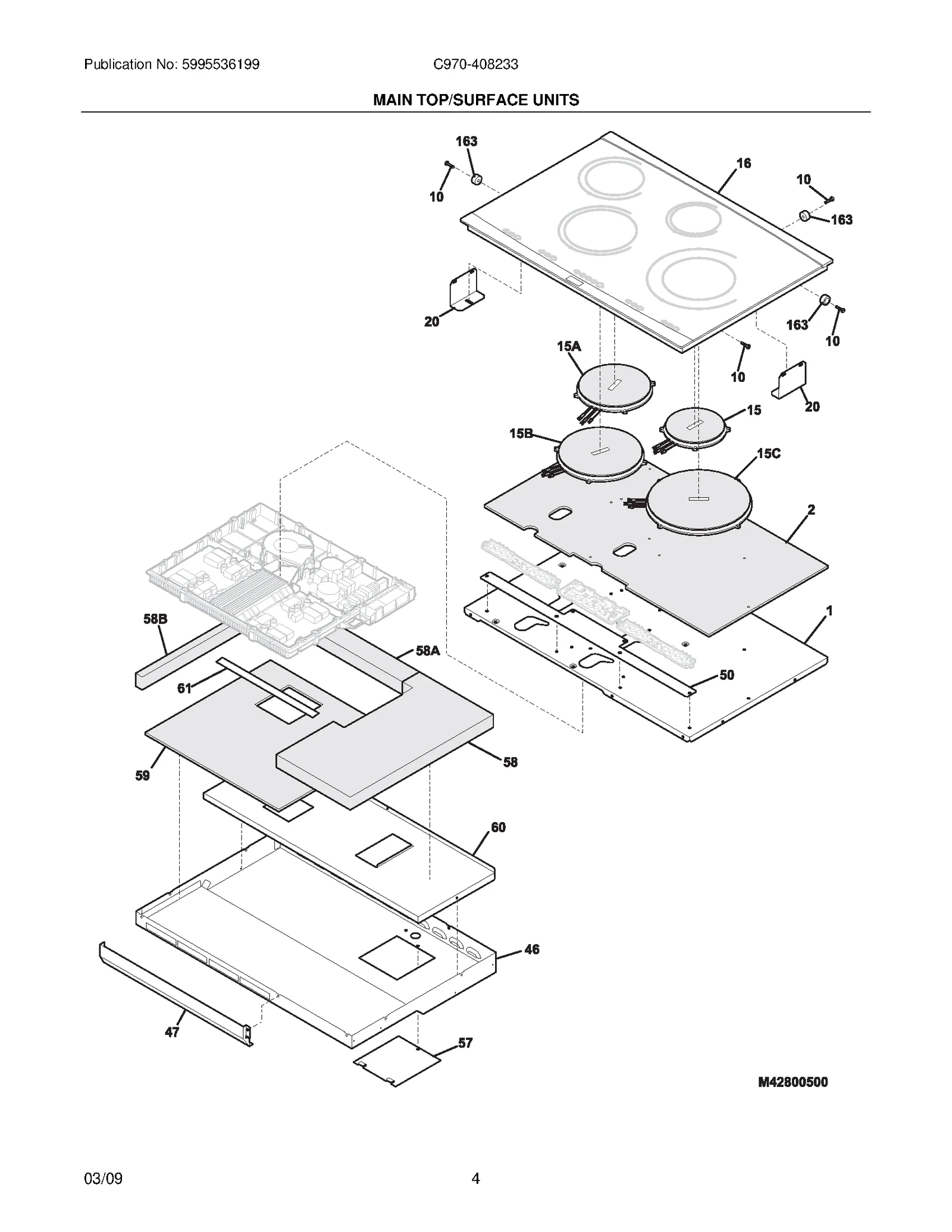

Element, induction coil, 145MM, rear
Element, induction coil, 145MM, rear WCI 318329200 Contact Us For Availability
View on Model
15A
Element, induction coil, 180MM, LH rear
Element, induction coil, 180MM, LH rear WCI 318329201 Contact Us For Availability
View on Model
15B
Element, induction coil, 210MM, LH front
Element, induction coil, 210MM, LH front WCI 318329202 Contact Us For Availability
View on Model
15C
Element, induction coil, 260MM, RH front
Element, induction coil, 260MM, RH front WCI 318329203 Contact Us For Availability
View on Model
16
Main Top Assy, glass/steel, black, w/stnless
Main Top Assy, glass/steel, black, w/stnless WCI 318282517 Contact Us For Availability
View on Model
20
Bracket, retainer, (2)
Bracket, retainer, (2) WCI 318121915 Contact Us For Availability
View on Model
21
Interface Cable, side control, to center
Interface Cable, side control, to center WCI 318402404 Contact Us For Availability
View on Model
22
Communication Cable, center control, to filte
Communication Cable, center control, to filte WCI 318532102 Contact Us For Availability
View on Model
46
Box, burner
Box, burner WCI 318328918 Contact Us For Availability
View on Model
47
Deflector, air
Deflector, air WCI 318345115 Contact Us For Availability
View on Model
50
Panel, spacer
Panel, spacer WCI 318356803 Contact Us For Availability
View on Model
57
Panel, access
Panel, access WCI 318330912 Contact Us For Availability
View on Model
58
Insulation, housing, RH
Insulation, housing, RH WCI 318346000 Contact Us For Availability
View on Model
58A
Insulation, housing, rear
Insulation, housing, rear WCI 318346002 Contact Us For Availability
View on Model
58B
Insulation, housing, LH
Insulation, housing, LH WCI 318346001 Contact Us For Availability
View on Model
59
Insualtion, housing, lower
Insualtion, housing, lower WCI 318346201 Contact Us For Availability
View on Model
60
Box, plenum, lower
Box, plenum, lower WCI 318329300 Contact Us For Availability
View on Model
163
Spacer, (6)
Spacer, (6) WCI 318531702 Contact Us For Availability
View on Model
