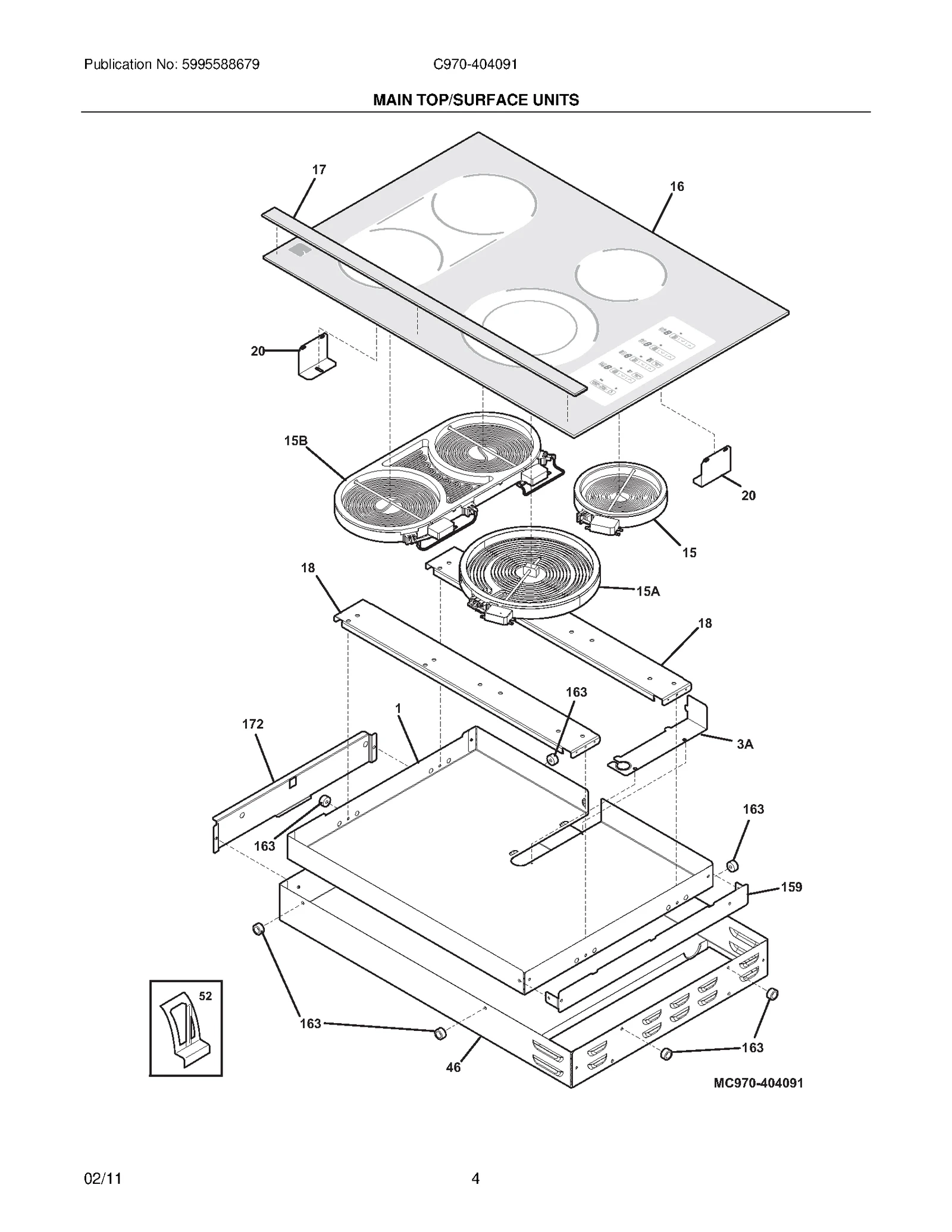

Model Electrolux C970-404091 – Common Parts & Diagrams

*
Installation Instructions
Installation Instructions WCI 318205423 Contact Us For Availability
View on Model
*
Box & wires assy
Box & wires assy WCI 318394498 Contact Us For Availability
View on Model
*

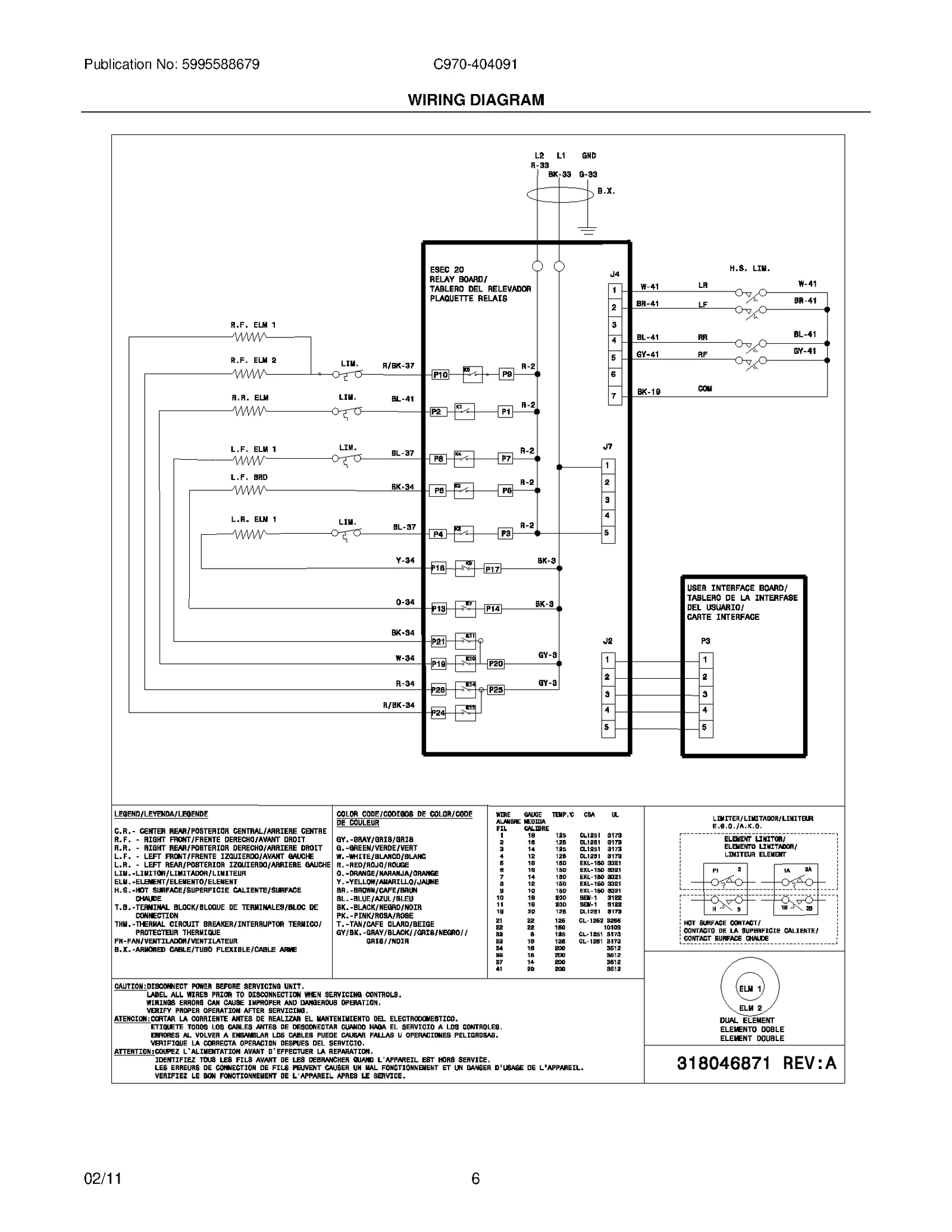

Harness, wiring, main
Harness, wiring, main WCI 318402433 Contact Us For Availability
View on Model
*
Insulation, front, 19.362 x 5.242, .5" thick
Insulation, front, 19.362 x 5.242, .5" thick WCI 318346021 Contact Us For Availability
View on Model
*
Insulation, 4.25 x .75, .125" thick, w/alumin
Insulation, 4.25 x .75, .125" thick, w/alumin WCI 318106069 Contact Us For Availability
View on Model
*
Cleaner, glass
Cleaner, glass WCI 316112100 Contact Us For Availability
View on Model
*
Screw, truss head, 8-18 x 0.375
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
View on Model
1
Shield, heat
Shield, heat WCI 318354154 Contact Us For Availability
View on Model
3A
Cover, deflector
Cover, deflector WCI 318371402 Contact Us For Availability
View on Model
16
Main Top Assy, glass, black, complete, w/cont
Main Top Assy, glass, black, complete, w/cont WCI 318935214 Contact Us For Availability
View on Model
17
Trim Assy, black, (2), w/tape
Trim Assy, black, (2), w/tape WCI 318338316 Contact Us For Availability
View on Model
18
Bracket, element mtg., (2)
Bracket, element mtg., (2) WCI 318381811 Contact Us For Availability
View on Model
18
Screw, flat socket, 6 x 5/16, ZP, (8), T/B
Screw, flat socket, 6 x 5/16, ZP, (8), T/B WCI 5304437019 Contact Us For Availability
View on Model
23
Panel, service
Panel, service WCI 318194725 Contact Us For Availability
View on Model
24
Deflector, service panel
Deflector, service panel WCI 318319205 Contact Us For Availability
View on Model
25
Shield, control
Shield, control WCI 318579601 Contact Us For Availability
View on Model
46
Box, burner
Box, burner WCI 318354060 Contact Us For Availability
View on Model
77
Spacer, control
Spacer, control WCI 318293702 Contact Us For Availability
View on Model
97
Board, relay, PCB133
Board, relay, PCB133 WCI 318939700 Contact Us For Availability
View on Model
159
Deflector, heat
Deflector, heat WCI 318578000 Contact Us For Availability
View on Model
163
Spacer
Spacer WCI 318531702 Contact Us For Availability
View on Model
163
Screw, 8 x 5/8
Screw, 8 x 5/8 WCI 3131048 Contact Us For Availability
View on Model
172
Screen, thermal
Screen, thermal WCI 318124915 Contact Us For Availability
View on Model
