Model Maytag C8TXNGFXB00 REFRIGERATOR – Common Parts & Diagrams

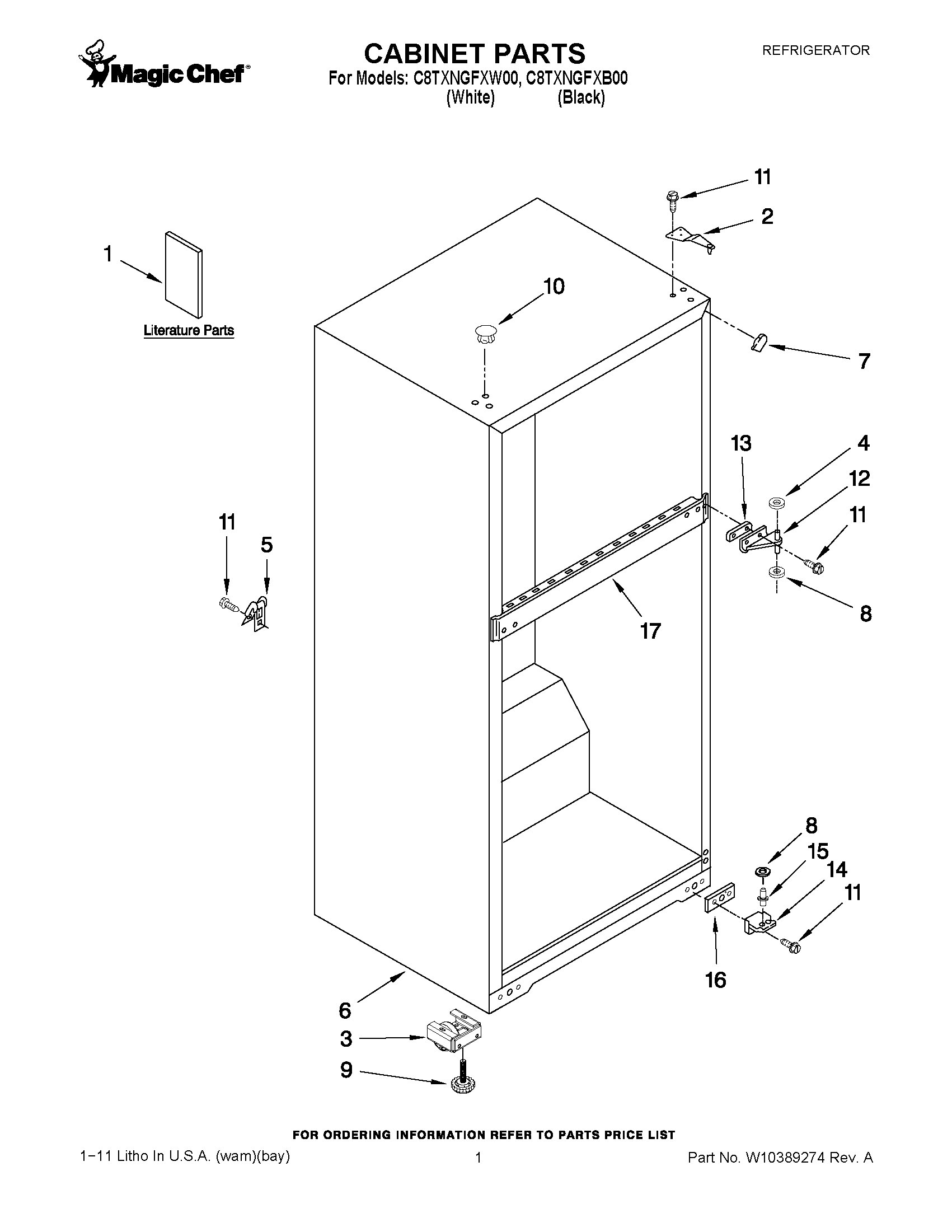

01 - CABINET PARTS

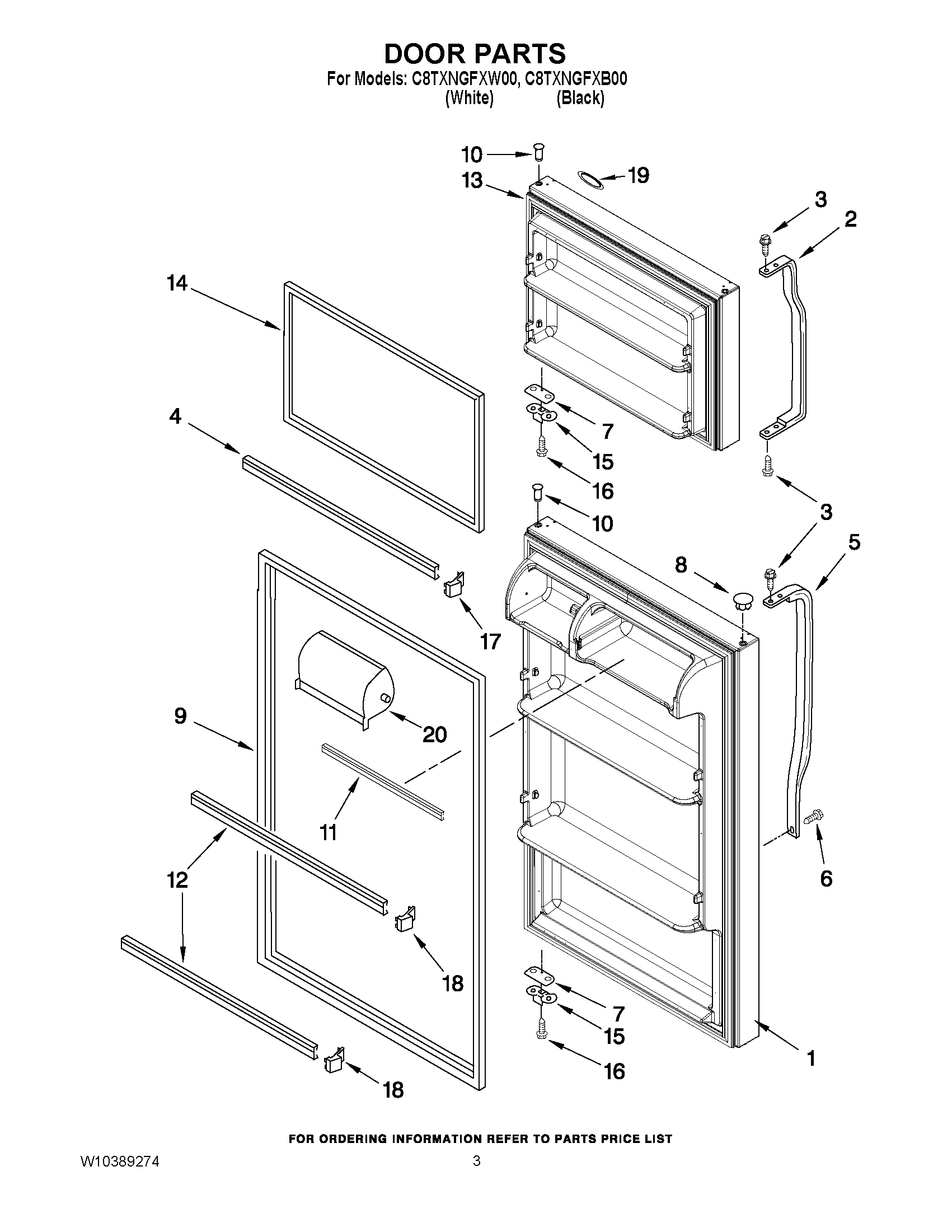

02 - DOOR PARTS
03 - LINER PARTS
04 - UNIT PARTS
05 - SHELF PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag C8TXNGFXB00 REFRIGERATOR
1
MAY 2326133 MAY 2326133 Contact Us For Availability
1
MAY W10283801 MAY W10283801 Contact Us For Availability
1
MAY W10287934 MAY W10287934 Contact Us For Availability
1
REFRIGERATOR DOOR ASSEMBLY (INCLUDES ILLUS. 9 MAY 2264750B Contact Us For Availability
1
REFRIGERATOR DOOR ASSEMBLY (INCLUDES ILLUS. 9 MAY 2264750W Contact Us For Availability
1
MAY W10222450 MAY W10222450 Contact Us For Availability
1
MAY W10142525 MAY W10142525 Contact Us For Availability
2
MAY 2261963 MAY 2261963 Contact Us For Availability
2
Handle, FC (White) MAY 2202098 Contact Us For Availability
2
HANDLE, FC (BLACK) MAY 2202098B Contact Us For Availability
2
RIVET, PLASTIC MAY 939962 Contact Us For Availability
2
MAY 489442 MAY 489442 Contact Us For Availability
2
MAY W10283851 MAY W10283851 Contact Us For Availability
3
ROLLER, FRONT MAY W10142530 Contact Us For Availability
3
MAY 2183061 MAY 2183061 Contact Us For Availability
3
MAY 2264004 MAY 2264004 Contact Us For Availability
3
CRISPER, COVER MAY 2222031 Contact Us For Availability
4
MAY 489341 MAY 489341 Contact Us For Availability
4
TRIM-DOOR (2) MAY 2266727 Contact Us For Availability
4
Control, Adaptive Defrost MAY 2303825 Contact Us For Availability
4
MAY 2176942 MAY 2176942 Contact Us For Availability
4
MAY 2256704 MAY 2256704 Contact Us For Availability
5
MAY 549193 MAY 549193 Contact Us For Availability
5
HANDLE, RC (WHITE) MAY 2221946W Contact Us For Availability
5
HANDLE, RC (BLACK) MAY 2326169B Contact Us For Availability
5
MAY 489174 MAY 489174 Contact Us For Availability
5
Clip, Condensor MAY 2264835 Contact Us For Availability
5
GLASS, COVER MAY 2262441 Contact Us For Availability
6
MAY 8281206 MAY 8281206 Contact Us For Availability
6
Screw MAY 488693 Contact Us For Availability
6
MAY 8533859 MAY 8533859 Contact Us For Availability
6
MAY W10258418 MAY W10258418 Contact Us For Availability
7
MAY 2166003 MAY 2166003 Contact Us For Availability
7
Corner Filler (Black) MAY 2215384 Contact Us For Availability
7
MAY 2258681W MAY 2258681W Contact Us For Availability
7
MAY 2265930 MAY 2265930 Contact Us For Availability
7
MAY 2319224 MAY 2319224 Contact Us For Availability
7
MEAT PAN MAY 2261934 Contact Us For Availability
8
MAY 487576 MAY 487576 Contact Us For Availability
8
Hole Plug (White) MAY 2212648 Contact Us For Availability
8
Hole Plug (Black) MAY 2212651 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
Wire Assy. Unit MAY W10151677 Contact Us For Availability
8
MAY 2212446 MAY 2212446 Contact Us For Availability
9
LEVELER SCREW MAY W10133299 Contact Us For Availability
9
DOOR GASKET,(BLACK) MAY 2264723 Contact Us For Availability
9
DOOR GASKET (MIST BEIGE) MAY W10190032 Contact Us For Availability
9
Fan Support Bracket MAY W10180172 Contact Us For Availability
9
Evaporating Tray MAY 2263928 Contact Us For Availability
9
Slide, Humidity Control MAY 2176222 Contact Us For Availability
10
HOLE PLUG (BLACK) MAY 2183998 Contact Us For Availability
10
HOLE PLUG (WHITE) MAY 2201012 Contact Us For Availability
10
MAY 2262054 MAY 2262054 Contact Us For Availability
10
MAY 2197405 MAY 2197405 Contact Us For Availability
10
AIR BAFFLE MAY W10358308 Contact Us For Availability
11
MAY 489497 MAY 489497 Contact Us For Availability
11
MAY W10234242 MAY W10234242 Contact Us For Availability
11
Fan Blade MAY 2169142 Contact Us For Availability
11
MAY 2188875 MAY 2188875 Contact Us For Availability
12
MAY 2166086 MAY 2166086 Contact Us For Availability
12
TRIM, DOOR MAY 2266738 Contact Us For Availability
12
MAY 2215210 MAY 2215210 Contact Us For Availability
12
TUBE, DISCHARGE (INCL.PRE COOLER) MAY W10209728 Contact Us For Availability
13
SHIM HINGE, CENTER MAY 2166043 Contact Us For Availability
13
FREEZER DOOR ASSEMBLY (INCLUDES ILLUS. 14) (B MAY 2263254B Contact Us For Availability
13
FREEZER DOOR ASSEMBLY (INCLUDES ILLUS. 14) (W MAY 2263254W Contact Us For Availability
13
MAY 2325701 MAY 2325701 Contact Us For Availability
13
MAY VS20001 MAY VS20001 Contact Us For Availability
14
Hinge Butt MAY 2325482 Contact Us For Availability
14
DOOR GASKET, (BLACK) MAY 2264722 Contact Us For Availability
14
DOOR GASKET (MIST BEIGE) MAY W10190031 Contact Us For Availability
14
MAY 489399 MAY 489399 Contact Us For Availability
14
MAY 2222084 MAY 2222084 Contact Us For Availability
15
HINGE PIN, BOTTOM MAY 2325483 Contact Us For Availability
15
MAY 2189202 MAY 2189202 Contact Us For Availability
15
MAY 1118680 MAY 1118680 Contact Us For Availability
15
MAY W10209727 MAY W10209727 Contact Us For Availability
16
MAY 2201567 MAY 2201567 Contact Us For Availability
16
MAY 489357 MAY 489357 Contact Us For Availability
16
MAY W10244012 MAY W10244012 Contact Us For Availability
16
MAY 939054 MAY 939054 Contact Us For Availability
17
END CAP, TRIM MAY 2156003 Contact Us For Availability
17
MAY 527949 MAY 527949 Contact Us For Availability
17
Roller MAY 2150304 Contact Us For Availability
18
END CAP, TRIM MAY 2195916 Contact Us For Availability
18
MAY 9791702 MAY 9791702 Contact Us For Availability
18
MAY 2264756 MAY 2264756 Contact Us For Availability
19
MAY 2326131 MAY 2326131 Contact Us For Availability
19
MAY 2328563 MAY 2328563 Contact Us For Availability
19
MAY 1118894 MAY 1118894 Contact Us For Availability
19
MAY 2262191 MAY 2262191 Contact Us For Availability
20
MAY 2207942 MAY 2207942 Contact Us For Availability
20
MAY 489478 MAY 489478 Contact Us For Availability
20
EVAPORATOR ASSY MAY 2263920 Contact Us For Availability
21
WIRING-FREEZER (INCLUDES ILLUS. 31) MAY W10290502 Contact Us For Availability
21
MAY 24364001 MAY 24364001 Contact Us For Availability
22
MAY 2202885 MAY 2202885 Contact Us For Availability
22
START-DEVICE, COMBINATION (START RELAY AND OV MAY 2320150 Contact Us For Availability
22
START-DEVICE, COMBINATION (START RELAY AND OV MAY 2320151 Contact Us For Availability
23
MAY 9790408 MAY 9790408 Contact Us For Availability
23
MAY 2262192 MAY 2262192 Contact Us For Availability
24
Hood And Foil Assembly MAY 2197052 Contact Us For Availability
24
MAY 2264129 MAY 2264129 Contact Us For Availability
25
MAY 2261978 MAY 2261978 Contact Us For Availability
25
MAY 2264841 MAY 2264841 Contact Us For Availability
26
MAY 2221992 MAY 2221992 Contact Us For Availability
26
SHIELD-ELECTRICAL MAY 2266360 Contact Us For Availability
27
MAY 2217784 MAY 2217784 Contact Us For Availability
27
CLIP-HARNESS MAY 2266467 Contact Us For Availability
28
MAY 2264462 MAY 2264462 Contact Us For Availability
28
COMPRESSOR (INCLUDES 14, 22, 29 & 32) (ALSO O MAY 2320132 Contact Us For Availability
29
MAY 2262178 MAY 2262178 Contact Us For Availability
29
MAY 2317845 MAY 2317845 Contact Us For Availability
29
DRIER (PRODUCTION) MAY W10190413 Contact Us For Availability
30
MAY W10188389 MAY W10188389 Contact Us For Availability
30
MAY 2263990 MAY 2263990 Contact Us For Availability
31
MAY 2266067 MAY 2266067 Contact Us For Availability
31
MAY 2264838 MAY 2264838 Contact Us For Availability
32
Capacitator (Production) MAY 2264017 Contact Us For Availability
33
MAY 2212996 MAY 2212996 Contact Us For Availability
34
MAY 2264278 MAY 2264278 Contact Us For Availability
NI
REFRIGERANT CHARGE (R134A) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
MAY 2155469A MAY 2155469A Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
NI
Refinishing Material (Enamel, Black (1 Qt. Un MAY 799340 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
NI
REFINISHING MATERIAL, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
KIT, INSULATION (14 PCS. 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
