Model LG C60PW130 – Common Parts & Diagrams

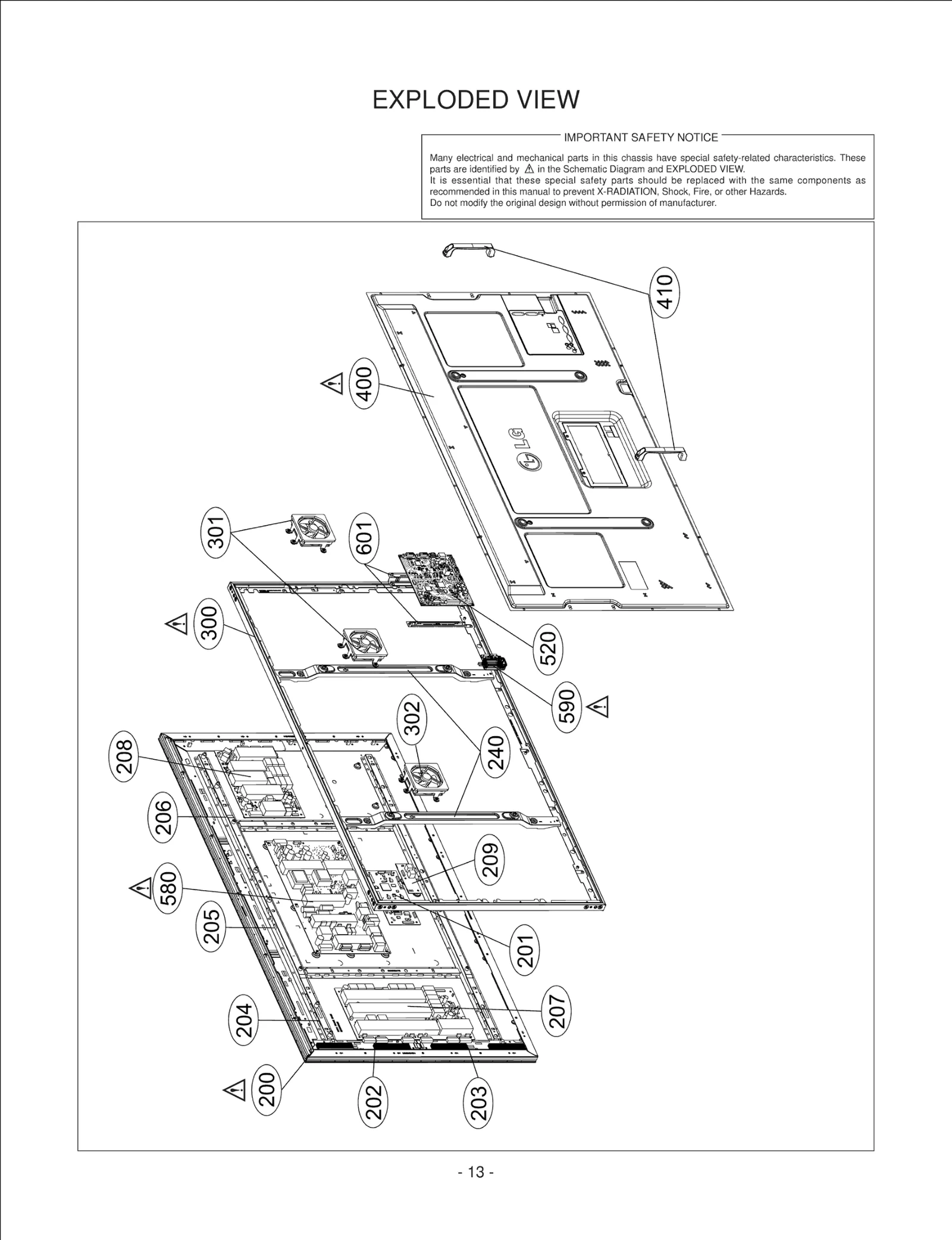

Diagram 0
Diagram 1
Common parts from model LG C60PW130
200
PDP,Module-XGA LGE EAJ60990067 Contact Us For Availability
201
Hand Insert PCB Assembly LGE EBR76789701 Contact Us For Availability
202
Hand Insert PCB Assembly LGE EBR76504801 Contact Us For Availability
203
Hand Insert PCB Assembly LGE EBR76505601 Contact Us For Availability
205
Hand Insert PCB Assembly LGE EBR76988901 Contact Us For Availability
207
Hand Insert PCB Assembly LGE EBR76407701 Contact Us For Availability
208
Hand Insert PCB Assembly LGE EBR76478401 Contact Us For Availability
209
Hand Insert PCB Assembly LGE EBR75633201 Contact Us For Availability
240
Supporter LGE MJH62853401 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73810402 Contact Us For Availability
301
Supporter Assembly LGE AJJ73098605 Contact Us For Availability
400
Cover Assembly LGE ACQ86026202 Contact Us For Availability
410
Handle LGE MEB62654001 Contact Us For Availability
520
BPR Total Assembly LGE EBU61997801 Contact Us For Availability
580
SMPS,AC/DC LGE EAY61230501 Contact Us For Availability
590
Cover Assembly LGE ACQ75455504 Contact Us For Availability
601
Supporter LGE MJH62853501 Contact Us For Availability
AR100
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR103
Resistor,Array LGE 0RR0222T621 Contact Us For Availability
C107
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C158
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C248
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C264
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C278
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C282
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C286
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C295
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C326
Capacitor,AL,Chip LGE EAE60171702 Contact Us For Availability
C397
Capacitor,Ceramic,Chip LGE 0CC300BKF1A Contact Us For Availability
C403
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C414
Capacitor,AL,Chip LGE EAE61423901 Contact Us For Availability
C415
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C416
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C419
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C522
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C531
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C536
Capacitor,Ceramic,Chip LGE 0CC130BKF1A Contact Us For Availability
C541
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C543
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C1208
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C1225
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C1305
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
D100
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D201
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D313
Diode,TVS LGE EAH61232601 Contact Us For Availability
D401
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D402
Varistor LGE EAF61530201 Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN62354201 Contact Us For Availability
IC101
S/W,Firmware LGE SAA36258012 Contact Us For Availability
IC102
S/W,Firmware LGE SAA36048406 Contact Us For Availability
IC203
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC204
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
IC206
IC,LDO Voltage Regulator LGE EAN62206201 Contact Us For Availability
IC208
TRANSISTOR,FETS LGE 0TFIR80016B Contact Us For Availability
IC210
IC,DC,DC Converter LGE EAN62326801 Contact Us For Availability
IC213
IC,DDR3 SDRAM LGE EAN61829001 Contact Us For Availability
IC300
IC,Analog Switch LGE EAN62227502 Contact Us For Availability
IC301
IC,Tx/Rx LGE EAN62193401 Contact Us For Availability
IC302
IC,DC,DC Converter LGE EAN62206101 Contact Us For Availability
IC304
S/W,Firmware LGE SAA36068101 Contact Us For Availability
IC306
IC,Voltage Regulator LGE EAN60910801 Contact Us For Availability
IC402
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC403
IC,LAN LGE EAN61956501 Contact Us For Availability
IC405
S/W,Firmware LGE SAA36179601 Contact Us For Availability
IC501
S/W,Firmware LGE SAA36590604 Contact Us For Availability
JK302
Connector,DSUB LGE EAG62890503 Contact Us For Availability
JK400
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK401
Jack,Modular LGE EAG35781006 Contact Us For Availability
JK403
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK406
Connector,DSUB LGE 6630G00001G Contact Us For Availability
JK407
Connector,DSUB LGE 6630G00001E Contact Us For Availability
L205
Inductor,Wire Wound,Chip LGE EAP62026301 Contact Us For Availability
L211
Inductor,Wire Wound,Chip LGE EAP36703101 Contact Us For Availability
L214
Inductor,Wire Wound,Chip LGE EAP61746101 Contact Us For Availability
L310
FILTER(CIRC),EMC LGE 6200J00012A Contact Us For Availability
L503
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Cable,FFC LGE EAD61858756 Contact Us For Availability
P200
Connector,FFC/FPC/PIC LGE EAG60692001 Contact Us For Availability
P201
Connector,Wafer LGE EAG61091501 Contact Us For Availability
P203
Connector,Wafer LGE 6602T25009B Contact Us For Availability
P300
Connector,Wafer LGE 6602T25008B Contact Us For Availability
P501
Connector,Wafer LGE EAG58732904 Contact Us For Availability
Q407
FET LGE EBK60752501 Contact Us For Availability
R103
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R127
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R158
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R164
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R165
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R170
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R209
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R213
Resistor,Chip LGE EBC32920101 Contact Us For Availability
R214
Resistor,Chip LGE EBC42649901 Contact Us For Availability
R224
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R225
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R228
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R239
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R241
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R247
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R257
Resistor,Chip LGE 0RH5102D622 Contact Us For Availability
R258
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R264
Resistor,Chip LGE 0RJ3903E472 Contact Us For Availability
R265
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R269
Resistor,Chip LGE 0RJ2201D477 Contact Us For Availability
R282
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R319
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R326
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R344
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R376
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R378
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R417
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R449
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R470
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R471
Resistor,Chip LGE 0RH2701D622 Contact Us For Availability
R472
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R483
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R485
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R487
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R490
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R528
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R540
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R542
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R552
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R1211
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R1212
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R1214
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R1308
Resistor,Chip LGE 0RJ4991C478 Contact Us For Availability
R1310
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R1316
Resistor,Chip LGE 0RJ1602D677 Contact Us For Availability
R1325
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R1344
Resistor,Chip LGE EBC35273701 Contact Us For Availability
S1
Harness,Single LGE EAD61827301 Contact Us For Availability
S2
Harness,Single LGE EAD43532605 Contact Us For Availability
S3
Harness,Single LGE EAD60958305 Contact Us For Availability
S4
Cable,Assembly LGE EAD40162502 Contact Us For Availability
S5
Cable,Assembly LGE EAD61485509 Contact Us For Availability
S6
Cable,Assembly LGE EAD61485510 Contact Us For Availability
SW100
Switch,Tact LGE EBF32593901 Contact Us For Availability
X100
Crystal LGE EAW61645501 Contact Us For Availability
X300
RESONATOR,CRYSTAL LGE 6202TST001H Contact Us For Availability
X400
RESONATOR,CRYSTAL LGE 6212AB2872A Contact Us For Availability
× ![]()
