Model Whirlpool C44ZCFN00K00 Canister Vacuum Cleaner – Common Parts & Diagrams

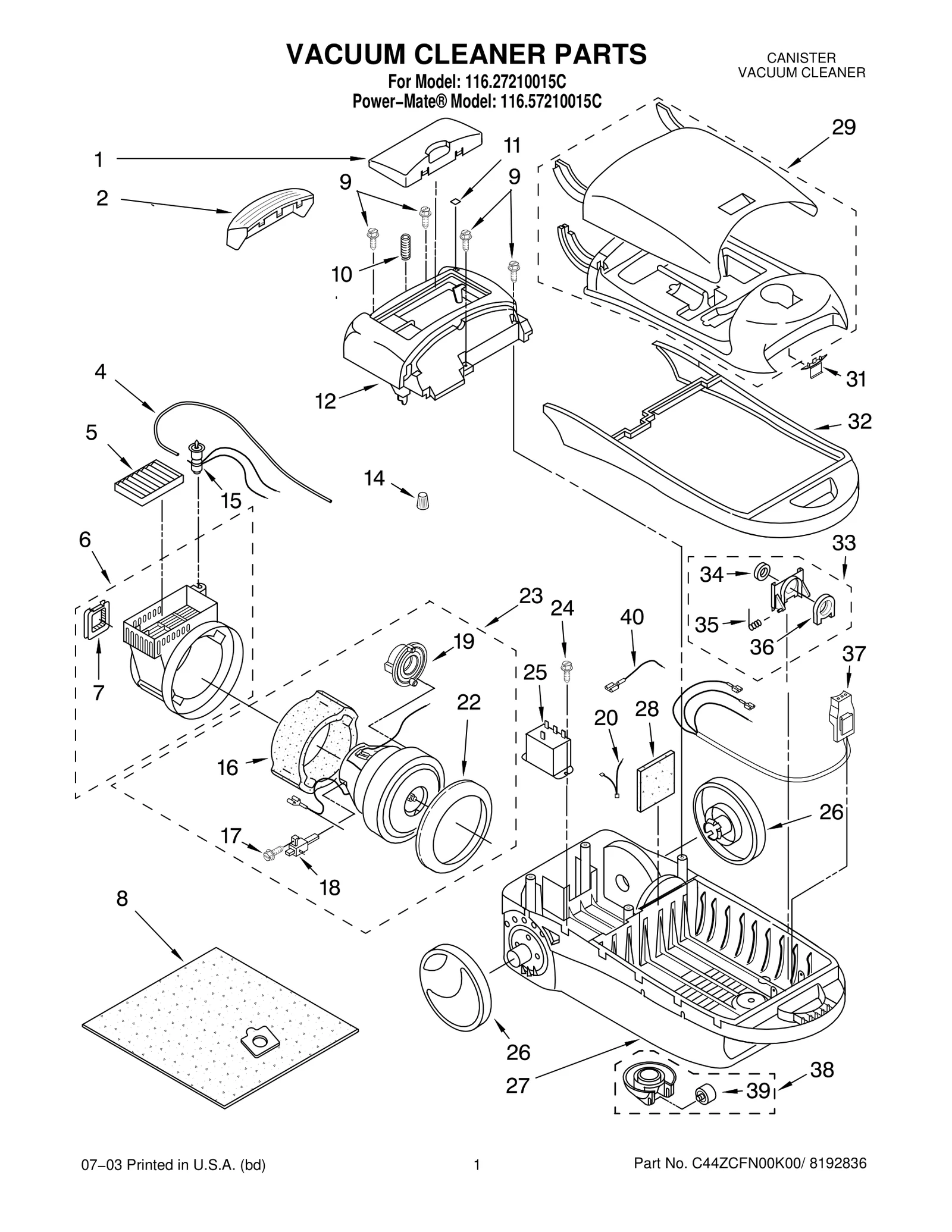

VACUUM CLEANER PARTS
SECTION
POWER CORD REEL PARTS
Common parts from model Whirlpool C44ZCFN00K00 Canister Vacuum Cleaner
1
Cover, Filter WPL 8175271 Contact Us For Availability
1
Hose, 3−Wire WPL 4370588 Contact Us For Availability
1
Wand, Extension Refer To Your Canister Wand A WPL 8192377 Contact Us For Availability
1
Screw WPL 4368563 Contact Us For Availability
2
Button, Cord Rewind WPL 4370675 Contact Us For Availability
2
Pipe, Connection WPL 4370563 Contact Us For Availability
2
Brake Lever Unit WPL 4370692 Contact Us For Availability
3
Brush, Floor WPL 4370614 Contact Us For Availability
3
Window, Cover WPL 4370711 Contact Us For Availability
3
Cord Reel WPL 8195114 Contact Us For Availability
4
Adapter, Vac Switch Tube WPL 4370677 Contact Us For Availability
4
Window, Cover WPL 4369687 Contact Us For Availability
4
Contact Base WPL 4370924 Contact Us For Availability
5
Filter, Exhaust Sears No. 20−86880 WPL 8175116 Contact Us For Availability
5
Button, Extension WPL 4370940 Contact Us For Availability
5
Contact Disc Assy, Rings (Power Cord) WPL 4370695 Contact Us For Availability
6
Enclosure, Motor WPL 8175262 Contact Us For Availability
6
Wand, Extension WPL 4370972 Contact Us For Availability
7
Support, Motor Rubber (Rear) WPL 4370679 Contact Us For Availability
7
Tool, Crevice WPL 4370333 Contact Us For Availability
7
Floor Nozzle Upper Unit (Includes Illus. 3, 8 WPL 8195148 Contact Us For Availability
7
Bracket, Cord Reel WPL 8175266 Contact Us For Availability
8
Dust Bag Sears No. 20−50557 WPL 4370680 Contact Us For Availability
8
Brush, Fabric WPL 4370707 Contact Us For Availability
8
Filter, Intake/ Exhaust (2) WPL 4370713 Contact Us For Availability
8
Cord Reel Hub Assembly WPL 8175267 Contact Us For Availability
9
Screw, Thread Cutting (4) WPL 4148999 Contact Us For Availability
9
Brush, Dusting WPL 4370559 Contact Us For Availability
9
Guard, Furniture WPL 4370714 Contact Us For Availability
10
Spring, Cord Button WPL 744258 Contact Us For Availability
10
Screw Handle WPL 4369085 Contact Us For Availability
10
Cover, Agitator WPL 4370715 Contact Us For Availability
11
Lens WPL 4151920 Contact Us For Availability
11
Hose Assembly WPL 8174957 Contact Us For Availability
12
Canopy WPL 8175269 Contact Us For Availability
12
Handle Assembly WPL 8174837 Contact Us For Availability
12
Front Cover WPL 4370967 Contact Us For Availability
13
Curved Pipe Unit WPL 4370612 Contact Us For Availability
14
Connector, Wire WPL 4154460 Contact Us For Availability
14
Sliding Knob WPL 4370914 Contact Us For Availability
15
Light, Performance Indicator WPL 4370741 Contact Us For Availability
15
Control, Suction WPL 4370593 Contact Us For Availability
15
Screw WPL 681550 Contact Us For Availability
16
Suppressor, Noise WPL 4370683 Contact Us For Availability
16
Swivel Cap Thermal Unit WPL 4370918 Contact Us For Availability
17
Screw, Motor Brush WPL N/S Contact Us For Availability
18
Brush, Motor(2) WPL 8175087 Contact Us For Availability
18
Swivel WPL 8195109 Contact Us For Availability
19
Support, Motor Rear WPL 8175133 Contact Us For Availability
19
Switch, Slide WPL 8191600 Contact Us For Availability
19
Pad, Foot Pedal WPL 4370577 Contact Us For Availability
20
Lead Wire WPL 8174980 Contact Us For Availability
20
Indicator, Lever WPL 4370720 Contact Us For Availability
21
Catch Indexing WPL 722955 Contact Us For Availability
22
Support, Motor Rubber (Front) WPL 8175085 Contact Us For Availability
22
Swivel Seal WPL 742019 Contact Us For Availability
23
Motor, Fan WPL 8175088 Contact Us For Availability
23
Cover, Hose Connection WPL 4370325 Contact Us For Availability
23
Washer WPL 725635 Contact Us For Availability
24
Screw, Relay WPL 4368705 Contact Us For Availability
24
Wire Harness WPL 4370561 Contact Us For Availability
24
Cam, Indicator WPL 747291 Contact Us For Availability
25
Relay, Motor WPL 8174981 Contact Us For Availability
25
Indicator Block WPL 742015 Contact Us For Availability
26
Wheel WPL 4370702 Contact Us For Availability
26
Spring Assist WPL 725775 Contact Us For Availability
27
Base, Lower Body WPL 8175264 Contact Us For Availability
27
Agitator Unit WPL 8192535 Contact Us For Availability
28
Filter, Secondary WPL 4370609 Contact Us For Availability
28
Bulb Sears No. 20−5240 WPL 4370018 Contact Us For Availability
29
Dust Box Assembly (Includes Tool Cover) WPL 8175012 Contact Us For Availability
29
Switch Case WPL 4370915 Contact Us For Availability
29
Socket, Bulb WPL 8175249 Contact Us For Availability
30
Pedal, Quick Release WPL 8195108 Contact Us For Availability
31
Buckle, Closure WPL 4370687 Contact Us For Availability
31
Cover, Rear WPL 4370717 Contact Us For Availability
32
Guard, Furniture WPL 4370615 Contact Us For Availability
32
Washer, Thrust WPL 722909 Contact Us For Availability
33
Bag Supporter Assembly WPL 4370617 Contact Us For Availability
33
Ratchet Catch WPL 742016 Contact Us For Availability
34
Packing, Inlet WPL 4370688 Contact Us For Availability
35
Spring, Bag Mount WPL 706024 Contact Us For Availability
36
Gasket, Bag Mount WPL 4370689 Contact Us For Availability
36
Lead Wire, "A"Unit WPL 8175253 Contact Us For Availability
37
Receptacle, 3−Wire WPL 4370608 Contact Us For Availability
38
Caster Roller Unit WPL 4370690 Contact Us For Availability
39
Caster, Wheel WPL 8175108 Contact Us For Availability
40
Lead Wire Assembly Following Parts Not Illust WPL 4370971 Contact Us For Availability
41
Protector, Overload WPL 8175256 Contact Us For Availability
42
Handle, Release Pedal WPL 4370578 Contact Us For Availability
43
Wheel (Rear) WPL 4370724 Contact Us For Availability
44
Floor Nozzle Lower WPL 4370725 Contact Us For Availability
45
Wire Nut WPL 4368522 Contact Us For Availability
46
Spring, Motor Adjustment WPL 742002 Contact Us For Availability
47
Lifter WPL 4370726 Contact Us For Availability
48
Motor Bridge WPL 705093 Contact Us For Availability
50
Motor Gasket WPL 747156 Contact Us For Availability
52
Belt Sears No. 20−5201 WPL 8175123 Contact Us For Availability
53
Motor WPL 8192730 Contact Us For Availability
54
Front Axle Assembly WPL 744029 Contact Us For Availability
56
Screw WPL 4368551 Contact Us For Availability
57
Screw Refer to Your Canister Model Number for WPL 4370779 Contact Us For Availability
× ![]()
