Model Maytag C3888VVV ELECTRIC RANGE – Common Parts & Diagrams

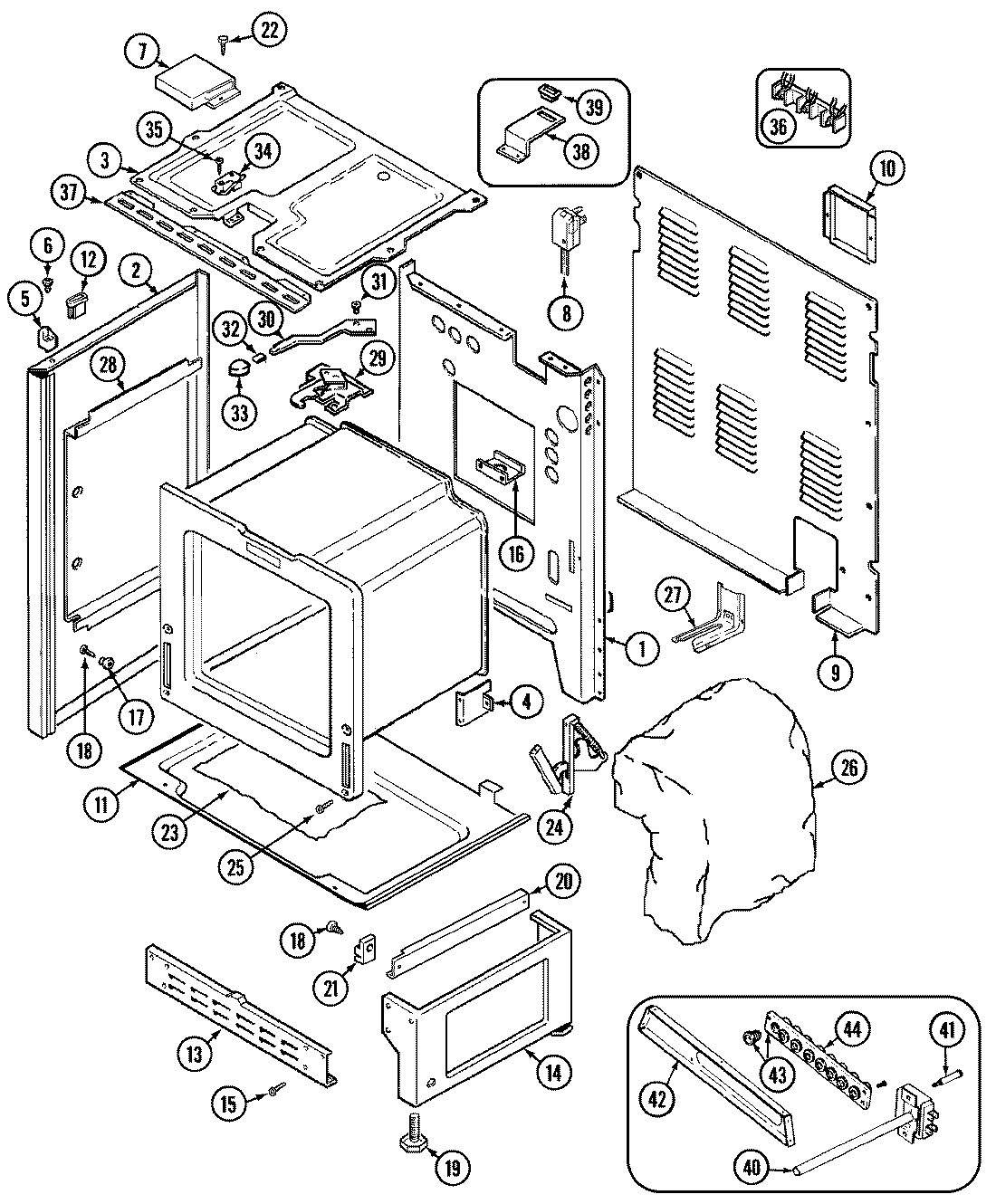

01 - BODY

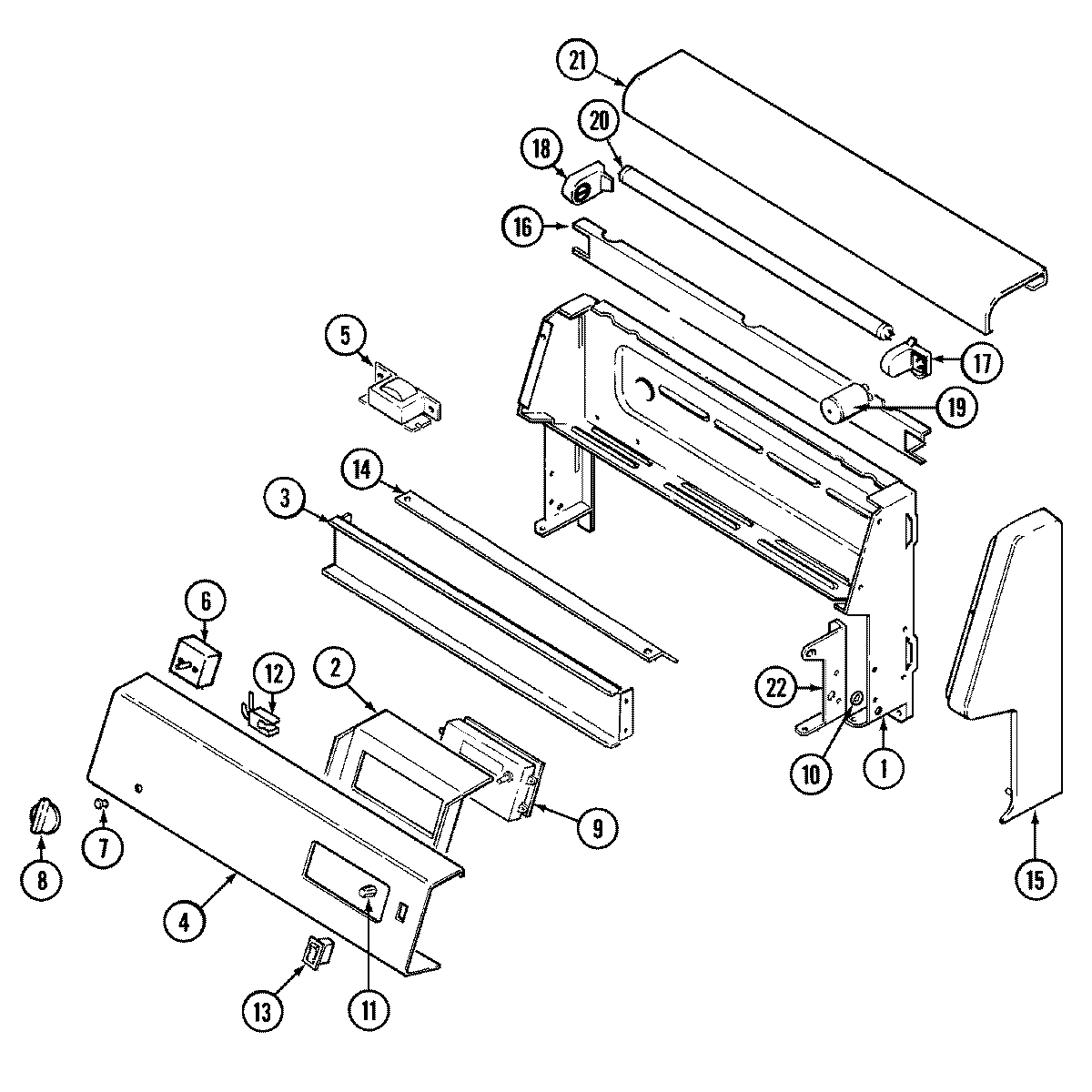

02 - CONTROL PANEL

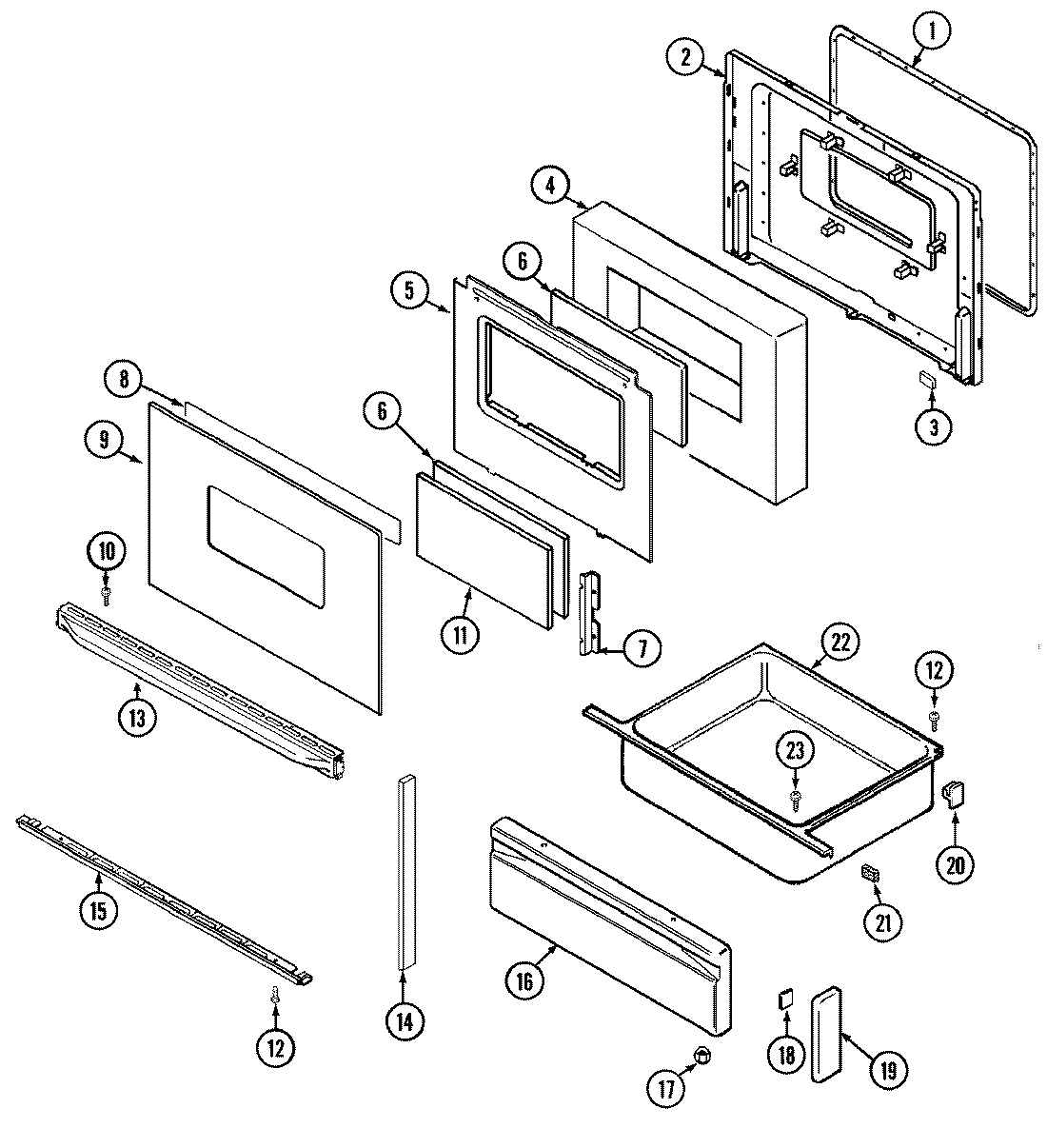

03 - DOOR/DRAWER (SER. PRE. 21)

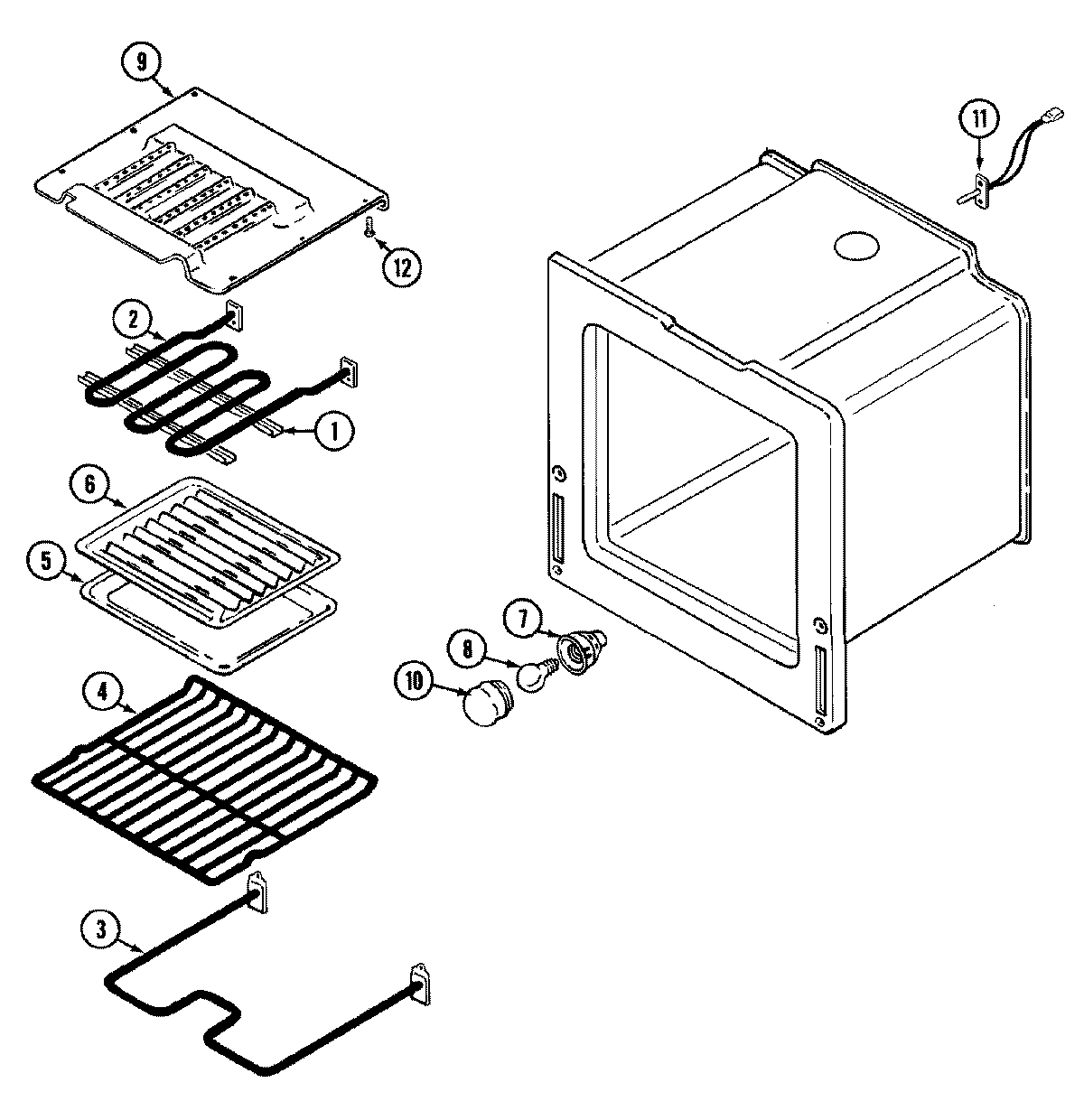

04 - OVEN

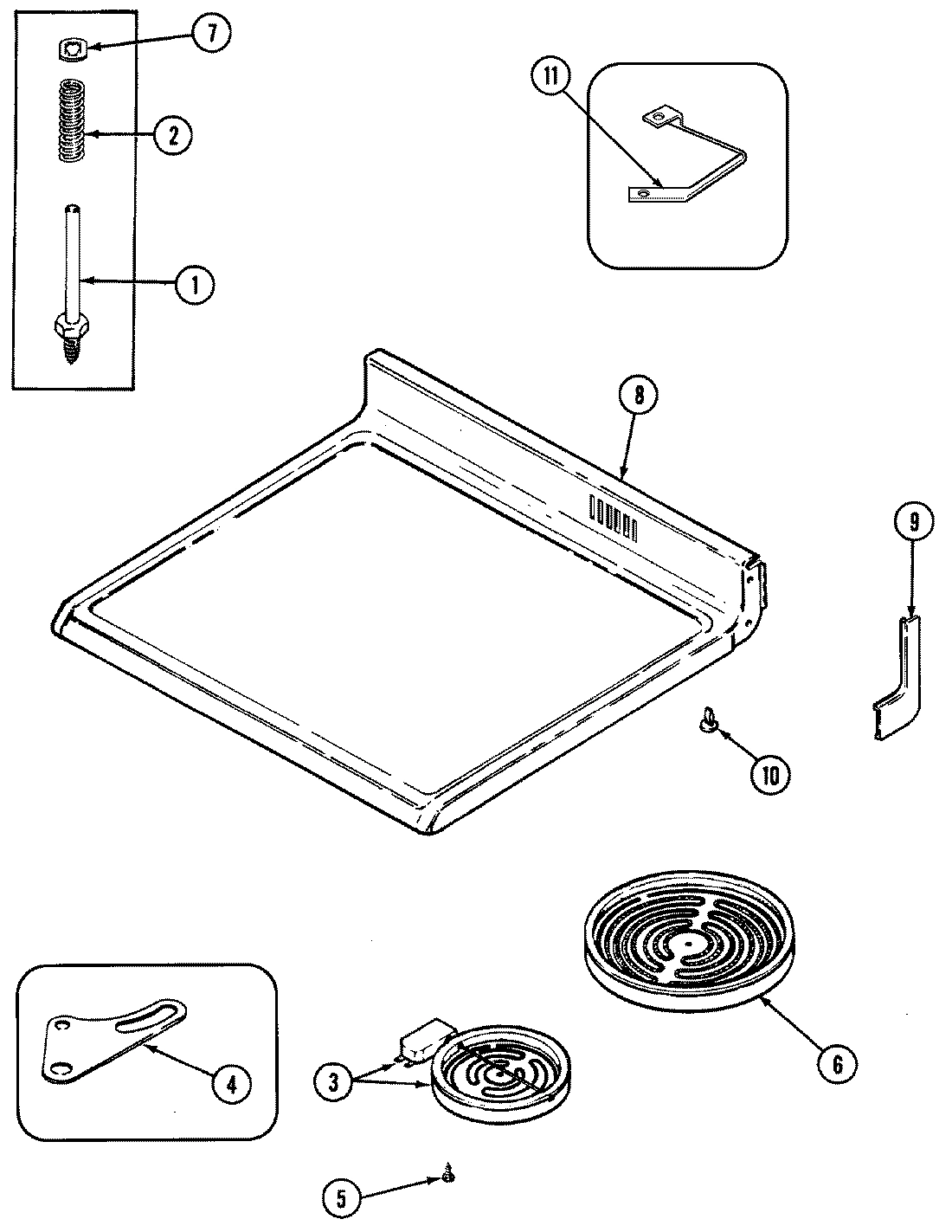

05 - TOP ASSEMBLY

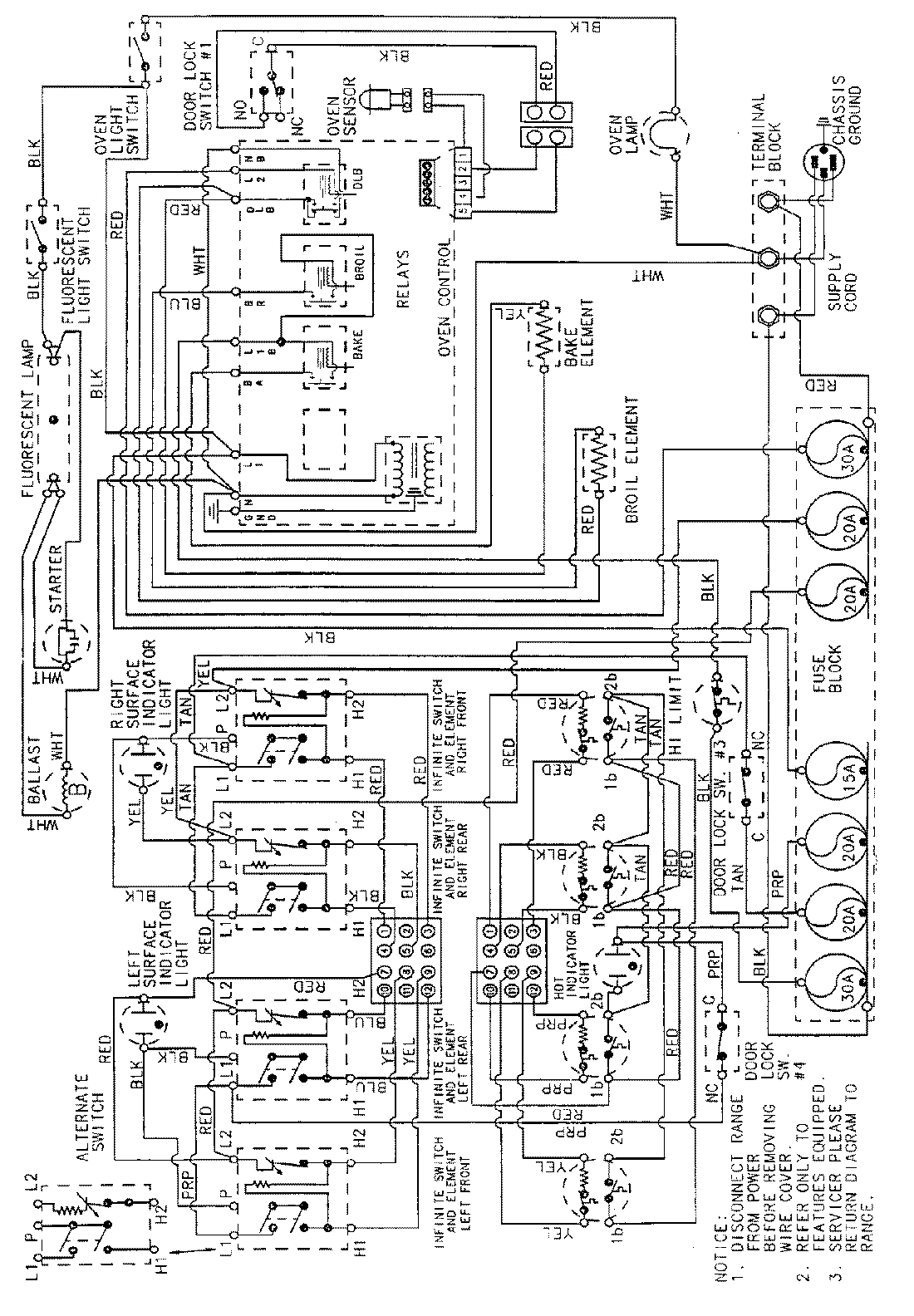

06 - WIRING INFORMATION
Common parts from model Maytag C3888VVV ELECTRIC RANGE
1
MAY 4001F091-51 MAY 4001F091-51 Contact Us For Availability
1
MAY 3807F387-45 MAY 3807F387-45 Contact Us For Availability
1
MAY 7113P013-60 MAY 7113P013-60 Contact Us For Availability
2
MAY 3801F337-45 MAY 3801F337-45 Contact Us For Availability
2
MAY 2402W209-19 MAY 2402W209-19 Contact Us For Availability
2
MAY 7406P065-60 MAY 7406P065-60 Contact Us For Availability
2
MAY 7803P066-60 MAY 7803P066-60 Contact Us For Availability
3
MAY 12500041 MAY 12500041 Contact Us For Availability
3
MAY 3802F088-51 MAY 3802F088-51 Contact Us For Availability
3
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
3
MAY 7406P064-60 MAY 7406P064-60 Contact Us For Availability
3
MAY 7406P074-60 MAY 7406P074-60 Contact Us For Availability
4
MAY 7703P585-60 MAY 7703P585-60 Contact Us For Availability
4
MAY 74001842 MAY 74001842 Contact Us For Availability
4
MAY 7801P047-60 MAY 7801P047-60 Contact Us For Availability
4
MAY 3819F013-45 MAY 3819F013-45 Contact Us For Availability
5
MAY 7412P007-60 MAY 7412P007-60 Contact Us For Availability
5
MAY 74001843 MAY 74001843 Contact Us For Availability
5
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
5
MAY 7101P076-60 MAY 7101P076-60 Contact Us For Availability
6
MAY 7118P013-60 MAY 7118P013-60 Contact Us For Availability
6
MAY 74001841 MAY 74001841 Contact Us For Availability
6
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
6
MAY 12500040 MAY 12500040 Contact Us For Availability
6
MAY 74002652 MAY 74002652 Contact Us For Availability
6
MAY 7406P073-60 MAY 7406P073-60 Contact Us For Availability
7
MAY 4005F398-80 MAY 4005F398-80 Contact Us For Availability
7
MAY W10124350 MAY W10124350 Contact Us For Availability
7
MAY 74001844 MAY 74001844 Contact Us For Availability
7
MAY 7112P091-60 MAY 7112P091-60 Contact Us For Availability
8
MAY 7402P050-60 MAY 7402P050-60 Contact Us For Availability
8
MAY 7731P081-60 MAY 7731P081-60 Contact Us For Availability
8
TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability
8
MAY 5706S079-81 MAY 5706S079-81 Contact Us For Availability
9
MAY 4005F455-51 MAY 4005F455-51 Contact Us For Availability
9
MAY 7101P148-60 MAY 7101P148-60 Contact Us For Availability
9
MAY 74002297 MAY 74002297 Contact Us For Availability
9
MAY 7601P235-60 MAY 7601P235-60 Contact Us For Availability
9
MAY 7902P328-60 MAY 7902P328-60 Contact Us For Availability
9
MAY 3601F237-45 MAY 3601F237-45 Contact Us For Availability
9
MAY 7746P032-60 MAY 7746P032-60 Contact Us For Availability
9
MAY 7746P033-60 MAY 7746P033-60 Contact Us For Availability
10
MAY 4005F427-51 MAY 4005F427-51 Contact Us For Availability
10
MAY 8016P016-60 MAY 8016P016-60 Contact Us For Availability
10
MAY 8114P348-60 MAY 8114P348-60 Contact Us For Availability
11
MAY 74002002 MAY 74002002 Contact Us For Availability
11
MAY 3804F109-51 MAY 3804F109-51 Contact Us For Availability
11
MAY 7711P493-60 MAY 7711P493-60 Contact Us For Availability
11
MAY 7430P010-60 MAY 7430P010-60 Contact Us For Availability
11
MAY 74001437 MAY 74001437 Contact Us For Availability
12
MAY 8007P023-60 MAY 8007P023-60 Contact Us For Availability
13
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
13
MAY 7403P200-60 MAY 7403P200-60 Contact Us For Availability
13
MAY 7701P145-60 MAY 7701P145-60 Contact Us For Availability
14
MAY 4020W007-80 MAY 4020W007-80 Contact Us For Availability
14
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
14
MAY 3604F201-80 MAY 3604F201-80 Contact Us For Availability
14
MAY 7744P065-60 MAY 7744P065-60 Contact Us For Availability
14
MAY 8270P093-60 MAY 8270P093-60 Contact Us For Availability
15
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
15
MAY 7726P073-60 MAY 7726P073-60 Contact Us For Availability
15
MAY 7726P074-60 MAY 7726P074-60 Contact Us For Availability
15
MAY 7744P103-60 MAY 7744P103-60 Contact Us For Availability
16
MAY 3605F174-51 MAY 3605F174-51 Contact Us For Availability
16
MAY 3807F406-71 MAY 3807F406-71 Contact Us For Availability
16
MAY 2416F039-62 MAY 2416F039-62 Contact Us For Availability
17
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
17
MAY 7408P029-60 MAY 7408P029-60 Contact Us For Availability
18
MAY 7101P300-60 MAY 7101P300-60 Contact Us For Availability
18
MAY 7408P030-60 MAY 7408P030-60 Contact Us For Availability
18
TAPE MAY 8270P098-60 Contact Us For Availability
19
MAY 7101P306-60 MAY 7101P306-60 Contact Us For Availability
19
MAY 7415P001-60 MAY 7415P001-60 Contact Us For Availability
19
MAY 7744P069-60 MAY 7744P069-60 Contact Us For Availability
20
MAY 3406F028-51 MAY 3406F028-51 Contact Us For Availability
20
MAY 7407P004-60 MAY 7407P004-60 Contact Us For Availability
21
MAY 74002312 MAY 74002312 Contact Us For Availability
21
MAY 8004P025-60 MAY 8004P025-60 Contact Us For Availability
21
MAY 7724P059-60 MAY 7724P059-60 Contact Us For Availability
21
MAY 7208P002-60 MAY 7208P002-60 Contact Us For Availability
22
MAY 3807F453-51 MAY 3807F453-51 Contact Us For Availability
22
MAY 3807F454-51 MAY 3807F454-51 Contact Us For Availability
22
MAY 3405F019-80 MAY 3405F019-80 Contact Us For Availability
23
MAY 8312P058-60 MAY 8312P058-60 Contact Us For Availability
24
MAY 7106P056-60 MAY 7106P056-60 Contact Us For Availability
25
SCREW, HINGE MAY 7101P017-60 Contact Us For Availability
26
MAY 4804F036-60 MAY 4804F036-60 Contact Us For Availability
26
MAY 4804F038-60 MAY 4804F038-60 Contact Us For Availability
27
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
27
MAY 7101P289-60 MAY 7101P289-60 Contact Us For Availability
28
MAY 3804F103-51 MAY 3804F103-51 Contact Us For Availability
29
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
29
MAY 3605F197-51 MAY 3605F197-51 Contact Us For Availability
29
MAY 74001744 MAY 74001744 Contact Us For Availability
29
MAY 8002P025-60 MAY 8002P025-60 Contact Us For Availability
30
MAY 74001725 MAY 74001725 Contact Us For Availability
30
MAY 8009P024-60 MAY 8009P024-60 Contact Us For Availability
31
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
31
MAY 7109P015-60 MAY 7109P015-60 Contact Us For Availability
32
MAY 7112P003-60 MAY 7112P003-60 Contact Us For Availability
33
MAY 7701P153-60 MAY 7701P153-60 Contact Us For Availability
34
MAY 74001708 MAY 74001708 Contact Us For Availability
34
MAY 7403P228-60 MAY 7403P228-60 Contact Us For Availability
37
MAY 3801F305-80 MAY 3801F305-80 Contact Us For Availability
38
MAY 3801F312-45 MAY 3801F312-45 Contact Us For Availability
39
MAY 7407P097-60 MAY 7407P097-60 Contact Us For Availability
40
MAY 7404P057-60 MAY 7404P057-60 Contact Us For Availability
41
MAY 7118P020-60 MAY 7118P020-60 Contact Us For Availability
42
MAY 3801F309-80 MAY 3801F309-80 Contact Us For Availability
42
MAY 74001339 MAY 74001339 Contact Us For Availability
43
MAY 7401A032-60 MAY 7401A032-60 Contact Us For Availability
43
MAY 7416P004-60 MAY 7416P004-60 Contact Us For Availability
43
MAY 7416P005-60 MAY 7416P005-60 Contact Us For Availability
43
MAY 7416P006-60 MAY 7416P006-60 Contact Us For Availability
44
MAY 4005F417-51 MAY 4005F417-51 Contact Us For Availability
44
MAY 7401P031-60 MAY 7401P031-60 Contact Us For Availability
NI
MAY 16000329 MAY 16000329 Contact Us For Availability
NI
MAY 16007454 MAY 16007454 Contact Us For Availability
NI
MAY 5125A382-60 MAY 5125A382-60 Contact Us For Availability
NI
MAY 5170D201-60 MAY 5170D201-60 Contact Us For Availability
NI
MAY 5170P205-60 MAY 5170P205-60 Contact Us For Availability
NI
MAY 5175D049-60 MAY 5175D049-60 Contact Us For Availability
NI
MAY 74001009 MAY 74001009 Contact Us For Availability
NI
MAY 8113P068-60 MAY 8113P068-60 Contact Us For Availability
NI
MAY 15001731 MAY 15001731 Contact Us For Availability
× ![]()
