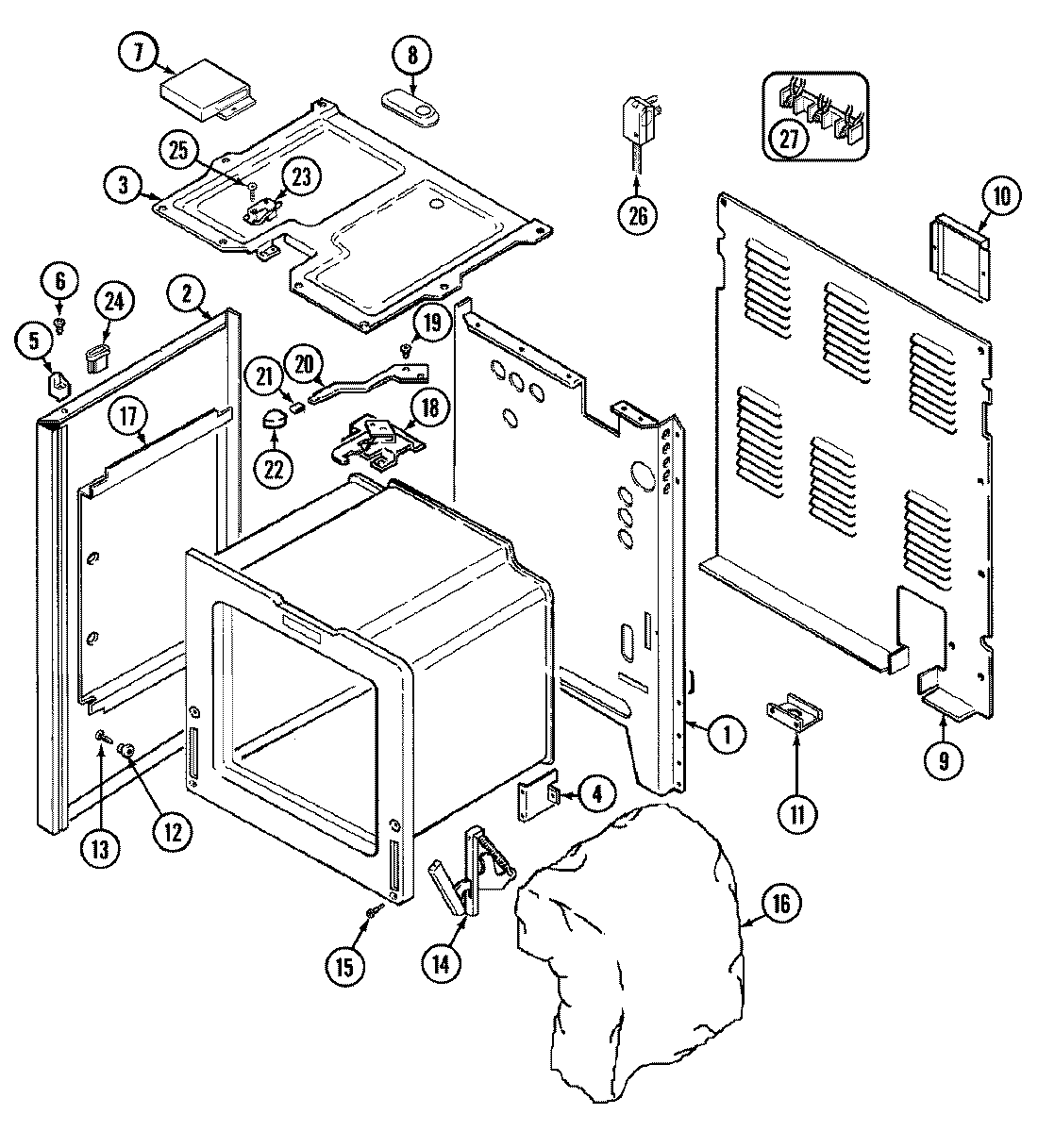

Model Whirlpool C3882XRB ELECTRIC RANGE – Common Parts & Diagrams

1
BACK, MAIN
BACK, MAIN WPL 74001341 Contact Us For Availability
View on Model
1
SWITCH, HI-LIMIT
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
View on Model
3
BOX, BURNER
BOX, BURNER WPL 4011F21919 Contact Us For Availability
View on Model
4
SUPPORT,OVEN REAR
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
View on Model
5
SPACER, MAIN TOP (LT)
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
View on Model
5
SPACER, MAIN TOP (RT)
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
View on Model
6
SCREW
SCREW WPL 7118P01360 Contact Us For Availability
View on Model
7
COVER, LATCH ASSY.
COVER, LATCH ASSY. WPL 4005F39880 Contact Us For Availability
View on Model
8
COVER, VENT
COVER, VENT WPL 4005F43245 Contact Us For Availability
View on Model
8
SCREW
SCREW WPL 7101P10360 Contact Us For Availability
View on Model
9
COVER, MAIN BACK WIRE
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
View on Model
10
COVER, ACCESS
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
View on Model
11
PLATE, CONDUIT TUBING
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
View on Model
12
SPACER, SIDE PANEL
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
View on Model
13
SCREW (8ABX13/16-ZN)
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
View on Model
14
HINGE, DOOR
HINGE, DOOR WPL 7106P03360 Contact Us For Availability
View on Model
15
SCREW, HINGE
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
View on Model
16
INSULATION, WRAP
INSULATION, WRAP WPL 4804F02960 Contact Us For Availability
View on Model
16
INSULATION, BACK & BOTTOM
INSULATION, BACK & BOTTOM WPL 4804F03060 Contact Us For Availability
View on Model
17
RETAINER, INSULATION (SIDE)
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
View on Model
18
SCREW W/WASHER (BLK)
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
View on Model
18
LATCH ASSY.
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
View on Model
19
SCREW, LEVER
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
View on Model
19
WASHER
WASHER WPL 7109P01560 Contact Us For Availability
View on Model
20
LEVER, LOCK
LEVER, LOCK WPL 8009P01660 Contact Us For Availability
View on Model
21
CLIP, LATCH HANDLE
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
View on Model
23
SHIELD, LOCK SWITCH
SHIELD, LOCK SWITCH WPL 3604F20345 Contact Us For Availability
View on Model
23
SCREW
SCREW WPL 7101P03160 Contact Us For Availability
View on Model
23
SWITCH, DOOR LATCH
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
View on Model
23
SWITCH, LOCK----NA
SWITCH, LOCK----NA WPL 7403P32360 Contact Us For Availability
View on Model
24
BUSHING, PROP
BUSHING, PROP WPL 8007P02360 Contact Us For Availability
View on Model
26
CORD, POWER
CORD, POWER WPL 7402P05060 Contact Us For Availability
View on Model
27
BOARD, TERMINAL
BOARD, TERMINAL WPL 7401P04160 Contact Us For Availability
View on Model
