Model Whirlpool C316-C ELECTRIC COOK-TOP – Common Parts & Diagrams

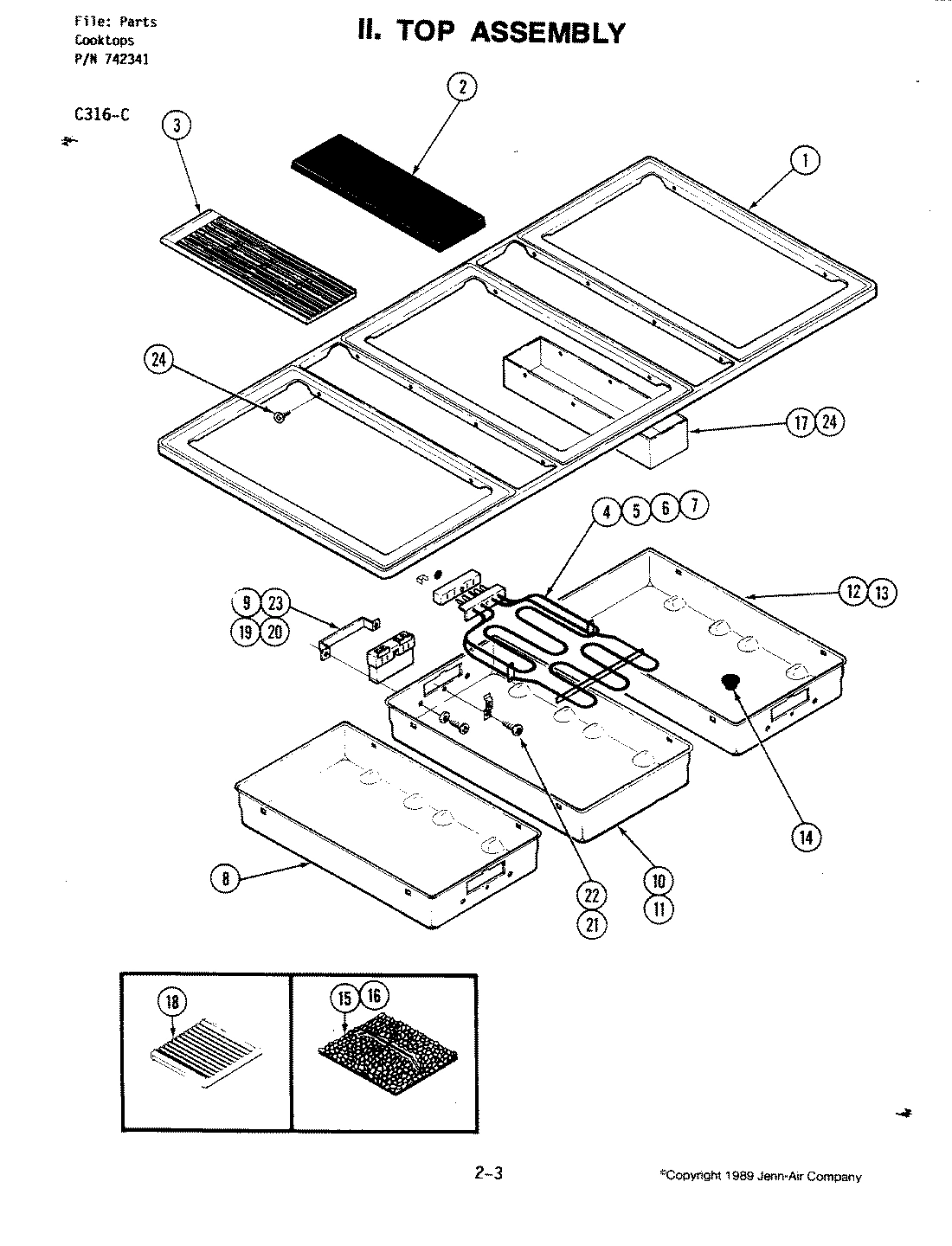

04 - TOP ASSEMBLY (C316-C)
01 - BLOWER PLENUM
02 - BURNER BOX

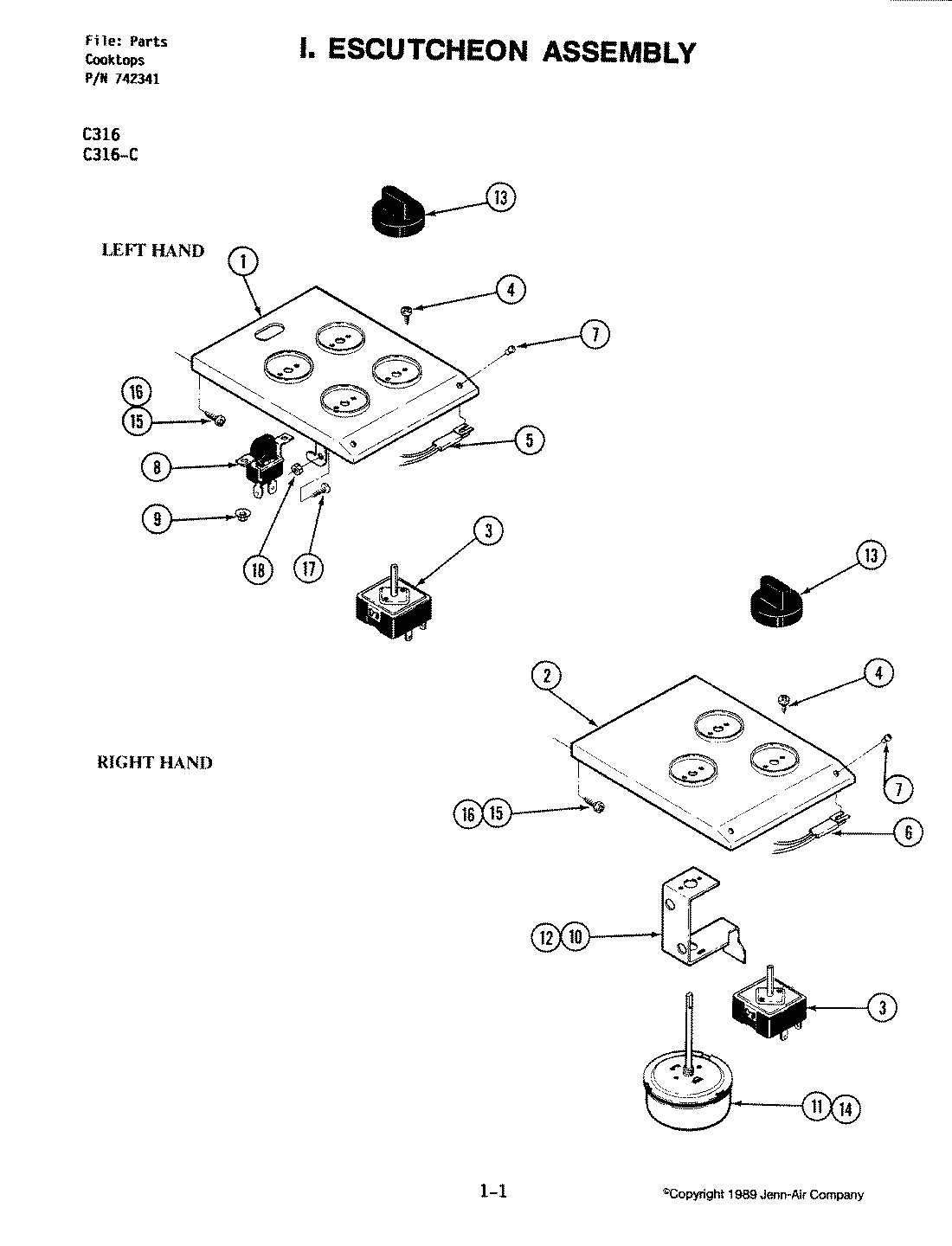

03 - ESCUTCHEON ASSEMBLY
Common parts from model Whirlpool C316-C ELECTRIC COOK-TOP
1
PLENUM WPL 712434 Contact Us For Availability
1
BOX, BURNER WPL 712055 Contact Us For Availability
1
ESCUTCHEON WPL 704210 Contact Us For Availability
2
SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability
2
ESCUTCHEON (RT) WPL 704212 Contact Us For Availability
2
ESCUTCHEON (RT-BLK) WPL 71002449 Contact Us For Availability
3
RING, INLET WPL Y704758 Contact Us For Availability
3
INSULATOR WPL 707746 Contact Us For Availability
4
LOCKNUT CAP, W/NYLON INSERT WPL 702889 Contact Us For Availability
4
SCREW WPL Y707121 Contact Us For Availability
4
SCREW WPL Y703935 Contact Us For Availability
5
CLIP, SHUNT WPL Y700450 Contact Us For Availability
5
CLIP WPL Y707831 Contact Us For Availability
5
LID, JAR WPL Y707870 Contact Us For Availability
5
LIGHT, PILOT WPL 704209 Contact Us For Availability
6
LIGHT, PILOT (RIGHT) WPL 705029 Contact Us For Availability
7
RING, RESTRICTOR WPL Y704761 Contact Us For Availability
7
BUSHING WPL Y707695 Contact Us For Availability
7
LENS WPL 703927 Contact Us For Availability
8
WIRE, BLUE WPL Y712030 Contact Us For Availability
8
WIRE, BROWN WPL Y712197 Contact Us For Availability
8
KIT, WIRE WPL Y712431 Contact Us For Availability
8
WASHER WPL Y707664 Contact Us For Availability
8
SWITCH, FAN (BLK) WPL Y704573 Contact Us For Availability
9
MOTOR, BLOWER WPL Y705032 Contact Us For Availability
9
NUT, PUSH WPL Y04100035 Contact Us For Availability
10
KIT, WIRE WPL Y712438 Contact Us For Availability
10
PAN, GRILL (RT) WPL Y701956 Contact Us For Availability
10
WIRE, BROWN WPL Y712199 Contact Us For Availability
10
STANDOFF----NA WPL Y700672 Contact Us For Availability
10
BRACKET, TIMER (RT) WPL 704333 Contact Us For Availability
11
BAND, MOTOR WPL Y707393 Contact Us For Availability
11
SCREW WPL 701933 Contact Us For Availability
11
TIMER WPL 707732 Contact Us For Availability
12
PAN, GRILL (LT) WPL 701955 Contact Us For Availability
12
WIRE, YELLOW WPL Y712200 Contact Us For Availability
12
WIRE, VIOLET WPL Y712203 Contact Us For Availability
12
KIT-WIRE WPL Y712437 Contact Us For Availability
12
WIRE, BROWN WPL Y712439 Contact Us For Availability
13
SCREW WPL 707407 Contact Us For Availability
14
PLUG, RUBBER WPL Y702825 Contact Us For Availability
14
SCREW WPL Y707402 Contact Us For Availability
14
LIMITER, THERMAL WPL 701925 Contact Us For Availability
14
WIRE, RED WPL 704358 Contact Us For Availability
14
WIRE, YELLOW WPL 704362 Contact Us For Availability
15
PLATE, ROCK WPL 708929 Contact Us For Availability
15
NUT WPL 707161 Contact Us For Availability
16
SUPPORT, ROCK PLATE WPL 700819 Contact Us For Availability
16
CLIP WPL Y700834 Contact Us For Availability
16
FOAM, URETHANE WPL Y715957 Contact Us For Availability
16
HARNESS, WIRE WPL 704365 Contact Us For Availability
16
HARNESS, JUMPER WPL 704213 Contact Us For Availability
16
KIT, ESCUTCHEON WIRE WPL 712450 Contact Us For Availability
16
WIRE, GREY (RT) WPL Y703989 Contact Us For Availability
17
BOX, UTENSIL WPL 701991 Contact Us For Availability
17
COVER, MOTOR WPL Y704968 Contact Us For Availability
18
GRATE, GRILL WPL 703905 Contact Us For Availability
18
CONNECTOR WPL 707766 Contact Us For Availability
21
TINNERMAN WPL 712310 Contact Us For Availability
22
BUSHING WPL 712311 Contact Us For Availability
23
BRACKET WPL Y702698 Contact Us For Availability
23
RETAINER, FILTER WPL Y707688 Contact Us For Availability
25
SCREW WPL 700646 Contact Us For Availability
26
WIRE CABLE WPL 712449 Contact Us For Availability
27
CONDUIT WPL Y707758 Contact Us For Availability
28
CLAMP, CABLE WPL 715780 Contact Us For Availability
29
CLIP WPL Y707335 Contact Us For Availability
30
MOTOR COVER ASSY WPL Y712550 Contact Us For Availability
31
BREAKER, CIRCUIT WPL Y715443 Contact Us For Availability
32
WASHER, LOCK WPL 715615 Contact Us For Availability
NI
MANUAL, SERVICE-NO REFUND WPL 16000448 Contact Us For Availability
× ![]()
