Model Whirlpool C306-C ELECTRIC COOK-TOP – Common Parts & Diagrams
01 - BLOWER PLENUM (C306-C)

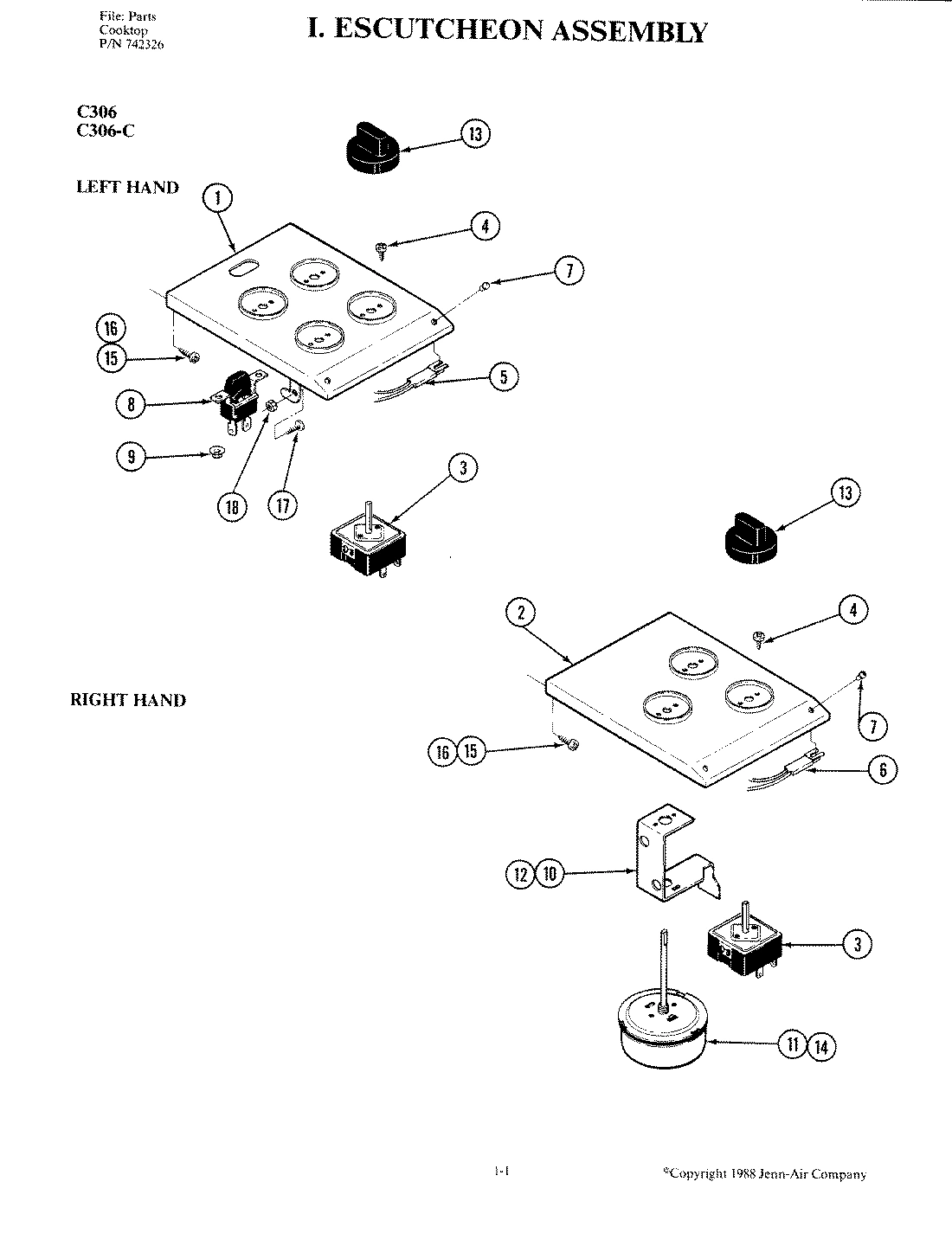

03 - ESCUTCHEON ASSEMBLY

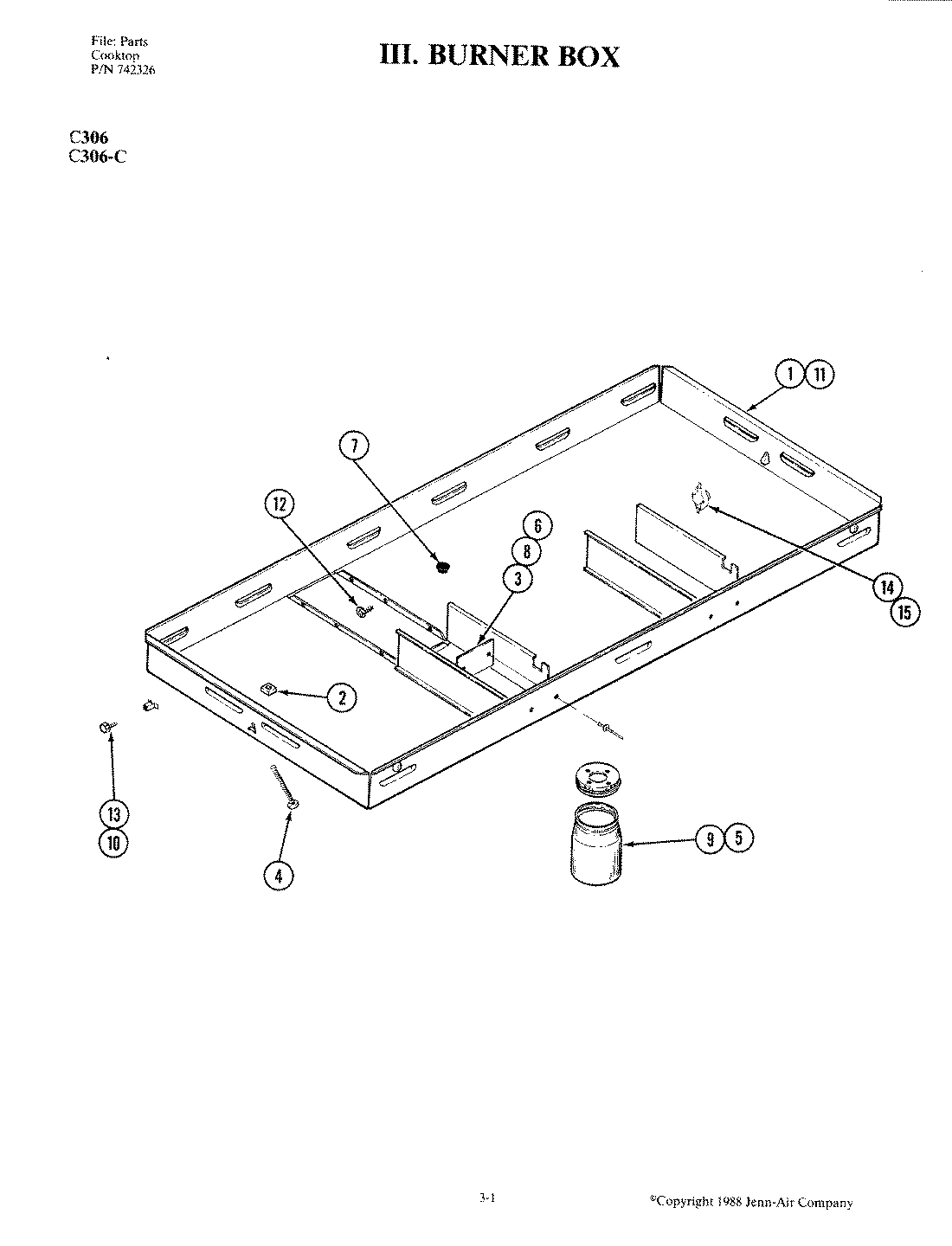

02 - BURNER BOX (C306)

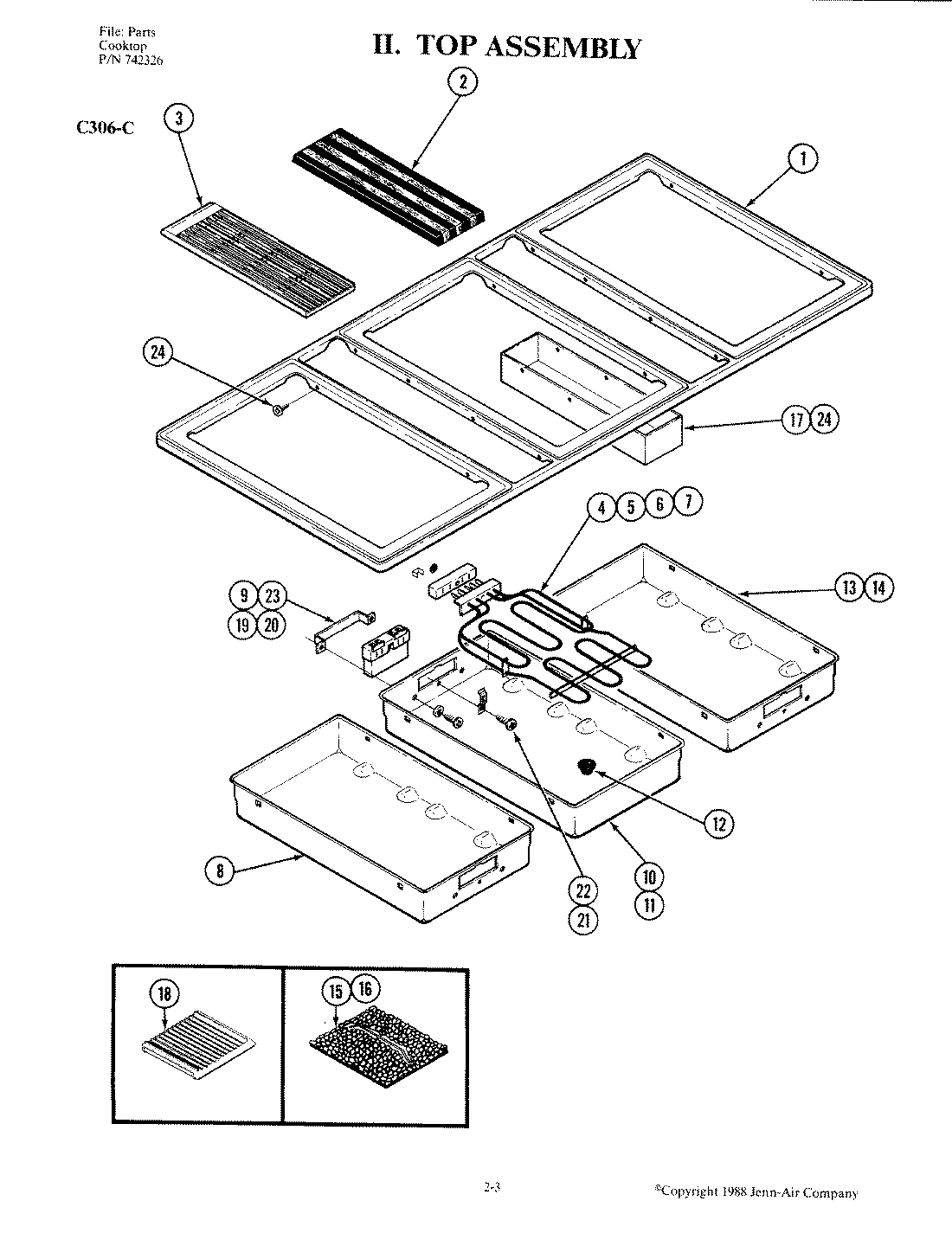

04 - TOP ASSEMBLY (C306-C)
Common parts from model Whirlpool C306-C ELECTRIC COOK-TOP
1
ESCUTCHEON WPL 704210 Contact Us For Availability
1
TOP WPL 701852 Contact Us For Availability
2
ESCUTCHEON (RT) WPL 704212 Contact Us For Availability
2
COVER, ASSEMBLY WPL 704421 Contact Us For Availability
3
INSULATOR WPL 707746 Contact Us For Availability
3
GRILL, AIR (BLK) WPL 703926 Contact Us For Availability
4
SCREW WPL Y703935 Contact Us For Availability
4
SCREW WPL Y707121 Contact Us For Availability
4
ELEMENT,COMPLETE,ENERGY SAVER WPL 703944 Contact Us For Availability
5
CLAMP, CABLE WPL 715780 Contact Us For Availability
5
LIGHT, PILOT WPL 704209 Contact Us For Availability
5
LID, JAR WPL Y707870 Contact Us For Availability
5
CLIP, SHUNT WPL Y700450 Contact Us For Availability
6
CLIP WPL Y707335 Contact Us For Availability
6
LIGHT, PILOT (RT) WPL 704214 Contact Us For Availability
7
LOCKNUT CAP, W/NYLON INSERT WPL 702889 Contact Us For Availability
7
LENS WPL 703927 Contact Us For Availability
7
BUSHING WPL Y707695 Contact Us For Availability
8
NUT WPL 707161 Contact Us For Availability
8
SWITCH, FAN (BLK) WPL Y704573 Contact Us For Availability
8
WIRE, BLUE WPL Y712030 Contact Us For Availability
8
WIRE, BROWN WPL Y712197 Contact Us For Availability
8
KIT, WIRE WPL Y712431 Contact Us For Availability
9
SCREW WPL Y707402 Contact Us For Availability
10
KIT, WIRE WPL Y712438 Contact Us For Availability
10
BRACKET, TIMER (RT) WPL 704333 Contact Us For Availability
10
STANDOFF----NA WPL Y700672 Contact Us For Availability
10
PAN, GRILL (RT) WPL Y701956 Contact Us For Availability
10
WIRE, BROWN WPL Y712199 Contact Us For Availability
11
SCREW WPL 707407 Contact Us For Availability
11
TIMER WPL 707732 Contact Us For Availability
11
SCREW WPL 701933 Contact Us For Availability
12
BAND, MOTOR WPL Y707393 Contact Us For Availability
12
PLUG, RUBBER WPL Y702825 Contact Us For Availability
13
PAN, GRILL (LT) WPL 701955 Contact Us For Availability
13
WIRE, YELLOW WPL Y712200 Contact Us For Availability
13
WIRE, VIOLET WPL Y712203 Contact Us For Availability
13
KIT-WIRE WPL Y712437 Contact Us For Availability
13
WIRE, BROWN WPL Y712439 Contact Us For Availability
14
FOAM, URETHANE WPL Y715957 Contact Us For Availability
14
HARNESS, WIRE WPL 704365 Contact Us For Availability
14
LIMITER, THERMAL WPL 701925 Contact Us For Availability
14
WIRE, RED WPL 704358 Contact Us For Availability
14
WIRE, YELLOW WPL 704362 Contact Us For Availability
15
PLATE, ROCK WPL 708929 Contact Us For Availability
16
SUPPORT, ROCK PLATE WPL 700819 Contact Us For Availability
16
BUSHING WPL 708185 Contact Us For Availability
16
KIT, ESCUTCHEON WIRE WPL 712450 Contact Us For Availability
16
CLIP WPL Y700834 Contact Us For Availability
16
WIRE, GREY (RT) WPL Y703989 Contact Us For Availability
17
RING, INLET WPL Y702295 Contact Us For Availability
17
BOX, UTENSIL WPL 701991 Contact Us For Availability
18
SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability
18
GRATE, GRILL WPL 703905 Contact Us For Availability
19
RETAINER, FILTER WPL Y707688 Contact Us For Availability
20
PLENUM WPL 712216 Contact Us For Availability
21
CLIP, TINNERMAN WPL 701958 Contact Us For Availability
21
WASHER WPL Y707664 Contact Us For Availability
22
PLATE, COVER WPL Y700464 Contact Us For Availability
23
BRACKET WPL Y702698 Contact Us For Availability
28
TINNERMAN WPL 712310 Contact Us For Availability
31
CLAMP, CABLE WPL 712254 Contact Us For Availability
32
BREAKER, CIRCUIT WPL Y715443 Contact Us For Availability
33
WASHER, LOCK WPL 715615 Contact Us For Availability
34
WIRE, CABLE WPL 704367 Contact Us For Availability
35
LUG, GROUND WPL 708153 Contact Us For Availability
36
WASHER WPL Y700862 Contact Us For Availability
NI
CLIP WPL Y707831 Contact Us For Availability
NI
MANUAL, SERVICE-NO REFUND WPL 16000448 Contact Us For Availability
× ![]()
