Model Whirlpool C2357W0 GAS COOK-TOP – Common Parts & Diagrams

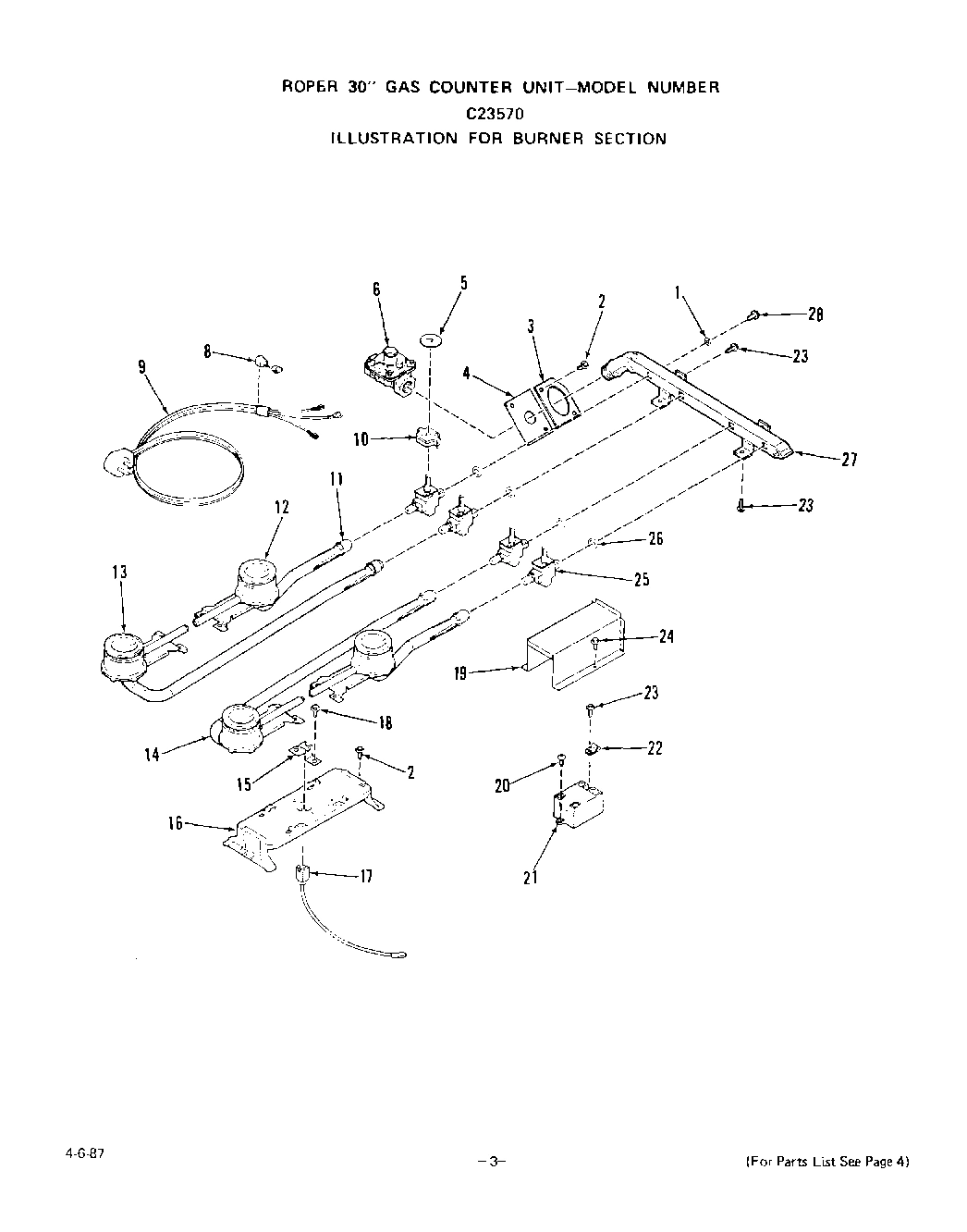

03 - BURNER
04 - WIRING DIAGRAM

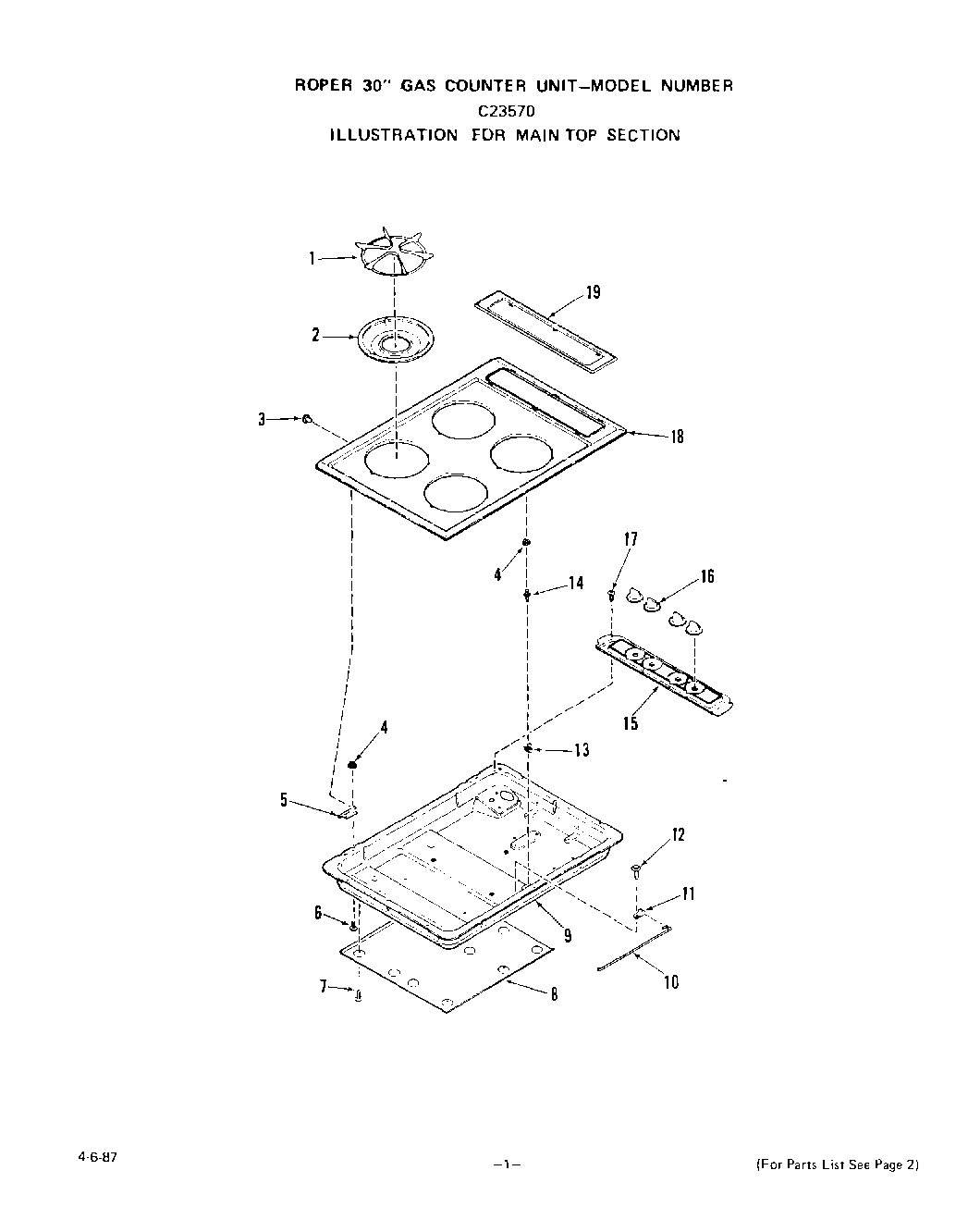

02 - MAIN TOP

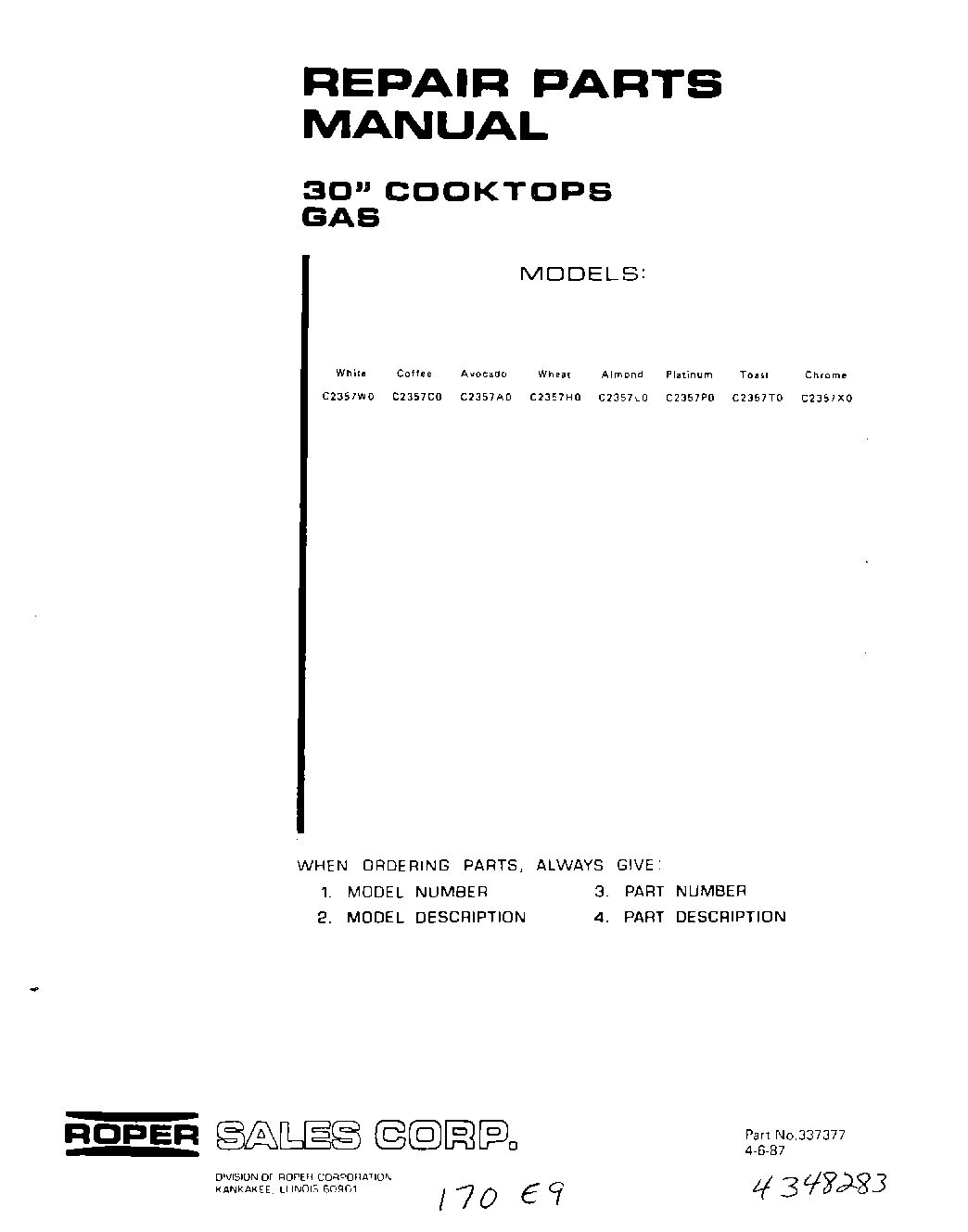

01 - COVER
Common parts from model Whirlpool C2357W0 GAS COOK-TOP
1
Gasket WPL 311692 Contact Us For Availability
1
Grate-Top (4 Req) WPL 316786 Contact Us For Availability
2
Pan-Aeration (4 Req) WPL 330427 Contact Us For Availability
3
Manifold Seal WPL 330408 Contact Us For Availability
3
Screw 6-32x1/4`` WPL 072055 Contact Us For Availability
4
Manifold Seal Retainer WPL 330409 Contact Us For Availability
4
Nut-Hex 8-32 WPL 239764 Contact Us For Availability
5
Shield-Gas Valve (4 Req) WPL 306589 Contact Us For Availability
5
Hinge-Main Top WPL 330421 Contact Us For Availability
6
Regulator-Pressure WPL 324529 Contact Us For Availability
6
Screw 8-32x1/4`` WPL 322183 Contact Us For Availability
7
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
8
Burner Box Shield WPL 323348 Contact Us For Availability
9
Cord WPL 333774 Contact Us For Availability
9
Box-Burner WPL 331922 Contact Us For Availability
10
Switch-Valve (4 Req) WPL 311389 Contact Us For Availability
10
Support-Main Top WPL 330422 Contact Us For Availability
11
Shutter-Air WPL 327198 Contact Us For Availability
11
Clamp WPL 285945 Contact Us For Availability
12
Burner-Top Asm (Right Front & Rear) WPL 330410 Contact Us For Availability
13
Burner-Top Asm (Left Rear) WPL 330412 Contact Us For Availability
13
Catch-Main Top WPL 71003 Contact Us For Availability
14
Burner-Top Asm (Left Front) WPL 330411 Contact Us For Availability
14
Strike-Main Top WPL 24668 Contact Us For Availability
15
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
15
Control Panel WPL 330809 Contact Us For Availability
16
Support-Top Burner WPL 330405 Contact Us For Availability
16
Knob-Gas Valve (4 Req) WPL 329297 Contact Us For Availability
17
Electrode-Spark Igniter WPL 312598 Contact Us For Availability
17
Screw 6-32x3/8`` WPL 105667 Contact Us For Availability
18
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
18
White WPL 330426 Contact Us For Availability
18
Coffee WPL 330442 Contact Us For Availability
18
Platinum WPL 330443 Contact Us For Availability
18
Wheat WPL 330444 Contact Us For Availability
18
Toast WPL 330445 Contact Us For Availability
18
Almond WPL 330446 Contact Us For Availability
18
Chrome WPL 330456 Contact Us For Availability
18
Avocado WPL 330813 Contact Us For Availability
18
Top-Main WPL ARI21072A5 Contact Us For Availability
19
Cover-Module Wire WPL 323351 Contact Us For Availability
19
Bezel-Control WPL 330419 Contact Us For Availability
21
Module-Spark Igniter WPL 320990 Contact Us For Availability
22
Clamp-Nylon WPL 109266 Contact Us For Availability
23
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
24
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
25
Valve-Gas (4 Req) WPL 330407 Contact Us For Availability
26
Gasket WPL 313563 Contact Us For Availability
27
Pipe-Manifold WPL 330406 Contact Us For Availability
28
Screw 1/4``-20 WPL 311455 Contact Us For Availability
× ![]()
