Model Whirlpool C221 ELECTRIC COOK-TOP – Common Parts & Diagrams

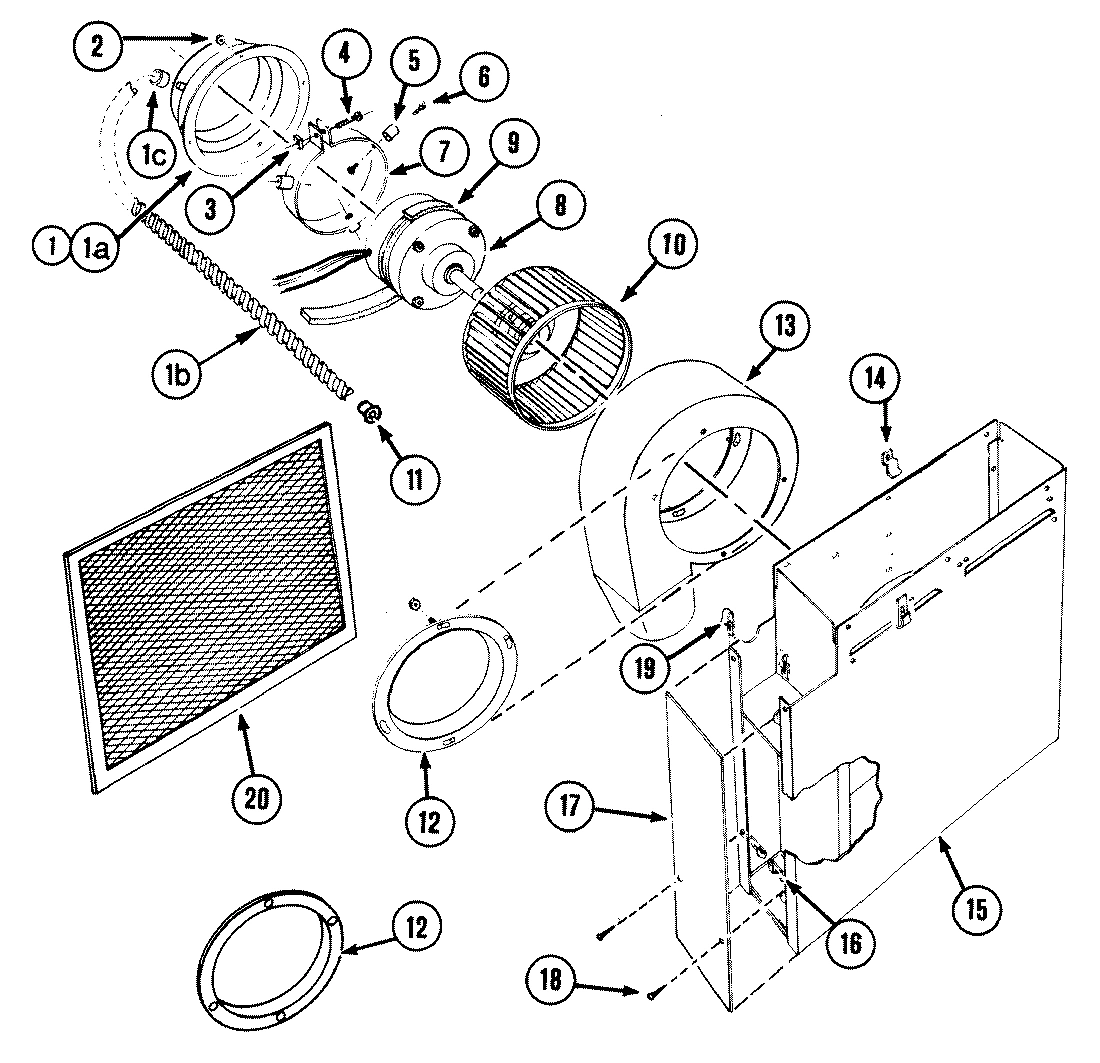

01 - BLOWER PLENUM

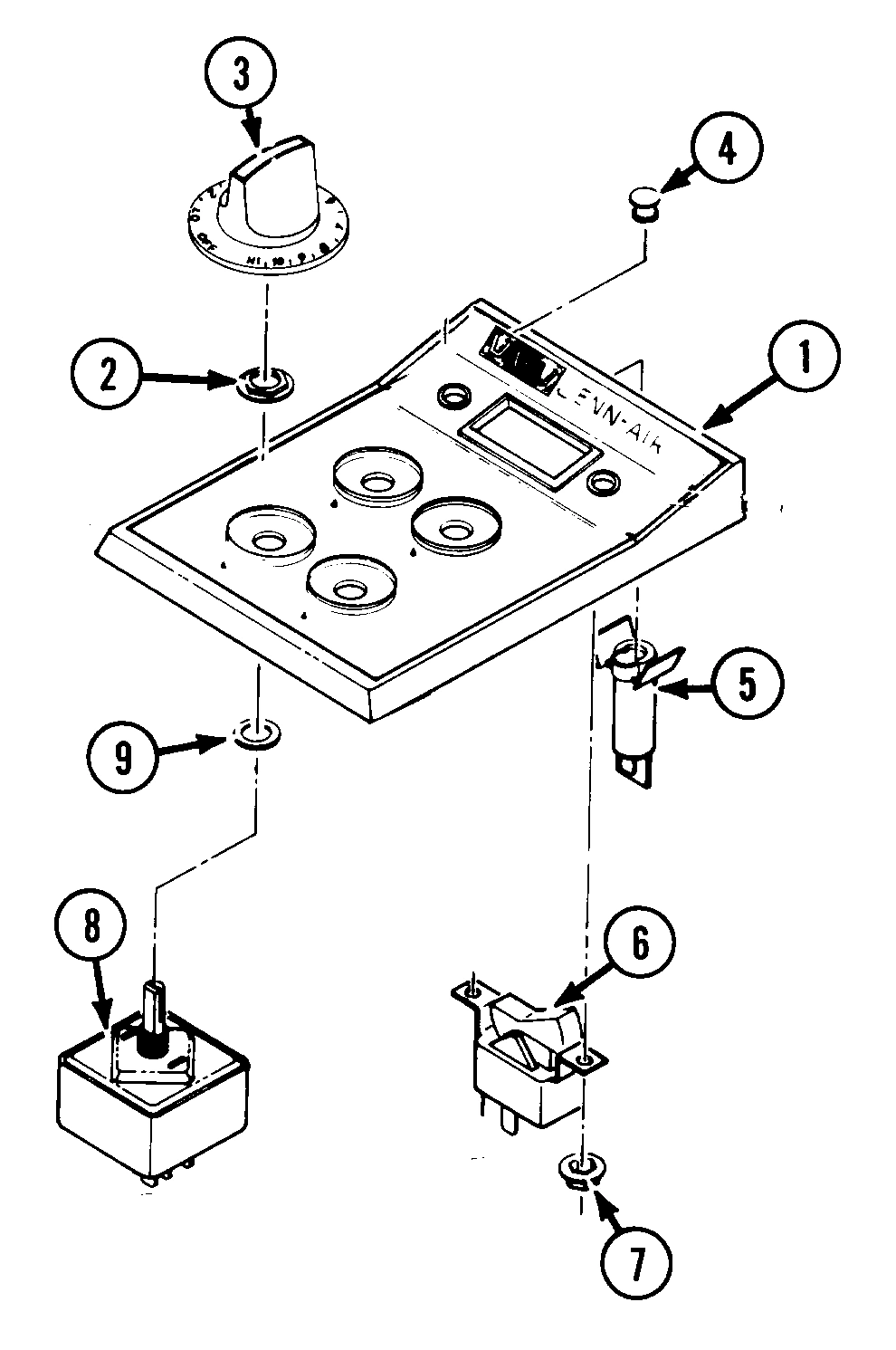

03 - CONTROL PANEL
02 - BURNER BOX
04 - TOP ASSEMBLY
Common parts from model Whirlpool C221 ELECTRIC COOK-TOP
1
CLAMP, CABLE WPL 715780 Contact Us For Availability
1
CLIP WPL Y707335 Contact Us For Availability
1
CONDUIT WPL Y707758 Contact Us For Availability
1
ESCUTCHEON LT-STICK ON LOGO WPL Y700664 Contact Us For Availability
1
ESCUTCHEON LT- CAST LOGO WPL Y700822 Contact Us For Availability
1
BOX, BURNER WPL 701992 Contact Us For Availability
1
BOX, BURNER WPL 712054 Contact Us For Availability
1
TOP WPL 701851 Contact Us For Availability
2
PALNUT WPL Y712255 Contact Us For Availability
2
GRATE WPL 707886 Contact Us For Availability
3
NUT WPL 707161 Contact Us For Availability
3
BUSHING WPL Y707695 Contact Us For Availability
3
ELEMENT WPL 700491 Contact Us For Availability
4
SCREW WPL Y707402 Contact Us For Availability
4
INSULATOR WPL 701995 Contact Us For Availability
4
GRILL, AIR WPL 700667 Contact Us For Availability
6
SCREW WPL 707407 Contact Us For Availability
6
SWITCH, FAN WPL 715397 Contact Us For Availability
7
BAND, MOTOR WPL Y707393 Contact Us For Availability
7
CLIP, RETAINER WPL Y700503 Contact Us For Availability
8
SCREW WPL Y707121 Contact Us For Availability
8
RECEPTACLE WPL Y715120 Contact Us For Availability
9
KIT, WIRE WPL Y712438 Contact Us For Availability
9
FOAM, URETHANE WPL Y715957 Contact Us For Availability
9
KIT, WIRE (LEFT) WPL 702023 Contact Us For Availability
9
O RING WPL Y700833 Contact Us For Availability
9
LID, JAR WPL Y707870 Contact Us For Availability
9
KIT, WIRE WPL 701937 Contact Us For Availability
9
PAN, GRILL (REV. W/BRACKETS) WPL 701954 Contact Us For Availability
9
PAN, GRILL (LT) WPL 701955 Contact Us For Availability
9
KIT, WIRE WPL 712033 Contact Us For Availability
9
CONTACT/WIRE ASSY. (BLU-RT) WPL Y701489 Contact Us For Availability
9
WIRE, BLACK WPL Y701490 Contact Us For Availability
9
WIRE, RED WPL Y701491 Contact Us For Availability
9
WIRE, YELLOW WPL Y701492 Contact Us For Availability
9
WIRE, BLUE WPL Y701899 Contact Us For Availability
9
PAN, GRILL (W/BRACKETS) WPL Y701953 Contact Us For Availability
9
PAN, GRILL (RT) WPL Y701956 Contact Us For Availability
9
KIT, WIRE WPL Y702042 Contact Us For Availability
9
WIRE, YELLOW WPL Y712014 Contact Us For Availability
9
WIRE, RED WPL Y712015 Contact Us For Availability
9
WIRE, BLACK WPL Y712017 Contact Us For Availability
9
WIRE, BLUE WPL Y712030 Contact Us For Availability
9
WIRE, BROWN WPL Y712197 Contact Us For Availability
9
WIRE, BROWN WPL Y712199 Contact Us For Availability
9
WIRE, YELLOW WPL Y712200 Contact Us For Availability
9
WIRE, VIOLET WPL Y712203 Contact Us For Availability
9
KIT, WIRE WPL Y712431 Contact Us For Availability
10
PLATE, ROCK WPL 708929 Contact Us For Availability
11
SUPPORT, ROCK PLATE WPL 700819 Contact Us For Availability
11
BUSHING WPL 708185 Contact Us For Availability
12
RING, INLET (WITH STUDS) WPL 786316 Contact Us For Availability
12
RING, INLET WPL Y702295 Contact Us For Availability
12
SCREW WPL 701933 Contact Us For Availability
13
BLOWER SCROLL KIT WPL Y712053 Contact Us For Availability
13
WASHER WPL Y707664 Contact Us For Availability
13
STANDOFF----NA WPL Y700672 Contact Us For Availability
14
RETAINER, FILTER WPL Y707688 Contact Us For Availability
14
BRACKET WPL Y702698 Contact Us For Availability
15
PLENUM WPL Y701840 Contact Us For Availability
16
CLIP, TINNERMAN WPL 701958 Contact Us For Availability
17
PLATE, COVER WPL Y707681 Contact Us For Availability
19
CLIP WPL Y707831 Contact Us For Availability
NI
MANUAL, SERVICE-NO REFUND WPL 16000448 Contact Us For Availability
× ![]()
