Model Maytag BZ22QL REFRIGERATOR – Common Parts & Diagrams
01 - CABINET BACK
02 - CABINET BOTTOM AND BACK

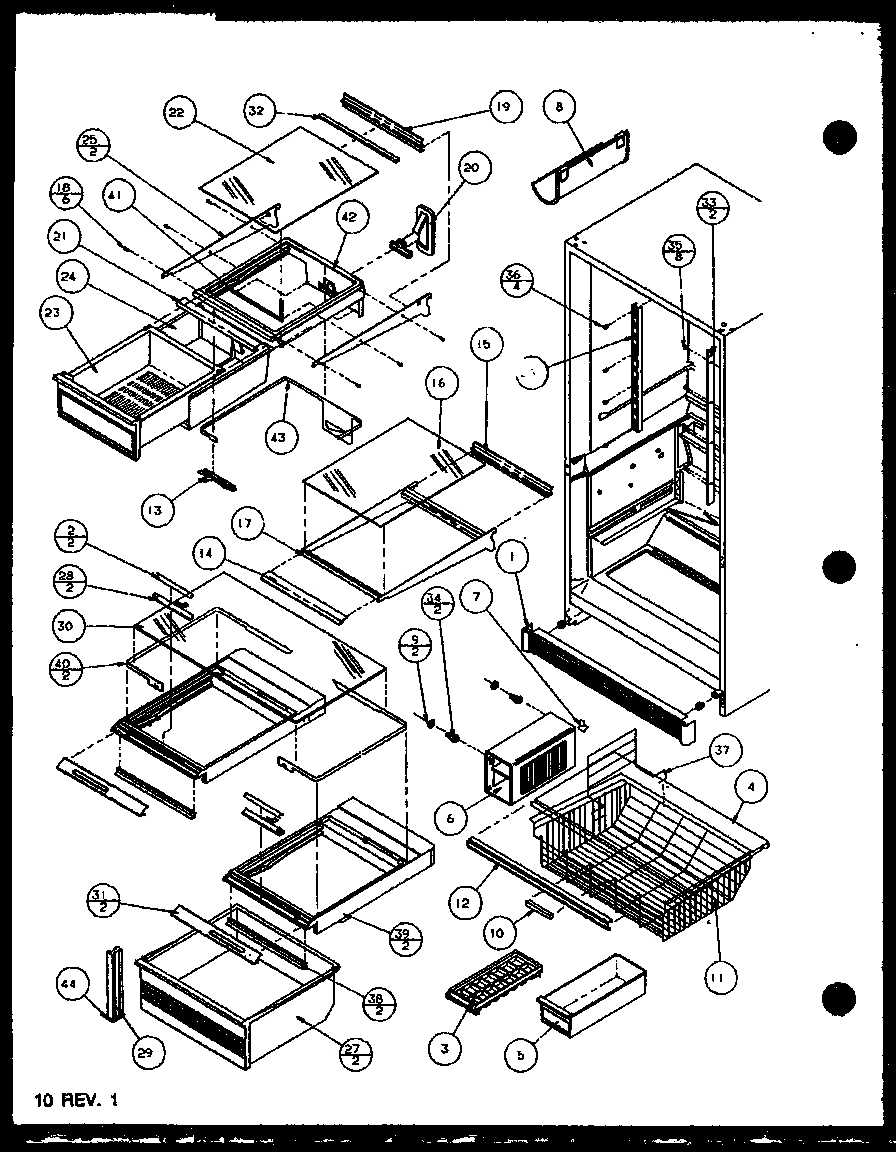

03 - CABINET INTERIOR

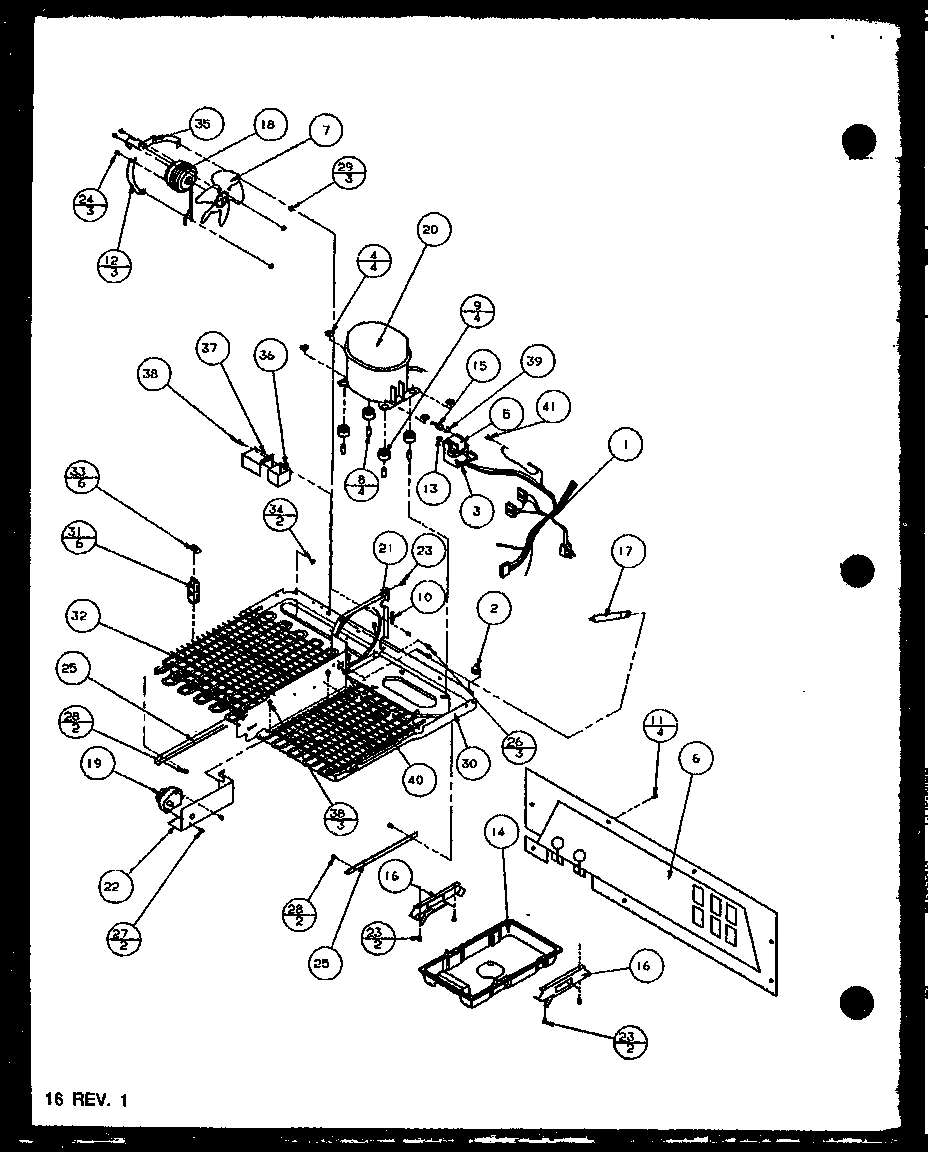

04 - COMPRESSOR COMPARTMENT

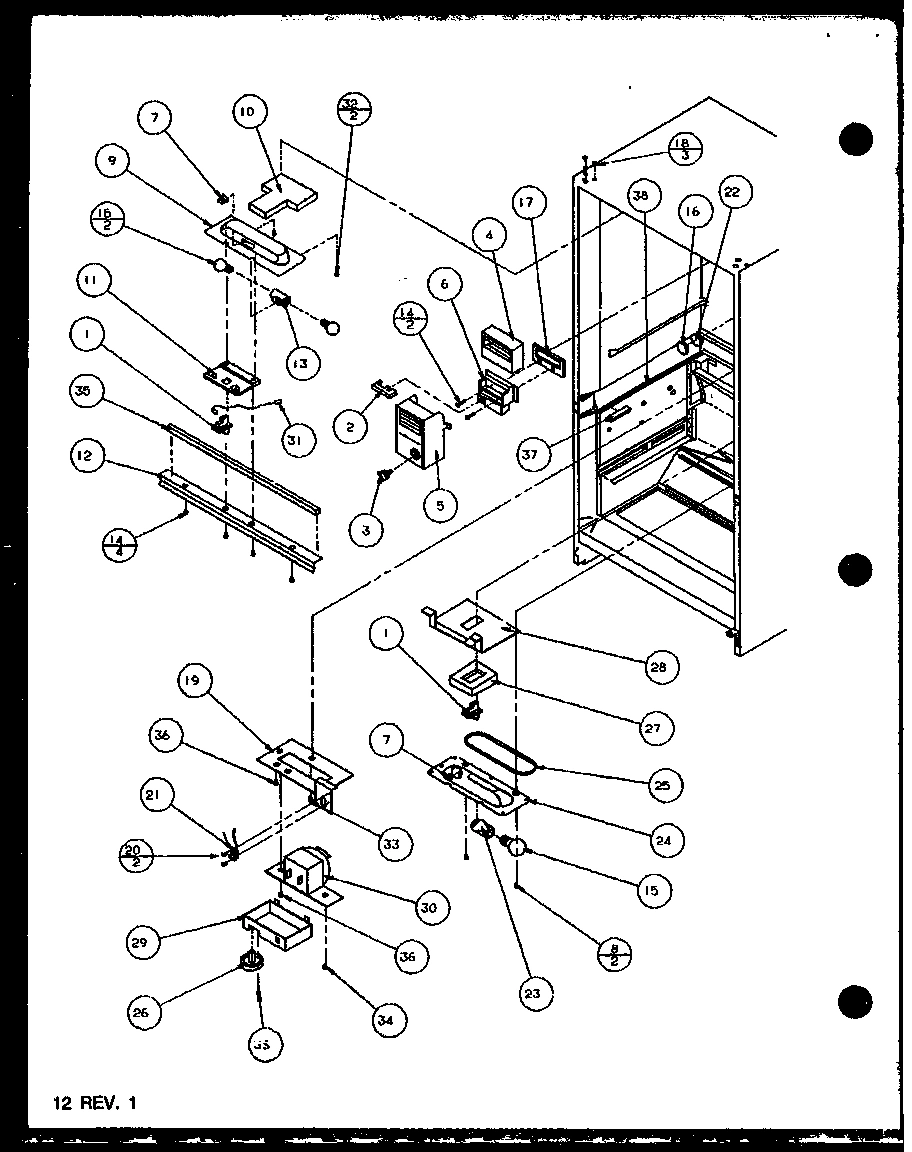

05 - CONTROL AND LAMPS

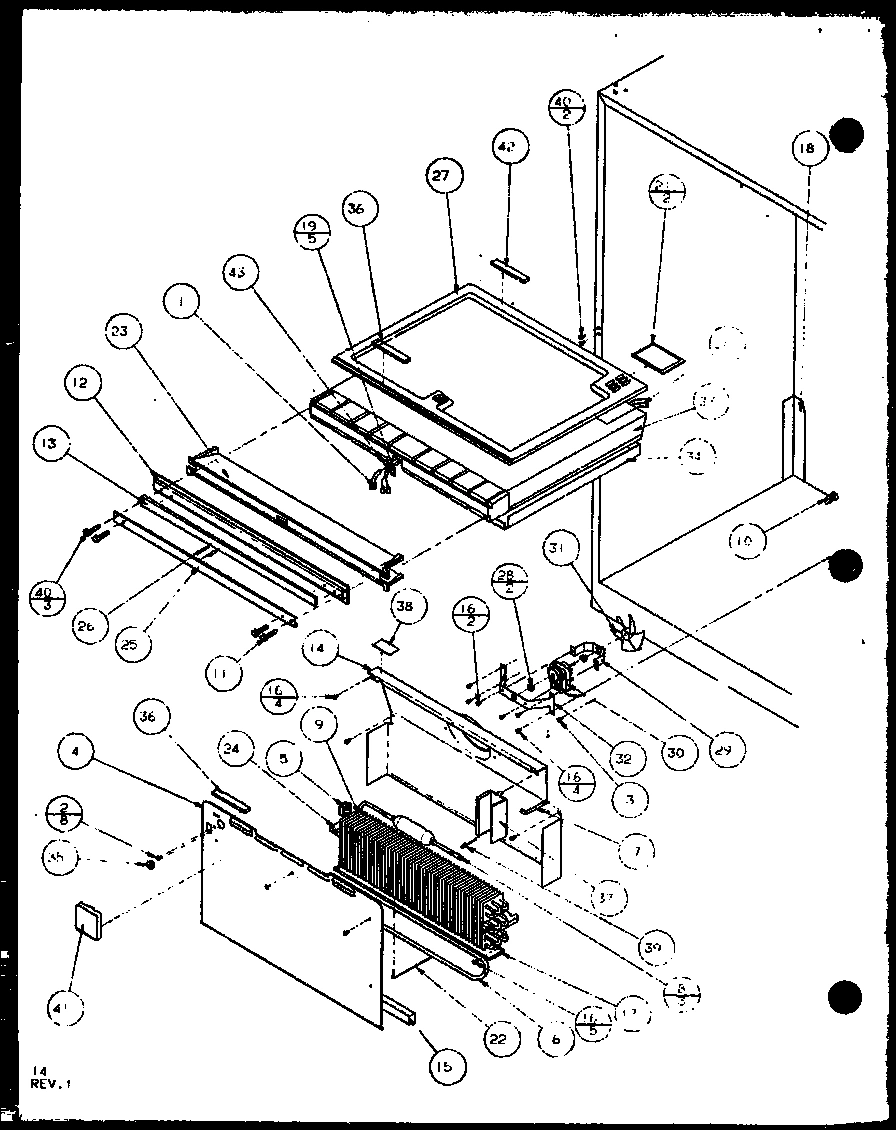

06 - DIVIDER AND EVAP

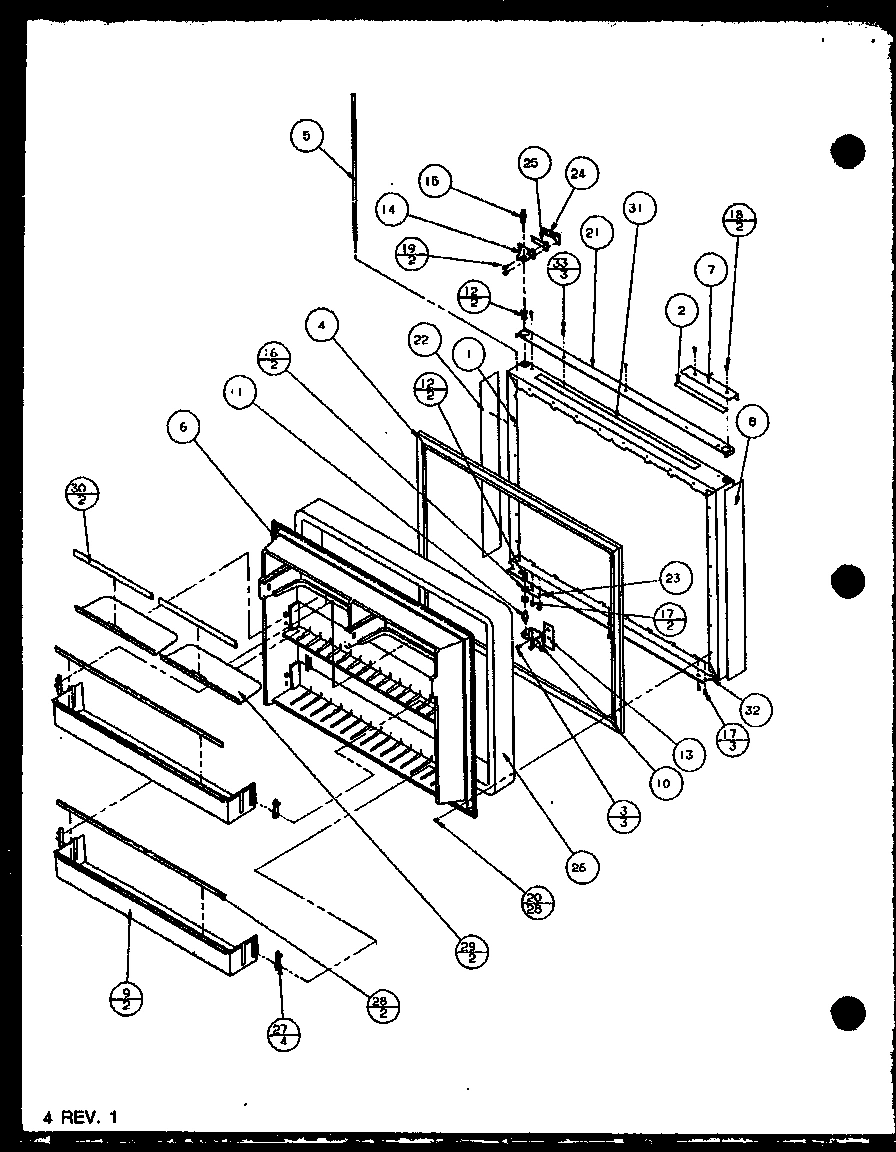

07 - FZ DOOR

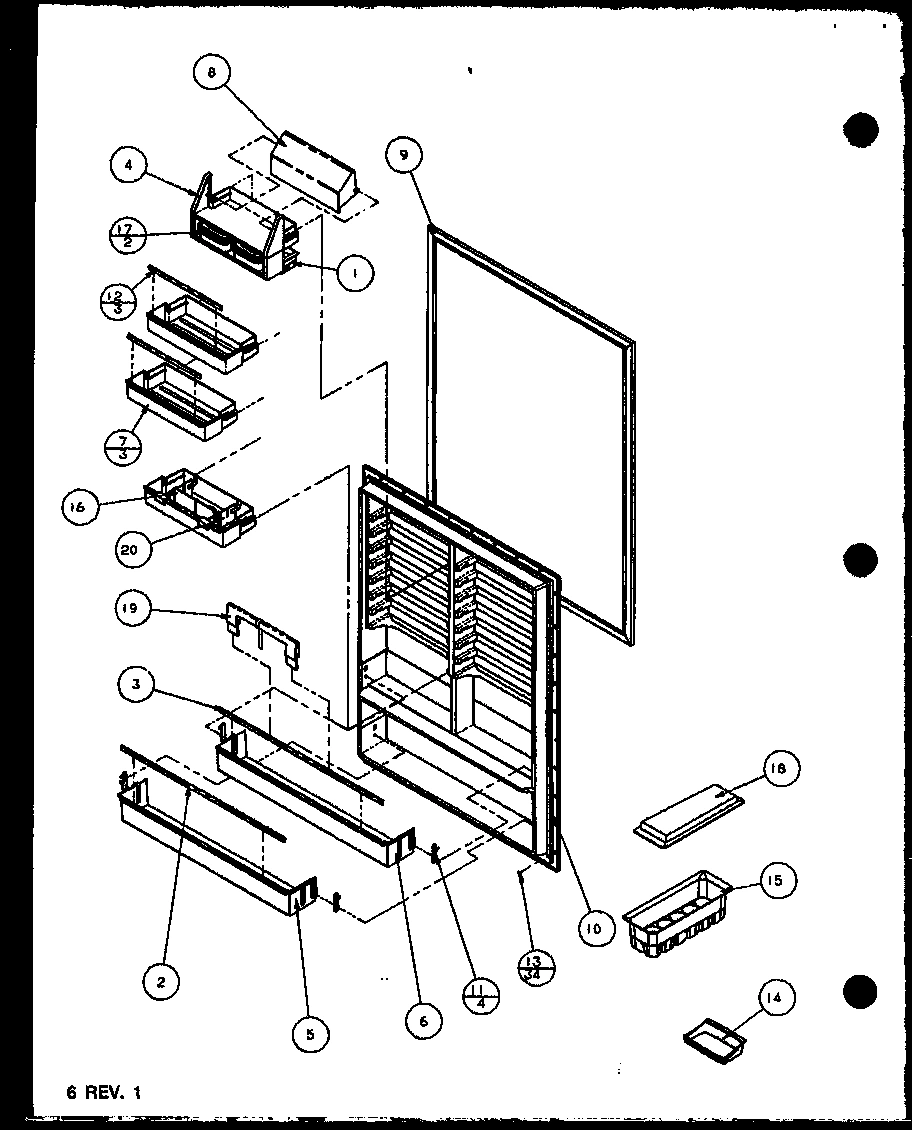

08 - REF DOOR

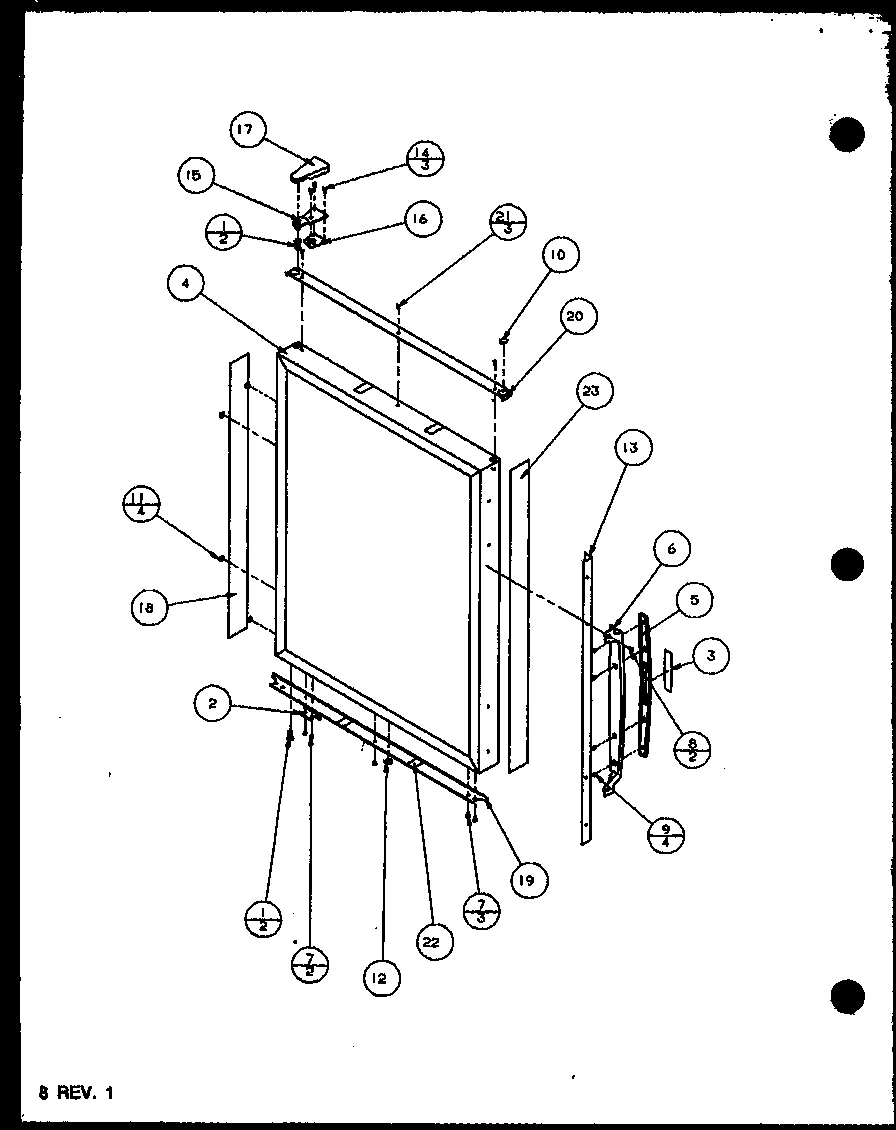

09 - REF DOOR AND TRIM PARTS
Common parts from model Maytag BZ22QL REFRIGERATOR
1
MAY D7520510 MAY D7520510 Contact Us For Availability
1
MAY D7520512 MAY D7520512 Contact Us For Availability
1
MAY D7520514 MAY D7520514 Contact Us For Availability
1
MAY 10356601 MAY 10356601 Contact Us For Availability
1
MAY C3680307 MAY C3680307 Contact Us For Availability
1
MAY 10291801 MAY 10291801 Contact Us For Availability
1
MAY 10363001EQ MAY 10363001EQ Contact Us For Availability
1
MAY 10363001LQ MAY 10363001LQ Contact Us For Availability
1
MAY 10363001WQ MAY 10363001WQ Contact Us For Availability
1
MAY 10182802 MAY 10182802 Contact Us For Availability
1
MAY 10393802 MAY 10393802 Contact Us For Availability
2
MAY A3080001 MAY A3080001 Contact Us For Availability
2
MAY 10199906 MAY 10199906 Contact Us For Availability
2
MAY M0110508 MAY M0110508 Contact Us For Availability
2
MAY C8902601 MAY C8902601 Contact Us For Availability
2
MAY M0209616 MAY M0209616 Contact Us For Availability
2
MAY 10377801 MAY 10377801 Contact Us For Availability
2
MAY 10183924 MAY 10183924 Contact Us For Availability
2
MAY 10200202 MAY 10200202 Contact Us For Availability
2
MAY 10200203 MAY 10200203 Contact Us For Availability
3
MAY M0103902 MAY M0103902 Contact Us For Availability
3
MAY M0253916 MAY M0253916 Contact Us For Availability
3
MAY 10388701 MAY 10388701 Contact Us For Availability
3
MAY M0233847 MAY M0233847 Contact Us For Availability
3
MAY D7725401 MAY D7725401 Contact Us For Availability
3
MAY B8329701 MAY B8329701 Contact Us For Availability
3
MAY YB8358601 MAY YB8358601 Contact Us For Availability
3
MAY D7795816 MAY D7795816 Contact Us For Availability
3
MAY 10183922 MAY 10183922 Contact Us For Availability
3
MAY C8945004 MAY C8945004 Contact Us For Availability
3
MAY C8945005 MAY C8945005 Contact Us For Availability
4
MAY M0310319 MAY M0310319 Contact Us For Availability
4
MAY M0520102 MAY M0520102 Contact Us For Availability
4
MAY B8352901 MAY B8352901 Contact Us For Availability
4
MAY D7687701 MAY D7687701 Contact Us For Availability
4
MAY D7874703 MAY D7874703 Contact Us For Availability
4
MAY D7605115 MAY D7605115 Contact Us For Availability
4
MAY D7605123 MAY D7605123 Contact Us For Availability
4
MAY 10182702 MAY 10182702 Contact Us For Availability
4
MAY 10362901EQ MAY 10362901EQ Contact Us For Availability
4
MAY 10362901LQ MAY 10362901LQ Contact Us For Availability
4
MAY 10362901WQ MAY 10362901WQ Contact Us For Availability
5
MAY M1200202 MAY M1200202 Contact Us For Availability
5
MAY D7620029 MAY D7620029 Contact Us For Availability
5
MAY 10378301 MAY 10378301 Contact Us For Availability
5
MAY C8960801 MAY C8960801 Contact Us For Availability
5
MAY D7687515 MAY D7687515 Contact Us For Availability
5
MAY C8978402 MAY C8978402 Contact Us For Availability
5
MAY 10391301 MAY 10391301 Contact Us For Availability
5
MAY 10183306 MAY 10183306 Contact Us For Availability
5
MAY D7694704 MAY D7694704 Contact Us For Availability
5
MAY D7694706 MAY D7694706 Contact Us For Availability
5
MAY D7694707 MAY D7694707 Contact Us For Availability
6
MAY M1200004 MAY M1200004 Contact Us For Availability
6
MAY D7620104 MAY D7620104 Contact Us For Availability
6
MAY C8890207 MAY C8890207 Contact Us For Availability
6
MAY D7547403 MAY D7547403 Contact Us For Availability
6
MAY D7718301 MAY D7718301 Contact Us For Availability
6
MAY 10362201 MAY 10362201 Contact Us For Availability
6
MAY 10183106 MAY 10183106 Contact Us For Availability
6
MAY D7694803 MAY D7694803 Contact Us For Availability
7
MAY M0102325 MAY M0102325 Contact Us For Availability
7
MAY 10354001 MAY 10354001 Contact Us For Availability
7
MAY B5720301 MAY B5720301 Contact Us For Availability
7
MAY B5742601 MAY B5742601 Contact Us For Availability
7
MAY B5733302 MAY B5733302 Contact Us For Availability
7
MAY D7759001 MAY D7759001 Contact Us For Availability
7
MAY C8944909 MAY C8944909 Contact Us For Availability
7
MAY C8944911 MAY C8944911 Contact Us For Availability
7
MAY C8944912 MAY C8944912 Contact Us For Availability
7
MAY M0203944 MAY M0203944 Contact Us For Availability
7
MAY 10183006 MAY 10183006 Contact Us For Availability
8
MAY D7663301 MAY D7663301 Contact Us For Availability
8
MAY M0204339 MAY M0204339 Contact Us For Availability
8
MAY D7547615 MAY D7547615 Contact Us For Availability
8
MAY A3072001 MAY A3072001 Contact Us For Availability
8
MAY M0321202 MAY M0321202 Contact Us For Availability
8
MAY 10339727 MAY 10339727 Contact Us For Availability
8
MAY 10182903 MAY 10182903 Contact Us For Availability
8
MAY M0206219 MAY M0206219 Contact Us For Availability
9
MAY C8742401 MAY C8742401 Contact Us For Availability
9
MAY M0270508 MAY M0270508 Contact Us For Availability
9
MAY B8333401 MAY B8333401 Contact Us For Availability
9
MAY D7716404 MAY D7716404 Contact Us For Availability
9
MAY R0170030 MAY R0170030 Contact Us For Availability
9
MAY D7605116 MAY D7605116 Contact Us For Availability
9
MAY D7605124 MAY D7605124 Contact Us For Availability
9
MAY M0215704 MAY M0215704 Contact Us For Availability
10
MAY M0286708 MAY M0286708 Contact Us For Availability
10
MAY B0571806 MAY B0571806 Contact Us For Availability
10
MAY B5759604 MAY B5759604 Contact Us For Availability
10
MAY C8778301 MAY C8778301 Contact Us For Availability
10
MAY D7711701 MAY D7711701 Contact Us For Availability
10
MAY 10163614 MAY 10163614 Contact Us For Availability
10
MAY 10362101 MAY 10362101 Contact Us For Availability
10
MAY 10263701 MAY 10263701 Contact Us For Availability
10
MAY 10263702 MAY 10263702 Contact Us For Availability
10
MAY 10263705 MAY 10263705 Contact Us For Availability
11
MAY M1205302 MAY M1205302 Contact Us For Availability
11
MAY D7677402 MAY D7677402 Contact Us For Availability
11
MAY D7297603 MAY D7297603 Contact Us For Availability
11
MAY 10200801 MAY 10200801 Contact Us For Availability
11
MAY 10202001 MAY 10202001 Contact Us For Availability
11
MAY M0310713 MAY M0310713 Contact Us For Availability
11
MAY M0310714 MAY M0310714 Contact Us For Availability
12
MAY 10277305 MAY 10277305 Contact Us For Availability
12
MAY C8832513 MAY C8832513 Contact Us For Availability
12
MAY C8982101 MAY C8982101 Contact Us For Availability
12
MAY D7288116 MAY D7288116 Contact Us For Availability
12
MAY M0310308 MAY M0310308 Contact Us For Availability
12
MAY 10321101 MAY 10321101 Contact Us For Availability
12
MAY C8964401 MAY C8964401 Contact Us For Availability
12
MAY 10183921 MAY 10183921 Contact Us For Availability
13
MAY B5749501 MAY B5749501 Contact Us For Availability
13
MAY D7859402 MAY D7859402 Contact Us For Availability
13
MAY 10097202 MAY 10097202 Contact Us For Availability
13
MAY C8931503 MAY C8931503 Contact Us For Availability
13
MAY D7808602 MAY D7808602 Contact Us For Availability
13
MAY B0523584 MAY B0523584 Contact Us For Availability
13
MAY 10399501 MAY 10399501 Contact Us For Availability
13
MAY 10399502 MAY 10399502 Contact Us For Availability
13
MAY M0219730 MAY M0219730 Contact Us For Availability
13
MAY D7739604 MAY D7739604 Contact Us For Availability
13
MAY D7739606 MAY D7739606 Contact Us For Availability
14
MAY A0329814 MAY A0329814 Contact Us For Availability
14
MAY 10049920 MAY 10049920 Contact Us For Availability
14
MAY 10049934 MAY 10049934 Contact Us For Availability
14
MAY D7790601 MAY D7790601 Contact Us For Availability
14
MAY M0211018 MAY M0211018 Contact Us For Availability
14
MAY D7691116 MAY D7691116 Contact Us For Availability
14
MAY 10200701 MAY 10200701 Contact Us For Availability
14
MAY 10310901 MAY 10310901 Contact Us For Availability
14
MAY M0257244 MAY M0257244 Contact Us For Availability
15
MAY 10161301 MAY 10161301 Contact Us For Availability
15
MAY M0102303 MAY M0102303 Contact Us For Availability
15
MAY C8913610 MAY C8913610 Contact Us For Availability
15
MAY 10377001 MAY 10377001 Contact Us For Availability
15
MAY C8906206 MAY C8906206 Contact Us For Availability
15
MAY A0282803 MAY A0282803 Contact Us For Availability
15
GASKET, FOAM MAY A3189320 Contact Us For Availability
15
MAY 10351001 MAY 10351001 Contact Us For Availability
15
MAY D7695615 MAY D7695615 Contact Us For Availability
15
MAY D7757806 MAY D7757806 Contact Us For Availability
16
MAY M0219916 MAY M0219916 Contact Us For Availability
16
MAY 10036053 MAY 10036053 Contact Us For Availability
16
MAY 10370006 MAY 10370006 Contact Us For Availability
16
MAY D7790501 MAY D7790501 Contact Us For Availability
16
SHIM, NON METAL (WHT) MAY M0274057 Contact Us For Availability
16
MAY 10183806 MAY 10183806 Contact Us For Availability
16
MAY 10200301 MAY 10200301 Contact Us For Availability
16
MAY 10200302 MAY 10200302 Contact Us For Availability
16
MAY 10200303 MAY 10200303 Contact Us For Availability
17
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
17
MAY 10376301 MAY 10376301 Contact Us For Availability
17
MAY D7871016 MAY D7871016 Contact Us For Availability
17
MAY B2150502 MAY B2150502 Contact Us For Availability
17
MAY B8345401 MAY B8345401 Contact Us For Availability
17
MAY D7679402 MAY D7679402 Contact Us For Availability
17
MAY 10185001 MAY 10185001 Contact Us For Availability
17
MAY 10182601 MAY 10182601 Contact Us For Availability
17
MAY 10182603 MAY 10182603 Contact Us For Availability
17
MAY 10182604 MAY 10182604 Contact Us For Availability
18
MAY D7753901 MAY D7753901 Contact Us For Availability
18
MAY M0230028 MAY M0230028 Contact Us For Availability
18
MAY D7584001 MAY D7584001 Contact Us For Availability
18
MAY M0310709 MAY M0310709 Contact Us For Availability
18
MAY M0310716 MAY M0310716 Contact Us For Availability
18
MAY M0310727 MAY M0310727 Contact Us For Availability
18
MAY C8953701 MAY C8953701 Contact Us For Availability
18
MAY M0222429 MAY M0222429 Contact Us For Availability
18
MAY D7805908 MAY D7805908 Contact Us For Availability
18
MAY 10339730 MAY 10339730 Contact Us For Availability
19
SEAL, O RING MAY M0500703 Contact Us For Availability
19
MAY C8990406 MAY C8990406 Contact Us For Availability
19
MAY 10129303 MAY 10129303 Contact Us For Availability
19
MAY C8943302 MAY C8943302 Contact Us For Availability
19
MAY M0226233 MAY M0226233 Contact Us For Availability
19
MAY A3195601 MAY A3195601 Contact Us For Availability
19
MAY 10339903 MAY 10339903 Contact Us For Availability
19
MAY 10182404 MAY 10182404 Contact Us For Availability
20
MAY D7859309 MAY D7859309 Contact Us For Availability
20
MAY 10376901 MAY 10376901 Contact Us For Availability
20
MAY D7736204 MAY D7736204 Contact Us For Availability
20
MAY M0010215 MAY M0010215 Contact Us For Availability
20
MAY D7742901 MAY D7742901 Contact Us For Availability
20
MAY 10183704 MAY 10183704 Contact Us For Availability
20
MAY 10339805 MAY 10339805 Contact Us For Availability
21
MAY 10049919 MAY 10049919 Contact Us For Availability
21
MAY D7691002 MAY D7691002 Contact Us For Availability
21
MAY M0350101 MAY M0350101 Contact Us For Availability
21
MAY A3263905 MAY A3263905 Contact Us For Availability
21
MAY 10201503 MAY 10201503 Contact Us For Availability
21
MAY 10339807 MAY 10339807 Contact Us For Availability
22
MAY 10036050 MAY 10036050 Contact Us For Availability
22
MAY D7690801 MAY D7690801 Contact Us For Availability
22
MAY B8362503 MAY B8362503 Contact Us For Availability
22
MAY M0103502 MAY M0103502 Contact Us For Availability
22
MAY 10339728 MAY 10339728 Contact Us For Availability
22
MAY A3030335 MAY A3030335 Contact Us For Availability
23
MAY D7698333 MAY D7698333 Contact Us For Availability
23
MAY D7714403 MAY D7714403 Contact Us For Availability
23
MAY 10367101 MAY 10367101 Contact Us For Availability
23
MAY 10266103 MAY 10266103 Contact Us For Availability
23
MAY 10266107 MAY 10266107 Contact Us For Availability
23
MAY 10339729 MAY 10339729 Contact Us For Availability
24
MAY D7698112 MAY D7698112 Contact Us For Availability
24
MAY M0223803 MAY M0223803 Contact Us For Availability
24
MAY C8730102 MAY C8730102 Contact Us For Availability
24
MAY B8373201 MAY B8373201 Contact Us For Availability
24
MAY 10321201 MAY 10321201 Contact Us For Availability
25
MAY D7862972 MAY D7862972 Contact Us For Availability
25
MAY D7862973 MAY D7862973 Contact Us For Availability
25
MAY D7835501 MAY D7835501 Contact Us For Availability
25
MAY B5759607 MAY B5759607 Contact Us For Availability
25
MAY 10367501 MAY 10367501 Contact Us For Availability
25
MAY 10367502 MAY 10367502 Contact Us For Availability
25
MAY 10367503 MAY 10367503 Contact Us For Availability
25
MAY 10200504 MAY 10200504 Contact Us For Availability
25
MAY 10200505 MAY 10200505 Contact Us For Availability
25
MAY 10200506 MAY 10200506 Contact Us For Availability
26
MAY D7599002 MAY D7599002 Contact Us For Availability
26
MAY M0221332 MAY M0221332 Contact Us For Availability
26
MAY D7689901 MAY D7689901 Contact Us For Availability
26
MAY D7654512 MAY D7654512 Contact Us For Availability
27
MAY D7581041 MAY D7581041 Contact Us For Availability
27
MAY M0218118 MAY M0218118 Contact Us For Availability
27
MAY B8314801 MAY B8314801 Contact Us For Availability
27
MAY D7681704 MAY D7681704 Contact Us For Availability
28
MAY 10199814 MAY 10199814 Contact Us For Availability
28
MAY 10199815 MAY 10199815 Contact Us For Availability
28
MAY M0211530 MAY M0211530 Contact Us For Availability
28
MAY C8940402 MAY C8940402 Contact Us For Availability
28
MAY A1017202 MAY A1017202 Contact Us For Availability
28
MAY 10183294 MAY 10183294 Contact Us For Availability
29
MAY 10199602 MAY 10199602 Contact Us For Availability
29
MAY M0500107 MAY M0500107 Contact Us For Availability
29
MAY D7878809 MAY D7878809 Contact Us For Availability
29
MAY C8881301 MAY C8881301 Contact Us For Availability
29
MAY 10362301 MAY 10362301 Contact Us For Availability
30
MAY 10036055 MAY 10036055 Contact Us For Availability
30
MAY D7595411 MAY D7595411 Contact Us For Availability
30
MAY C8946701 MAY C8946701 Contact Us For Availability
30
MAY C8891601 MAY C8891601 Contact Us For Availability
30
MAY 10304103 MAY 10304103 Contact Us For Availability
31
MAY D7616672 MAY D7616672 Contact Us For Availability
31
MAY D7616673 MAY D7616673 Contact Us For Availability
31
MAY B8346301 MAY B8346301 Contact Us For Availability
31
MAY B5781002 MAY B5781002 Contact Us For Availability
31
MAY C8927801 MAY C8927801 Contact Us For Availability
32
MAY 10043101 MAY 10043101 Contact Us For Availability
32
MAY D7645301 MAY D7645301 Contact Us For Availability
32
MAY D7524501 MAY D7524501 Contact Us For Availability
33
MAY D7599105 MAY D7599105 Contact Us For Availability
33
MAY M0293703 MAY M0293703 Contact Us For Availability
33
MAY 10377701 MAY 10377701 Contact Us For Availability
34
MAY M0219559 MAY M0219559 Contact Us For Availability
34
MAY M0211357 MAY M0211357 Contact Us For Availability
34
MAY D7878701 MAY D7878701 Contact Us For Availability
35
MAY M0211016 MAY M0211016 Contact Us For Availability
35
MAY A3138301 MAY A3138301 Contact Us For Availability
36
MAY M0230923 MAY M0230923 Contact Us For Availability
36
MAY C8931602 MAY C8931602 Contact Us For Availability
36
MAY C8931604 MAY C8931604 Contact Us For Availability
36
MAY A3030328 MAY A3030328 Contact Us For Availability
36
MAY M0216531 MAY M0216531 Contact Us For Availability
37
MAY D7815402 MAY D7815402 Contact Us For Availability
37
MAY 10266401 MAY 10266401 Contact Us For Availability
37
MAY B5759618 MAY B5759618 Contact Us For Availability
37
MAY D7680901 MAY D7680901 Contact Us For Availability
38
MAY D7718402 MAY D7718402 Contact Us For Availability
38
MAY B5759617 MAY B5759617 Contact Us For Availability
38
MAY B8358502 MAY B8358502 Contact Us For Availability
39
MAY 10182509 MAY 10182509 Contact Us For Availability
39
MAY 10182510 MAY 10182510 Contact Us For Availability
39
MAY B8358301 MAY B8358301 Contact Us For Availability
39
MAY A4539602 MAY A4539602 Contact Us For Availability
40
MAY 10200002 MAY 10200002 Contact Us For Availability
40
MAY A9008301 MAY A9008301 Contact Us For Availability
40
MAY M0226331 MAY M0226331 Contact Us For Availability
41
MAY A3030353 MAY A3030353 Contact Us For Availability
41
MAY D7874402 MAY D7874402 Contact Us For Availability
42
MAY D7853303 MAY D7853303 Contact Us For Availability
42
MAY B5759616 MAY B5759616 Contact Us For Availability
43
MAY D7859504 MAY D7859504 Contact Us For Availability
43
MAY M0585203 MAY M0585203 Contact Us For Availability
44
MAY 10349901 MAY 10349901 Contact Us For Availability
44
MAY 10349902 MAY 10349902 Contact Us For Availability
NI
MAY C8956101 MAY C8956101 Contact Us For Availability
NI
MAY 10367701 MAY 10367701 Contact Us For Availability
NI
MAY 10144019 MAY 10144019 Contact Us For Availability
NI
MAY 10259606 MAY 10259606 Contact Us For Availability
NI
MAY 10259607 MAY 10259607 Contact Us For Availability
NI
MAY M0275148 MAY M0275148 Contact Us For Availability
× ![]()
