Model Maytag BXI21VL REFRIGERATOR – Common Parts & Diagrams
01 - Cabinet Back
02 - Controls & Light Covers

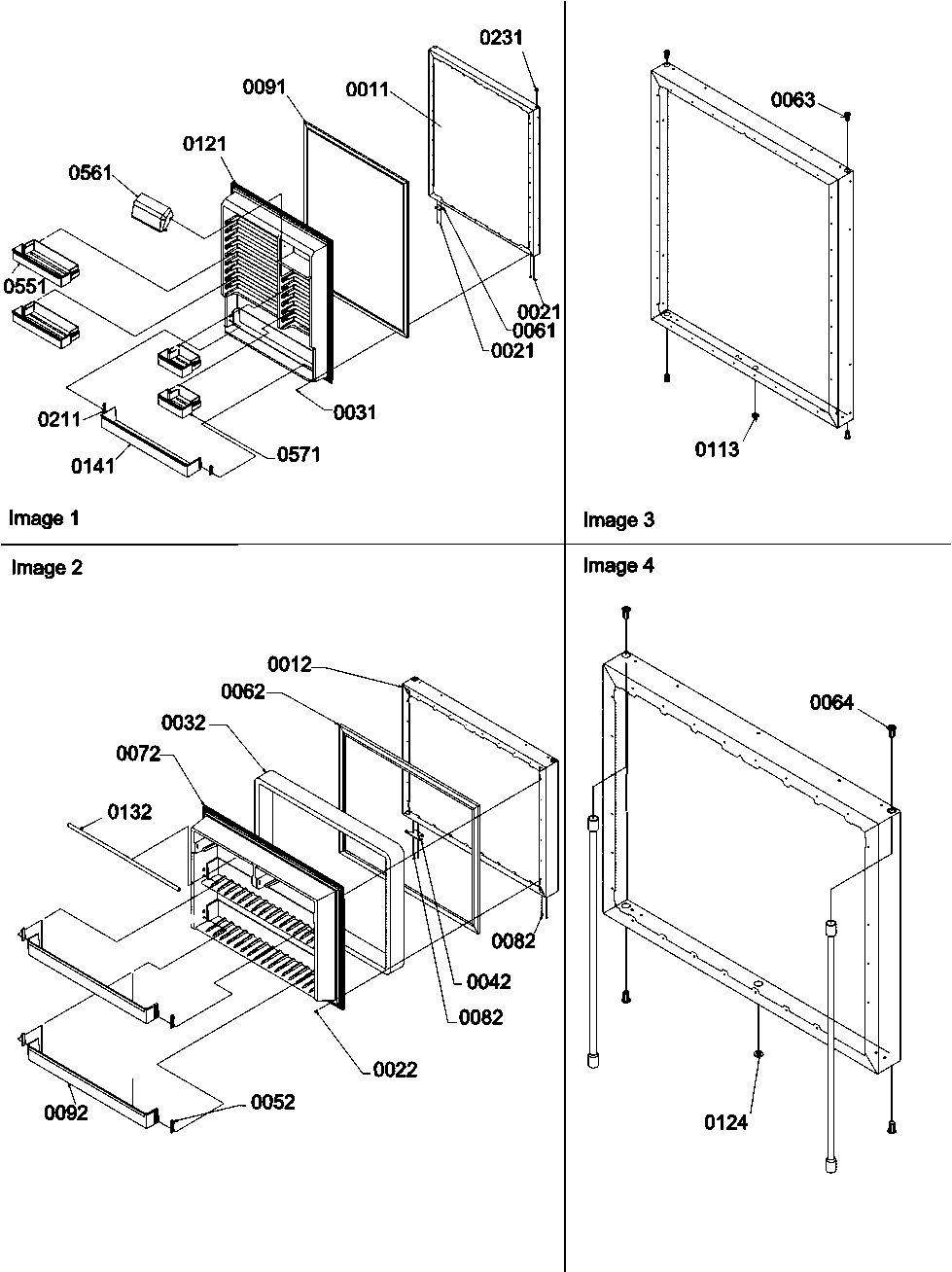

03 - Door Assemblies

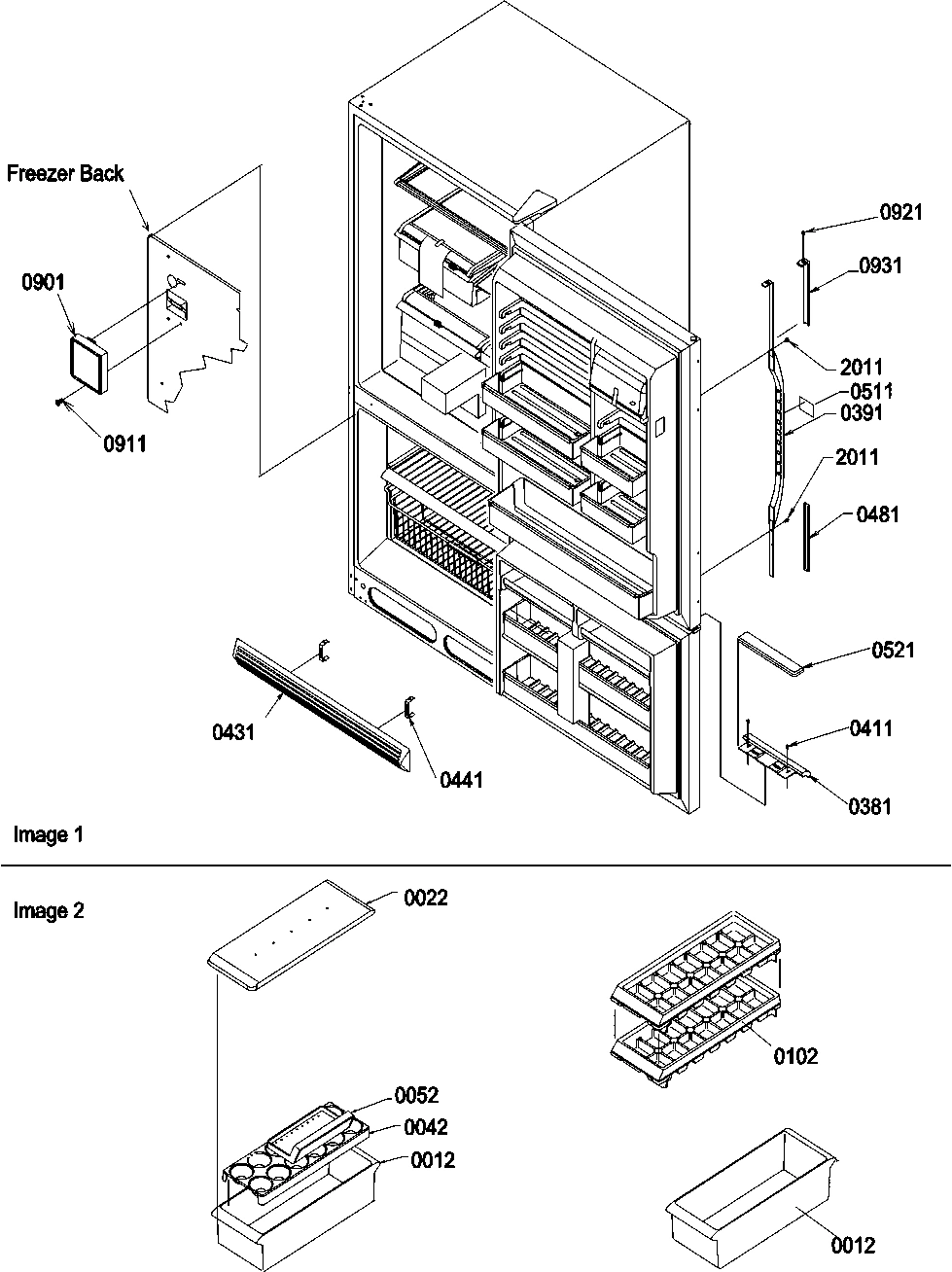

04 - Door Handles & Accessories

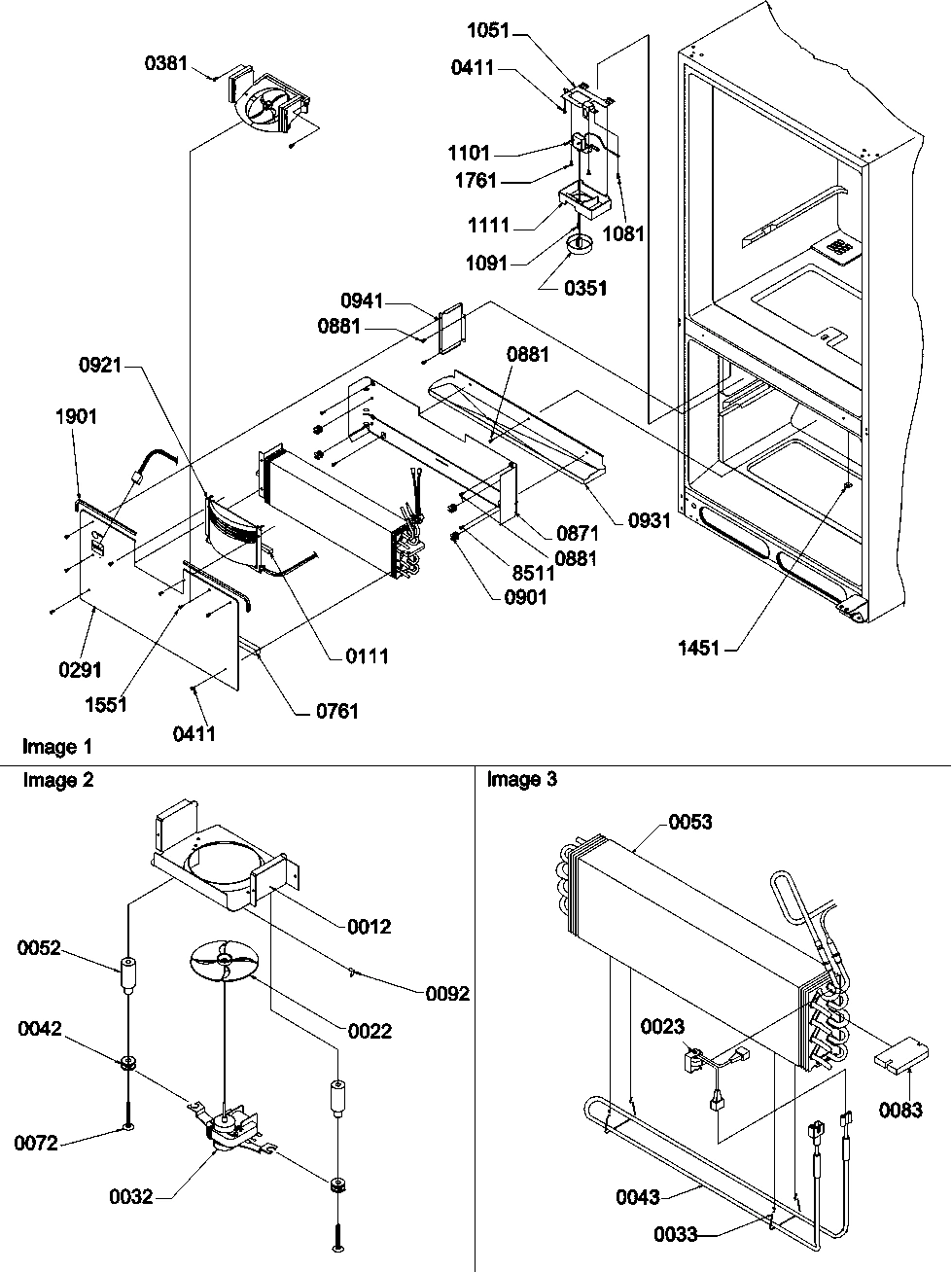

05 - Evaporator & Freezer Control Assembly

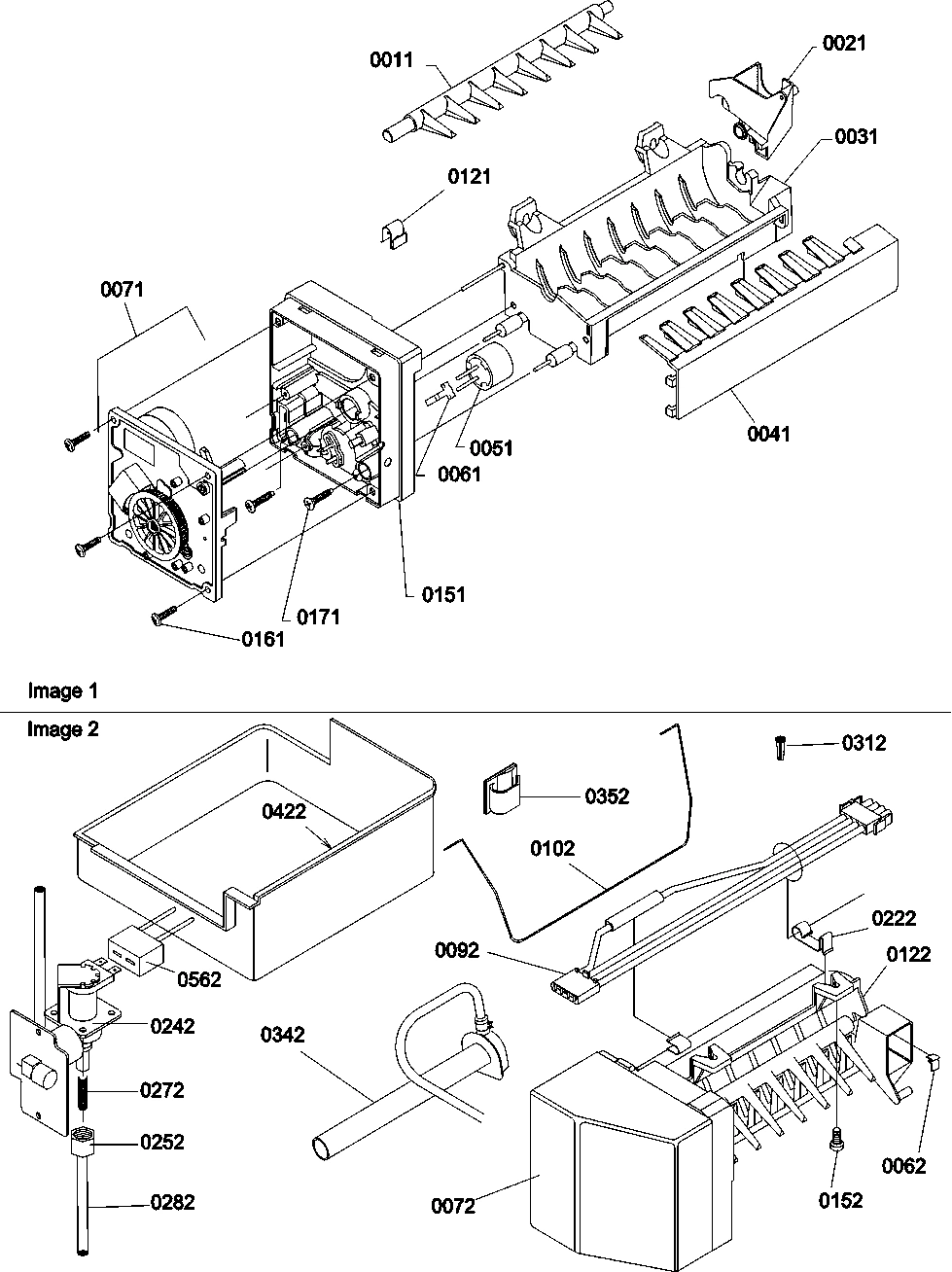

06 - Ice Maker Assembly & Parts

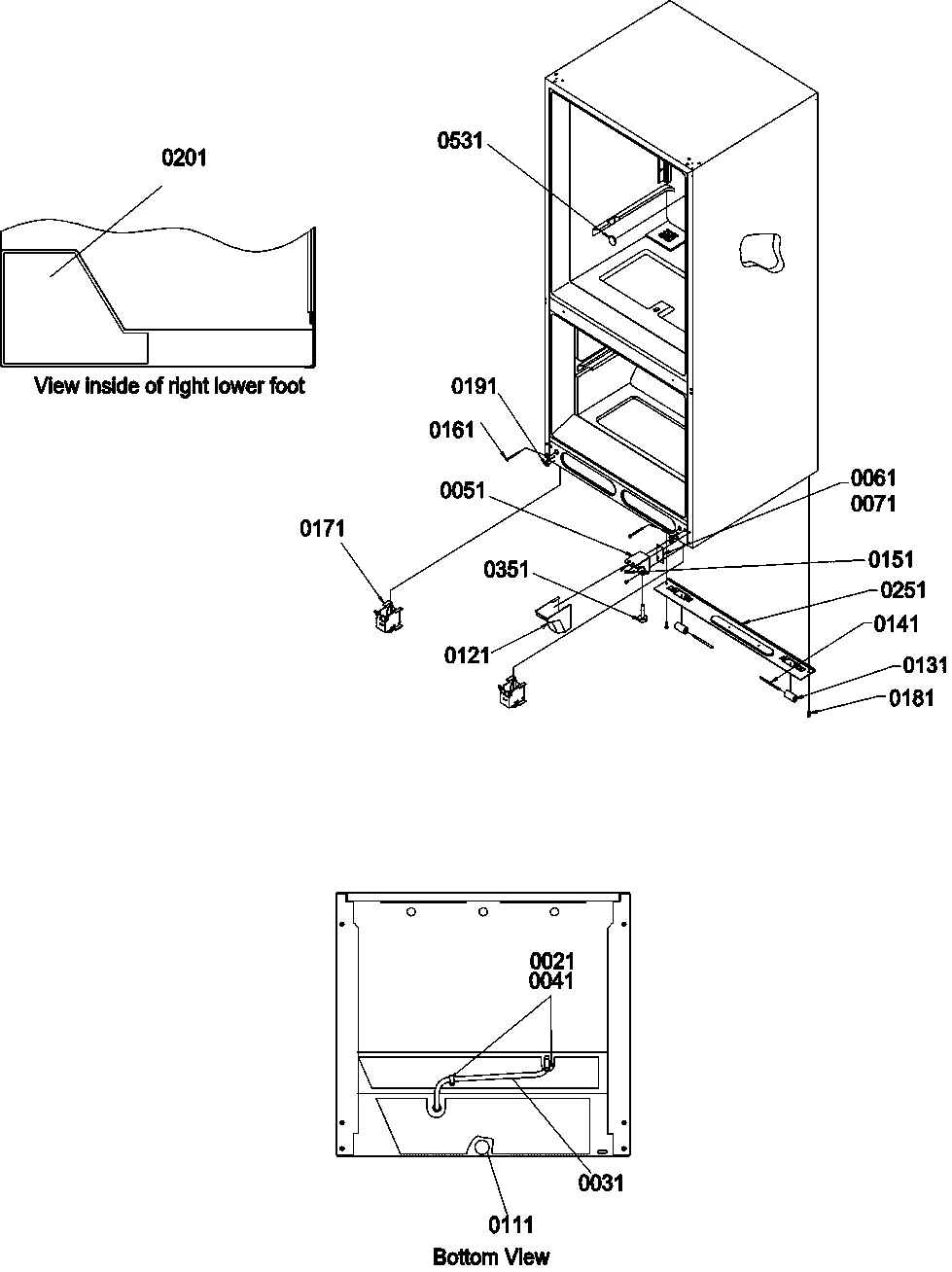

07 - Insulation & Roller Assembly

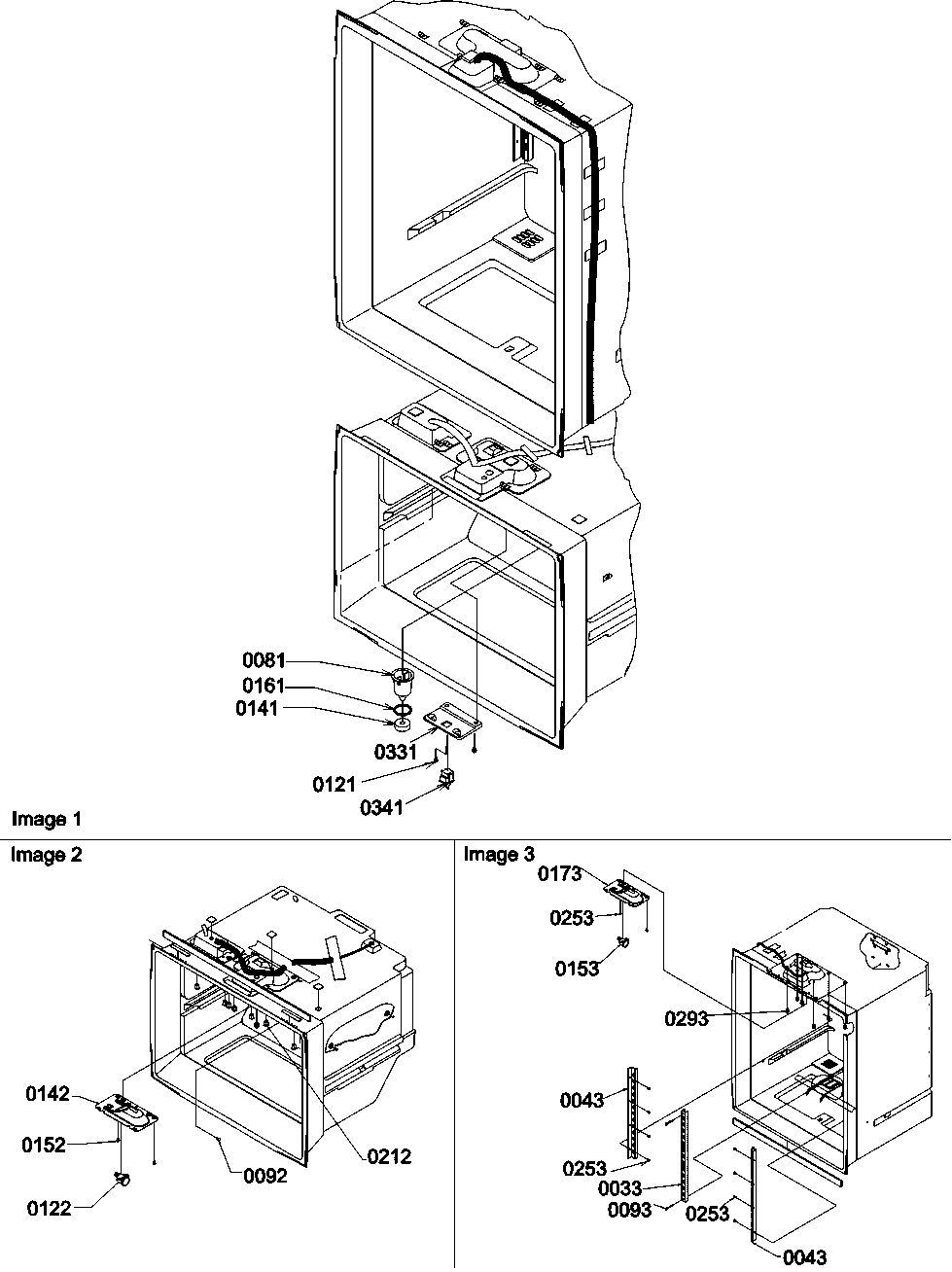

08 - Light Switches & Drain Funnel

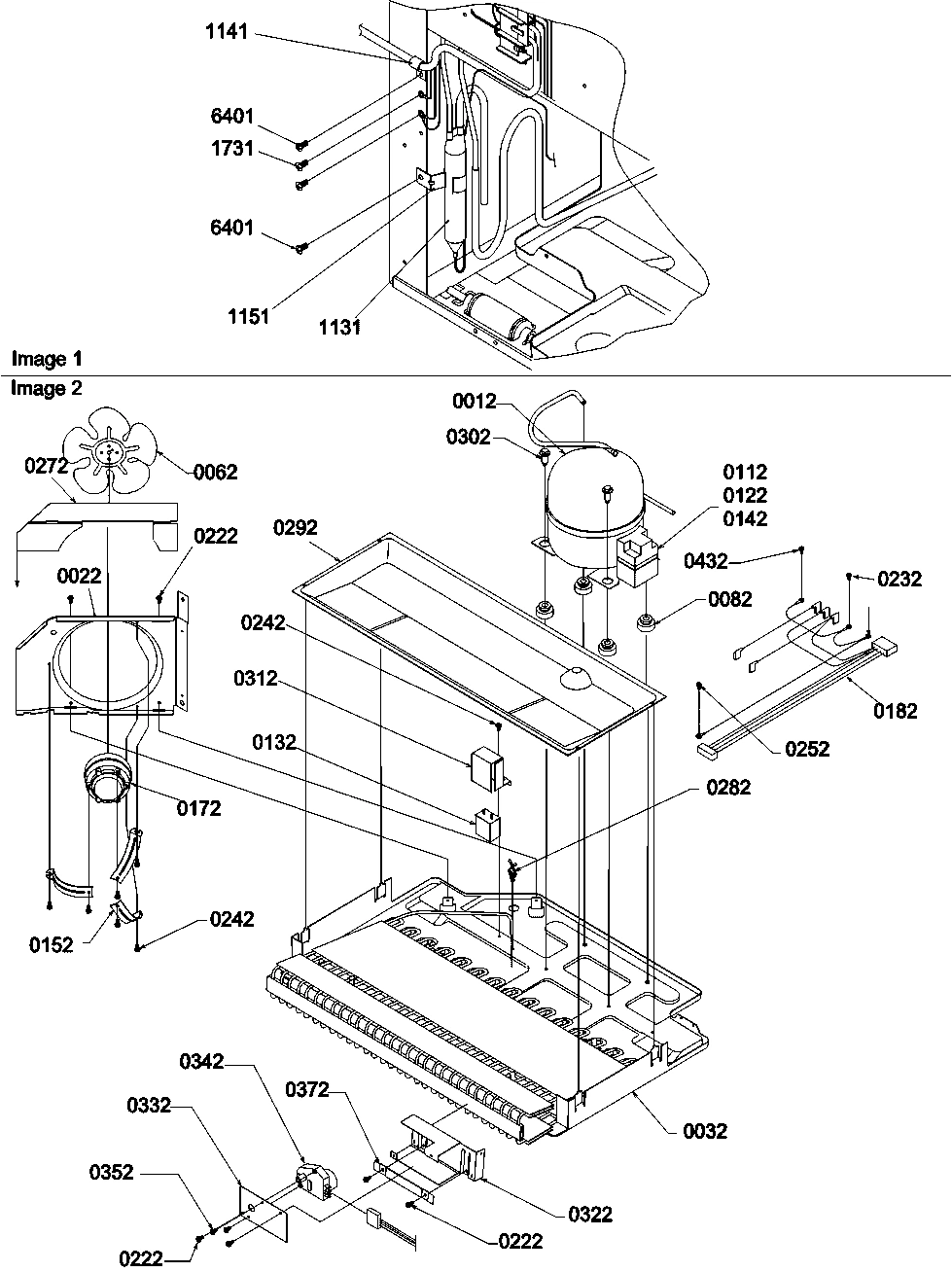

09 - Machine Compartment Assembly

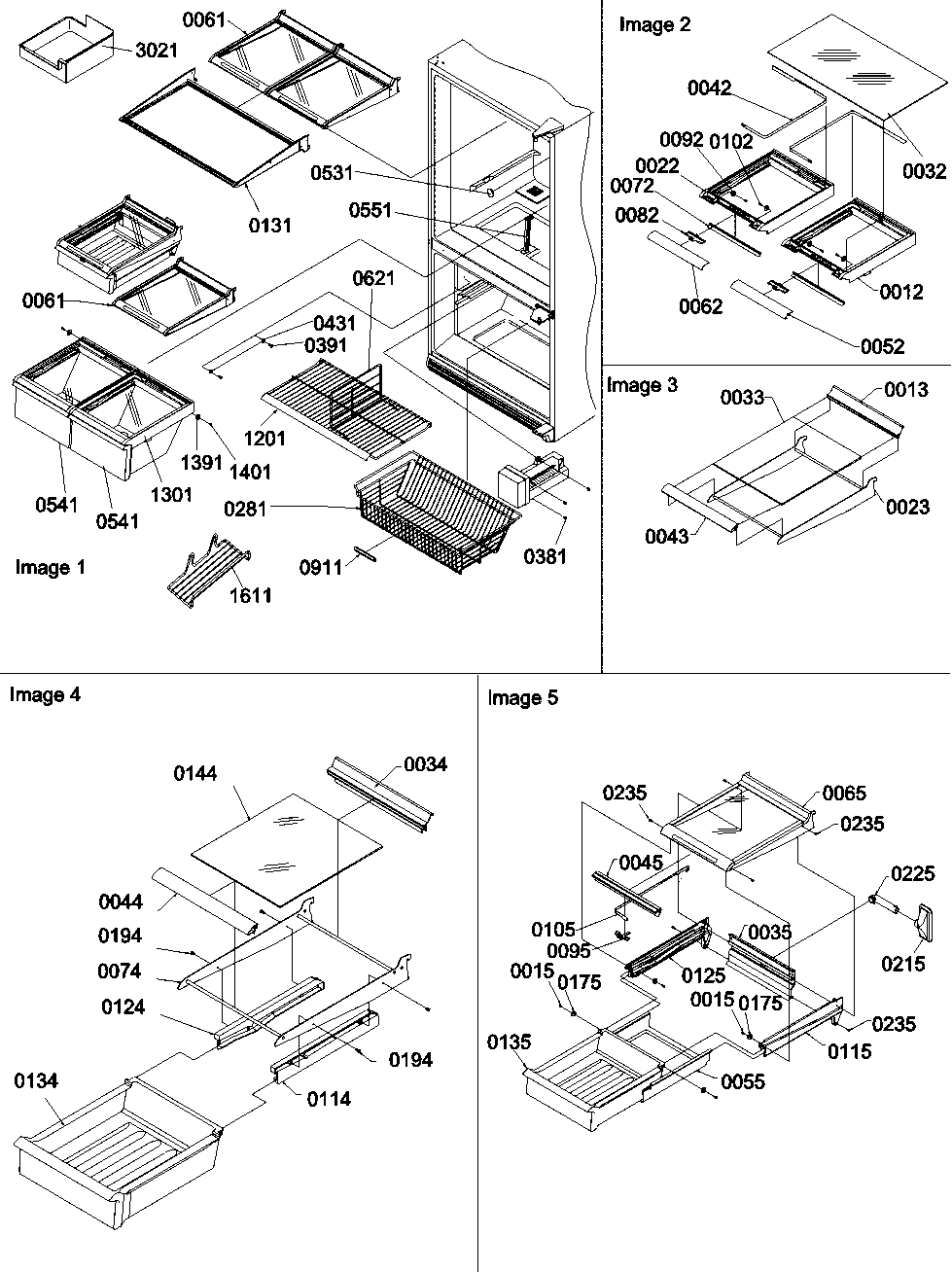

10 - Shelving Assemblies
Common parts from model Maytag BXI21VL REFRIGERATOR
11
MAY 12258307L MAY 12258307L Contact Us For Availability
11
MAY R0183119 MAY R0183119 Contact Us For Availability
12
MAY 10537404L MAY 10537404L Contact Us For Availability
12
MAY 10423129 MAY 10423129 Contact Us For Availability
12
MAY 10619306 MAY 10619306 Contact Us For Availability
12
MAY 12049710 MAY 12049710 Contact Us For Availability
12
MAY 10485901 MAY 10485901 Contact Us For Availability
21
MAY M0227217 MAY M0227217 Contact Us For Availability
21
MAY R0156839 MAY R0156839 Contact Us For Availability
22
MAY 10436404 MAY 10436404 Contact Us For Availability
22
MAY 10855401 MAY 10855401 Contact Us For Availability
22
MAY 10426911 MAY 10426911 Contact Us For Availability
22
MAY 10485902 MAY 10485902 Contact Us For Availability
23
MAY 10442407 MAY 10442407 Contact Us For Availability
31
MAY M0219730 MAY M0219730 Contact Us For Availability
31
MAY 10513302 MAY 10513302 Contact Us For Availability
32
MAY 12442201 MAY 12442201 Contact Us For Availability
32
MAY 10481210 MAY 10481210 Contact Us For Availability
32
MAY 10370035 MAY 10370035 Contact Us For Availability
33
MAY 12435801 MAY 12435801 Contact Us For Availability
35
MAY 10934903 MAY 10934903 Contact Us For Availability
41
MAY R0183120 MAY R0183120 Contact Us For Availability
41
MAY M0102303 MAY M0102303 Contact Us For Availability
42
MAY 10447107 MAY 10447107 Contact Us For Availability
42
MAY 10436506 MAY 10436506 Contact Us For Availability
42
MAY 12442501 MAY 12442501 Contact Us For Availability
42
MAY 10514002 MAY 10514002 Contact Us For Availability
43
MAY 10428409 MAY 10428409 Contact Us For Availability
43
MAY 12435701 MAY 12435701 Contact Us For Availability
45
MAY 10920303 MAY 10920303 Contact Us For Availability
51
MAY 10585505 MAY 10585505 Contact Us For Availability
52
MAY 10310901 MAY 10310901 Contact Us For Availability
52
MAY 12442401 MAY 12442401 Contact Us For Availability
52
MAY 10530318 MAY 10530318 Contact Us For Availability
53
MAY R0170059 MAY R0170059 Contact Us For Availability
55
MAY 10437304 MAY 10437304 Contact Us For Availability
61
MAY R0191094 MAY R0191094 Contact Us For Availability
61
MAY 10447903 MAY 10447903 Contact Us For Availability
61
MAY 10895709 MAY 10895709 Contact Us For Availability
62
MAY 10456838 MAY 10456838 Contact Us For Availability
62
MAY B5720302 MAY B5720302 Contact Us For Availability
62
MAY B5742604 MAY B5742604 Contact Us For Availability
62
MAY 10530319 MAY 10530319 Contact Us For Availability
63
MAY 10961001 MAY 10961001 Contact Us For Availability
64
MAY C8964401 MAY C8964401 Contact Us For Availability
65
MAY 10895708 MAY 10895708 Contact Us For Availability
71
SEE NOTE MODULE AND MOTOR ASSEMBLY -- (ORDER MAY Y00000000 Contact Us For Availability
71
MAY 10447904 MAY 10447904 Contact Us For Availability
72
MAY 12324801 MAY 12324801 Contact Us For Availability
72
MAY M0219711 MAY M0219711 Contact Us For Availability
72
MAY 10519801 MAY 10519801 Contact Us For Availability
72
MAY 10530204 MAY 10530204 Contact Us For Availability
81
MAY D7753903 MAY D7753903 Contact Us For Availability
82
GROMMET, COMPRESSOR MAY 10835901 Contact Us For Availability
82
MAY 10797501 MAY 10797501 Contact Us For Availability
83
MAY 10519101 MAY 10519101 Contact Us For Availability
91
MAY 10456837 MAY 10456837 Contact Us For Availability
92
MAY 10419015 MAY 10419015 Contact Us For Availability
92
MAY B5733302 MAY B5733302 Contact Us For Availability
92
MAY D7813004 MAY D7813004 Contact Us For Availability
92
MAY M0310701 MAY M0310701 Contact Us For Availability
93
MAY M0231426 MAY M0231426 Contact Us For Availability
95
MAY 10920401 MAY 10920401 Contact Us For Availability
102
MAY 10884401 MAY 10884401 Contact Us For Availability
105
MAY 10935002 MAY 10935002 Contact Us For Availability
111
MAY B5759611 MAY B5759611 Contact Us For Availability
112
MAY 10377015 MAY 10377015 Contact Us For Availability
115
MAY 10880202 MAY 10880202 Contact Us For Availability
121
MAY 12077303 MAY 12077303 Contact Us For Availability
121
MAY M0238616 MAY M0238616 Contact Us For Availability
121
MAY 10462502 MAY 10462502 Contact Us For Availability
121
MAY 10319801 MAY 10319801 Contact Us For Availability
121
MAY 10584805 MAY 10584805 Contact Us For Availability
122
MAY D7824705 MAY D7824705 Contact Us For Availability
122
MAY 10097202 MAY 10097202 Contact Us For Availability
124
MAY M0310338 MAY M0310338 Contact Us For Availability
125
MAY 10897102 MAY 10897102 Contact Us For Availability
131
MAY 10450701 MAY 10450701 Contact Us For Availability
132
MAY 10304111 MAY 10304111 Contact Us For Availability
132
MAY C8931604 MAY C8931604 Contact Us For Availability
135
MAY 10417013 MAY 10417013 Contact Us For Availability
141
MAY B8345401 MAY B8345401 Contact Us For Availability
141
MAY 10183121 MAY 10183121 Contact Us For Availability
141
MAY 10450901 MAY 10450901 Contact Us For Availability
141
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
142
MAY 10757301 MAY 10757301 Contact Us For Availability
151
MAY 10562204 MAY 10562204 Contact Us For Availability
151
MAY R0183121 MAY R0183121 Contact Us For Availability
151
MAY M0233847 MAY M0233847 Contact Us For Availability
152
MAY 10582501 MAY 10582501 Contact Us For Availability
153
MAY D7714408 MAY D7714408 Contact Us For Availability
161
MAY 10562205 MAY 10562205 Contact Us For Availability
161
MAY R0186041 MAY R0186041 Contact Us For Availability
161
MAY M0204336 MAY M0204336 Contact Us For Availability
161
SEAL, O RING MAY M0500703 Contact Us For Availability
171
MAY 10562206 MAY 10562206 Contact Us For Availability
171
MAY R0186040 MAY R0186040 Contact Us For Availability
171
MAY 12452601 MAY 12452601 Contact Us For Availability
172
MAY 10884504 MAY 10884504 Contact Us For Availability
173
MAY 12427502 MAY 12427502 Contact Us For Availability
181
MAY 10351001 MAY 10351001 Contact Us For Availability
181
MAY M0260242 MAY M0260242 Contact Us For Availability
182
MAY 12458101 MAY 12458101 Contact Us For Availability
191
MAY 10200801 MAY 10200801 Contact Us For Availability
191
MAY M0211031 MAY M0211031 Contact Us For Availability
201
MAY C8902601 MAY C8902601 Contact Us For Availability
201
MAY 10663001 MAY 10663001 Contact Us For Availability
211
MAY 12446501 MAY 12446501 Contact Us For Availability
211
MAY 10202001 MAY 10202001 Contact Us For Availability
215
MAY 10501901 MAY 10501901 Contact Us For Availability
222
MAY 10526701 MAY 10526701 Contact Us For Availability
222
MAY M0224416 MAY M0224416 Contact Us For Availability
225
MAY 10486401 MAY 10486401 Contact Us For Availability
231
MAY D7795826 MAY D7795826 Contact Us For Availability
231
MAY 10686402 MAY 10686402 Contact Us For Availability
232
MAY M0232903 MAY M0232903 Contact Us For Availability
235
MAY M0211533 MAY M0211533 Contact Us For Availability
241
MAY 12056201 MAY 12056201 Contact Us For Availability
242
MAY 10524606 MAY 10524606 Contact Us For Availability
242
MAY M0223816 MAY M0223816 Contact Us For Availability
251
MAY 10502303 MAY 10502303 Contact Us For Availability
251
MAY 10427112 MAY 10427112 Contact Us For Availability
252
NUT, SLEEVE MAY M0753001 Contact Us For Availability
252
MAY M0253916 MAY M0253916 Contact Us For Availability
253
SCREW, SM MAY M0238642 Contact Us For Availability
261
MAY R0161050 MAY R0161050 Contact Us For Availability
272
MAY A1055101 MAY A1055101 Contact Us For Availability
272
MAY 10442702 MAY 10442702 Contact Us For Availability
281
MAY 12433501 MAY 12433501 Contact Us For Availability
282
MAY B5705308 MAY B5705308 Contact Us For Availability
282
MAY B5667304 MAY B5667304 Contact Us For Availability
291
MAY 10485406 MAY 10485406 Contact Us For Availability
292
MAY 10427405 MAY 10427405 Contact Us For Availability
293
MAY M0581001 MAY M0581001 Contact Us For Availability
302
MAY M0221523 MAY M0221523 Contact Us For Availability
312
INSERT, PLASTIC TUBE MAY A3223101 Contact Us For Availability
312
MAY 10266402 MAY 10266402 Contact Us For Availability
321
MAY D7687530 MAY D7687530 Contact Us For Availability
322
MAY 10503201 MAY 10503201 Contact Us For Availability
331
MAY D7687701 MAY D7687701 Contact Us For Availability
331
MAY D7297604 MAY D7297604 Contact Us For Availability
332
MAY 10503102 MAY 10503102 Contact Us For Availability
341
MAY C3680310 MAY C3680310 Contact Us For Availability
342
ELBOW, FILL TUBE MAY 10463201 Contact Us For Availability
342
MAY 10530703 MAY 10530703 Contact Us For Availability
351
MAY D7689905 MAY D7689905 Contact Us For Availability
351
MAY 10354001 MAY 10354001 Contact Us For Availability
352
MAY M0216705 MAY M0216705 Contact Us For Availability
372
MAY 10542701 MAY 10542701 Contact Us For Availability
381
MAY M0211018 MAY M0211018 Contact Us For Availability
381
MAY 12285405 MAY 12285405 Contact Us For Availability
391
MAY 12443502 MAY 12443502 Contact Us For Availability
401
MAY M0226233 MAY M0226233 Contact Us For Availability
422
MAY 10476201 MAY 10476201 Contact Us For Availability
431
MAY 10474805 MAY 10474805 Contact Us For Availability
432
MAY M0231604 MAY M0231604 Contact Us For Availability
441
SHIM, NON METAL (WHT) MAY M0274057 Contact Us For Availability
441
MAY 10551502 MAY 10551502 Contact Us For Availability
471
MAY 10448501 MAY 10448501 Contact Us For Availability
481
MAY 10448502 MAY 10448502 Contact Us For Availability
481
MAY 12273514 MAY 12273514 Contact Us For Availability
491
MAY 10448503 MAY 10448503 Contact Us For Availability
511
MAY 10444709 MAY 10444709 Contact Us For Availability
511
MAY 12457801 MAY 12457801 Contact Us For Availability
521
MAY 12285502 MAY 12285502 Contact Us For Availability
531
MAY M0310342 MAY M0310342 Contact Us For Availability
531
PLUG, BUTTON (WHT) MAY M0310343 Contact Us For Availability
541
MAY 10432008 MAY 10432008 Contact Us For Availability
551
MAY 10416911 MAY 10416911 Contact Us For Availability
551
MAY 10461901 MAY 10461901 Contact Us For Availability
561
MAY 10423414 MAY 10423414 Contact Us For Availability
562
MAY 10525901 MAY 10525901 Contact Us For Availability
571
MAY 10502912 MAY 10502912 Contact Us For Availability
601
MAY M0238731 MAY M0238731 Contact Us For Availability
621
MAY D7806002 MAY D7806002 Contact Us For Availability
631
MAY 10391302 MAY 10391302 Contact Us For Availability
651
MAY M0274058 MAY M0274058 Contact Us For Availability
671
MAY 10614305 MAY 10614305 Contact Us For Availability
681
MAY 10699301 MAY 10699301 Contact Us For Availability
691
MAY 10428001 MAY 10428001 Contact Us For Availability
701
MAY 12039806 MAY 12039806 Contact Us For Availability
711
MAY 12041828 MAY 12041828 Contact Us For Availability
731
MAY 10916502 MAY 10916502 Contact Us For Availability
761
GASKET, FOAM MAY A3189320 Contact Us For Availability
831
MAY 12056301 MAY 12056301 Contact Us For Availability
841
MAY 10493302 MAY 10493302 Contact Us For Availability
851
MAY M0238846 MAY M0238846 Contact Us For Availability
871
MAY 10427716 MAY 10427716 Contact Us For Availability
901
MAY 10623002 MAY 10623002 Contact Us For Availability
911
HANDLE, BASKET/SHELF MAY 10508506 Contact Us For Availability
921
SCREW, HNDL CONE MAY 12248201 Contact Us For Availability
921
MAY 10502401 MAY 10502401 Contact Us For Availability
931
MAY 12443302 MAY 12443302 Contact Us For Availability
931
MAY 10486104 MAY 10486104 Contact Us For Availability
941
MAY 10638601 MAY 10638601 Contact Us For Availability
1051
MAY 12271401 MAY 12271401 Contact Us For Availability
1091
MAY M0216531 MAY M0216531 Contact Us For Availability
1101
MAY C8946703 MAY C8946703 Contact Us For Availability
1111
MAY D7878825 MAY D7878825 Contact Us For Availability
1131
DRIER MAY B2150504 Contact Us For Availability
1141
MAY M0103904 MAY M0103904 Contact Us For Availability
1151
MAY 10547001 MAY 10547001 Contact Us For Availability
1201
MAY 12204704 MAY 12204704 Contact Us For Availability
1301
MAY 12431806Q MAY 12431806Q Contact Us For Availability
1391
ROLLER, PAN MAY 10481001 Contact Us For Availability
1401
MAY M0238105 MAY M0238105 Contact Us For Availability
1451
MAY M0310308 MAY M0310308 Contact Us For Availability
1461
MAY 10663002 MAY 10663002 Contact Us For Availability
1551
MAY M0310305 MAY M0310305 Contact Us For Availability
1711
MAY M0270538 MAY M0270538 Contact Us For Availability
1731
MAY M0239216 MAY M0239216 Contact Us For Availability
1751
MAY B5720303 MAY B5720303 Contact Us For Availability
1761
MAY M0216716 MAY M0216716 Contact Us For Availability
1901
MAY A3030353 MAY A3030353 Contact Us For Availability
2011
MAY M0223230 MAY M0223230 Contact Us For Availability
3021
MAY 12045502 MAY 12045502 Contact Us For Availability
7011
MAY 12047201 MAY 12047201 Contact Us For Availability
8511
MAY M0239229 MAY M0239229 Contact Us For Availability
NI
MAY M0114003 MAY M0114003 Contact Us For Availability
NI
MAY M0310730 MAY M0310730 Contact Us For Availability
NI
MAY M0321202 MAY M0321202 Contact Us For Availability
NI
MAY 10527028 MAY 10527028 Contact Us For Availability
NI
MAY 10834701 MAY 10834701 Contact Us For Availability
NI
MAY A3036901 MAY A3036901 Contact Us For Availability
NI
MAY A3124301 MAY A3124301 Contact Us For Availability
NI
MAY M0311301 MAY M0311301 Contact Us For Availability
× ![]()
