Model LG BX327 – Common Parts & Diagrams

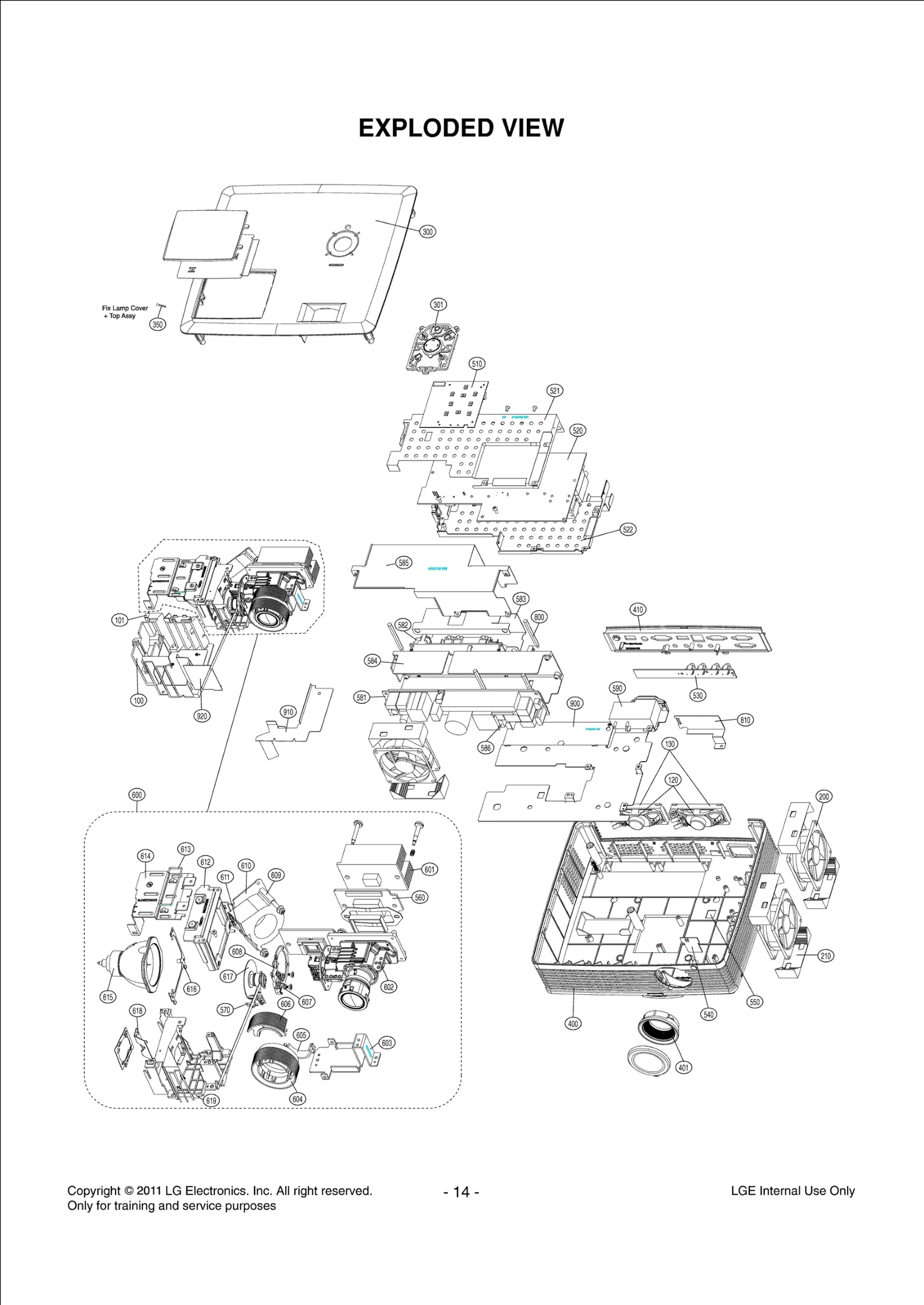

Diagram 0
Diagram 1
Common parts from model LG BX327
101
Switch,Micro LGE 6600X000017 Contact Us For Availability
120
Chassis Assembly LGE EBT61075601 Contact Us For Availability
121
Speaker,MID,Range LGE EAB61188601 Contact Us For Availability
130
Bracket LGE MAZ62265901 Contact Us For Availability
200
Fan Module LGE EAL44320702 Contact Us For Availability
210
Damper LGE MCQ63484401 Contact Us For Availability
300
Case Assembly LGE ABQ73202803 Contact Us For Availability
301
Button,Control LGE MBG63365603 Contact Us For Availability
302
Cover LGE MCK63646402 Contact Us For Availability
303
Plate,Metal LGE MGJ62263501 Contact Us For Availability
350
Screw,Taptite LGE FAB30007517 Contact Us For Availability
410
Cover Assembly,Rear LGE ACQ77092901 Contact Us For Availability
510
Chassis Assembly LGE EBT60952001 Contact Us For Availability
520
Hand Insert PCB Assembly LGE EBR65981701 Contact Us For Availability
521
Plate,Shield LGE MGJ62264202 Contact Us For Availability
522
Plate,Shield LGE MGJ62264302 Contact Us For Availability
540
Chassis Assembly LGE EBT60952101 Contact Us For Availability
550
Chassis Assembly LGE EBT61115001 Contact Us For Availability
560
Chassis Assembly LGE EBT60892701 Contact Us For Availability
570
Chassis Assembly LGE EBT61046401 Contact Us For Availability
580
Chassis Assembly LGE EBT61093201 Contact Us For Availability
581
Power Supply Assembly LGE EAY61109101 Contact Us For Availability
582
Ballast LGE EAY30238705 Contact Us For Availability
583
Insulator LGE MEV62551101 Contact Us For Availability
584
Bracket LGE MAZ62305401 Contact Us For Availability
586
Thermostat LGE EBG59066506 Contact Us For Availability
600
Chassis Assembly LGE EBT61093101 Contact Us For Availability
601
Heat Sink LGE MED61971101 Contact Us For Availability
602
Lens LGE MFB41428505 Contact Us For Availability
603
Supporter LGE MJH62055001 Contact Us For Availability
604
Bracket LGE MAZ41567801 Contact Us For Availability
605
Bracket LGE MAZ41567601 Contact Us For Availability
606
Bracket LGE MAZ41567501 Contact Us For Availability
607
Damper LGE MCQ41609901 Contact Us For Availability
608
Bracket LGE MAZ41609701 Contact Us For Availability
610
Supporter LGE MJH62055101 Contact Us For Availability
611
Supporter LGE 4972V00120B Contact Us For Availability
613
Handle LGE 3650V00023C Contact Us For Availability
614
Supporter LGE MJH62034001 Contact Us For Availability
615
Lamp,Mercury LGE 6912B22008E Contact Us For Availability
617
Filter LGE MDJ39081405 Contact Us For Availability
618
Plate,Metal LGE MGJ62263601 Contact Us For Availability
800
Supporter LGE 4980V01097Q Contact Us For Availability
810
Supporter LGE MJH62034102 Contact Us For Availability
910
Plate,Shield LGE MGJ62603002 Contact Us For Availability
920
Plate,Shield LGE MGJ62264102 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72913306 Contact Us For Availability
A4
Cap LGE MBL63057401 Contact Us For Availability
A7
Holder LGE 4930V00083B Contact Us For Availability
A8
SIGNAL CABLE LGE 6866VA9001A Contact Us For Availability
A11
Title LGE SAC30666027 Contact Us For Availability
AR207
Resistor,Array LGE EBC32260601 Contact Us For Availability
AR300
Resistor,Array LGE 0RR0222T621 Contact Us For Availability
AR412
Resistor,Array LGE EBC39283301 Contact Us For Availability
BU700
Buzzer,Piezo LGE 6908VB0001B Contact Us For Availability
C24
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C40
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C120
CAPACITOR,FIXED ELEC LGE 0CE476WC6DC Contact Us For Availability
C122
Capacitor,AL,Chip LGE 0CE227SC6DC Contact Us For Availability
C131
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C134
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
C145
Capacitor,Ceramic,Chip LGE EAE58165801 Contact Us For Availability
C148
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C153
CAPACITOR,FIXED CERA LGE 0CK224CF56A Contact Us For Availability
C219
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C232
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C264
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C300
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C303
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C506
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C507
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C514
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C515
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C519
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C528
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C582
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C622
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C701
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C717
Capacitor,Ceramic,Ch LGE 0CK335FK66A Contact Us For Availability
C719
CAPACITOR,FIXED CERA LGE 0CK225DK94A Contact Us For Availability
C729
Capacitor,AL,Chip LGE 0CZZTAT008E Contact Us For Availability
C834
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C835
Capacitor,Ceramic,Ch LGE 0CK334DK56A Contact Us For Availability
C847
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C849
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C907
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C909
Capacitor,AL,Chip LGE 0CE106WH6DC Contact Us For Availability
C1000
CAPACITOR,FIXED CERA LGE 0CK476FD67A Contact Us For Availability
C1019
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C1030
Capacitor,Ceramic,Chip LGE 0CC560CK41A Contact Us For Availability
C1046
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
D2
Diode,TVS LGE EAH33945901 Contact Us For Availability
D118
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D500
Diode,Schottky LGE 0DRDI00028B Contact Us For Availability
D702
Diode,Schottky LGE 0DRDI00108A Contact Us For Availability
D803
Diode,TVS LGE EAH39491701 Contact Us For Availability
D804
DIODE,RECTIFIERS LGE 0DRON00088A Contact Us For Availability
D808
DIODE,RECTIFIERS LGE 0DRDI00148A Contact Us For Availability
D810
Diode,Schottky LGE EAH40478101 Contact Us For Availability
IC1
Receiver Module LGE EAV37989902 Contact Us For Availability
IC10
Socket,IC LGE EAG61232301 Contact Us For Availability
IC41
Photo,Interrupter LGE EAV61032501 Contact Us For Availability
IC100
IC,ROHM LGE 0IRH765700B Contact Us For Availability
IC103
IC,Buffer LGE 0IPRPBB005A Contact Us For Availability
IC104
IC,POWER MANAGEMENT LGE 0IPMG00004A Contact Us For Availability
IC105
IC,Audio Amplifier LGE EAN33643401 Contact Us For Availability
IC200
IC,NAND Flash Memory LGE EAN38563401 Contact Us For Availability
IC201
IC,Analog Switch LGE EAN43439401 Contact Us For Availability
IC202
IC,Serial Flash Memory LGE EAN38551602 Contact Us For Availability
IC203
IC,EEPROM LGE EAN35989901 Contact Us For Availability
IC204
IC,EEPROM LGE EAN43349002 Contact Us For Availability
IC205
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC206
Display SOC,Digital TV LGE EAN60351703 Contact Us For Availability
IC300
IC,Voltage Detector LGE 0IMCRKE004A Contact Us For Availability
IC303
IC,Microprocessors LGE EAN60919801 Contact Us For Availability
IC400
IC,DDR2 SDRAM LGE EAN55706101 Contact Us For Availability
IC402
IC,DDR2 SDRAM LGE EAN55705501 Contact Us For Availability
IC500
IC,DC,DC Converter LGE EAN35520901 Contact Us For Availability
IC501
IC,DC,DC Converter LGE EAN33143501 Contact Us For Availability
IC506
IC,POWER MANAGEMENT LGE 0IPMG00048A Contact Us For Availability
IC701
IC,Power Driver LGE 0IMCR02219A Contact Us For Availability
IC703
IC,MICRO CONTROLLER LGE 0IMCRFA003A Contact Us For Availability
IC706
IC,EEPROM LGE 0IMMR00023A Contact Us For Availability
IC800
IC,LDO Voltage Regulator LGE EAN39841601 Contact Us For Availability
IC801
IC,MICRO CONTROLLER LGE 0IMCRSG008A Contact Us For Availability
IC803
IC,Unclassified LGE 0IPMG78386A Contact Us For Availability
IC804
IC,LDO Voltage Regulator LGE EAN60923001 Contact Us For Availability
IC901
IC,LINEAR LGE 0ILNR00038A Contact Us For Availability
IC1001
IC,Gate LGE 0ILNRON009B Contact Us For Availability
IC1002
IC,STANDARD LOGIC LGE 0ISTLON023B Contact Us For Availability
IC1005
IC,Ethernet LGE EAN58379401 Contact Us For Availability
IC1006
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC1007
IC,STANDARD LOGIC LGE 0ISTL00024A Contact Us For Availability
IC1100
IC,DDR2 SDRAM LGE EAN60762901 Contact Us For Availability
IC1102
IC,NOR Flash Memory LGE EAN61126001 Contact Us For Availability
JK1
Jack,Phone LGE 6612F00099E Contact Us For Availability
JK3
JACK,PHONE LGE 6612F00099A Contact Us For Availability
JK100
Jack,RCA LGE 6612F00025H Contact Us For Availability
JK1005
Jack,Modular LGE EAG38015701 Contact Us For Availability
L2
Filter,Bead LGE EAM30764101 Contact Us For Availability
L5
Filter,Bead LGE EAM38769501 Contact Us For Availability
L105
Inductor,Wire Wound,Chip LGE EAP60684501 Contact Us For Availability
L500
Filter,Bead LGE EAM38769505 Contact Us For Availability
L505
Inductor,Wire Wound, LGE EAP32842805 Contact Us For Availability
L507
Filter,LCR LGE 6200J000132 Contact Us For Availability
L519
FILTER(CIRC),EMC LGE 0LCML00004A Contact Us For Availability
L702
COIL,ENERGY RECOVERY LGE 6140VR0007A Contact Us For Availability
L815
Inductor,Wire Wound, LGE EAP32842807 Contact Us For Availability
L818
Inductor,Wire Wound,Chip LGE EAP38274503 Contact Us For Availability
L1002
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LD500
LED LGE 0DL233309AC Contact Us For Availability
LV1
Cable,FFC LGE EAD61078205 Contact Us For Availability
NR03
Thermistor,NTC LGE 6322A00028A Contact Us For Availability
P1
Connector,Wafer LGE 6630V90141D Contact Us For Availability
P2
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
P100
Connector,DSUB LGE 6630G00004B Contact Us For Availability
P101
Connector,Wafer LGE 6630V90141B Contact Us For Availability
P102
CONNECTOR (CIRC),D-S LGE 6630TGA004F Contact Us For Availability
P700
Connector,FFC/FPC/PIC LGE EAG61008602 Contact Us For Availability
P800
Connector,Wafer LGE 6602T12005D Contact Us For Availability
P802
CONNECTOR (CIRC),WAF LGE 6630VE00204 Contact Us For Availability
P1001
Connector,FFC/FPC/PI LGE 6630X60128A Contact Us For Availability
P1002
CONNECTOR (CIRC),WAF LGE 6602V12001A Contact Us For Availability
P1006
Connector,Wafer LGE 6602T12006D Contact Us For Availability
P1101
Connector,Wafer LGE 6630V90141H Contact Us For Availability
Q702
TR,Bipolar LGE 0TR102009AM Contact Us For Availability
Q804
TRANSISTOR,FETS LGE 0TFON80004C Contact Us For Availability
Q1000
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q1006
TR,Bipolar LGE EBK42831501 Contact Us For Availability
Q1009
FET LGE 0TFRH80001A Contact Us For Availability
R2
RESISTOR,METAL GLAZE LGE 0RJ1302D677 Contact Us For Availability
R2
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R4
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R7
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R8
Resistor,Chip LGE EBC32176501 Contact Us For Availability
R103
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R105
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R141
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R207
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R213
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R236
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R243
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R245
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R257
Resistor,Chip LGE 0RJ0561D677 Contact Us For Availability
R268
Resistor,Chip LGE 0RJ3900E472 Contact Us For Availability
R287
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R298
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R303
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R330
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R430
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R500
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R508
RESISTOR,METAL GLAZE LGE 0RJ9101D477 Contact Us For Availability
R509
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R522
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R528
RESISTOR,METAL GLAZE LGE 0RJ1300D477 Contact Us For Availability
R529
Resistor,Chip LGE 0RJ0622D677 Contact Us For Availability
R720
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R723
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R729
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R734
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R740
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R761
Resistor,Chip LGE 0RJ6800C678 Contact Us For Availability
R763
Resistor,Chip LGE 0RH0272D622 Contact Us For Availability
R765
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R767
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R781
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R801
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R804
RESISTOR,METAL GLAZE LGE 0RJ1211D477 Contact Us For Availability
R816
Resistor,Chip LGE 0RJ0470E672 Contact Us For Availability
R820
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R824
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R827
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R830
Resistor,Chip LGE 0RJ3301D477 Contact Us For Availability
R831
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R832
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R833
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R835
Resistor,Chip LGE 0RJ0100J488 Contact Us For Availability
R836
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R838
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R839
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R902
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R1002
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R1047
RESISTOR,METAL GLAZE LGE 0RJ1800D677 Contact Us For Availability
R1067
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R1101
Resistor,Chip LGE 0RJ3000C478 Contact Us For Availability
R1102
Resistor,Chip LGE 0RH1800D422 Contact Us For Availability
R1123
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R1128
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R1144
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R1158
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1201
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
S1
Harness,Single LGE EAD57675111 Contact Us For Availability
S2
Harness,Single LGE EAD52821203 Contact Us For Availability
S3
Harness,Single LGE EAD60732901 Contact Us For Availability
S7
Harness,Single LGE EAD60732912 Contact Us For Availability
S8
Harness,Single LGE 6631V39031D Contact Us For Availability
S9
Harness,Single LGE 6631V00043Q Contact Us For Availability
SW700
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
X700
Crystal LGE EAW60763903 Contact Us For Availability
X1000
Crystal LGE 6212AB2015C Contact Us For Availability
ZD101
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
× ![]()
Login and Registration Form
