Model Maytag BX22TE REFRIGERATOR – Common Parts & Diagrams

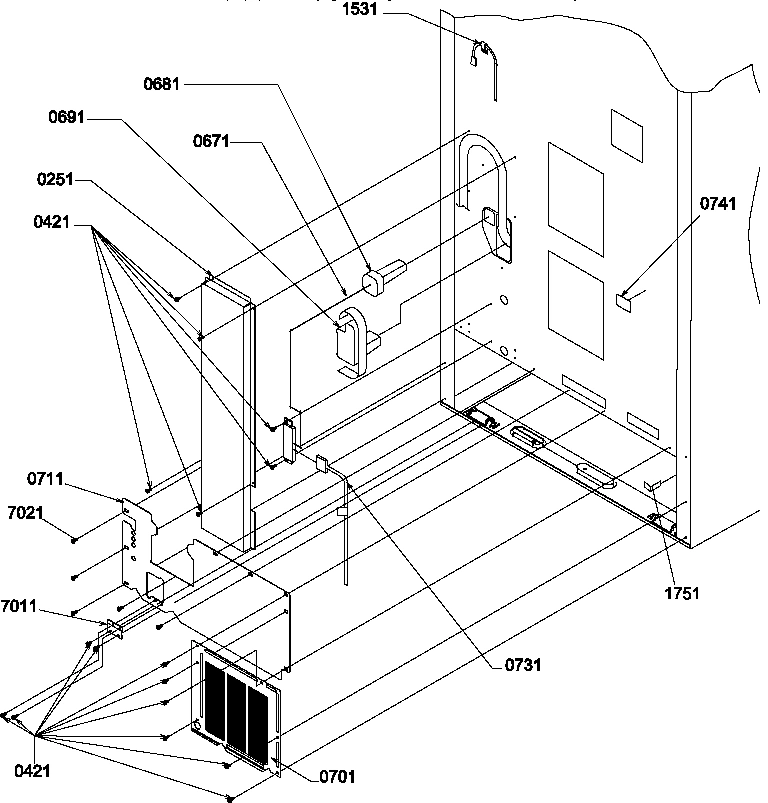

01 - CABINET BACK

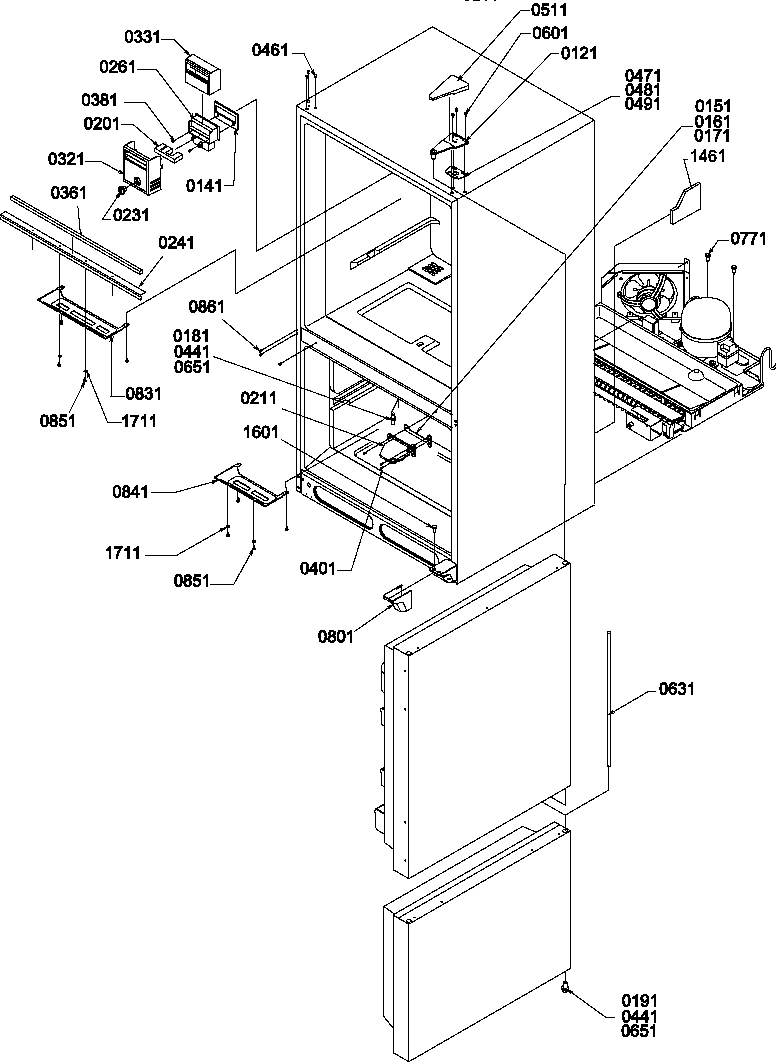

02 - CONTROLS & LIGHT COVERS

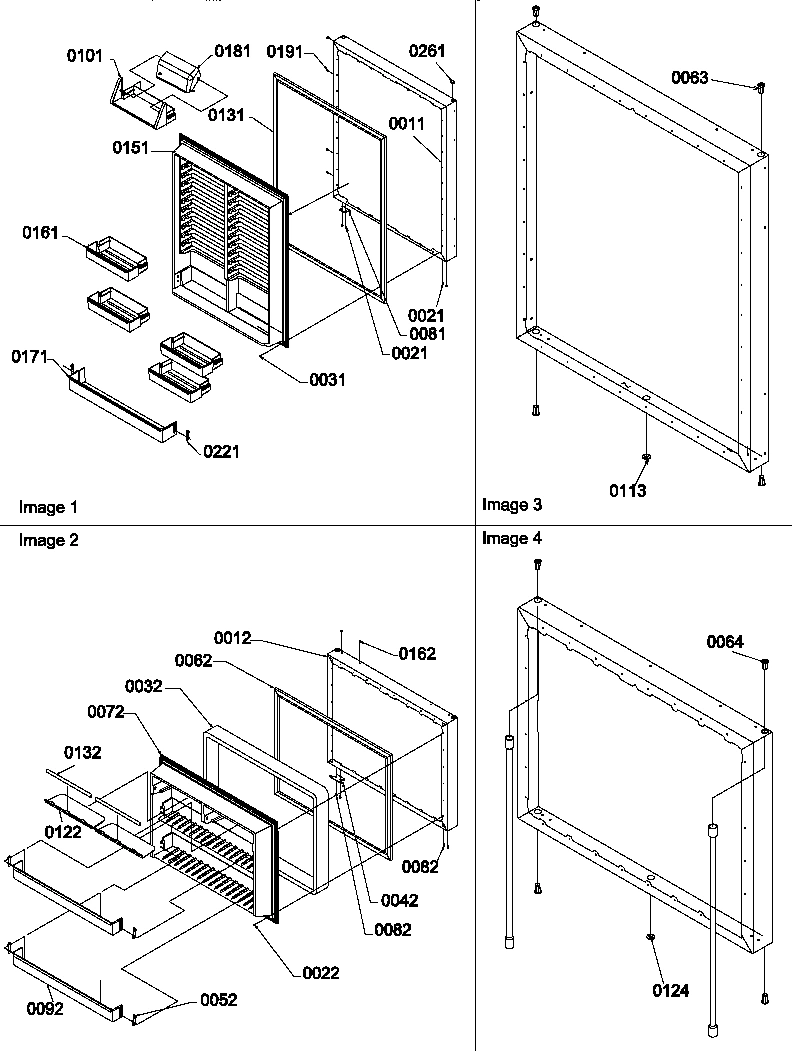

03 - DOOR ASSEMBLIES

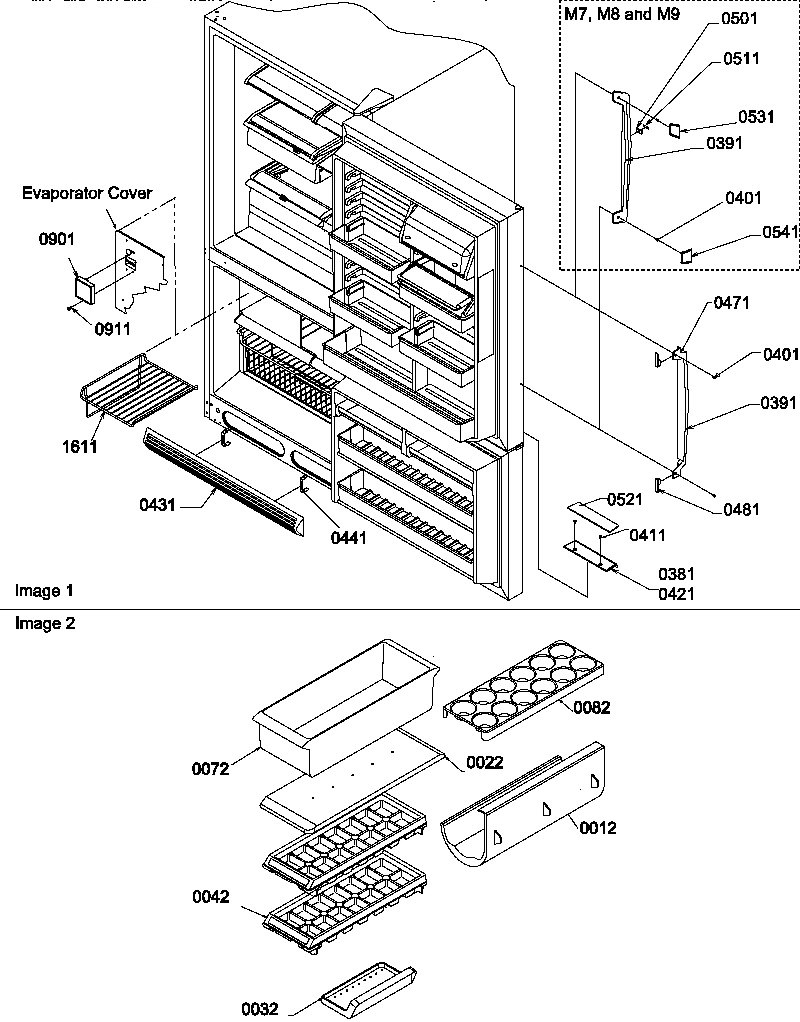

04 - DOOR HANDLES & ACCESSORIES

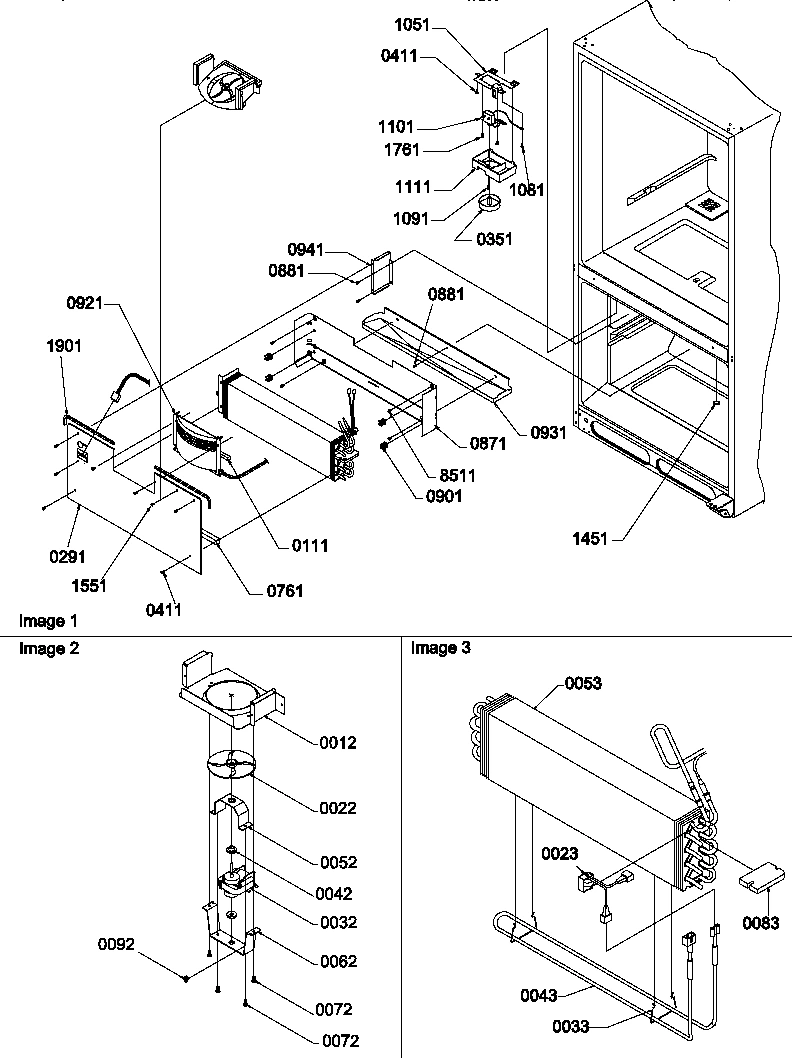

05 - EVAP & FZ CONTROL ASSY

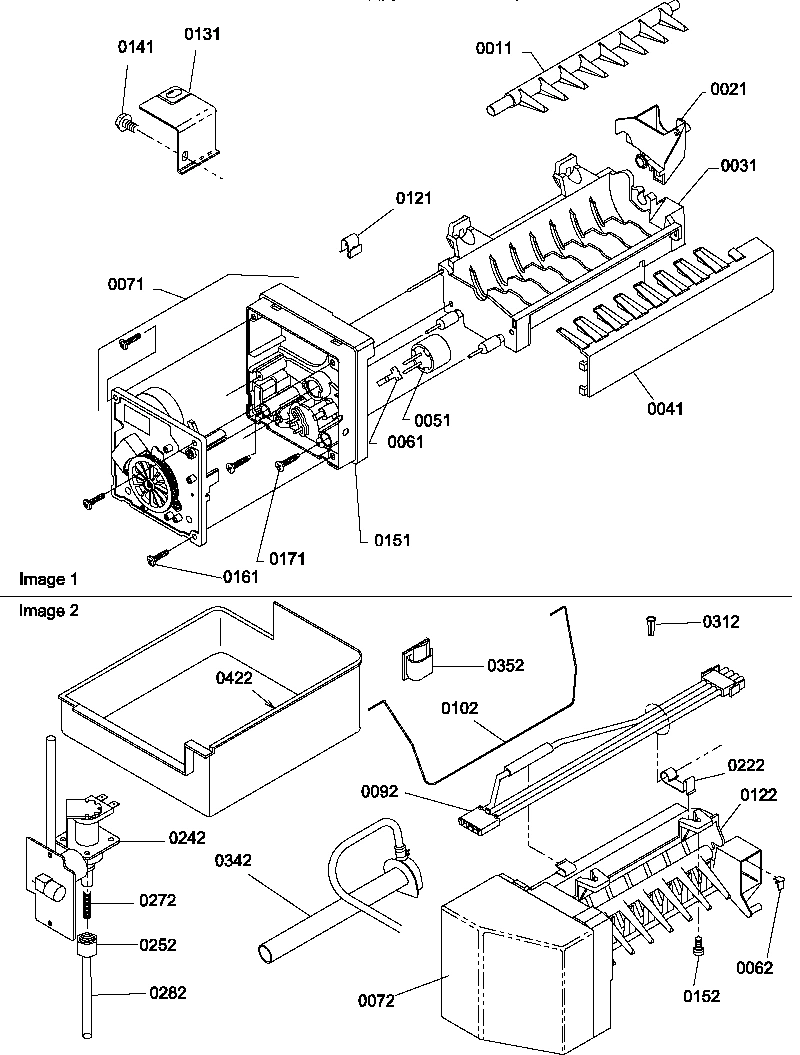

06 - ICE MAKER ASSY & PARTS

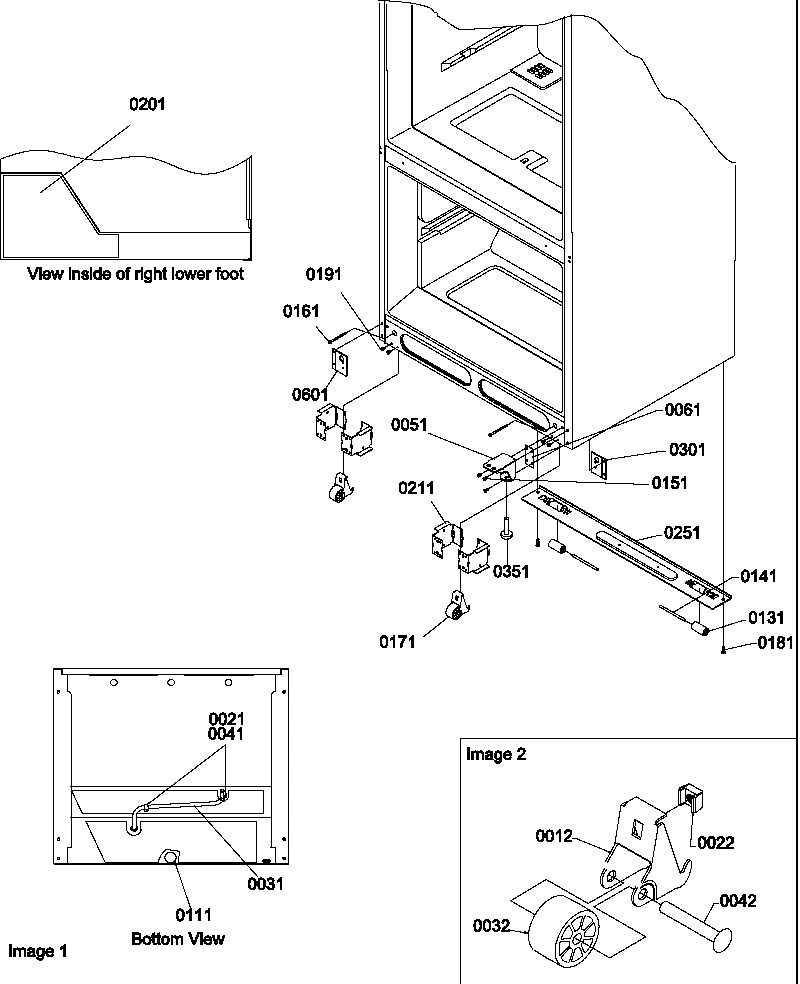

07 - INSULATION & ROLLER ASSY

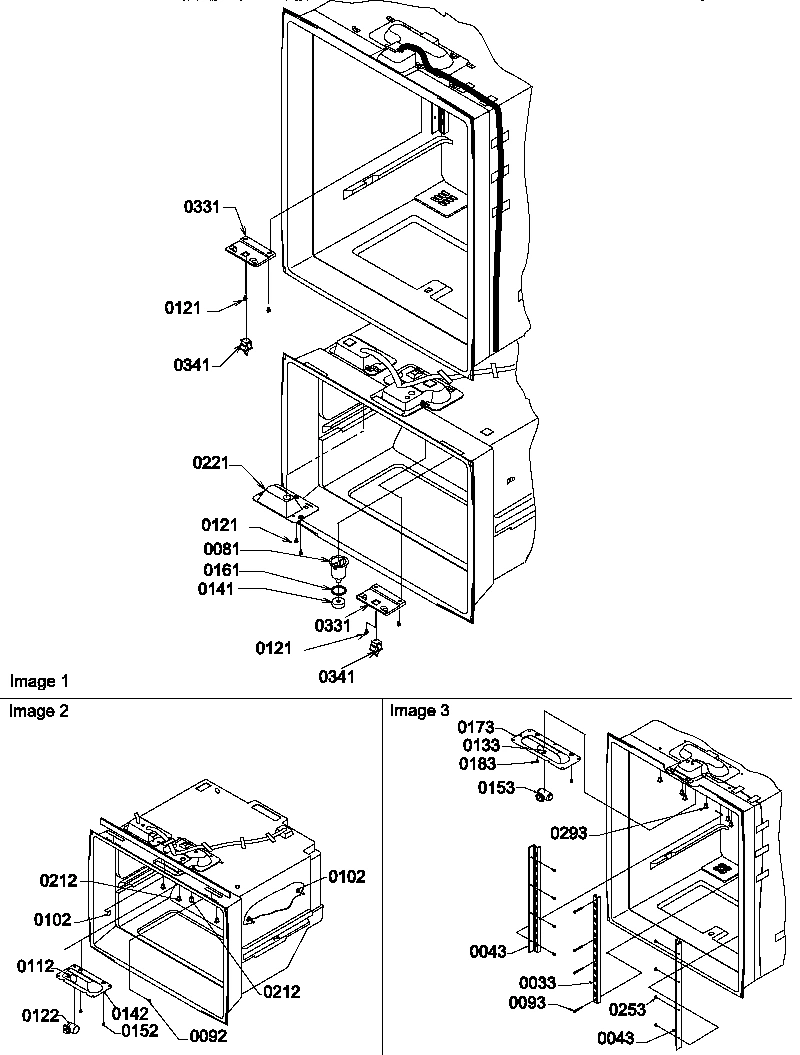

08 - LIGHT SWITCHES & DRAIN FUNNEL

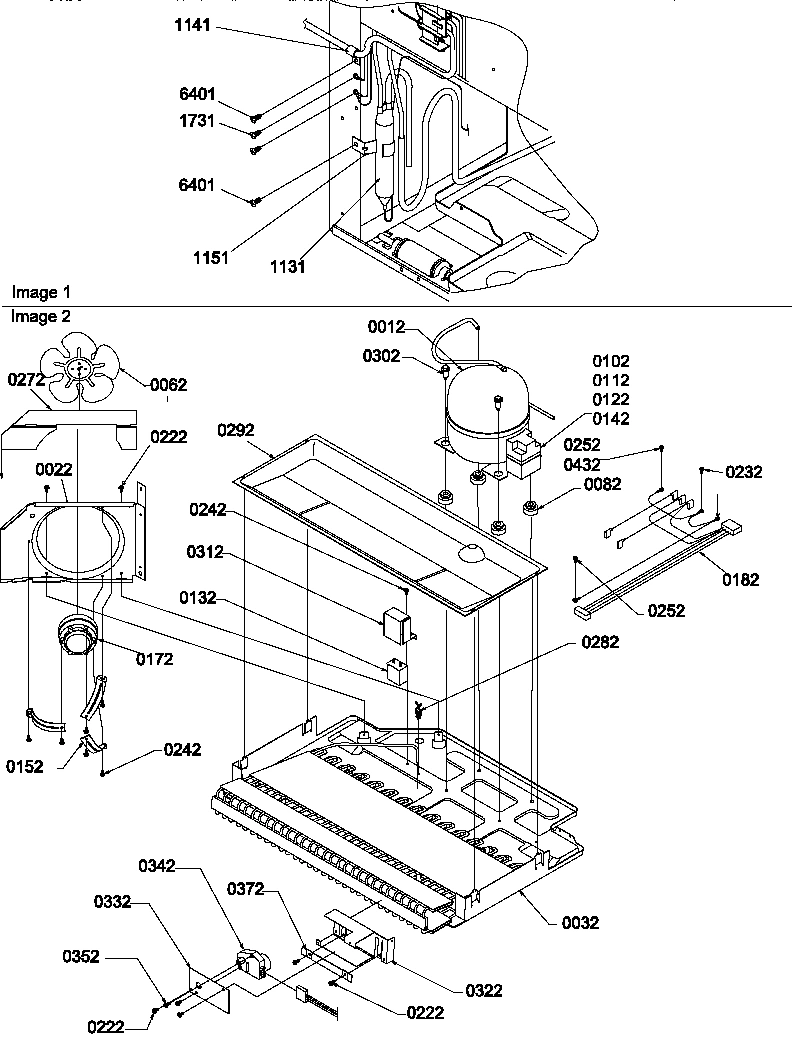

09 - MACHINE COMPARTMENT ASSY

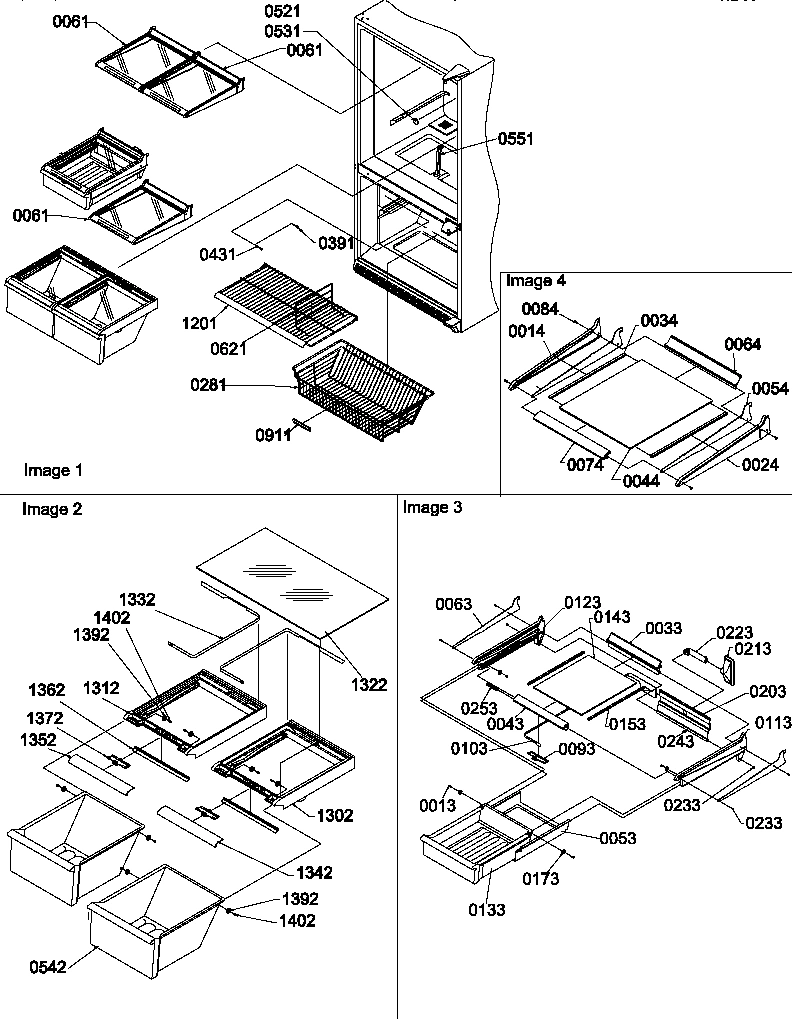

10 - SHELVING ASSEMBLIES
Common parts from model Maytag BX22TE REFRIGERATOR
11
MAY 10932202E MAY 10932202E Contact Us For Availability
11
MAY R0183119 MAY R0183119 Contact Us For Availability
12
MAY 10537403E MAY 10537403E Contact Us For Availability
12
MAY 10448901 MAY 10448901 Contact Us For Availability
12
MAY 10619304 MAY 10619304 Contact Us For Availability
12
MAY 10514801 MAY 10514801 Contact Us For Availability
12
MAY 12049703 MAY 12049703 Contact Us For Availability
14
MAY 10436601 MAY 10436601 Contact Us For Availability
21
MAY R0156839 MAY R0156839 Contact Us For Availability
21
MAY M0227217 MAY M0227217 Contact Us For Availability
22
MAY 10436404 MAY 10436404 Contact Us For Availability
22
MAY 10855401 MAY 10855401 Contact Us For Availability
22
MAY M0286708 MAY M0286708 Contact Us For Availability
22
MAY 10426910 MAY 10426910 Contact Us For Availability
23
MAY 10442407 MAY 10442407 Contact Us For Availability
24
MAY 10436602 MAY 10436602 Contact Us For Availability
31
MAY M0219730 MAY M0219730 Contact Us For Availability
31
MAY R0156669 MAY R0156669 Contact Us For Availability
31
MAY 10513302 MAY 10513302 Contact Us For Availability
32
MAY 10310901 MAY 10310901 Contact Us For Availability
32
MAY 10513801 MAY 10513801 Contact Us For Availability
32
MAY 10450602 MAY 10450602 Contact Us For Availability
32
MAY 10481210 MAY 10481210 Contact Us For Availability
33
MAY D7599002 MAY D7599002 Contact Us For Availability
33
MAY 10502201 MAY 10502201 Contact Us For Availability
41
MAY R0183120 MAY R0183120 Contact Us For Availability
41
MAY M0102303 MAY M0102303 Contact Us For Availability
42
ICE TRAY MAY D7725402 Contact Us For Availability
42
MAY A1017202 MAY A1017202 Contact Us For Availability
42
MAY M1205302 MAY M1205302 Contact Us For Availability
43
MAY 10428409 MAY 10428409 Contact Us For Availability
43
MAY D7599105 MAY D7599105 Contact Us For Availability
43
MAY 10450321 MAY 10450321 Contact Us For Availability
44
MAY 10370033 MAY 10370033 Contact Us For Availability
51
MAY R0161060 MAY R0161060 Contact Us For Availability
51
MAY 10825302 MAY 10825302 Contact Us For Availability
52
MAY 10492801 MAY 10492801 Contact Us For Availability
53
MAY R0170059 MAY R0170059 Contact Us For Availability
53
MAY 10437304 MAY 10437304 Contact Us For Availability
61
MAY R0191094 MAY R0191094 Contact Us For Availability
61
MAY 10447903 MAY 10447903 Contact Us For Availability
61
MAY 10447904 MAY 10447904 Contact Us For Availability
61
MAY 10480717 MAY 10480717 Contact Us For Availability
62
MAY 10456823 MAY 10456823 Contact Us For Availability
62
MAY 10492701 MAY 10492701 Contact Us For Availability
62
MAY B5720301 MAY B5720301 Contact Us For Availability
62
MAY B5742604 MAY B5742604 Contact Us For Availability
63
MAY 10961002 MAY 10961002 Contact Us For Availability
63
MAY 10681401 MAY 10681401 Contact Us For Availability
64
MAY C8964402 MAY C8964402 Contact Us For Availability
64
MAY 10436901 MAY 10436901 Contact Us For Availability
71
MAY R0167203 MAY R0167203 Contact Us For Availability
72
MAY 10462201 MAY 10462201 Contact Us For Availability
72
MAY 10423128 MAY 10423128 Contact Us For Availability
72
MAY 10519801 MAY 10519801 Contact Us For Availability
74
MAY 10436817 MAY 10436817 Contact Us For Availability
81
MAY 10447109 MAY 10447109 Contact Us For Availability
81
MAY D7753903 MAY D7753903 Contact Us For Availability
82
MAY 10436505 MAY 10436505 Contact Us For Availability
82
GROMMET, COMPRESSOR MAY 10835901 Contact Us For Availability
83
MAY 10519101 MAY 10519101 Contact Us For Availability
92
MAY 10419007 MAY 10419007 Contact Us For Availability
92
MAY D7813004 MAY D7813004 Contact Us For Availability
92
MAY M0310701 MAY M0310701 Contact Us For Availability
93
MAY M0231426 MAY M0231426 Contact Us For Availability
93
MAY 10588201 MAY 10588201 Contact Us For Availability
101
MAY 12348001 MAY 12348001 Contact Us For Availability
102
MAY 10884401 MAY 10884401 Contact Us For Availability
102
MAY M0311301 MAY M0311301 Contact Us For Availability
103
MAY 10513503 MAY 10513503 Contact Us For Availability
111
MAY B5759611 MAY B5759611 Contact Us For Availability
112
MAY 10377015 MAY 10377015 Contact Us For Availability
113
MAY 10485501 MAY 10485501 Contact Us For Availability
121
MAY 12077305 MAY 12077305 Contact Us For Availability
121
MAY M0238616 MAY M0238616 Contact Us For Availability
121
MAY 10319801 MAY 10319801 Contact Us For Availability
122
MAY 10513601 MAY 10513601 Contact Us For Availability
122
MAY D7824703 MAY D7824703 Contact Us For Availability
122
MAY C8973405 MAY C8973405 Contact Us For Availability
122
MAY 10097202 MAY 10097202 Contact Us For Availability
123
MAY 10485601 MAY 10485601 Contact Us For Availability
124
MAY M0310336 MAY M0310336 Contact Us For Availability
131
MAY 10456830 MAY 10456830 Contact Us For Availability
131
MAY B8391802 MAY B8391802 Contact Us For Availability
131
MAY 10450701 MAY 10450701 Contact Us For Availability
132
MAY 10304107 MAY 10304107 Contact Us For Availability
132
MAY C8931604 MAY C8931604 Contact Us For Availability
133
MAY B5733302 MAY B5733302 Contact Us For Availability
133
MAY 10417013 MAY 10417013 Contact Us For Availability
141
MAY B8345401 MAY B8345401 Contact Us For Availability
141
MAY M0211017 MAY M0211017 Contact Us For Availability
141
MAY 10450901 MAY 10450901 Contact Us For Availability
141
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
142
MAY D7760102 MAY D7760102 Contact Us For Availability
142
MAY 10757301 MAY 10757301 Contact Us For Availability
143
MAY 10370049 MAY 10370049 Contact Us For Availability
151
MAY 10562204 MAY 10562204 Contact Us For Availability
151
MAY 10462101 MAY 10462101 Contact Us For Availability
151
MAY R0183121 MAY R0183121 Contact Us For Availability
151
MAY M0233847 MAY M0233847 Contact Us For Availability
152
MAY M0211018 MAY M0211018 Contact Us For Availability
152
MAY 10582501 MAY 10582501 Contact Us For Availability
153
MAY 12156201 MAY 12156201 Contact Us For Availability
153
MAY 10562503 MAY 10562503 Contact Us For Availability
161
MAY 10562205 MAY 10562205 Contact Us For Availability
161
MAY 10183011 MAY 10183011 Contact Us For Availability
161
MAY R0186041 MAY R0186041 Contact Us For Availability
161
MAY M0204338 MAY M0204338 Contact Us For Availability
161
SEAL, O RING MAY M0500703 Contact Us For Availability
171
MAY 10562206 MAY 10562206 Contact Us For Availability
171
MAY 10183114 MAY 10183114 Contact Us For Availability
171
MAY R0186040 MAY R0186040 Contact Us For Availability
171
MAY 10476101 MAY 10476101 Contact Us For Availability
172
MAY 10884501 MAY 10884501 Contact Us For Availability
173
MAY D7716409 MAY D7716409 Contact Us For Availability
181
MAY 10351001 MAY 10351001 Contact Us For Availability
181
MAY 12348102 MAY 12348102 Contact Us For Availability
181
MAY M0260242 MAY M0260242 Contact Us For Availability
182
MAY 10949301 MAY 10949301 Contact Us For Availability
191
MAY 10200801 MAY 10200801 Contact Us For Availability
191
PLUG, TOP HINGE BUTTON (BLK) MAY M0310731 Contact Us For Availability
191
MAY M0211031 MAY M0211031 Contact Us For Availability
201
MAY C8902601 MAY C8902601 Contact Us For Availability
201
MAY 10663001 MAY 10663001 Contact Us For Availability
203
MAY 10502501 MAY 10502501 Contact Us For Availability
211
MAY 10433511 MAY 10433511 Contact Us For Availability
211
MAY 10427204 MAY 10427204 Contact Us For Availability
213
MAY 10501901 MAY 10501901 Contact Us For Availability
221
MAY 10202001 MAY 10202001 Contact Us For Availability
221
MAY 10649702 MAY 10649702 Contact Us For Availability
222
MAY M0224416 MAY M0224416 Contact Us For Availability
222
MAY 10526701 MAY 10526701 Contact Us For Availability
223
MAY 10486401 MAY 10486401 Contact Us For Availability
231
MAY D7795826 MAY D7795826 Contact Us For Availability
232
MAY M0232903 MAY M0232903 Contact Us For Availability
233
MAY M0211533 MAY M0211533 Contact Us For Availability
241
MAY D7288117 MAY D7288117 Contact Us For Availability
242
MAY 10524606 MAY 10524606 Contact Us For Availability
242
MAY M0223803 MAY M0223803 Contact Us For Availability
243
MAY A3189356 MAY A3189356 Contact Us For Availability
251
MAY 10427112 MAY 10427112 Contact Us For Availability
252
MAY M0253916 MAY M0253916 Contact Us For Availability
252
NUT, SLEEVE MAY M0753001 Contact Us For Availability
253
SCREW, SM MAY M0238642 Contact Us For Availability
253
MAY 12019301 MAY 12019301 Contact Us For Availability
261
MAY D7547409 MAY D7547409 Contact Us For Availability
261
MAY 10686404 MAY 10686404 Contact Us For Availability
272
MAY A1055101 MAY A1055101 Contact Us For Availability
272
MAY 10442702 MAY 10442702 Contact Us For Availability
281
MAY 10513401 MAY 10513401 Contact Us For Availability
282
MAY B5705325 MAY B5705325 Contact Us For Availability
282
MAY B5667304 MAY B5667304 Contact Us For Availability
291
MAY 10485406 MAY 10485406 Contact Us For Availability
292
MAY 10427405 MAY 10427405 Contact Us For Availability
293
MAY M0581001 MAY M0581001 Contact Us For Availability
301
MAY 10567205 MAY 10567205 Contact Us For Availability
302
MAY M0221523 MAY M0221523 Contact Us For Availability
312
INSERT, PLASTIC TUBE MAY A3223101 Contact Us For Availability
312
MAY 10266402 MAY 10266402 Contact Us For Availability
321
MAY D7687523 MAY D7687523 Contact Us For Availability
322
MAY 10503201 MAY 10503201 Contact Us For Availability
331
MAY D7687701 MAY D7687701 Contact Us For Availability
331
MAY D7297603 MAY D7297603 Contact Us For Availability
332
MAY 10503101 MAY 10503101 Contact Us For Availability
341
MAY C3680307 MAY C3680307 Contact Us For Availability
342
ELBOW, FILL TUBE MAY 10463201 Contact Us For Availability
342
MAY 10530702 MAY 10530702 Contact Us For Availability
351
MAY D7689905 MAY D7689905 Contact Us For Availability
351
MAY 10354001 MAY 10354001 Contact Us For Availability
352
MAY M0104101 MAY M0104101 Contact Us For Availability
352
MAY M0216705 MAY M0216705 Contact Us For Availability
361
MAY A3030328 MAY A3030328 Contact Us For Availability
372
MAY 10542701 MAY 10542701 Contact Us For Availability
381
MAY 12285404 MAY 12285404 Contact Us For Availability
391
MAY 12274603 MAY 12274603 Contact Us For Availability
391
MAY M0230919 MAY M0230919 Contact Us For Availability
401
MAY M0226233 MAY M0226233 Contact Us For Availability
401
MAY M0206219 MAY M0206219 Contact Us For Availability
422
MAY 10476201 MAY 10476201 Contact Us For Availability
431
MAY 10474801 MAY 10474801 Contact Us For Availability
432
MAY M0231604 MAY M0231604 Contact Us For Availability
441
SHIM, NON METAL (BLK) MAY M0274062 Contact Us For Availability
441
MAY 10551502 MAY 10551502 Contact Us For Availability
461
MAY M0310727 MAY M0310727 Contact Us For Availability
471
MAY 10451301 MAY 10451301 Contact Us For Availability
481
MAY 10451302 MAY 10451302 Contact Us For Availability
491
MAY 10451303 MAY 10451303 Contact Us For Availability
501
MAY 10992106 MAY 10992106 Contact Us For Availability
511
MAY 10444804 MAY 10444804 Contact Us For Availability
511
MAY 10926601 MAY 10926601 Contact Us For Availability
521
MAY 12285503 MAY 12285503 Contact Us For Availability
521
MAY B8362504 MAY B8362504 Contact Us For Availability
531
MAY 10913605 MAY 10913605 Contact Us For Availability
531
MAY M0310342 MAY M0310342 Contact Us For Availability
541
MAY 10913606 MAY 10913606 Contact Us For Availability
542
MAY 10432008 MAY 10432008 Contact Us For Availability
551
MAY 10461901 MAY 10461901 Contact Us For Availability
601
MAY M0238731 MAY M0238731 Contact Us For Availability
601
MAY 10567206 MAY 10567206 Contact Us For Availability
621
MAY D7806002 MAY D7806002 Contact Us For Availability
631
MAY 10391302 MAY 10391302 Contact Us For Availability
651
MAY M0274063 MAY M0274063 Contact Us For Availability
681
MAY 10699301 MAY 10699301 Contact Us For Availability
691
MAY 10428001 MAY 10428001 Contact Us For Availability
701
MAY 12039806 MAY 12039806 Contact Us For Availability
711
MAY 12041827 MAY 12041827 Contact Us For Availability
731
MAY 10916502 MAY 10916502 Contact Us For Availability
741
MAY 10544301 MAY 10544301 Contact Us For Availability
761
GASKET, FOAM MAY A3189320 Contact Us For Availability
801
MAY 10462701 MAY 10462701 Contact Us For Availability
831
MAY 10493202 MAY 10493202 Contact Us For Availability
841
MAY 10493302 MAY 10493302 Contact Us For Availability
851
MAY M0238846 MAY M0238846 Contact Us For Availability
871
MAY 10427716 MAY 10427716 Contact Us For Availability
901
MAY D7874403 MAY D7874403 Contact Us For Availability
901
MAY 10623002 MAY 10623002 Contact Us For Availability
911
MAY 10508501 MAY 10508501 Contact Us For Availability
921
MAY 10502401 MAY 10502401 Contact Us For Availability
931
MAY 10486104 MAY 10486104 Contact Us For Availability
941
MAY 10638601 MAY 10638601 Contact Us For Availability
1051
MAY 10649801 MAY 10649801 Contact Us For Availability
1091
MAY M0216531 MAY M0216531 Contact Us For Availability
1101
MAY C8946703 MAY C8946703 Contact Us For Availability
1111
MAY D7878815 MAY D7878815 Contact Us For Availability
1131
DRIER MAY B2150504 Contact Us For Availability
1141
MAY M0103904 MAY M0103904 Contact Us For Availability
1151
MAY 10547001 MAY 10547001 Contact Us For Availability
1201
MAY 12288501 MAY 12288501 Contact Us For Availability
1302
MAY 10485901 MAY 10485901 Contact Us For Availability
1312
MAY 10485902 MAY 10485902 Contact Us For Availability
1322
MAY 10370035 MAY 10370035 Contact Us For Availability
1332
MAY 10514002 MAY 10514002 Contact Us For Availability
1342
MAY 10530318 MAY 10530318 Contact Us For Availability
1352
MAY 10530319 MAY 10530319 Contact Us For Availability
1362
MAY 10530201 MAY 10530201 Contact Us For Availability
1372
MAY 10797501 MAY 10797501 Contact Us For Availability
1392
ROLLER, PAN MAY 10481001 Contact Us For Availability
1402
MAY M0238105 MAY M0238105 Contact Us For Availability
1451
MAY M0310308 MAY M0310308 Contact Us For Availability
1461
MAY 10663002 MAY 10663002 Contact Us For Availability
1551
MAY M0310305 MAY M0310305 Contact Us For Availability
1611
MAY 10972002 MAY 10972002 Contact Us For Availability
1711
MAY M0270538 MAY M0270538 Contact Us For Availability
1731
MAY M0239216 MAY M0239216 Contact Us For Availability
1751
MAY B5720303 MAY B5720303 Contact Us For Availability
1761
MAY M0216716 MAY M0216716 Contact Us For Availability
1901
MAY A3030353 MAY A3030353 Contact Us For Availability
7011
MAY 12047201 MAY 12047201 Contact Us For Availability
8511
MAY M0239229 MAY M0239229 Contact Us For Availability
NI
MAY 10527010 MAY 10527010 Contact Us For Availability
NI
MAY 10549601 MAY 10549601 Contact Us For Availability
NI
MAY 10834701 MAY 10834701 Contact Us For Availability
NI
MAY A3036901 MAY A3036901 Contact Us For Availability
NI
MAY A3124301 MAY A3124301 Contact Us For Availability
NI
MAY M0108001 MAY M0108001 Contact Us For Availability
NI
MAY M0114003 MAY M0114003 Contact Us For Availability
× ![]()
