Model Broan Nutone BWT2304SS 30-Inch Convertible Wall-Mount T-Style Chimney Range Hood, 450 MAX CFM, Stainless Steel – Common Parts & Diagrams

Common parts from model Broan Nutone BWT2304SS 30-Inch Convertible Wall-Mount T-Style Chimney Range Hood, 450 MAX CFM, Stainless Steel

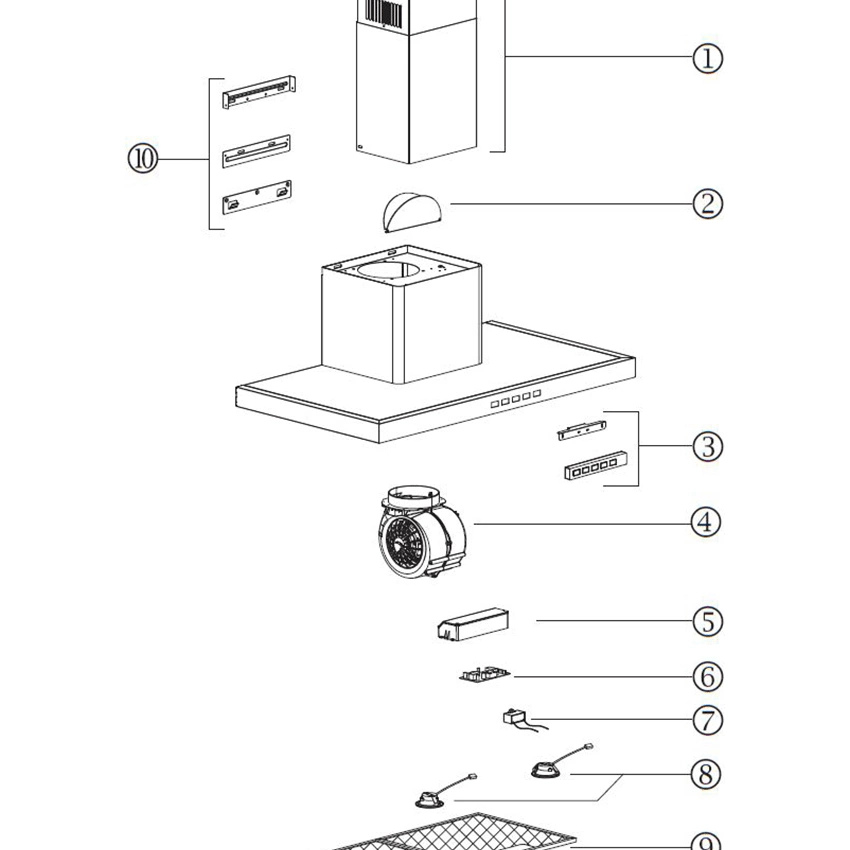

Exploded View

Print

• This Diagram
• All Diagrams

1

Decorative Flue Covers - Includes Upper & Low BRN S99528454 Contact Us For Availability

View on Model

2

Damper Flap BRN S99010499 Contact Us For Availability

View on Model

3

Switch Assembly BRN S99010484 Contact Us For Availability

View on Model

4

Blower Assembly - Includes Motor, Blower Whee BRN S99010510 Contact Us For Availability

View on Model

5

Circuit Board Box BRN S99529088 Contact Us For Availability

View on Model

6

Circuit Board BRN S99010495 Contact Us For Availability

View on Model

7

Capacitor - 400 CFM Blowers BRN S99010490 Contact Us For Availability

View on Model

8

LED Module - 5.5 Watts BRN S99529091 Contact Us For Availability

View on Model

9

S99010487 Broan Rplc Hybrid Bffl Fltr F/Bwp/B Backorder BRN S99010487 View Details $278.10

View on Model

10

Mounting Bracket Kit - Includes Set of 3 BRN S99010497 Contact Us For Availability

View on Model

NI

S99010494 Broan Non-Duct Recirculation Filter Backorder BRN S99010494 View Details $82.35

View on Model

NI

S99526984 Broan Range Duct Backorder BRN S99526984 View Details $94.50

View on Model

NI

Parts Bag BRN S99010501 Contact Us For Availability

View on Model

NI

Non-Duct Plenum Assembly BRN S99526985 Contact Us For Availability

View on Model

×
