Model Broan BWS2 Convertible Wall-Mount Low Profile Pyramidal Chimney Range Hood, 450 MAX CFM – Common Parts & Diagrams

Common parts from model Broan BWS2 Convertible Wall-Mount Low Profile Pyramidal Chimney Range Hood, 450 MAX CFM

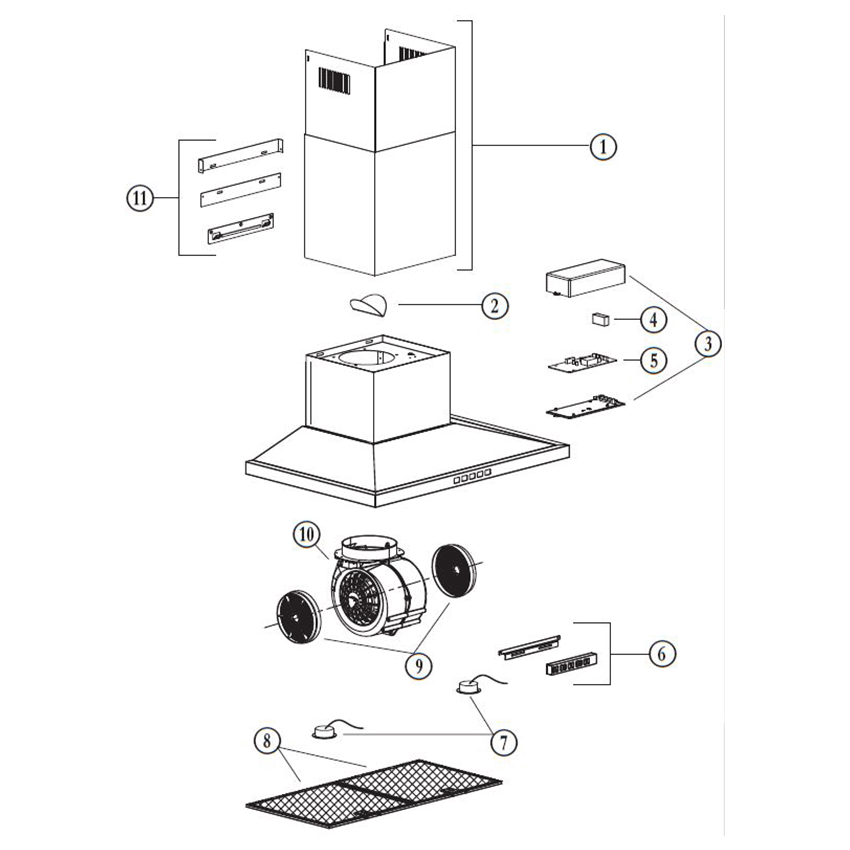

Exploded View

Print

• This Diagram
• All Diagrams

1

Decorative Flue Covers - Includes Upper & Low BRN S99010498 Contact Us For Availability

View on Model

1

Decorative Flue Covers - Includes Upper & Low BRN S99010507 Contact Us For Availability

View on Model

2

Damper Flap BRN S99010499 Contact Us For Availability

View on Model

3

Circuit Board Box BRN S99529088 Contact Us For Availability

View on Model

4

Capacitor - 400 CFM Blowers BRN S99010490 Contact Us For Availability

View on Model

5

Circuit Board BRN S99010495 Contact Us For Availability

View on Model

6

Switch Assembly BRN S99010484 Contact Us For Availability

View on Model

7

LED MODULE 5.5 W Backorder BRN S99529091 View Details $0.00

View on Model

8

S99010487 Broan Rplc Hybrid Bffl Fltr F/Bwp/B Backorder BRN S99010487 View Details $278.10

View on Model

9

S99010494 Broan Non-Duct Recirculation Filter Backorder BRN S99010494 View Details $82.35

View on Model

10

400CFM MOTOR & BLOWER ASSEMBLY Backorder BRN S99010510 View Details $551.73

View on Model

11

Mounting Bracket Kit - Includes Set of 3 BRN S99010496 Contact Us For Availability

View on Model

NI

S99526984 Broan Range Duct Backorder BRN S99526984 View Details $94.50

View on Model

NI

Parts Bag BRN S99010501 Contact Us For Availability

View on Model

×
