Model Whirlpool BUDH2500YS0 DEHUMIDIFIER – Common Parts & Diagrams
02 - SECTION
03 - SECTION

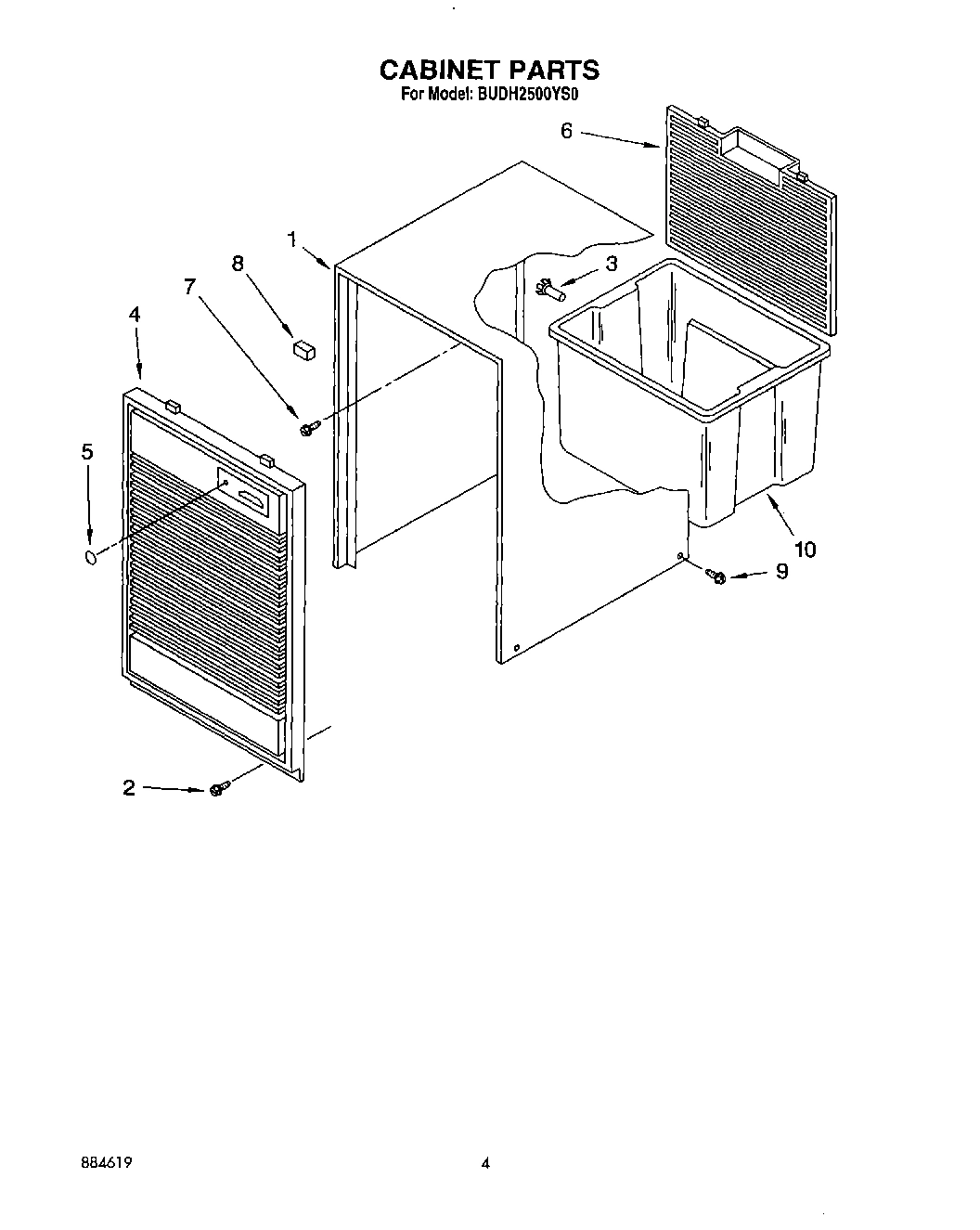

04 - SECTION

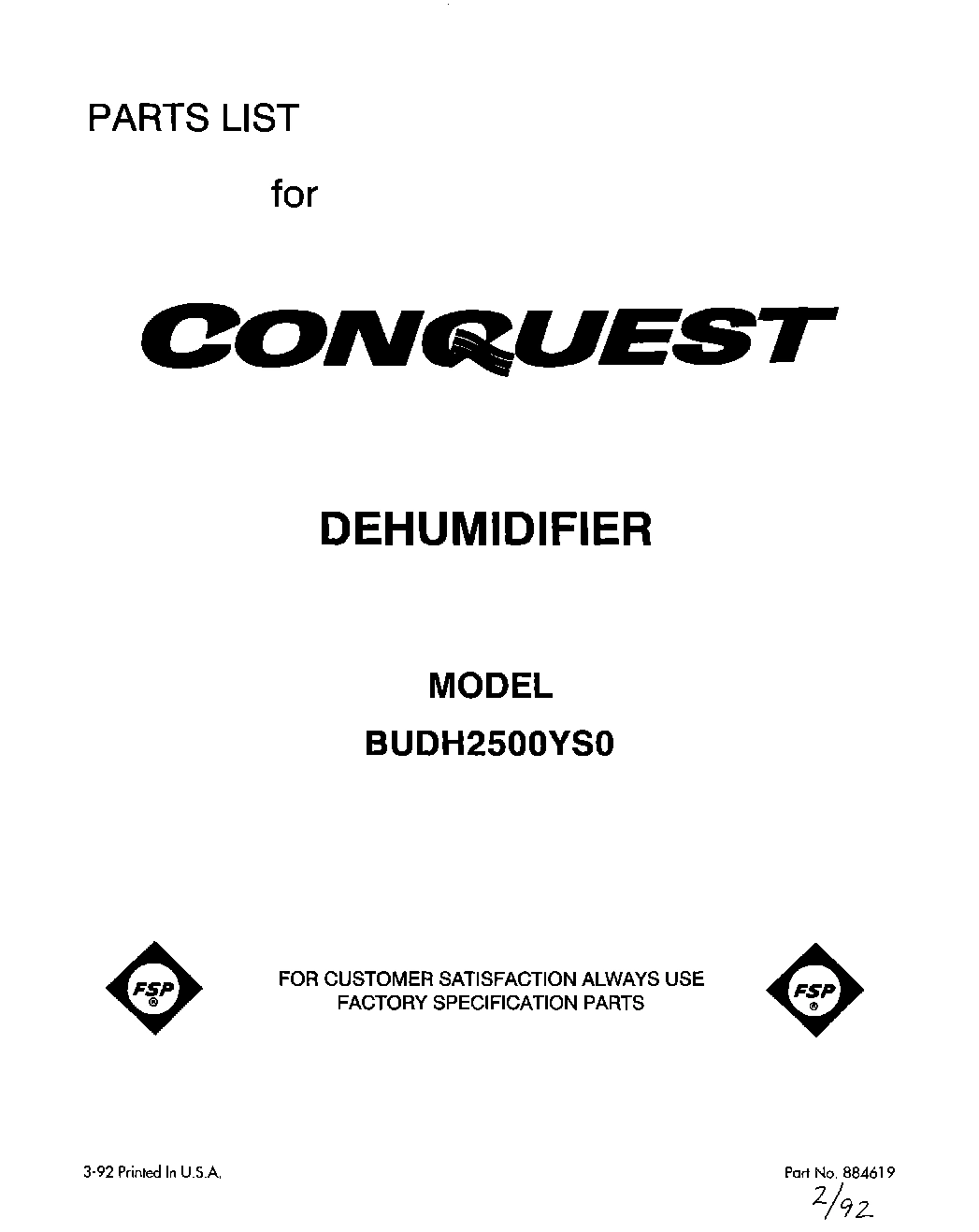

01 - SECTION
Common parts from model Whirlpool BUDH2500YS0 DEHUMIDIFIER
Diagram, Wiring WPL LIT1157768 Contact Us For Availability
Tech Sheet WPL LIT1158614 Contact Us For Availability
Guide, Use and Care WPL LIT1161734 Contact Us For Availability
List, Repair Parts WPL LIT884619 Contact Us For Availability
1
Light, Indicator WPL 1155666 Contact Us For Availability
1
Cabinet WPL 998821 Contact Us For Availability
2
Humidistat, Control WPL 1155848 Contact Us For Availability
3
Bracket, Control WPL 951285 Contact Us For Availability
3
Retainer, Pin (2) (Rear Grille) WPL 998813 Contact Us For Availability
4
Knob, Control WPL 998859 Contact Us For Availability
4
Grille, Front WPL 1162257 Contact Us For Availability
5
Screw, Sm No.8 x 3/8 WPL 488624 Contact Us For Availability
5
Lens, Light WPL 998846 Contact Us For Availability
6
Bracket, Fan Motor Mounting WPL 998777 Contact Us For Availability
6
Grille, Rear WPL 998832 Contact Us For Availability
7
Thermostat, De-Icer WPL 1155109 Contact Us For Availability
8
Spacer, Grille WPL 948584 Contact Us For Availability
9
Screw WPL 1158781 Contact Us For Availability
10
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
10
Tape, No Drip (30`) Valve, Access WPL 505168 Contact Us For Availability
10
Motor, Fan WPL 1156858 Contact Us For Availability
10
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
10
Cap, Condensate Pan WPL 646753 Contact Us For Availability
10
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
10
Pan, Condensate WPL 951901 Contact Us For Availability
10
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
10
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
11
Blade, Fan WPL 949645 Contact Us For Availability
13
Switch, Water Level Control WPL 999747 Contact Us For Availability
14
Evaporator WPL 1159233 Contact Us For Availability
14
Cord, Appliance WPL 1155670 Contact Us For Availability
16
Seal WPL 998867 Contact Us For Availability
16
Plate, Orifice WPL 998779 Contact Us For Availability
17
Seal WPL 998802 Contact Us For Availability
18
Screw, 1/4-28 x 1 WPL 488400 Contact Us For Availability
18
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
19
Harness, Wire WPL 484136 Contact Us For Availability
19
Spring, Water Level WPL 998730 Contact Us For Availability
20
Grommet (4) WPL 1156748 Contact Us For Availability
21
Base WPL 1157584 Contact Us For Availability
21
Washer (Repair) (.062 Thickness) WPL 489029 Contact Us For Availability
21
Washer, Repair (.030 Thickness) WPL 489083 Contact Us For Availability
22
Roller (2) WPL 998726 Contact Us For Availability
23
Roll Pin (2) WPL 489015 Contact Us For Availability
23
Support WPL 998744 Contact Us For Availability
24
Glide (2) WPL 951886 Contact Us For Availability
25
Compressor, Service (Complete Assembly) WPL 876684 Contact Us For Availability
26
Retainer, Cover WPL 831282 Contact Us For Availability
27
Cover, Terminal WPL 865068 Contact Us For Availability
28
Overload WPL 876686 Contact Us For Availability
29
Spring, Overload WPL 549086 Contact Us For Availability
33
Relay WPL 876689 Contact Us For Availability
33
Clamp, Tube To Evaporator Mtg (2) WPL 471363 Contact Us For Availability
36
Bend, Return WPL 855199 Contact Us For Availability
37
Bend, Return WPL 854624 Contact Us For Availability
× ![]()
