Model GE BTEE6ASP173TW01 General Electric Model BTEE6ASP173TW01 – Common Parts & Diagrams

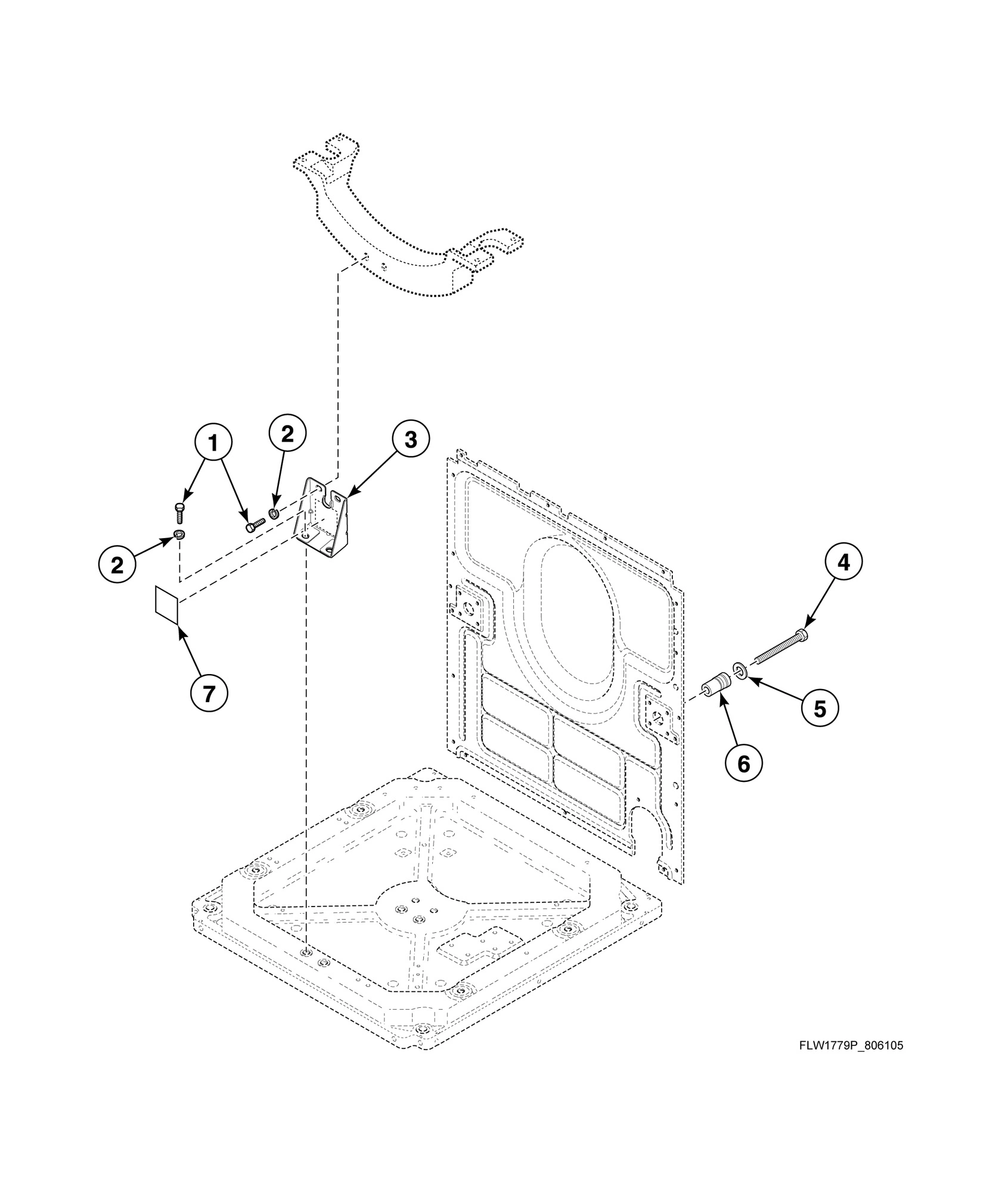

Shipping Materials

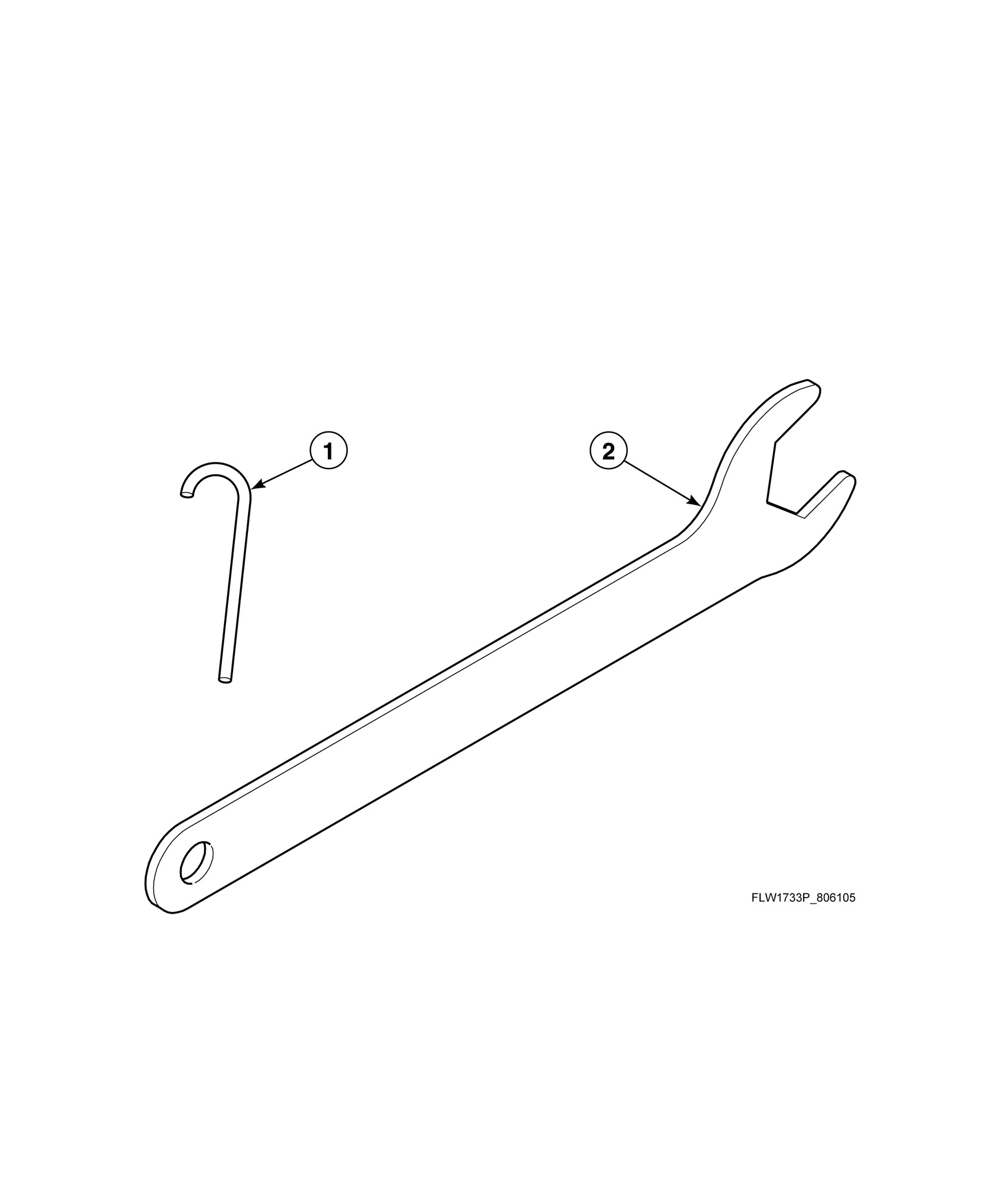

Special Tools
Washer Labels
Washer Lead-In Cord, Wire Ties and Harness Clips
Wire Harnesses and Wires (Drawing 1 of 2)
Wire Harnesses and Wires (Drawing 2 of 2)
Common parts from model GE BTEE6ASP173TW01 General Electric Model BTEE6ASP173TW01
1
Screw GEN M400043 Contact Us For Availability
1
Pulley Bolt Tightening Fixture (Comment: Use GEN 802336 Contact Us For Availability
1
Notice Label GEN 803011 Contact Us For Availability
1
Wire Tie GEN 38663 Contact Us For Availability
1
Upper Electric Harness GEN D513968 Contact Us For Availability
1
Pressure Sensor Harness GEN 804433 Contact Us For Availability
2
Washer GEN M400014 Contact Us For Availability
2
Wrench (Comment: Use for adjusting leveling l GEN 392P4 Contact Us For Availability
2
Oversudsing Label (Comment: English) GEN 802074 Contact Us For Availability
2
Oversudsing Label (Comment: Spanish) GEN 802838 Contact Us For Availability
2
Oversudsing Label (Comment: Quebec French) GEN 802839 Contact Us For Availability
2
Harness Strap GEN 55881 Contact Us For Availability
2
Front Control Harness (Comment: Washer) GEN 806031 Contact Us For Availability
3
Shipping Brace GEN 804454 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 802367 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 804924 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 805962 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 805964 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 805965 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 805966 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 806550 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 806591 Contact Us For Availability
3
Hose Clip GEN 36985 Contact Us For Availability
3
Motor Harness GEN 806029 Contact Us For Availability
4
Screw GEN 800462 Contact Us For Availability
4
Wire Clip (Comment: Small) GEN D504034 Contact Us For Availability
4
Door Lock Harness Assembly GEN 806028 Contact Us For Availability
5
Washer GEN 800624 Contact Us For Availability
5
NOT ON YOUR MODEL GEN - Contact Us For Availability
5
Wire Clip (Comment: Large) GEN 687500 Contact Us For Availability
5
Security Cabinet Harness GEN D513991 Contact Us For Availability
6
Shipping Spacer GEN 803858 Contact Us For Availability
6
Notice Label GEN D516073 Contact Us For Availability
6
Nut GEN 03673 Contact Us For Availability
7
Label (Comment: Remove shipping brace) GEN 804488 Contact Us For Availability
7
Caution Label (Comment: Icon, Ground machine) GEN 801706 Contact Us For Availability
7
Warning Label (Comment: English/French, Disco GEN D500316 Contact Us For Availability
7
Disconnect Power Warning Label (Comment: Engl GEN D505281 Contact Us For Availability
7
Washer GEN 03815 Contact Us For Availability
8
Left Hand Thread Label (Comment: Text, Left h GEN 685928 Contact Us For Availability
8
Left Hand Thread Label (Comment: Icon, Left h GEN 804949 Contact Us For Availability
8
Screw GEN 20530 Contact Us For Availability
9
Warning Label (Comment: Text, Disconnect powe GEN 803260 Contact Us For Availability
9
Elec GEN F8211201 Contact Us For Availability
9
Strain Relief GEN 38384 Contact Us For Availability
10
GEN D500049 GEN D500049 Contact Us For Availability
10
GEN D500314 GEN D500314 Contact Us For Availability
10
GEN F8615701 GEN F8615701 Contact Us For Availability
10
Lead-In Cord GEN 202777 Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
× ![]()
