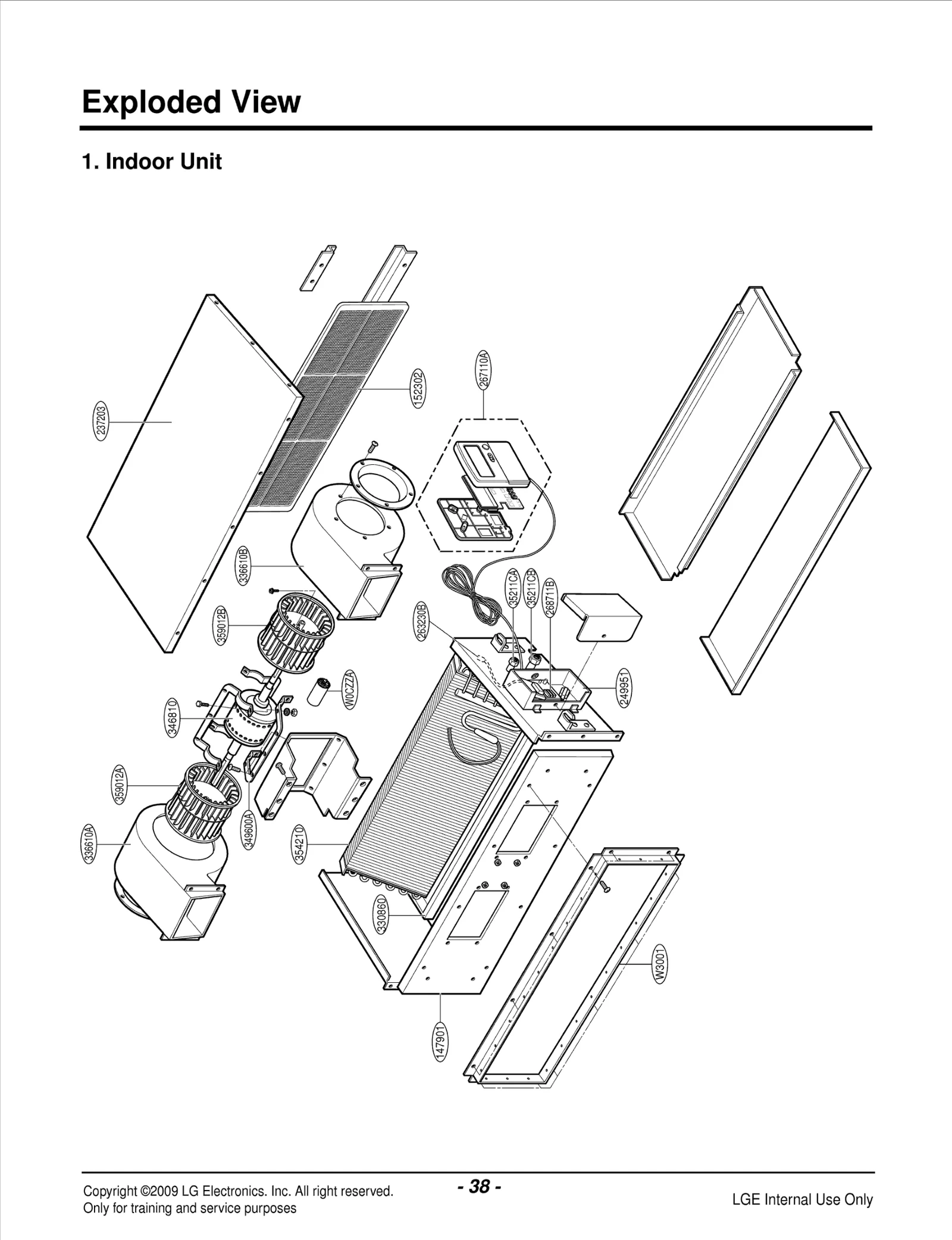

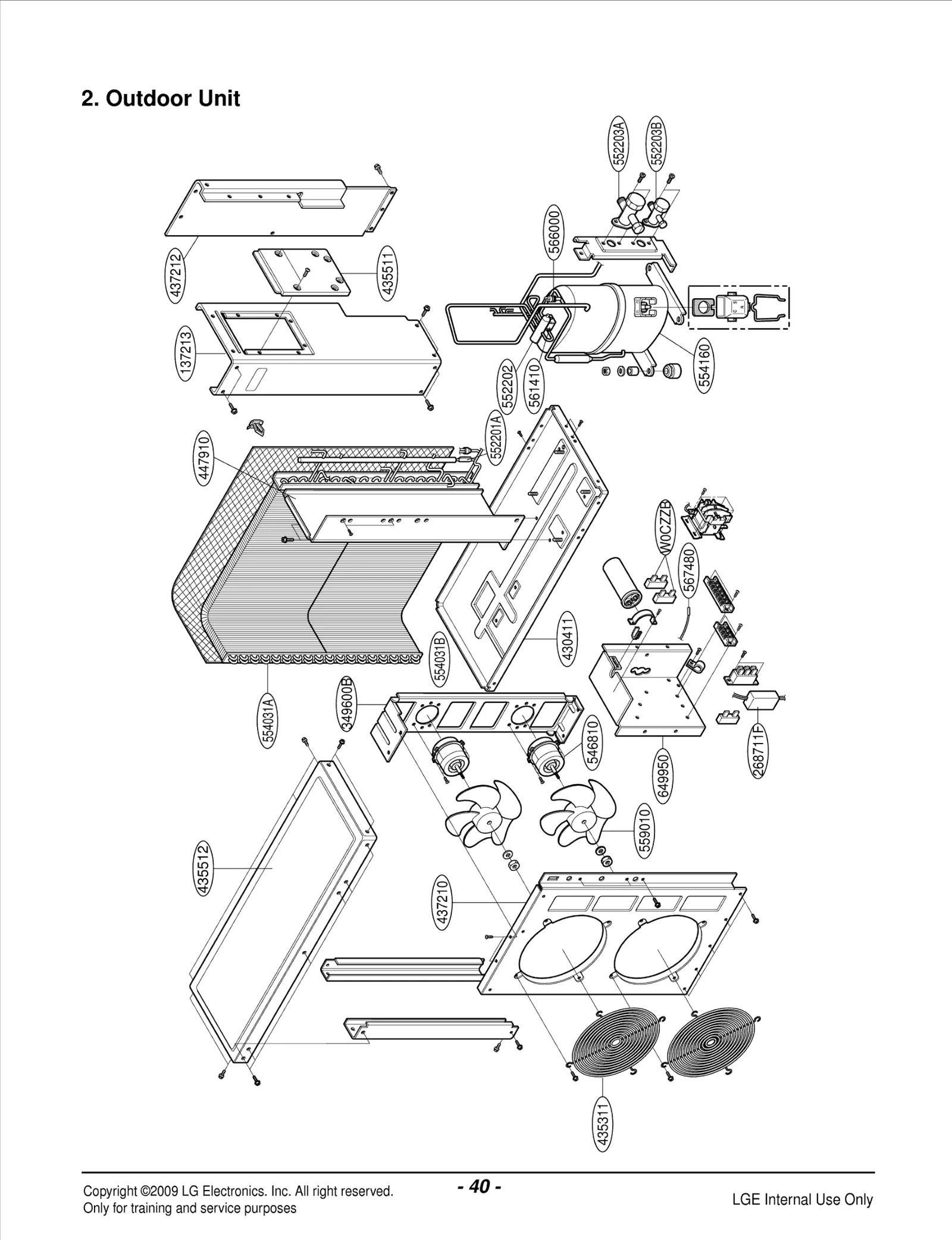

Model LG BS36DHL – Common Parts & Diagrams

35211CA
Tube Assembly,Discharge(Indoor)
Tube Assembly,Discharge(Indoor) LGE 5211A30094B Contact Us For Availability
View on Model
35211CB
Tube Assembly,Discharge(Indoor)
Tube Assembly,Discharge(Indoor) LGE 5211A30094A Contact Us For Availability
View on Model
137213
Panel Assembly,Side
Panel Assembly,Side LGE 3721A20228A Contact Us For Availability
View on Model
147901
Barrier,Indoor
Barrier,Indoor LGE 4790A30012A Contact Us For Availability
View on Model
152302
Filter,Air
Filter,Air LGE 5230A30001F Contact Us For Availability
View on Model
237203
Panel,Upper
Panel,Upper LGE 3720A30037Z Contact Us For Availability
View on Model
249951
Case Assembly,Control(Indoor)
Case Assembly,Control(Indoor) LGE 4995A20102A Contact Us For Availability
View on Model
263230B
Thermistor,NTC
Thermistor,NTC LGE 6323AQ2333Z Contact Us For Availability
View on Model
267110A
Remote Controller Assembly
Remote Controller Assembly LGE 6711A20027E Contact Us For Availability
View on Model
268711B
PCB Assembly,Main
PCB Assembly,Main LGE 6871A20016P Contact Us For Availability
View on Model
268711F
PCB Assembly,Option
PCB Assembly,Option LGE 6871A20015N Contact Us For Availability
View on Model
330860
Pan,Drain
Pan,Drain LGE 3086A30001K Contact Us For Availability
View on Model
336610A
Housing Assembly
Housing Assembly LGE 3661A20008A Contact Us For Availability
View on Model
336610B
Housing Assembly
Housing Assembly LGE 3661A20008B Contact Us For Availability
View on Model
346810
AC Motor Assembly
AC Motor Assembly LGE 4681A20005F Contact Us For Availability
View on Model
349600A
Bracket,Motor
Bracket,Motor LGE 3G00789D Contact Us For Availability
View on Model
349600B
Bracket,Motor
Bracket,Motor LGE 1A00187A Contact Us For Availability
View on Model
354210
EVAPORATOR ASSY,FIRST
EVAPORATOR ASSY,FIRST LGE 5421A20008D Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE 5421A90011E Contact Us For Availability
View on Model
359012A
Fan Assembly,Blower
Fan Assembly,Blower LGE 5833A20001J Contact Us For Availability
View on Model
359012B
Fan Assembly,Blower
Fan Assembly,Blower LGE 5833A20001K Contact Us For Availability
View on Model
430411
Base Assembly,Weld(Outdoor)
Base Assembly,Weld(Outdoor) LGE 3A01517W Contact Us For Availability
View on Model
435311
Grille Assembly,Discharge(Outdoor)
Grille Assembly,Discharge(Outdoor) LGE 2A00144Y Contact Us For Availability
View on Model
435511
Cover Assembly,Control(Outdoor)
Cover Assembly,Control(Outdoor) LGE ACQ33125302 Contact Us For Availability
View on Model
435512
Cover Assembly,Top(Outdoor)
Cover Assembly,Top(Outdoor) LGE 3A01040Y Contact Us For Availability
View on Model
437210
Panel Assembly,Front(Sub)
Panel Assembly,Front(Sub) LGE 2A00251Z Contact Us For Availability
View on Model
437212
Panel Assembly,Rear(Outdoor)
Panel Assembly,Rear(Outdoor) LGE 2A00252Z Contact Us For Availability
View on Model
447910
Barrier Assembly,Outdoor
Barrier Assembly,Outdoor LGE 3A01082B Contact Us For Availability
View on Model
546810
Motor Assembly,AC,Outdoor
Motor Assembly,AC,Outdoor LGE 2H00430X Contact Us For Availability
View on Model
552111
Tube Assembly,Capillary
Tube Assembly,Capillary LGE 5211A30134B Contact Us For Availability
View on Model
552112
Tube Assembly,Condenser(In)
Tube Assembly,Condenser(In) LGE 5211A30133A Contact Us For Availability
View on Model
552113
Tube Assembly,Condenser(Out)
Tube Assembly,Condenser(Out) LGE 5211A20031D Contact Us For Availability
View on Model
552201A
VALVE,CHECK
VALVE,CHECK LGE 3A01020D Contact Us For Availability
View on Model
552201B
LGE 5220A30003A
LGE 5220A30003A LGE 5220A30003A Contact Us For Availability
View on Model
552202
Valve,Reverse
Valve,Reverse LGE 3A02027B Contact Us For Availability
View on Model
552202
VALVE,REVERSING
VALVE,REVERSING LGE 3A02027J Contact Us For Availability
View on Model
552203A
Valve,Service
Valve,Service LGE 2A00392A Contact Us For Availability
View on Model
552203A
Valve,Service
Valve,Service LGE 2A00392M Contact Us For Availability
View on Model
552203B
VALVE,SERVICE
VALVE,SERVICE LGE 2A00393A Contact Us For Availability
View on Model
552203B
VALVE,SERVICE
VALVE,SERVICE LGE 2A00393H Contact Us For Availability
View on Model
554031A
CONDENSER ASSY,BENT
CONDENSER ASSY,BENT LGE 5403A20006A Contact Us For Availability
View on Model
554031A
Condenser Assembly,Bending
Condenser Assembly,Bending LGE 5403A90039B Contact Us For Availability
View on Model
554031B
Condenser Assembly,Bending
Condenser Assembly,Bending LGE 5403A20006F Contact Us For Availability
View on Model
554160
Compressor Assembly
Compressor Assembly LGE 2A01196C Contact Us For Availability
View on Model
559010
FAN ASSY,PROPELLER
FAN ASSY,PROPELLER LGE 1H00156B Contact Us For Availability
View on Model
561410
Solenoid
Solenoid LGE 3A02028Y Contact Us For Availability
View on Model
566000
Switch,Pressure
Switch,Pressure LGE 6600L000014 Contact Us For Availability
View on Model
566000
SWITCH HIGH PRESSURE
SWITCH HIGH PRESSURE LGE 3A02524A Contact Us For Availability
View on Model
567480
Thermistor,NTC
Thermistor,NTC LGE 3Q35015H Contact Us For Availability
View on Model
649950
Case Assembly,Control(Outdoor)
Case Assembly,Control(Outdoor) LGE 4995A20003Q Contact Us For Availability
View on Model
W0CZZA
Capacitor,Array
Capacitor,Array LGE 2H00841C Contact Us For Availability
View on Model
W3001
Angle Assembly
Angle Assembly LGE 3001A20006A Contact Us For Availability
View on Model
