Model Maytag BRF20VSE REFRIGERATOR – Common Parts & Diagrams
01 - BOTTOM HINGES & ROLLERS
02 - CABINET BACK

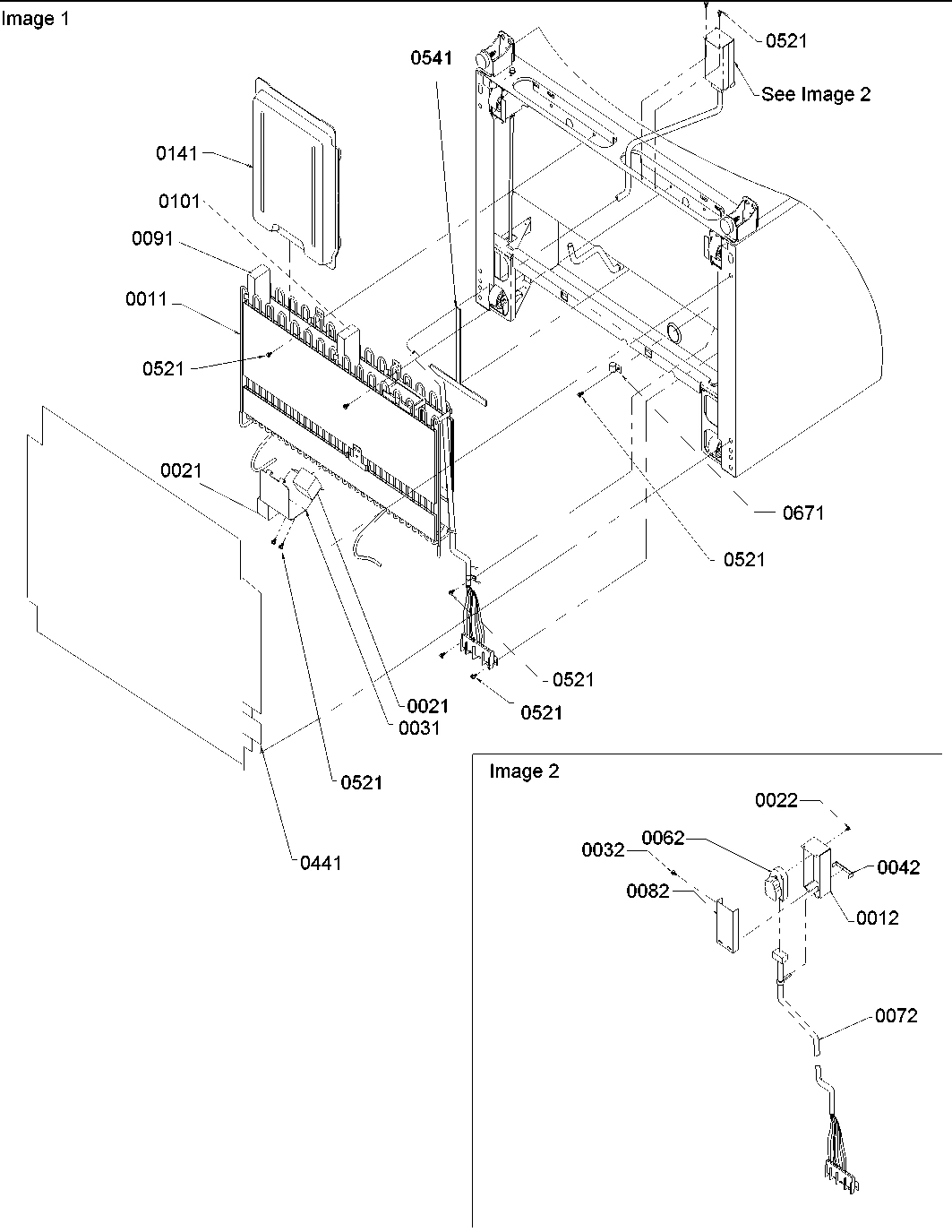

03 - CONDENSER & TIMER BOX ASSY

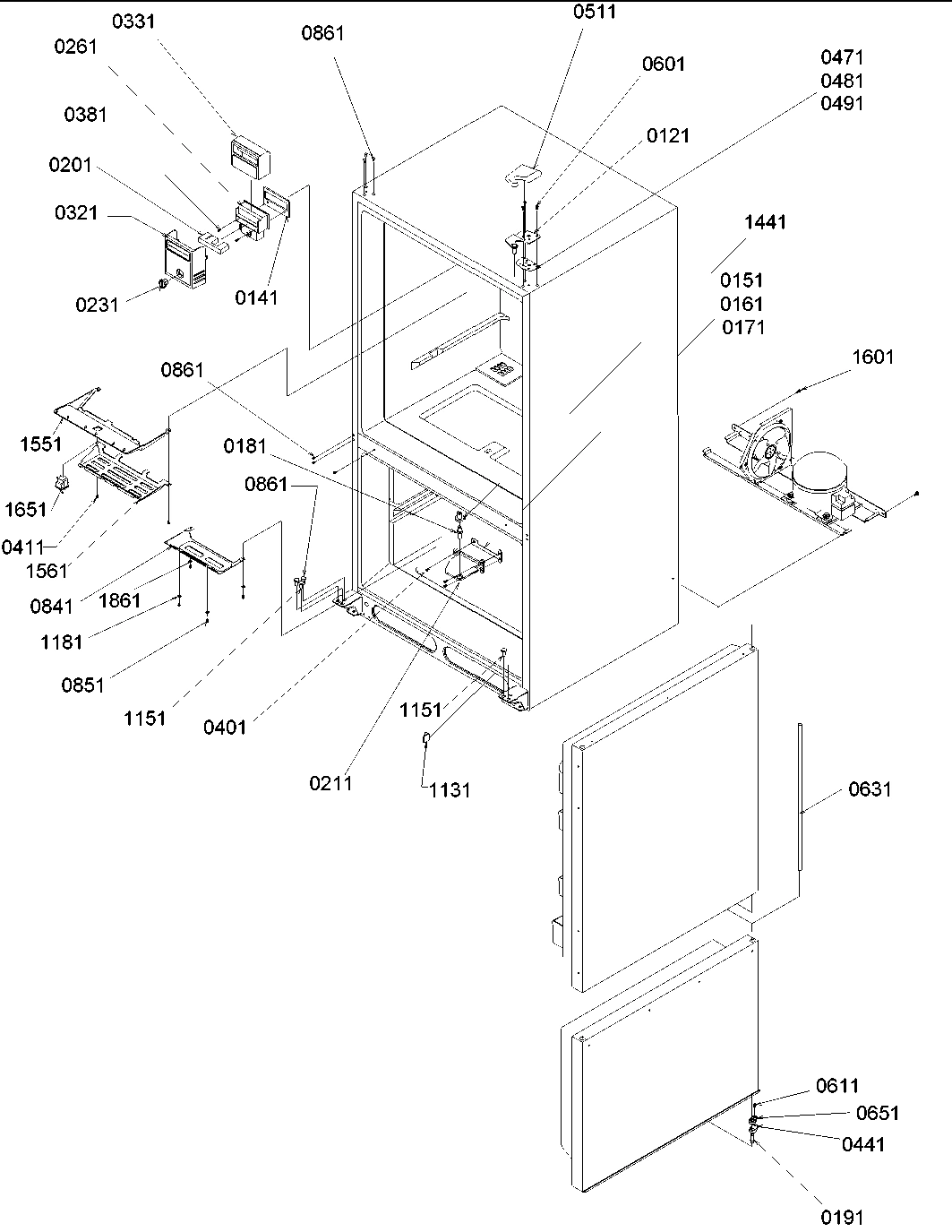

04 - CONTROL, HINGES & SHIELDS

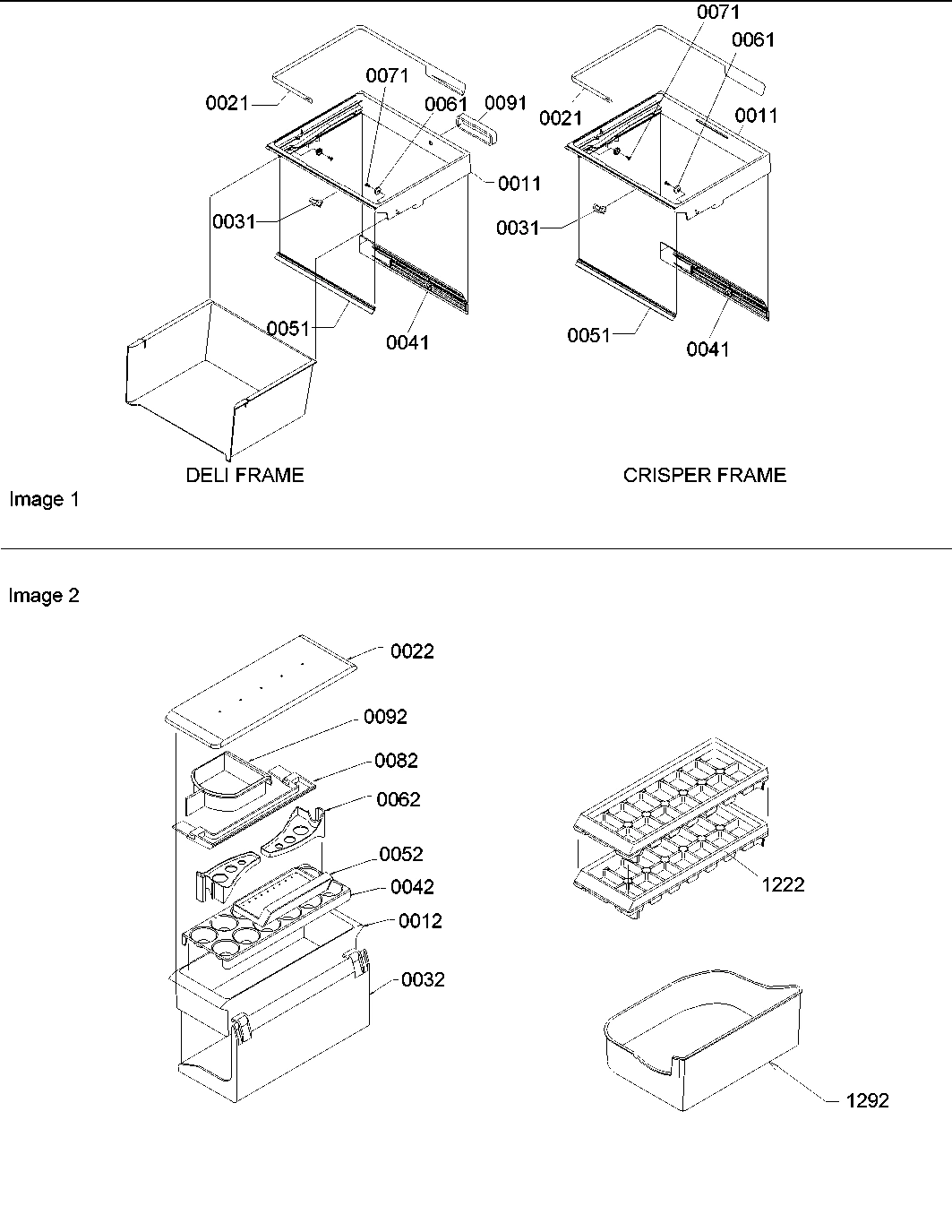

05 - CRISPER & DELI FRAME ASSY

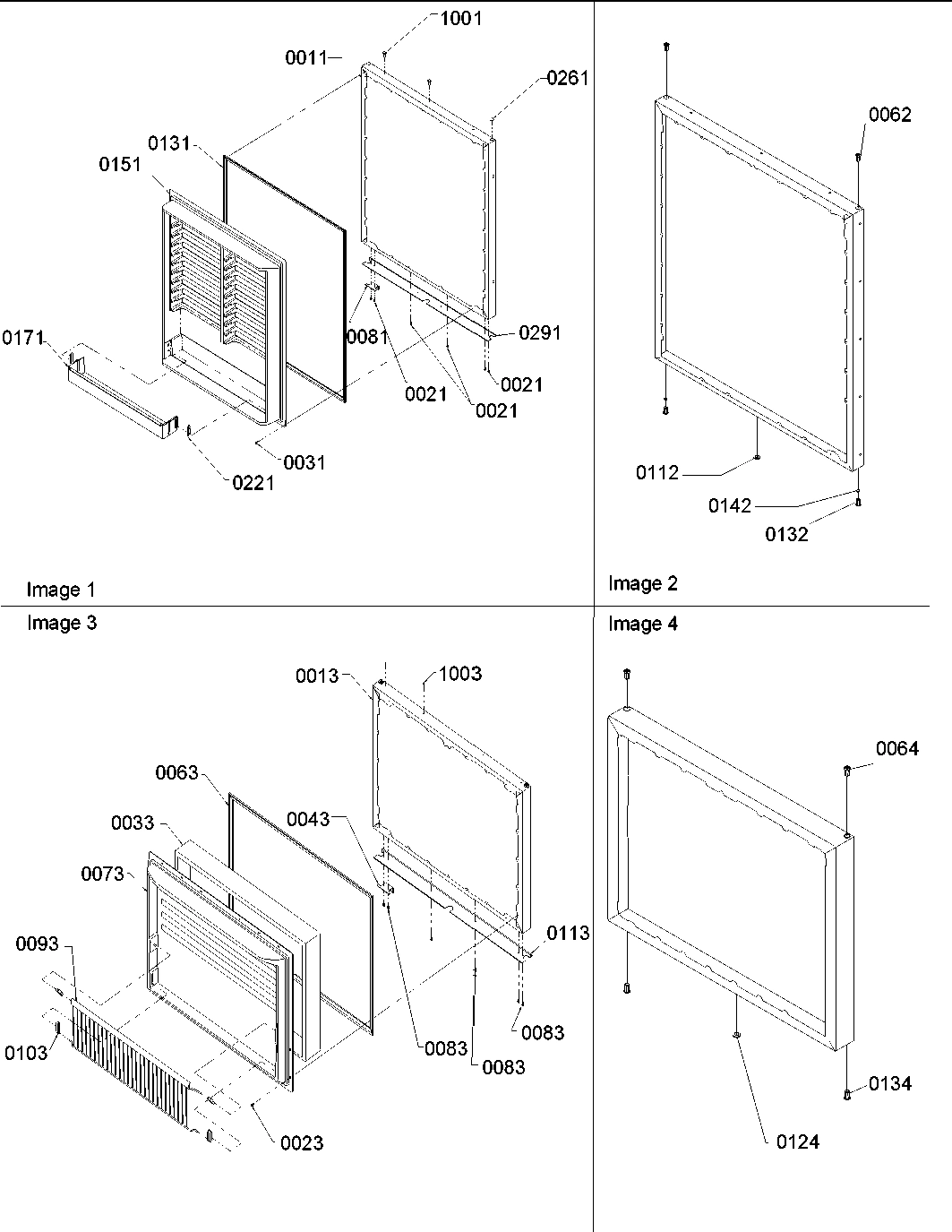

06 - DOOR ASSY

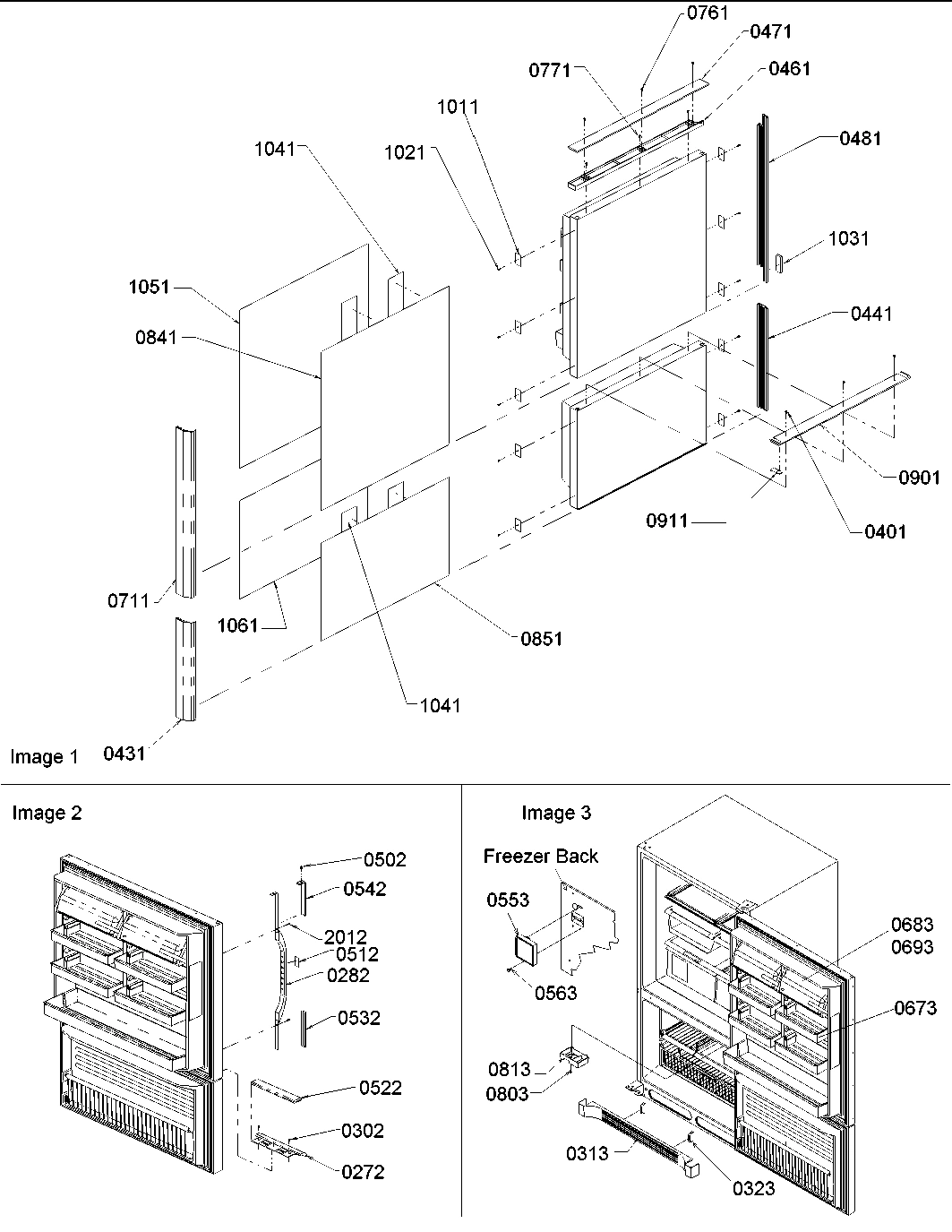

07 - DOOR PANELS & GRILLE

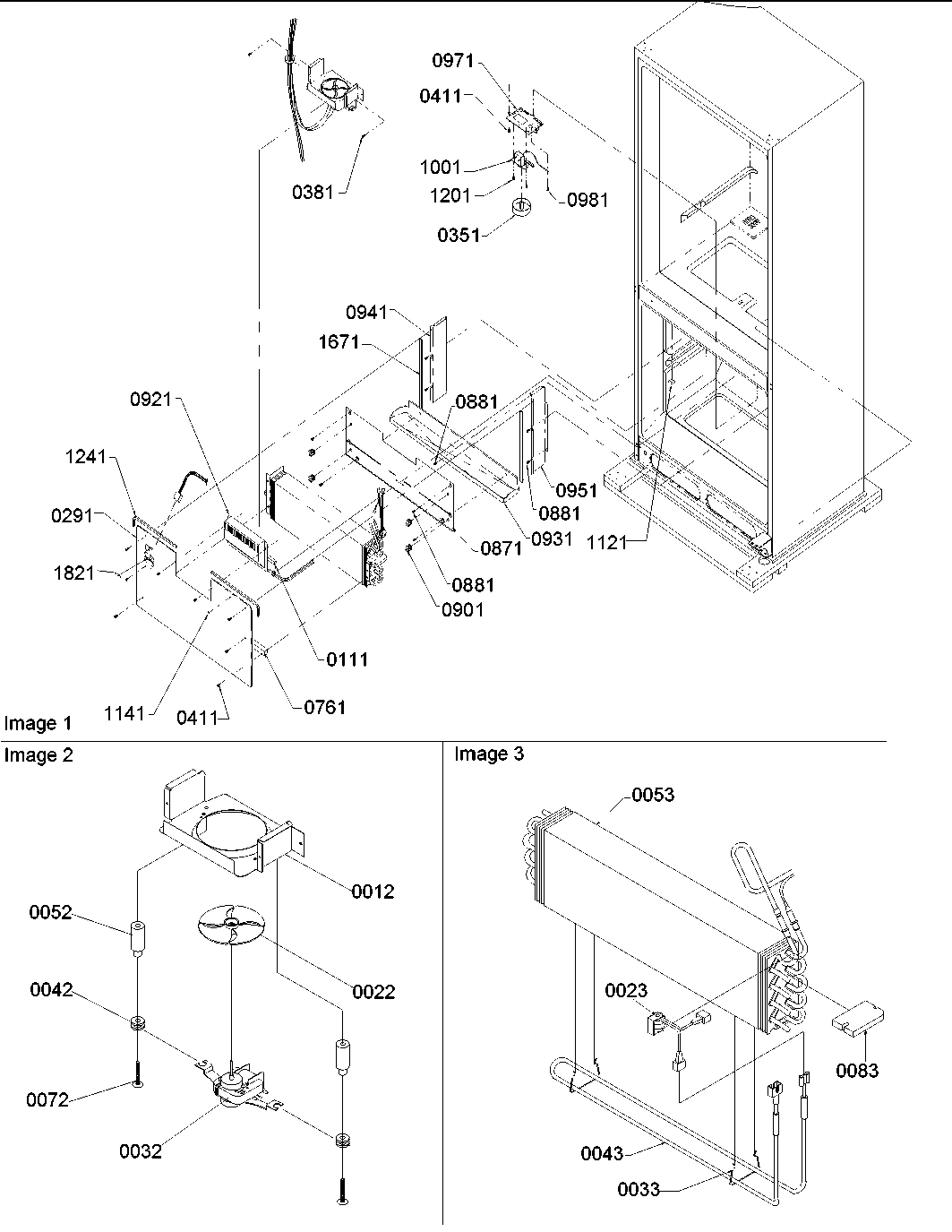

08 - EVAPORATOR AREA

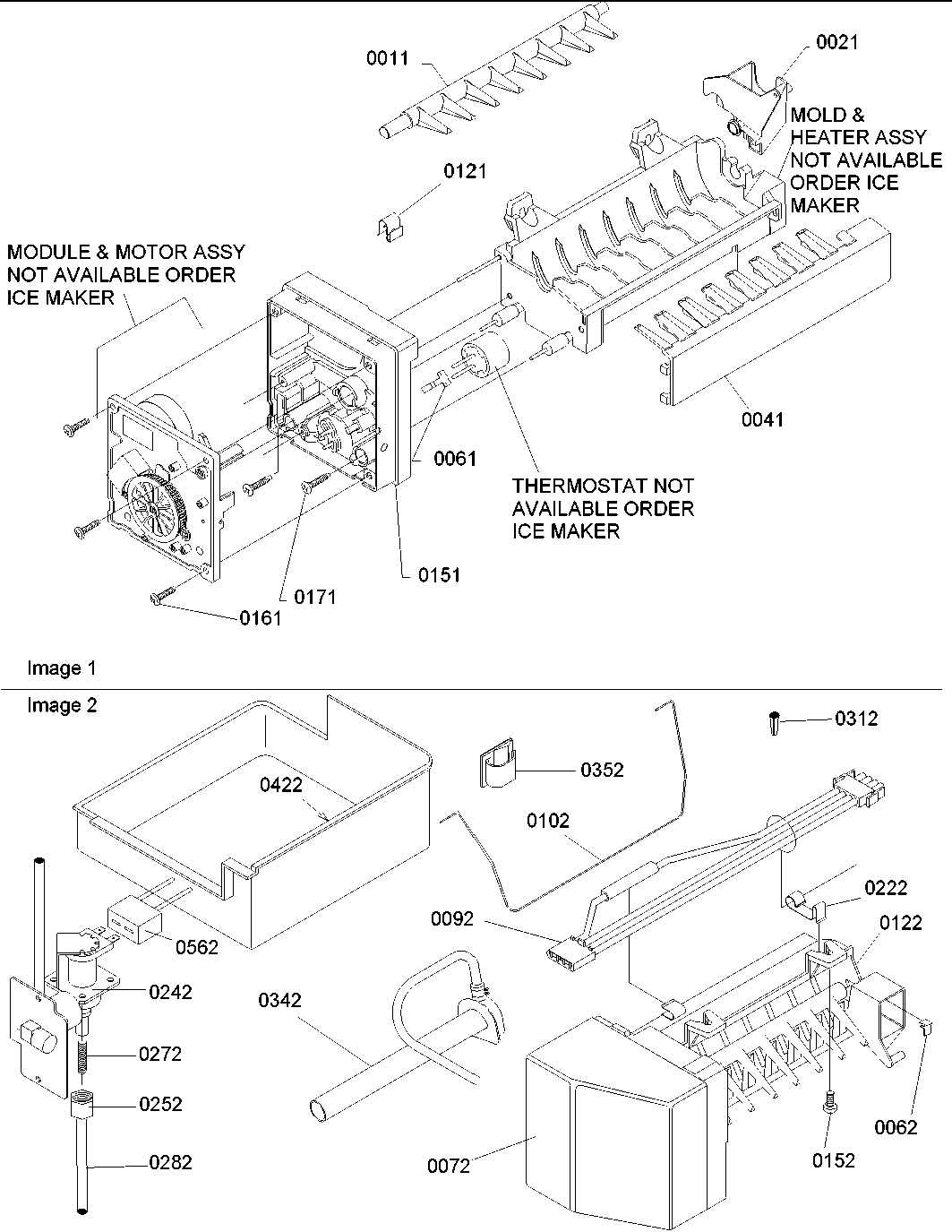

09 - ICE MAKER ASSY & PARTS

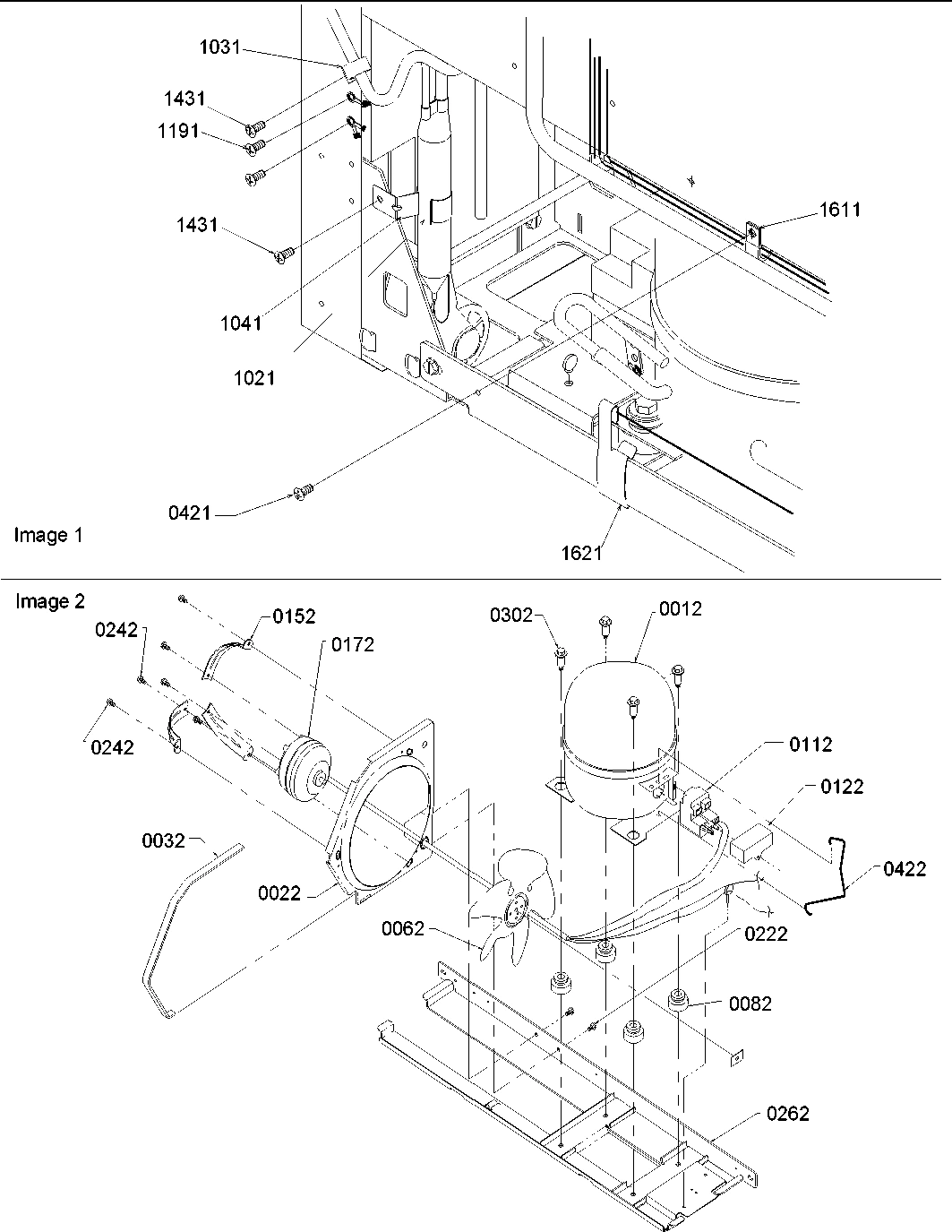

10 - MACHINE COMPARTMENT
11 - MISCELLAEOUS INFORMATION

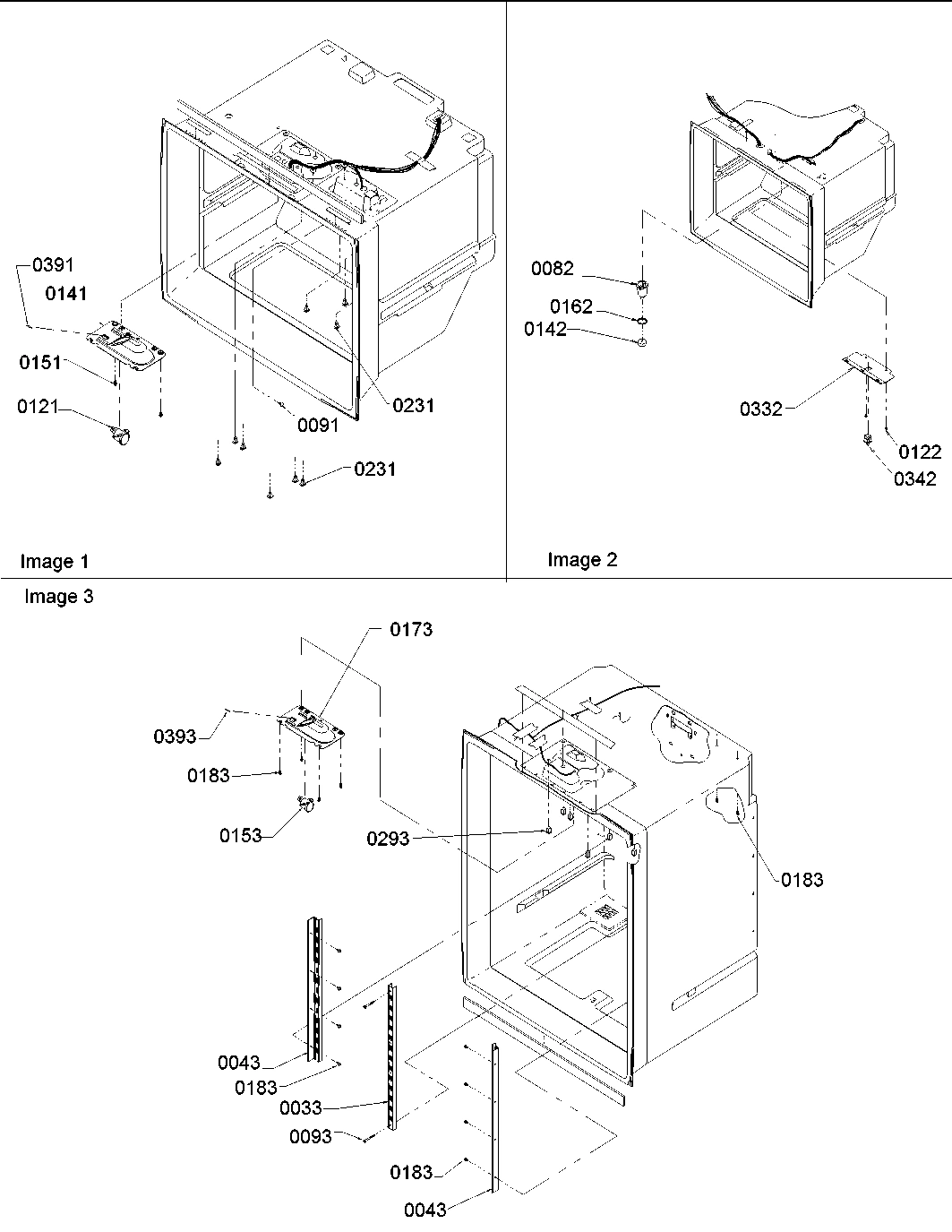

12 - SHELF LADDERS & LIGHT ASSY

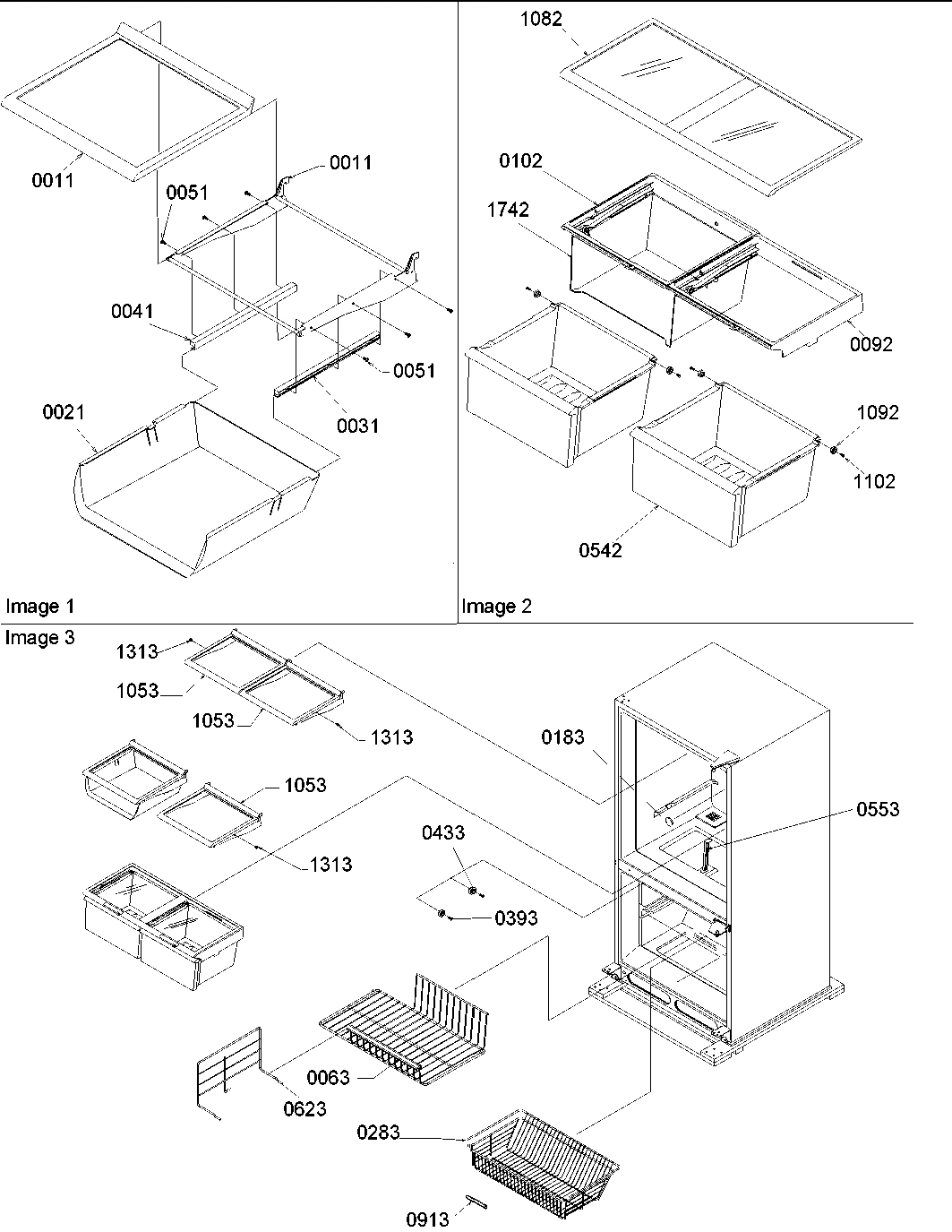

13 - SHELVING
Common parts from model Maytag BRF20VSE REFRIGERATOR
0
MAY RP1200027 MAY RP1200027 Contact Us For Availability
0
MAY RT1200015 MAY RT1200015 Contact Us For Availability
11
MAY 12167202 MAY 12167202 Contact Us For Availability
11
MAY 12031901 MAY 12031901 Contact Us For Availability
11
MAY 12031902 MAY 12031902 Contact Us For Availability
11
MAY 12082504S MAY 12082504S Contact Us For Availability
11
MAY R0183119 MAY R0183119 Contact Us For Availability
11
MAY 12024802 MAY 12024802 Contact Us For Availability
12
MAY 12482203 MAY 12482203 Contact Us For Availability
12
MAY 10423127 MAY 10423127 Contact Us For Availability
12
MAY 10619308 MAY 10619308 Contact Us For Availability
12
MAY 12049710 MAY 12049710 Contact Us For Availability
13
MAY 12081704S MAY 12081704S Contact Us For Availability
21
MAY A3030363 MAY A3030363 Contact Us For Availability
21
MAY 12059501 MAY 12059501 Contact Us For Availability
21
MAY 12059502 MAY 12059502 Contact Us For Availability
21
MAY R0156839 MAY R0156839 Contact Us For Availability
21
MAY 12046001 MAY 12046001 Contact Us For Availability
22
MAY M0216705 MAY M0216705 Contact Us For Availability
22
MAY 10436404 MAY 10436404 Contact Us For Availability
22
MAY 12217201 MAY 12217201 Contact Us For Availability
22
MAY 12051110 MAY 12051110 Contact Us For Availability
23
MAY M0219730 MAY M0219730 Contact Us For Availability
23
MAY 10442409 MAY 10442409 Contact Us For Availability
31
MAY 12088605 MAY 12088605 Contact Us For Availability
31
MAY 12051201 MAY 12051201 Contact Us For Availability
31
MAY 12046101 MAY 12046101 Contact Us For Availability
32
MAY 10448902 MAY 10448902 Contact Us For Availability
32
MAY 12442205 MAY 12442205 Contact Us For Availability
32
MAY A3030359 MAY A3030359 Contact Us For Availability
33
MAY 12435801 MAY 12435801 Contact Us For Availability
41
MAY 12050801 MAY 12050801 Contact Us For Availability
41
MAY R0183120 MAY R0183120 Contact Us For Availability
41
MAY 10937044 MAY 10937044 Contact Us For Availability
41
MAY 12046102 MAY 12046102 Contact Us For Availability
42
MAY A3189336 MAY A3189336 Contact Us For Availability
42
MAY 10436504 MAY 10436504 Contact Us For Availability
42
MAY 12442501 MAY 12442501 Contact Us For Availability
43
MAY 12051009 MAY 12051009 Contact Us For Availability
43
MAY 10991104 MAY 10991104 Contact Us For Availability
43
MAY 12435701 MAY 12435701 Contact Us For Availability
51
MAY 10968802 MAY 10968802 Contact Us For Availability
51
MAY M0214931 MAY M0214931 Contact Us For Availability
52
MAY 10310901 MAY 10310901 Contact Us For Availability
52
MAY 12442401 MAY 12442401 Contact Us For Availability
53
MAY R0170047 MAY R0170047 Contact Us For Availability
61
MAY 10447905 MAY 10447905 Contact Us For Availability
61
MAY R0191094 MAY R0191094 Contact Us For Availability
62
MAY 10530703 MAY 10530703 Contact Us For Availability
62
MAY 12103905 MAY 12103905 Contact Us For Availability
62
MAY 10961002 MAY 10961002 Contact Us For Availability
62
MAY B5720302 MAY B5720302 Contact Us For Availability
62
MAY B5742604 MAY B5742604 Contact Us For Availability
63
MAY 12204705 MAY 12204705 Contact Us For Availability
64
MAY C8964402 MAY C8964402 Contact Us For Availability
72
MAY 12509501 MAY 12509501 Contact Us For Availability
72
MAY M0219711 MAY M0219711 Contact Us For Availability
73
MAY 12031501 MAY 12031501 Contact Us For Availability
81
MAY 12123319 MAY 12123319 Contact Us For Availability
82
MAY 12482101 MAY 12482101 Contact Us For Availability
82
MAY 10468004 MAY 10468004 Contact Us For Availability
82
GROMMET, COMPRESSOR MAY 10835901 Contact Us For Availability
82
MAY D7753903 MAY D7753903 Contact Us For Availability
83
MAY 12141901 MAY 12141901 Contact Us For Availability
91
MAY 12060802 MAY 12060802 Contact Us For Availability
91
MAY 12079801 MAY 12079801 Contact Us For Availability
92
MAY 10441102 MAY 10441102 Contact Us For Availability
92
MAY D7813004 MAY D7813004 Contact Us For Availability
92
MAY 12079906Q MAY 12079906Q Contact Us For Availability
93
MAY 12051601 MAY 12051601 Contact Us For Availability
93
MAY M0231426 MAY M0231426 Contact Us For Availability
100
MAY C8946703 MAY C8946703 Contact Us For Availability
101
MAY 12060803 MAY 12060803 Contact Us For Availability
102
MAY 10884401 MAY 10884401 Contact Us For Availability
102
DRIER MAY B2150504 Contact Us For Availability
102
MAY 12079905Q MAY 12079905Q Contact Us For Availability
103
MAY 12051501 MAY 12051501 Contact Us For Availability
103
MAY M0103904 MAY M0103904 Contact Us For Availability
104
MAY 10547002 MAY 10547002 Contact Us For Availability
105
MAY 12024801 MAY 12024801 Contact Us For Availability
108
MAY 12024902 MAY 12024902 Contact Us For Availability
109
ROLLER, PAN MAY 10481001 Contact Us For Availability
110
MAY M0238105 MAY M0238105 Contact Us For Availability
111
MAY B5759611 MAY B5759611 Contact Us For Availability
112
MAY M0310308 MAY M0310308 Contact Us For Availability
112
MAY 12468201 MAY 12468201 Contact Us For Availability
114
MAY M0310305 MAY M0310305 Contact Us For Availability
115
MAY M0311703 MAY M0311703 Contact Us For Availability
118
MAY M0270538 MAY M0270538 Contact Us For Availability
119
MAY M0239216 MAY M0239216 Contact Us For Availability
120
MAY M0216716 MAY M0216716 Contact Us For Availability
121
MAY 12077317 MAY 12077317 Contact Us For Availability
121
MAY 10319801 MAY 10319801 Contact Us For Availability
122
MAY M0238616 MAY M0238616 Contact Us For Availability
122
ICE TRAY MAY D7725402 Contact Us For Availability
122
MAY D7824705 MAY D7824705 Contact Us For Availability
122
CAPACITOR MAY C8931612 Contact Us For Availability
124
MAY A3030353 MAY A3030353 Contact Us For Availability
129
MAY 12045503 MAY 12045503 Contact Us For Availability
131
MAY 12039102 MAY 12039102 Contact Us For Availability
131
MAY 12550106 MAY 12550106 Contact Us For Availability
131
MAY 10875101 MAY 10875101 Contact Us For Availability
132
MAY 12028602 MAY 12028602 Contact Us For Availability
134
MAY 12050104 MAY 12050104 Contact Us For Availability
141
MAY 12045303 MAY 12045303 Contact Us For Availability
141
MAY B8345401 MAY B8345401 Contact Us For Availability
142
MAY 10252903 MAY 10252903 Contact Us For Availability
142
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
144
MAY 12028502 MAY 12028502 Contact Us For Availability
151
MAY M0241508 MAY M0241508 Contact Us For Availability
151
MAY 10562201 MAY 10562201 Contact Us For Availability
151
MAY 12031401 MAY 12031401 Contact Us For Availability
151
MAY R0183121 MAY R0183121 Contact Us For Availability
152
MAY M0211018 MAY M0211018 Contact Us For Availability
152
MAY 10582501 MAY 10582501 Contact Us For Availability
153
MAY D7714408 MAY D7714408 Contact Us For Availability
155
MAY 12056201 MAY 12056201 Contact Us For Availability
156
MAY 12056301 MAY 12056301 Contact Us For Availability
157
MAY 12180003 MAY 12180003 Contact Us For Availability
158
MAY 12088401 MAY 12088401 Contact Us For Availability
160
MAY M0211357 MAY M0211357 Contact Us For Availability
161
MAY 10093308 MAY 10093308 Contact Us For Availability
161
MAY 10562202 MAY 10562202 Contact Us For Availability
161
MAY R0186041 MAY R0186041 Contact Us For Availability
161
MAY M0102325 MAY M0102325 Contact Us For Availability
162
MAY 12088901 MAY 12088901 Contact Us For Availability
162
SEAL, O RING MAY M0500703 Contact Us For Availability
167
MAY B8386604 MAY B8386604 Contact Us For Availability
171
MAY 10476101Q MAY 10476101Q Contact Us For Availability
171
MAY 10562203 MAY 10562203 Contact Us For Availability
171
MAY 10609805 MAY 10609805 Contact Us For Availability
171
MAY R0186040 MAY R0186040 Contact Us For Availability
172
MAY 10884504 MAY 10884504 Contact Us For Availability
173
MAY 12427502 MAY 12427502 Contact Us For Availability
174
MAY 12045201 MAY 12045201 Contact Us For Availability
181
MAY 10351002 MAY 10351002 Contact Us For Availability
182
MAY 12169701 MAY 12169701 Contact Us For Availability
183
SCREW, SM MAY M0238642 Contact Us For Availability
183
MAY M0310342 MAY M0310342 Contact Us For Availability
186
MAY M0270508 MAY M0270508 Contact Us For Availability
191
MAY M0211031 MAY M0211031 Contact Us For Availability
191
MAY 10561602 MAY 10561602 Contact Us For Availability
201
MAY 10987526 MAY 10987526 Contact Us For Availability
201
MAY C8902601 MAY C8902601 Contact Us For Availability
201
MAY M0223230 MAY M0223230 Contact Us For Availability
211
MAY M0204336 MAY M0204336 Contact Us For Availability
211
MAY 12446512 MAY 12446512 Contact Us For Availability
221
MAY 10202001 MAY 10202001 Contact Us For Availability
222
MAY 10526701 MAY 10526701 Contact Us For Availability
222
MAY M0224416 MAY M0224416 Contact Us For Availability
231
MAY 10987525 MAY 10987525 Contact Us For Availability
231
MAY D7795826 MAY D7795826 Contact Us For Availability
242
MAY 12490801 MAY 12490801 Contact Us For Availability
242
MAY M0223816 MAY M0223816 Contact Us For Availability
251
MAY 12050903 MAY 12050903 Contact Us For Availability
252
NUT, SLEEVE MAY M0753001 Contact Us For Availability
261
MAY R0161050 MAY R0161050 Contact Us For Availability
261
MAY 10686404 MAY 10686404 Contact Us For Availability
262
MAY 12152901 MAY 12152901 Contact Us For Availability
271
MAY 10354001 MAY 10354001 Contact Us For Availability
272
MAY 12285406 MAY 12285406 Contact Us For Availability
272
MAY A1055101 MAY A1055101 Contact Us For Availability
282
MAY 12443505B MAY 12443505B Contact Us For Availability
282
MAY B5705308 MAY B5705308 Contact Us For Availability
283
MAY 12433801 MAY 12433801 Contact Us For Availability
291
MAY 12032204 MAY 12032204 Contact Us For Availability
293
MAY M0581001 MAY M0581001 Contact Us For Availability
301
MAY A0282803 MAY A0282803 Contact Us For Availability
302
MAY M0211533 MAY M0211533 Contact Us For Availability
302
MAY M0221523 MAY M0221523 Contact Us For Availability
312
INSERT, PLASTIC TUBE MAY A3223101 Contact Us For Availability
313
MAY 12045103 MAY 12045103 Contact Us For Availability
321
MAY 12045401 MAY 12045401 Contact Us For Availability
323
MAY 10551502 MAY 10551502 Contact Us For Availability
331
MAY 12060101 MAY 12060101 Contact Us For Availability
332
MAY 12056101 MAY 12056101 Contact Us For Availability
341
MAY 12038901 MAY 12038901 Contact Us For Availability
342
MAY C3680310 MAY C3680310 Contact Us For Availability
342
ELBOW, FILL TUBE MAY 10463201 Contact Us For Availability
351
MAY D7689905 MAY D7689905 Contact Us For Availability
393
MAY B5733302 MAY B5733302 Contact Us For Availability
393
MAY M0230919 MAY M0230919 Contact Us For Availability
401
MAY M0226233 MAY M0226233 Contact Us For Availability
421
MAY M0227217 MAY M0227217 Contact Us For Availability
422
MAY 10476207 MAY 10476207 Contact Us For Availability
422
MAY 12468101 MAY 12468101 Contact Us For Availability
433
MAY 10972101 MAY 10972101 Contact Us For Availability
441
MAY 12098203 MAY 12098203 Contact Us For Availability
441
MAY Y12060002 MAY Y12060002 Contact Us For Availability
451
MAY 12452601Q MAY 12452601Q Contact Us For Availability
502
SCREW, HNDL CONE MAY 12248201 Contact Us For Availability
511
MAY 12076301 MAY 12076301 Contact Us For Availability
512
MAY 12457801 MAY 12457801 Contact Us For Availability
522
MAY 12285503 MAY 12285503 Contact Us For Availability
532
MAY 12273515 MAY 12273515 Contact Us For Availability
541
MAY B5759642 MAY B5759642 Contact Us For Availability
542
MAY 12443303 MAY 12443303 Contact Us For Availability
542
MAY 12032001 MAY 12032001 Contact Us For Availability
553
MAY D7874403 MAY D7874403 Contact Us For Availability
553
MAY 10461902 MAY 10461902 Contact Us For Availability
562
MAY 10525901 MAY 10525901 Contact Us For Availability
601
MAY M0238731 MAY M0238731 Contact Us For Availability
611
MAY M0220432 MAY M0220432 Contact Us For Availability
623
MAY D7806002 MAY D7806002 Contact Us For Availability
631
MAY 10391302 MAY 10391302 Contact Us For Availability
651
MAY 12113302 MAY 12113302 Contact Us For Availability
661
MAY 12496402 MAY 12496402 Contact Us For Availability
671
MAY 12484602 MAY 12484602 Contact Us For Availability
671
MAY M0102305 MAY M0102305 Contact Us For Availability
672
MAY R0181176 MAY R0181176 Contact Us For Availability
673
MAY 10420007 MAY 10420007 Contact Us For Availability
683
MAY 12163301 MAY 12163301 Contact Us For Availability
691
MAY 12060601 MAY 12060601 Contact Us For Availability
693
MAY 12163202 MAY 12163202 Contact Us For Availability
731
MAY 12086301 MAY 12086301 Contact Us For Availability
741
MAY 10544301 MAY 10544301 Contact Us For Availability
761
GASKET, FOAM MAY A3189320 Contact Us For Availability
803
MAY M0216531 MAY M0216531 Contact Us For Availability
813
MAY D7878825 MAY D7878825 Contact Us For Availability
840
MAY A0282807 MAY A0282807 Contact Us For Availability
841
MAY 10493302 MAY 10493302 Contact Us For Availability
851
MAY M0238846 MAY M0238846 Contact Us For Availability
861
PLUG, TOP HINGE BUTTON (BLK) MAY M0310731 Contact Us For Availability
871
MAY 12032404 MAY 12032404 Contact Us For Availability
901
MAY 10623002 MAY 10623002 Contact Us For Availability
913
HANDLE, BASKET/SHELF MAY 10508506 Contact Us For Availability
921
MAY 10502401 MAY 10502401 Contact Us For Availability
931
MAY 12031804 MAY 12031804 Contact Us For Availability
941
MAY 12059702 MAY 12059702 Contact Us For Availability
951
MAY 12059701 MAY 12059701 Contact Us For Availability
971
MAY 12271401 MAY 12271401 Contact Us For Availability
981
MAY M0253916 MAY M0253916 Contact Us For Availability
NI
MAY 12228201 MAY 12228201 Contact Us For Availability
NI
MAY M0321202 MAY M0321202 Contact Us For Availability
NI
MAY 10244904 MAY 10244904 Contact Us For Availability
NI
MAY 10527047 MAY 10527047 Contact Us For Availability
NI
MAY 10834701 MAY 10834701 Contact Us For Availability
NI
MAY A3036901 MAY A3036901 Contact Us For Availability
NI
MAY M0114003 MAY M0114003 Contact Us For Availability
NI
MAY M0311301 MAY M0311301 Contact Us For Availability
× ![]()
