Model LG BPM53 – Common Parts & Diagrams

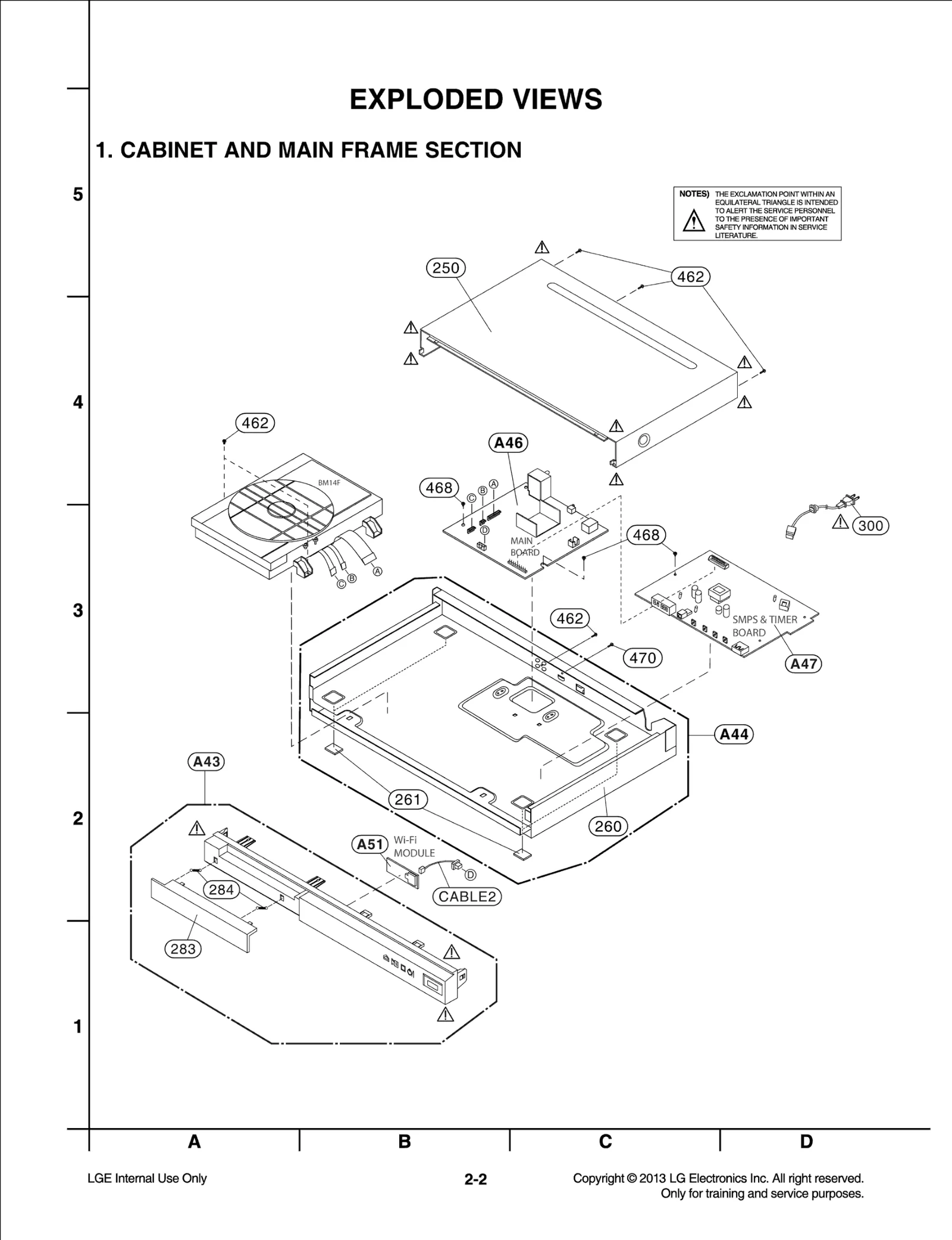

Diagram 0

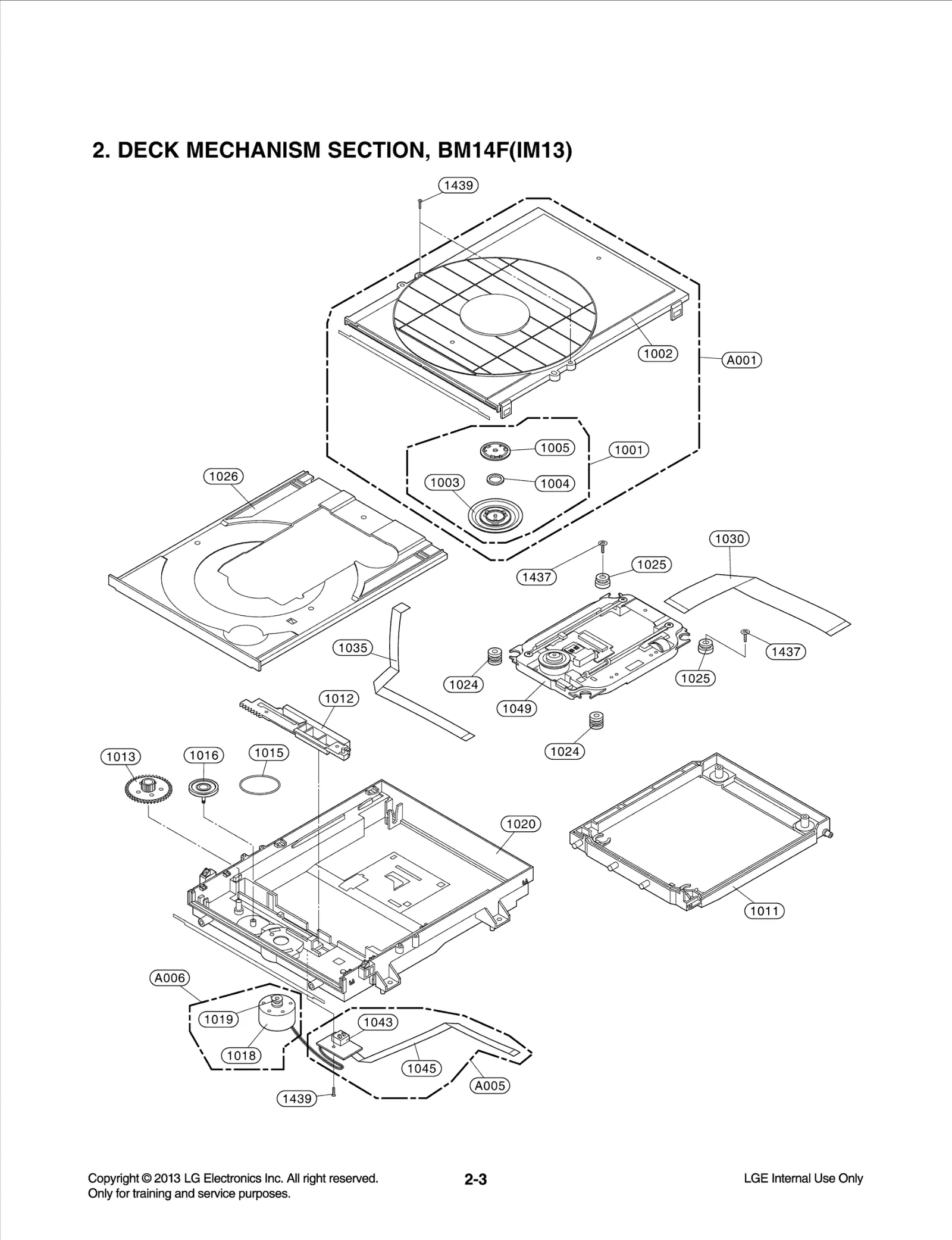

Diagram 1
Diagram 2
Diagram 3
Common parts from model LG BPM53
0000
Deck Assembly,DVD LGE EAZ61742101 Contact Us For Availability
0000
Board Assembly LGE AAX73969203 Contact Us For Availability
250
Case LGE MBN62984201 Contact Us For Availability
260
Chassis LGE MBS62645401 Contact Us For Availability
261
Damper LGE MCQ32325001 Contact Us For Availability
283
Door LGE MCV62793501 Contact Us For Availability
284
SPRING LGE 4970R-0146C Contact Us For Availability
300
Power Cord LGE EAD60816603 Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
468
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
470
Screw,Customzied LGE 353-022S Contact Us For Availability
801
Manual Assembly,Owners LGE AFN75914705 Contact Us For Availability
802
Box,Master LGE MAY65828950 Contact Us For Availability
803
Packing LGE MFZ63543401 Contact Us For Availability
804
Bag,Vinyl LGE 3880R-E002U Contact Us For Availability
808
Battery,Manganese LGE 6910F00010B Contact Us For Availability
832
Title LGE SAC35454250 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73735801 Contact Us For Availability
1001
Clamp Assembly LGE ACA73149501 Contact Us For Availability
1002
Cover LGE MCK66956901 Contact Us For Availability
1003
Clamp LGE MBU62345801 Contact Us For Availability
1004
Magnet,NdFeB LGE RAB33072101 Contact Us For Availability
1005
Plate LGE MGJ63182201 Contact Us For Availability
1011
Base LGE MAM62647801 Contact Us For Availability
1012
Guide LGE MEA62870901 Contact Us For Availability
1013
Gear LGE MDT62367501 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1016
Gear LGE MDT62367401 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1018
Motor,DC LGE EAU62065801 Contact Us For Availability
1019
PULLEY LGE 4560R-1016A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1020
Base LGE MAM62667001 Contact Us For Availability
1024
Damper LGE MCQ66909001 Contact Us For Availability
1025
Damper LGE MCQ65785002 Contact Us For Availability
1026
Tray LGE MJS62532101 Contact Us For Availability
1030
Cable,FFC LGE EAD61048203 Contact Us For Availability
1035
Cable,FFC LGE EAD62056501 Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1043
SWITCH,MICRO LGE 6600KW3004C Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1045
Cable,FFC LGE EAD62039801 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ61522404 Contact Us For Availability
1437
Screw,Customized LGE FAB30840502 Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Cover Assembly LGE ACQ85915301 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR74672401 Contact Us For Availability
A006
Motor Assembly,DC LGE EAU61324101 Contact Us For Availability
A43
Panel Assembly,Front LGE AGL74115011 Contact Us For Availability
A44
Frame Assembly LGE ADV74486803 Contact Us For Availability
A46
Option Code Assembly LGE EBR76579113 Contact Us For Availability
A47
PCB Assembly LGE EBR76807101 Contact Us For Availability
A51
Module,WLAN LGE EAT61613201 Contact Us For Availability
C102
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
C102
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
C102
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
C102
Capacitor,Film,Box LGE 624-088N Contact Us For Availability
C102
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
C103
CAPACITOR,FIXED ELEC LGE 0CE476CQ610 Contact Us For Availability
C105
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C109
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C110
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C110
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C111
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C111
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C113
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C123
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C124
Capacitor,AL,Radial LGE 0CE1082F610 Contact Us For Availability
C128
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C152
Capacitor,Ceramic,Ch LGE 0CK105CD67A Contact Us For Availability
C157
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C163
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C165
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C166
Capacitor,Ceramic,Chip LGE 0CZZB00019A Contact Us For Availability
C167
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C169
Capacitor,Ceramic,Chip LGE 0CH1473K562 Contact Us For Availability
C181
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C577
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
C579
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C652
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C701
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C702
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C719
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C745
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C747
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C761
Capacitor,Ceramic,Chip LGE 0CK681BK56A Contact Us For Availability
C768
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C769
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C770
Inductor,Multilayer,Chip LGE EAP39314704 Contact Us For Availability
C907
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
CABLE2
Harness,Single LGE EAD61073410 Contact Us For Availability
CE901
Capacitor,AL,Radial LGE 0CE1074D638 Contact Us For Availability
CE902
Capacitor,AL,Radial LGE 0CE4763F638 Contact Us For Availability
CE903
Capacitor,AL,Radial LGE 0CE108CD638 Contact Us For Availability
CN150
Connector,BtoB LGE 6630R-BF07T Contact Us For Availability
CN701
CONNECTOR (CIRC),FFC LGE 6630XE00108 Contact Us For Availability
CN703
Connector,FFC/FPC/PIC LGE 6630X60142J Contact Us For Availability
CN704
Connector,FFC/FPC/PIC LGE 6630XE00105 Contact Us For Availability
CN803
Connector,Wafer LGE 6630R3S006F Contact Us For Availability
CN901
Connector,BtoB LGE 6630R-BF03P Contact Us For Availability
D101
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D106
DIODE,RECTIFIERS LGE 0DRRE00203A Contact Us For Availability
D127
Diode,Schottky LGE 0DSTW00030A Contact Us For Availability
D130
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D150
Diode,Rectifier LGE EAH61112901 Contact Us For Availability
D802
Diode,Switching LGE 0DD160009AB Contact Us For Availability
D802
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
F101
FUSE,SLOW BLOW LGE 0FS1601B51D Contact Us For Availability
FH02
HOLDER FUSE LGE 586-008B Contact Us For Availability
IC101
IC,PWM Controller LGE EAN60759401 Contact Us For Availability
IC102
Photo,Coupler LGE EAV59176001 Contact Us For Availability
IC102
Photo,Coupler LGE EAV61473101 Contact Us For Availability
IC103
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
IC150
IC,DC,DC Converter LGE EAN61969901 Contact Us For Availability
IC151
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC153
IC,LDO Voltage Regulator LGE EAN61012401 Contact Us For Availability
IC501
IC,Video Processors LGE EAN62230602 Contact Us For Availability
IC502
IC,Voltage Detector LGE EAN61386701 Contact Us For Availability
IC601
IC,DDR3 SDRAM LGE EAN61859701 Contact Us For Availability
IC601
IC,DDR3 SDRAM LGE EAN61859702 Contact Us For Availability
IC603A
S/W,System Program LGE SAA36350102 Contact Us For Availability
IC701
IC,Motor Driver LGE EAN62351201 Contact Us For Availability
IC702
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC901
IC,LED Driver LGE EAN60970701 Contact Us For Availability
JK802
Connector,HDMI LGE EAG62611205 Contact Us For Availability
JK803
Jack,Modular LGE EAG32089102 Contact Us For Availability
JK805
Jack,RCA LGE 6612R-C013D Contact Us For Availability
JK901
Connector,USB LGE EAG63217801 Contact Us For Availability
L101
Filter,Line Noise LGE EAM60870701 Contact Us For Availability
L111
COIL,RF LGE 6140RCC003H Contact Us For Availability
LED901
LED Display Module LGE EAV61592304 Contact Us For Availability
PW101
CONNECTOR (CIRC),WAF LGE 6630V90108A Contact Us For Availability
Q501
TR,Bipolar LGE 0TRON80001C Contact Us For Availability
R100
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R101
RESISTOR 2.7/2W CEMENT SMPS V LGE 614-007A Contact Us For Availability
R102
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R104
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R123
RESISTOR CHIP 18K 1/10W 5 D.R LGE 0RH1802D622 Contact Us For Availability
R124
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R125
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R127
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R128
Resistor,Chip LGE 0RH2701D422 Contact Us For Availability
R129
Resistor,Chip LGE 0RH3900D622 Contact Us For Availability
R130
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R156
Resistor,Chip LGE 0RH7502C622 Contact Us For Availability
R158
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R159
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R160
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R162
Resistor,Chip LGE EBC40092901 Contact Us For Availability
R166
Resistor,Chip LGE 0RH1003C422 Contact Us For Availability
R167
Resistor,Chip LGE 0RH1802C422 Contact Us For Availability
R168
Resistor,Chip LGE 0RH3302C422 Contact Us For Availability
R169
Resistor,Chip LGE 0RH4702C422 Contact Us For Availability
R170
RESISTOR,CHIP LGE 0RH3301C422 Contact Us For Availability
R171
Resistor,Chip LGE 0RJ5602C477 Contact Us For Availability
R174
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R175
Resistor,Chip LGE 0RH4701C422 Contact Us For Availability
R176
Resistor,Chip LGE 0RH1800C622 Contact Us For Availability
R178
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R180
Resistor,Chip LGE 0RH2701C422 Contact Us For Availability
R181
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R513
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R518
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R520
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R524
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R529
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R533
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R535
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R547
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R549
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R550
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R602
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R701
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R706
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R736
Resistor,Chip LGE 0RH8202B622 Contact Us For Availability
R758
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R794
Resistor,Chip LGE 0RJ1200C477 Contact Us For Availability
R795
Resistor,Chip LGE 0RH8200C422 Contact Us For Availability
R796
Resistor,Chip LGE 0RH0391C622 Contact Us For Availability
R816
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R818
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R819
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R840
Resistor,Chip LGE 0RH0752C422 Contact Us For Availability
R841
Resistor,Chip LGE 0RH1100C622 Contact Us For Availability
R843
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R902
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
R904
RESISTOR,METAL GLAZE LGE 0RJ3300C477 Contact Us For Availability
RC901
Receiver Module LGE EAV58012902 Contact Us For Availability
SW901
Switch,Tact LGE EBF52268801 Contact Us For Availability
T101
Transformer,Switching LGE EBJ61471002 Contact Us For Availability
TD802
Diode,TVS LGE EAH61515001 Contact Us For Availability
V101
Varistor LGE EAF43134201 Contact Us For Availability
V801
Varistor LGE 6102R7E001A Contact Us For Availability
V801
Varistor LGE EAF61451601 Contact Us For Availability
X501
Crystal LGE EAW60673002 Contact Us For Availability
ZD101
DIODE,ZENERS LGE 0DZRM00448A Contact Us For Availability
ZD103
Diode,TVS LGE EAH61192501 Contact Us For Availability
× ![]()
Login and Registration Form
