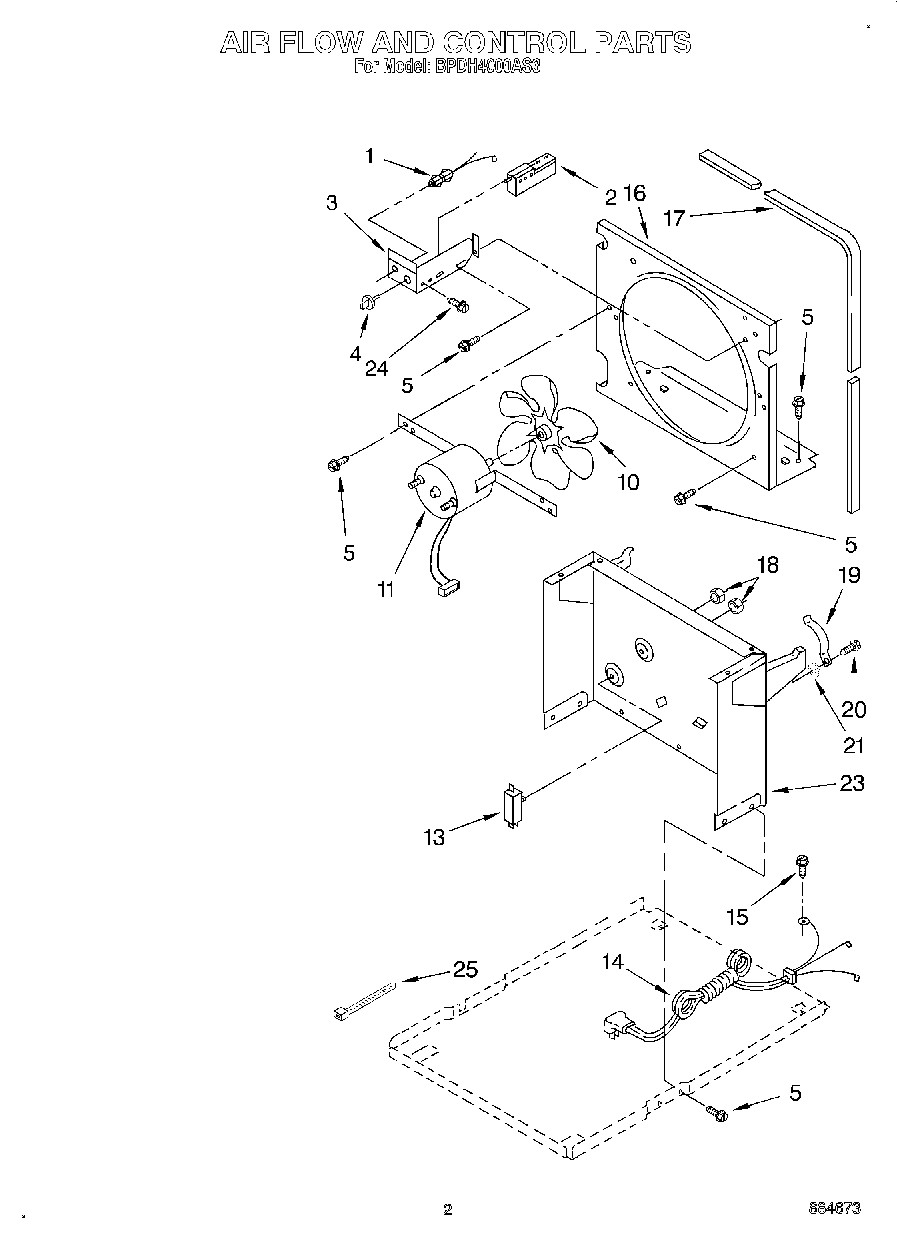

Model Whirlpool BPDH4000AS3 DEHUMIDIFIER – Common Parts & Diagrams

Tech Sheet
Tech Sheet WPL LIT1168183 Contact Us For Availability
View on Model
Use & Care Guide
Use & Care Guide WPL LIT1169993 Contact Us For Availability
View on Model
1
Light, Indicator
Light, Indicator WPL 1164804 Contact Us For Availability
View on Model
2
Humidistat, Control
Humidistat, Control WPL 1166055 Contact Us For Availability
View on Model
2
Tube, Restrictor (46.0`` Length)
Tube, Restrictor (46.0`` Length) WPL 1168191 Contact Us For Availability
View on Model
3
Bracket, Control
Bracket, Control WPL 1167040 Contact Us For Availability
View on Model
4
Relay
Relay WPL 950058 Contact Us For Availability
View on Model
4
Knob, Control (1)
Knob, Control (1) WPL 1162670 Contact Us For Availability
View on Model
5
Condenser
Condenser WPL 1167544 Contact Us For Availability
View on Model
8
Deicer, Bimetal
Deicer, Bimetal WPL 1167574 Contact Us For Availability
View on Model
9
Spring, Overload
Spring, Overload WPL 950061 Contact Us For Availability
View on Model
10
Overload
Overload WPL 1163837 Contact Us For Availability
View on Model
10
Blade, Fan
Blade, Fan WPL 949645 Contact Us For Availability
View on Model
11
Bend, Return (10)
Bend, Return (10) WPL 708531 Contact Us For Availability
View on Model
11
Motor, Fan
Motor, Fan WPL 1164813 Contact Us For Availability
View on Model
12
Cover, Terminal
Cover, Terminal WPL 950055 Contact Us For Availability
View on Model
13
Cover, Retainer
Cover, Retainer WPL 950056 Contact Us For Availability
View on Model
13
Switch, Water Level Control
Switch, Water Level Control WPL 999747 Contact Us For Availability
View on Model
14
Evaporator
Evaporator WPL 1168186 Contact Us For Availability
View on Model
14
Cord, Appliance
Cord, Appliance WPL 1164784 Contact Us For Availability
View on Model
16
Seal
Seal WPL 1162372 Contact Us For Availability
View on Model
16
Plate, Orifice
Plate, Orifice WPL 1166383 Contact Us For Availability
View on Model
17
Seal
Seal WPL 1162704 Contact Us For Availability
View on Model
18
Bolt, 1/4-28 x 1`` (4)
Bolt, 1/4-28 x 1`` (4) WPL 1166034 Contact Us For Availability
View on Model
18
Palnut, 3/8-32
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
View on Model
19
Harness, Wire
Harness, Wire WPL 1167561 Contact Us For Availability
View on Model
19
Spring, Water Level
Spring, Water Level WPL 1161718 Contact Us For Availability
View on Model
21
Base
Base WPL 1157584 Contact Us For Availability
View on Model
21
Washer, Repair (.060 Thickness)
Washer, Repair (.060 Thickness) WPL 489029 Contact Us For Availability
View on Model
21
Washer, Repair (.030 Thickness)
Washer, Repair (.030 Thickness) WPL 489083 Contact Us For Availability
View on Model
21
Washer, Repair (.045 Thickness)
Washer, Repair (.045 Thickness) WPL 489091 Contact Us For Availability
View on Model
22
Roller (2)
Roller (2) WPL 998726 Contact Us For Availability
View on Model
23
Roll Pin-2.0 LG
Roll Pin-2.0 LG WPL 489015 Contact Us For Availability
View on Model
23
Support
Support WPL 1163800 Contact Us For Availability
View on Model
24
Glide-Natural (2)
Glide-Natural (2) WPL 951886 Contact Us For Availability
View on Model
25
Compressor (Complete Assembly)
Compressor (Complete Assembly) WPL 1164774 Contact Us For Availability
View on Model
26
Bend, Return (4)
Bend, Return (4) WPL 708532 Contact Us For Availability
View on Model
27
Bend, Return (8)
Bend, Return (8) WPL 855199 Contact Us For Availability
View on Model
28
Bend, Return (1)
Bend, Return (1) WPL 854624 Contact Us For Availability
View on Model
29
Insulation, Restrictor Tube
Insulation, Restrictor Tube WPL 1162650 Contact Us For Availability
View on Model
30
Seal, Evaporator Top
Seal, Evaporator Top WPL 1162348 Contact Us For Availability
View on Model
31
Wire Assy. (2)
Wire Assy. (2) WPL 1162377 Contact Us For Availability
View on Model
31
PTC Start Device
PTC Start Device WPL 1162476 Contact Us For Availability
View on Model
31
PTC Clamp
PTC Clamp WPL 1162477 Contact Us For Availability
View on Model
31
Relief, Strain
Relief, Strain WPL 1180752 Contact Us For Availability
View on Model
