Model Whirlpool BPDH2500AS1 DEHUMIDIFIER – Common Parts & Diagrams

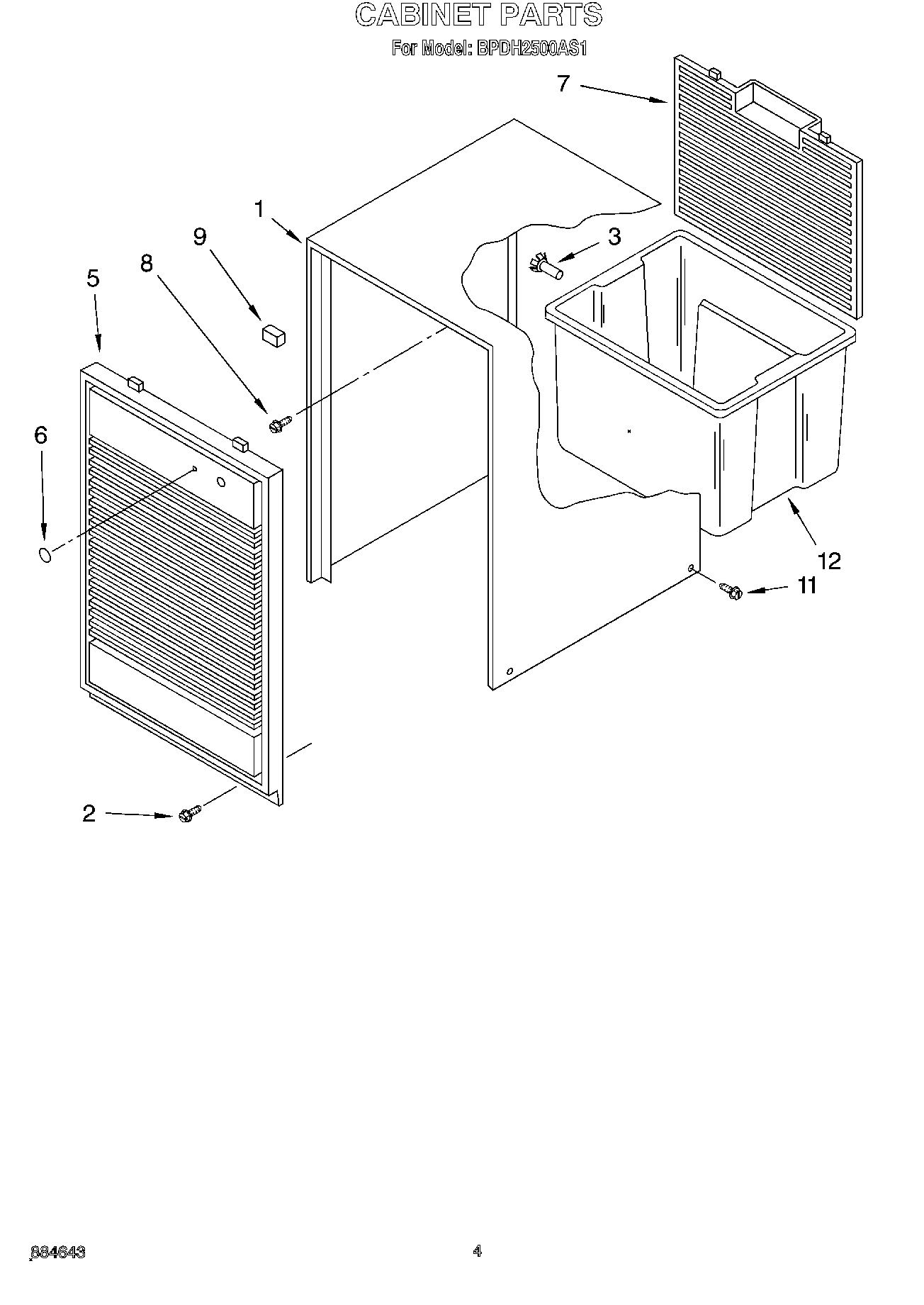

04 - CABINET

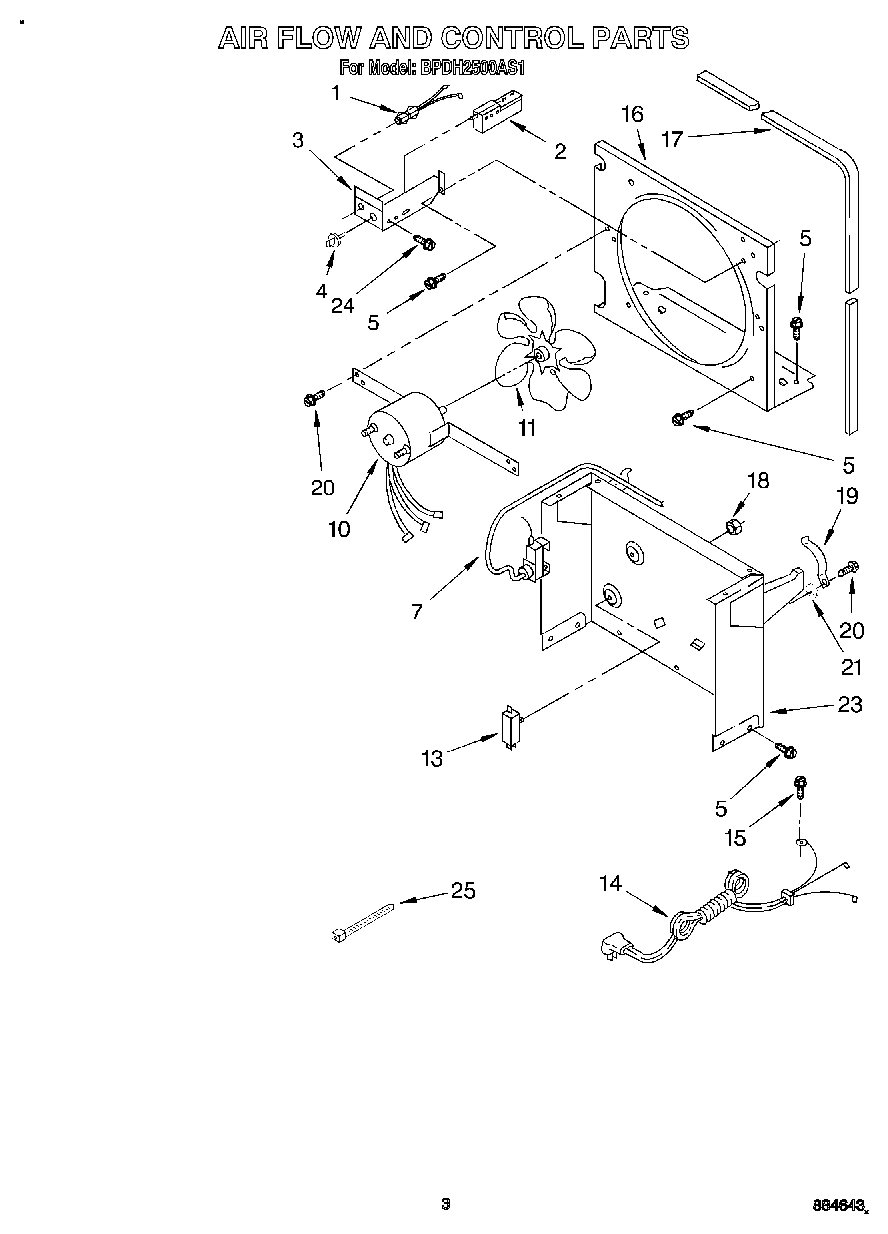

03 - AIR FLOW AND CONTROL

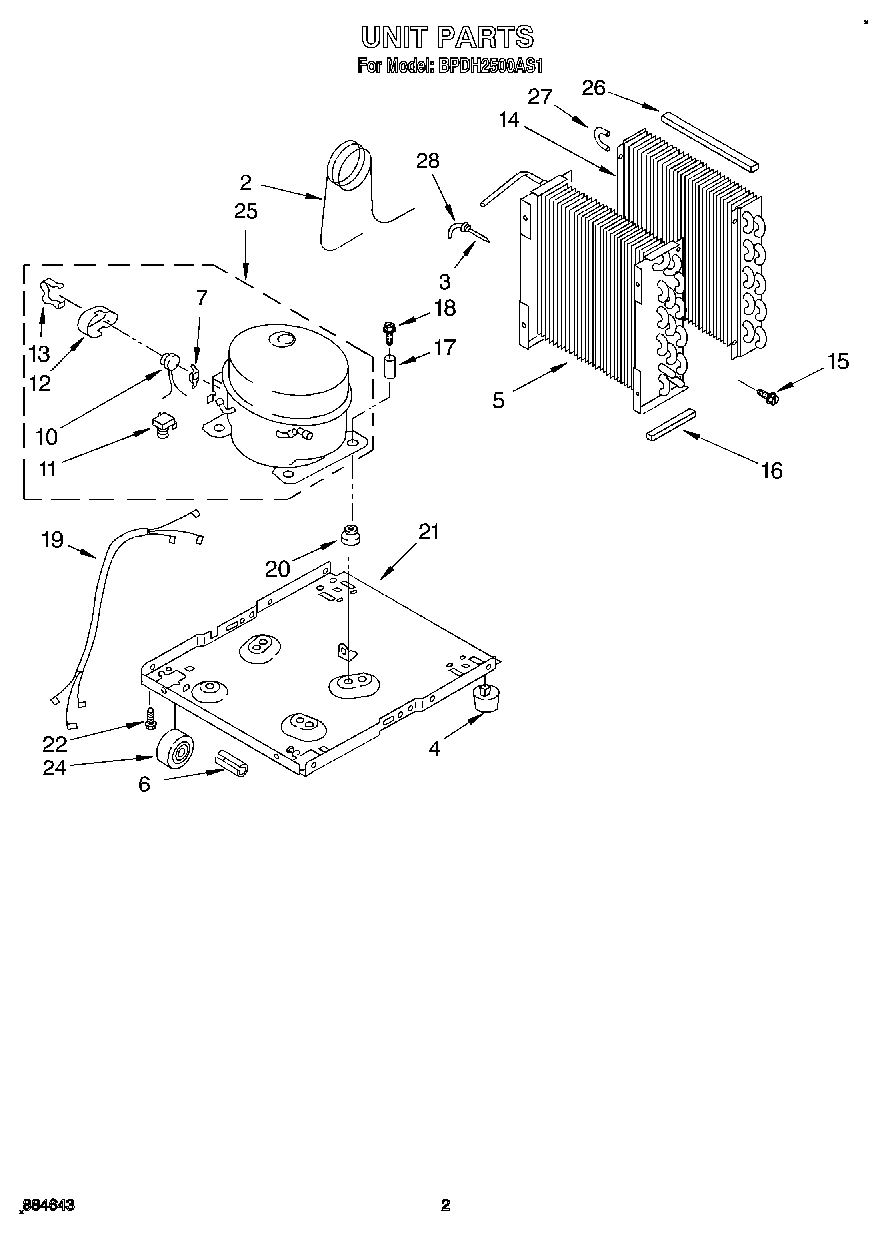

02 - UNIT
Common parts from model Whirlpool BPDH2500AS1 DEHUMIDIFIER
Use & Care Guide WPL LIT1162709 Contact Us For Availability
Sheet, Tech WPL LIT1164210 Contact Us For Availability
Wiring Diagram WPL LIT1164212 Contact Us For Availability
1
Light, Indicator WPL 1158419 Contact Us For Availability
2
Humidistat, Control WPL 1162578 Contact Us For Availability
2
Tube, Restrictor WPL 1164204 Contact Us For Availability
3
Bracket, Control WPL 951284 Contact Us For Availability
3
Strainer WPL 1162037 Contact Us For Availability
4
Knob, Control WPL 1162670 Contact Us For Availability
4
Glide (2) WPL 951886 Contact Us For Availability
5
Condenser WPL 1164219 Contact Us For Availability
6
Roll Pin-2.0 LG WPL 489015 Contact Us For Availability
7
Thermostat, Deicer WPL 1163280 Contact Us For Availability
7
Spring, Overload (Production) WPL 950061 Contact Us For Availability
9
Spacer, Grille WPL 948584 Contact Us For Availability
10
Motor, Fan WPL 1164208 Contact Us For Availability
10
OverLoad (Production) WPL 1163837 Contact Us For Availability
10
OverLoad (Service) WPL 4318051 Contact Us For Availability
11
Screw WPL 1158781 Contact Us For Availability
11
Blade, Fan WPL 949645 Contact Us For Availability
11
Relay, Start (Production) WPL 1163838 Contact Us For Availability
11
Relay, Start (Service) WPL 4318052 Contact Us For Availability
12
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
12
Tape, No Drip (30`) Valve, Access WPL 505168 Contact Us For Availability
12
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
12
Cap, Condensate Pan WPL 646753 Contact Us For Availability
12
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
12
Pan, Condensate WPL 951901 Contact Us For Availability
12
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
12
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
12
Cover Terminal (Service) WPL 4318053 Contact Us For Availability
12
Cover, Terminal (Production) WPL 950055 Contact Us For Availability
13
Switch, Water Level Control WPL 999747 Contact Us For Availability
13
Retainer, Cover (Service) WPL 549086 Contact Us For Availability
13
Retainer, Cover (Production) WPL 950056 Contact Us For Availability
14
Cord, Appliance WPL 1155670 Contact Us For Availability
14
Evaporator WPL 1161199 Contact Us For Availability
15
Screw, 8 x 3/8 (4) WPL 488624 Contact Us For Availability
16
Plate, Orifice WPL 998779 Contact Us For Availability
16
Seal WPL 1162372 Contact Us For Availability
17
Seal WPL 1162704 Contact Us For Availability
17
Sleeve, Mounting WPL 646498 Contact Us For Availability
18
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
18
Screw, 1/4-28 x 1`` (3) WPL 1163835 Contact Us For Availability
19
Spring, Water Level WPL 1161718 Contact Us For Availability
19
Harness, Wire WPL 484136 Contact Us For Availability
20
Grommet (4) WPL 646499 Contact Us For Availability
21
Washer (Repair) (.062 Thickness) WPL 489029 Contact Us For Availability
21
Washer, Repair (.030 Thickness) WPL 489083 Contact Us For Availability
21
Base WPL 1157584 Contact Us For Availability
23
Support WPL 1163800 Contact Us For Availability
24
Caster (2) WPL 998726 Contact Us For Availability
25
Compressor, (Complete Assembly) WPL 1163836 Contact Us For Availability
26
Seal, Evaporator Top WPL 1162348 Contact Us For Availability
27
Bend, Return WPL 854624 Contact Us For Availability
28
Bend, Return WPL 855199 Contact Us For Availability
× ![]()
