Model Whirlpool BPAC1800AS0 ROOM AIR CONDITIONER – Common Parts & Diagrams

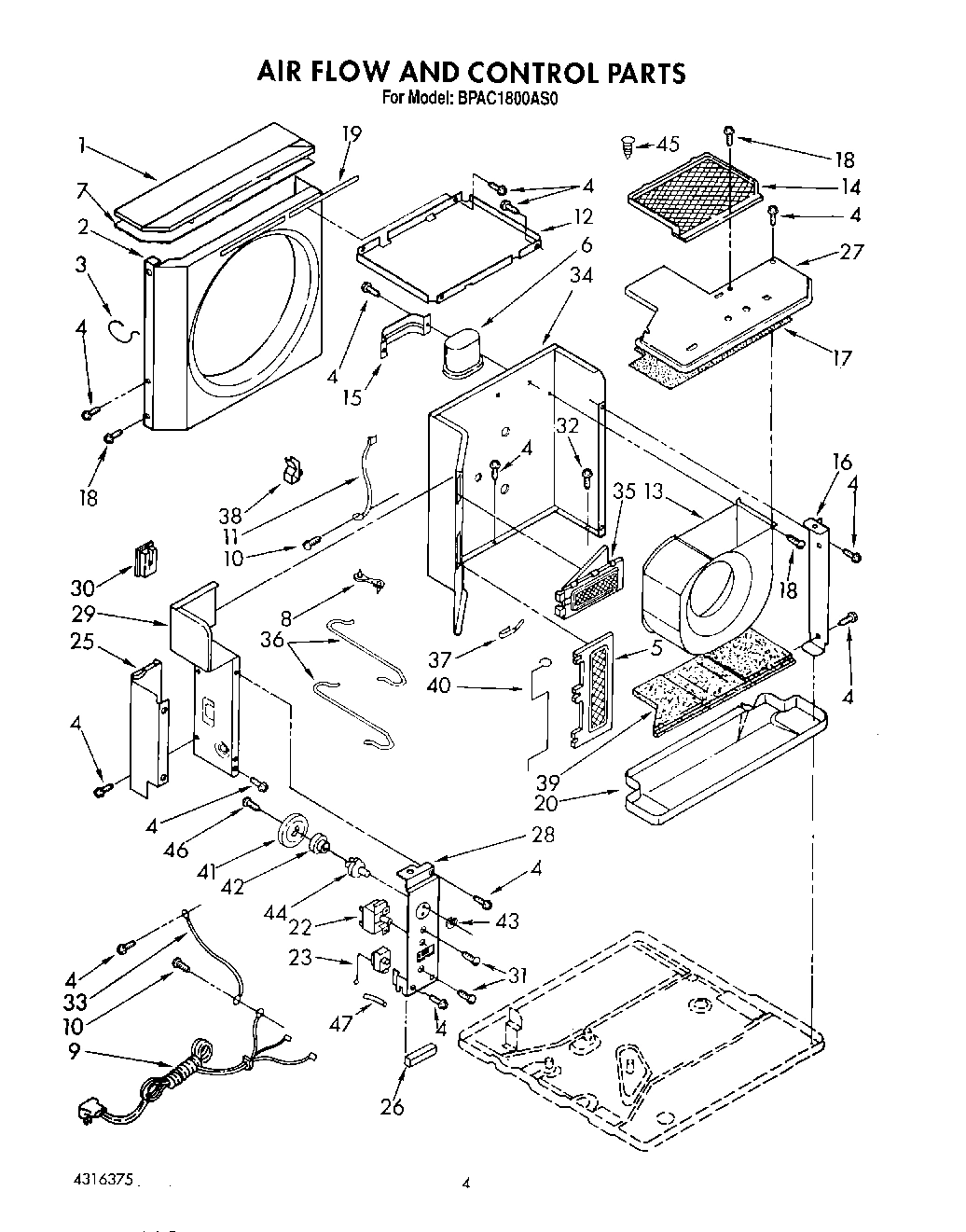

03 - AIR FLOW AND CONTROL

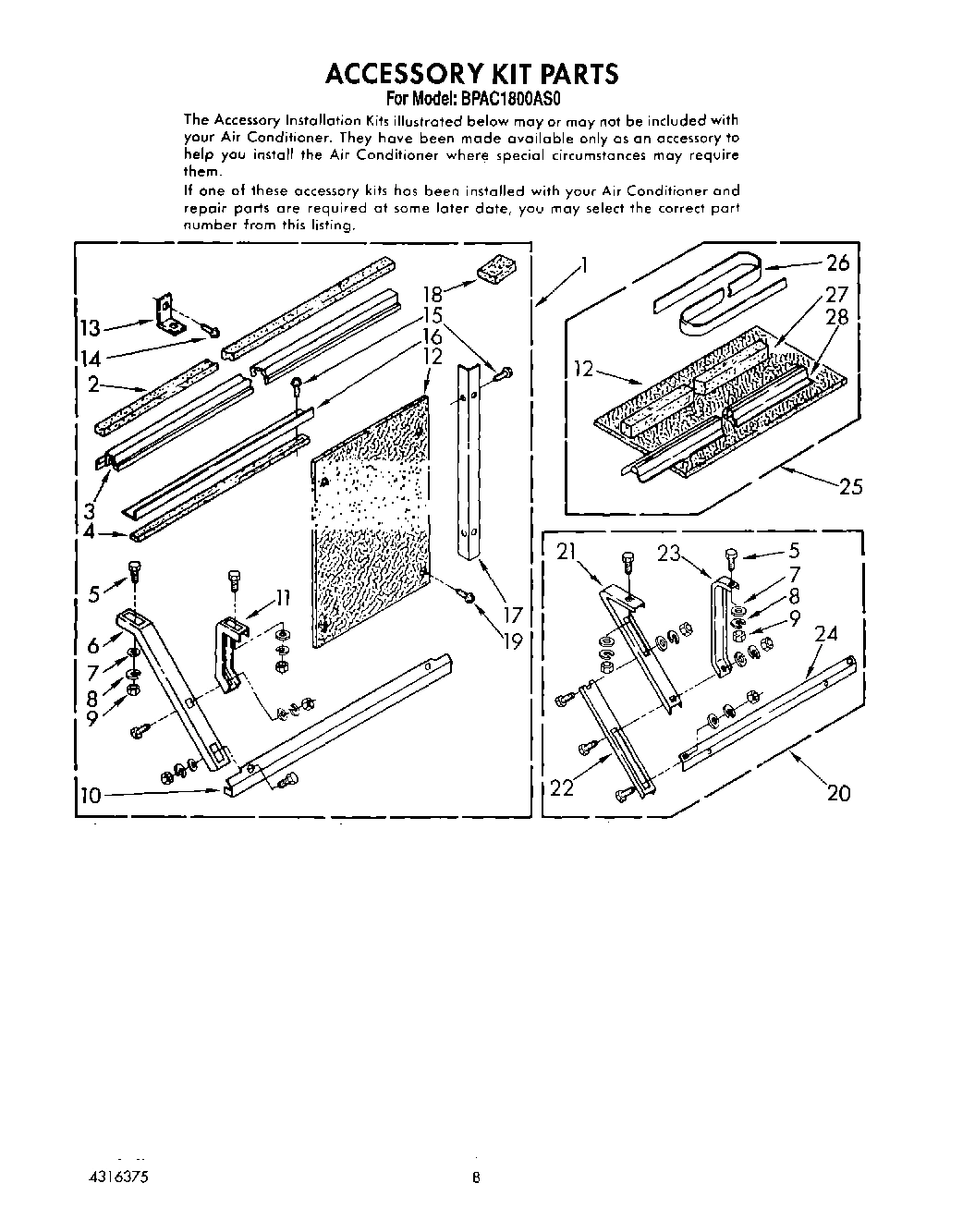

05 - ACCESSORY KIT
06 - OPTIONAL
02 - UNIT, LITERATURE
04 - CABINET
Common parts from model Whirlpool BPAC1800AS0 ROOM AIR CONDITIONER
Instructions, Installation (Outside Support K WPL LIT485707 Contact Us For Availability
Instructions, Installation (Standard and Wide WPL LIT998618 Contact Us For Availability
Wiring Diagram WPL LIT1156789 Contact Us For Availability
Tech Sheet WPL LIT1156807 Contact Us For Availability
Guide, Use and Care WPL LIT1159930 Contact Us For Availability
Instructions, Installation WPL LIT1161909 Contact Us For Availability
List, Repair Parts WPL LIT4316375 Contact Us For Availability
1
Kit, Standard Installation WPL 1160600 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Condenser WPL 1156327 Contact Us For Availability
1
Cabinet WPL 1157893 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bend, Return (8) Evaporator (8) WPL 855199 Contact Us For Availability
2
Grommet, Cable WPL 647849 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Wire, Ground WPL 857022 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
4
Screw, 8-32 x 3/8 WPL 488853 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 1155598 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Blade, Fan WPL 1158987 Contact Us For Availability
6
Screw, 8-32 x 3/8 WPL 488854 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Bushing, Base To Condenser WPL 948130 Contact Us For Availability
7
Plate, Escutcheon WPL 1162788 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Spacer, Plate (3) WPL 469175 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Knob, Control (2) WPL 1162672 Contact Us For Availability
10
Harness, Wiring WPL 484136 Contact Us For Availability
10
Front, Cabinet (Assembly) WPL 1159942 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Clamp, Tube (2) WPL 642684 Contact Us For Availability
11
Front, Cabinet WPL 1159844 Contact Us For Availability
12
Washer, Cover WPL 950037 Contact Us For Availability
12
Filter, Air WPL 649958 Contact Us For Availability
13
Compressor WPL 1155501 Contact Us For Availability
13
Retainer, Filter WPL 476707 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Locknut (4) WPL 858121 Contact Us For Availability
14
Seal, Front (Top & Sides) WPL 649725 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Louver, Vertical WPL 649957 Contact Us For Availability
16
Adapter, Evaporator Header Plate WPL 1161423 Contact Us For Availability
16
Insulation, Cabinet (Right Side) WPL 647847 Contact Us For Availability
16
Insulation, Cabinet (Left Sid) WPL 647848 Contact Us For Availability
16
Insulation, Cabinet (Top) WPL 950157 Contact Us For Availability
16
Handle, Louver WPL 852010 Contact Us For Availability
17
Insulation, Evaporator Cover WPL 948234 Contact Us For Availability
17
Sleeve (4) WPL 950020 Contact Us For Availability
17
Screw, Front WPL 1157141 Contact Us For Availability
18
Louver, Horizontal (Notched) WPL 947268 Contact Us For Availability
19
Seal, Side Condenser WPL 997266 Contact Us For Availability
19
Clip, Front (2) WPL 1157140 Contact Us For Availability
20
Pan, Condensate (Includes No.16) WPL 1159315 Contact Us For Availability
20
Support, Cabinet (2) WPL 649945 Contact Us For Availability
20
Kit, Outside Support WPL 485679 Contact Us For Availability
20
Tube, Maniflod Header WPL 1155510 Contact Us For Availability
21
Retainer, Support (2) WPL 649946 Contact Us For Availability
21
Support, Cabinet (2) WPL 644283 Contact Us For Availability
21
Base WPL 950364 Contact Us For Availability
22
Switch, Rotary WPL 950519 Contact Us For Availability
22
Bracket, Support WPL 649947 Contact Us For Availability
22
Extension, Support (2) WPL 644284 Contact Us For Availability
22
Tube, Restrictor (Length 46.0``) WPL 1156440 Contact Us For Availability
23
Control, Temperature WPL 1155799 Contact Us For Availability
23
Angle, Top WPL 644271 Contact Us For Availability
23
Retainer, Cabinet (2) WPL 644285 Contact Us For Availability
23
Tube, Suction WPL 1155593 Contact Us For Availability
24
Angle, Side (2) WPL 644272 Contact Us For Availability
24
Bracket, Support WPL 644281 Contact Us For Availability
24
Motor, Fan WPL 952072 Contact Us For Availability
25
Cover, Control Access WPL 952208 Contact Us For Availability
25
Gasket, Sash WPL 644288 Contact Us For Availability
25
Kit, Wide Window WPL 485856 Contact Us For Availability
25
Plate, Mounting WPL 998024 Contact Us For Availability
26
Seal, Panel WPL 1162509 Contact Us For Availability
26
Board, Filler WPL 644303 Contact Us For Availability
26
Strip, Seal WPL 856979 Contact Us For Availability
26
Wheel, Blower WPL 1158443 Contact Us For Availability
27
Cover, Evaporator WPL 997269 Contact Us For Availability
27
Seal, Meeting Rail WPL 470800 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
27
Bag, Accessory WPL 993848 Contact Us For Availability
28
Panel, Control WPL 852217 Contact Us For Availability
28
Screw, No.10 Wood x 3/4`` WPL 487371 Contact Us For Availability
28
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
28
Tube, Flow Divider WPL 947364 Contact Us For Availability
29
Extension, Dividing Wall Asy. WPL 1155423 Contact Us For Availability
29
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
29
Tube, 90~ Connect WPL 1155580 Contact Us For Availability
30
Seal, Tube WPL 1162510 Contact Us For Availability
31
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
31
Locknut WPL 858122 Contact Us For Availability
32
Screw, Sm No.8 x 3/8 WPL 488624 Contact Us For Availability
32
Nut, Hex 1/4-20 (6) WPL 486035 Contact Us For Availability
33
Ground Wire WPL 997388 Contact Us For Availability
33
Anticipator WPL 472046 Contact Us For Availability
34
Asy, Dividing Wall WPL 953040 Contact Us For Availability
34
Clip WPL 472047 Contact Us For Availability
35
Door, Exhaust WPL 997221 Contact Us For Availability
35
Seal, Strip WPL 855265 Contact Us For Availability
35
Clip, Front Mtg (2) WPL 852272 Contact Us For Availability
36
Wire, Control (Fresh Air) WPL 1162615 Contact Us For Availability
36
Wire, Control Exhaust WPL 647883 Contact Us For Availability
36
Bend, Retrun Condenser (12) WPL 708532 Contact Us For Availability
36
Seal, Cabinet Bottom WPL 852220 Contact Us For Availability
37
Spring, Door WPL 859369 Contact Us For Availability
37
Block, Spacer (4) WPL 995274 Contact Us For Availability
37
Tube, Maniflod WPL 1156330 Contact Us For Availability
38
Clamp, Cable (2) WPL 947072 Contact Us For Availability
38
Seal, Meeting WPL 469877 Contact Us For Availability
38
Handle, Base WPL 647971 Contact Us For Availability
39
Insulation, Base WPL 997236 Contact Us For Availability
39
Bracket, Window Lock WPL 644228 Contact Us For Availability
39
Evaporator WPL 1156493 Contact Us For Availability
40
Actuator, Door WPL 997223 Contact Us For Availability
40
Bend, Return Condenser (7) WPL 708531 Contact Us For Availability
40
Rack, Louver (2) WPL 649955 Contact Us For Availability
41
Cam, Control WPL 647882 Contact Us For Availability
41
Bend, Return WPL 1156107 Contact Us For Availability
41
Link WPL 852209 Contact Us For Availability
42
Bushing, Control WPL 647879 Contact Us For Availability
42
Bend, Return Condenser (2) Evaporator (1) WPL 1156329 Contact Us For Availability
42
Handle, Horizontal Louver WPL 947267 Contact Us For Availability
43
Washer WPL 647881 Contact Us For Availability
43
Return Bend WPL 1156529 Contact Us For Availability
43
Louver, Horizontal (4) WPL 947269 Contact Us For Availability
44
Shaft, Control WPL 852669 Contact Us For Availability
44
Tube, Riser Evaporator (1) WPL 1156531 Contact Us For Availability
44
Retainer, Louver (4) WPL 855998 Contact Us For Availability
45
Christmas Tree (2) WPL 1159503 Contact Us For Availability
45
Clip, Louver (4) WPL 855999 Contact Us For Availability
46
Screw, 8-16 x 5/8 WPL 489092 Contact Us For Availability
46
Clip WPL 641484 Contact Us For Availability
47
Insulator, Sleeve WPL 475841 Contact Us For Availability
47
Seal, Front (Bottom) WPL 649726 Contact Us For Availability
50
Insulation, Cabinet (Top) WPL 1157053 Contact Us For Availability
50
Insulation, Cabinet (Right Side) WPL 1157054 Contact Us For Availability
50
Insulation, Cabinet (Left Side) WPL 1157055 Contact Us For Availability
51
Seal WPL 998180 Contact Us For Availability
× ![]()
