Model Whirlpool BPAC0830AS2 ROOM AIR CONDITIONER – Common Parts & Diagrams

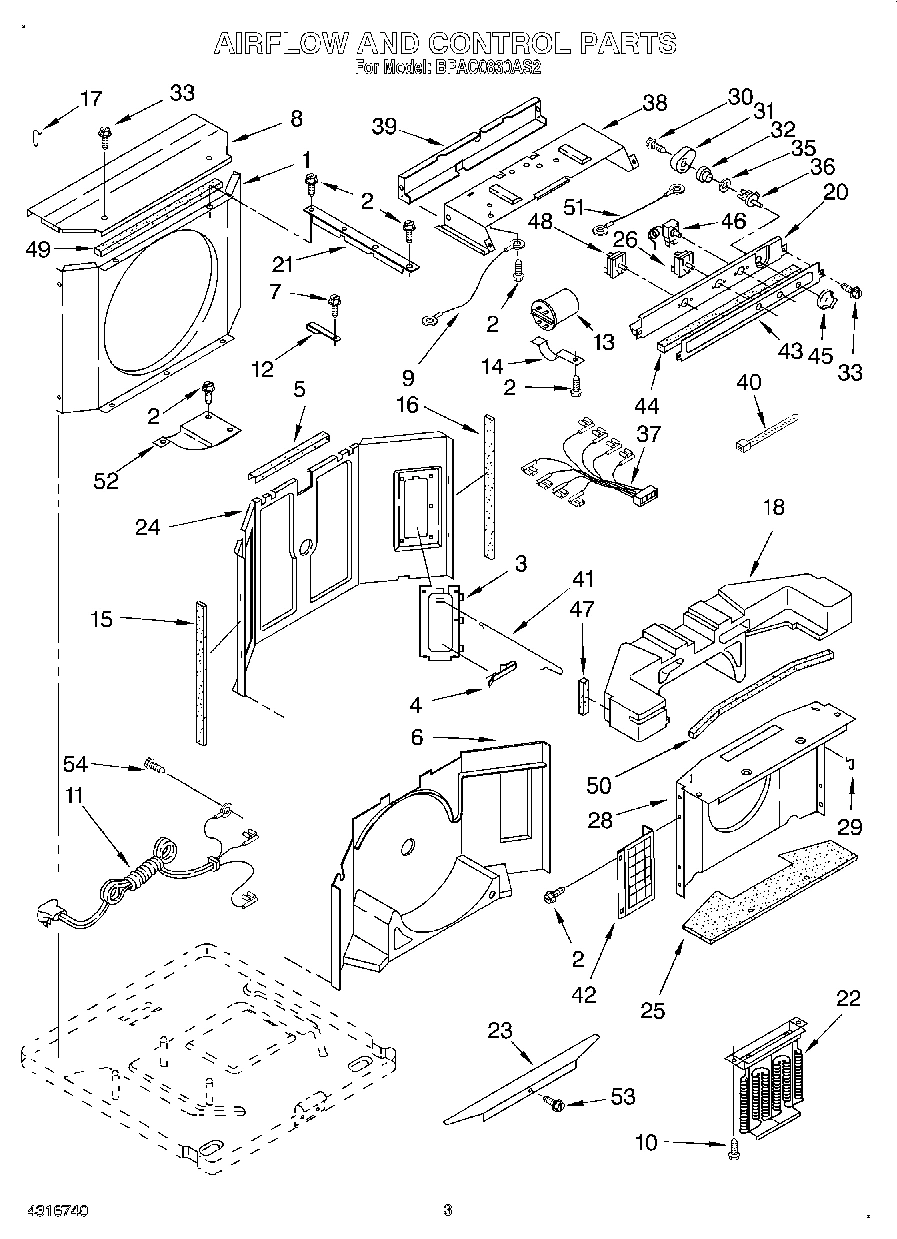

02 - AIRFLOW AND CONTROL

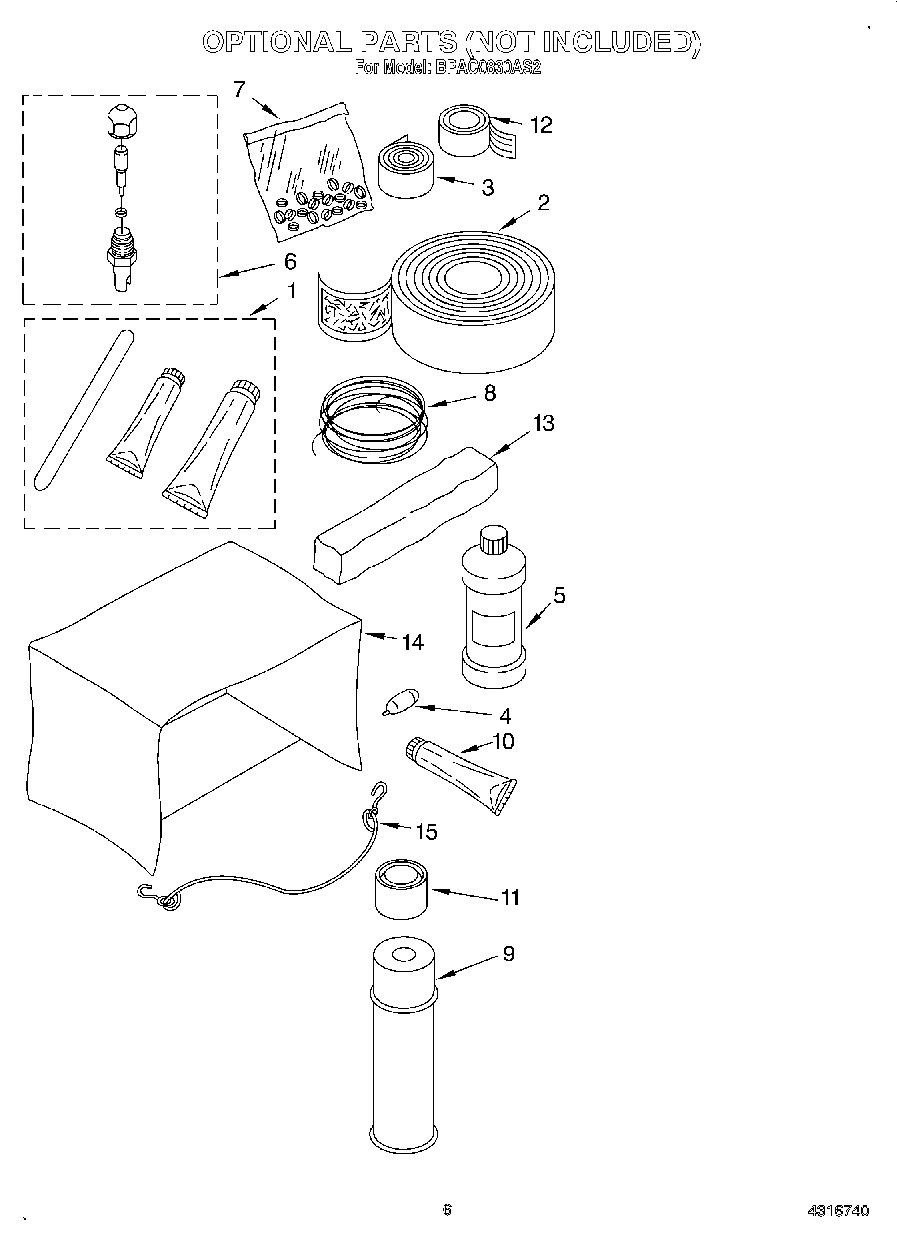

04 - OPTIONAL
05 - INSTALLATION
01 - UNIT, LITERATURE
03 - CABINET
Common parts from model Whirlpool BPAC0830AS2 ROOM AIR CONDITIONER
Instructions Installation (Economy Mounting K WPL LIT1155973 Contact Us For Availability
Instructions, Installation (Outside Sill Kit) WPL LIT485706 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Kit, Outside Sill (For Additional Support) WPL 485678 Contact Us For Availability
1
Tech Sheet WPL LIT1164413 Contact Us For Availability
1
Wiring Diagram WPL LIT1164415 Contact Us For Availability
1
Owners Manual (Tri-Lingual) WPL LIT1169195 Contact Us For Availability
1
Cabinet WPL 1163055 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Bolt, 1/4-20 x 3/4 (6) WPL 488750 Contact Us For Availability
2
Bend, Return Evaporator (9) Condenser (4) WPL 708532 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return Evaporator (1) WPL 1156329 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Bracket, Sill (2) WPL 645515 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Chanel, Top WPL 1157196 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Bracket, Rail (2) WPL 485466 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 951437 Contact Us For Availability
5
Insulation, Side (2) WPL 1161747 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Washer, Lock (6) WPL 486009 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Tube, Restrictor WPL 1158982 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Nut, 1/4-20 (6) WPL 487541 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1159605 Contact Us For Availability
7
Curtain (L.S.) WPL 1164405 Contact Us For Availability
7
Curtain (R.S.) WPL 1164406 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Kit, Economy Installation WPL 485674 Contact Us For Availability
8
Seal, Suction Tube WPL 1165440 Contact Us For Availability
8
Cabinet Front WPL 1156971 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Seal, Strip WPL 855265 Contact Us For Availability
9
Bracket, Fan Motor WPL 1156961 Contact Us For Availability
9
Insulation (2) WPL 1161748 Contact Us For Availability
10
Motor, Fan WPL 1157655 Contact Us For Availability
11
Seal, Meeting Rail WPL 855841 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Screw 3/8 WPL 1161561 Contact Us For Availability
12
Seal, Cabinet Top WPL 1158593 Contact Us For Availability
13
Angle, Side (2) WPL 645564 Contact Us For Availability
13
Evaporator WPL 1158998 Contact Us For Availability
13
Screw, Wood WPL 488255 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Bracket, Top Mounting ((Right Side)) WPL 645562 Contact Us For Availability
14
Bracket, Top Mounting (Left Side) WPL 645563 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Accessory, Bag WPL 1157654 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Bracket, Window Lock WPL 644228 Contact Us For Availability
15
Screw, Wood WPL 47435 Contact Us For Availability
15
Cup, Condensate Drain WPL 997285 Contact Us For Availability
16
Condenser WPL 1158996 Contact Us For Availability
17
Wire, Ground WPL 856094 Contact Us For Availability
18
Spacer, Block (2) WPL 995274 Contact Us For Availability
18
Base WPL 1162623 Contact Us For Availability
18
Seal WPL 1159289 Contact Us For Availability
19
Board, Filler WPL 876826 Contact Us For Availability
19
Tube, Connecting WPL 1155580 Contact Us For Availability
19
Seal, Strip WPL 1159254 Contact Us For Availability
20
Curtain Kit, Standard Mounting WPL 1160360 Contact Us For Availability
20
Wide Window KIt (Use with 485674 for windows WPL 485676 Contact Us For Availability
20
Channel, Top WPL 644380 Contact Us For Availability
20
Tube, Discharge WPL 1156995 Contact Us For Availability
20
Cartridge, Complete WPL 1156972 Contact Us For Availability
21
Horzontal Louver WPL 1159333 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
22
Ribs, Vertical WPL 1156975 Contact Us For Availability
23
Spacer WPL 1159175 Contact Us For Availability
23
Front, Complete WPL 1161557 Contact Us For Availability
24
Wall, Dividing WPL 1156926 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
24
Seal, (2) WPL 1161746 Contact Us For Availability
25
Seal, Evaporator Shroud WPL 1160057 Contact Us For Availability
25
Seal WPL 1159081 Contact Us For Availability
26
Switch, Rotary WPL 1164408 Contact Us For Availability
26
Bend, Return Evaporator (3) Condenser (16) WPL 708531 Contact Us For Availability
26
Seal (2) WPL 1159079 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1161022 Contact Us For Availability
28
Seal (2) WPL 1161205 Contact Us For Availability
29
Clip, Shroud WPL 1164511 Contact Us For Availability
29
Filter WPL 1156976 Contact Us For Availability
30
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1168914 Contact Us For Availability
31
Cam, Exhaust WPL 997813 Contact Us For Availability
31
Harness, Compressor WPL 1158044 Contact Us For Availability
32
Bushing, Shaft WPL 859233 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
34
Sleeve (3) WPL 858148 Contact Us For Availability
35
Washer WPL 647881 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Shaft, Control Exhaust WPL 1158253 Contact Us For Availability
36
Tube, Suction Asy WPL 1163990 Contact Us For Availability
37
Harness, Wiring (Control Box) WPL 1167527 Contact Us For Availability
37
Seal, Condenser Bottom WPL 1157622 Contact Us For Availability
38
Box, Control WPL 1167612 Contact Us For Availability
38
Pan, Drain WPL 1158519 Contact Us For Availability
39
Back Panel, Control Box WPL 1156965 Contact Us For Availability
41
Wire, Exhaust Door WPL 1157181 Contact Us For Availability
41
Anticipator WPL 1166782 Contact Us For Availability
42
Impeller Guard (2) WPL 1158249 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
43
Escutcheon WPL 1162821 Contact Us For Availability
45
Knob, Controls (3) WPL 1158054 Contact Us For Availability
46
Control, Temperature WPL 1161021 Contact Us For Availability
47
Seal, Housing WPL 1158516 Contact Us For Availability
48
Switch, Fan WPL 1160038 Contact Us For Availability
50
Seal WPL 1160947 Contact Us For Availability
51
Wire, Elect WPL 1156982 Contact Us For Availability
52
Cup, Condensate WPL 1159580 Contact Us For Availability
× ![]()
