Model Whirlpool BPAC0700AS0 ROOM AIR CONDITIONER – Common Parts & Diagrams

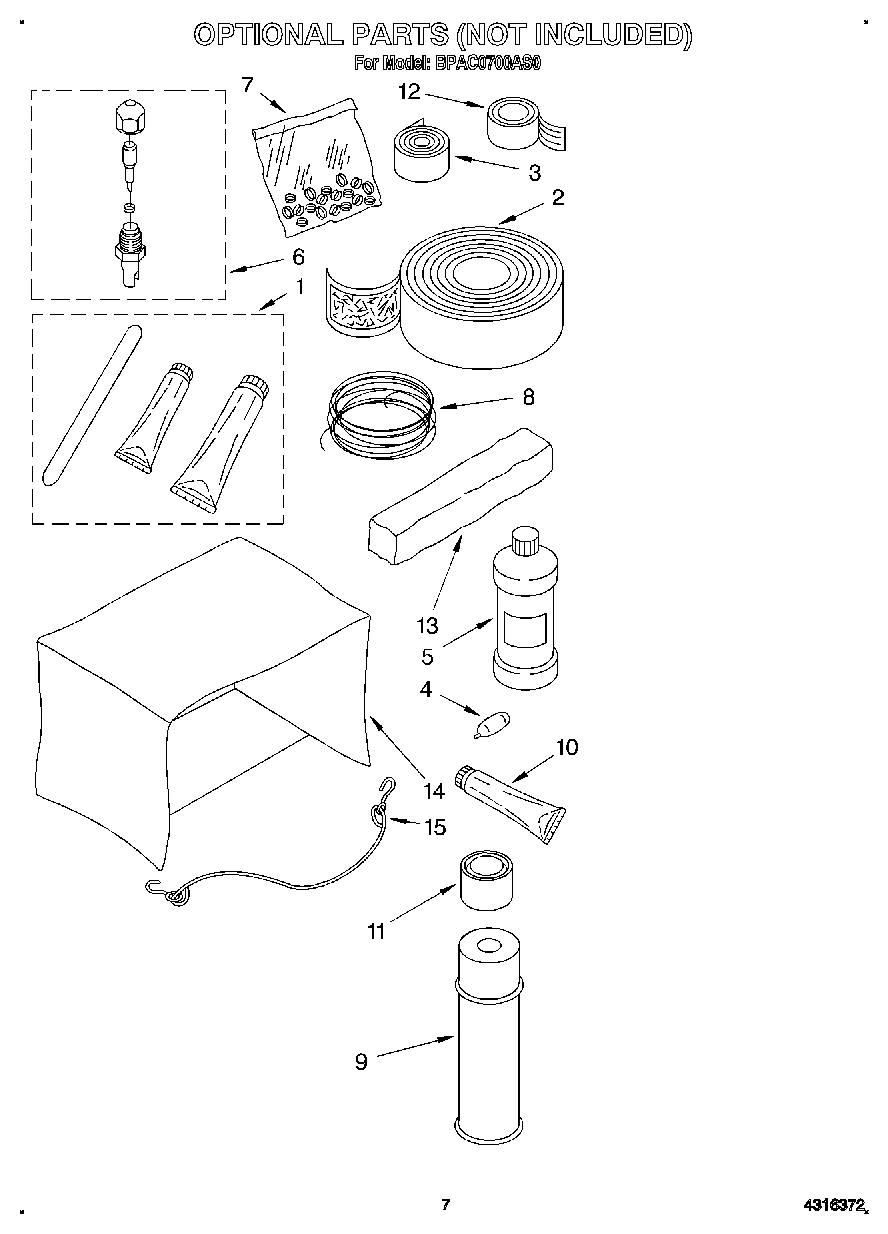

05 - OPTIONAL

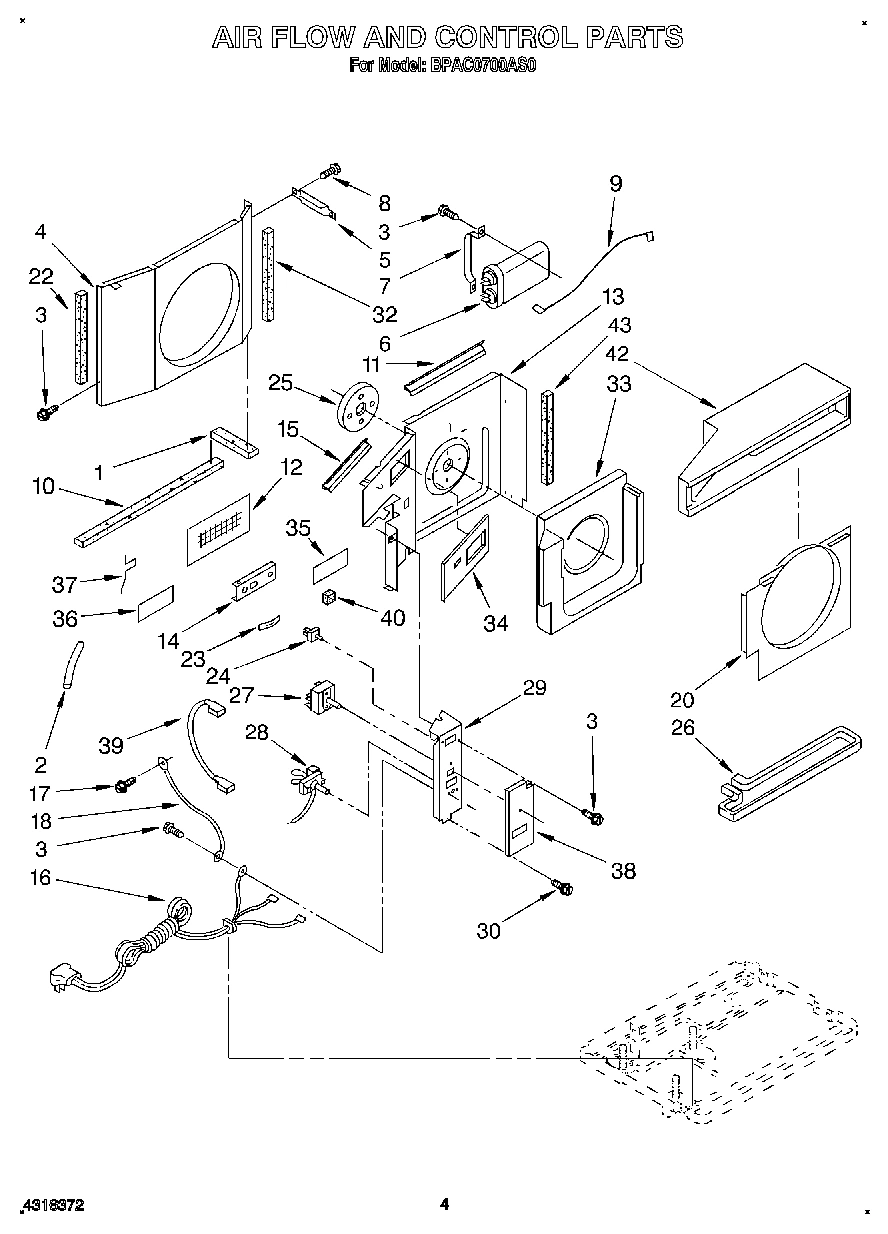

03 - AIR FLOW AND CONTROL

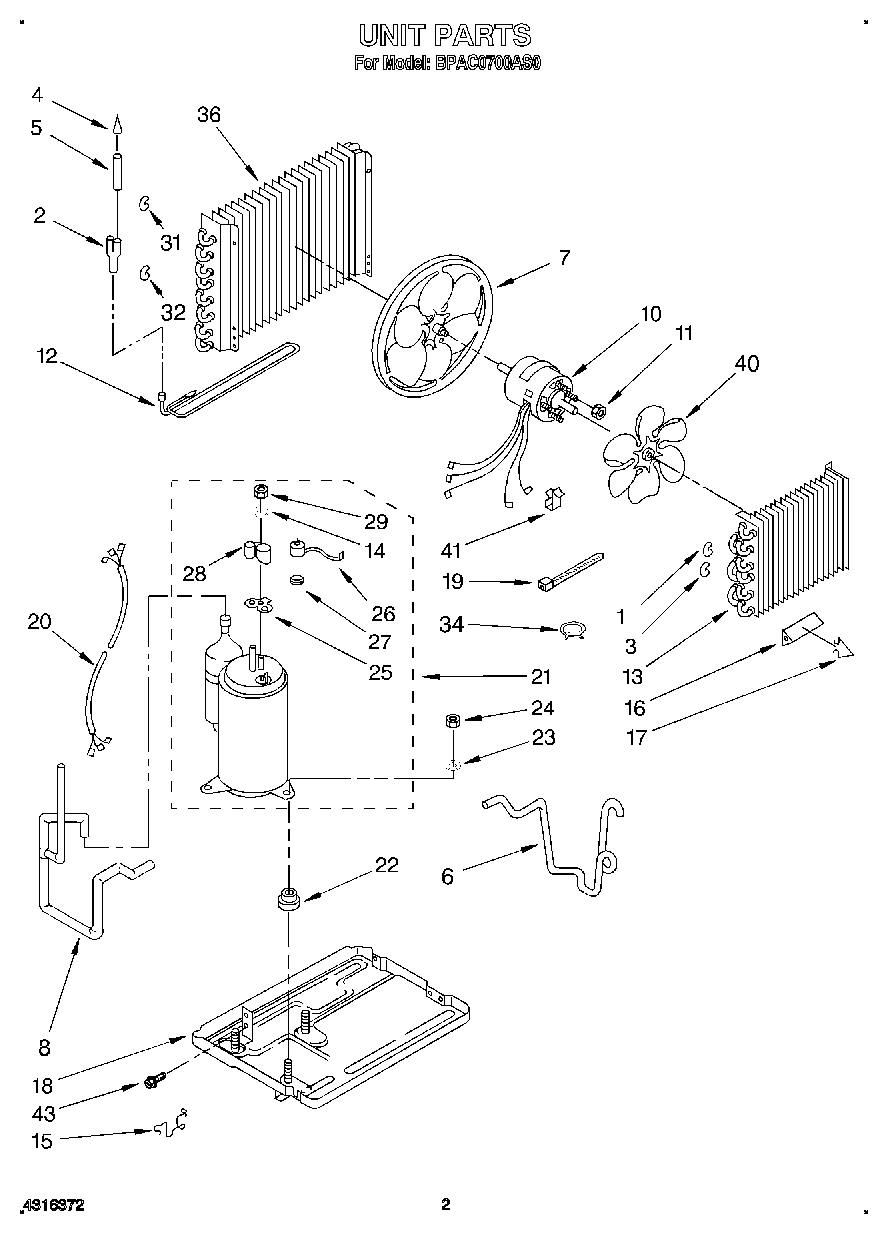

02 - UNIT, LITERATURE

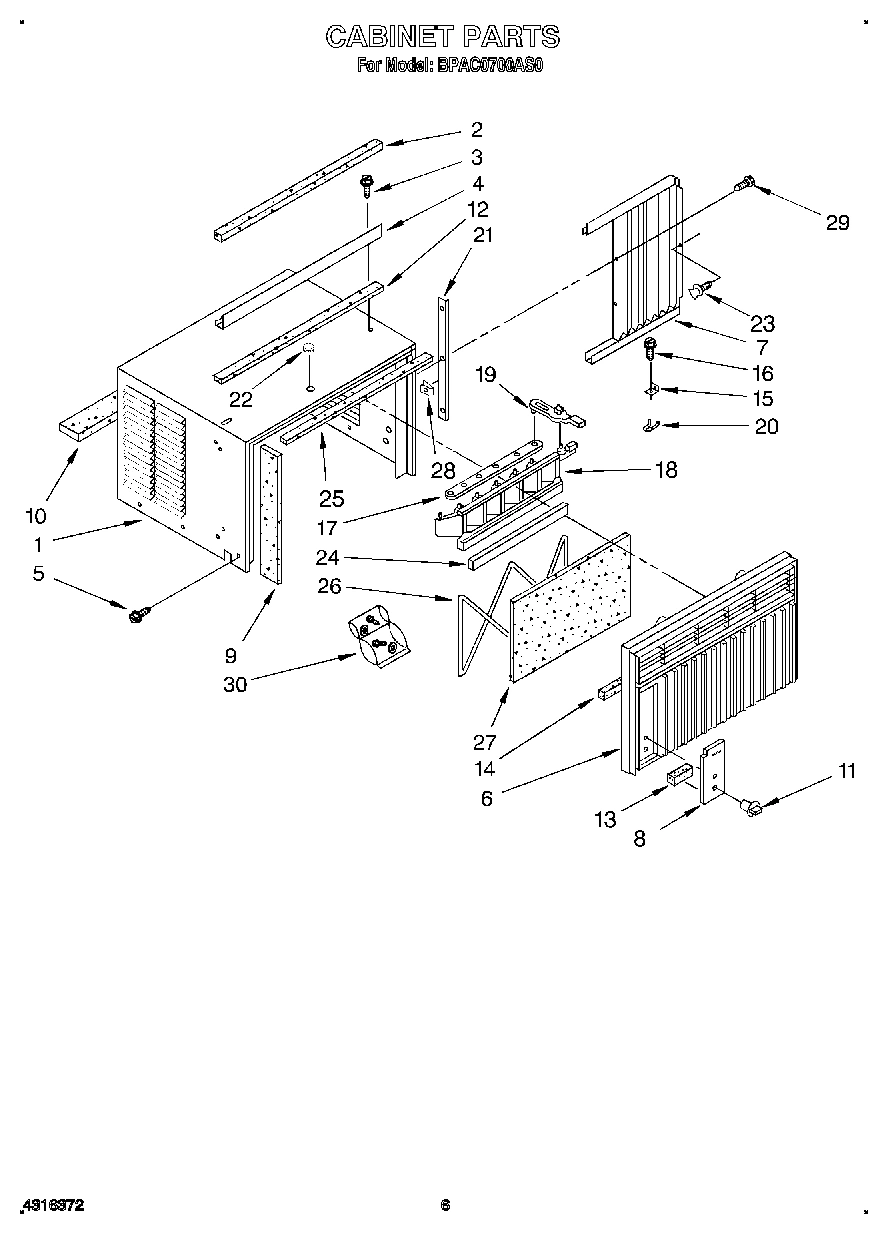

04 - CABINET
Common parts from model Whirlpool BPAC0700AS0 ROOM AIR CONDITIONER
Tech Sheet WPL LIT1159431 Contact Us For Availability
Guide, Use & Care WPL LIT1159801 Contact Us For Availability
Instructions, Installation WPL LIT1161896 Contact Us For Availability
Repair Parts List WPL LIT4316372 Contact Us For Availability
Wiring Diagram WPL LIT950222 Contact Us For Availability
1
Seal, Condensate WPL 646870 Contact Us For Availability
1
Bend, Return Evaporator (3) WPL 855199 Contact Us For Availability
1
Cabinet WPL 1157939 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Sealer, Tube WPL 1160884 Contact Us For Availability
2
Tube, Flow Divider WPL 947364 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
3
Bend, Return Evaporator (8) WPL 854624 Contact Us For Availability
4
Shroud, Condenser WPL 1157908 Contact Us For Availability
4
Strainer WPL 49599 Contact Us For Availability
4
Channel, Top WPL 993849 Contact Us For Availability
5
Support, Unit WPL 649879 Contact Us For Availability
5
Tube & Strainer (Includes Illus. 4) WPL 950850 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Capacitor, Running WPL 952739 Contact Us For Availability
6
Tube, Restrictor WPL 1162765 Contact Us For Availability
6
Front, Cabinet Assembly WPL 1159799 Contact Us For Availability
7
Bracket, Capacitor WPL 856105 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158524 Contact Us For Availability
7
Curtain (R.S.) WPL 646154 Contact Us For Availability
7
Curtain (L.S.) WPL 646158 Contact Us For Availability
8
Tube, Suction WPL 1159354 Contact Us For Availability
8
Escutcheon WPL 1162769 Contact Us For Availability
9
Wire, Asy Lead WPL 1160302 Contact Us For Availability
9
Insulation, Side WPL 950169 Contact Us For Availability
10
Motor, Fan WPL 1159364 Contact Us For Availability
10
Insulation, Top WPL 1157942 Contact Us For Availability
11
Knob, Control (2) WPL 1158639 Contact Us For Availability
11
Guard, Edge WPL 1161209 Contact Us For Availability
12
Screen/Insul. Asy WPL 1162876 Contact Us For Availability
12
Tube, Condenser Extension WPL 1160799 Contact Us For Availability
12
Seal, Strip WPL 856990 Contact Us For Availability
13
Wall, Dividing Assembly WPL 1158284 Contact Us For Availability
13
Evaporator WPL 1159352 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Door, Exhaust WPL 1158280 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Guard, Edge WPL 1161208 Contact Us For Availability
15
Clip, Front (2) WPL 949634 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
16
Cord, Appliance WPL 647216 Contact Us For Availability
16
Anticipator, Temperature WPL 996773 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
17
Screw, 8-32 x 3/8 WPL 1159222 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
17
Link, Louver (2) WPL 645684 Contact Us For Availability
18
Wire, Ground WPL 856094 Contact Us For Availability
18
Base WPL 1157926 Contact Us For Availability
18
Louver, Vertical WPL 1158325 Contact Us For Availability
19
Handle, Louver (2) WPL 645683 Contact Us For Availability
20
Shroud, Evaporator WPL 1159348 Contact Us For Availability
20
Harness, Wiring WPL 484136 Contact Us For Availability
20
Spring, Detent (1) WPL 641484 Contact Us For Availability
21
Compressor WPL 1157026 Contact Us For Availability
21
Retainer, Curtain (2) WPL 646160 Contact Us For Availability
22
Seal, Condenser WPL 1158295 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
22
Cover, Hole WPL 1157126 Contact Us For Availability
23
Spring, Retainer WPL 858765 Contact Us For Availability
23
Screw, Thumb WPL 475581 Contact Us For Availability
24
Actuator, Exhaust Door WPL 953066 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
24
Seal, Vertical Louver WPL 855238 Contact Us For Availability
25
Insulation, Motor WPL 1158469 Contact Us For Availability
25
Seal WPL 1159283 Contact Us For Availability
26
Pan, Condensate WPL 1159428 Contact Us For Availability
26
Retainer, Filter WPL 646963 Contact Us For Availability
27
Switch, Rotary WPL 950519 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
27
Filter WPL 852344 Contact Us For Availability
28
Control, Temperature WPL 950403 Contact Us For Availability
28
Clip, Vertical Louver WPL 1158294 Contact Us For Availability
29
Screw 3/8 WPL 1161561 Contact Us For Availability
29
Panel, Control WPL 1158285 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
30
Bag, Accessory WPL 476180 Contact Us For Availability
31
Bend, Return Condenser (13) WPL 708531 Contact Us For Availability
32
Seal, Condenser (R.S.) WPL 857923 Contact Us For Availability
32
Bend, Return Condenser (4) WPL 708532 Contact Us For Availability
33
Housing, Air WPL 1159346 Contact Us For Availability
34
Insulation, Door WPL 1158283 Contact Us For Availability
34
Clamp, Tube WPL 855930 Contact Us For Availability
35
Spacer, Door WPL 1159175 Contact Us For Availability
36
Seal, Door WPL 1158323 Contact Us For Availability
36
Condenser WPL 1159367 Contact Us For Availability
37
Arm, Door WPL 1157947 Contact Us For Availability
38
Insulation, Control Panel WPL 1157945 Contact Us For Availability
39
Wire, Jumper WPL 1158937 Contact Us For Availability
40
Seal, Foam WPL 1159443 Contact Us For Availability
40
Fan, Blade (Evaporator) WPL 1160094 Contact Us For Availability
41
Clamp, Wiring WPL 852451 Contact Us For Availability
42
Hood, Air Housing WPL 1159349 Contact Us For Availability
× ![]()
