Model LG BP550 – Common Parts & Diagrams
Diagram 0
Diagram 1

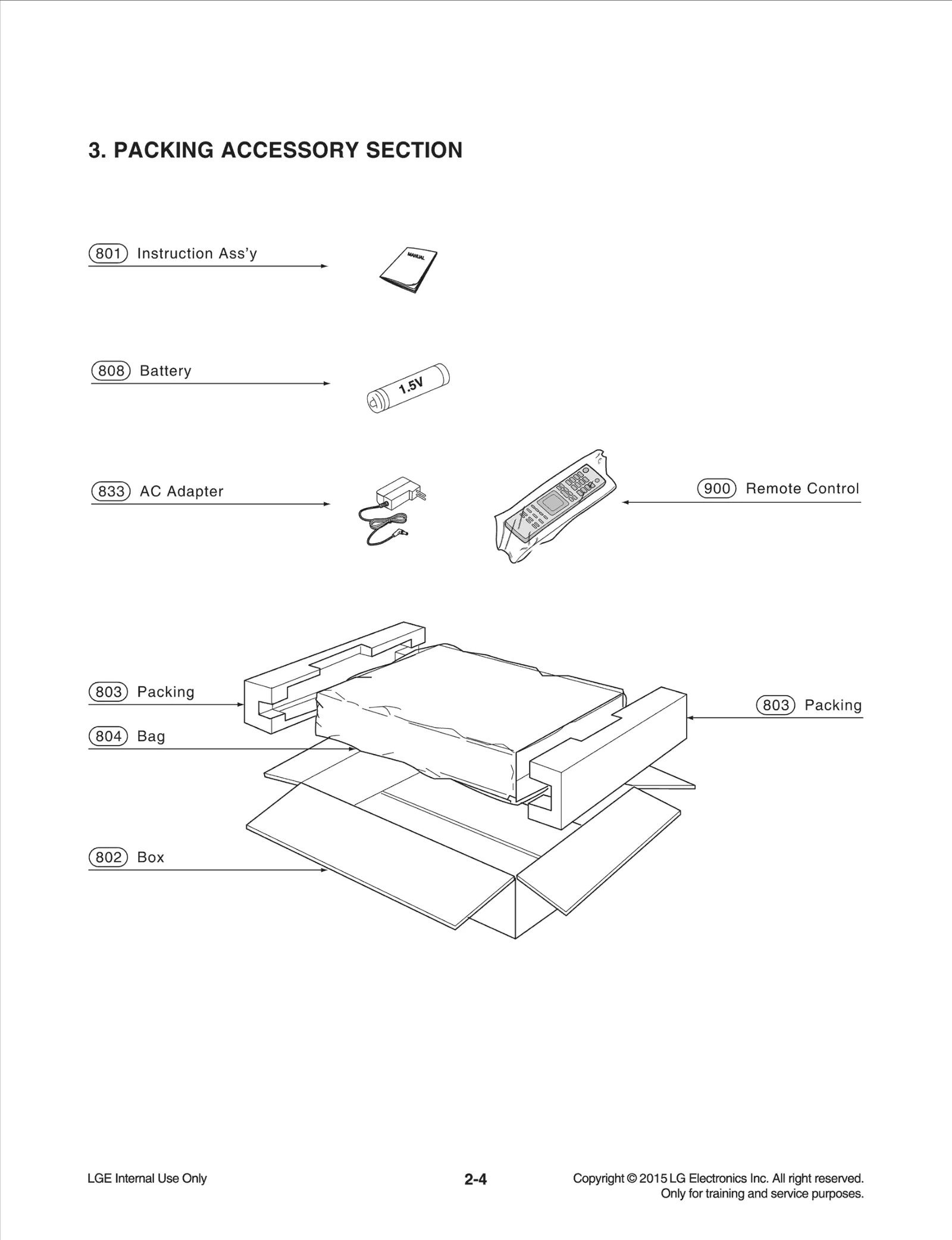

Diagram 2
Diagram 3
Common parts from model LG BP550
250
Case LGE MBN63844603 Contact Us For Availability
260
Chassis LGE MBS63125611 Contact Us For Availability
261
Damper LGE MCQ68384801 Contact Us For Availability
262
Damper LGE MCQ62096419 Contact Us For Availability
263
Gasket LGE MDS61951115 Contact Us For Availability
264
Cover LGE MCK67389501 Contact Us For Availability
265
Holder LGE MEG64120301 Contact Us For Availability
266
Holder LGE MEG64239701 Contact Us For Availability
267
Lens LGE MFB63753202 Contact Us For Availability
283
Door LGE MCV63273701 Contact Us For Availability
284
Spring LGE MHY63124701 Contact Us For Availability
285
Button LGE MBG65423801 Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
468
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
801
Manual Assembly,Owners LGE AFN76795301 Contact Us For Availability
802
Box,Master LGE MAY66913326 Contact Us For Availability
803
Packing LGE MFZ63331489 Contact Us For Availability
804
Bag,Vinyl LGE 3880R-E002Y Contact Us For Availability
808
Battery,Manganese LGE 6910F00010B Contact Us For Availability
833
Adapters LGE EAY62851502 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73735801 Contact Us For Availability
1001
Clamp Assembly LGE ACA73149501 Contact Us For Availability
1002
Cover LGE MCK67310501 Contact Us For Availability
1003
Clamp LGE MBU62345801 Contact Us For Availability
1004
Magnet,NdFeB LGE RAB33072101 Contact Us For Availability
1005
Plate LGE MGJ63182201 Contact Us For Availability
1011
Base LGE MAM63684701 Contact Us For Availability
1012
Guide LGE MEA62870901 Contact Us For Availability
1013
Gear LGE MDT62367501 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1016
Gear LGE MDT62367401 Contact Us For Availability
1018
Motor,DC LGE EAU62065801 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1019
PULLEY LGE 4560R-1016A Contact Us For Availability
1020
Base LGE MAM62828802 Contact Us For Availability
1024
Damper LGE MCQ66909001 Contact Us For Availability
1025
Damper LGE MCQ67073001 Contact Us For Availability
1026
Tray LGE MJS62671801 Contact Us For Availability
1030
Cable,FFC LGE EAD61048203 Contact Us For Availability
1035
Cable,FFC LGE EAD61049028 Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1043
SWITCH,MICRO LGE 6600KW3004C Contact Us For Availability
1045
Cable,FFC LGE EAD62039802 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ62281301 Contact Us For Availability
1437
Screw,Customized LGE FAB30840502 Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Cover Assembly LGE ACQ87733601 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR75895701 Contact Us For Availability
A006
Motor Assembly,DC LGE EAU61324101 Contact Us For Availability
A44
Frame Assembly LGE ADV75208611 Contact Us For Availability
A46
LFS Total PCB Assembly LGE EBT63438804 Contact Us For Availability
A50
PCB Assembly,Timer/Key LGE EBR79467901 Contact Us For Availability
A51
Module,Wifi Module LGE EAT62513301 Contact Us For Availability
C152
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C153
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C164
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C169
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C174
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C177
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C525
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C704
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C760
Capacitor,Ceramic,Chip LGE 0CK681BK56A Contact Us For Availability
C768
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C812
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C832
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C902
Capacitor,AL,Radial LGE EAE62406201 Contact Us For Availability
C903
Capacitor,AL,Radial LGE 0CE4763F638 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62097102 Contact Us For Availability
CABLE2
Harness,Single LGE EAD61073411 Contact Us For Availability
CN150
CONNECTOR (CIRC),FFC LGE 6630XE00112 Contact Us For Availability
CN701
CONNECTOR (CIRC),FFC LGE 6630XE00108 Contact Us For Availability
CN703
Connector,FFC/FPC/PIC LGE 6630X60142J Contact Us For Availability
CN704
Connector,FFC/FPC/PIC LGE 6630XE00105 Contact Us For Availability
CN803
Connector,Wafer LGE 6630R3S006F Contact Us For Availability
CN901
CONNECTOR (CIRC),FFC LGE 6630R-FB10L Contact Us For Availability
D150
Diode,Rectifier LGE EAH61112901 Contact Us For Availability
IC150
IC,DC,DC Converter LGE EAN61969901 Contact Us For Availability
IC151
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC152
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC153
IC,LDO Voltage Regulator LGE EAN62780901 Contact Us For Availability
IC191
IC,Analog Switch LGE EAN62871401 Contact Us For Availability
IC501
IC,Video Processors LGE EAN63626702 Contact Us For Availability
IC601
IC,DDR3 SDRAM LGE EAN63391401 Contact Us For Availability
IC601
IC,DDR3 SDRAM LGE EAN63053201 Contact Us For Availability
IC602A
S/W,System Program LGE SAA37456901 Contact Us For Availability
IC701
IC,Motor Driver LGE EAN62351201 Contact Us For Availability
IC803
Diode,TVS LGE EAH62055301 Contact Us For Availability
JK803
Jack,Modular LGE EAG32089102 Contact Us For Availability
JK805
Jack,RCA LGE 6612R-C013D Contact Us For Availability
JK806
Jack,DC Power LGE EAG63550503 Contact Us For Availability
JK901
Connector,USB LGE EAG35130901 Contact Us For Availability
L152
Inductor,Wire Wound,Chip LGE EAP61747403 Contact Us For Availability
L704
Filter,Bead LGE EAM54407704 Contact Us For Availability
LD901
LED,DIP LGE 0DLAU0249AA Contact Us For Availability
Q501
TR,Bipolar LGE EBK61012201 Contact Us For Availability
Q901
TR,Bipolar LGE EBK61591702 Contact Us For Availability
R158
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R160
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R162
Resistor,Chip LGE EBC40092901 Contact Us For Availability
R163
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R167
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R169
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R174
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R176
Resistor,Chip LGE 0RJ3300C478 Contact Us For Availability
R180
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R185
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R504
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R508
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R510
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R512
Resistor,Chip LGE 0RJ1200C477 Contact Us For Availability
R525
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R533
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R534
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R601
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R607
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R702
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R703
Resistor,Chip LGE 0RH0101C622 Contact Us For Availability
R736
Resistor,Chip LGE 0RH8202B622 Contact Us For Availability
R769
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R816
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R839
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R840
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R841
Resistor,Chip LGE ERHZ0000408 Contact Us For Availability
R901
Resistor,Carbon Film LGE 0RD3300F608 Contact Us For Availability
R902
RESISTOR FIXED CARBON FILM 15 LGE 0RD1500F608 Contact Us For Availability
RC901
Receiver Module LGE EAV58012902 Contact Us For Availability
SW901
Switch,Tact LGE EBF52268801 Contact Us For Availability
TD801
Diode,TVS LGE EAH62055201 Contact Us For Availability
W0RJ
Resistor,Chip LGE 0RJ3902C678 Contact Us For Availability
X501
Crystal LGE EAW32919201 Contact Us For Availability
× ![]()
