Model LG BP165 – Common Parts & Diagrams
Diagram 0

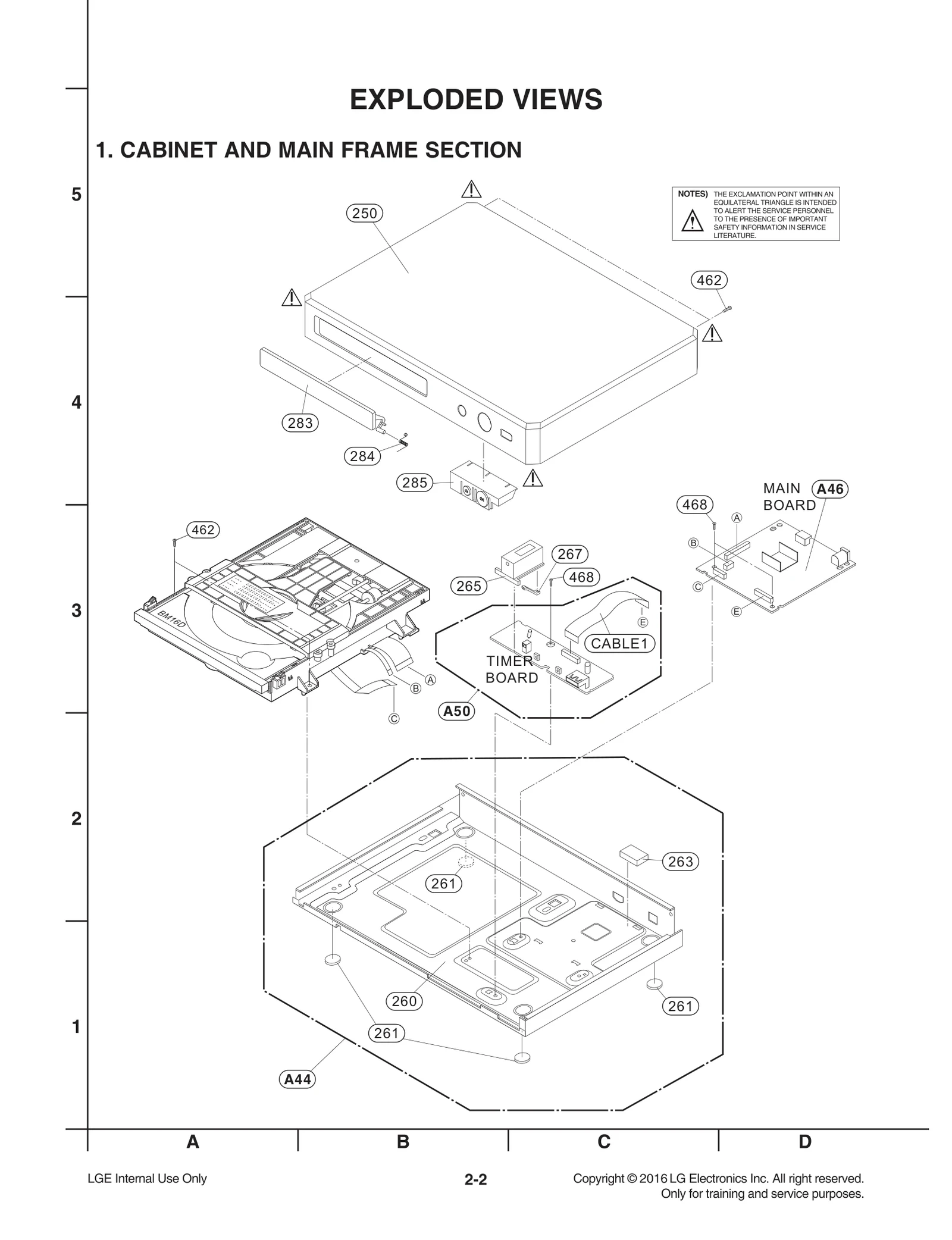

Diagram 1

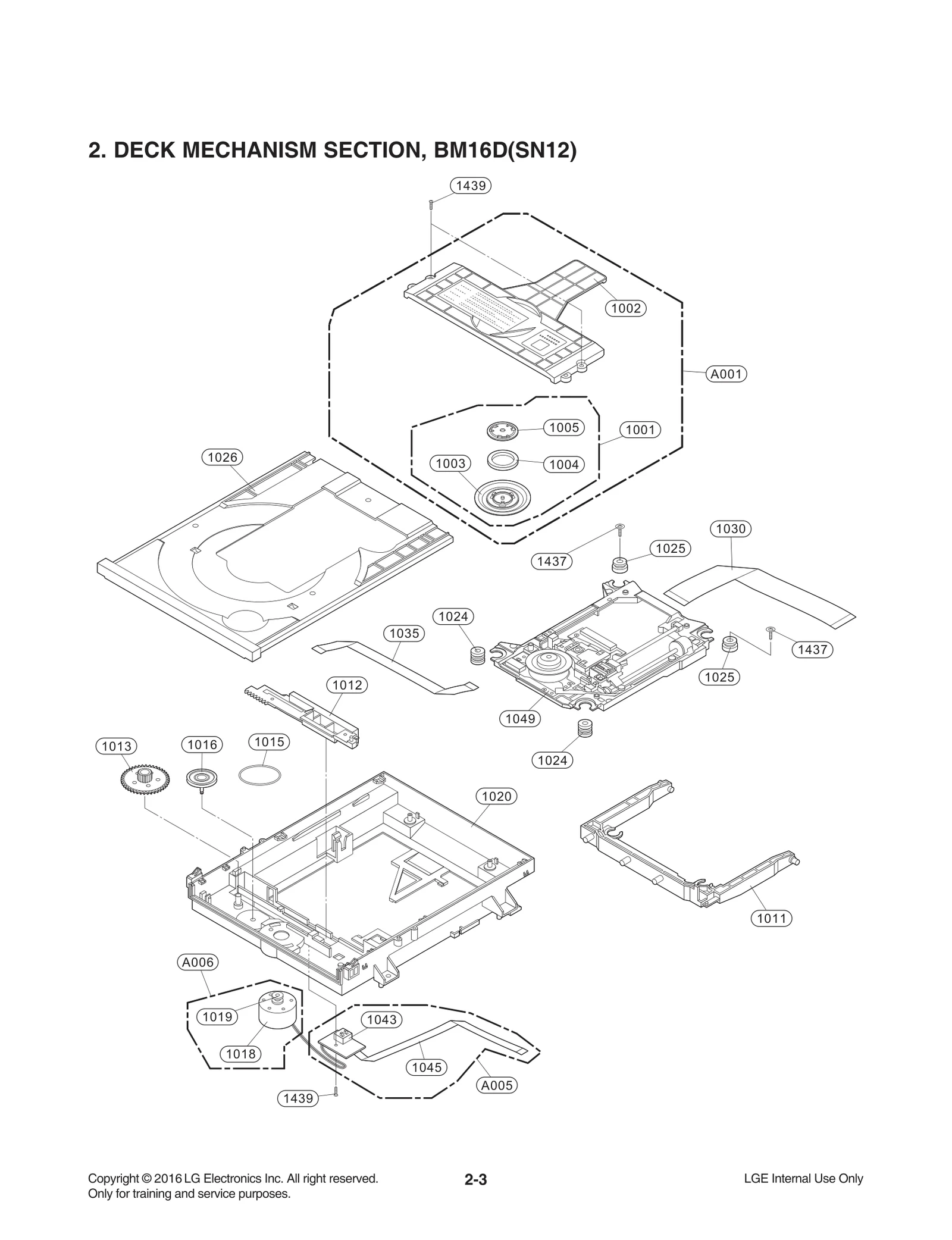

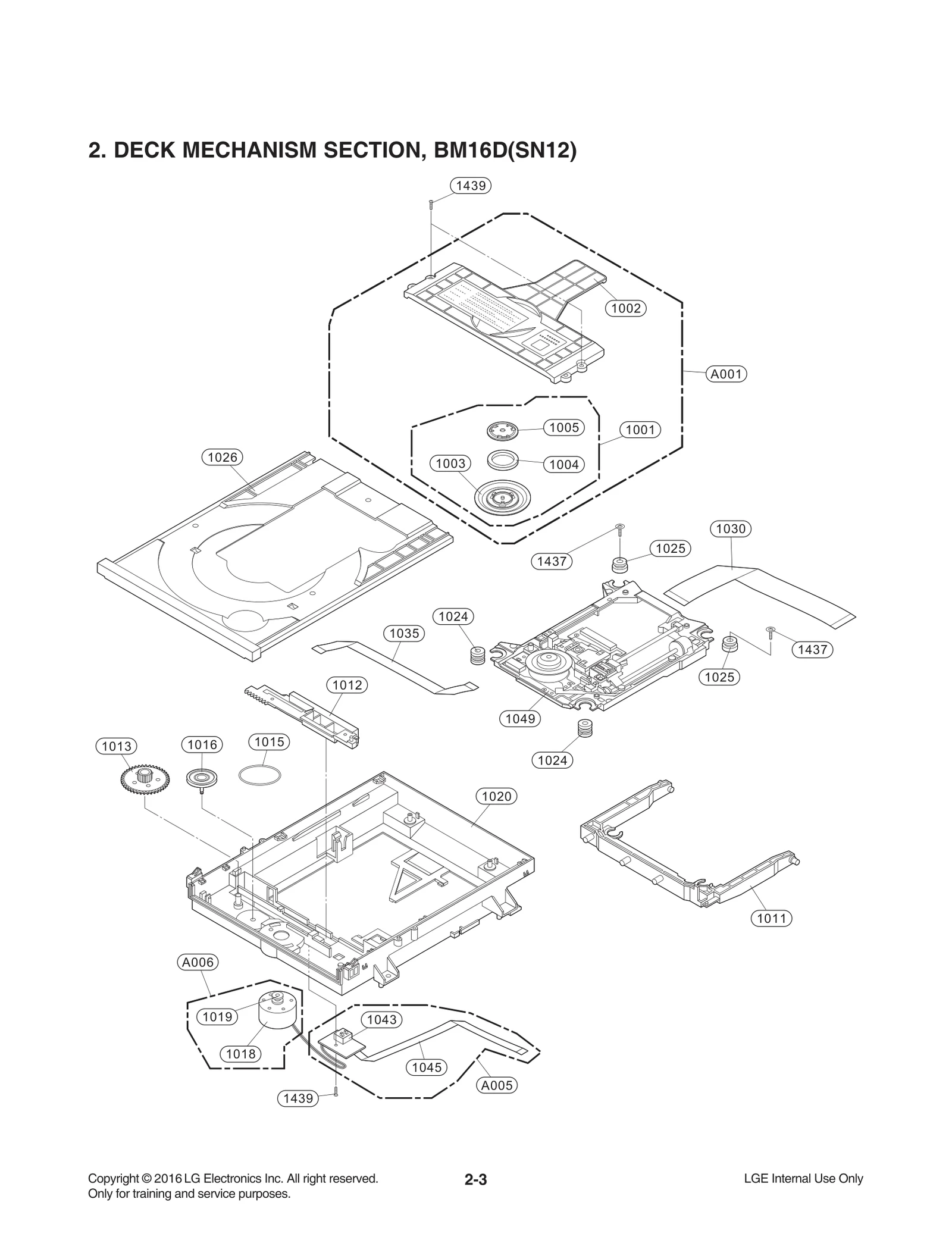

Diagram 2
Diagram 3
Common parts from model LG BP165
263
Gasket LGE MDS61951115 Contact Us For Availability
265
Holder LGE MEG64120301 Contact Us For Availability
267
Lens LGE MFB63753202 Contact Us For Availability
283
Door LGE MCV63273706 Contact Us For Availability
284
Spring LGE MHY63124701 Contact Us For Availability
285
Button LGE MBG65423801 Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
468
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
801
Manual Assembly,Owners LGE AFN76911970 Contact Us For Availability
802
Box,Master LGE MAY67611202 Contact Us For Availability
803
Packing LGE MFZ64733135 Contact Us For Availability
804
Bag,Vinyl LGE 3880R-E002Y Contact Us For Availability
808
Dry Cell Battery LGE EAC44080001 Contact Us For Availability
1001
Clamp Assembly LGE ACA73289401 Contact Us For Availability
1002
Holder LGE MEG63100301 Contact Us For Availability
1003
Clamp LGE MBU62505301 Contact Us For Availability
1004
Magnet,Ferrite LGE RAB33072001 Contact Us For Availability
1005
Plate LGE MGJ63182401 Contact Us For Availability
1011
Base LGE MAM62828901 Contact Us For Availability
1012
Guide LGE MEA62870901 Contact Us For Availability
1013
Gear LGE MDT62367501 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1016
Gear LGE MDT62367401 Contact Us For Availability
1018
Motor,DC LGE EAU62065801 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1019
PULLEY LGE 4560R-1016A Contact Us For Availability
1020
Base LGE MAM62828801 Contact Us For Availability
1024
Damper LGE MCQ66909001 Contact Us For Availability
1025
Damper LGE MCQ67073001 Contact Us For Availability
1026
Tray LGE MJS62671802 Contact Us For Availability
1026
Tray LGE MJS62671801 Contact Us For Availability
1030
Cable,FFC LGE EAD61048203 Contact Us For Availability
1035
Cable,FFC LGE EAD36091014 Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1043
SWITCH,MICRO LGE 6600KW3004C Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1045
Cable,FFC LGE EAD62039802 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ61621901 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ62281101 Contact Us For Availability
1437
Screw,Customized LGE FAB30840502 Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Holder Assembly LGE AEJ73779401 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR75895701 Contact Us For Availability
A006
Motor Assembly,DC LGE EAU62123301 Contact Us For Availability
A44
Frame Assembly LGE ADV75994404 Contact Us For Availability
A46
Option Code Assembly LGE EBR79756637 Contact Us For Availability
A50
PCB Assembly,Timer/Key LGE EBR79467911 Contact Us For Availability
BP250
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
C156
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C158
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C169
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C174
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C186
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C525
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C704
Capacitor,Ceramic,Chip LGE EAE62962301 Contact Us For Availability
C777
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C778
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C902
Capacitor,AL,Radial LGE EAE62406201 Contact Us For Availability
C903
Capacitor,AL,Radial LGE 0CE4763F638 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62097102 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD63786001 Contact Us For Availability
CN150
CONNECTOR (CIRC),FFC LGE 6630XE00112 Contact Us For Availability
CN701
CONNECTOR (CIRC),FFC LGE 6630XE00109 Contact Us For Availability
CN703
Connector,FFC/FPC/PIC LGE EAG38938703 Contact Us For Availability
CN704
Connector,FFC/FPC/PIC LGE 6630XE00105 Contact Us For Availability
CN901
CONNECTOR (CIRC),FFC LGE 6630R-FB10L Contact Us For Availability
D101
Diode,Switching LGE EDSY0017701 Contact Us For Availability
D150
Diode,Rectifier LGE EAH61112901 Contact Us For Availability
D804
Diode,TVS LGE EAH62735601 Contact Us For Availability
IC150
IC,DC,DC Converter LGE EAN61969901 Contact Us For Availability
IC151
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC153
IC,LDO Voltage Regulator LGE EAN62780901 Contact Us For Availability
IC501
IC,Video Processors LGE EAN63626701 Contact Us For Availability
IC601
IC,DDR3 SDRAM LGE EAN61829204 Contact Us For Availability
IC602A
S/W,System Program LGE SAA37456904 Contact Us For Availability
IC701
IC,Motor Driver LGE EAN62351201 Contact Us For Availability
IC702
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
JK806
Jack,DC Power LGE EAG63550503 Contact Us For Availability
JK901
Connector,USB LGE EAG35130901 Contact Us For Availability
L152
Inductor,Wire Wound,Chip LGE EAP61747403 Contact Us For Availability
L152
Inductor,Wire Wound,Chip LGE EAP63266601 Contact Us For Availability
L501
Filter,Bead LGE EAM54407704 Contact Us For Availability
LD901
LED,DIP LGE 0DLAU0249AA Contact Us For Availability
Q501
TR,Bipolar LGE EBK61012201 Contact Us For Availability
Q901
TR,Bipolar LGE 0TR120309AE Contact Us For Availability
Q901
TR,Bipolar LGE EBK61591702 Contact Us For Availability
R160
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R162
Resistor,Chip LGE EBC40092901 Contact Us For Availability
R163
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R164
Resistor,Chip LGE 0RH8202B622 Contact Us For Availability
R166
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R167
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R168
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R169
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R173
Resistor,Chip LGE 0RH0221C622 Contact Us For Availability
R176
Resistor,Chip LGE 0RJ3300C478 Contact Us For Availability
R180
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R501
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R506
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R508
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R510
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R512
Resistor,Chip LGE 0RJ1200C477 Contact Us For Availability
R524
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R525
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R533
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R534
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R601
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R623
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R711
Resistor,Chip LGE 0RH0101C622 Contact Us For Availability
R713
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R795
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R796
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R817
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R901
Resistor,Carbon Film LGE 0RD3300F609 Contact Us For Availability
R902
Resistor,Carbon Film LGE 0RD1500F609 Contact Us For Availability
RC901
Receiver Module LGE EAV58012902 Contact Us For Availability
SW901
Switch,Tact LGE EBF52268801 Contact Us For Availability
TD802
Diode,TVS LGE EAH61515001 Contact Us For Availability
TD802
Diode,TVS LGE EAH62735501 Contact Us For Availability
W0RJ
Resistor,Chip LGE 0RJ3902C678 Contact Us For Availability
X501
Crystal LGE EAW37968903 Contact Us For Availability
X501
Crystal LGE EAW61645208 Contact Us For Availability
× ![]()
