Model LG BP135 – Common Parts & Diagrams
Diagram 0
Diagram 1
Diagram 2
Diagram 3

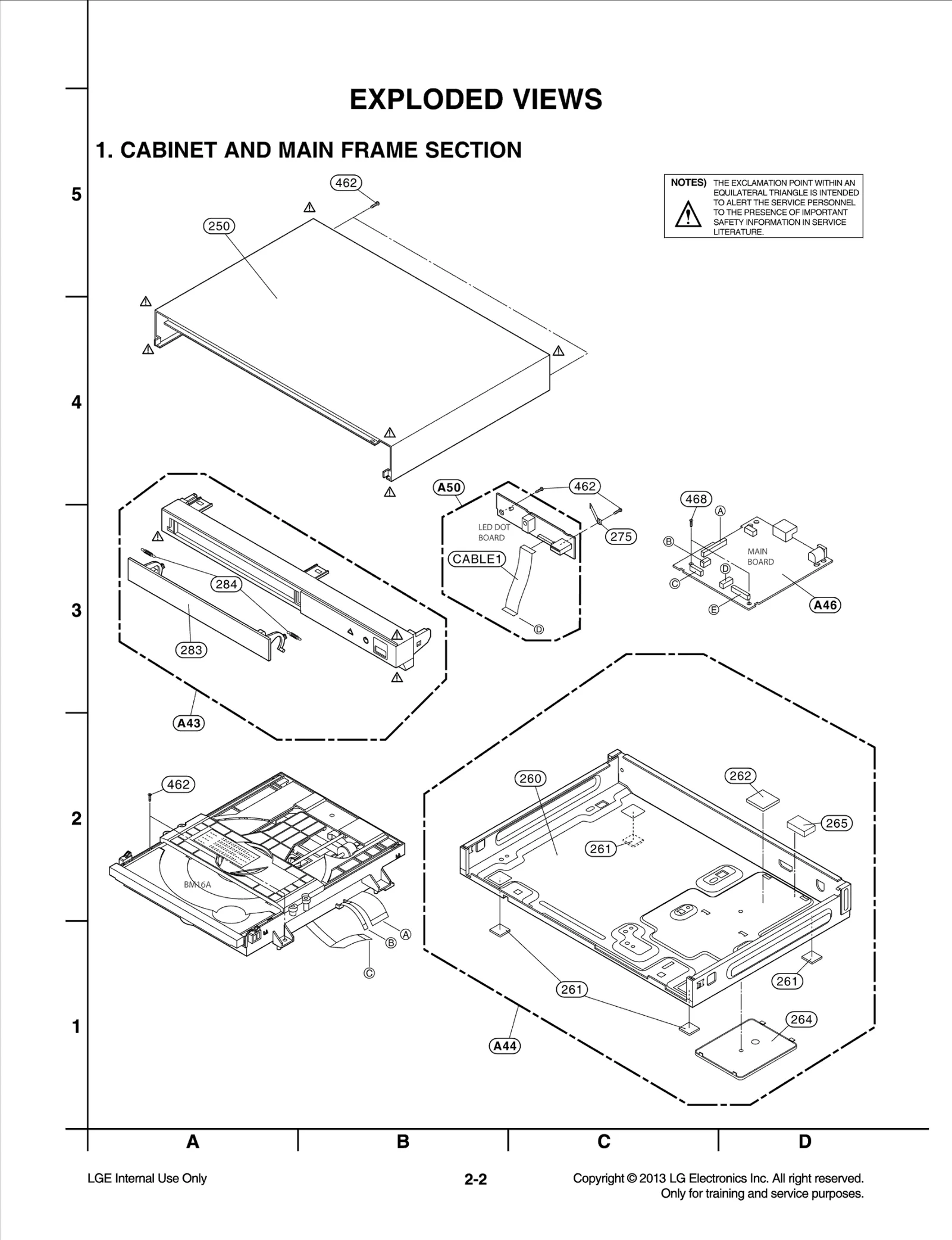

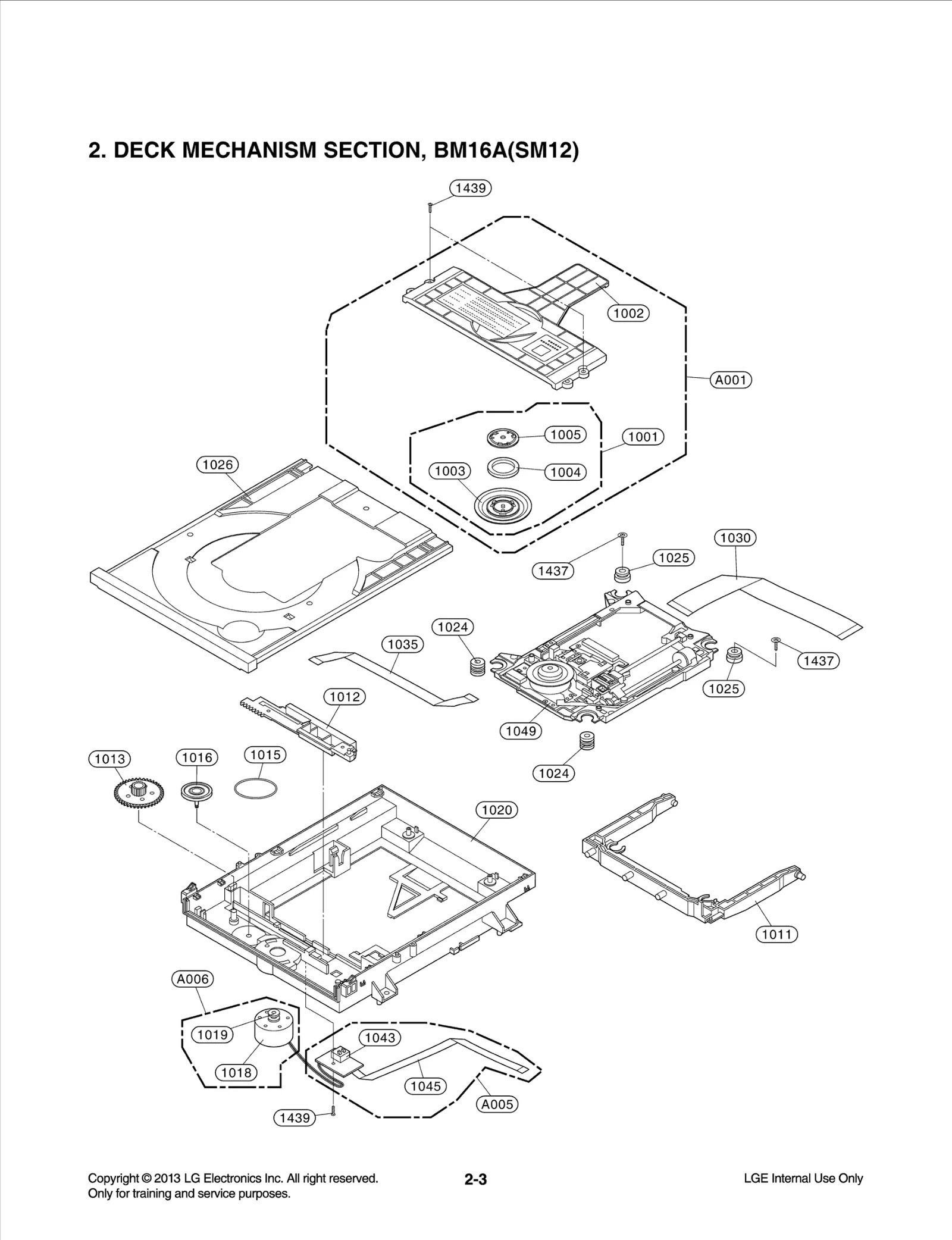

Common parts from model LG BP135
261
Damper LGE MCQ32325001 Contact Us For Availability
262
Damper LGE MCQ62096419 Contact Us For Availability
264
Cover LGE MCK67389501 Contact Us For Availability
265
Gasket LGE MDS61951115 Contact Us For Availability
275
Plate,Ground LGE MGJ63379301 Contact Us For Availability
283
Door LGE MCV62693707 Contact Us For Availability
284
Spring LGE 4970R-0146E Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
468
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
801
Manual Assembly,Owners LGE AFN76036501 Contact Us For Availability
802
Box,Master LGE MAY65828990 Contact Us For Availability
803
Packing LGE MFZ63331453 Contact Us For Availability
804
Bag,Vinyl LGE 3880R-E002Y Contact Us For Availability
808
Primary Cell Battery,Carbon Zinc LGE EAC42053702 Contact Us For Availability
833
Adapters LGE EAY62851502 Contact Us For Availability
1001
Clamp Assembly LGE ACA73289401 Contact Us For Availability
1002
Holder LGE MEG63100301 Contact Us For Availability
1003
Clamp LGE MBU62505301 Contact Us For Availability
1004
Magnet,Ferrite LGE RAB33072001 Contact Us For Availability
1005
Plate LGE MGJ63182401 Contact Us For Availability
1011
Base LGE MAM62828901 Contact Us For Availability
1012
Guide LGE MEA62870901 Contact Us For Availability
1013
Gear LGE MDT62367501 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1016
Gear LGE MDT62367401 Contact Us For Availability
1018
Motor,DC LGE EAU62065801 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1019
PULLEY LGE 4560R-1016A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1020
Base LGE MAM62828801 Contact Us For Availability
1024
Damper LGE MCQ66909001 Contact Us For Availability
1025
Damper LGE MCQ67073001 Contact Us For Availability
1026
Tray LGE MJS62732201 Contact Us For Availability
1030
Cable,FFC LGE EAD61048203 Contact Us For Availability
1035
Cable,FFC LGE EAD36091014 Contact Us For Availability
1043
SWITCH,MICRO LGE 6600KW3004C Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1045
Cable,FFC LGE EAD62039802 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ61621901 Contact Us For Availability
1437
Screw,Customized LGE FAB30840502 Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Holder Assembly LGE AEJ73779401 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR75895701 Contact Us For Availability
A006
Motor Assembly,DC LGE EAU62123301 Contact Us For Availability
A43
Panel Assembly,Front LGE AGL74117215 Contact Us For Availability
A44
Frame Assembly LGE ADV74312751 Contact Us For Availability
A46
Option Code Assembly LGE EBR77205749 Contact Us For Availability
A50
PCB Assembly,Timer/Key LGE EBR77446703 Contact Us For Availability
BP135
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
C153
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C162
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C169
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C174
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C579
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C648
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C652
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C702
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C748
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C904
Capacitor,AL,Radial LGE 0CE4763F638 Contact Us For Availability
C906
CAPACITOR,FIXED ELEC LGE 0CE1073F638 Contact Us For Availability
CA151
Capacitor,AL,Chip LGE EAE60658901 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62226403 Contact Us For Availability
CN150
CONNECTOR (CIRC),FFC/FPC LGE 6630XE00115 Contact Us For Availability
CN701
CONNECTOR (CIRC),FFC LGE 6630XE00109 Contact Us For Availability
CN703
Connector,FFC/FPC/PIC LGE 6630X60142J Contact Us For Availability
CN704
Connector,FFC/FPC/PIC LGE 6630XE00105 Contact Us For Availability
CN901
CONNECTOR (CIRC),FFC LGE 6630R-FB10O Contact Us For Availability
D150
Diode,Rectifier LGE EAH61112901 Contact Us For Availability
D802
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D802
Diode,Switching LGE 0DD160009AB Contact Us For Availability
IC150
IC,DC,DC Converter LGE EAN61969901 Contact Us For Availability
IC151
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC153
IC,LDO Voltage Regulator LGE EAN62780901 Contact Us For Availability
IC501
IC,Video Processors LGE EAN62228904 Contact Us For Availability
IC501
IC,Video Processors LGE EAN62228903 Contact Us For Availability
IC502
IC,Voltage Detector LGE EAN61386701 Contact Us For Availability
IC602
IC,DDR3 SDRAM LGE EAN61829003 Contact Us For Availability
IC602
IC,DDR3 SDRAM LGE EAN61859502 Contact Us For Availability
IC603A
S/W,System Program LGE SAA36350119 Contact Us For Availability
IC701
IC,Motor Driver LGE EAN62351201 Contact Us For Availability
IC702
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
JK802
Connector,HDMI LGE EAG62611202 Contact Us For Availability
JK806
Jack,DC Power LGE EAG63550501 Contact Us For Availability
JK901
Connector,USB LGE 6630S70048D Contact Us For Availability
L150
Filter,Bead LGE EAM38769508 Contact Us For Availability
L151
Inductor,Wire Wound,Chip LGE EAP61747401 Contact Us For Availability
L151
Inductor,Wire Wound,Chip LGE EAP61747403 Contact Us For Availability
L153
Filter,Bead LGE EAM38769505 Contact Us For Availability
L703
Inductor,Multilayer,Chip LGE EAP39314704 Contact Us For Availability
L712
Filter,Bead LGE EAM42641607 Contact Us For Availability
LD901
LED,DIP LGE 0DLLT0320AB Contact Us For Availability
Q501
TR,Bipolar LGE 0TRON80001C Contact Us For Availability
Q501
TR,Bipolar LGE EBK61012201 Contact Us For Availability
Q901
TR,Bipolar LGE EBK61591702 Contact Us For Availability
R156
Resistor,Chip LGE 0RJ5602C678 Contact Us For Availability
R157
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R159
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R160
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R162
Resistor,Chip LGE EBC40092901 Contact Us For Availability
R166
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R167
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R168
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R169
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R170
Resistor,Chip LGE 0RJ3902C678 Contact Us For Availability
R173
Resistor,Chip LGE 0RH0221C622 Contact Us For Availability
R175
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R176
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
R180
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R181
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R185
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R518
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R520
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R524
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R526
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R529
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R532
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R547
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R550
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R601
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R703
Resistor,Chip LGE 0RH0101C622 Contact Us For Availability
R706
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R713
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R794
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R795
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R819
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R901
Resistor,Carbon Film LGE 0RD3300F609 Contact Us For Availability
R903
Resistor,Carbon Film LGE 0RD1500F609 Contact Us For Availability
RC901
Receiver Module LGE EAV61494501 Contact Us For Availability
SW902
Switch,Tact LGE 6600RRT001Q Contact Us For Availability
SW902
SWITCH,TACT LGE 556-219B Contact Us For Availability
SW902
SWITCH,TACT LGE 6600R000036 Contact Us For Availability
SW902
Switch,Tact LGE EBF40098801 Contact Us For Availability
TD802
Diode,TVS LGE EAH62055201 Contact Us For Availability
X501
Crystal LGE EAW32919201 Contact Us For Availability
X501
Crystal LGE EAW61645208 Contact Us For Availability
× ![]()
