Model Whirlpool BHDH4000AS0 DEHUMIDIFIER – Common Parts & Diagrams

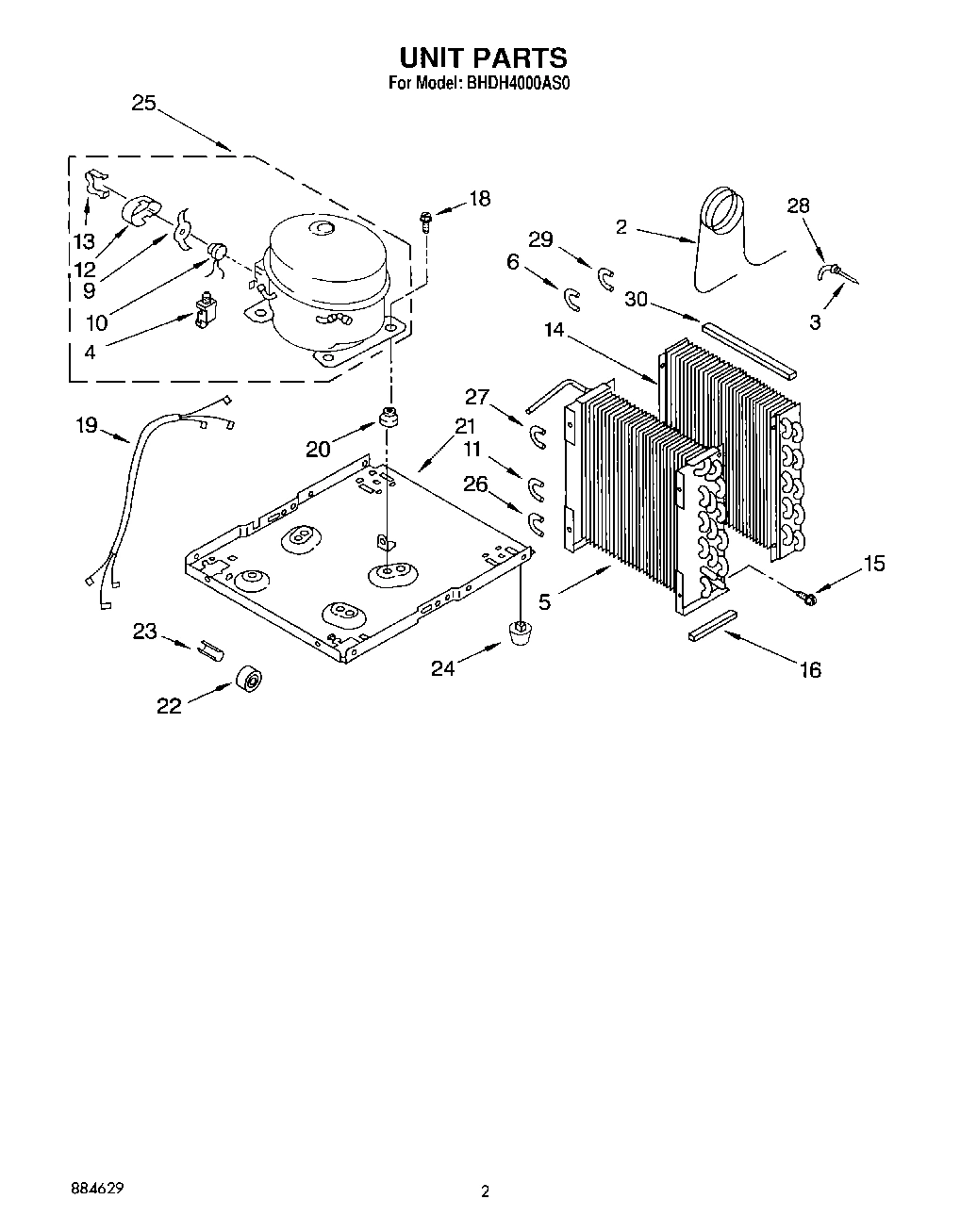

02 - UNIT, LIT/OPTIONAL

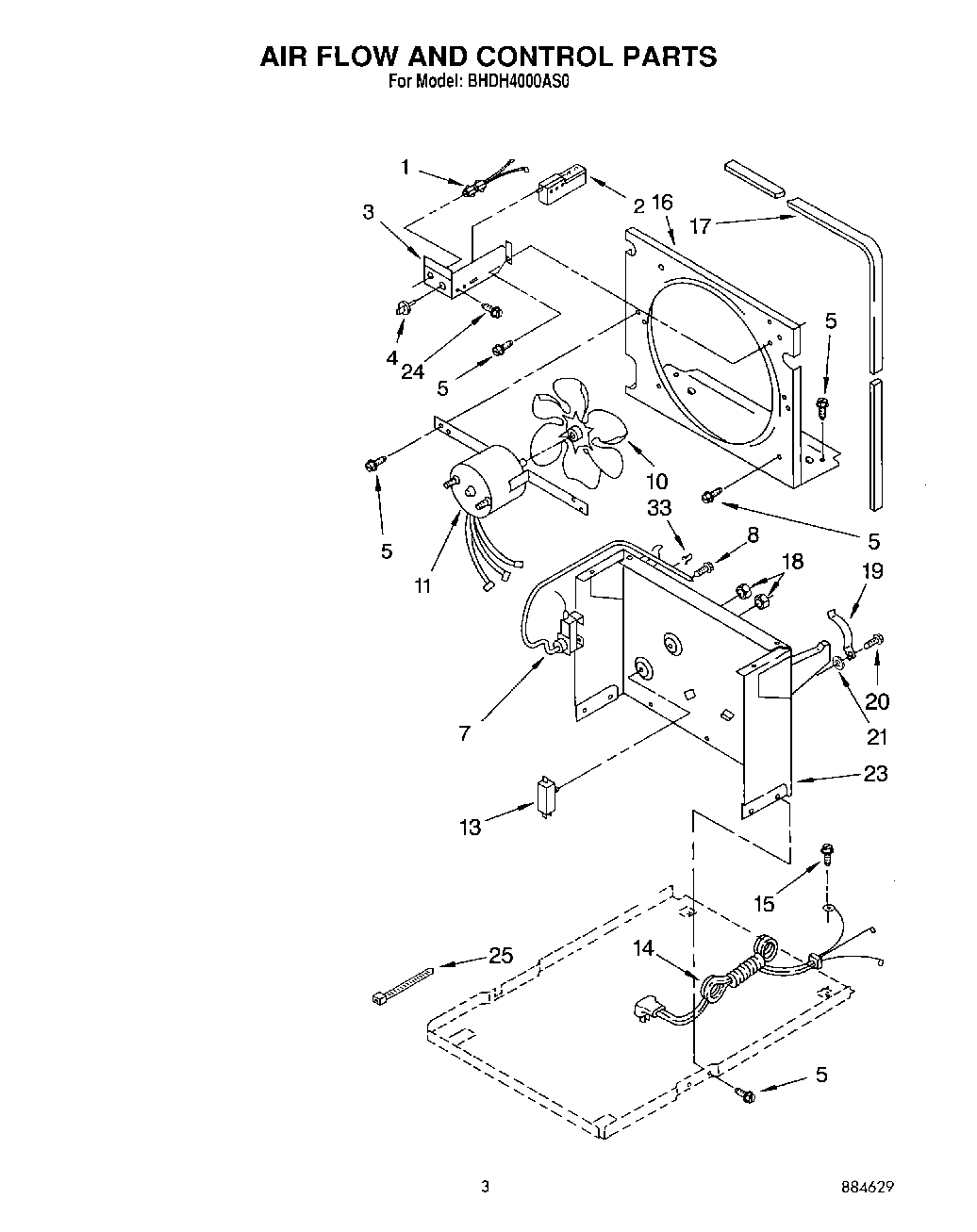

03 - AIR FLOW AND CONTROL

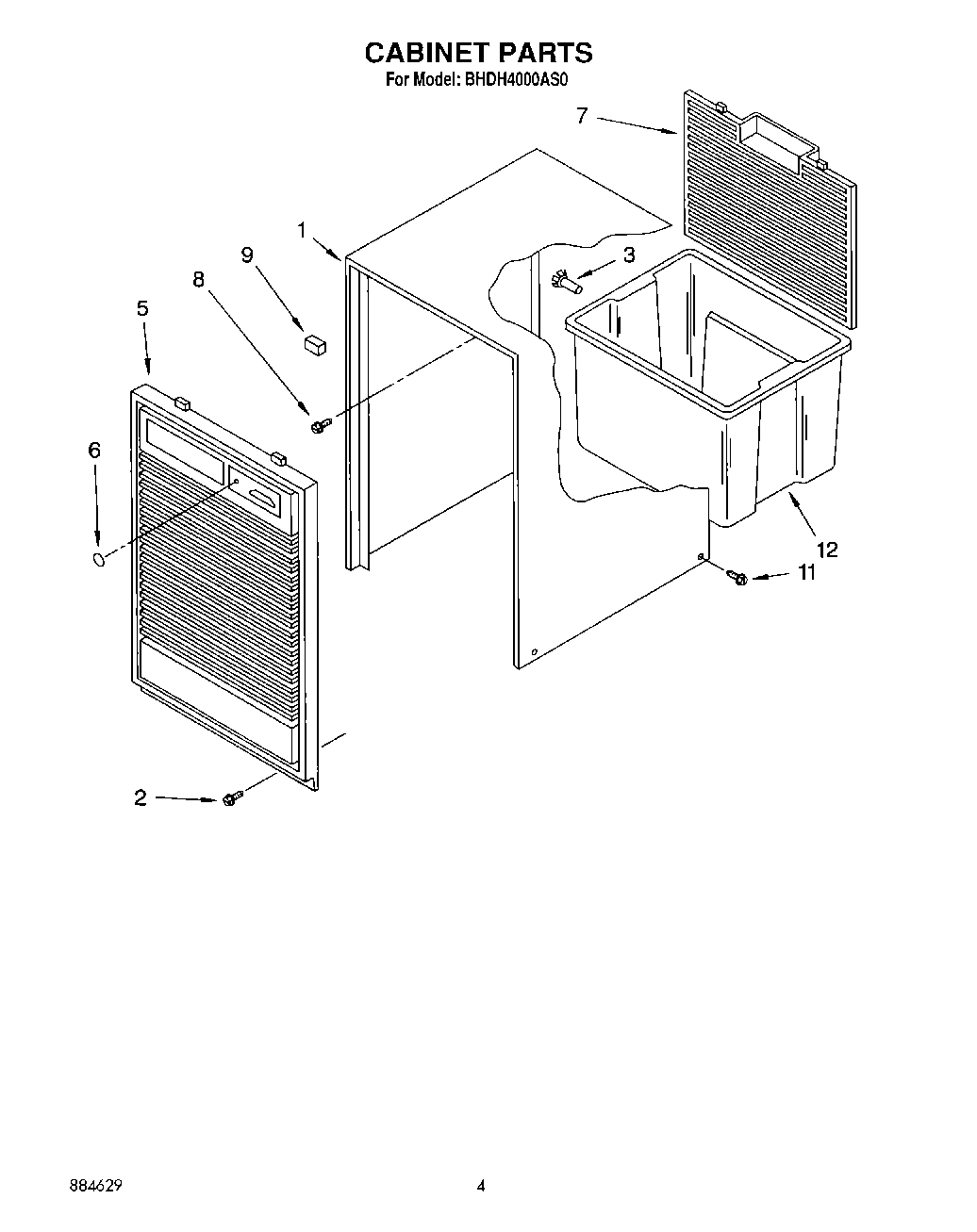

04 - CABINET
Common parts from model Whirlpool BHDH4000AS0 DEHUMIDIFIER
1
Light, Indicator WPL 1158419 Contact Us For Availability
1
Cabinet WPL 998821 Contact Us For Availability
2
Humidistat, Control WPL 1162578 Contact Us For Availability
3
Bracket, Control WPL 951284 Contact Us For Availability
3
Retainer, Pin (2) (Rear Grille) WPL 998813 Contact Us For Availability
4
Relay (Service) WPL 598215 Contact Us For Availability
4
Knob, Control (1) WPL 1162670 Contact Us For Availability
5
Screw, Sm No.8 x 3/8 WPL 488624 Contact Us For Availability
5
Grille, Front WPL 1163809 Contact Us For Availability
6
Lens, Light WPL 998846 Contact Us For Availability
7
Control, De-Icer WPL 1155109 Contact Us For Availability
7
Grille, Rear WPL 998832 Contact Us For Availability
9
Spring, Overload (Service) WPL 950061 Contact Us For Availability
9
Spacer, Grille WPL 948584 Contact Us For Availability
10
Overload (Production) WPL 1158823 Contact Us For Availability
10
Overload (Service) WPL 951312 Contact Us For Availability
10
Blade, Fan WPL 949645 Contact Us For Availability
11
Bend, Return WPL 708531 Contact Us For Availability
11
Motor, Fan WPL 1162030 Contact Us For Availability
11
Screw WPL 1158781 Contact Us For Availability
12
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
12
Tape, No Drip (30`) Valve, Access WPL 505168 Contact Us For Availability
12
Cover, Terminal (Production) WPL 1157582 Contact Us For Availability
12
Cover, Terminal (Service) WPL 950055 Contact Us For Availability
12
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
12
Cap, Condensate Pan WPL 646753 Contact Us For Availability
12
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
12
Pan, Condensate WPL 951901 Contact Us For Availability
12
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
12
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
13
Cover, Retainer (Production) WPL 938384 Contact Us For Availability
13
Cover, Retainer (Service) WPL 950056 Contact Us For Availability
13
Switch, Water Level Control WPL 999747 Contact Us For Availability
14
Evaporator WPL 1162933 Contact Us For Availability
14
Cord, Appliance WPL 1155670 Contact Us For Availability
16
Seal WPL 1162372 Contact Us For Availability
16
Plate, Orifice WPL 998779 Contact Us For Availability
17
Seal WPL 1162704 Contact Us For Availability
18
Screw, 1/4-28 x 1`` (3) WPL 488400 Contact Us For Availability
18
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
19
Harness, Wire WPL 484136 Contact Us For Availability
19
Spring, Water Level WPL 1161718 Contact Us For Availability
20
Grommet (4) WPL 1156748 Contact Us For Availability
21
Base WPL 1157584 Contact Us For Availability
21
Washer, Repair (.060 Thickness) WPL 489029 Contact Us For Availability
21
Washer, Repair (.030 Thickness) WPL 489083 Contact Us For Availability
21
Washer, Repair (.045 Thickness) WPL 489091 Contact Us For Availability
22
Roller (2) WPL 998726 Contact Us For Availability
23
Roll Pin-2.0 LG WPL 489015 Contact Us For Availability
23
Support WPL 1163800 Contact Us For Availability
24
Glide-Natural (2) WPL 951886 Contact Us For Availability
25
Compressor, (Complete Assembly) WPL 1156854 Contact Us For Availability
26
Bend, Return WPL 708532 Contact Us For Availability
27
Bend, Return WPL 855199 Contact Us For Availability
28
Bend, Return WPL 854624 Contact Us For Availability
29
Bend Return WPL 1156533 Contact Us For Availability
30
Seal, Evaporator Top WPL 1162348 Contact Us For Availability
30
Wire Assy. (2) WPL 1162377 Contact Us For Availability
30
PTC Start Device WPL 1162476 Contact Us For Availability
30
PTC Clamp WPL 1162477 Contact Us For Availability
33
Clamp, Tube To Evaporator Mtg (2) WPL 471363 Contact Us For Availability
× ![]()
