Model Whirlpool BHDH2500FS0 DEHUMIDIFIER – Common Parts & Diagrams

1
Tech Sheet
Tech Sheet WPL LIT1166032 Contact Us For Availability
View on Model
1
Wiring Diagram
Wiring Diagram WPL LIT1166033 Contact Us For Availability
View on Model
1
Use & Care Guide
Use & Care Guide WPL LIT1169993 Contact Us For Availability
View on Model
1

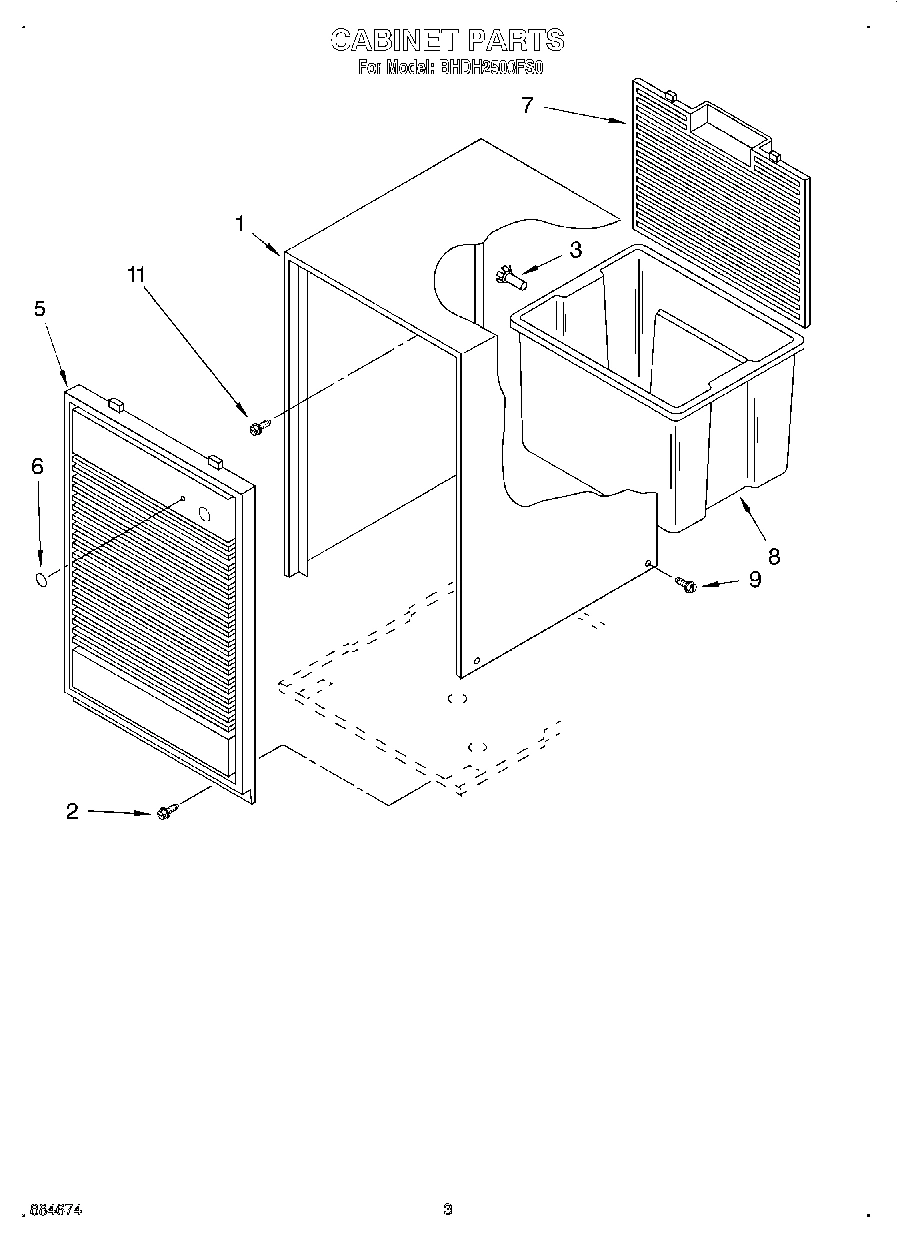

Cabinet
Cabinet WPL 1166059 Contact Us For Availability
View on Model
2
Humidistat, Control
Humidistat, Control WPL 1166055 Contact Us For Availability
View on Model
2
Tube, Restrictor
Tube, Restrictor WPL 1168191 Contact Us For Availability
View on Model
2
Screw, 8-32 x 1/2 (2)
Screw, 8-32 x 1/2 (2) WPL 1166815 Contact Us For Availability
View on Model
3
Retainer Pin (Rear Grille)
Retainer Pin (Rear Grille) WPL 998813 Contact Us For Availability
View on Model
4
Spring, Overload
Spring, Overload WPL 950061 Contact Us For Availability
View on Model
5
Seal, Evaporator Top
Seal, Evaporator Top WPL 1162348 Contact Us For Availability
View on Model
5
Grille, Front
Grille, Front WPL 1168290 Contact Us For Availability
View on Model
6
Insulation, Restrictor Tube
Insulation, Restrictor Tube WPL 1162650 Contact Us For Availability
View on Model
6
Lens, Light
Lens, Light WPL 998846 Contact Us For Availability
View on Model
7
Deicer
Deicer WPL 1166013 Contact Us For Availability
View on Model
7
Grille, Rear
Grille, Rear WPL 1166805 Contact Us For Availability
View on Model
8
Pan, Condensate
Pan, Condensate WPL 1166060 Contact Us For Availability
View on Model
9
Relief, Strain
Relief, Strain WPL 1180752 Contact Us For Availability
View on Model
9
Screw (4)
Screw (4) WPL 1166816 Contact Us For Availability
View on Model
10
Overload, Protector
Overload, Protector WPL 1164775 Contact Us For Availability
View on Model
11
5/8`` Tube O.D.
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
View on Model
11
Tape, No Drip Valve, Access
Tape, No Drip Valve, Access WPL 505168 Contact Us For Availability
View on Model
11
Relay, Start
Relay, Start WPL 950058 Contact Us For Availability
View on Model
11
epoxy, tube (aluminum repair)
epoxy, tube (aluminum repair) WPL 484310 Contact Us For Availability
View on Model
11
Lacquer, Starlight Gray (1/2 Pt. Uncut)
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
View on Model
11
Screw, No.8 x 3/8
Screw, No.8 x 3/8 WPL 488624 Contact Us For Availability
View on Model
11
Cap, Condensate Pan
Cap, Condensate Pan WPL 646753 Contact Us For Availability
View on Model
11
1/2`` Tube O.D.
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
View on Model
11
Seal, Ring (Access Valve) (20 - Pack)
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
View on Model
12
Cover, Terminal
Cover, Terminal WPL 950055 Contact Us For Availability
View on Model
13
Retainer, Cover
Retainer, Cover WPL 950056 Contact Us For Availability
View on Model
14
Evaporator
Evaporator WPL 1168184 Contact Us For Availability
View on Model
15
Cord, Appliance
Cord, Appliance WPL 1164784 Contact Us For Availability
View on Model
16
Plate, Orifice
Plate, Orifice WPL 1166838 Contact Us For Availability
View on Model
16
Seal
Seal WPL 1162372 Contact Us For Availability
View on Model
17
Seal
Seal WPL 1162704 Contact Us For Availability
View on Model
17
Condenser
Condenser WPL 1167544 Contact Us For Availability
View on Model
18
Palnut, 3/8-32
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
View on Model
18
Bolt, 1/4-28 x 1`` (4)
Bolt, 1/4-28 x 1`` (4) WPL 1166034 Contact Us For Availability
View on Model
19
Spring, Water Level
Spring, Water Level WPL 1161718 Contact Us For Availability
View on Model
19
Harness, Wire
Harness, Wire WPL 1165265 Contact Us For Availability
View on Model
21
Washer, Repair (.062 Thickness)
Washer, Repair (.062 Thickness) WPL 1168324 Contact Us For Availability
View on Model
21
Washer, Repair (.045 Thickness)
Washer, Repair (.045 Thickness) WPL 489083 Contact Us For Availability
View on Model
21
Base
Base WPL 1157584 Contact Us For Availability
View on Model
22
Roller (2)
Roller (2) WPL 998726 Contact Us For Availability
View on Model
23
Support
Support WPL 1163800 Contact Us For Availability
View on Model
24
Screw
Screw WPL 1159222 Contact Us For Availability
View on Model
24
Pin, Roller (2)
Pin, Roller (2) WPL 489015 Contact Us For Availability
View on Model
25
Compressor (Complete Assembly)
Compressor (Complete Assembly) WPL 1164773 Contact Us For Availability
View on Model
26
Bend, Return (1)
Bend, Return (1) WPL 854624 Contact Us For Availability
View on Model
27
Bend, Return (8)
Bend, Return (8) WPL 855199 Contact Us For Availability
View on Model
28
Glide (2)
Glide (2) WPL 951886 Contact Us For Availability
View on Model
30
Bend, Return (10)
Bend, Return (10) WPL 708531 Contact Us For Availability
View on Model
31
Bend, Return (4)
Bend, Return (4) WPL 708532 Contact Us For Availability
View on Model
